8" Gas Concrete Scarifier Planer Grinder with 5.5 HP Honda Engine Blade Bundle
Share
Coatings, traffic lines, slab lips, and high spots do not come off politely. They take a scarifier built for concrete surface removal, with enough bite to profile the slab without turning every project into hand-tool punishment. At Concrete Tools Direct, we look at the 8 gas concrete scarifier planer grinder with 5.5 hp honda engine blade bundle as a compact gas scarifier package for crews that need controlled removal, not fine polishing.
The short answer: choose the blade-bundle configuration when your order needs the TSCAR8H machine packaged as TSCAR-8H + TSCAR6TCC + TSCAR6TCC. It is a light-duty, professional-skill, gas-powered 8-inch scarifier rated for 1/8 in cutting depth per pass, 5.5 HP (4.0 kW) power, and a published 350–500 sq. ft. per hour working-width range. That puts it in the lane for sidewalk trip hazard repair, leveling uneven concrete slabs, traffic line removal on concrete, removing epoxy or paint from concrete floors, surface prep for new coatings, profiling concrete for overlays, driveway surface prep, warehouse floor surface prep, and milling concrete surfaces.
Key Takeaways
- This TSCAR8H blade-bundle setup is for light-duty professional concrete surface removal where an 8-inch working width fits the job.
- The verified blade-bundle configuration is TSCAR-8H + TSCAR6TCC + TSCAR6TCC. Confirm that code before the machine leaves the shop.
- Plan removal in controlled passes around the verified 1/8 in cutting depth per pass, not one aggressive bite.
- The Honda GX160 gas engine gives the machine 5.5 HP (4.0 kW), useful where corded power would slow your crew down or complicate access.
- Choose the alternate drum setup only if that package better matches the work you are pricing or staging.
- For category background, our guide to what a concrete scarifier is explains where scarifiers fit in slab prep.
What It Is

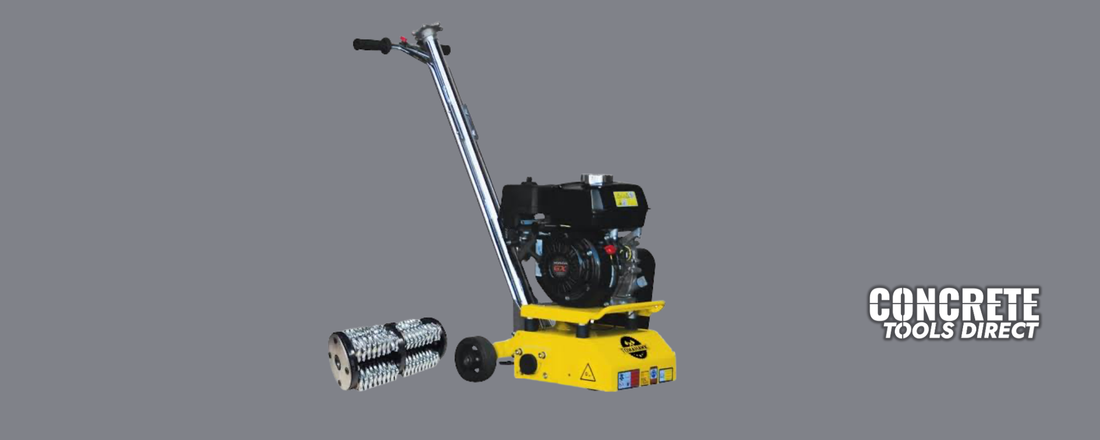

This is an 8-inch, gas-powered concrete scarifier for controlled surface removal. In plain terms, it is the machine you use when the slab needs to be cut down, opened up, or cleaned off before the next step can happen. That can mean removing traffic lines, taking epoxy or paint off a floor, profiling for overlays, prepping a driveway, working a warehouse floor, or knocking down uneven slab areas within the machine’s light-duty rating.
The important detail is the package. This page is for the blade-bundle setup, which means the order is built around the TSCAR8H machine and its listed blade-bundle configuration. That matters because similar scarifier listings can share the same base platform while being sold with different cutting packages.
It is not a walk-behind concrete grinder for fine finishing, and it is not a heavy production milling machine. It fits the prep and correction stage, where your crew needs repeatable removal before coatings, overlays, repairs, or layout work can move forward.
How It Works
The working end of the machine is the rotating surface-removal assembly. The gas engine drives that assembly across an 8-inch working width, and the tooling removes material as you move the machine across the slab. The verified cutting depth is 1/8 in per pass.
That pass depth is worth respecting. It does not mean every slab should be attacked at the deepest setting right away. Coating thickness, concrete hardness, tooling condition, surface contamination, and feed speed all change the result. For coating removal, traffic line removal, high-spot correction, or overlay prep, cleaner work usually comes from controlled passes instead of trying to make one ugly bite do the whole project.
The 5.5 hp Honda engine matters because a scarifier puts steady load on the powertrain while the cutting assembly is working against concrete. The verified engine on this platform is the Honda GX160, rated at 5.5 HP (4.0 kW), which keeps the machine in the gas-powered lane for crews that need mobility and do not want the job planned around available electrical service.
When To Use It
Use this blade-bundle setup when your crew needs a compact gas scarifier for concrete surface removal and the cutting package is part of the purchase requirement. It is a practical match for sidewalk trip hazard repair, leveling uneven concrete slabs, traffic line removal on concrete, removing epoxy or paint from concrete floors, surface prep for new coatings, profiling concrete for overlays, driveway surface prep, warehouse floor surface prep, and milling concrete surfaces.
| Project | Why It Fits | Watch |
|---|---|---|
| Trip hazard repair | The 8-inch width and 1/8 in per pass rating support localized removal. | Use multiple passes for better control instead of digging beside the high spot. |
| Epoxy, paint, or line removal | Scarifying action is suited to removing material from the concrete surface. | Heavy buildup can slow production and change the number of passes. |
| Overlay or coating prep | The machine can open and profile the slab before the next system goes down. | Match the profile to the coating or overlay manufacturer’s requirement. |
| Warehouse or driveway prep | Gas power and compact width help on mobile surface-prep work. | Plan access, dust control, debris handling, and cleanup before cutting starts. |
If you are still sorting the broader use case, our page on scarifier applications for concrete is the better place to compare surface-prep scenarios before you commit to a configuration.
Types Or Options
The main choice is not whether the machine can scarify. It is which package matches how you intend to use it. The blade-bundle version is the one to pick when that exact bundle configuration is the purchase requirement. The alternate drum setup belongs in the conversation only when the standard drum package better matches your work plan.
| Option | Best For | Decision Note |
|---|---|---|
| Blade bundle version | Crews confirming the listed TSCAR8H blade-bundle configuration before ordering. | Choose it when the cutting bundle is part of the order plan. |
| Drum version | Standard 8-inch scarifier work where that setup fits the project. | Compare it only if you do not need the blade-bundle package. |
Same platform family, different package. That sounds simple because it is. It only gets expensive when nobody checks the configuration until the wrong setup is sitting in the shop.
Specs Or Features Explained
The useful specs on this scarifier are the ones that affect pass planning, crew time, access, and whether the machine is in the right duty class. The blade-bundle setup is not a heavy production milling rig. It is a light-duty professional scarifier for controlled concrete surface removal.
| Spec | Verified Rating | What It Means On Concrete |
|---|---|---|
| Engine | Honda GX160 | The powerplant is a verified Honda engine, which matters on a scarifier because the engine is working under repeated cutting load, not just rolling a machine across flat concrete. |
| Power | 5.5 HP (4.0 kW), gas | Useful where electrical access is poor or cords would slow the crew down. |
| Working width | 8 in; 350–500 sq. ft. per hour published range | Good for focused prep, patch areas, trip hazards, line removal, and smaller slab sections. |
| Cutting depth | 1/8 in per pass | Plan removal in passes. Do not treat the rating as permission to hog out every slab at once. |
| Weight | 135 lbs | Plan loading, unloading, and movement around the job before the crew is already on the clock. |
| Duty and skill rating | Light duty; professional skill level | Built for professional prep work within its rating, not heavy production milling. |
| Warranty | 1 Year | Use the product documentation for full warranty terms. |
The published 350–500 sq. ft. per hour figure is useful for rough planning, but it is not a promise for every slab. Concrete hardness, coating type, removal depth, tooling condition, cleanup, and operator consistency all affect production. On coating-removal jobs, have the crew test one short pass first; the coating stack and slab hardness will tell you more than the published production range.
Selection Guidance
Start with the surface condition, then choose the package. If the project is traffic line removal, coating removal, overlay profiling, sidewalk trip hazard repair, or high-spot correction, this machine class is in the conversation. If the work calls for broad heavy milling or fine polishing, keep looking. A scarifier and a grinder do different work, and pretending otherwise burns labor.
| What You Need To Do | Better Direction | Reason |
|---|---|---|
| Confirm the listed cutting bundle before ordering | Blade bundle | The order depends on the blade-bundle configuration being correct. |
| Run standard 8-inch scarifier work without the blade bundle | the drum version of this 8-inch Honda scarifier | Cleaner choice when the standard drum setup matches the job. |
| Remove large amounts of concrete in production | Different class of equipment | The verified duty rating here is light. |
| Produce a fine finished floor | Concrete grinder or polishing equipment | Scarifying profiles and removes; it is not a polishing step. |
Also think about what your crew needs around the machine: fuel, access, ventilation planning, dust or debris containment, pass layout, and cleanup. The scarifier is only one part of the workflow. The slab does not care that the machine showed up on time.
Application Guidance
Treat this scarifier as a controlled-removal tool. The 8-inch working width is useful for focused prep, patch areas, trip hazards, line removal, and smaller floor sections. The 1/8 in per pass rating helps you plan the work in layers. That matters on concrete because the finish requirement after scarifying may be just as important as how fast the old material comes off.
For coating removal, test a small area first and watch how the coating breaks. Thick paint, epoxy, or multiple coating layers can change pass count fast. For trip hazards and slab leveling, work evenly and avoid cutting a low trough beside the high spot. For overlay prep, match the profile to the overlay system requirements rather than assuming “rough enough” is good enough.
Gas power helps when the slab is outdoors, spread across a site, or away from convenient power. It also means you need to plan ventilation, fuel handling, and safe operation around the actual jobsite. General article guidance does not replace the manufacturer’s instructions or a site-specific safety plan.
Compatibility Notes
Match everything by the TSCAR8H platform and the exact configuration shown on the order. The blade-bundle package and the drum package are separate setups, even though the names are close enough to trip up a busy shop. Before the machine leaves the shop, match the order confirmation to the TSCAR8H bundle code so the crew does not discover the wrong setup at the slab.
Do not assume dust-collection parts, wet-cutting equipment, extra tooling, or other accessories are included unless they are listed on the product page or confirmed in the product documentation. If your job involves coating waste, indoor work, or occupied-site cleanup standards, plan containment separately instead of treating the scarifier as the whole surface-prep system.
For replacement parts for TSCAR8H, match the engine switch, bearing, pulley belt, and other wear items by model before ordering. Similar-looking scarifier parts are not a safe substitute for confirmed model-specific parts.
Common Mistakes
Most wrong turns happen before the machine touches concrete. The big one is ordering the wrong package because the product names look similar. The next one is expecting a light-duty scarifier to behave like a heavy milling rig. That usually ends with slow progress, rough control, and an operator who is not having a fine morning.
| Mistake | Why It Hurts | Better Move |
|---|---|---|
| Choosing by title only | Similar names can hide different configurations. | Confirm the model and bundle code before ordering. |
| Forcing one deep pass | The verified cutting depth is 1/8 in per pass. | Use controlled passes and check the surface often. |
| Assuming the production range applies to every slab | Coating thickness, concrete hardness, and cleanup can change output quickly. | Use the published range for planning, then adjust after a test pass. |
| Assuming generic parts fit | Wrong service parts can stop the machine cold. | Match replacements to the TSCAR8H platform. |
| Skipping containment planning | Scarifying creates dust, debris, or coating waste depending on the slab. | Plan cleanup and controls before cutting starts. |
Product Recommendations
For this page, the lead product is 8" Gas Concrete Scarifier Planer Grinder with 5.5 HP Honda Engine Blade Bundle (SKU TSCAR-8H + TSCAR6TCC + TSCAR6TCC). Choose it when your crew needs the blade-bundle configuration confirmed for sidewalk trip hazard repair, leveling uneven concrete slabs, traffic line removal on concrete, removing epoxy or paint from concrete floors, surface prep for new concrete coatings, profiling concrete for overlays, driveway surface prep, warehouse floor surface prep, or milling concrete surfaces. Verified specs include the Honda GX160 engine, 5.5 HP (4.0 kW) gas power, 8 in working width, 1/8 in cutting depth per pass, 135 lb weight, light-duty rating, professional skill level, a published 350–500 sq. ft. per hour working-width range, and a 1 Year warranty.
If your work plan does not require the blade bundle, compare the alternate 8" Gas Concrete Scarifier Planer Grinder with 5.5 HP Honda Engine & Drum (SKU TSCAR-8H + TSCAR6TCC). It fits the same general class of work—removing traffic lines from concrete, leveling uneven slabs, sidewalk trip hazard removal, prepping floors for coatings, removing old coatings, prepping overlays, grinding down high spots, and warehouse or driveway surface prep—but the package configuration is different.
Related Accessories Or Consumables
Once the scarifier is earning its spot on the truck, downtime planning matters. On a TSCAR8H, service items should be matched by model instead of guessed from a similar-looking machine. That is especially true when the crew is in the middle of floor prep, coating removal, line removal, high-spot grinding, or trip hazard work and the machine needs to get back on concrete.
The parts worth knowing are the Engine Switch for TSCAR8H Concrete Scarifier, the Bearing for TSCAR8H Concrete Scarifier, and the Pulley Belt for TSCAR-8H Concrete Scarifier. These are replacement parts, not primary equipment recommendations, but they are practical items to consider when you are building a maintenance shelf for a small crew.
Related Articles
For the category basics, start with what a concrete scarifier is. For project matching, read scarifier applications for concrete. If you are still deciding between package configurations, compare this page with the drum version of this 8-inch Honda scarifier. Those three pages give you the working context before you decide which TSCAR8H setup belongs in your lineup.
Faqs
What does the blade-bundle scarifier do?
It removes and profiles concrete surfaces for work such as sidewalk trip hazard repair, leveling uneven slabs, traffic line removal, epoxy or paint removal, surface prep for coatings, and profiling for overlays. It is a light-duty professional scarifier, not a heavy demolition machine.
What is the verified blade-bundle configuration?
The verified configuration is TSCAR-8H + TSCAR6TCC + TSCAR6TCC. Use that code when you are checking the order against your project requirements.
How is the blade bundle different from the drum version?
They are different TSCAR8H package configurations. The drum version is the standard drum setup, while the blade-bundle version is the specific bundle covered here. The difference matters because the order contents need to match the work.
Is this scarifier enough for contractor use?
For the listed light-duty, professional applications, yes, it fits contractor-style prep work such as coating removal, surface profiling, and trip-hazard correction. If your work is heavy production milling or fine polishing, look at a different equipment class.
What parts should I track for maintenance?
For TSCAR8H maintenance, keep model-specific parts in mind, including the engine switch, bearing, and pulley belt. Match parts to the TSCAR8H platform instead of assuming a generic part will fit.
Is this blade-bundle setup the same as the drum version?
No. They share the same general 8-inch gas scarifier platform, but they are separate configurations. If your crew needs the blade bundle, order that package. If the drum setup fits better, choose the drum version instead.
Next Steps
Lock down the configuration before you buy. If your work calls for the listed bundle, order 8" Gas Concrete Scarifier Planer Grinder with 5.5 HP Honda Engine Blade Bundle from Concrete Tools Direct and verify the TSCAR-8H + TSCAR6TCC + TSCAR6TCC code against your order. If your crew is still weighing the standard drum setup, compare it against 8" Gas Concrete Scarifier Planer Grinder with 5.5 HP Honda Engine & Drum before the machine lands on the truck. If you need help sorting the right setup, send us the slab condition, coating or removal target, access limits, dust-control plan, and whether you are prepping for coatings, overlays, trip-hazard repair, or general surface removal.
