Shot Blasting Application Areas for Concrete Jobs
Share
The main shot blasting application areas are concrete surfaces that need to be cleaned, opened, or profiled before another system goes down. For your crew, the useful question is not whether shot blasting works on concrete. It is where it works well enough to save time, where it creates extra detail work, and when another prep method belongs in the plan.
Concrete shot blasters are surface-preparation machines used mostly on concrete floors, slabs, decks, ramps, walkways, and other flat concrete areas where bond, texture, coating removal, or line removal matters. They are common on commercial floor prep, industrial slab work, parking garage decks, bridge decks, pavement prep, and warehouse floors. They are much less natural on walls, block, tight corners, small rooms, and chopped-up areas unless the right supporting equipment is planned.
At Concrete Tools Direct, we look at shot blasting by surface and outcome first. Start with the coating system, overlay, membrane, repair material, or texture requirement. Then look at access, dust collection, power or fuel, crew skill, and edge work. The machine comes after that. Otherwise you end up with a blaster that looks good on paper and fights you all day on the slab.
Where Shot Blasting Makes The Most Sense On Concrete Jobs
Shot blasting makes the most sense on flat concrete that needs a controlled mechanical profile before coatings, overlays, resurfacing, waterproofing, line removal, or repair work. Floors, slabs, warehouse aisles, parking decks, bridge decks, pavements, walkways, and ramps are the core fit when the machine has a clean travel path and matched dust collection. Vertical surfaces, inside corners, tight perimeters, basement access, and small detail patches may still need preparation, but they should be treated as separate equipment decisions instead of assuming the main walk-behind machine will handle everything.
Key Takeaways
- Shot blasting is primarily a concrete surface-prep method for floors, slabs, decks, pavements, ramps, and other flat areas.
- It is used for coating prep, sealer and paint removal, overlay profiling, waterproofing prep, line removal, deck cleaning, and texture work.
- Garage floors and basement floors can be candidates, but access, ventilation, containment, stairs, and hose routing matter more than the room name.
- Bridge decks, road surfaces, and parkade decks usually require heavier production planning than interior slab prep.
- Edges, drains, joints, columns, thresholds, and wall lines should be estimated as detail work before you choose the main machine size.
What It Is
A shot blaster is a mechanical surface-prep machine that throws abrasive media at concrete to remove weak surface material, coatings, paint, sealers, markings, laitance, or contamination the machine is suited to remove. On concrete jobs, the point is usually to leave a cleaner, more textured surface before epoxy, urethane, an overlay, a topping, waterproofing, self-leveling underlayment, resurfacing, or repair material goes down.
For a shot blasting concrete floor job, start with the coating system, profile requirement, and open travel path. The floor may look like one big slab on the bid walk, but the machine sees columns, floor drains, door thresholds, rack bases, trench covers, joints, and walls. Those details decide how much work the walk-behind unit can actually cover before your crew switches to edge tools or another prep method.
Shot blasting concrete slab areas works best when the slab is open enough for consistent passes and matched dust collection. That includes a lot of commercial and industrial work: warehouses, production floors, retail slabs, parking decks, walkways, ramps, and other concrete surfaces where repeatable prep matters. It is not the same as polishing, and it is not a cure for unsound concrete. If the substrate is weak, contaminated below the surface, cracked, delaminated, or otherwise outside the prep spec, blasting alone does not fix that.
How It Works

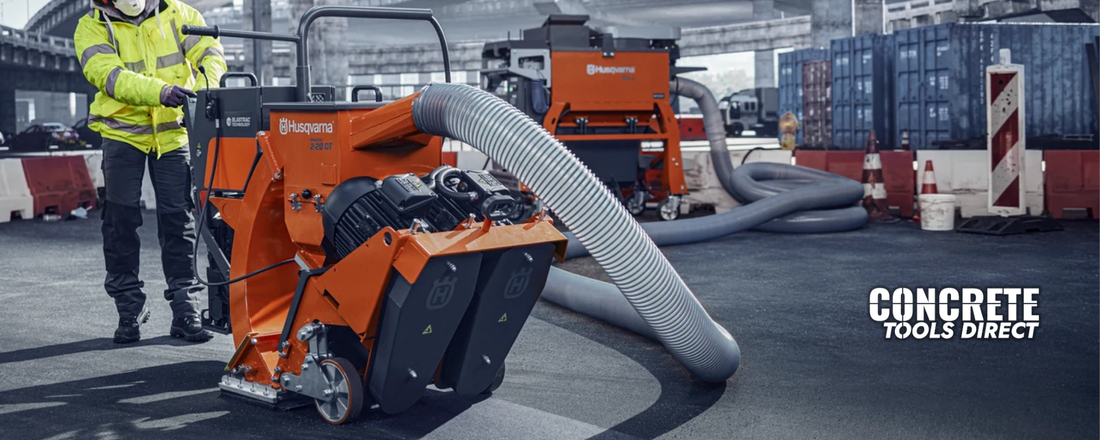

A walk-behind shot blaster propels abrasive media onto the concrete surface. The impact loosens material at the surface, and the machine recovers media and debris while a dust collector connects through the dust hose port. That closed-loop action is why shot blasting can be productive on large concrete areas compared with slow, piecemeal prep methods.
The pass pattern matters. If the operator moves too fast, the surface may not clean or profile evenly. If the machine is poorly matched to the coating thickness, concrete hardness, or required finish, the crew may end up making extra passes or chasing stripes. Dust collection also affects workflow. A blaster that cannot move because the dust setup is wrong is just a heavy cart with ambition.
The same working principle explains the limits. The machine wants stable contact, a predictable path, and enough room to turn. Flat concrete gives it that. Wall faces, block, inside corners, drain bowls, stair landings, and tight mechanical rooms do not always cooperate.
When To Use It
Use shot blasting when the next system needs mechanical bond, surface cleaning, texture, or coating removal on concrete. It is a strong fit before epoxy and urethane coatings, overlays and toppings, self-leveling underlayment, waterproofing membranes, resurfacing, and certain repair systems. It also fits traffic marking removal, parking deck cleaning, non-slip texture work on walkways and ramps, and warehouse floor preparation.
Garage floors are often straightforward if the machine can get in, the dust setup has room, and the slab is open enough to move. Shot blasting basement floor areas can work, but stairs, ventilation, hose routing, and dust containment often decide whether it is practical. A compact machine may help with access, but compact does not automatically mean basement-safe or tight-area-ready. You still have to confirm the route in, the power, the dust collection, and the air-handling plan.
| Application Area | Good Uses | What To Check First |
|---|---|---|
| Commercial and industrial floors | Epoxy prep, urethane prep, coating removal, overlay profiling, underlayment prep | Open lanes, slab hardness, coating thickness, power, and dust collection |
| Garage and basement floors | Coating prep, sealer removal, small slab profiling | Access, stairs, ventilation, containment, and edge work |
| Parking decks and parkades | Waterproofing prep, line removal, deck cleaning, texture work | Production rate, deck layout, drains, joints, and crew movement |
| Bridge decks, pavements, and roads | Overlay prep, membrane prep, line removal, surface cleaning before repairs | Machine class, area control, power or fuel planning, dust containment, and support equipment |
| Walls, block, and tight corners | Secondary or specialty use only | Confirm the correct equipment rather than forcing a floor machine onto the work |
If your next decision is floor-specific, our shot blasting floor prep guide goes deeper on slab workflow and preparation targets.
Types Or Options
The practical split is compact, mid-size, and industrial. Compact machines belong where maneuverability, transport, and tighter access matter. Mid-size machines fit a lot of commercial floor, slab, parking deck, and warehouse prep. Industrial machines are for open production work where the square footage, schedule, and crew skill justify the added size and support needs.
| Machine Class | Best Fit | Where It Can Become The Wrong Tool |
|---|---|---|
| Compact | Smaller floor sections, tighter commercial rooms, lighter coating removal, line stripe removal, walkways | Large bridge decks, major warehouse production, or heavy coating removal where output is the bottleneck |
| Mid-size | Commercial slabs, industrial floors, parking garage decks, overlay prep, coating prep, deck cleaning | Very tight rooms, poor access, or sites that cannot support the dust and power setup |
| Industrial | Large warehouse floors, bridge decks, pavements, roads, parkades, heavy production prep | Small rooms, chopped-up slabs, weak access routes, or crews not set up for expert-level operation |
A simple rule of thumb: use compact when access and maneuverability are the fight, use mid-size when your crew has regular commercial floor and deck prep, and use industrial when the job is open enough that production rate matters more than setup burden. If the slab has drains, columns, door thresholds, or tight wall lines, estimate the edge and detail work before upsizing the main machine.
Specs Or Features Explained
The specs that matter in the field are output power, power source, phase, dust hose connection, physical size, weight, duty rating, and skill level. None of those numbers guarantees a finished surface. They tell you whether the machine belongs on a tight floor, a commercial slab, a parking deck, or infrastructure work, and whether your crew can support it without turning setup into the whole job.
Dust hose connection is one of the first compatibility checks. On CTD support calls, access and dust-hose matching cause more bad shot blaster choices than blast width alone. Power and phase sit in the same bucket. A machine may be right for the surface but wrong for the building, generator plan, or deck access. Check those requirements before the equipment is loaded, not after the crew is standing around looking at the plug.
| Spec Or Feature | Why It Matters | Field Decision It Affects |
|---|---|---|
| Output power | Helps indicate the machine class and production intent | Small floor prep versus large deck or warehouse production |
| Dust hose connection | Must match the dust collection setup | Dust control, cleanup, hose routing, and crew pace |
| Power source and phase | Determines whether the site can support the machine | Building power, generator planning, propane planning, and setup time |
| Weight and dimensions | Affect transport, loading, deck access, elevators, ramps, and staging | Whether the machine can physically reach the work area |
| Duty rating and skill level | Indicate the operating environment the machine is aimed at | Crew assignment, operator training, and job complexity |
Selection Guidance
Choose by the work your crew actually repeats. If most of your jobs are commercial floors, warehouse slabs, coating removal, overlay profiling, underlayment prep, parking decks, and ramp or walkway texture, start in the mid-size lane. That gives you a useful balance between production and jobsite practicality without jumping straight into industrial support requirements.
If your work is mostly garages, smaller rooms, tenant spaces, or access-restricted slabs, compact equipment may be the better business move. It may not win a square-foot race on an open deck, but it can save labor when the job is chopped up by walls, columns, doorways, and tight turns. The smallest useful machine is often faster than a larger one you spend the day wrestling.
For bridge decks, roads, large pavements, warehouses, and parkades, the decision changes. Shot blasting bridge decks usually requires heavier-duty production planning than interior slab prep. Your crew has to account for production rate, traffic or area control, power or fuel supply, dust containment, staging, pass consistency, and heavier support equipment. For Canadian parkade work, shot blasting parkade decks is commonly evaluated for waterproofing prep, line removal, and deck cleaning.
If you need the broader equipment view before narrowing the model list, start with our concrete shot blaster category guide.
Application Guidance
Good application planning starts with the finish requirement. If the next system needs bond, you are not just cleaning concrete. You are preparing a profile for the coating, overlay, membrane, underlayment, resurfacing system, or repair material. That is why shot blasting can belong on epoxy prep, urethane prep, traffic marking removal, parking garage deck cleaning, bridge deck resurfacing prep, and warehouse floor preparation, while still being the wrong choice for a wall face or tight pipe room.
Edge work deserves its own line in the plan. Perimeters, drains, joints, control cuts, column bases, trench edges, door thresholds, ramps, transitions, and wall lines often need edge blasting, grinding, hand tools, or another detail method after the main passes. If the bid only counts the open field area, your crew may lose the margin on the cut-ins. The main blaster handles production; detail tools clean up the places it cannot reach cleanly.
Exterior concrete is a secondary but real application area. Pavement, sidewalks, ramps, walkways, bridge decks, parking decks, and roads can all be candidates when the goal is coating removal, line removal, texture, cleaning, or profile before repairs. Shot blasting concrete driveway surfaces may be possible for coating removal or texture, but residential access, cleanup, and aggregate exposure need to be checked first. Shot blasting pavers is a specialty decision because individual units can shift, chip, or expose aggregate unevenly.
Soft or lightweight materials need more caution than standard structural concrete. Shot blasting screed needs a careful hardness check because softer materials can be damaged quickly. Shot blasting gypcrete is not a default recommendation; confirm the material, thickness, and manufacturer prep requirements before using aggressive mechanical prep. Shot blasting lightweight concrete requires lower-risk testing because the surface may break down faster than standard structural concrete.
Use this page as an application map, not an operating procedure. For pass planning, surface checks, cleanup, and workflow, read our how to shot blast concrete guide before putting a machine on the slab. For a broader prep-method discussion, see shot blasting surface preparation.
Compatibility Notes
Compatibility starts with the concrete and ends with the support setup. A shot blaster that fits the square footage can still be wrong if the dust collection, hose size, power, fuel, ventilation, access route, or edge plan does not line up. Check the machine’s listed dust hose connection before matching collection equipment. Check frequency and phase before assuming site power is ready. Check the route from the truck to the slab before the crew loses half a day fighting stairs, ramps, narrow doors, or elevator limits.
Walls, block, and exterior vertical surfaces need separate judgment. Shot blasting concrete walls is not normally a walk-behind floor-machine application; treat it as a separate equipment question. Concrete block can vary in hardness, face texture, and stability, so do not assume a floor blaster is the right prep method. If a wall, block face, curb, riser, or vertical transition is in the scope, confirm the proper tool and surface requirement before bidding it as standard floor production.
Do not assume every machine fits every one of the shot blasting application areas on this page. A compact mains-powered machine with a smaller hose connection sits in a different lane than an industrial machine with larger support needs and expert-level operation. That does not make one better across the board. It makes each one better for a different job.
Common Mistakes
The common mistakes all come from skipping the jobsite check and buying on one number. Blast width, horsepower, or machine weight might catch your eye, but they do not tell the whole story. The right shot blaster is the one your crew can get to the surface, power correctly, connect to dust collection, run in a clean pass pattern, and support through the detail work.
| Mistake | Why It Hurts | Better Move |
|---|---|---|
| Choosing too much machine | Setup, turning, access, transport, and support equipment eat the production gain. | Step up only when the surface is open enough and the schedule justifies it. |
| Ignoring dust collection | Dust control becomes the bottleneck, cleanup gets ugly, and the machine cannot stay productive. | Match the listed dust hose connection and collection setup before mobilizing. |
| Skipping power or fuel planning | The machine may not match site power, phase, generator capacity, or fuel requirements. | Confirm power source, frequency, phase, and fuel logistics early. |
| Bidding edges like open floor | Perimeters, drains, joints, columns, thresholds, and transitions take separate labor. | Estimate detail work as its own step and bring the right supporting tools. |
| Forcing floor equipment onto walls or block | Vertical and irregular surfaces do not prep like a flat slab. | Treat vertical concrete and block as separate equipment questions. |
For more on applying the method specifically to concrete surfaces, see our guide to shot blasting concrete.
Product Recommendations
Once the application area is clear, the machine choice gets a lot less mysterious. Below are CTD options for new shot blasting equipment, tied to the work they are best positioned to handle. We are not listing rentals, used machines, or repair services here.
| CTD Option | Best-Fit Application Area | Verified Specs To Check |
|---|---|---|
|
Husqvarna Blastrac 1-10DPS75 | Shot Blaster SKU 970690801 |
Featured choice for common concrete floor and deck prep: epoxy or urethane coating prep, old coating, paint, and sealer removal from slabs, overlay and resurfacing profile, bridge deck membrane or overlay prep, parking garage deck cleaning and texturing, traffic line removal, walkway and ramp texture, warehouse and industrial floor prep, and prep before self-leveling underlayment. | 10.6 hp output, 60 Hz frequency, 3 in dust hose connection, 509.268 lb article gross weight, packaging length 33.465 in, packaging height 57.874 in. |
|
Husqvarna Blastrac 1-8DM | Shot Blaster SKU 970691601 |
Compact supporting option for smaller concrete floor prep, paint and coating removal from slabs, line stripe removal on concrete and asphalt, walkway profiling, warehouse floor prep, parking garage deck prep, and select bridge or steel deck preparation where access and support setup fit. | 2 hp output, 60 Hz frequency, mains power, 2 in dust hose connection, medium duty rating, professional skill level, 266.759 lb article gross weight. |
|
Husqvarna Blastrac 1-10DS | Shot Blaster SKU 970691101 |
Three-phase corded supporting option for commercial floor prep, paint and thin coating removal, overlay and topping profile, bridge deck overlay prep, traffic marking removal, walkway texture, parking garage waterproofing prep, and warehouse floor cleaning before sealing. | 15.8 hp output, 60 Hz frequency, 3 ph, corded power source, 5 in dust hose connection, 41 in product size height. |
|
Husqvarna Blastrac 2-30DS | Shot Blaster SKU 970692201 |
Industrial supporting option for expert crews handling large floor coating prep, old coating and sealer removal, slab profiling, line stripe removal on concrete decks, bridge deck surface prep, parking garage prep, warehouse floors, ramp and walkway texture, and laitance removal from new concrete. | 41.7 hp output, 60 Hz frequency, 3 ph, 6 in dust hose connection, industrial duty rating, expert skill level, packaging length 72.047 in, packaging width 40.157 in. |
|
Husqvarna Blastrac BMR 25P | Shot Blaster SKU 970693401 |
Industrial propane supporting option for large production floors, bridge deck resurfacing prep, road and highway prep before repairs, parking garage deck waterproofing prep, warehouse surface preparation, epoxy and paint removal, slab profiling, and traffic marking removal. | 25 hp output, propane power source, industrial duty rating, expert skill level, 3,150 lb article gross weight, packaging length 155.984 in, width 48.031 in, height 71.024 in. |
Related Accessories Or Consumables
After you narrow the application area, build the support setup around the machine. Dust collection has to match the listed dust hose connection. Hose routing has to fit the pass pattern. Containment has to match the space. Power, phase, fuel, and ventilation have to be handled before the crew starts. None of that is glamorous, but it is the difference between production work and a long day of moving hoses and sweeping up mistakes.
For edge blasting and tight-area work, plan the perimeter as a separate task. Drains, joints, wall lines, column bases, door thresholds, transitions, and ramp edges rarely finish as cleanly as the open field area. Depending on the surface requirement, your crew may need edge equipment, grinders, hand-held prep tools, or another approved method. Do not let the main blaster selection hide that labor.
Related Articles
Use the related guides when you need to narrow the next decision. Start with shot blasting surface preparation for coating, overlay, membrane, and line-removal prep requirements. Compare slab-specific workflow in shot blasting floor prep. For concrete-specific application details, read shot blasting concrete. Once the surface is confirmed as a fit, how to shot blast concrete covers the operating sequence, and the concrete shot blaster page gives the broader equipment view.
Faqs
Can shot blasting be used on concrete floors and slabs?
Yes. Floors and slabs are the main fit, especially when the surface needs coating removal, cleaning, or profiling before epoxy, urethane, overlays, toppings, underlayment, waterproofing, resurfacing, or repair materials.
Is shot blasting good for garage floors?
It can be. Garage floors are often easier than basements because access is usually better and the slab is more open. Still check power, dust collection, coating thickness, edges, cleanup, and the profile required by the coating system.
Can shot blasting be used on basement floors?
Sometimes, but basement work needs more caution. Stairs, low access, ventilation, hose routing, containment, and machine weight can make the job impractical even when the concrete itself is a candidate.
Can shot blasting remove coatings from concrete?
Yes, with the right machine class and setup. Shot blasting is commonly used to remove paint, epoxy, sealers, traffic markings, and other surface materials from concrete slabs, decks, and similar flat surfaces.
Can shot blasting be used on concrete walls or block?
Standard walk-behind floor machines are not the normal answer for walls or block. Treat vertical concrete, block faces, curbs, and risers as separate preparation problems and confirm the correct equipment before bidding or scheduling that work.
Is shot blasting used on roads, bridge decks, pavements, and parkades?
Yes. Those are common large-area applications when the goal is surface cleaning, line removal, profile, waterproofing prep, membrane prep, overlay prep, or repair preparation. They usually require heavier machine planning, area control, dust containment, fuel or power planning, and experienced operators.
Which machine class fits large concrete surface prep?
Large slabs, bridge decks, roads, pavements, warehouse floors, and production deck work usually push toward industrial machines. Smaller commercial floors, garages, access-restricted slabs, and medium prep work usually call for compact or mid-size machines.
Next Steps
Before you pick a blaster, pin down the surface, coating or overlay requirement, access route, dust collection, power or fuel plan, ventilation, and edge work. If your work centers on concrete floors, slabs, parking decks, bridge deck prep, coating removal, overlay profiling, traffic-line removal, warehouse floors, walkways, and ramps, the Husqvarna Blastrac 1-10DPS75 | Shot Blaster is a useful featured starting point to compare against your job conditions.
If your crew needs help narrowing the fit, share the surface type, square footage, coating or marking to remove, required profile, access limits, dust collection plan, and available power or fuel. We can help you compare the right new concrete shot blaster for the work your crew actually runs.
