HUSQVARNA CONSTRUCTION SKU: 970691101 Copied!
Is this the right tool for the job?
Regular price
$35,568.23
Regular price
$41,781.00
Sale price
$35,568.23
Quantity
Trusted by contractors nationwide
"I've bought 3 products from CTD and each time the experience has been the same - professional and fast delivery. I trust these guys with all my concrete needs."
90 day returns
Product Details
HUSQVARNA SHOT BLASTER - BLASTRAC 1-10DS
The Husqvarna Blastrac 1-10DS is a versatile walk-behind shot blasting machine, perfect for medium to large surface preparation tasks. Its powerful 15.8 hp blasting motor and separate drive motor offer optimal maneuverability and consistent speed on ramps and inclines. Ideal for preparing surfaces such as concrete, asphalt, and steel before applying a new coating.
This machine boasts an impressive working width of 10 inches, ensuring efficient surface coverage. The Blastrac 1-10DS also features a height-adjustable system for easy transportation and a corded power source for continuous operation. Regardless of the demands of your job site, this machine delivers reliable, high-performance blasting.
- 15.8 hp Output Power
- 10 Inches Working Width
- 480/277V or 240 V Voltage
- 60 Hz Frequency
- Self-Propelled Operation
Product Specification
Specifications
Output power
15.8 hp
Voltage
480/277V or 240 V
Frequency
60 Hz
Rated current
19 or 38 A
Phases
3 ph
Power source
Corded
Working width
10 in
Dust hose connection
5 in
Steel shot consumption
75 g/m²
Type of operation
Pull
Product size length
75 in
Product size width
17 in
Product size height
41 in
Weight
717 lbs
Warranty
1 year limited warranty
Related Equipment
Related Equipment
Service & Maintenance Parts
DRIVE 36 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HANDLE | 534042502 | 1 | Lower part | ||
| 2HANDLE | 534031902 | 1 | Upper part | ||
| 3BOX | 533241402 | 1 | Control box | ||
| 4PLATE | 533571402 | 1 | Control box top plate | ||
| 5POTENTIOMETER | 533613001 | 1 | Complete (with holder and soldered contact block) | ||
| 5HOLDER | 533994301 | 1 | For potentiometer | ||
| 5POTENTIOMETER | 533963001 | 1 | Only with soldered contact block | ||
| 6PUSH BUTTON | 533850701 | 2 | |||
| 7HANDLE GRIP | 534612901 | 1 | |||
| 8LEVER | 533783702 | 1 | |||
| 9SWITCH | 534668101 | 1 | Limit switch | ||
| 10BRAKE | 534365601 | 1 | Brake complete | ||
| 10FAN | 534566601 | 1 | For drive motor | ||
| 10FAN COVER | 534566901 | 1 | |||
| 10DRIVE MOTOR | 534721802 | 1 | 0.55 kW | ||
| 11ADAPTER PLATE | 534262102 | 1 | |||
| 12SPROCKET | 534861801 | 1 | |||
| 13CHAIN GUARD | 533068002 | 1 | |||
| 14COVER | 534387302 | 1 | For chain guard | ||
| 15PIN | 533256401 | 1 | Quick release pin | ||
| 16LINK | 533930301 | 1 | Chain link (Required) | ||
| 16CHAIN | 534024703 | 1 | 1m (use 0.9m) | ||
| 17RETAINER | 546615201 | 1 | Sprocket retainer | ||
| 18SPROCKET | 534640601 | 1 | Idler sprocket | ||
| 19HUB | 534642001 | 1 | |||
| 20WHEEL BRACKET | 534528202 | 1 | |||
| 21BEARING | 531474201 | 2 | Drive wheel | ||
| 22BUSH | 533318901 | 1 | Distace | ||
| 23DRIVE SHAFT | 533956301 | 1 | Drive wheel | ||
| 24WHEEL | 534907101 | 1 | Traction wheel | ||
| 25SCREW | 598964201 | 2 | M8x20 Hexagon bolt | ||
| 26WASHER | 534693901 | 2 | M8 Spring lock washer | ||
| 27WASHER | 533821001 | 2 | M8 Washer 3xd | ||
| 28LOCKING SHAFT | 534681501 | 1 | |||
| 29WASHER | 533843701 | 1 | Washer for yoke shaft | ||
| 30BEARING | 533809801 | 2 |

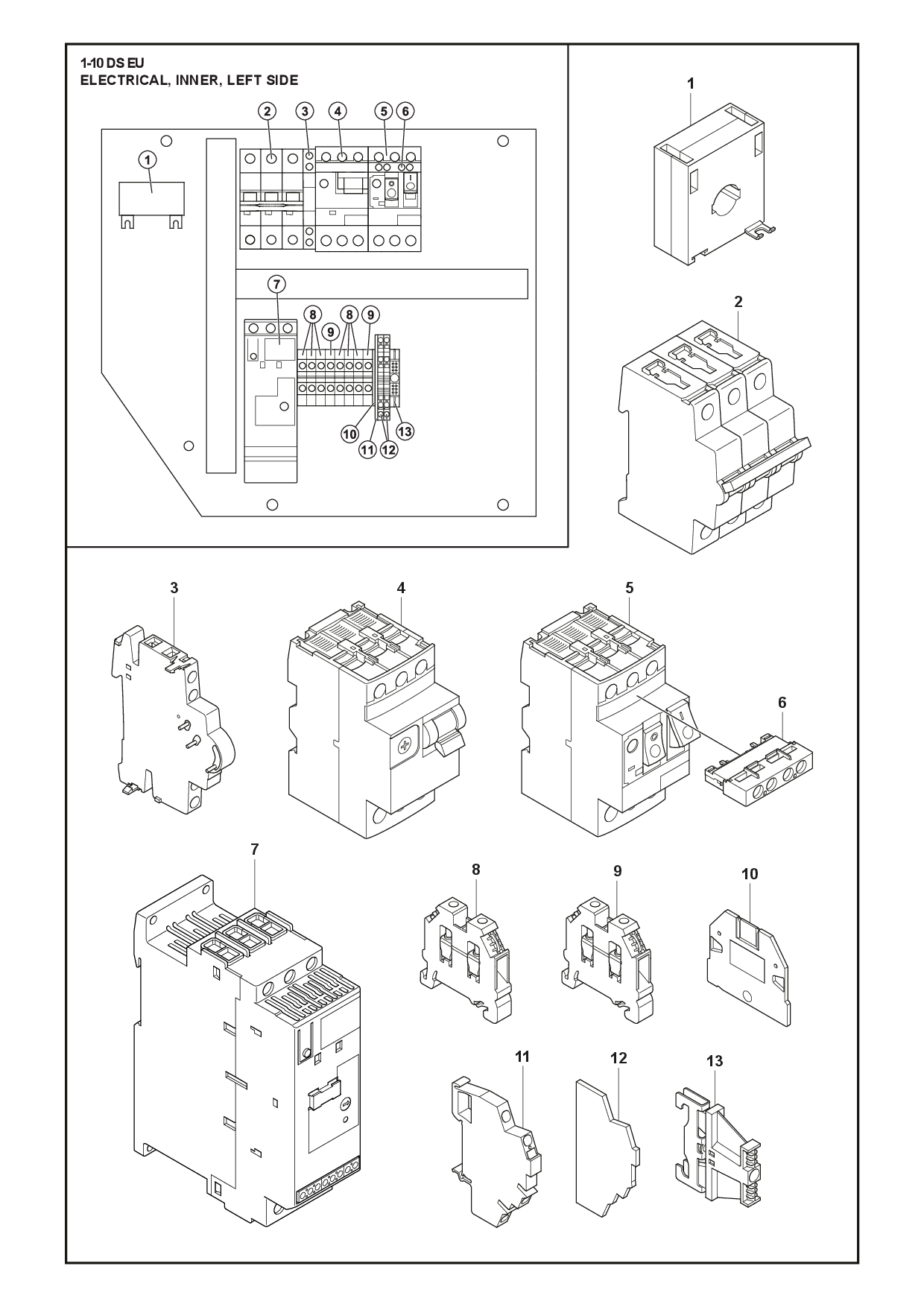

ELECTRICAL, INNER 13 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1TRANSFORMER | 533759901 | 1 | |||
| 2CONTACTOR | 533220201 | 1 | |||
| 3CONTACTOR | 534302201 | 1 | |||
| 4CIRCUIT BREAKER | 533381801 | 1 | |||
| 5SWITCH | 533712001 | 1 | |||
| 6CONTACTOR | 533915101 | 1 | |||
| 7STARTER | 533787301 | 1 | |||
| 8CONNECTOR | 533967501 | 3 | |||
| 9CONNECTOR | 533970501 | 1 | |||
| 10SUPPORT | 533517901 | 2 | |||
| 11TERMINAL | 534404801 | 2 | |||
| 12PLATE | 547017430 | 1 | |||
| 13SUPPORT | 533517901 | 1 |

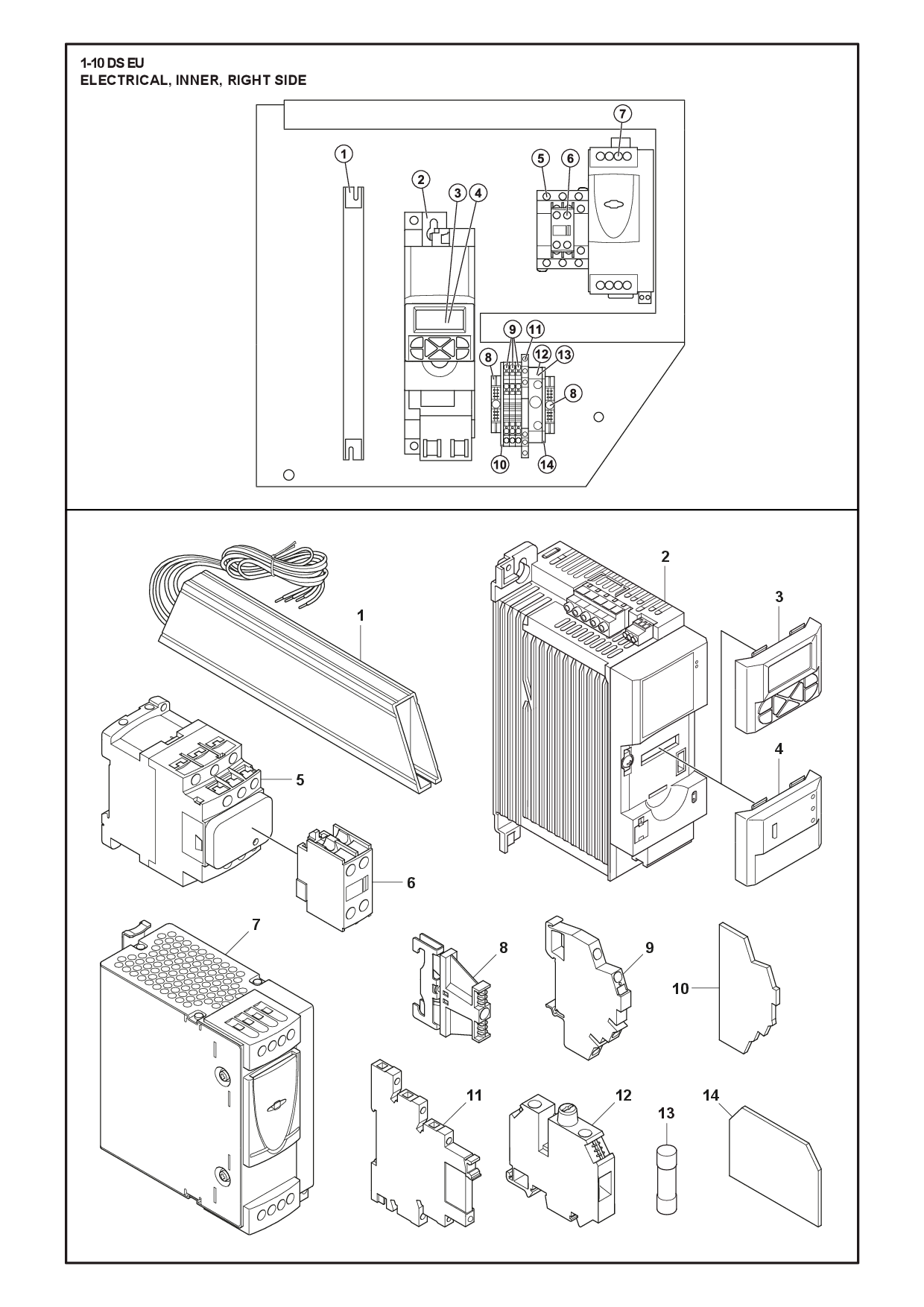

ELECTRICAL, INNER 14 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BRAKE | 536689301 | 1 | |||
| 2FREQUENCY INVERTER | 536688801 | 1 | |||
| 2FREQUENCY INVERTER | 536688802 | 1 | |||
| 3MODULE | 535651101 | 1 | |||
| 4SOFTWARE SYSTEM | 546992701 | 1 | |||
| 5CONTACTOR | 547017322 | 1 | |||
| 6CONTACT | 534088301 | 1 | |||
| 7POWER UNIT | 534772301 | 1 | |||
| 8SUPPORT | 533517901 | 2 | |||
| 9TERMINAL | 534404801 | 3 | |||
| 10PLATE | 547017430 | 3 | |||
| 11RELAY | 533757001 | 1 | |||
| 12TERMINAL | 533554001 | 1 | |||
| 14UNIT | 533938101 | 1 |
ELECTRICAL, INNER 15 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1TRANSFORMER | 533855101 | 1 | |||
| 2STARTER | 533869401 | 1 | |||
| 3CIRCUIT BREAKER | 547116001 | 1 | |||
| 4TERMINAL BLOCK | 548108301 | 1 | |||
| 5CONTACTOR | 534661501 | 4 | |||
| 6SUPPORT | 533517901 | 2 | |||
| 7FUSE | 533947101 | 1 | |||
| 8TERMINAL | 533554001 | 1 | |||
| 9UNIT | 533938101 | 1 | |||
| 10PLATE | 547017430 | 1 | |||
| 11TERMINAL | 534404801 | 2 | |||
| 12CONNECTOR | 533970501 | 1 | |||
| 13CONNECTOR | 533967501 | 6 | |||
| 15TERMINAL | 533959601 | 3 | |||
| 17RELAY | 533756301 | 1 |
ELECTRICAL, INNER 20 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BRAKE | 546043001 | 1 | |||
| 2METER | 534929301 | 1 | |||
| 3CONTACTOR | 533641001 | 2 | |||
| 4CIRCUIT BREAKER | 534658901 | 1 | |||
| 5RELAY | 533840701 | 1 | |||
| 6STARTER | 533852901 | 1 | |||
| 7RELAY | 533875401 | 1 | |||
| 8UNIT | 546042901 | 1 | |||
| 8UNIT | 546042902 | 1 | |||
| 9MODULE | 535651101 | 1 | |||
| 10SOFTWARE SYSTEM | 546992701 | 1 | |||
| 11TRANSFORMER | 533964501 | 1 | |||
| 12POWER UNIT | 534772301 | 1 | |||
| 13TERMINAL | 533554001 | 1 | |||
| 14FUSE | 533947101 | 1 | |||
| 15UNIT | 533938101 | 1 | |||
| 16RELAY | 533757001 | 1 | |||
| 17PLATE | 547017430 | 1 | |||
| 18TERMINAL | 534404801 | 2 | |||
| 19SUPPORT | 533517901 | 1 |
ELECTRICAL, OUTER 20 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1CONDUIT | 533946601 | 2 | |||
| 2FITTING | 533942601 | 1 | |||
| 3FITTING | 533934501 | 1 | |||
| 4CABLE ASSY | 540601301 | 1 | |||
| 6PLUG | 534768101 | 1 | |||
| 7CABLE | 533977301 | 3 | |||
| 8CABLE | 534027401 | 6 | |||
| 9CABLE | 534029401 | 2 | |||
| 10CABLE | 533795201 | 1 | |||
| 11COUPLING | 534649801 | 1 | |||
| 12CABLE | 534028001 | 1 | |||
| 13CABLE | 533984901 | 1 | |||
| 14CABLE | 534027101 | 1 | |||
| 15REDUCER | 547722302 | 1 | |||
| 18CABLE | 534027601 | 1 | |||
| 19FOOT | 548108601 | 4 | |||
| 20CONTROL PANEL | 547017302 | 1 | |||
| 21KEY | 533964001 | 1 | |||
| 23FAN | 538770701 | 2 | |||
| 25FILTER | 533617801 | 2 |

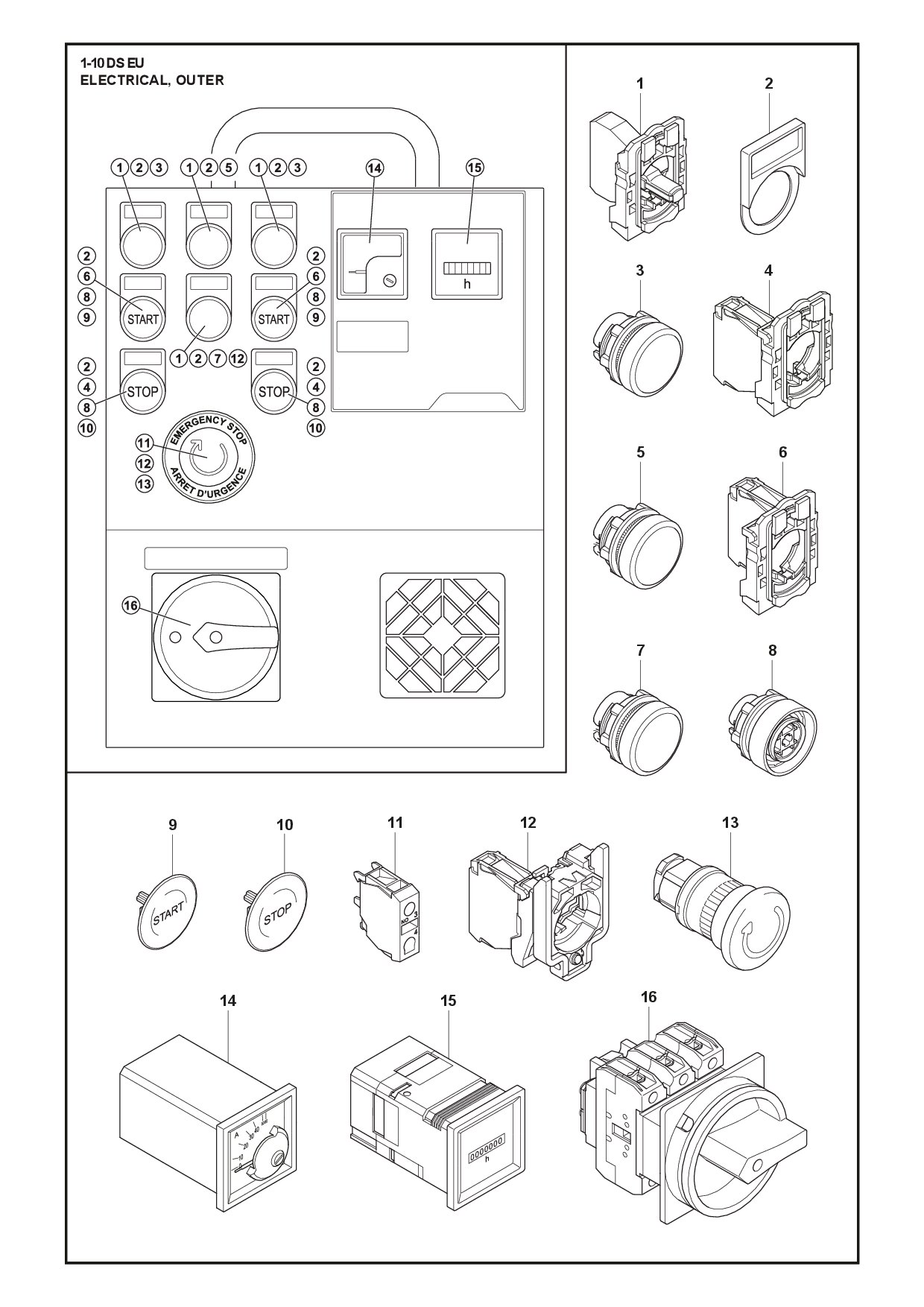

ELECTRICAL, OUTER 16 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1LIGHT | 533781701 | 4 | |||
| 2HOLDER | 533951801 | 8 | |||
| 3HEAD | 534956001 | 3 | |||
| 4CONTACT | 533959801 | 2 | |||
| 5HEAD | 533978001 | 1 | |||
| 6CONTACT | 534029801 | 2 | |||
| 7PUSH BUTTON | 536590801 | 1 | |||
| 8PUSH BUTTON | 533377401 | 4 | |||
| 9CAP | 533973901 | 2 | |||
| 10CAP | 533804901 | 2 | |||
| 11CONTACT | 533998901 | 2 | |||
| 12CONTACT | 533991701 | 1 | |||
| 13SWITCH | 533931401 | 1 | |||
| 14METER | 533809201 | 1 | |||
| 15HOUR METER | 533943401 | 1 | |||
| 16KNOB | 547017316 | 1 |
ELECTRICAL, OUTER 13 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 3FITTING | 533934501 | 1 | |||
| 4CABLE ASSY | 540666701 | 1 | |||
| 6CORD | 533974601 | 1 | |||
| 11CABLE | 534027401 | 6 | |||
| 12CABLE | 534029401 | 2 | |||
| 13CABLE | 548378501 | 1 | |||
| 14CABLE | 534025501 | 1 | |||
| 18CABLE | 534027601 | 1 | |||
| 19CABLE | 533977301 | 3 | |||
| 21FOOT | 548108601 | 4 | |||
| 22CONTROL PANEL | 547017302 | 1 | |||
| 25CONTROL PANEL | 534041201 | 2 | |||
| 27FILTER | 533617801 | 2 |

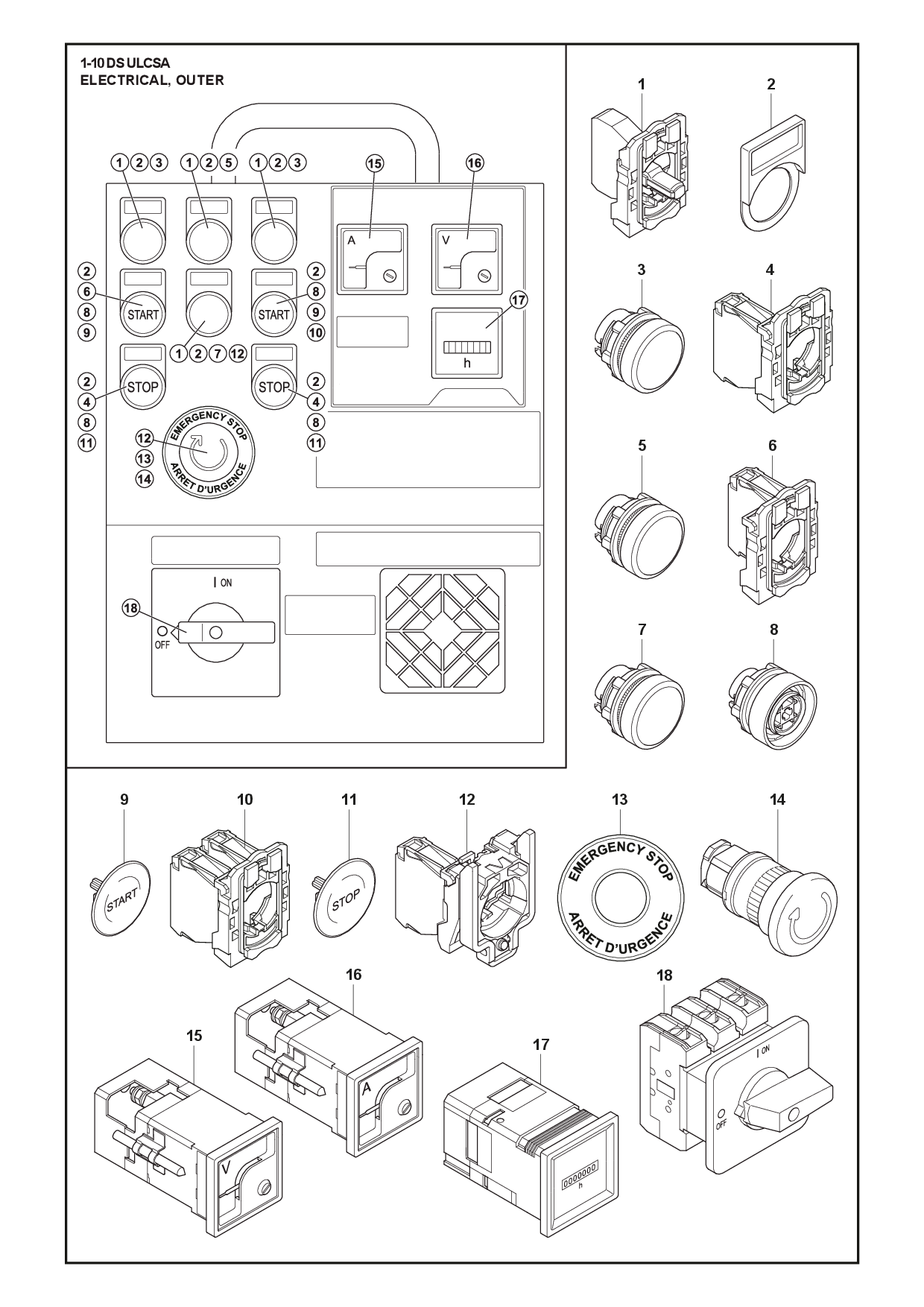

ELECTRICAL, OUTER 18 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1LIGHT | 533781701 | 4 | |||
| 2HOLDER | 533951801 | 8 | |||
| 3HEAD | 534956001 | 3 | |||
| 4CONTACT | 533959801 | 2 | |||
| 5BUTTON | 534956201 | 1 | |||
| 6BUTTON | 534957101 | 1 | |||
| 7PUSH BUTTON | 536590801 | 1 | |||
| 8BUTTON | 534955601 | 4 | |||
| 9CAP | 533973901 | 2 | |||
| 10BUTTON | 534957201 | 1 | |||
| 11CAP | 533804901 | 2 | |||
| 12CONTACT | 533991701 | 1 | |||
| 13STICKER | 533606401 | 1 | |||
| 14SWITCH | 533931401 | 1 | |||
| 15METER | 533736201 | 1 | |||
| 16METER | 533576301 | 1 | |||
| 17HOUR METER | 533943401 | 1 | |||
| 18SWITCH | 533537301 | 1 |
HOUSING 61 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HOUSING | 538958202 | 1 | Blasthousing | ||
| 2FIXING PLATE | 535204902 | 6 | Liner | ||
| 3INDICATOR | 534079501 | 2 | Blast pattern indicator | ||
| 4SKIDS | 546222401 | 1 | Skid seal | ||
| 5INSULATOR | 533265201 | 2 | Insulator side | ||
| 6BRUSH | 533717001 | 1 | Side strip brush LH | ||
| 7BRUSH | 533683201 | 1 | Front strip brush | ||
| 8MAGNET | 534697102 | 1 | Magnet front | ||
| 9INSULATOR | 533797901 | 1 | Insulator front | ||
| 10MAGNET | 534697302 | 2 | Magnet side | ||
| 11SPACER | 534857401 | 2 | Rear of side magnet | ||
| 12BRUSH | 533702601 | 1 | Side strip brush RH | ||
| 14PLATE | 546683701 | 1 | Manganese strengthening plate | ||
| 15LINER | 535256401 | 1 | Top liner | ||
| 16LINER | 538957701 | 1 | Side liner LH | ||
| 17LINER | 535226201 | 2 | Plenum side liner | ||
| 18LINER | 538957801 | 1 | Side liner RH | ||
| 19LINER | 538958001 | 1 | Plenum top liner | ||
| 20LINER | 538957901 | 1 | Plenum bottom liner | ||
| 21COVER | 538958302 | 1 | Blasthousing cover | ||
| 22BEARING UNIT | 533807402 | 1 | |||
| 23SEAL | 533442501 | 1 | Felt seal for bearing unit | ||
| 24HUB | 533762001 | 1 | |||
| 25COVER | 535110202 | 1 | Blastwheel cover plate | ||
| 26PLATE | 535147202 | 1 | Cage plate | ||
| 27CLAMP | 535147002 | 2 | Control cage clamp | ||
| 28TUNE-UP KIT | 531459001 | 1 | Tune-up kit |
Regular price
$342.76
Regular price
|
|
| 29SCREW EHHM | 725254571 | 2 | |||
| 30HEXAGON NUT | 731232201 | 4 |
Regular price
$21.40
Regular price
|
||
| 31DUMMY PART | 900000002 | 9 | Spring washer DIN 128 - A12 | ||
| 32WASHER | 734117801 | 9 |
Regular price
$10.51
Regular price
|
||
| 33SCREW EHHM | 725254271 | 2 | |||
| 34DUMMY PART | 900000002 | 18 | Spring washer DIN 128 - A10 | ||
| 35DUMMY PART | 900000002 | 18 | ISO 7040 - M10 | ||
| 36SCREW EHHM | 725245571 | 4 |
Regular price
$24.18
Regular price
|
||
| 37DUMMY PART | 900000002 | 9 | Spring washer DIN 128 - A8 | ||
| 38WASHER | 734116301 | 7 |
Regular price
$22.68
Regular price
|
||
| 39SCREW EHHM | 725249571 | 7 | |||
| 40WASHER | 734117201 | 17 |
Regular price
$22.68
Regular price
|
||
| 41SCREW EHHM | 725237271 | 4 |
Regular price
$22.78
Regular price
|
||
| 42DUMMY PART | 900000002 | 20 | Spring washer DIN 128 - A6 | ||
| 43WASHER | 734115201 | 20 |
Regular price
$22.78
Regular price
|
||
| 44HEXAGON NUT | 731231601 | 1 |
Regular price
$22.78
Regular price
|
||
| 45SCREW EHHM | 725237071 | 2 | |||
| 46DUMMY PART | 900000002 | 13 | ISO 4762 M6 x 16 - 16C8.8 | ||
| 47SCREW | 593495201 | 5 | |||
| 48SCREW EHHM | 725253871 | 7 | |||
| 49DUMMY PART | 900000002 | 4 | DIN 1587 - M12 | ||
| 50DUMMY PART | 900000002 | 4 | DIN 7349-13 | ||
| 51DUMMY PART | 900000002 | 2 | Washer ISO 7093 - 8 | ||
| 52HEXAGON LOCKING NUT | 732251801 | 2 |
Regular price
$21.39
Regular price
|
||
| 53DUMMY PART | 900000002 | 2 | Washer ISO 7093 - 10 | ||
| 54HEXAGON NUT | 731232001 | 7 |
Regular price
$22.78
Regular price
|
||
| 55DUMMY PART | 900000002 | 2 | Washer ISO 7093 - 8 | ||
| 58DUMMY PART | 900000002 | 2 | ISO 4026 - M10 x 12 | ||
| 61DUMMY PART | 900000002 | 2 | M16 Nut | ||
| 64SCREW | 593508601 | 2 | |||
| 65DUMMY PART | 900000002 | 1 | ISO 4762 M10 x 35 | ||
| 66DUMMY PART | 900000002 | 3 | ISO 7040-M12 | ||
| 67BAR | 547364801 | 2 | M12x78 | ||
| 68SEALING STRIP | 538958902 | 1 |
MAINTENANCE KIT 1 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BOX | 534488904 | 1 | Maintenance box 1-10DS 60Hz |
MAINTENANCE KIT 1 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1MAINTENANCE KIT | 546991801 | 1 | BOX Maintenance box 1-10DS HVA (50Hz & 60) |
MOTOR, PULLEYS AND BELTS 33 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1DUST COVER | 546039001 | 1 | |||
| 4BRACKET | 533493202 | 1 | Cable guide bracket | ||
| 5BRACKET | 546268502 | 1 | Motor bracket | ||
| 7BELT GUARD | 546826901 | 1 | BELT GUARD 1-10DS | ||
| 8SPACER PLATE | 533776102 | 1 | Blastmotor | ||
| 9HOSE CLAMP | 533642902 | 1 | Complete | ||
| 12MOTOR | 534029502 | 1 | Blastmotor 11kW | ||
| 13PULLEY | 534323801 | 1 | |||
| 14BUSH | 533702501 | 1 | Taper lock | ||
| 15V-BELT | 535652101 | 2 | |||
| 16WASHER | 534683001 | 1 | M12 | ||
| 17BUSH | 534514901 | 1 | Distance bush | ||
| 18PULLEY | 534785101 | 1 | 50Hz | ||
| 18PULLEY | 534785201 | 1 | 60Hz | ||
| 19LATCH | 531471201 | 2 | Rubber latch (included in hose clamp) | ||
| 20HINGE | 533420701 | 2 | 60x60 (included in hose clamp) | ||
| 21DUMMY PART | 900000002 | 4 | ISO 7040-M14 | ||
| 22DUMMY PART | 900000002 | 8 | Washer ISO 7089 - 14 | ||
| 23HEXAGON LOCKING NUT | 732251801 | 2 | |||
| 24WASHER | 734116301 | 4 | |||
| 25SCREW | 593508601 | 4 | |||
| 26WASHER | 734117201 | 4 | |||
| 27HEXAGON NUT | 731232001 | 4 | |||
| 28DUMMY PART | 900000002 | 4 | M14x50 Hexagon bolt | ||
| 29HEXAGON NUT | 731232401 | 4 | |||
| 30DUMMY PART | 900000002 | 4 | Spring washer DIN 128 - A16 | ||
| 31WASHER | 734118601 | 8 | |||
| 32DUMMY PART | 900000002 | 1 | ISO 10642 - M8 x 25 - 25C | ||
| 33DUMMY PART | 900000002 | 2 | Spring washer DIN 128 - A10 | ||
| 34NUT | 538913501 | 2 | |||
| 35DUMMY PART | 900000002 | 4 | Spring washer DIN 128 - A14 | ||
| 36SCREW | 725245751 | 2 | |||
| 37SCREW | 531140658 | 8 |
SEPARATOR 44 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1FRAME | 533589402 | 1 | Rebound | ||
| 2TRAY | 533470602 | 1 | Separator tray | ||
| 3RETAINER | 533783202 | 1 | Seal retainer | ||
| 4SEPARATOR | 546268402 | 1 | |||
| 5DEFLECTOR | 534434802 | 1 | |||
| 6LID | 533035602 | 1 | Separator lid | ||
| 7CABLE GUIDE | 533518302 | 1 | |||
| 8PLATE | 533783501 | 1 | Lifting plate | ||
| 9PIPE CLAMP | 533015801 | 2 | Ø25 (set of 2) | ||
| 11COVER | 533224802 | 1 | Shaft cover | ||
| 12DUMMY PART | 900000002 | 1 | Touch screen | ||
| 12ELECTRONIC BOX | 546554301 | 1 | |||
| 12ELECTRONIC BOX | 546555101 | 1 | Dual voltage | ||
| 13ABSORBER | 534836101 | 4 | Shock absorber | ||
| 14VALVE ASSY | 533707101 | 1 | Magnetic valve assembly | ||
| 15TUBE | 534571801 | 1 | Feed spout | ||
| 17KNOB | 533592601 | 1 | Ball head for separator | ||
| 18CONTROL CABLE | 533879301 | 1 | |||
| 19LEVER | 533513401 | 1 | For magnetic valve | ||
| 20PIVOT PIN | 534028801 | 1 | For control cable | ||
| 21HANDLE | 533170201 | 2 | |||
| 22SEAL | 533442501 | 1 | Felt seal | ||
| 23BUSH | 533194601 | 2 | Oilite bush | ||
| 24KNOB | 533656201 | 2 | Clamp knob M8 | ||
| 25CONTROL LEVER | 533839501 | 1 | |||
| 27SCREEN | 546411901 | 1 | Touch screen (for TS-models only) | ||
| 28ANTENNA | 536414901 | 1 | WiFi (for TS-models only) | ||
| 29LIGHT | 534662602 | 1 | LED set | ||
| 30LOCKING PLATE | 546268601 | 1 | For separator tray | ||
| 31SCREW IHSCM | 725545101 | 1 | M8x20 Screw | ||
| 32DUMMY PART | 900000002 | 6 | Spring washer DIN 128 - A10 | ||
| 33HEXAGON NUT | 731232001 | 6 | |||
| 35DUMMY PART | 900000002 | 6 | M10x35 Bolt | ||
| 36WASHER | 734117201 | 6 | |||
| 37DUMMY PART | 900000002 | 1 | Spring washer DIN 128 - A8 | ||
| 38DUMMY PART | 900000002 | 3 | Washer DIN 9021 - 8.4 | ||
| 41SCREW EHHM | 725237071 | 4 | |||
| 42WASHER | 734115201 | 8 | |||
| 43DUMMY PART | 900000002 | 4 | ISO 7040-M6 | ||
| 45DUMMY PART | 900000002 | 4 | DIN 916 - M6 x 10 | ||
| 46SCREW | 593508601 | 1 | |||
| 47DUMMY PART | 900000002 | 1 | Spring washer DIN 128 - A16 | ||
| 48WASHER | 734118601 | 1 | |||
| 50DUMMY PART | 900000002 | 4 | ISO 4762 M6 x 30 |
WHEELS AND TIRES 18 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1WHEEL | 533845201 | 2 | |||
| 2BUSHING | 533493301 | 2 | For wheel | ||
| 3DUMMY PART | 900000002 | 4 | Shim DIN 988 20x28x2 | ||
| 4BUSHING | 546699001 | 4 | Lever bush top | ||
| 5LEVER | 546684301 | 4 | Top | ||
| 6BOLT | 533220401 | 2 | Top | ||
| 7WASHER | 734117771 | 8 | M12 Washer |
Regular price
$23.78
Regular price
|
|
| 8SCREW | 725255271 | 4 | M12x100 Bolt | ||
| 9SCREW | 534677501 | 4 | M10x100 Bolt | ||
| 10WASHER | 536063001 | 8 | M10 Washer | ||
| 11BOLT | 533212101 | 2 | Bottom | ||
| 12WHEEL BRACKET | 533721101 | 4 | Side plate | ||
| 13BUSHING | 533733701 | 4 | Wheel bracket bush | ||
| 14SHAFT | 546699101 | 2 | Lever shaft | ||
| 15WASHER | 534683001 | 4 | M12 Ø32 Washer | ||
| 16HEXAGON LOCKING NUT | 732252201 | 8 | M12 Plastric insert nut |
Regular price
$21.45
Regular price
|
|
| 17NUT | 732212051 | 4 | M10 Plastric insert nut |
Regular price
$24.18
Regular price
|
|
| 18SPACER PLATE | 533318701 | 2 |
Document Downloads
Service bulletin
Operator's manual
Compatable Accessories
Related Parts
Concrete Focus
From pouring to resurfacing, we sell tools built for concrete pros.
Expert Support
Get guidance from experts who understand jobsite challenges.
Fast Delivery
Get your tools fast with our nationwide shipping network and local partnerships.
Talk to an expert now (855) 281-1918
Get fast, expert help choosing the right concrete tools or equipment for your job. Ask about availability, specs, troubleshooting, or get friendly guidance before you place an order.
