Husqvarna Blastrac 2-20DT | Shot Blaster
Husqvarna Blastrac 2-20DT | Shot Blaster
HUSQVARNA CONSTRUCTION SKU: 970690901 Copied!
Is this the right tool for the job?
Regular price
$67,687.92
Regular price
$72,463.00
Sale price
$67,687.92
Quantity
Trusted by contractors nationwide
"I've bought 3 products from CTD and each time the experience has been the same - professional and fast delivery. I trust these guys with all my concrete needs."
90 day returns
Product Details

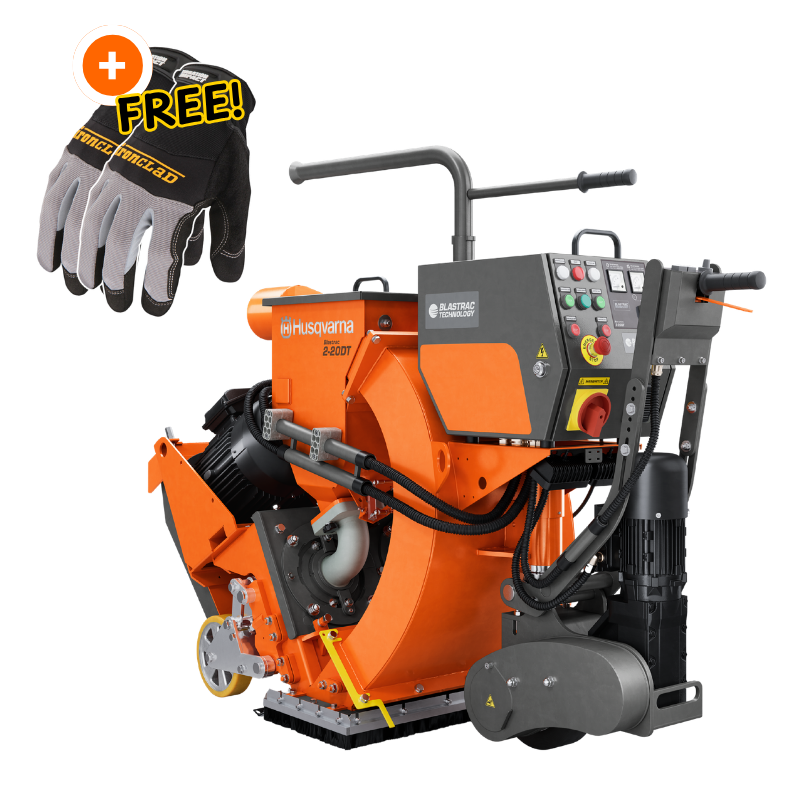

HUSQVARNA SHOT BLASTER - BLASTRAC 2-20DT POWER AND PERFORMANCE
The Husqvarna Blastrac 2-20DT, a walk-behind shot blasting machine, is a professional-grade, heavy-duty device designed for large surface preparation projects. With two high-powered blast motors at its core and an innovative height adjusting system for easy transportation, this machine streamlines your work process. Its self-propelled drive motor maintains speed on inclined surfaces, ensuring consistent performance across various terrains.
Whether you are enhancing traction, skid resistance, or preparing for coatings and overlays, the Blastrac 2-20DT is a versatile choice. This machine effortlessly strips, cleans, and profiles your concrete, asphalt, or horizontal steel surfaces in one easy step. Its impressive 22-inch working width and 28.3-hp output power ensure efficient operation, reducing project timeframes and enhancing productivity.
- Working width of 22 inches
- Powerful output of 28.3 hp
- Superior voltage of 480/277 V
- Operational frequency of 60 Hz
- Self-propelled drive motor for consistent speed
Product Specification
Specifications
Output power
28.3 hp
Voltage
480/277 V
Frequency
60 Hz
Rated current
45 A
Phases
3 ph
Power source
Corded
Working width
22 in
Dust hose connection
6 in
Steel shot consumption
80 g/m²
Type of operation
Pull
Product size length
77 in
Product size width
28 in
Product size height
55 in
Weight
1,334 lbs
Packaging length (Calc)
85 in
Packaging width (Calc)
35.984 in
Packaging height (Calc)
60.984 in
Article gross weight (Calc)
1,548 lbs
Warranty
1 year limited warranty
Related Equipment
Related Equipment
Service & Maintenance Parts
DRIVE 56 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HANDLE | 534042502 | 1 | Lower part | ||
| 2HANDLE | 534031902 | 1 | Top part | ||
| 3BOX | 533241402 | 1 | Control box | ||
| 4PLATE | 533571402 | 1 | Control box top plate | ||
| 5POTENTIOMETER | 533613001 | 1 | Complete (with holder and soldered contact block) | ||
| 5HOLDER | 533994301 | 1 | For potetiometer | ||
| 5POTENTIOMETER | 533963001 | 1 | Only with soldered contact block | ||
| 6PUSH BUTTON | 533850701 | 2 | |||
| 7HANDLE GRIP | 534612901 | 1 | |||
| 8LEVER | 533783702 | 1 | Switch lever | ||
| 9SWITCH | 534668101 | 1 | Limit switch | ||
| 10BRAKE | 534365601 | 1 | For drive motor | ||
| 10FAN | 534566701 | 1 | For drive motor | ||
| 10DRIVE MOTOR | 534439303 | 1 | 1,1 kW | ||
| 10FAN COVER | 534567002 | 1 | |||
| 11SPROCKET | 534862901 | 1 | |||
| 12CHAIN GUARD | 533068002 | 1 | |||
| 13COVER | 534387302 | 1 | For chain guard | ||
| 14PIN | 533256401 | 1 | Quick release pin | ||
| 15LINK | 533930301 | 1 | Chain link (required) | ||
| 15LINK | 533777001 | 1 | Chain link half (required) | ||
| 15CHAIN | 534024703 | 1 | 1m (use 0.9m) | ||
| 16RETAINER | 546615201 | 1 | Sprocket retainer | ||
| 17SPROCKET | 534640601 | 1 | Idler sprocket | ||
| 18HUB | 534642001 | 1 | |||
| 19WHEEL BRACKET | 534528202 | 1 | |||
| 20LOCKING SHAFT | 534681501 | 1 | |||
| 21BEARING | 531474201 | 2 | For drive wheel | ||
| 22BUSH | 533318901 | 1 | Distance bush for drive wheel | ||
| 23DRIVE SHAFT | 533956301 | 1 | |||
| 24WHEEL | 534907101 | 1 | |||
| 25WASHER | 533843701 | 1 | Washer for yoke shaft | ||
| 26BEARING | 533809801 | 2 | |||
| 27SCREW | 598964201 | 2 | M8x20 Hex bolt | ||
| 28WASHER | 534693901 | 2 | M8 Spring lock washer | ||
| 29WASHER | 533821001 | 2 | M8 Washer 3xd | ||
| 30SCREW IHSCM | 725536801 | 6 | |||
| 31SCREW EHHM | 725245571 | 4 |
Regular price
$24.18
Regular price
|
||
| 32DUMMY PART | 900000002 | 8 | Washer DIN 9021 - 8.4 | ||
| 34HEXAGON NUT | 731231801 | 4 |
Regular price
$22.78
Regular price
|
||
| 35CAP | 533655101 | 2 | |||
| 36HEXAGON NUT | 731232001 | 6 |
Regular price
$22.78
Regular price
|
||
| 39WASHER | 734115201 | 1 |
Regular price
$22.78
Regular price
|
||
| 40DUMMY PART | 900000002 | 1 | Spring washer DIN 128 - A6 | ||
| 41DUMMY PART | 900000002 | 1 | ISO 4762 M8 x 20 - 20C10.9 | ||
| 42WASHER | 734117201 | 6 |
Regular price
$22.68
Regular price
|
||
| 43NUT | 538913501 | 2 | |||
| 44WASHER | 734115201 | 6 |
Regular price
$22.78
Regular price
|
||
| 45SCREW | 725245971 | 4 | |||
| 46WASHER | 734116301 | 8 |
Regular price
$22.68
Regular price
|
||
| 47DUMMY PART | 900000002 | 4 | ISO - 4034 - M8 - N | ||
| 48DUMMY PART | 900000002 | 4 | M10x35 Countersunk Head Screw | ||
| 49LOCK NUT | 593495801 | 5 | |||
| 50DUMMY PART | 900000002 | 4 | ISO 4762 M8 x 35 - 35C8.8 | ||
| 51HEXAGON LOCKING NUT | 732251801 | 4 |
Regular price
$21.39
Regular price
|
||
| 52WASHER | 534693701 | 4 |

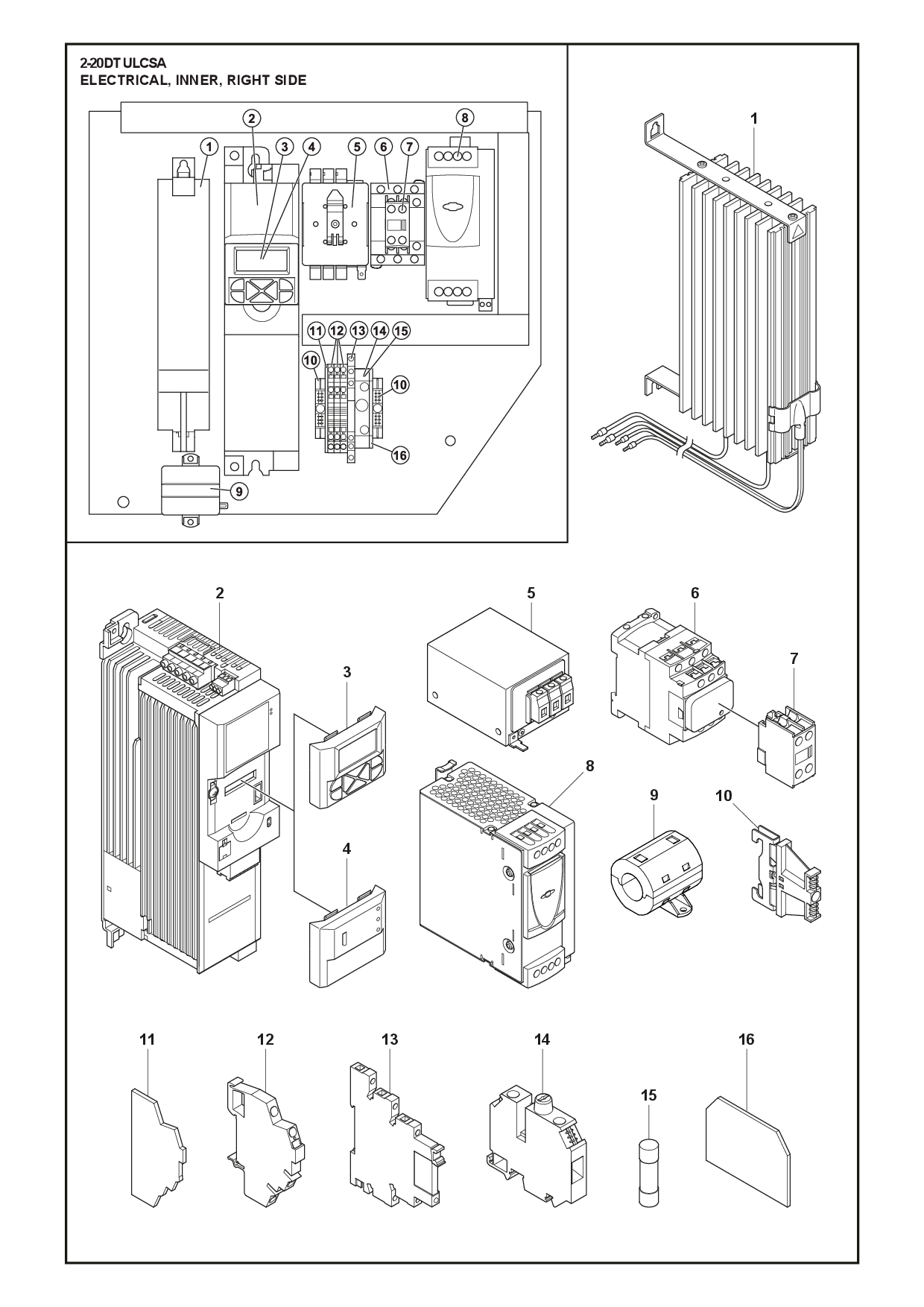

ELECTRICAL, INNER 16 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BRAKE | 536978501 | 1 | |||
| 2FREQUENCY INVERTER | 536978601 | 1 | Without program | ||
| 2FREQUENCY INVERTER | 536978602 | 1 | Programmed | ||
| 3MODULE | 535651101 | 1 | |||
| 4SOFTWARE SYSTEM | 546992701 | 1 | |||
| 5FILTER | 548550701 | 1 | |||
| 6CONTACTOR | 547017322 | 1 | |||
| 7CONTACT | 534088301 | 1 | |||
| 8POWER UNIT | 534772301 | 1 | |||
| 9CLAMP | 547017552 | 1 | |||
| 10SUPPORT | 533517901 | 2 | |||
| 11PLATE | 547017430 | 1 | |||
| 12TERMINAL | 534404801 | 3 | |||
| 13RELAY | 533757001 | 1 | |||
| 14TERMINAL | 533554001 | 1 | |||
| 16UNIT | 533938101 | 1 |

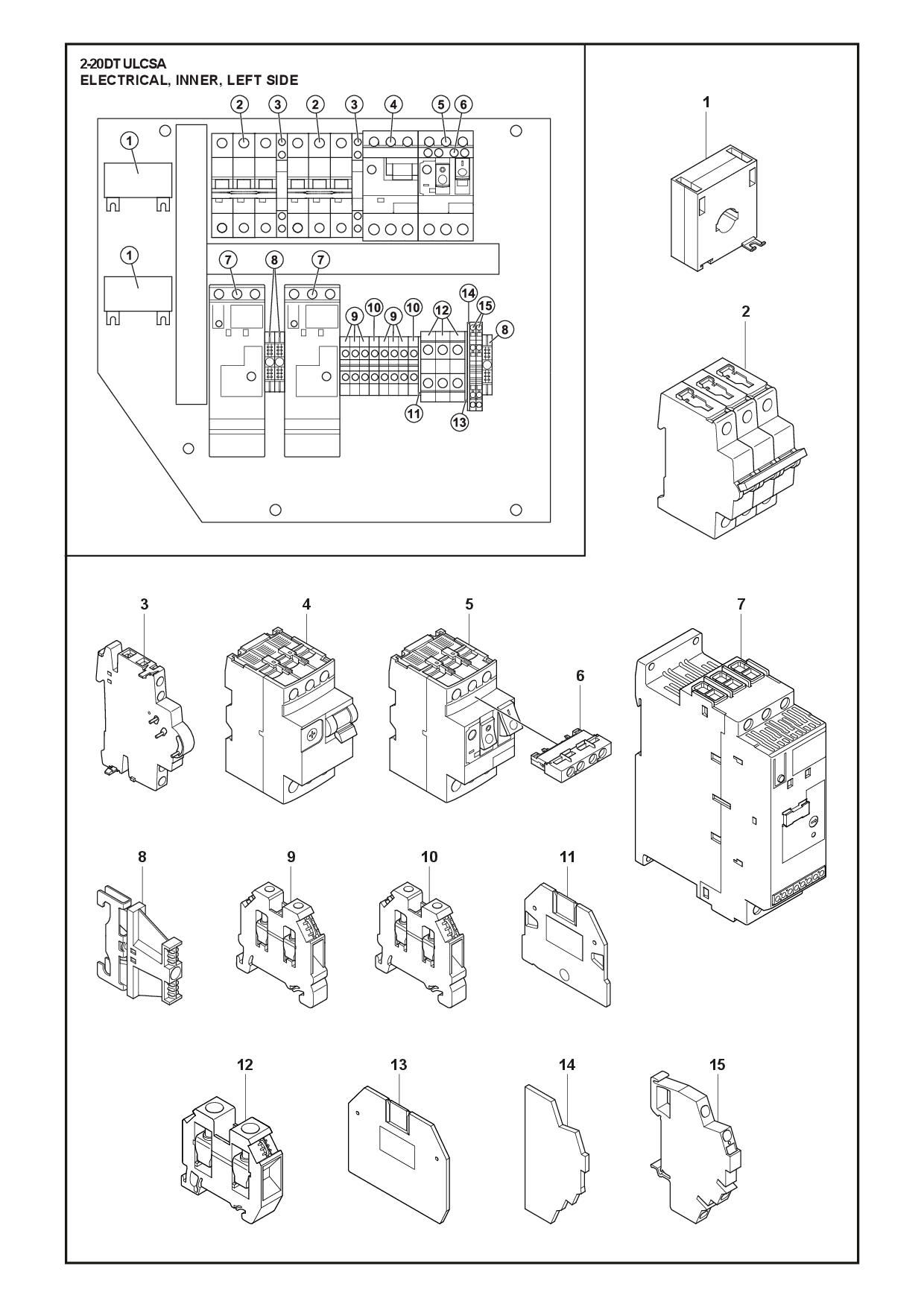

ELECTRICAL, INNER 14 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1TRANSFORMER | 533759901 | 2 | |||
| 2CONTACTOR | 533220201 | 2 | |||
| 3CONTACTOR | 534302201 | 2 | |||
| 4CIRCUIT BREAKER | 533381801 | 1 | |||
| 5SWITCH | 533712001 | 1 | |||
| 6CONTACTOR | 533915101 | 1 | |||
| 7STARTER | 533787301 | 2 | |||
| 8SUPPORT | 533517901 | 3 | |||
| 9CONNECTOR | 533967501 | 6 | |||
| 10CONNECTOR | 533970501 | 2 | |||
| 12TERMINAL BLOCK | 533687301 | 3 | |||
| 13TERMINAL | 533596201 | 1 | |||
| 15PLATE | 547017430 | 1 | |||
| 16TERMINAL | 534404801 | 1 |

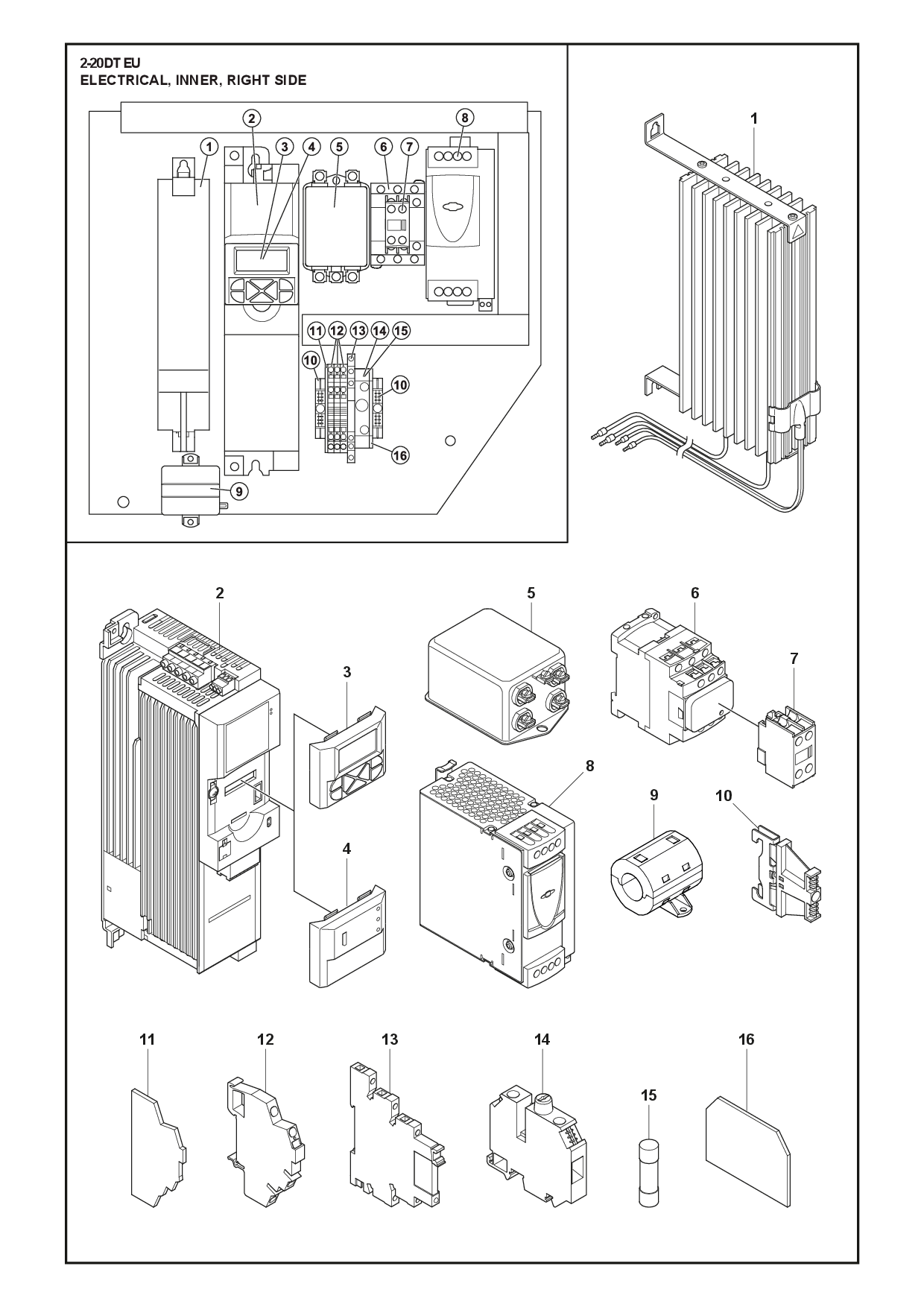

ELECTRICAL, INNER 16 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BRAKE | 536978501 | 1 | |||
| 2FREQUENCY INVERTER | 536978601 | 1 | Without program | ||
| 2FREQUENCY INVERTER | 536978602 | 1 | Programmed | ||
| 3MODULE | 535651101 | 1 | |||
| 4SOFTWARE SYSTEM | 546992701 | 1 | |||
| 5FILTER | 548550701 | 1 | |||
| 6CONTACTOR | 547017322 | 1 | |||
| 7CONTACT | 534088301 | 1 | |||
| 8POWER UNIT | 534772301 | 1 | |||
| 9CLAMP | 547017552 | 1 | |||
| 10SUPPORT | 533517901 | 2 | |||
| 11PLATE | 547017430 | 1 | |||
| 12TERMINAL | 534404801 | 3 | |||
| 13RELAY | 533757001 | 1 | |||
| 14TERMINAL | 533554001 | 1 | |||
| 16UNIT | 533938101 | 1 |

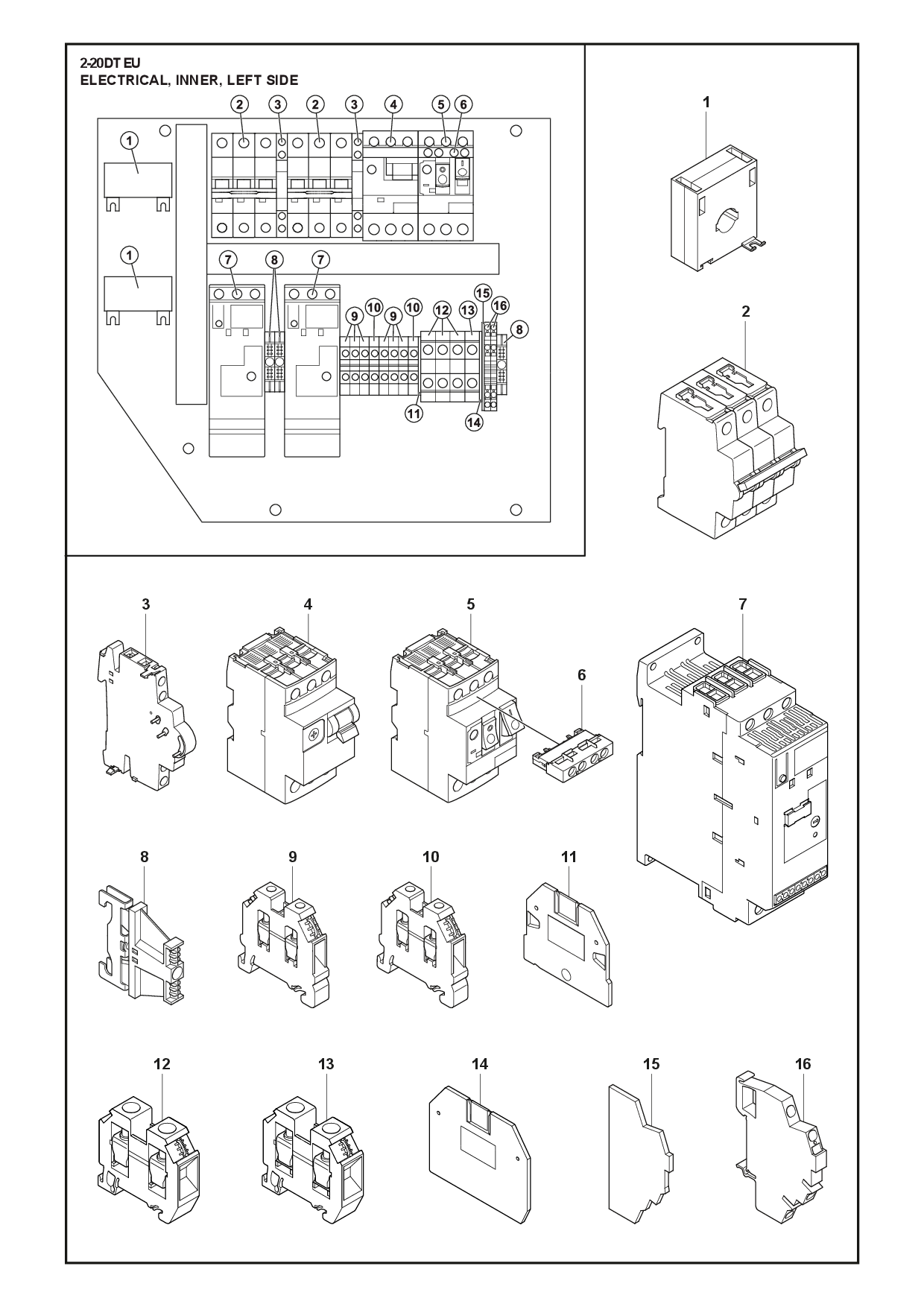

ELECTRICAL, INNER 14 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1TRANSFORMER | 533759901 | 2 | |||
| 2CONTACTOR | 533220201 | 2 | |||
| 3CONTACTOR | 534302201 | 2 | |||
| 4CIRCUIT BREAKER | 533381801 | 1 | |||
| 5SWITCH | 533712001 | 1 | |||
| 6CONTACTOR | 533915101 | 1 | |||
| 7STARTER | 533787301 | 2 | |||
| 8SUPPORT | 533517901 | 3 | |||
| 9CONNECTOR | 533967501 | 6 | |||
| 10CONNECTOR | 533970501 | 2 | |||
| 12TERMINAL BLOCK | 533687301 | 3 | |||
| 13TERMINAL | 533596201 | 1 | |||
| 15PLATE | 547017430 | 1 | |||
| 16TERMINAL | 534404801 | 1 |

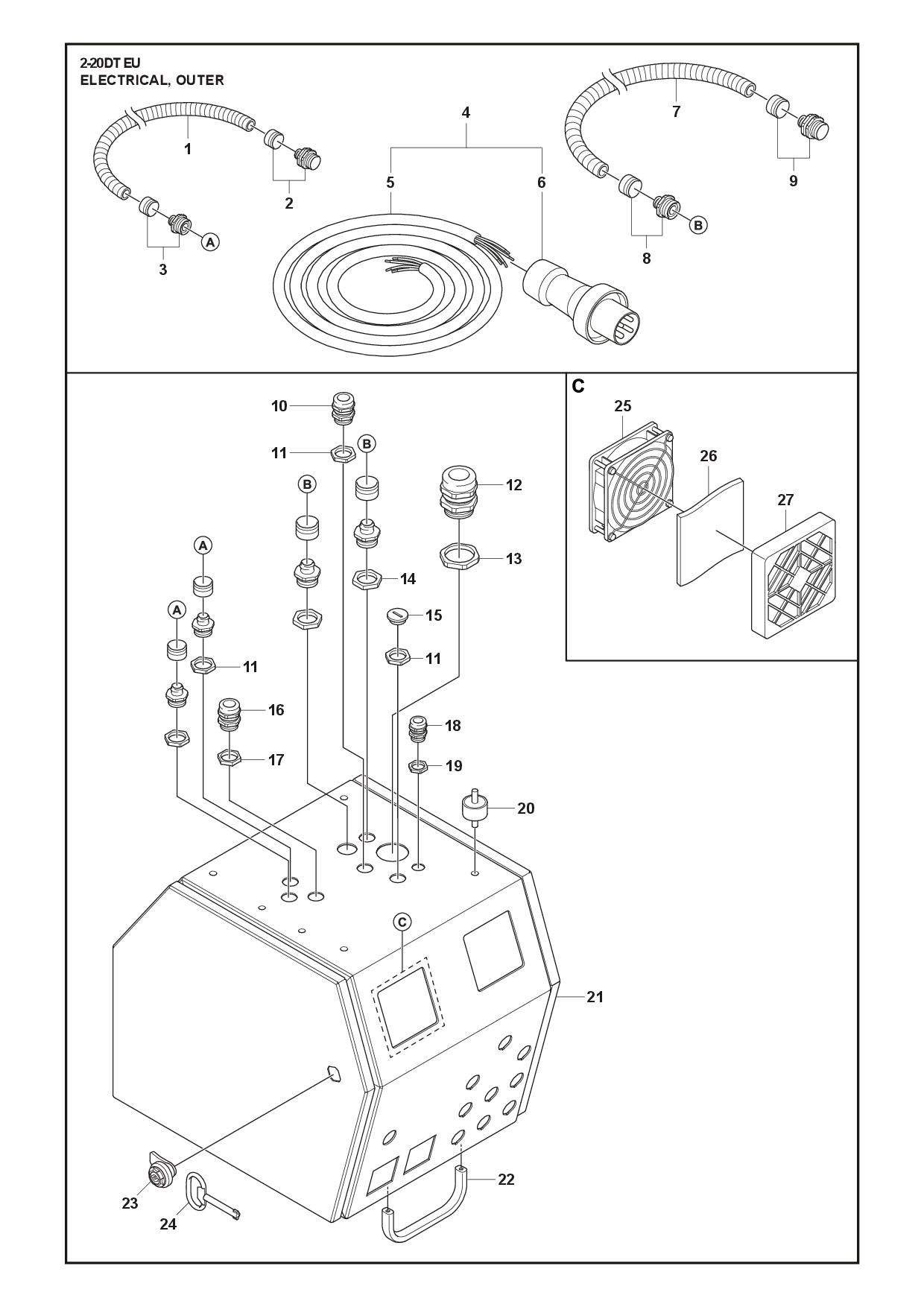

ELECTRICAL, OUTER 24 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 2FITTING | 533959501 | 1 | |||
| 3FITTING | 533934501 | 1 | |||
| 7CONDUIT | 533959001 | 2 | |||
| 8FITTING | 533942501 | 2 | |||
| 9FITTING | 533944501 | 2 | |||
| 10CABLE GUIDE | 547690229 | 1 | |||
| 11CABLE | 534027401 | 6 | |||
| 12CABLE | 548378501 | 1 | |||
| 13CABLE | 534028001 | 1 | |||
| 14CABLE | 534027601 | 2 | |||
| 15CABLE | 534029401 | 1 | |||
| 16NUT | 538777001 | 1 | |||
| 17NUT | 538776601 | 1 | |||
| 18CABLE | 533984901 | 1 | |||
| 19CABLE | 534027101 | 1 | |||
| 20FOOT | 548108601 | 4 | |||
| 21ELECTRONIC BOX | 546555002 | 1 | |||
| 21CONTROL PANEL | 547017302 | 1 | |||
| 22HANDLE | 547722401 | 1 | |||
| 23DOOR | 533865101 | 2 | |||
| 24KEY | 533964001 | 1 | |||
| 25FAN | 538770701 | 2 | |||
| 26FILTER | 533617801 | 2 | |||
| 27GUARD | 538783201 | 2 |

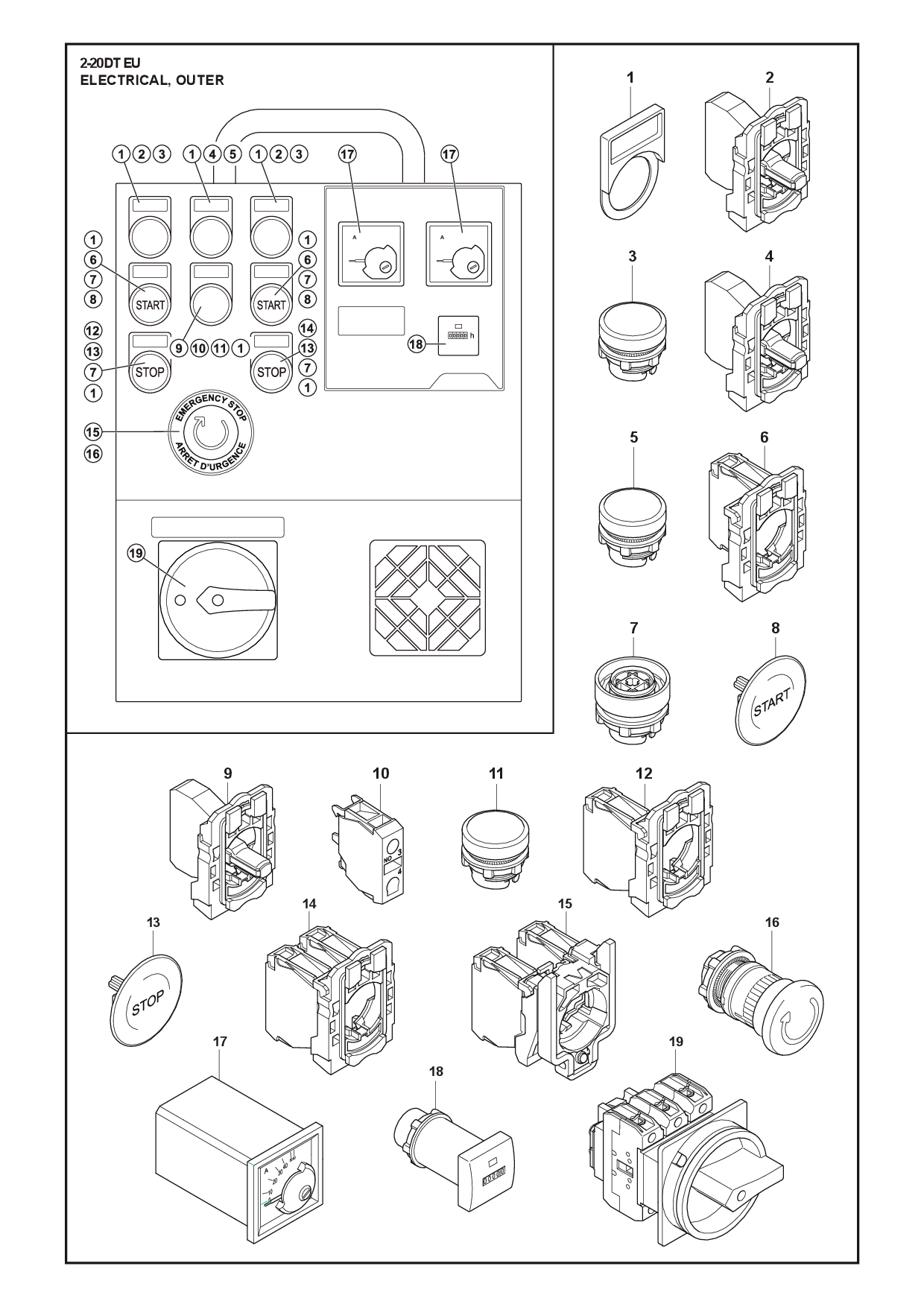

ELECTRICAL, OUTER 19 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HOLDER | 533951801 | 8 | |||
| 2LIGHT | 533781701 | 2 | |||
| 3HEAD | 534956001 | 2 | |||
| 4LIGHT | 533536401 | 1 | |||
| 5HEAD | 533978001 | 1 | |||
| 6CONTACT | 534029801 | 2 | |||
| 7PUSH BUTTON | 533377401 | 4 | |||
| 8CAP | 533973901 | 2 | |||
| 9LIGHT | 536590001 | 1 | |||
| 10CONTACT | 533998901 | 2 | |||
| 11PUSH BUTTON | 536590801 | 1 | |||
| 12CONTACT | 533959801 | 1 | |||
| 13CAP | 533804901 | 2 | |||
| 14CONTACT | 533387001 | 1 | |||
| 15CONTACT | 533786201 | 1 | |||
| 16SWITCH | 533931401 | 1 | |||
| 17METER | 533809201 | 2 | |||
| 18HOUR METER | 534026001 | 1 | |||
| 19KNOB | 547017316 | 1 |
ELECTRICAL, OUTER 25 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 2FITTING | 533959501 | 1 | |||
| 3FITTING | 533934501 | 1 | |||
| 4CABLE ASSY | 540570301 | 1 | |||
| 6CORD | 533974601 | 1 | |||
| 8FITTING | 533942501 | 2 | |||
| 9FITTING | 533944501 | 2 | |||
| 10CABLE GUIDE | 547690229 | 1 | |||
| 11NUT | 538776601 | 6 | |||
| 12CABLE | 548378501 | 1 | |||
| 13CABLE | 534028001 | 1 | |||
| 14CABLE | 534027601 | 2 | |||
| 15CABLE | 534029401 | 1 | |||
| 16NUT | 538777001 | 1 | |||
| 17NUT | 538776601 | 1 | |||
| 18CABLE | 533984901 | 1 | |||
| 19CABLE | 534027101 | 1 | |||
| 20FOOT | 548108601 | 4 | |||
| 21ELECTRONIC BOX | 546555002 | 1 | |||
| 21CONTROL PANEL | 547017302 | 1 | |||
| 22HANDLE | 547722401 | 1 | |||
| 23DOOR | 533865101 | 2 | |||
| 24KEY | 533964001 | 1 | |||
| 25FAN | 538770701 | 2 | |||
| 26FILTER | 533617801 | 2 | |||
| 27GUARD | 538783201 | 2 |
ELECTRICAL, OUTER 19 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HOLDER | 533951801 | 8 | |||
| 2LIGHT | 533781701 | 2 | |||
| 3HEAD | 534956001 | 2 | |||
| 4LIGHT | 533536401 | 1 | |||
| 5HEAD | 533978001 | 1 | |||
| 6CONTACT | 534029801 | 2 | |||
| 7PUSH BUTTON | 533377401 | 4 | |||
| 8CAP | 533973901 | 2 | |||
| 9LIGHT | 536590001 | 1 | |||
| 10CONTACT | 533998901 | 2 | |||
| 11PUSH BUTTON | 536590801 | 1 | |||
| 12CONTACT | 533959801 | 1 | |||
| 13CAP | 533804901 | 2 | |||
| 14CONTACT | 533387001 | 1 | |||
| 15CONTACT | 533786201 | 1 | |||
| 16SWITCH | 533931401 | 1 | |||
| 17METER | 533809201 | 2 | |||
| 18HOUR METER | 534026001 | 1 | |||
| 19KNOB | 547017316 | 1 |
HOUSING 61 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1CLAMP | 535147002 | 4 | Control cage clamp | ||
| 2TUNE-UP KIT | 531459001 | 2 | Tune up kit |
Regular price
$342.76
Regular price
|
|
| 3PLATE | 535147202 | 2 | Cage plate | ||
| 4COVER | 535110202 | 2 | Blast wheel | ||
| 5COVER | 535109802 | 1 | Blast housing | ||
| 6HUB | 533762001 | 2 | |||
| 7SEAL | 533442501 | 2 | Felt seal Ø60x8 | ||
| 8HOUSING | 535109202 | 1 | Blasthousing | ||
| 9BEARING UNIT | 533807402 | 2 | Bearing unit complete | ||
| 10FIXING PLATE | 535204902 | 6 | Liner fixing plate | ||
| 11SEAL | 533626002 | 2 | Skid seal | ||
| 12SPACER | 534857401 | 2 | Spacer side magnet rear | ||
| 13INSULATOR | 534644801 | 2 | Side | ||
| 14INSULATION | 534644701 | 1 | Front | ||
| 15BRUSH | 533806501 | 1 | Side strip brush LH | ||
| 16BRUSH | 533533901 | 1 | Front brush | ||
| 17BRUSH | 533805801 | 1 | Side strip brush RH | ||
| 18MAGNET | 534697302 | 3 | Magnet side | ||
| 19MAGNET | 534696702 | 1 | Magnet front | ||
| 20INDICATOR | 534079501 | 2 | Blast pattern indicator | ||
| 21LINER | 535256401 | 2 | Top liner | ||
| 22LINER | 534386201 | 1 | Center | ||
| 23LINER | 535242401 | 2 | Side | ||
| 24LINER | 535226301 | 1 | Plenum top liner | ||
| 25LINER | 535226001 | 1 | Plenum bottom liner | ||
| 26LINER | 535226201 | 2 | Plenum bottom side liner | ||
| 27PLATE | 546683701 | 2 | |||
| 28SCREW EHHM | 577668001 | 4 | |||
| 29HEXAGON NUT | 731232201 | 7 |
Regular price
$21.40
Regular price
|
||
| 30DUMMY PART | 900000002 | 3 | M12x50 Bolt | ||
| 31DUMMY PART | 900000002 | 15 | M12-Spring Lock Washer (Flat) | ||
| 32DUMMY PART | 900000002 | 9 | M12-Washer | ||
| 33WASHER | 536063001 | 44 | |||
| 34LOCK NUT | 593495801 | 22 | |||
| 35DUMMY PART | 900000002 | 10 | M10-Nut | ||
| 36DUMMY PART | 900000002 | 10 | M10x30 Bolt | ||
| 37HEXAGON NUT | 731231601 | 4 |
Regular price
$22.78
Regular price
|
||
| 38SCREW IHSCM | 725536801 | 2 | |||
| 39DUMMY PART | 900000002 | 18 | Spring washer DIN 128 - A6 | ||
| 40WASHER | 536063601 | 6 | |||
| 41WASHER | 536063601 | 12 | |||
| 43SCREW | 593500701 | 8 | |||
| 44SCREW | 593497101 | 4 | |||
| 45SCREW | 536057401 | 2 | |||
| 46DUMMY PART | 900000002 | 2 | M8-Spring Lock Washer (Flat) | ||
| 47WASHER | 536059501 | 2 | |||
| 48DUMMY PART | 900000002 | 6 | M12x35 Bolt | ||
| 49DUMMY PART | 900000002 | 2 | M10-Spring Lock Washer (Flat) | ||
| 50DUMMY PART | 900000002 | 2 | M10x35 Bolt | ||
| 51DUMMY PART | 900000002 | 6 | ISO 4017 - M12 x 35-C8.8 | ||
| 53WASHER | 734117801 | 6 |
Regular price
$10.51
Regular price
|
||
| 55LOCK NUT | 522919401 | 4 | |||
| 56DUMMY PART | 900000002 | 4 | M8 washer _25 | ||
| 57DUMMY PART | 900000002 | 8 | M12-Nut Closed | ||
| 58DUMMY PART | 900000002 | 8 | M12-Washer heavy | ||
| 65WASHER | 576823101 | 1 | |||
| 67DUMMY PART | 900000002 | 4 | M10x12 set screw | ||
| 68DUMMY PART | 900000002 | 2 | M16x40 Bolt | ||
| 69DUMMY PART | 900000002 | 2 | M16 Nut | ||
| 70BAR | 547364801 | 3 | M12x78 | ||
| 71SEALING STRIP | 534845302 | 1 |
LEVER 13 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1CONTROL LEVER | 533839501 | 1 | Lever for control cable | ||
| 2CONTROL CABLE | 533879301 | 1 | |||
| 3ANGLE BRACKET | 534625602 | 1 | |||
| 4JOINT | 534298201 | 3 | Angle joint | ||
| 5BUCKLE | 534912901 | 1 | Turnbuckle | ||
| 6LEVER | 534664001 | 1 | Lever magnetic valve long | ||
| 7LEVER | 533115401 | 1 | Lever magnetic valve | ||
| 8VALVE ASSY | 533437701 | 1 | Magnetic valve assembly | ||
| 9VALVE ASSY | 533406601 | 1 | Magnetic valve assembly | ||
| 10SCREW | 536057801 | 1 | |||
| 11WASHER | 536063101 | 2 | |||
| 12LOCK NUT | 522919401 | 1 | |||
| 13DUMMY PART | 900000002 | 1 | M6-Nut |
MAINTENANCE KIT 1 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1MAINTENANCE KIT | 546992201 | 1 | Maintenance box 2-20DT (50/60 Hz) |
MOTOR, PULLEYS AND BELTS 27 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BELT GUARD | 538678901 | 2 | |||
| 2BUSH | 533702501 | 2 | Taper lock | ||
| 3PULLEY | 534323801 | 2 | |||
| 4V-BELT | 535652001 | 4 | |||
| 5BUSH | 534514901 | 2 | Distance bush | ||
| 6KEY | 536416101 | 2 | |||
| 7PULLEY | 534785101 | 2 | 50Hz | ||
| 7PULLEY | 534785201 | 2 | 60Hz | ||
| 8WASHER | 534414701 | 2 | Coupling washer | ||
| 9SCREW | 533802401 | 2 | M8x25 Countersunk head screw | ||
| 10MOTOR | 534029502 | 2 | Blastmotor 11 kW | ||
| 11PLATE | 535176002 | 2 | Fill up plate blastmotor | ||
| 12BRACKET | 535260202 | 1 | Motor bracket twin | ||
| 13BACKPLATE | 534305002 | 1 | Back plate belt guard twin | ||
| 14RING | 533725802 | 2 | Fill up ring bearing unit | ||
| 15NUT | 538913501 | 4 | |||
| 16WASHER | 536063001 | 4 | |||
| 17HEXAGON NUT | 731232001 | 4 | |||
| 18SCREW EHHM | 725253871 | 4 | |||
| 19WASHER | 734117801 | 8 | |||
| 20DUMMY PART | 900000002 | 4 | Spring washer DIN 128 - A12 | ||
| 21HEXAGON NUT | 731232201 | 4 | |||
| 22SCREW | 593508601 | 2 | |||
| 23DUMMY PART | 900000002 | 4 | Washer ISO 7089 - 16 | ||
| 24WASHER | 534686601 | 2 | |||
| 25HEXAGON NUT | 731232401 | 2 | |||
| 33LEVER | 546437201 | 1 |
SEAL 17 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SEALING PLATE | 546268901 | 1 | Left | ||
| 2STRIP | 535149601 | 2 | Clamp strip sides | ||
| 3SEAL | 534841701 | 2 | Sides | ||
| 4SEAL | 534592101 | 2 | Front / rear | ||
| 5PROFILE | 546269101 | 1 | Angle profile front | ||
| 6STRIP | 546269301 | 2 | Clamp strip front / rear | ||
| 7PROFILE | 546269201 | 1 | Angle profile rear | ||
| 8MOUNTING PLATE | 546266101 | 2 | |||
| 9SEALING PLATE | 546269001 | 1 | Right | ||
| 10KNOB | 534513401 | 4 | Disc knob plastic M8 | ||
| 11BOLT | 534695301 | 4 | M8 x 40 hexagon bolt | ||
| 12WASHER | 734116301 | 22 | M8 | ||
| 13WASHER | 534693901 | 16 | M8 spring lock washer | ||
| 14NUT | 534693601 | 8 | M8 hexagon domed cap nut | ||
| 15BOLT | 533676101 | 4 | Hexagon socket thin head cap | ||
| 16BOLT | 534694701 | 10 | M8x20 hexagon bolt | ||
| 17SEAL KIT | 534780501 | 1 | Protection seal kit |
SEPARATOR 34 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SEPARATOR | 533117902 | 1 | |||
| 2DEFLECTOR | 534435102 | 1 | |||
| 3TRAY | 534829302 | 1 | Separator tray | ||
| 4TUBE | 534571701 | 2 | Feed spout grey | ||
| 5LID | 533828202 | 1 | For separator | ||
| 6PLATE | 533783501 | 1 | Lifting plate | ||
| 8PIPE CLAMP | 533073401 | 2 | 35mm (set of 2) | ||
| 10SUPPORT | 533718102 | 1 | For cable guide | ||
| 11CABLE GUIDE | 533622402 | 1 | |||
| 12SEAL | 533442501 | 1 | Felt seal | ||
| 13BUSH | 533194601 | 2 | Oilite bush | ||
| 14CLAMP | 534391301 | 2 | For separator tray | ||
| 15KNOB | 533592601 | 1 | Ball head for separator | ||
| 16RETAINER | 533783202 | 1 | Seal retainer | ||
| 17COVER | 533224802 | 1 | Shaft cover | ||
| 18CABLE KIT | 535145002 | 1 | Cable guide twin & cable adaption plate | ||
| 19VALVE ASSY | 533406601 | 1 | Magnetic valve assembly LH | ||
| 20VALVE ASSY | 533437701 | 1 | Magnetic valve assembly RH | ||
| 21BUCKLE | 534912901 | 1 | Turnbuckle | ||
| 22DUMMY PART | 900000002 | 1 | 2-20DT MKIII | ||
| 23HANDLE | 533170201 | 2 | |||
| 24KNOB | 533656201 | 4 | Clamp knob M8 | ||
| 25FRAME | 534794502 | 1 | Rebound plenum | ||
| 26LIGHT | 534662602 | 1 | LED light set for shotblasters | ||
| 27HANDLE GRIP | 534612901 | 1 | |||
| 29DUMMY PART | 900000002 | 2 | M10-Washer _40 | ||
| 30LOCK NUT | 593495801 | 2 | |||
| 31DUMMY PART | 900000002 | 4 | Washer DIN 9021 - 8.4 | ||
| 32SCREW | 535415301 | 6 | |||
| 33WASHER | 536063001 | 12 | |||
| 34DUMMY PART | 900000002 | 6 | M10-Nut | ||
| 35SCREW | 593508601 | 1 | |||
| 36WASHER | 534686601 | 1 | |||
| 37WASHER | 734118601 | 1 |
WHEELS AND TIRES 21 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1WHEEL | 533845201 | 2 | |||
| 2BUSHING | 533493301 | 2 | For idler wheel | ||
| 3DUMMY PART | 900000002 | 2 | M12x85 Bolt | ||
| 4WASHER | 734117771 | 12 | M12 Washer |
Regular price
$23.78
Regular price
|
|
| 5LEVER | 533470802 | 4 | Top lever | ||
| 6BUSHING | 533264801 | 4 | Lever bush top | ||
| 7BUSHING | 533513501 | 4 | Lever bush middle | ||
| 8LEVER | 533212002 | 4 | Bottom lever | ||
| 9SHAFT | 533540001 | 4 | Lever shaft | ||
| 10WASHER | 534683001 | 4 | M12 Ø32 Washer | ||
| 11HEXAGON LOCKING NUT | 732252201 | 10 | M12 plastic insert nut |
Regular price
$21.45
Regular price
|
|
| 12BUSHING | 533483201 | 4 | Lever bush bottom | ||
| 13SPACER PLATE | 533318701 | 2 | Distance plate | ||
| 14BUSHING | 533733701 | 4 | Wheel bracket bush | ||
| 15WHEEL BRACKET | 533721101 | 4 | Side plate | ||
| 16BOLT | 533212101 | 2 | Bottom | ||
| 17WASHER | 536063001 | 8 | M10 Washer | ||
| 18SCREW | 725255271 | 4 | M12x100 Bolt | ||
| 19SCREW | 534677501 | 4 | M10x100 Bolt | ||
| 20NUT | 732212051 | 4 | M10 Plastic insert nut |
Regular price
$24.18
Regular price
|
|
| 21BOLT | 533220401 | 2 | Top |
Document Downloads
Service bulletin
Operator's manual
Compatable Accessories
Concrete Focus
From pouring to resurfacing, we sell tools built for concrete pros.
Expert Support
Get guidance from experts who understand jobsite challenges.
Fast Delivery
Get your tools fast with our nationwide shipping network and local partnerships.
Talk to an expert now (855) 281-1918
Get fast, expert help choosing the right concrete tools or equipment for your job. Ask about availability, specs, troubleshooting, or get friendly guidance before you place an order.
