Product Details
HUSQVARNA SHOT BLASTER - UNLEASH THE POWER OF THE BLASTRAC 2-30DS
The Husqvarna Blastrac 2-30DS is the ultimate tool for heavy-duty surface preparation. Designed with a powerful 41.7 hp motor, it offers high productivity even in challenging conditions such as ramps and inclines, making it perfect for large-scale projects like parking decks, industrial floors, and airport runways. Its unique height adjusting system further simplifies transportation, ensuring you're always ready for the next job.
Apart from its robust power, the Blastrac 2-30DS stands out for its precise control. The high-speed travel switch allows for swift repositioning without resetting the speed, ensuring uniform surface preparation every time. Whether you're dealing with highway work, ship decks, or warehouse floors, this shot blaster guarantees efficiency and consistency.
- Powerful 41.7 hp Output Power
- Efficient 31 in Working Width
- Convenient Height Adjusting System for easy transportation
- High-speed Travel Switch for uniform surface preparation
- Sturdy Construction, weighing 1,610 lbs
Product Specification
Specifications
Output power
41.7 hp
Voltage
480/277 V
Frequency
60 Hz
Rated current
62 A
Phases
3 ph
Power source
Corded
Working width
31 in
Dust hose connection
6 in
Type of operation
Pull
Product size length
73 in
Product size width
39 in
Product size height
45 in
Weight
1,610 lbs
Packaging length (Calc)
72.047 in
Packaging width (Calc)
40.157 in
Warranty
1 year limited warranty
Related Equipment
Related Equipment
Service & Maintenance Parts
DRIVE 57 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HANDLE | 534042502 | 1 | Lower part | ||
| 2HANDLE | 534031902 | 1 | Top part | ||
| 3BOX | 533241402 | 1 | Control box | ||
| 4PLATE | 533571402 | 1 | Control box top plate | ||
| 5POTENTIOMETER | 533613001 | 1 | Complete (with holder and soldered contact block) | ||
| 5HOLDER | 533994301 | 1 | For potetiometer | ||
| 5POTENTIOMETER | 533963001 | 1 | Only with soldered contact block | ||
| 6PUSH BUTTON | 533850701 | 2 | |||
| 7HANDLE GRIP | 534612901 | 1 | |||
| 8LEVER | 533783702 | 1 | Switch lever | ||
| 9SWITCH | 534668101 | 1 | Limit switch | ||
| 10BRAKE | 534365601 | 1 | For drive motor | ||
| 10FAN | 534566701 | 1 | For drive motor | ||
| 10DRIVE MOTOR | 534439303 | 1 | 1,1 kW | ||
| 10FAN COVER | 534567002 | 1 | |||
| 11SPROCKET | 534862901 | 1 | |||
| 12CHAIN GUARD | 533068002 | 1 | |||
| 13COVER | 534387302 | 1 | For chain guard | ||
| 14PIN | 533256401 | 1 | Quick release pin | ||
| 15LINK | 533930301 | 1 | Chain link (required) | ||
| 15LINK | 533777001 | 1 | Chain link half (required) | ||
| 15CHAIN | 534024703 | 1 | 1m (use 0.9m) | ||
| 16RETAINER | 546615201 | 1 | Sprocket retainer | ||
| 17SPROCKET | 534640601 | 1 | Idler sprocket | ||
| 18HUB | 534642001 | 1 | |||
| 19WHEEL BRACKET | 534528202 | 1 | |||
| 20LOCKING SHAFT | 534681501 | 1 | |||
| 21BEARING | 531474201 | 2 | For drive wheel | ||
| 22BUSH | 533318901 | 1 | Distance bush for drive wheel | ||
| 23DRIVE SHAFT | 533956301 | 1 | |||
| 24WHEEL | 534907101 | 1 | |||
| 25WASHER | 533843701 | 1 | Washer for yoke shaft | ||
| 26BEARING | 533809801 | 2 | |||
| 27SCREW | 598964201 | 2 | M8x20 Hex bolt | ||
| 28WASHER | 534693901 | 2 | M8 Spring lock washer | ||
| 29WASHER | 533821001 | 2 | M8 Washer 3xd | ||
| 30SCREW IHSCM | 725536801 | 6 | |||
| 31WASHER | 734115201 | 7 |
Regular price
$22.78
Regular price
|
||
| 32WASHER | 734117201 | 7 |
Regular price
$22.68
Regular price
|
||
| 33LOCK NUT | 593495801 | 5 | |||
| 34SCREW | 505456101 | 4 | |||
| 35DUMMY PART | 900000002 | 8 | washer din 9021 - 8.4 | ||
| 36DUMMY PART | 900000002 | 4 | Spring washer DIN 128 - A8 | ||
| 37HEXAGON NUT | 731231801 | 4 |
Regular price
$22.78
Regular price
|
||
| 38CAP | 533655101 | 2 | |||
| 39HEXAGON NUT | 731232001 | 6 |
Regular price
$22.78
Regular price
|
||
| 40SCREW | 725245971 | 4 | |||
| 41WASHER | 534693701 | 4 | |||
| 42WASHER | 734116301 | 8 |
Regular price
$22.68
Regular price
|
||
| 43DUMMY PART | 900000002 | 4 | iso - 4034 - m8 - n | ||
| 44NUT | 538913501 | 2 | |||
| 45DUMMY PART | 900000002 | 1 | iso 4762 m8 x 20 - 20c10.9 | ||
| 46DUMMY PART | 900000002 | 1 | Spring washer DIN 128 - A6 | ||
| 47DUMMY PART | 900000002 | 1 | iso - 4034 - m6 - n | ||
| 48DUMMY PART | 900000002 | 4 | M10x35 Countersunk Head Screw | ||
| 49DUMMY PART | 900000002 | 4 | iso 4762 m8 x 35 - 35c8.8 | ||
| 50HEXAGON LOCKING NUT | 732251801 | 4 |
Regular price
$21.39
Regular price
|

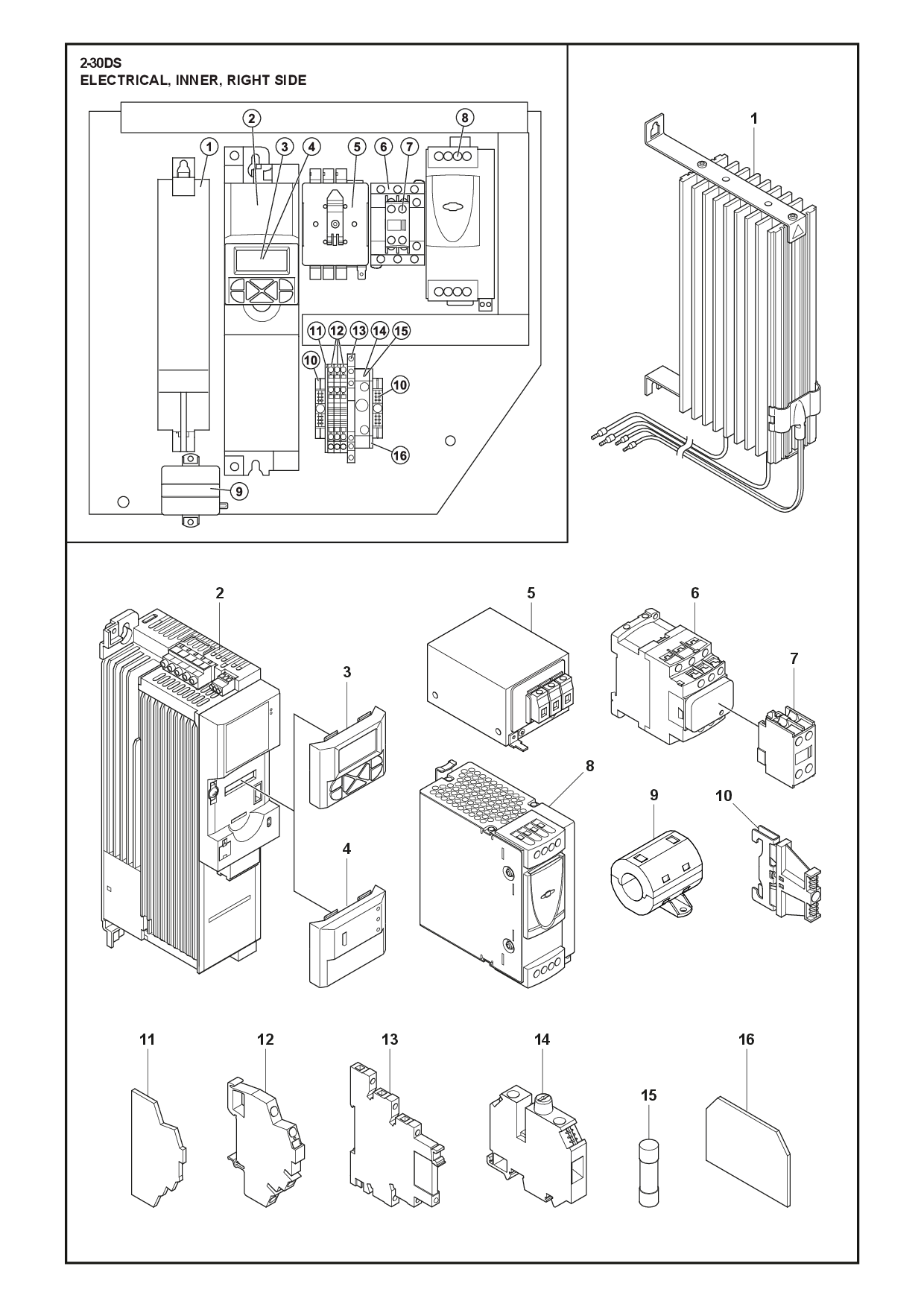

ELECTRICAL, INNER 16 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BRAKE | 536978501 | 1 | |||
| 2FREQUENCY INVERTER | 536978601 | 1 | Without program | ||
| 2FREQUENCY INVERTER | 536978602 | 1 | Programmed | ||
| 3MODULE | 535651101 | 1 | |||
| 4SOFTWARE SYSTEM | 546992701 | 1 | |||
| 5FILTER | 548550701 | 1 | |||
| 6CONTACTOR | 547017322 | 1 | |||
| 7CONTACT | 534088301 | 1 | |||
| 8POWER UNIT | 534772301 | 1 | |||
| 9CLAMP | 547017552 | 1 | |||
| 10SUPPORT | 533517901 | 2 | |||
| 11PLATE | 547017430 | 1 | |||
| 12TERMINAL | 534404801 | 3 | |||
| 13RELAY | 533757001 | 1 | |||
| 14TERMINAL | 533554001 | 1 | |||
| 16UNIT | 533938101 | 1 |

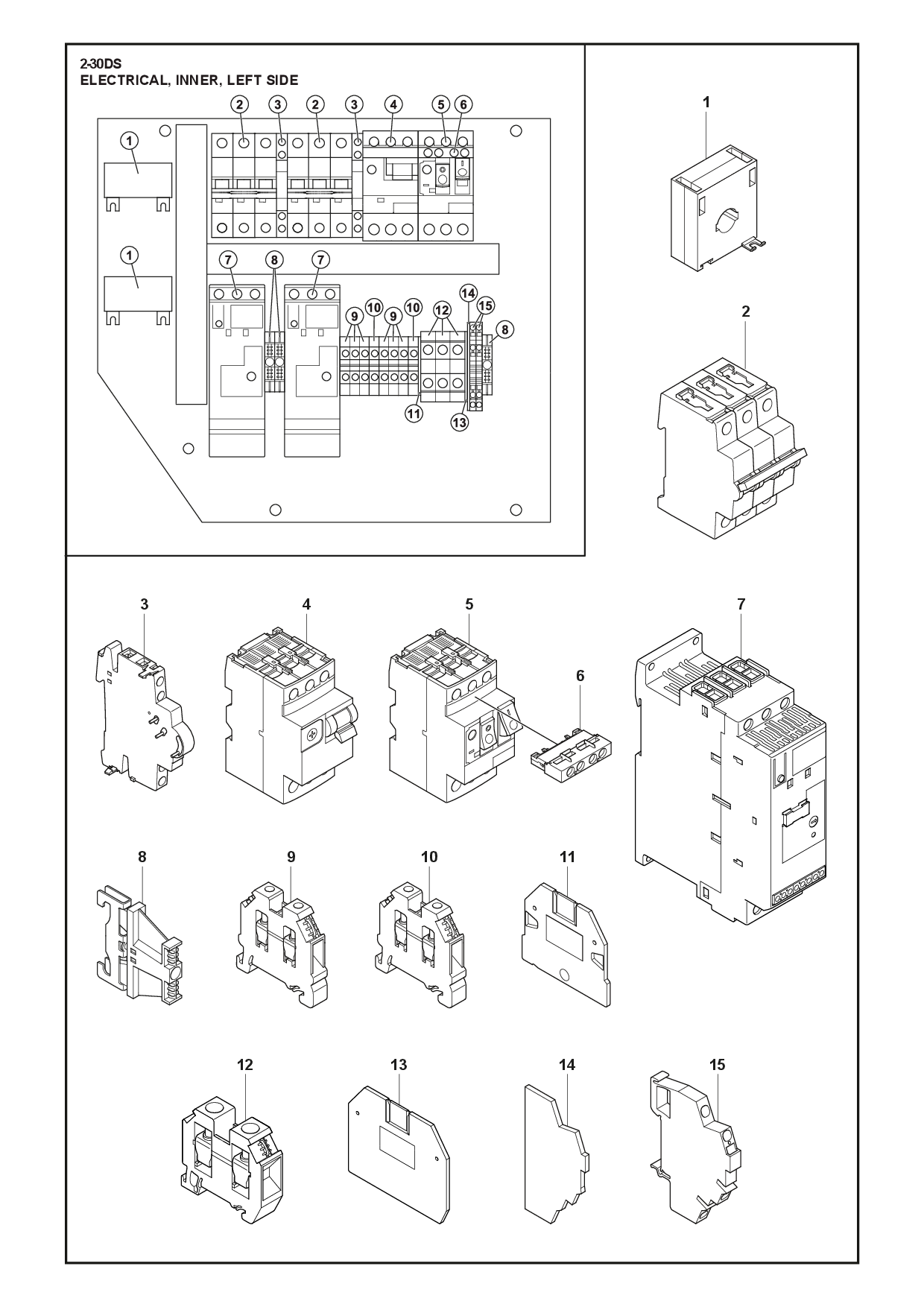

ELECTRICAL, INNER 11 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1TRANSFORMER | 533759901 | 2 | |||
| 2CONTACTOR | 533220201 | 2 | |||
| 3CONTACTOR | 534302201 | 2 | |||
| 4CIRCUIT BREAKER | 533381801 | 1 | |||
| 5SWITCH | 533712001 | 1 | |||
| 6CONTACTOR | 533915101 | 1 | |||
| 7STARTER | 533671501 | 2 | |||
| 8SUPPORT | 533517901 | 3 | |||
| 12TERMINAL BLOCK | 533687301 | 3 | |||
| 15PLATE | 547017430 | 1 | |||
| 16TERMINAL | 534404801 | 1 |

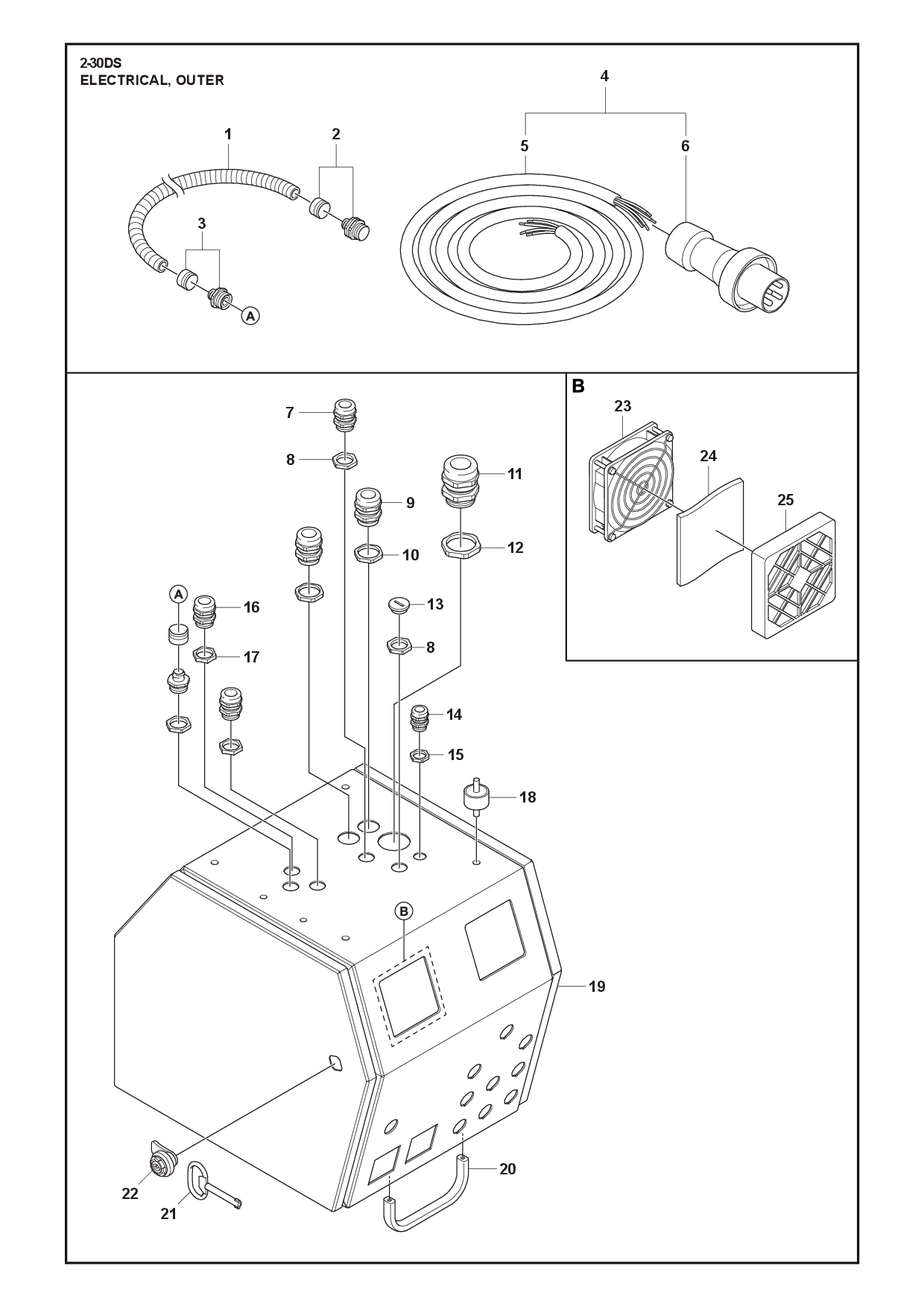

ELECTRICAL, OUTER 24 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1CONDUIT | 533946601 | 1 | |||
| 2FITTING | 533942601 | 1 | |||
| 3FITTING | 533934501 | 1 | |||
| 4CABLE ASSY | 540570301 | 1 | |||
| 6CORD | 533974601 | 1 | |||
| 7CABLE | 533795201 | 2 | |||
| 8CABLE | 534027401 | 3 | |||
| 9CABLE | 533795201 | 2 | |||
| 10CABLE | 534027901 | 2 | |||
| 11CABLE | 533999701 | 1 | |||
| 12CABLE | 534028001 | 1 | |||
| 13CABLE | 534029401 | 1 | |||
| 14CABLE | 533984901 | 1 | |||
| 15CABLE | 534027101 | 1 | |||
| 16NUT | 538777001 | 2 | |||
| 17NUT | 538776601 | 2 | |||
| 18FOOT | 548108601 | 4 | |||
| 19CONTROL PANEL | 547017302 | 1 | |||
| 20HANDLE | 547722401 | 1 | |||
| 21KEY | 533964001 | 1 | |||
| 22DOOR | 533865101 | 2 | |||
| 23FAN | 538770701 | 2 | |||
| 24FILTER | 533617801 | 2 | |||
| 25GUARD | 538783201 | 2 |

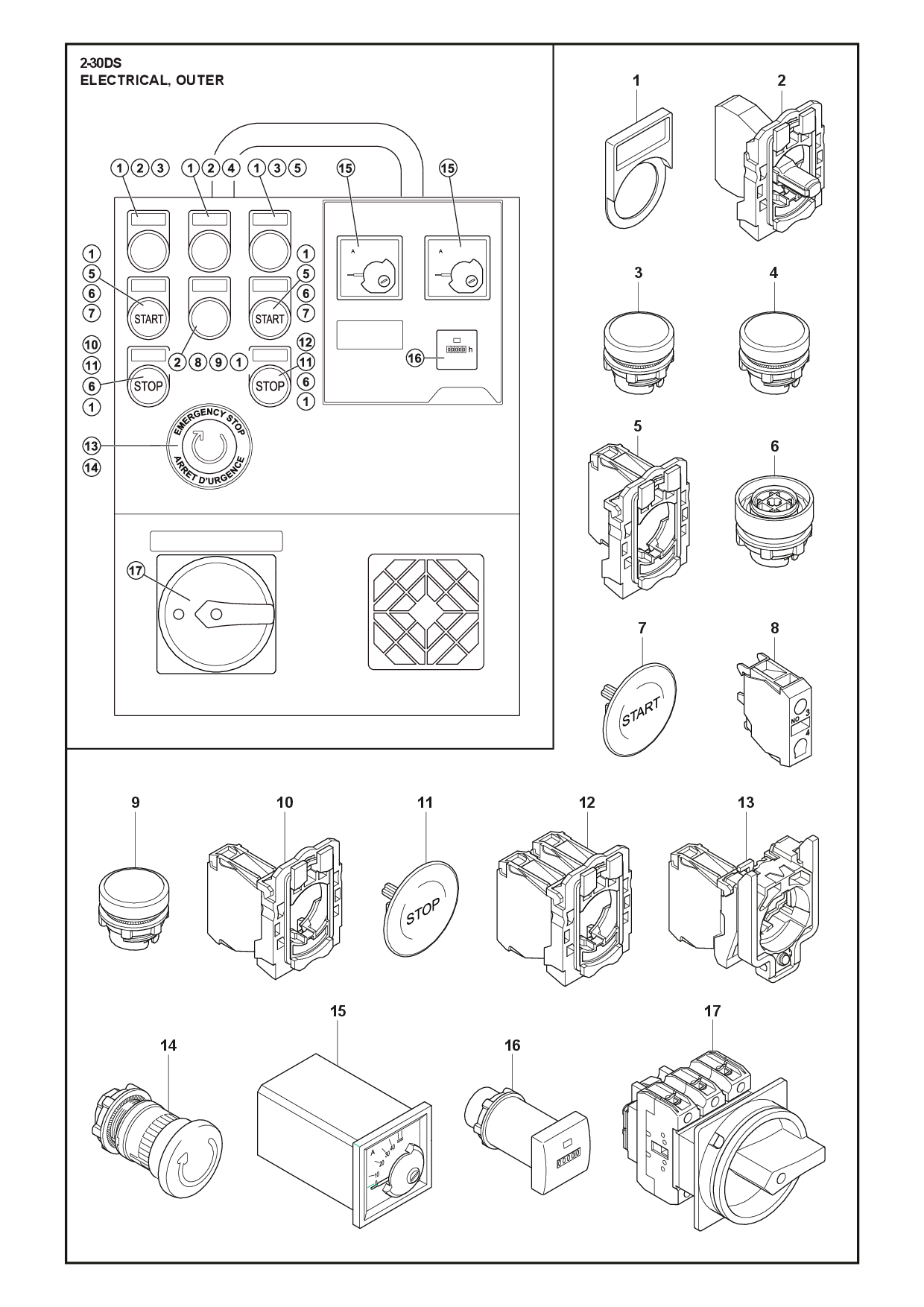

ELECTRICAL, OUTER 17 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HOLDER | 533951801 | 8 | |||
| 2LIGHT | 533781701 | 4 | |||
| 3HEAD | 534956001 | 2 | |||
| 4HEAD | 533978001 | 1 | |||
| 5CONTACT | 534029801 | 2 | |||
| 6PUSH BUTTON | 533377401 | 4 | |||
| 7CAP | 533973901 | 2 | |||
| 8CONTACT | 533998901 | 2 | |||
| 9PUSH BUTTON | 536590801 | 1 | |||
| 10CONTACT | 533959801 | 1 | |||
| 11CAP | 533804901 | 2 | |||
| 12CONTACT | 533387001 | 1 | |||
| 13CONTACT | 533991701 | 1 | |||
| 14SWITCH | 533931401 | 1 | |||
| 15METER | 533809201 | 2 | |||
| 16HOUR METER | 534026001 | 1 | |||
| 17KNOB | 547017316 | 1 |
HOUSING 38 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1TUNE-UP KIT | 531459001 | 2 | Tune up kit |
Regular price
$342.76
Regular price
|
|
| 2SHIM | 534411101 | 2 | Control cage shim | ||
| 3CLAMP | 534410802 | 4 | Control cage clamp | ||
| 4COVER | 534340602 | 2 | Blastwheel cover plate | ||
| 5PLATE | 534594202 | 1 | Front plate LH | ||
| 6PLATE | 534594302 | 1 | Front plate RH | ||
| 7HUB | 533762001 | 2 | |||
| 8HOUSING | 534015702 | 1 | Blast housing | ||
| 9SEAL | 533442501 | 2 | Felt seal Ø60x8 | ||
| 10BEARING UNIT | 533807402 | 2 | Complete | ||
| 11SPACER | 534857401 | 2 | Spacer side magnet rear | ||
| 12SEAL | 533743001 | 2 | Skid seal UNI | ||
| 13BRUSH | 533805801 | 1 | Side brush RH | ||
| 14INSULATOR | 534644801 | 2 | Insulator side | ||
| 15INSULATOR | 534593601 | 1 | Insulator front | ||
| 16MAGNET | 534697302 | 2 | Magnet side | ||
| 17MAGNET | 534696702 | 2 | Magnet front | ||
| 18BRUSH | 534595101 | 1 | Front brush | ||
| 19BRUSH | 533806501 | 1 | Side brush LH | ||
| 20LINER | 533611101 | 2 | Top liner | ||
| 21LINER | 533614001 | 1 | Center liner top part | ||
| 22LINER | 533727501 | 1 | Center liner bottom part | ||
| 23LINER | 533722401 | 1 | Side liner RH | ||
| 24LINER | 533713101 | 1 | Side liner LH | ||
| 25LINER | 533572901 | 2 | Plenum side liner | ||
| 26LINER | 534766701 | 1 | Plenum liner top | ||
| 27LINER | 534765301 | 1 | Plenum liner bottom | ||
| 28HOUSING | 534055502 | 1 | Blast housing incl. front plates | ||
| 29DUMMY PART | 900000002 | 4 | M10x30 Bolt | ||
| 30DUMMY PART | 900000002 | 20 | M10-Spring Lock Washer (Flat) | ||
| 31WASHER | 536063001 | 20 | |||
| 32DUMMY PART | 900000002 | 8 | M12-Nut Closed | ||
| 33DUMMY PART | 900000002 | 8 | M12-Spring Lock Washer (Flat) | ||
| 34DUMMY PART | 900000002 | 1 | M12-Washer | ||
| 35NUT | 538913501 | 16 | |||
| 36SCREW IHSCM | 725544901 | 8 | |||
| 37DUMMY PART | 900000002 | 8 | Spring washer DIN 128 - A8 | ||
| 38WASHER | 734116301 | 8 |
Regular price
$22.68
Regular price
|
MAINTENANCE KIT 1 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BOX | 534701001 | 1 | Maintenance box 50Hz |
MOTOR, PULLEYS AND BELTS 21 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1MOTOR | 534940802 | 2 | |||
| 2SPACER PLATE | 533725902 | 2 | |||
| 3BRACKET | 546144701 | 1 | Motor bracket | ||
| 4BACKPLATE | 533112102 | 2 | |||
| 5PLATE | 531484801 | 2 | Dust plate | ||
| 6LEVER | 546437201 | 1 | |||
| 7PULLEY | 533695601 | 2 | 60Hz Top pulley | ||
| 7PULLEY | 534906401 | 2 | 50Hz Top pulley | ||
| 8DRIVE BELT | 533471901 | 2 | 50Hz | ||
| 8DRIVE BELT | 533843102 | 2 | 60Hz | ||
| 9PULLEY | 533697901 | 2 | 60Hz Bottom pulley | ||
| 9PULLEY | 534361701 | 2 | 50Hz Bottom pulley | ||
| 10BUSH | 533378101 | 2 | Taper lock (50/60Hz) For Top pulley | ||
| 11BUSH | 533782401 | 2 | Taper lock (50Hz) For bottom pulley | ||
| 12BUSHING | 533599201 | 2 | Taper lock (60Hz) For bottom pulley | ||
| 13BELT GUARD | 533126102 | 2 | |||
| 14FAN COVER | 546831501 | 2 | Fan cover BLUE for 546220201 | ||
| 14FAN COVER | 546831502 | 2 | Fan cover BLACK for 546220202 | ||
| 15FAN | 546831602 | 2 | Black for both versions Blue 546220201 and Black 546220202 | ||
| 16JUNCTION BOX | 546831701 | 2 | Cover & box BLUE for 546220201 | ||
| 16JUNCTION BOX | 546831702 | 2 | Cover & box BLACK for 546220202 |
SEPARATOR 40 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HANDLE | 533170201 | 2 | |||
| 2LID | 533256302 | 1 | For separator | ||
| 3DEFLECTOR | 534435002 | 1 | |||
| 4SEPARATOR | 535239002 | 1 | |||
| 5PIPE CLAMP | 533414301 | 2 | Ø25 | ||
| 6CABLE HOLDER | 535146702 | 1 | |||
| 7VALVE ASSY | 533406601 | 1 | LH | ||
| 8LEVER | 534664001 | 1 | For LH valve | ||
| 9TUBE | 534571701 | 2 | Feed spout | ||
| 10VALVE ASSY | 533437701 | 1 | RH | ||
| 11BUCKLE | 533555701 | 1 | Turnbuckle | ||
| 12LEVER | 534663901 | 1 | For RH valve | ||
| 13CONTROL CABLE | 533879301 | 1 | |||
| 14TRAY | 535238302 | 1 | Separator tray | ||
| 15CLAMP | 534391301 | 2 | For separator tray | ||
| 16KNOB | 533592601 | 1 | For separator | ||
| 17BRACKET | 535272702 | 1 | For cable guide | ||
| 18SUPPORT | 533718102 | 1 | For cable guide | ||
| 19CABLE GUIDE | 533622402 | 1 | |||
| 20ELECTRONIC BOX | 546561401 | 1 | |||
| 21CONTROL LEVER | 533839501 | 1 | Cable control unit | ||
| 22COVER | 533224802 | 1 | Shaft cover | ||
| 23FRAME | 534794602 | 1 | Rebound plenum | ||
| 24BUSH | 533194601 | 2 | Oilite bush | ||
| 25PLATE | 533783501 | 1 | Lifting plate | ||
| 26SEAL | 533442501 | 1 | Felt seal | ||
| 27RETAINER | 533783202 | 1 | Seal retainer | ||
| 28KNOB | 533656201 | 4 | Clamp knob M8 | ||
| 29CONNECTING ROD | 535368001 | 1 | |||
| 30JOINT | 534298201 | 3 | Angle joint | ||
| 31PIVOT PIN | 534028801 | 1 | |||
| 32SCREW | 593508601 | 1 | |||
| 33WASHER | 534686601 | 1 | |||
| 34WASHER | 734118601 | 1 | |||
| 35NUT | 538913501 | 3 | |||
| 36DUMMY PART | 900000002 | 3 | spring washer din 128 - a10 | ||
| 37WASHER | 536063001 | 3 | |||
| 38SCREW EHHM | 522622101 | 1 | |||
| 39HEXAGON NUT | 731231601 | 2 | |||
| 40DUMMY PART | 900000002 | 1 | M6x45 Bolt |
WHEELS AND TIRES 21 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1WHEEL | 533845201 | 2 | |||
| 2BUSHING | 533493301 | 2 | Idler wheel | ||
| 3DUMMY PART | 900000002 | 2 | M12x85 Bolt | ||
| 4WASHER | 734117771 | 12 | M12 Washer |
Regular price
$23.78
Regular price
|
|
| 5LEVER | 533470801 | 4 | Top lever | ||
| 6BUSHING | 533264801 | 4 | Lever bush top | ||
| 7BUSHING | 533513501 | 4 | Lever bush middle | ||
| 8LEVER | 533212001 | 4 | Bottom lever | ||
| 9SHAFT | 533540001 | 4 | Lever shaft | ||
| 10WASHER | 534683001 | 4 | M12 Ø32 Washer | ||
| 11HEXAGON LOCKING NUT | 732252201 | 10 | M12 plastic insert nut |
Regular price
$21.45
Regular price
|
|
| 12BUSHING | 533483201 | 4 | Lever bush bottom | ||
| 13SPACER PLATE | 533318701 | 2 | Distance plate | ||
| 14BUSHING | 533733701 | 4 | Wheel bracket bush | ||
| 15WHEEL BRACKET | 533721101 | 4 | Side plate | ||
| 16BOLT | 533212101 | 2 | Bottom | ||
| 17WASHER | 536063001 | 8 | M10 Washer | ||
| 18SCREW | 725255271 | 4 | M12x100 Bolt | ||
| 19SCREW | 534677501 | 4 | M10x100 Bolt | ||
| 20NUT | 732212051 | 4 | M10 Plastic insert nut |
Regular price
$24.18
Regular price
|
|
| 21BOLT | 533220401 | 2 | Top |
Document Downloads
Service bulletin
Operator's manual
Compatable Accessories
Concrete Focus
From pouring to resurfacing, we sell tools built for concrete pros.
Expert Support
Get guidance from experts who understand jobsite challenges.
Fast Delivery
Get your tools fast with our nationwide shipping network and local partnerships.
Talk to an expert now (855) 281-1918
Get fast, expert help choosing the right concrete tools or equipment for your job. Ask about availability, specs, troubleshooting, or get friendly guidance before you place an order.
