Product Specifications

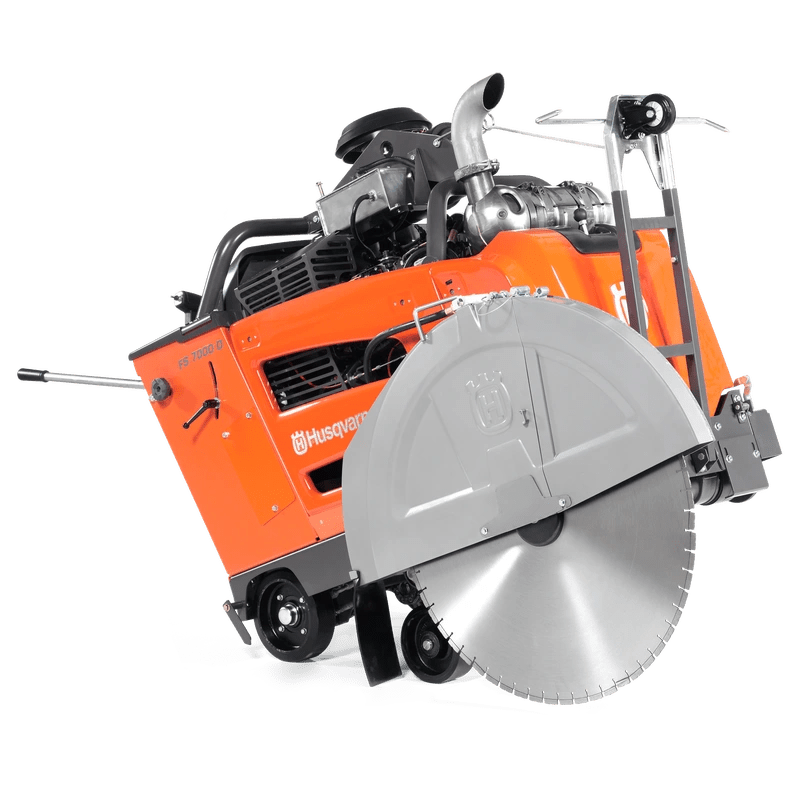

FLOOR SAW FS 7000 D 74 hp | 26" | Deutz | FP
Specifications

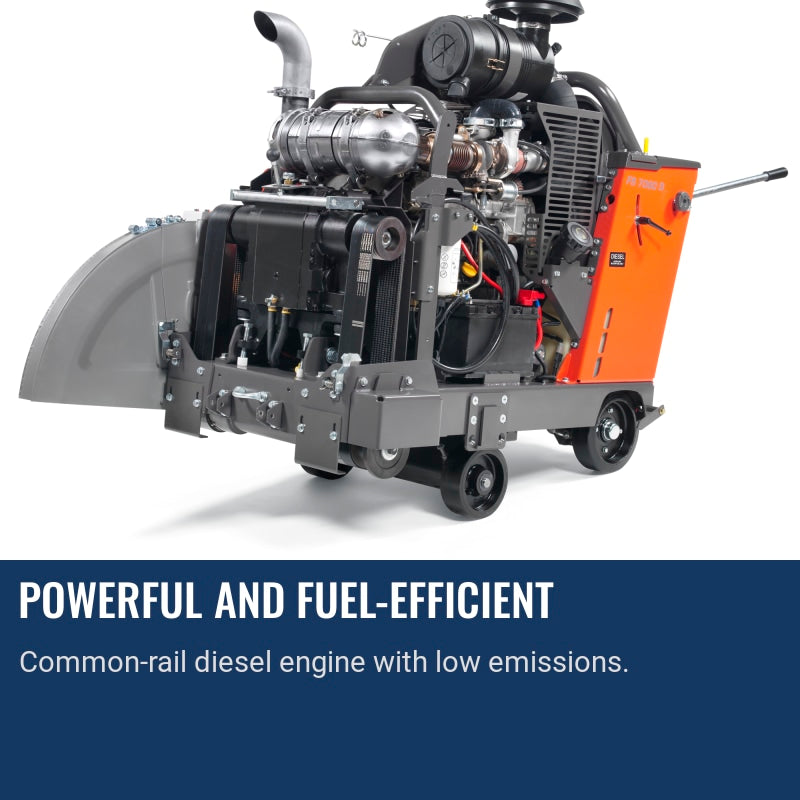

Motor/engine manufacturer
Deutz
Engine Power (As rated by the engine manufacturer)
74.3 hp
Engine cooling
Liquid /Air
Fuel tank volume
1,352 fl oz
Number of strokes
4-stroke engine

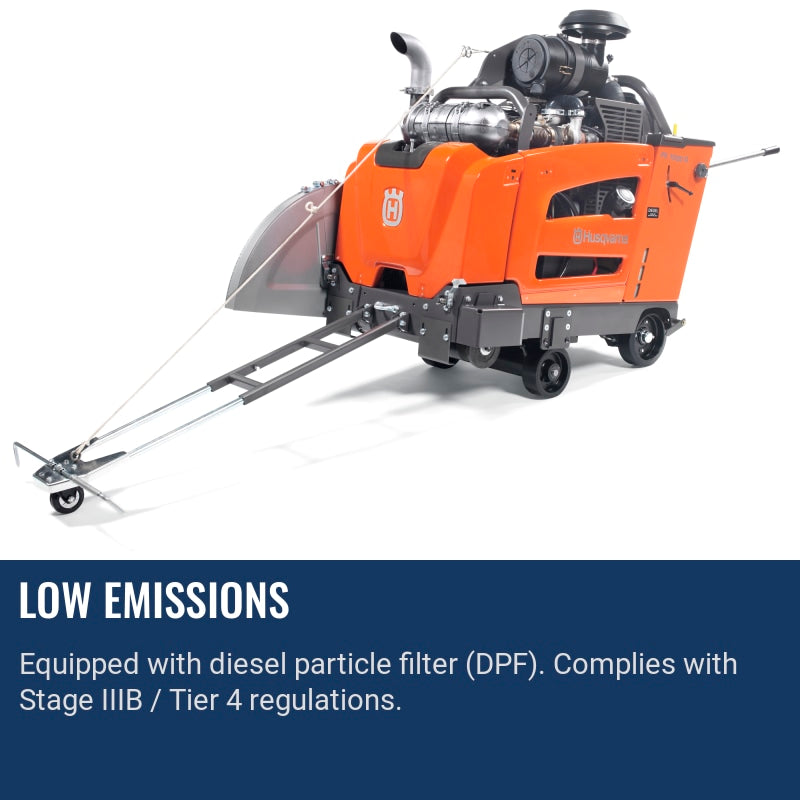

Exhaust emissions (CO₂ EU V)
843 g/kWh
Cylinders
4
Power source
Diesel
Cutting depth, max
10.5 in
Blade diameter, max
26 in
Arbor diameter
1"
Blade depth control
Electric hydraulic
Number of gearbox speeds
1
Transmission speed forward
250 fpm
Transmission speed reverse
0 fpm
Product size length
77.25 in
Product size width
38.38 in
Product size height
59 in
Weight
2,275 lbs
Packaging length (Calc)
77.165 in
Packaging width (Calc)
38.583 in
Packaging height (Calc)
59.055 in
Article gross weight (Calc)
2,211.236 lbs
Document Downloads
Service bulletin
-
SB. SB, Gearbox locking pin, FS5000/7000, 3.-speed gearbox, 2025-03PDF EN
-
SB. FS 7000, Loose Axle nut, 2023-10PDF EN
-
SB. Deutz fuel filter, FS 7000 D, FS 7000 DL, FS 7000 DMT, 2022-04PDF EN
-
SB. Heavy duty blade shaft, FS 7000 D, FS 7000 DL, 2017-06PDF EN
-
SB. Fuel cooler bracket, FS 7000, 2018-06PDF EN
-
SB, IGNITION SWITCH, FS5000 & FS7000, 2014-10PDF EN
-
SB. Battery Specifications for FS and Soff-Cut, 2015-06PDF EN
-
SB. Software update Revision T, FS 5000 D, FS 7000 D, DL, DMT, 2019-02PDF EN
-
SB. HMI fog, FS 5000, FS 7000 D, FS 7000 DL, FS 7000 DMT, 2018-08PDF EN
-
SB. Blade depth calibration, FS 5000 D, FS 7000 D, FS 7000 DL, FS 7000 DMT, 2017-02PDF EN
-
SB. Engine model information, FS, SoffCut, PP, 2016-03PDF EN
