Product Details
Bonus: Includes a FREE pair of Ironclad Vibration Impact Gloves with purchase.
HUSQVARNA PLATE COMPACTOR - LF 100 LAT
Introducing the Husqvarna LF 100 LAT, a top-tier plate compactor Husqvarna has designed to deliver efficiency and quality. Perfect for repair jobs and maintenance work, this Husqvarna compactor is engineered for optimal compaction of asphalt and soil. Its extensive usability extends to driveways and parking lots, ensuring all your compactors' needs are met.
The LF 100 LAT boasts a large water tank with an oversized cap for less frequent refills, using any available on-site water. It's easy to clean and leaves no marks on the pavement, providing a seamless experience. Furthermore, the product variant, FORWARD PLATE LF 100 LAT | Honda, offers additional flexibility and performance.
- Power Source: Petrol
- Plate Width: 19.69 in
- Weight: 236 lbs
- Centrifugal Force: 3,822 lbf
- Engine Power: 4.8 hp
+ FREE Ironclad® Vibration Impact Gloves Included
Every purchase includes a FREE pair of Ironclad® Vibration Impact Gloves — a professional-grade work glove designed to reduce hand fatigue and improve comfort during long compaction jobs.
These industrial gloves feature a synthetic suede palm with ergonomically placed, non-compressible gel padding that absorbs vibration energy from heavy equipment like plate compactors. The breathable nylon back keeps hands cool, while the neoprene knuckle panel adds protection without restricting movement.
Reinforced index finger and thumb zones increase durability in high-wear areas, and the hybrid safety cuff allows for quick on-and-off between tasks. A built-in terry cloth sweat-wipe thumb keeps you focused on the job — not the heat.
Best Uses:
- Impact tools
- Pneumatic tools
- Heavy industrial equipment
Glove Features:
- Synthetic suede palm
- Ergonomic gel palm pads for vibration damping
- Breathable nylon back of hand
- Hybrid safety cuff for comfort & rapid egress
- Reinforced thumb saddle & index finger
- Terry cloth sweat-wipe thumb
Product Specification
Product Info
Manufacturer
Husqvarna
Product Type
Compactors
Product Subtype
Forward plate compactors
Model/Series
FORWARD PLATE LF 100 LAT
Part #
967855102
UPC
805544670470
Quantity
1
Engine / Power
Motor/Engine Model
GX160
Engine Power
4.8 hp
Starter
Recoil
Exhaust Emissions (CO₂ EU V)
757 g/kWh
Power Source
Petrol
Compaction
Compaction Application
Asphalt and Soil
Frequency
95 Hz
Centrifugal Force
3,822 lbf
Speed
82 ft/min
Dimensions & Weight
Plate Width
19.69 in
Product Size Length
40.2 in
Product Size Width
19.6 in
Product Size Height
39.6 in
Weight
236 lbs
Packaging
Packaging Length
24.409 in
Packaging Width (Calc)
33.465 in
Packaging Height (Calc)
33.071 in
Article Gross Weight (Calc)
235.895 lbs
Sound & Vibration
Sound Power Level, Guaranteed (LWA)
105 dB(A)
Sound Pressure Level at Operator's Ear
93 dB(A)
Vibrations Left/Front Handle
8 m/s²
Vibrations Right/Rear Handle
1.3 m/s²
Warranty
Husqvarna Plate Compactor LF 100 LAT Warranty
2 year limited warranty
Related Equipment
Related Equipment
Service & Maintenance Parts
12 MONTHS / 200 HOURS SERVICE KIT - HONDA 3 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SERVICE KIT | 548481801 | 1 | 12 MONTHS+BOX | ||
| 2AIR FILTER | 594302101 | 1 | complete | ||
| 3V-BELT | 594488801 | 1 |
12 MONTHS / 500 HOURS SERVICE KIT - HATZ 4 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SERVICE KIT | 594216702 | 1 | |||
| 2DRIVE BELT | 594488901 | 1 | |||
| 3FUEL FILTER | 594595101 | 1 | |||
| 4FILTER | 594571101 | 1 |
6 MONTHS / 250 HOURS SERVICE KIT - HATZ 3 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SERVICE KIT | 594214601 | 1 | |||
| 2FUEL FILTER | 594595101 | 1 | |||
| 3FILTER | 594571101 | 1 |
BELT GUARD - HATZ 9 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BELT GUARD | 594960801 | 1 | |||
| 2BELT GUARD | 594483901 | 1 | Inner | ||
| 3SCREW | 594120001 | 1 | M8 x 25 mm | ||
| 4SCREW | 595990101 | 2 | M10 x 25 mm | ||
| 5LOCK NUT | 594123001 | 1 | M8 x 1.25 mm | ||
| 6SCREW | 594119801 | 2 | M8 x 30 mm | ||
| 7SCREW | 594648001 | 2 | M8 x 25 mm 8.8 A2K | ||
| 8LOCKING SPRING | 594650201 | 2 | |||
| 9WASHER | 594647801 | 2 |
BELT GUARD - HONDA 9 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BELT GUARD | 594960701 | 1 | outer | ||
| 2BELT GUARD | 594483101 | 1 | inner | ||
| 3SCREW | 594120001 | 1 | M8 x 25 mm 8.8 A2K | ||
| 4LOCK NUT | 594123001 | 1 | M8 x 1.25 mm A2K | ||
| 5SCREW | 594119801 | 3 | FLANGE SCREW | ||
| 6SCREW | 594648001 | 1 | M8 x 25 mm 8.8 A2K | ||
| 7LOCKING SPRING | 594650201 | 1 | |||
| 8WASHER | 594647801 | 3 | |||
| 9SCREW | 595287301 | 2 | M8 x 20 mm 8.8 A2K |
BLOCK PAVING PLATE 500 MM 6 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BLOCK PAVING KIT | 594868201 | 1 | Complete | ||
| 2PLATE | 594484801 | 1 | Polyurethane plate, 500 mm, 19.7" | ||
| 3BRACKET | 594484901 | 1 | |||
| 4LOCK NUT | 594123001 | 2 | M8 x 1.25 mm A2K | ||
| 5WASHER | 595036601 | 2 | 8.4x 16x1.5 mm 300HV | ||
| 6SCREW | 594522501 | 2 | M8 x 75 mm 8.8 A2K |
DECALS 19 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1DECAL | 594486201 | 1 | |||
| 2DECAL | 574382101 | 1 | |||
| 5DECAL | 594486301 | 1 | |||
| 6DECAL | 595513202 | 1 | |||
| 7SCREW | 595180201 | 4 | |||
| 9DECAL | 595094201 | 1 | logo Husqvarna | ||
| 10DECAL | 594660901 | 2 | |||
| 11LABEL | 594869701 | 1 | Hatz version | ||
| 12DECAL | 594659601 | 1 | Hatz version | ||
| 13LABEL | 594660801 | 1 | Hatz version | ||
| 14DECAL | 594515601 | 1 | decal level noise 105Db | ||
| 15DECAL | 595094801 | 1 | brand decal LF100 ( HV colors 158,4x24,4mm ) | ||
| 16DECAL | 595900601 | 1 | brand decal LF100 | ||
| 17DECAL | 595186101 | 1 | Hot surface | ||
| 18DECAL | 594483301 | 1 | |||
| 19DECAL | 596280201 | 1 | DECAL Complience | ||
| 20LABEL | 594661601 | 1 | decal diesel - Hatz | ||
| 21LABEL | 594660201 | 1 | decal gasoline - Honda | ||
| 22LABEL | 595871701 | 1 |
ECCENTRIC ELEMENT REPAIR KIT 6 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1REPAIR KIT | 594194401 | 1 | |||
| 2SCREW | 594120001 | 1 | M08x025H, 8.8, A2K | ||
| 3WASHER | 594123401 | 1 | M08 8,4x22x3,0 300 HV | ||
| 4SEAL | 594128301 | 1 | |||
| 5SCREW | 594523301 | 6 | M06x16, 8.8, A2K | ||
| 6BALL BEARING | 594526101 | 2 |
ENGINE - HATZ 6 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 3STRAINER | 594570101 | 1 | Complete | ||
| 12STARTER | 594568401 | 1 | Complete | ||
| 32ROPE | 594569001 | 1 | |||
| 38FILTER | 594571101 | 1 | |||
| 48PROTECTIVE COVER | 594571301 | 1 | |||
| 55OIL | 594578001 | 1 |
ENGINE - HONDA 12 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1ENGINE | 594161101 | 1 | Honda GX160UT2 SXS4 SD | ||
| 5SPARK PLUG | 594204001 | 1 | (bpr6es) (ngk) | ||
| 6OIL | 594203801 | 1 | |||
| 7GASKET | 594203901 | 1 | |||
| 9GASKET | 595048801 | 1 | |||
| 10FUEL CAP | 594204601 | 1 | |||
| 11FUEL TANK | 594204501 | 1 | |||
| 23AIR FILTER | 594302101 | 1 | Delivered with outer and inner filter. | ||
| 26STARTER | 594300601 | 1 | Complete, Red, Valid up to engine serial number 1411005. | ||
| 36ROPE | 595049101 | 1 | |||
| 37STARTER | 594204801 | 1 | recoil *nh1*, Complete, Black, Valid from engine serial number 1411006. | ||
| 47ROPE | 595049101 | 1 |

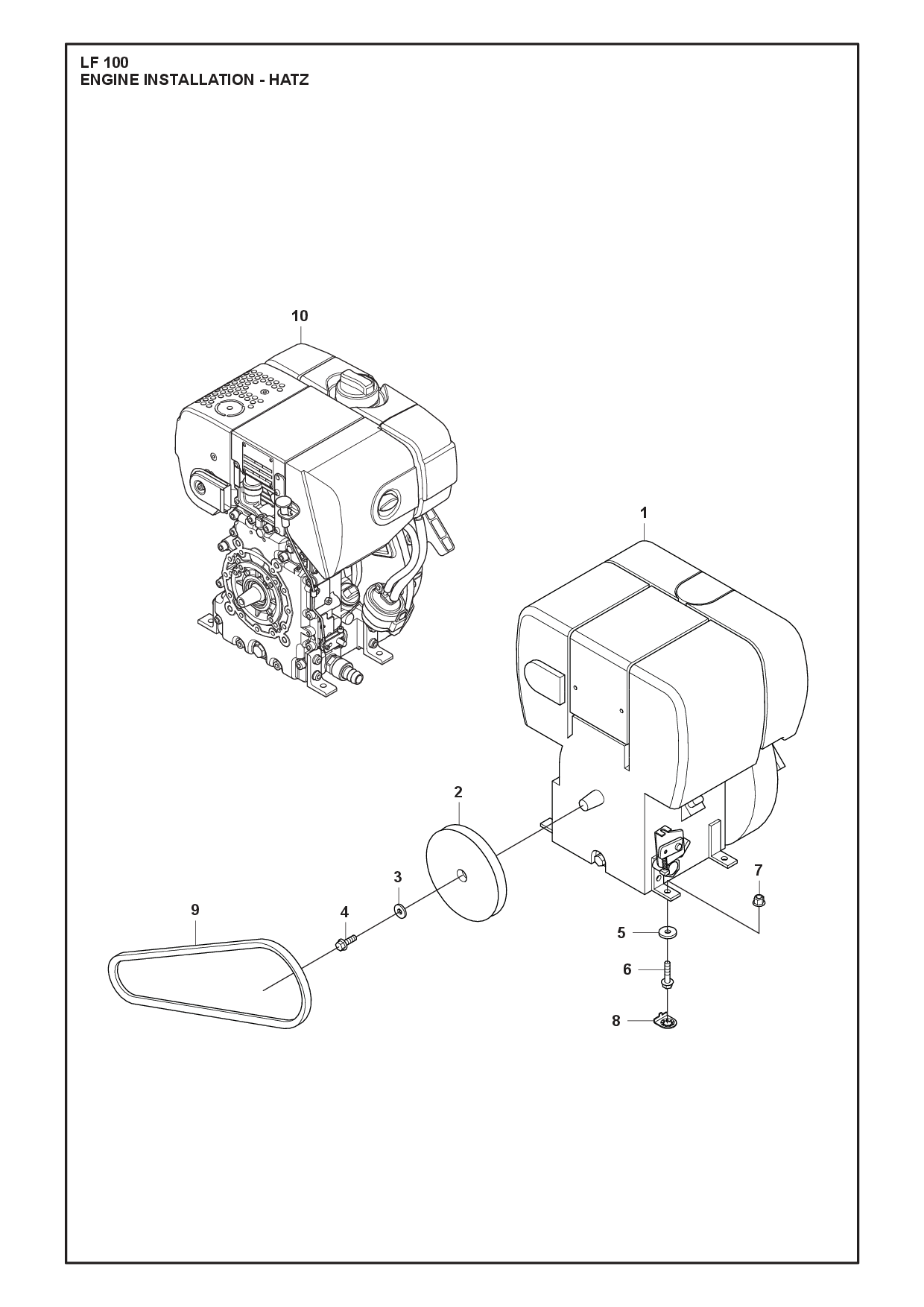

ENGINE INSTALLATION - HATZ 10 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1ENGINE | 596241215 | 1 | Hatz 1B20 manual start | ||
| 2CLUTCH | 594480001 | 1 | Centrifugal | ||
| 3WASHER | 594123401 | 1 | Washer, 8.4 x 22 x 3 mm 300 HV | ||
| 4SCREW | 594119801 | 1 | Screw, M8 x 30 mm | ||
| 5WASHER | 595112901 | 4 | Washer, 8.4 x 22 x 3 mm | ||
| 6SCREW | 594120101 | 4 | Screw, M8 x 40 mm | ||
| 7LOCK NUT | 594123001 | 4 | Lock nut, M8 x 1.25 mm | ||
| 8WASHER | 594484201 | 4 | |||
| 9DRIVE BELT | 594488901 | 1 | |||
| 10ENGINE | 596241218 | 1 | Hatz B20 Man EU Replaces 596241215 from SN 202509100065 |
ENGINE INSTALLATION - HONDA 8 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1ENGINE | 594161101 | 1 | |||
| 2WASHER | 595112901 | 5 | M08 8,4x26x4,0 300 HV | ||
| 3WASHER | 594484201 | 4 | |||
| 4SCREW | 594499101 | 4 | flange screw M8x50 | ||
| 5LOCK NUT | 594123001 | 4 | |||
| 8SCREW | 594120001 | 1 | flange screw M8x25 | ||
| 10CENTRIFUGAL CLUTCH | 594480101 | 1 | |||
| 11V-BELT | 594488801 | 1 |
ENGINE PLATE - HATZ 4 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW | 594120001 | 7 | |||
| 2FRAME | 594144701 | 1 | |||
| 3HOOD | 594959501 | 1 | |||
| 4ENGINE PLATE | 594145501 | 1 |
ENGINE PLATE - HONDA 7 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW | 595185701 | 7 | M8x25mm 8.8 A2K | ||
| 2FRAME | 594144601 | 1 | |||
| 3COVER | 594958001 | 1 | |||
| 4ENGINE PLATE | 594145401 | 1 | |||
| 5WASHER | 594526401 | 2 | Square taper washer M10 22x22x4.6 dia.11 din 435 | ||
| 6WEIGHT | 594868401 | 1 | |||
| 7SCREW | 594499101 | 4 | bolt with flange M8x50,M6SF,8.8,Ref.9002 8 8 50 |
ENGINE PLATE & WATER TANK - HATZ 18 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1WATER TANK | 596392901 | 1 | |||
| 2WATER TANK | 594961101 | 1 | |||
| 3VALVE | 594212301 | 1 | |||
| 4O-RING | 594127901 | 1 | o-ring ?15?4 | ||
| 5VALVE | 594481901 | 1 | |||
| 6O-RING | 594128001 | 1 | o-ring ? 8x2.5 | ||
| 7SCREW | 595033201 | 1 | M6?16 8.8, A2K | ||
| 8WASHER | 595061001 | 2 | ? 8,4?25?2 | ||
| 9NUT | 595062701 | 1 | M08 DIN985 | ||
| 10DECAL | 594483301 | 1 | decal No lifting point | ||
| 11CAP | 594481401 | 1 | |||
| 12SCREW | 595033401 | 1 | ?8?25 | ||
| 13WASHER | 595036401 | 1 | NB 06,4 18,0 1,6 din 9021 b Zn | ||
| 14HANDLE | 594481101 | 1 | |||
| 15DECAL | 574382101 | 1 | HV Crown | ||
| 16SCREW | 594120001 | 7 | |||
| 17FRAME | 594144701 | 1 | |||
| 18ENGINE PLATE | 594145501 | 1 |
ENGINE PLATE & WATER TANK - HONDA 21 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1WATER TANK | 596392901 | 1 | |||
| 2WATER TANK | 594961101 | 1 | |||
| 3VALVE | 594212301 | 1 | |||
| 4O-RING | 594127901 | 1 | o-ring ?15?4 | ||
| 5VALVE | 594481901 | 1 | |||
| 6O-RING | 594128001 | 1 | o-ring ? 8x2.5 | ||
| 7SCREW | 595033201 | 1 | M6?16 8.8, A2K | ||
| 8WASHER | 595061001 | 2 | ? 8,4?25?2 | ||
| 9NUT | 595062701 | 1 | M08 DIN985 | ||
| 10DECAL | 594483301 | 1 | No lifting point | ||
| 11CAP | 594481401 | 1 | |||
| 12SCREW | 595033401 | 1 | ?8?25 | ||
| 13WASHER | 595036401 | 1 | NB 06,4 18,0 1,6 din 9021 b Zn | ||
| 14HANDLE | 594481101 | 1 | |||
| 15DECAL | 574382101 | 1 | HV Crown | ||
| 16SCREW | 595185701 | 7 | M8x25mm 8.8 A2K | ||
| 17FRAME | 594144601 | 1 | |||
| 18ENGINE PLATE | 594145401 | 1 | |||
| 19WASHER | 594526401 | 2 | Square taper washer M10 22x22x4.6 dia.11 din 435 | ||
| 20WEIGHT | 594868401 | 1 | |||
| 21SCREW | 594499101 | 4 | bolt with flange M8x50,M6SF,8.8,Ref.9002 8 8 50 |
FORK LIFTING DEVICE 5 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1FORK | 595503101 | 1 | |||
| 2FORK | 594489901 | 2 | |||
| 3SCREW | 594119801 | 4 | ?8?30 | ||
| 4WASHER | 595182701 | 8 | square washer 9?25?3 | ||
| 5LOCK NUT | 594123001 | 4 | M08x1,25, -8, A2K |
FUEL TANK - HATZ 6 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1FUEL TANK | 594203001 | 1 | |||
| 2FUEL CAP | 594566101 | 1 | |||
| 7FUEL FILTER | 594595101 | 1 | |||
| 11FUEL HOSE | 594203401 | 1 | |||
| 28WATER SEPARATOR | 594583201 | 1 | |||
| 33FUEL FILTER | 594601901 | 1 |
GROUND PLATE INSTALLATION 17 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1PLATE | 594650901 | 1 | |||
| 2SHAFT | 594643901 | 1 | |||
| 3BALL BEARING | 594526101 | 2 | |||
| 4COVER | 594490101 | 1 | |||
| 5SEAL | 594128301 | 1 | Lip-type | ||
| 6PULLEY | 594486701 | 1 | |||
| 7WASHER | 594123401 | 1 | 8.4 x 16 x 1.5 mm, 0.33 x 0.63 x 0.06 in. 300 HV | ||
| 8SCREW | 594120001 | 1 | M8 x 25 mm 8.8 A2K | ||
| 9SCREW | 595033201 | 6 | M6?16 8.8, A2K | ||
| 10COVER | 594490201 | 1 | |||
| 11ABSORBER | 594341901 | 4 | |||
| 12HEXAGON NUT | 594122601 | 8 | M10 x 1.5 mm GEOMET® | ||
| 13BAR | 594653201 | 1 | 500 mm, 19.7 in. | ||
| 14LOCK NUT | 594123001 | 3 | M8 x 1.25 mm | ||
| 15SCREW | 595033501 | 2 | M08x40 8.8, A2K | ||
| 16SCREW | 595287101 | 1 | M08x50, 8.8, A2K | ||
| 17WASHER | 594124601 | 6 | nordlock NL6 M6 DIA 13.5 |
HANDLE 11 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HANDLE | 594761101 | 1 | Handle, complete | ||
| 2SOCKET | 595071601 | 2 | M12 x 50 mm 8.8 A3K | ||
| 3SLEEVE | 594654701 | 2 | |||
| 4RUBBER SHOE | 594480401 | 2 | |||
| 5HANDLE | 594654001 | 1 | Lower | ||
| 6HANDLE | 594654101 | 1 | Upper | ||
| 7BRACKET | 594654401 | 2 |
Regular price
$37.22
Regular price
|
||
| 8SLEEVE | 594654201 | 2 |
Regular price
$19.79
Regular price
|
||
| 9KNOB | 594654301 | 2 |
Regular price
$56.02
Regular price
|
||
| 10PLANE WASHER | 594123801 | 2 | 5,3x10x1 300HV | ||
| 11RING | 594265501 | 2 | 4.8 x 7 x 0.6 mm, 0.18 x 0.26 x 0.02 in. |
LIFTING HANDLE 3 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HANDLE | 594486801 | 1 | Right | ||
| 2HANDLE | 594486901 | 1 | Left | ||
| 3SCREW | 595287301 | 4 | M8x20 mm 8.8 A2K |
SHOCK ABSORBER REPAIR KIT - HATZ 5 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1REPAIR KIT | 594194701 | 1 | |||
| 2ABSORBER | 594341901 | 4 | |||
| 3HEXAGON NUT | 594122601 | 8 | M10 A3K | ||
| 4RUBBER SHOE | 594480401 | 2 | |||
| 5SCREW | 594530001 | 2 | M12 x 50 mm 8.8 A3K |
SHOCK ABSORBER REPAIR KIT - HONDA 7 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1REPAIR KIT | 594194601 | 1 | |||
| 2ABSORBER | 594341901 | 4 | |||
| 3WASHER | 594526401 | 4 | Square taper washer M10 22x22x4.6 dia.11 din 435 | ||
| 4HEXAGON NUT | 595184801 | 8 | Nut, M10 A3K | ||
| 5RUBBER SHOE | 594480401 | 2 | |||
| 6SCREW | 594530001 | 2 | Screw, M12 x 50 mm 8.8 A3K | ||
| 7WASHER | 594838501 | 4 | 022x10,5x4,0, S355JR, UNTR |
START UP KIT - HATZ 8 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SERVICE KIT | 594218201 | 1 | |||
| 2SERVICE KIT | 594216702 | 1 | 12 months / 500 hours service kit - Hatz | ||
| 3DRIVE BELT | 594488901 | 1 | |||
| 4FUEL FILTER | 594595101 | 1 | |||
| 5FILTER | 594571101 | 1 | |||
| 6SERVICE KIT | 594214601 | 1 | Six months / Every 250 hours kit - Hatz | ||
| 7FUEL FILTER | 594595101 | 1 | |||
| 8FILTER | 594571101 | 1 |
START UP KIT - HONDA 5 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SERVICE KIT | 548481801 | 1 | 12 MONTHS+BOX | ||
| 2SERVICE KIT | 595385301 | 1 | |||
| 3AIR FILTER | 594302101 | 1 | Complete | ||
| 4V-BELT | 594488801 | 1 | |||
| 5AIR FILTER | 594302101 | 1 | Complete |
TRANSPORT DEVICE 19 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1WHEEL KIT | 594204901 | 1 | Transport device | ||
| 2BRACKET | 594648701 | 1 | Left | ||
| 3BRACKET | 594648901 | 1 | Right | ||
| 4WASHER | 595061001 | 4 | 8,4x25x2 mm | ||
| 5FORK | 594648801 | 1 | |||
| 6SCREW | 594119801 | 2 | M8x30 mm 8.8 A2K | ||
| 7LOCK NUT | 594123001 | 2 | M8x1.25 mm A2K | ||
| 8WHEEL | 594455501 | 2 | WHEEL | ||
| 9SCREW | 596889707 | 2 | SCREW Hex. Head M6S M8x12 8.8 fzb | ||
| 10ABSORBER | 594462701 | 1 | shock absorber | ||
| 11HOOK | 594651001 | 1 | |||
| 12LOCK NUT | 595064701 | 1 | M10 | ||
| 13WASHER | 594747401 | 1 | M10 10,5x22x2,0 300 HV | ||
| 14SCREW | 594118401 | 1 | M10x20 mm 8.8 A3K | ||
| 15SCREW | 594120001 | 4 | M8x25mm 8.8 A2K | ||
| 16SCREW | 595466301 | 4 | M06x025H, 8.8, A2K | ||
| 17CLAMP | 595068501 | 4 | 22?6.4?15 | ||
| 18STOP | 594646001 | 2 | |||
| 19NUT | 595112601 | 4 | M06x1,00, -8, A2K |
VIBRATION DAMPED HANDLE 9 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HANDLE | 594205001 | 1 | |||
| 2WASHER | 594526601 | 16 | ?6.4/18.0?1.6 | ||
| 3BRACKET | 594482201 | 2 | |||
| 4ABSORBER | 594480501 | 2 | |||
| 5BRACKET | 594482101 | 2 | |||
| 6SCREW | 594525001 | 8 | M5 x 10 mm A2K | ||
| 7NUT | 594524701 | 8 | M6 x 30 mm 8.8 | ||
| 8SCREW | 594526701 | 16 | M6 x 12 mm 10.9 A2T | ||
| 9HANDLE | 594166301 | 1 |
Document Downloads
Workshop manual
Operator's manual
Compatable Accessories
Concrete Focus
From pouring to resurfacing, we sell tools built for concrete pros.
Expert Support
Get guidance from experts who understand jobsite challenges.
Fast Delivery
Get your tools fast with our nationwide shipping network and local partnerships.
Talk to an expert now (855) 281-1918
Get fast, expert help choosing the right concrete tools or equipment for your job. Ask about availability, specs, troubleshooting, or get friendly guidance before you place an order.
