Husqvarna LF75 PACE
Husqvarna LF75 PACE
HUSQVARNA CONSTRUCTION SKU: 970817301 Copied!
Is this the right tool for the job?
Regular price
$3,299.00
Regular price
$3,480.00
Sale price
$3,299.00
Quantity
Trusted by contractors nationwide
"I've bought 3 products from CTD and each time the experience has been the same - professional and fast delivery. I trust these guys with all my concrete needs."
90 day returns
Product Details
This battery-powered forward plate compactor gives professional service, landscaping, and hardscape crews low-emission compaction for asphalt patches, paver bedding, and repair work. It suits 1–2 person crews moving between driveways, parking areas, walkways, and indoor or outdoor maintenance jobs where petrol fumes, noise, or fuel logistics slow production.
- Compact asphalt repairs, bedding sand, and granular bases on medium-size jobs.
- Move between sites without managing fuel, exhaust fumes, or engine servicing.
- Work indoors or in restricted areas where combustion equipment creates access issues.
- Support daily maintenance crews handling patch repairs and small hardscape installations.
Use a roller or reversible plate for large base areas, deep backfill, wet clay, or mainline asphalt work.
Product Specification
General
Article number
970817301
Power Specifications
Power Source
Battery
Working Specifications
Compaction application
Asphalt and Soil
Centrifugal force
3,282 lbf
Speed
88.6 ft/min
Plate width
16.54 in
Product size length
1,001 in
Product size width
16.5 in
Product size height
39.1 in
Sound power level, guaranteed (LWA)
102 dB(A)
Sound pressure level at operators ear (LpA)
88 dB(A)
Vibrations left/front handle
6.1 m/s²
Vibrations right/rear handle
1.41 m/s²
Weight Specifications
Weight
85 lbs
Article gross weight (Calc)
227.076 lbs
Other Specifications
Packaging length (Calc)
33.465 in
Packaging width (Calc)
24.213 in
Packaging height (Calc)
32.874 in
Warranty
Husqvarna LF75 PACE Warranty
1 year limited warranty
Related Equipment
Related Equipment
Service & Maintenance Parts

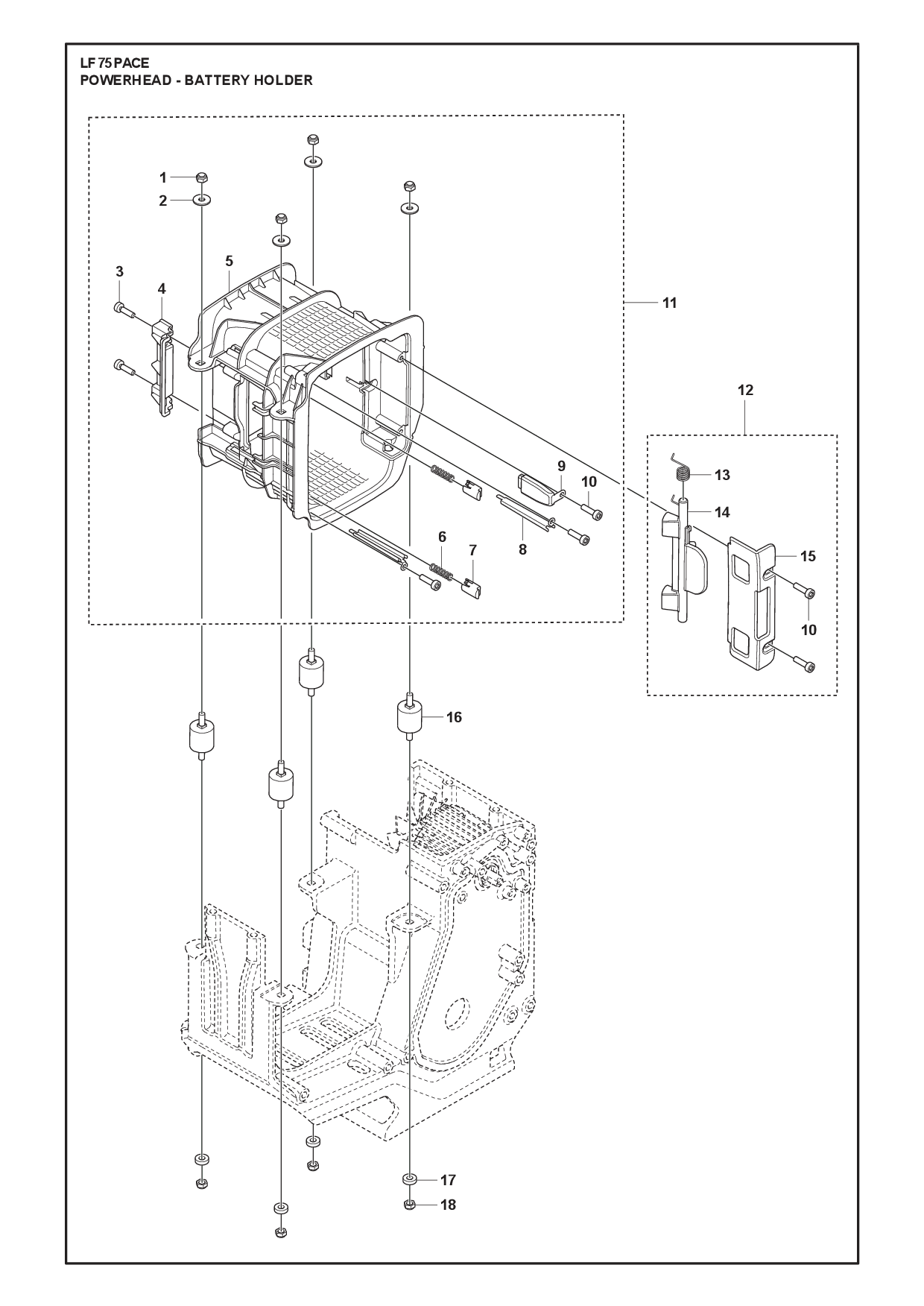

BATTERY 18 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1LOCK NUT | 522669302 | 8 | M6x20 | ||
| 2WASHER | 734115441 | 4 | 6.4X18X1.6 | ||
| 3SCREW ITXSCT | 599608301 | 2 | |||
| 4HOLDER | 529963601 | 2 | Battery connector | ||
| 5HOUSING | 547535801 | 1 | Battery | ||
| 6SPRING | 536979701 | 2 | For battery holder | ||
| 7PUSH BUTTON | 577996601 | 2 | |||
| 8PLATE | 599528201 | 1 | Battery slider | ||
| 9PLATE | 547532601 | 1 | Battery | ||
| 10SCREW ITXSCT | 599608301 | 5 | |||
| 11HOUSING | 540608001 | 1 | Kit | ||
| 12LEVER | 540608101 | 1 | Kit | ||
| 13SPRING | 531118901 | 1 | Battery release | ||
| 14LEVER | 531022301 | 1 | Battery release | ||
| 15COVER | 531021901 | 1 | Battery release | ||
| 16DAMPER | 547405801 | 4 | Rubber 25/25M6 | ||
| 17WASHER | 538897001 | 4 | |||
| 18LOCK NUT | 522669302 | 4 | M68.8 ZPB NYLOC |

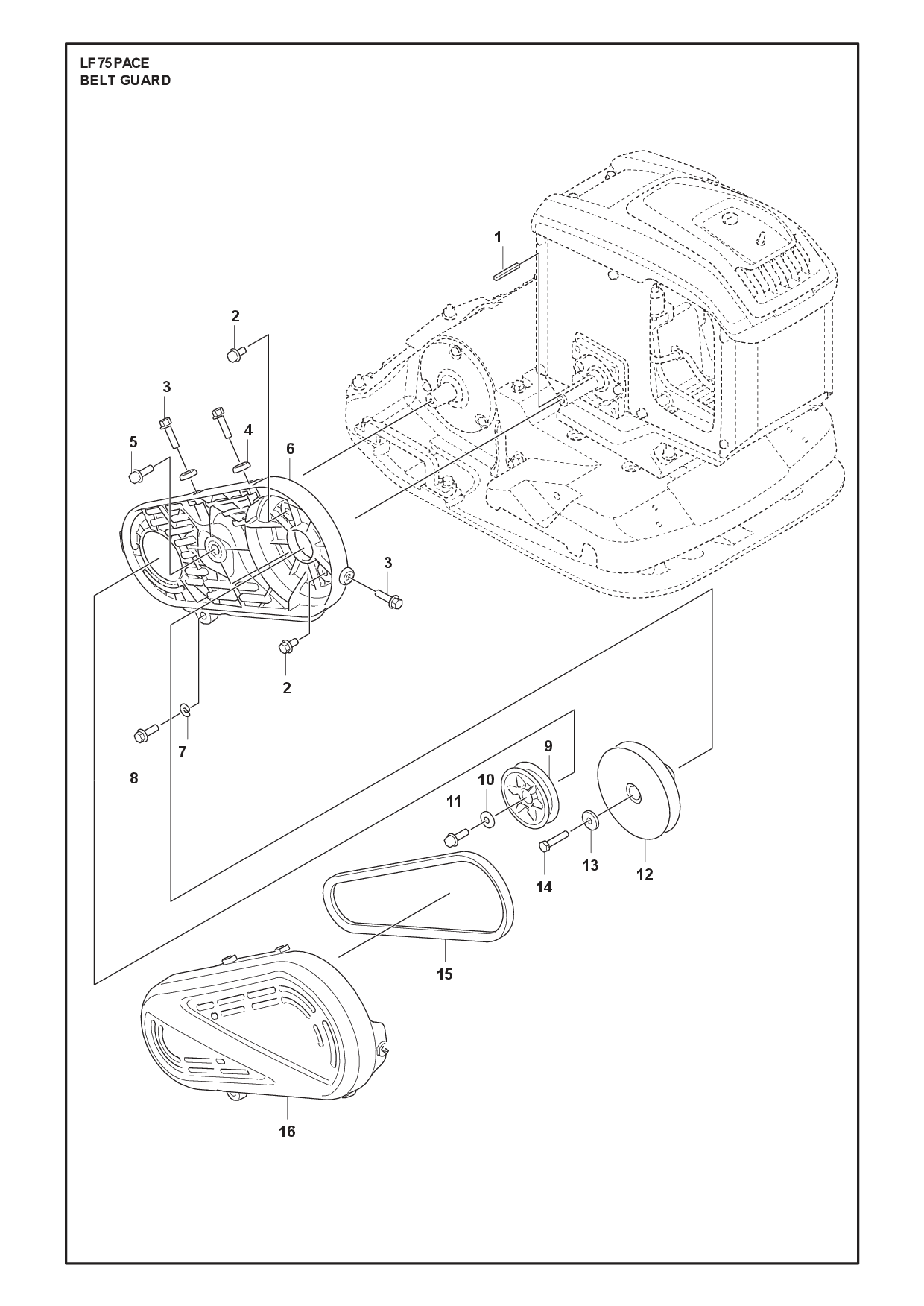

BELT GUARD 16 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1PARALLEL KEY | 548110901 | 1 | PTO Shaft | ||
| 2SCREW | 595287301 | 2 | Hex. flange screw M8x16 CL 8.8 DIN6921 | ||
| 3SCREW | 594119801 | 3 | Flanged | ||
| 4WASHER | 594647801 | 3 | |||
| 5SCREW | 594120001 | 1 | Flanged | ||
| 6BELT GUARD | 594483101 | 1 | Inner | ||
| 7LOCKING SPRING | 594650201 | 1 | ISO 4042 | ||
| 8SCREW | 594648001 | 1 | |||
| 9PULLEY | 594486701 | 1 | |||
| 10WASHER | 594123401 | 1 | 8.4X22X3MM | ||
| 11SCREW | 594120001 | 1 | Flange | ||
| 12PULLEY | 547588701 | 1 | Drive LF PACE | ||
| 13WASHER | 595112901 | 1 | |||
| 14SCREW | 540474101 | 1 | ASMEB 18.2.15/16"-24 UNFx11/2" Gr5 ZPB | ||
| 15V-BELT | 594488801 | 1 | |||
| 16BELT GUARD | 594960701 | 1 | Outer |

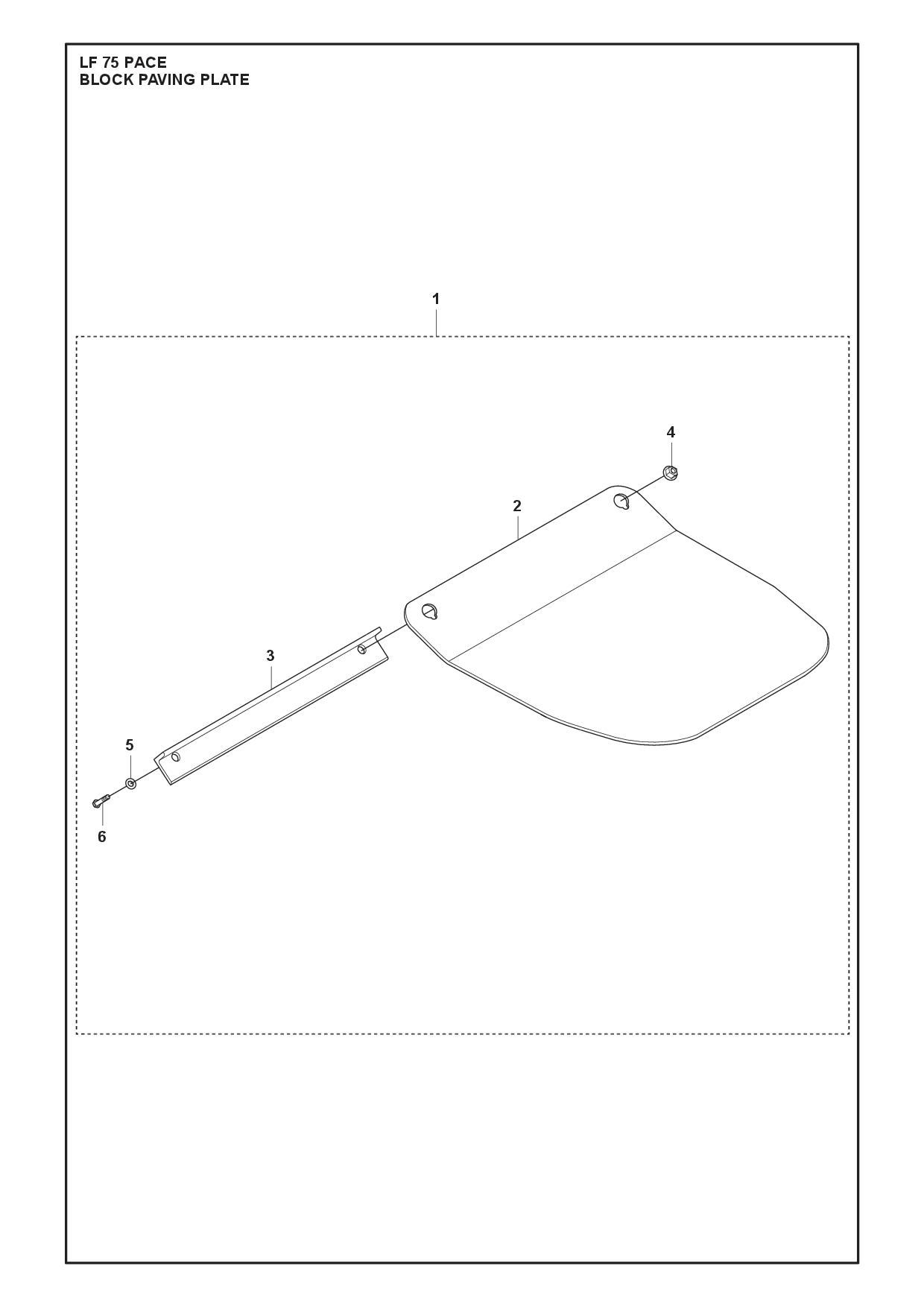

BLOCK PAVING PLATE KIT 420MM (16.5") 6 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BLOCK PAVING KIT | 594868201 | 1 | Complete | ||
| 2PLATE | 594484801 | 1 | Polyurethane plate,500mm,19.7" | ||
| 3BRACKET | 594484901 | 1 | |||
| 4LOCK NUT | 594123001 | 2 | M8x1.25mm A2K | ||
| 5WASHER | 595036601 | 2 | M088,4x16x1,5 300HV | ||
| 6SCREW | 594522501 | 2 | M8x75mm 8.8 A2K |

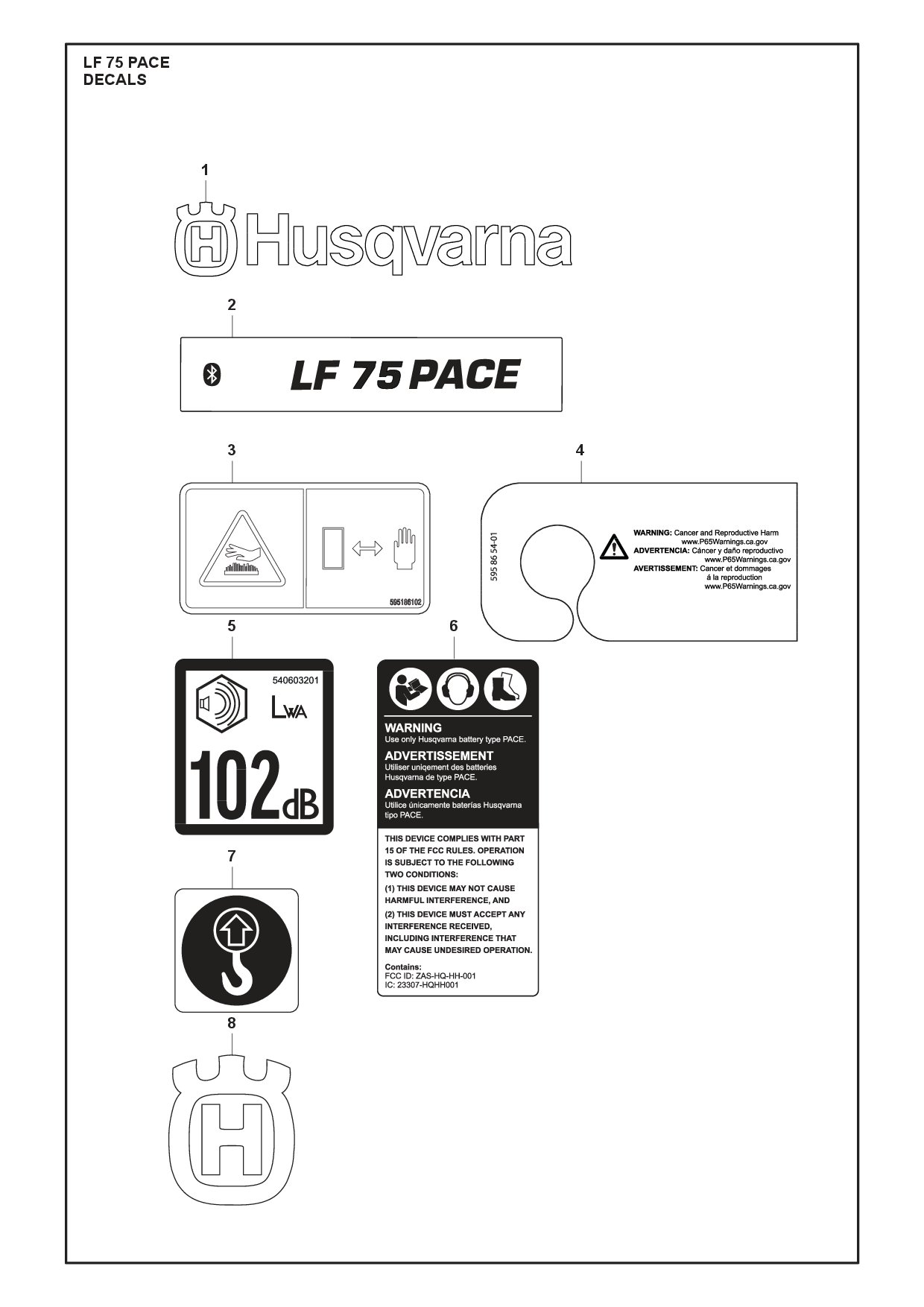

DECALS 8 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1DECAL | 540489301 | 1 | FCC ID + Warning US | ||
| 2DECAL | 540603201 | 1 | Sound Power Level "102dB" | ||
| 3DECAL | 588113201 | 1 | HUSQVARNA LOGO STAND | ||
| 4DECAL | 540489701 | 1 | DECAL LF75 PACE w BT Name Decal | ||
| 5DECAL | 595186102 | 1 | Hot Surface | ||
| 6HANG TAG | 595865401 | 1 | Prop65 | ||
| 7LABEL | 599963601 | 1 | LIFT POINT | ||
| 8DECAL | 599234101 | 1 | HUSQVARNA CROWN |

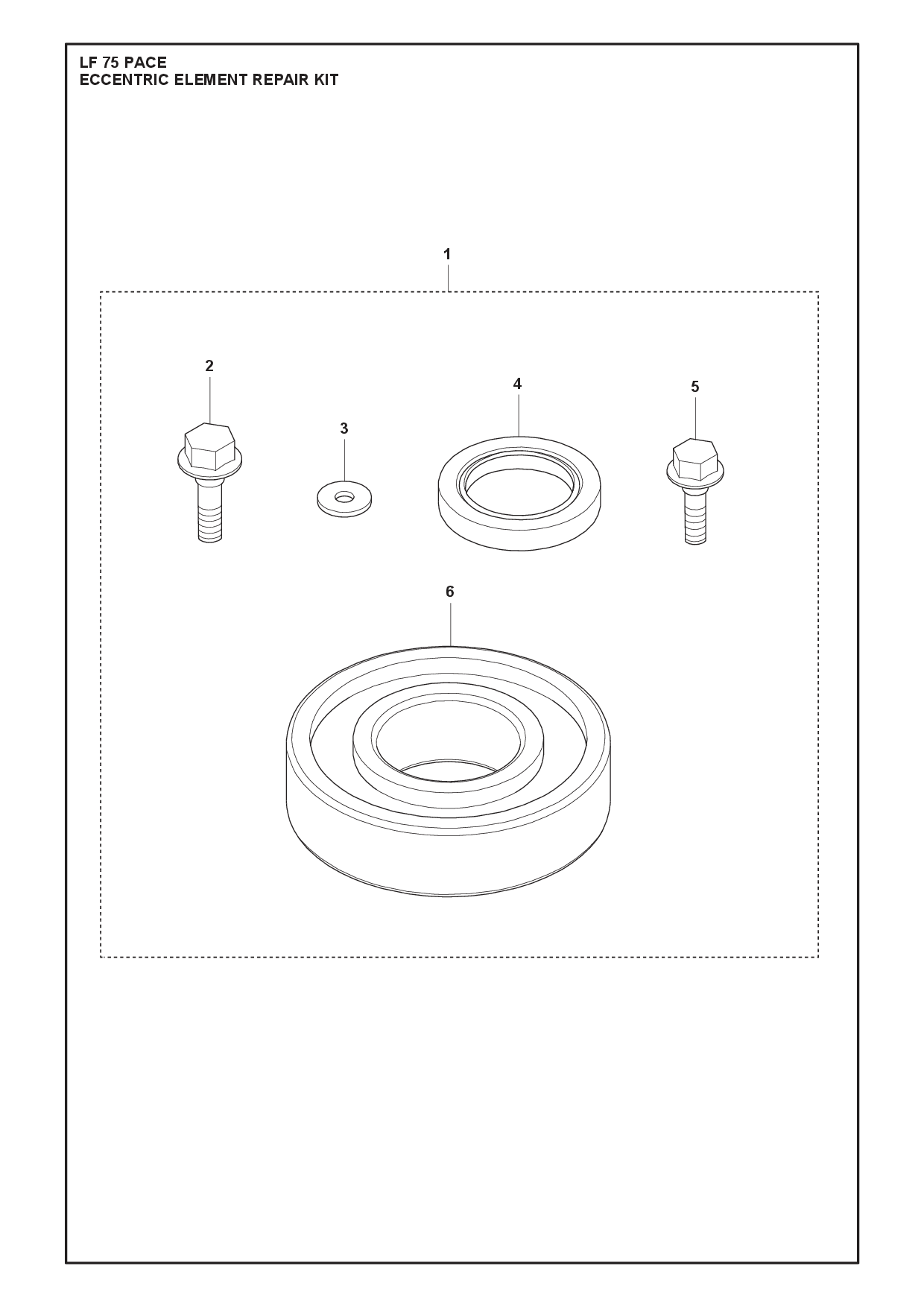

ECCENTRIC ELEMENT REPAIR KIT 6 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1REPAIR KIT | 594194401 | 1 | Eccentri celement repair kit | ||
| 2SCREW | 594120001 | 1 | M08x025H, 8.8, A2K | ||
| 3WASHER | 594123401 | 1 | M088,4x22x3,0 300HV | ||
| 4SEAL | 594128301 | 1 | |||
| 5SCREW | 594523301 | 6 | M06x16, 8.8, A2K | ||
| 6BALL BEARING | 594526101 | 2 |

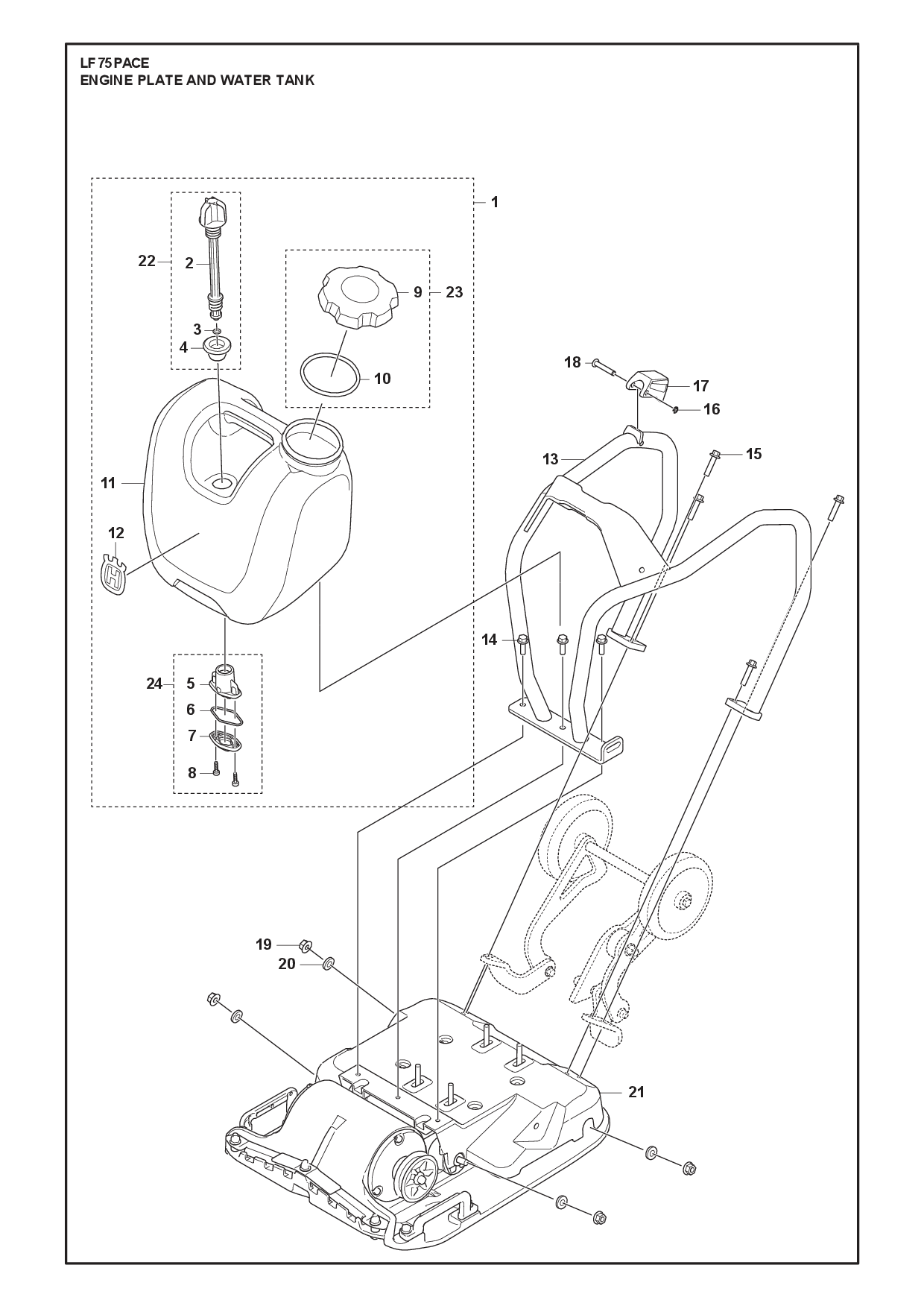

ENGINE PLATE AND WATER TANK 15 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|

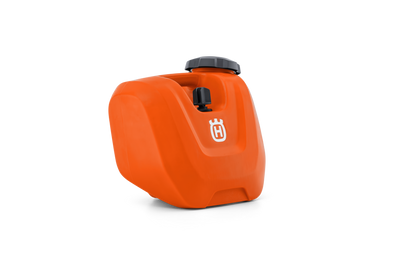

| 1TANK ASSY | 548834901 | 1 | Water tank complete | ||
| 11TANK | 548866101 | 1 | Watertank (not supplied separately) | ||
| 12DECAL | 599234101 | 1 | |||
| 13FRAME | 548780301 | 1 | |||
| 14SCREW | 594120001 | 3 | Flanged | ||
| 15SCREW | 594120001 | 4 | |||
| 16CLIP | 548360201 | 2 | E-CLIP | ||
| 17STOPPER | 540392801 | 1 | |||
| 18PIN | 540401801 | 1 | |||
| 19HEXAGON NUT | 594122601 | 4 | Hexagon nut M10x10 | ||
| 20WASHER | 594838501 | 4 | 022x10,5x4,0, S355JR, UNTR | ||
| 21ENGINE PLATE | 594145401 | 1 | |||
| 22SHAFT SYSTEM | 541049101 | 1 | Sprinkle system shaf tkit (Parts in the kit are not sold separately) | ||
| 23HUB CAP | 522941801 | 1 | Cap and O-ring kit (Parts in the kit are not sold separately) | ||
| 24NOZZLE ASSY | 541049301 | 1 | Noozle kit (Parts in the kit are not sold separately) |

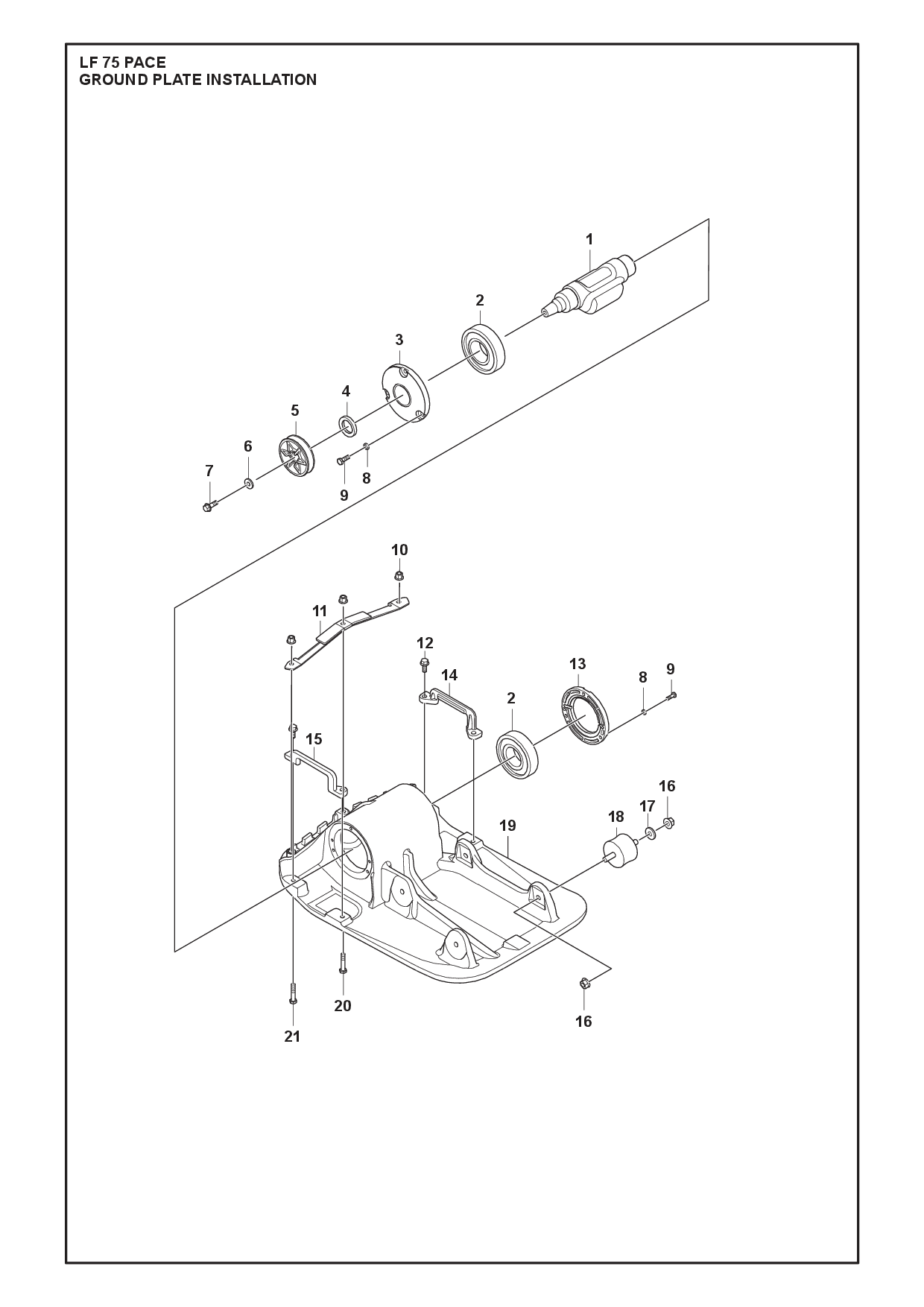

GROUND PLATE INSTALLATION 21 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SHAFT | 594643801 | 1 | Eccentric shaft | ||
| 2BALL BEARING | 548909801 | 2 | |||
| 3COVER | 594490101 | 1 | |||
| 4RADIAL SEAL | 536564101 | 1 | (RADIAL SEAL SKF30X45X7HMS5RG | ||
| 5PULLEY | 594486701 | 1 | |||
| 6WASHER | 594123401 | 1 | Washer 8,4x22x3 | ||
| 7SCREW | 594120001 | 1 | Screw M8x25 DIN 6921 | ||
| 8WASHER | 594124601 | 6 | Lockwasher M6 | ||
| 9SCREW | 595033201 | 6 | Screw M6x65 | ||
| 10LOCK NUT | 594123001 | 3 | Locknut | ||
| 11BAR | 594653301 | 1 | Bar Sprinkler 420mm | ||
| 12SCREW | 595287301 | 4 | Screw Hex Flange M8x16 | ||
| 13COVER | 594490201 | 1 | |||
| 14HANDLE | 594486802 | 1 | Handle lifting right alum | ||
| 15HANDLE | 594486902 | 1 | Handle lifting left alum | ||
| 16HEXAGON NUT | 594122601 | 8 | Hex Nut M10x10 | ||
| 17WASHER | 594838501 | 4 | |||
| 18ABSORBER | 594341901 | 4 | |||
| 19PLATE | 594650701 | 1 | Ground plate 420mm | ||
| 20SCREW | 595287101 | 1 | |||
| 21SCREW | 595033501 | 2 | Screw M8x40 |

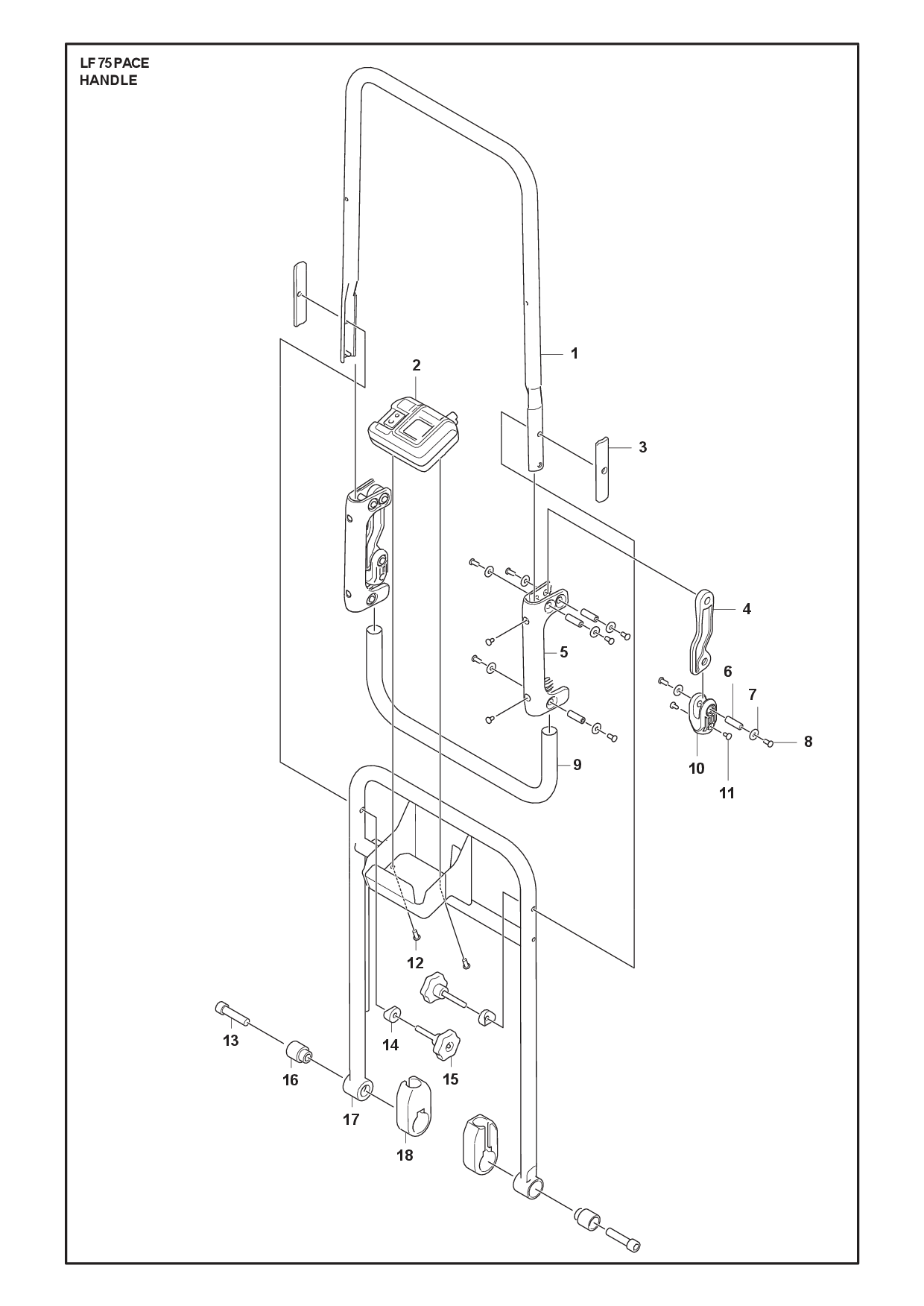

HANDLE 20 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HANDLE | 598261601 | 1 | Grab handle upper | ||
| 2BOX | 548302101 | 1 | MULTIPLE BUTTON | ||
| 2BOX | 548302102 | 1 | SINGLE BUTTON | ||
| 2BOX | 548302103 | 1 | SINGLE BUTTON w/BT | ||
| 3BRACKET | 594654401 | 2 |
Regular price
$37.22
Regular price
|
||
| 4ABSORBER | 594480501 | 2 | Shock | ||
| 5BRACKET | 594482101 | 2 | |||
| 6NUT | 594524701 | 8 | |||
| 7WASHER | 594526601 | 16 | |||
| 8SCREW | 594526701 | 16 | |||
| 9HANDLE | 594166301 | 1 | |||
| 10BRACKET | 594482201 | 2 | |||
| 11SCREW | 594525001 | 8 | |||
| 12SCREW IHSCM | 725536801 | 2 | SCREW IHSCM ISO 4762 M 6 X 16 8.8 ZPB | ||
| 13SOCKET | 595071601 | 2 | |||
| 14SLEEVE | 594654201 | 2 |
Regular price
$19.79
Regular price
|
||
| 15KNOB | 594654301 | 2 |
Regular price
$56.02
Regular price
|
||
| 16SLEEVE | 594654701 | 2 | |||
| 17HANDLE | 594654001 | 1 | |||
| 18RUBBER SHOE | 594480401 | 2 |

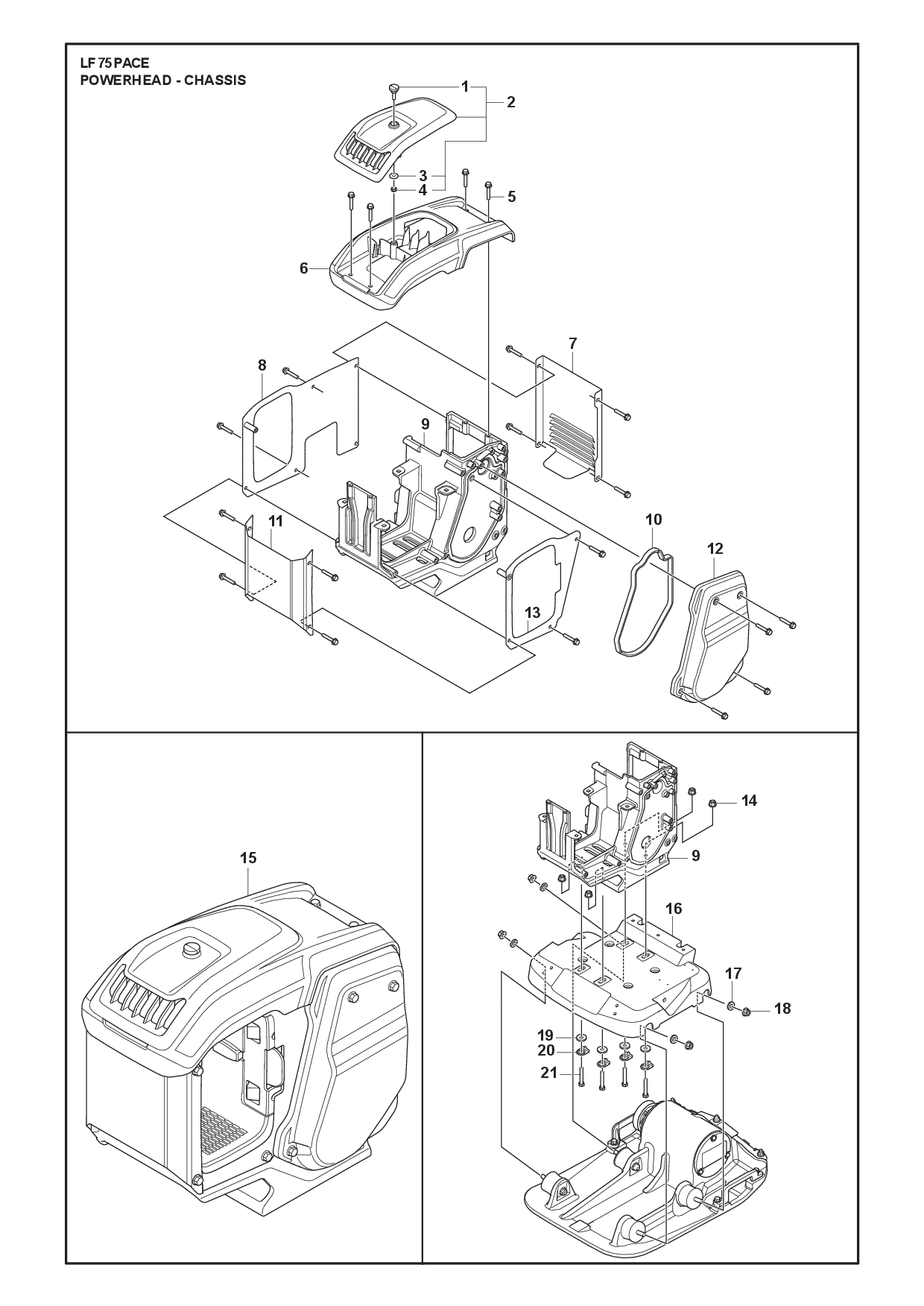

POWER HEAD 22 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1KNOB | 547455601 | 1 | |||
| 2COVER | 547478101 | 1 | Hatch | ||
| 3SCREW | 547399301 | 20 | EN1665 M6X35 8.8 ZPB | ||
| 3WASHER | 734115441 | 1 | ISO 709 3,6.4x18x1.6 St ZPB | ||
| 4LOCK NUT | 522669302 | 1 | M68.8 ZPB NYLOC | ||
| 4COVER | 547478001 | 1 | Topcover | ||
| 5PLATE | 547523301 | 1 | Powerhead Rear | ||
| 6PLATE | 547523101 | 1 | Battery rear | ||
| 7BRACKET | 546921501 | 1 | Drive system | ||
| 8SEALING | 547459301 | 1 | For Belt Cover | ||
| 9PLATE | 547523201 | 1 | Powerhead Front | ||
| 10BELT COVER | 547472401 | 1 | Powerhead | ||
| 11PLATE | 547523001 | 1 | Battery Front | ||
| 12NUT | 576645704 | 4 | M8 FZB with nylon ring | ||
| 13BRACKET | 546921501 | 1 | Drive system | ||
| 14POWERHEAD SYSTEM | 547192301 | 1 | PACE | ||
| 15ENGINE PLATE | 594145401 | 1 | |||
| 16WASHER | 594838501 | 4 | |||
| 17HEXAGON NUT | 594122601 | 8 | Hex Nut M10x10 | ||
| 18WASHER | 595112901 | 4 | |||
| 19WASHER | 594484201 | 4 | |||
| 20SCREW | 594499101 | 4 |

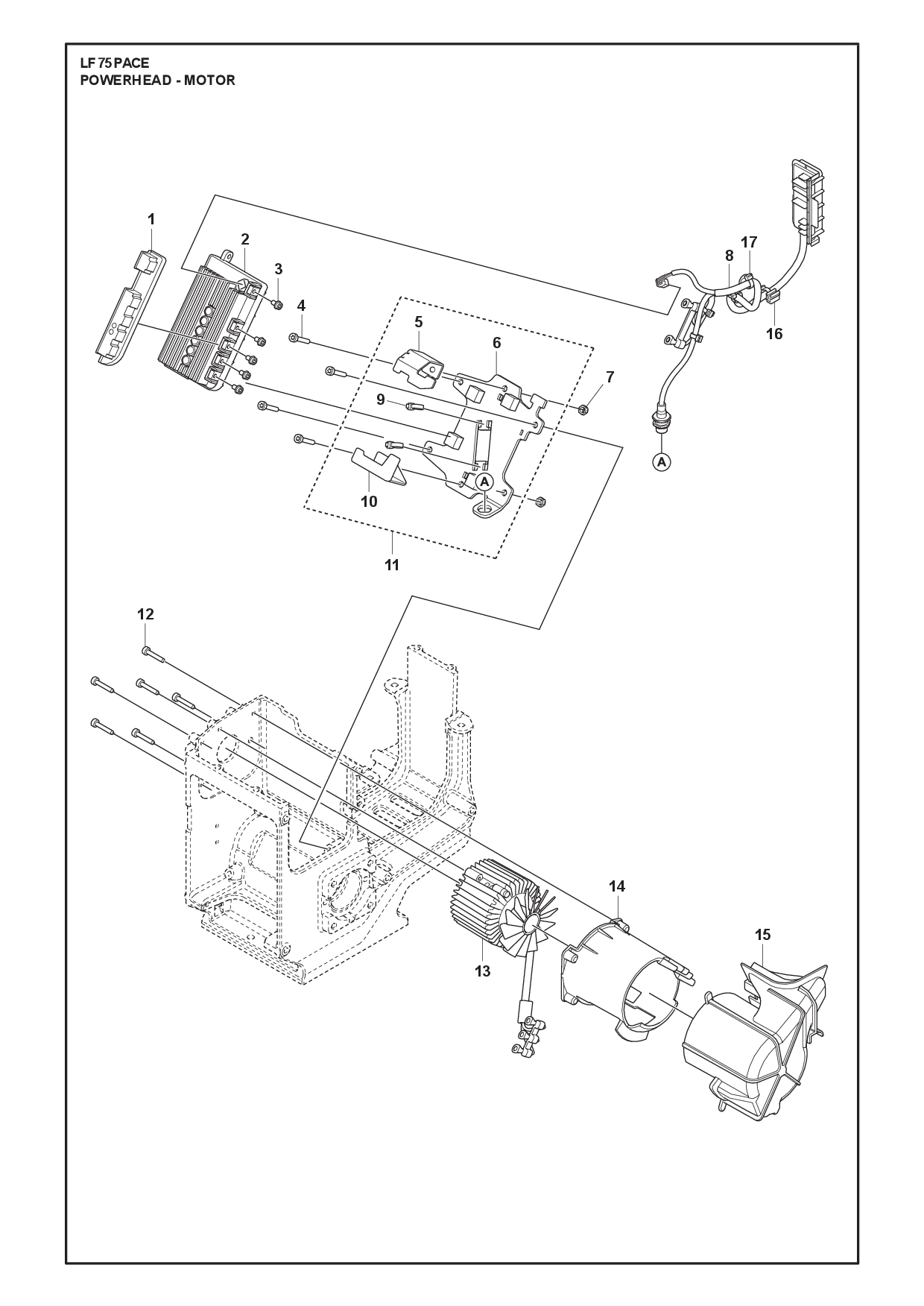

POWER HEAD 17 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1COVER | 597793601 | 1 | CUK1 PACE | ||
| 2CONTROL UNIT | 537576601 | 1 | PACE 3KPMSMCUG4 BOOT LOADER | ||
| 3SCREW ITXSCFM | 525755111 | 5 | M5X8 10.9 SNFE LOCK | ||
| 4SCREW ITXSCM | 503215330 | 4 | Internal Torx Socket Head Cap M5X30 12.9 | ||
| 5BRACKET | 547457501 | 1 | MCU UPPERLOCK | ||
| 6BRACKET | 547457401 | 1 | MCU BASE | ||
| 7LOCK NUT | 522669302 | 2 | M68.8 ZPB NYLOCK | ||
| 8WIRE | 535603401 | 1 | |||
| 9TIE WRAP | 548785401 | 5 | 200x4.6mm | ||
| 10BRACKET | 547457601 | 1 | MCU LOWER LOCK | ||
| 11BRACKET | 540608401 | 1 | |||
| 12SCREW ITXSCM | 503215330 | 6 | M5X30 12.9 INTERNAL TORX | ||
| 13MOTOR ASSY | 595871403 | 1 | |||
| 14AIR DUCT | 547400101 | 1 | MOTOR INLET CHANNEL | ||
| 15AIR DUCT | 547400001 | 1 | RUBBER CHANNEL | ||
| 16TIE WRAP | 548145101 | 1 | EDGE CLIP | ||
| 17TIE WRAP | 548145201 | 1 | TREE TOP |

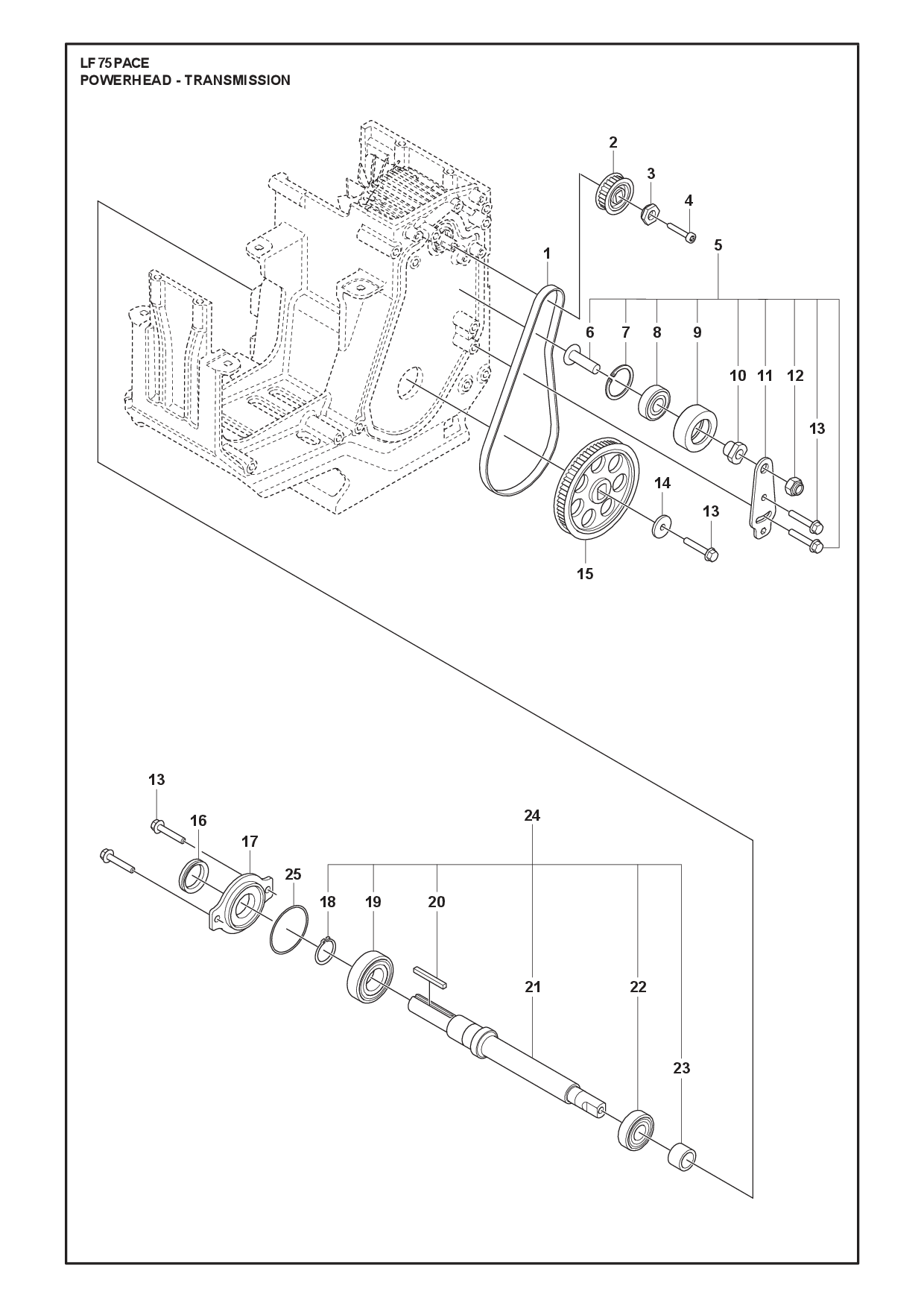

POWER HEAD 25 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1DRIVE BELT | 540266101 | 1 | |||
| 2PULLEY | 540265901 | 1 | P23-H5M-12 | ||
| 3SPACING SLEEVE | 504038302 | 1 | Driving pulley | ||
| 4SCREW ITXSCM | 544218420 | 1 | Internal Torx Socket Head Cap 6X20 10.9 ZnFe | ||
| 5BELT TENSIONER | 547516501 | 1 | |||
| 6SCREW | 547578301 | 1 | ISO 7380-2M10x35 10.9 ZPB | ||
| 7CIRCLIP | 735313310 | 1 | SGH 35x1.5 St PP | ||
| 8BEARING | 547547701 | 1 | E2.6202-2Z | ||
| 9BELT TENSIONER WHEEL | 547542801 | 1 | Belt tensioner | ||
| 10SPACER | 547542901 | 1 | Belt tensioner wheel | ||
| 11MOUNTING PLATE | 547468401 | 1 | Belt tensioner | ||
| 12HEXAGON LOCKING NUT | 732252001 | 1 | ISO 7040 M10 8 ZPB,NF | ||
| 13SCREW | 547399301 | 5 | EN 1665 M6X35 8.8 ZPB | ||
| 14PLATE | 548260001 | 1 | Stop washer | ||
| 15PULLEY | 540265701 | 1 | P64-H5M-12 | ||
| 16SEALING RING | 540539601 | 1 | |||
| 17SEALING PLATE | 547505001 | 1 | PTO Shaft | ||
| 18RETAINER RING | 735312640 | 1 | Shaft type SW | ||
| 19BALL BEARING | 547509201 | 1 | E2.6205-2Z/C3 | ||
| 20PARALLEL KEY | 548110901 | 1 | PTO Shaft | ||
| 21SHAFT | 547422801 | 1 | |||
| 22BALL BEARING | 547897701 | 1 | SKF E2.6203-2Z/C3 | ||
| 23SPACER | 547897401 | 1 | PTO Pulley | ||
| 24SHAFT ASSY | 548290601 | 1 | PTO Powerhead | ||
| 25O-RING | 599810701 | 1 | 56.87x1.78 NBR70 |

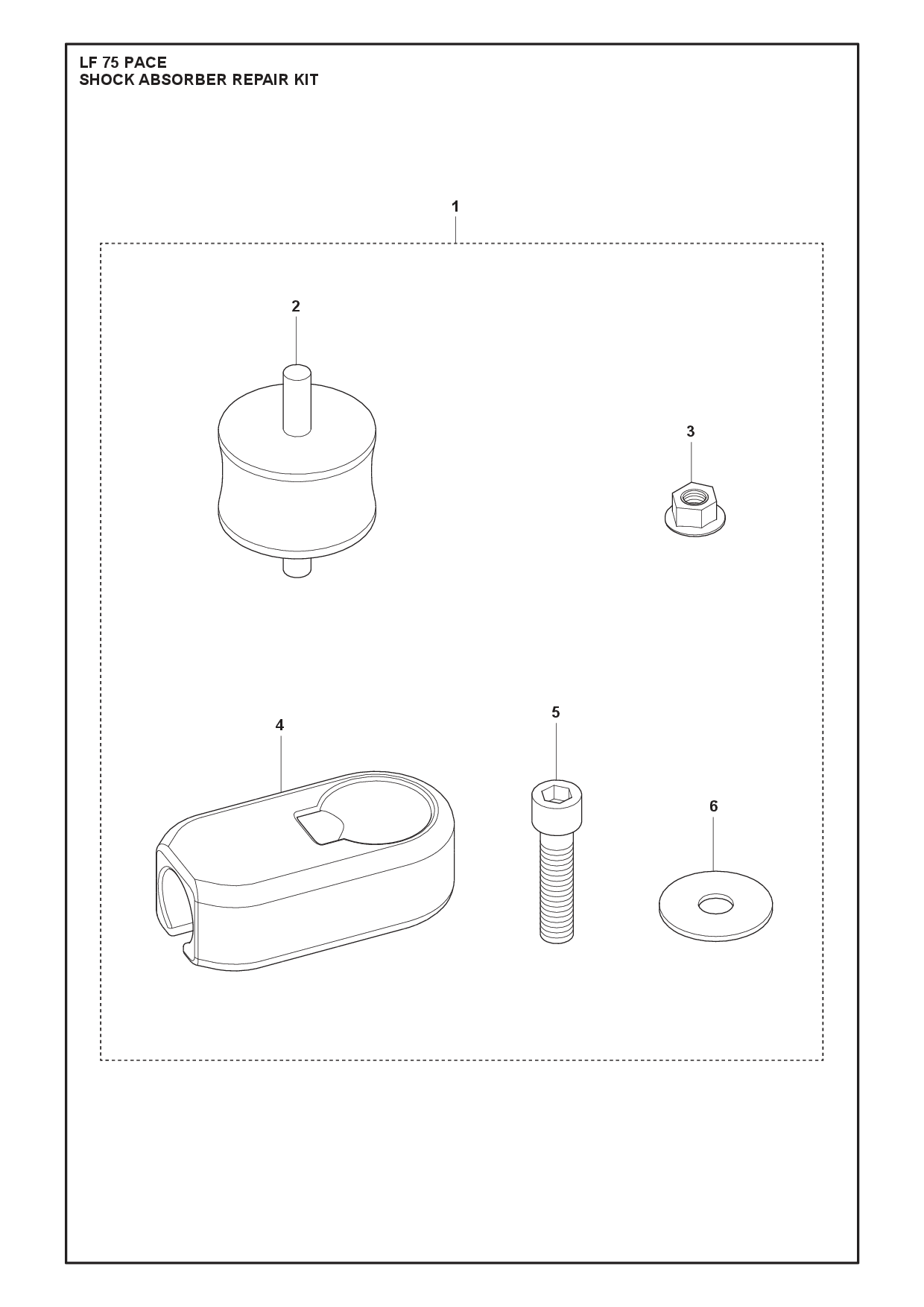

SHOCK ABSORBER REPAIR KIT 5 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1REPAIR KIT | 594194701 | 1 | Shock absorber repair kit | ||
| 2ABSORBER | 594341901 | 4 | Shock absorber | ||
| 3HEXAGON NUT | 594122601 | 8 | Hexagon nut M10A3K | ||
| 4RUBBER SHOE | 594480401 | 2 | |||
| 5SCREW | 594530001 | 2 | M12x50mm 8.8 A3K |

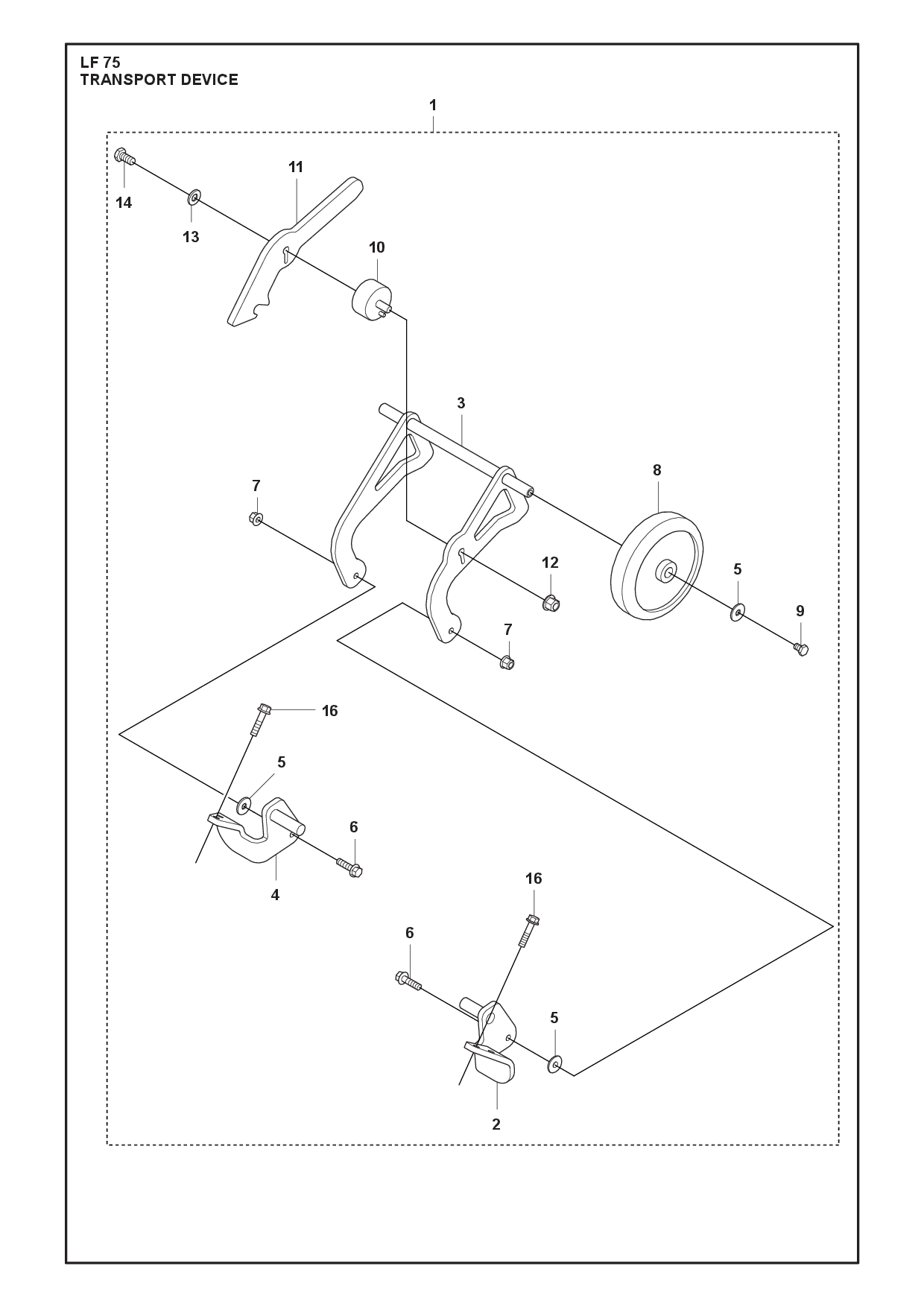

TRANSPORT DEVICE 16 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1MODULE | 598076501 | 1 | |||
| 2BRACKET | 594648701 | 1 | Left | ||
| 3FORK | 594648801 | 1 | |||
| 4BRACKET | 594648901 | 1 | Right | ||
| 5WASHER | 595061001 | 4 | NB 8,4x25x2 | ||
| 6SCREW | 595466601 | 2 | |||
| 7NUT | 595064601 | 2 | |||
| 8WHEEL | 594455501 | 2 | |||
| 9SCREW | 595053901 | 2 | CAP,M8-1,25X128.8 | ||
| 10ABSORBER | 594462701 | 1 | Shock | ||
| 11HOOK | 594651001 | 1 | |||
| 12LOCK NUT | 595064701 | 1 | With Flange | ||
| 13WASHER | 595066701 | 1 | 10,5X22X2 HB305 | ||
| 14SCREW | 595055201 | 1 | |||
| 15SPRING WASHER | 594647701 | 2 | |||
| 16SCREW | 595185801 | 4 |
Document Downloads
Operator's manual
Warranty
Compatable Accessories
Concrete Focus
From pouring to resurfacing, we sell tools built for concrete pros.
Expert Support
Get guidance from experts who understand jobsite challenges.
Fast Delivery
Get your tools fast with our nationwide shipping network and local partnerships.
Talk to an expert now (855) 281-1918
Get fast, expert help choosing the right concrete tools or equipment for your job. Ask about availability, specs, troubleshooting, or get friendly guidance before you place an order.
