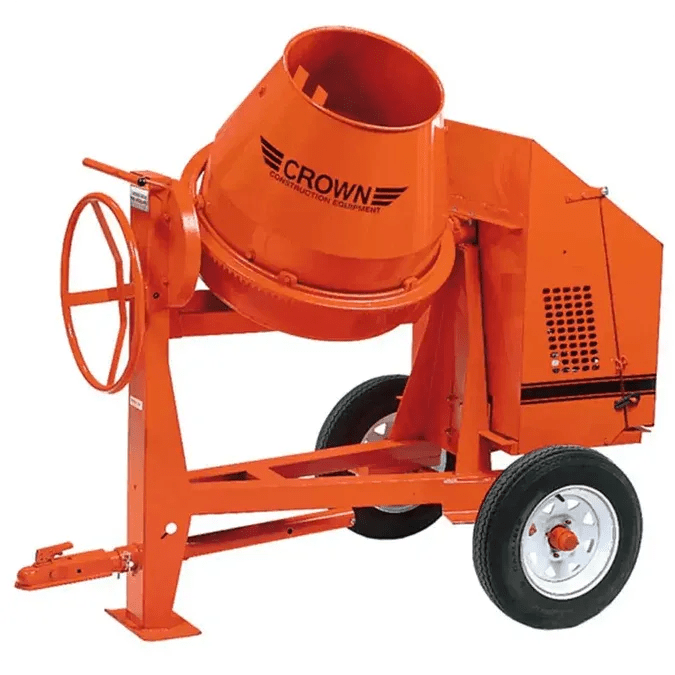

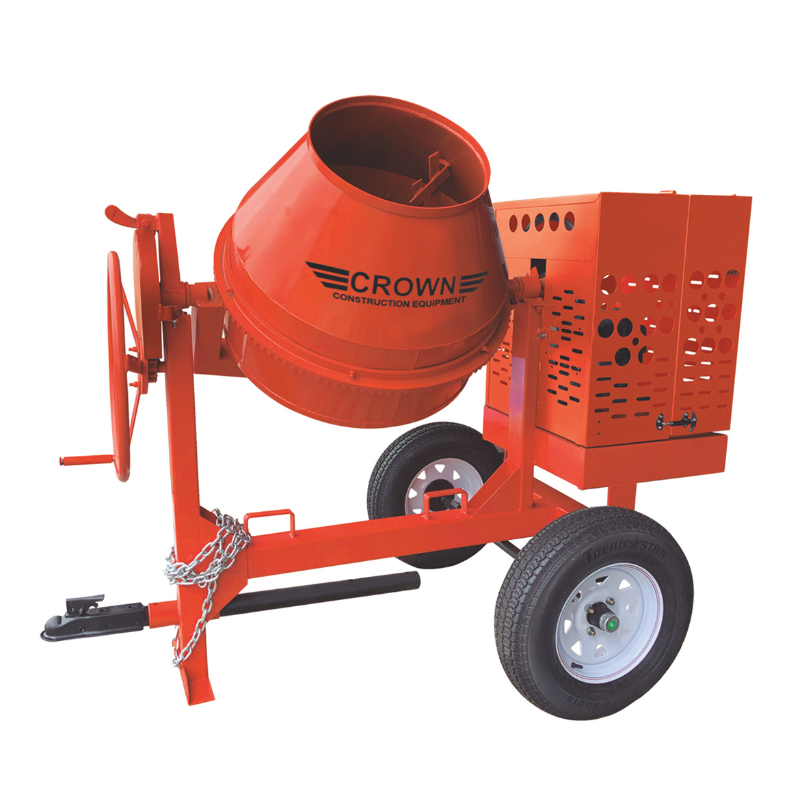

9 Cu Ft Concrete Mixer | Baldor Electric Motor | Highway Towable

SKU 609944p
Save $1,501.00
Original Price $5,467.00
Current Price $3,966.00

Notify me when back in stock

Power your projects with clean, quiet performance using this 9 Cu. Ft. Concrete Mixer. Equipped with a Baldor electric motor, this mixer delivers consistent power without the noise or fumes of gas engines.

The 9 cu. ft. drum is perfect for medium to large concrete pours, offering plenty of capacity for sidewalks, slabs, foundations, and more. Its highway towable frame makes it easy to move from site to site.

Designed for professional use, this mixer is built tough to handle daily mixing and deliver reliable results with minimal maintenance.

  • 9 cu. ft. mixing capacity – great for bigger jobs
  • Baldor electric motor – efficient, reliable, and quiet
  • Heavy-duty drum – resists rust and wear
  • Highway towable – transport easily between sites
  • Ideal for concrete, mortar, grout, and similar mixes

Big capacity. Electric efficiency. Built to perform day in and day out.

PRODUCT SPECIFICATIONS

Manufacturer Crown Construction Equipment
Product Type Concrete Mixer
Product Subtype Highway Towable
Model/Series C9 Series
Part # 609944
Drum Material Steel Drum
Frame High Strength Frame
Mixing Blades Steel
Engine/Motor Baldor Electric
Horse Power 1.5 HP
Gearbox Drive Type Cast Iron Drive Pinions & Gear Rings
Power Source AC-powered
Noise Level Not Specified
Drum Diameter Not Specified
Drum Diameter Opening 19"
Drum Capacity 9 ft³
Batch Input 1 - 1.5 bags
Batch Output 9 ft³
Charging Height 31"
Batch Materials Concrete
Towable No
Axle Type Rubber Torsion Suspension System
Wheel Size B78 x 13"
Wheel Type Pneumatic
Forklift Pockets Not Specified
Stand Type High-Strength Frame
Removable Drum Not Specified
Width (in) 51.5"
Operating Length (in) 78"
Towing Length (in) 98"
Height (in) 63.5"
Warranty 1 year limited warranty

Which Mixer Size Do You Need?

Not sure if you need a 6, 9, or 12 cu ft drum? Use this guide to choose the right mixer for your crew and job size.

Use Case Recommended Mixer Crew Size Mixing Frequency Portability
Fence posts, minor repairs 3 cu ft (Max Mix) 1–2 Occasional Highly Portable
Patios, sidewalks, small slabs 6 cu ft (C6) 2–3 Weekly Towable by hand/truck
Garage slabs, driveways 9 cu ft (C9) 3–4 Frequent Requires vehicle tow
Large pours, commercial use 12 cu ft (C12) 5+ Daily Heavy-duty trailer tow

CTD Rule of Thumb:

"If you’re working with a small crew and doing walkways or patios, 6 cu ft is your sweet spot. Big jobs and big crews? You’ll want a 9 or 12 so you’re not standing around waiting on the next batch."
