Concrete Surface Grinder - Core Prep CPG80E - Single Head - 8"

Concrete Surface Grinder - Core Prep CPG80E - Single Head - 8"

DIAMOND PRODUCTS SKU: 13317 Copied!

Is this the right tool for the job?

Best For:

  • 1–2 person crews prepping small floors for coatings and overlays
  • Spot grinding high spots, paint, cure/seal, and light epoxy residue
  • Owner-operators doing regular room-by-room prep with jobsite power

Not Ideal For:

  • Large open floors where planetary grinders or shot blasters are faster
  • Thick epoxy, elastomeric coatings, or heavy adhesive build-up
  • High-gloss polishing, tight edges, or deep leveling work

Why Pros choose this tool:

  • 8" single head grind path → controlled surface prep → reaches tight areas without over-cutting
  • Corded electric power → indoor grinding with no exhaust → suits TI, unit turns, and occupied work
  • Semi-portable frame → faster setup on small jobs → cuts rental runs for punch-list prep

Variant Guidance: Choose 8" for edges/small areas

Regular price $4,230.00
Regular price $4,230.00 Sale price $4,230.00
Sale Sold out
PAY NO SALES TAX Save up to $418.77 more.
DELIVERY IN 3-5 BUSINESS DAYS Shipping calculated at checkout
Quantity

Trusted by contractors nationwide

"I've bought 3 products from CTD and each time the experience has been the same - professional and fast delivery. I trust these guys with all my concrete needs."

Get Accredited
Product Details

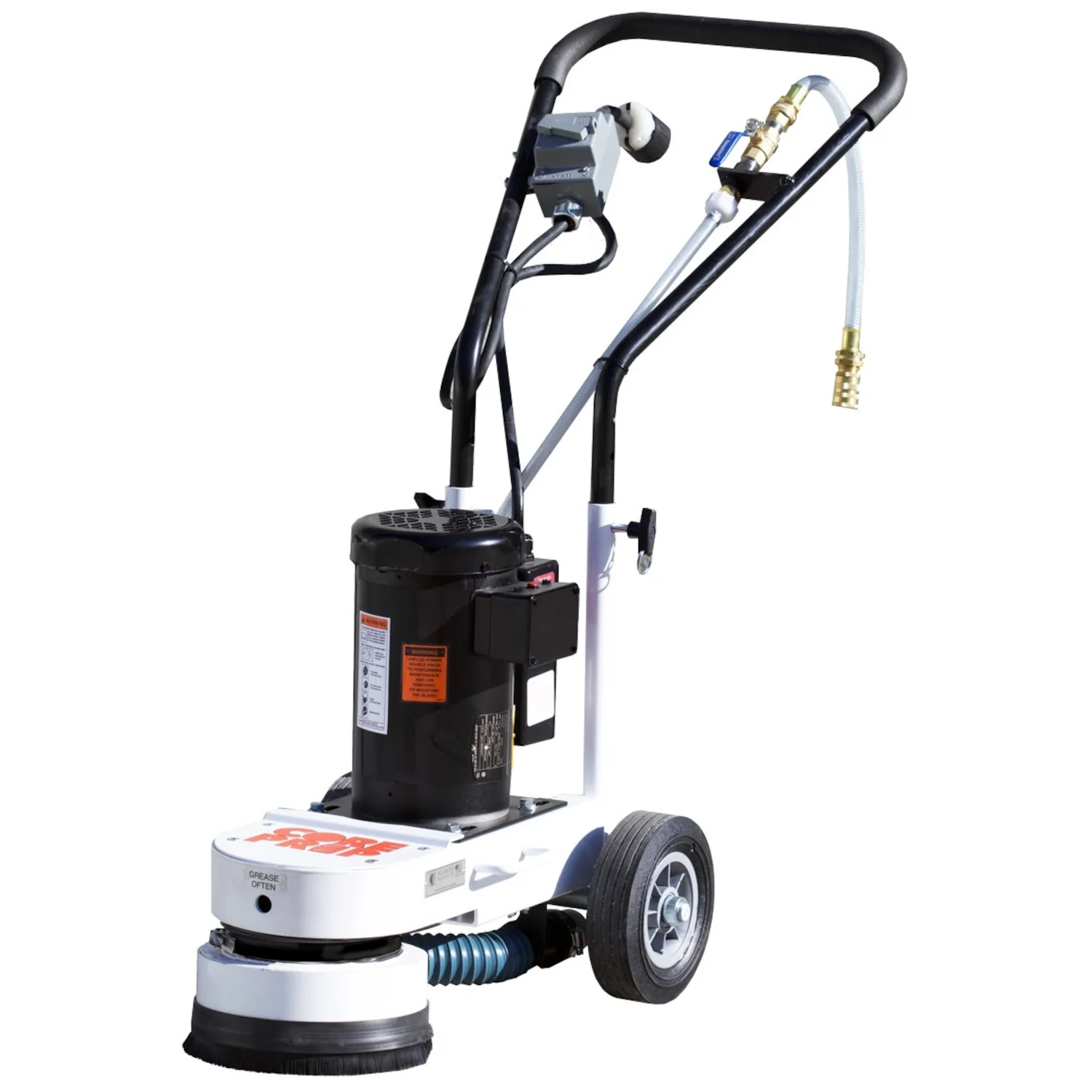

This mains-powered single-head grinder handles concrete prep, light coating removal, and surface smoothing on small to mid-size floors. It gives owner-operators and 1–2 person crews a practical machine for regular room-by-room work without stepping up to larger planetary equipment.

  • Prepare concrete for coatings, overlays, and resurfacing with consistent single-disc grinding.
  • Remove paint, cure/seal, high spots, and light epoxy residue from concrete floors.
  • Smooth rough or uneven areas in garages, basements, warehouses, and service spaces.
  • Run from jobsite mains power for indoor or outdoor prep where outlets allow.
  • Control equipment costs when rental frequency starts cutting into project margins.

Choose larger grinders or shot blasting for open production floors, thick coatings, heavy adhesive build-up, polishing, or deep leveling.

View full details
Product Specification
8" Core Prep Single-Head Floor Grinder, AC-powered - CPG80E
General
Manufacturer
Diamond Products
Model #
CPG80E(115V)
Part #
5801037
Product Type
Concrete Grinder
Product Subtype
Single Head
Power & Performance
Engine/Motor
Baldor Motor
Horse Power
2 HP
Power Source
Electric
Power Phase
1PH
Voltage
115V or 230V Options
Engine/Motor Speed
-
Head Speed
2800
Power Output
-
Cycles
60 Hz
Operation Type
Push Drive
Grinding Specifications
Head Capacity
8"
Grinding Width
8"
Variable Speed
No
Grinding Depth per Pass
-
Safety & Compliance
Dust Collection System
Slurry Skirt

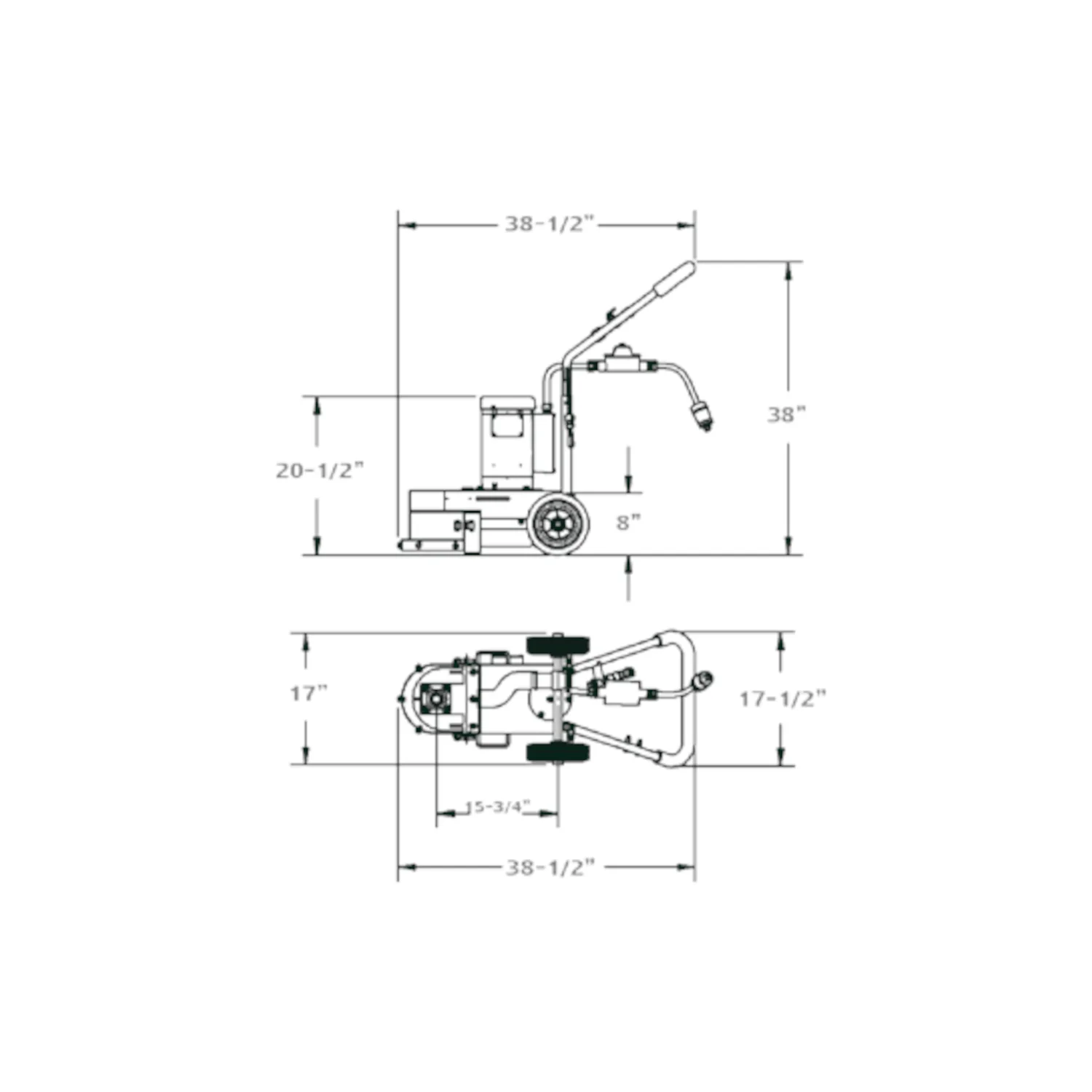

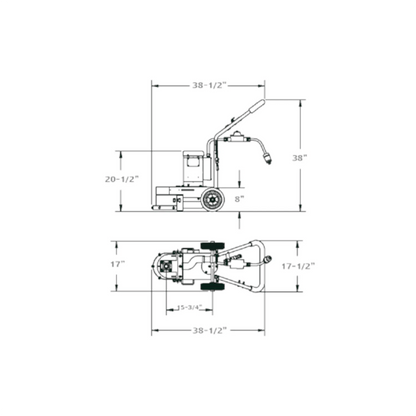

Weight/Dimensions
Length
38 1/2"
Width
17 1/2"
Height
38"
Weight (lbs)
120
Cord Length
50 ft
Wheel Diameter
8"
Usability
Handle Adjustability
Adjustable Handle
Durability
Construction Material
Heavy Duty Construction
Features
Vibration Dampening
-
Compact Design
Low Profile Design
Product Includes

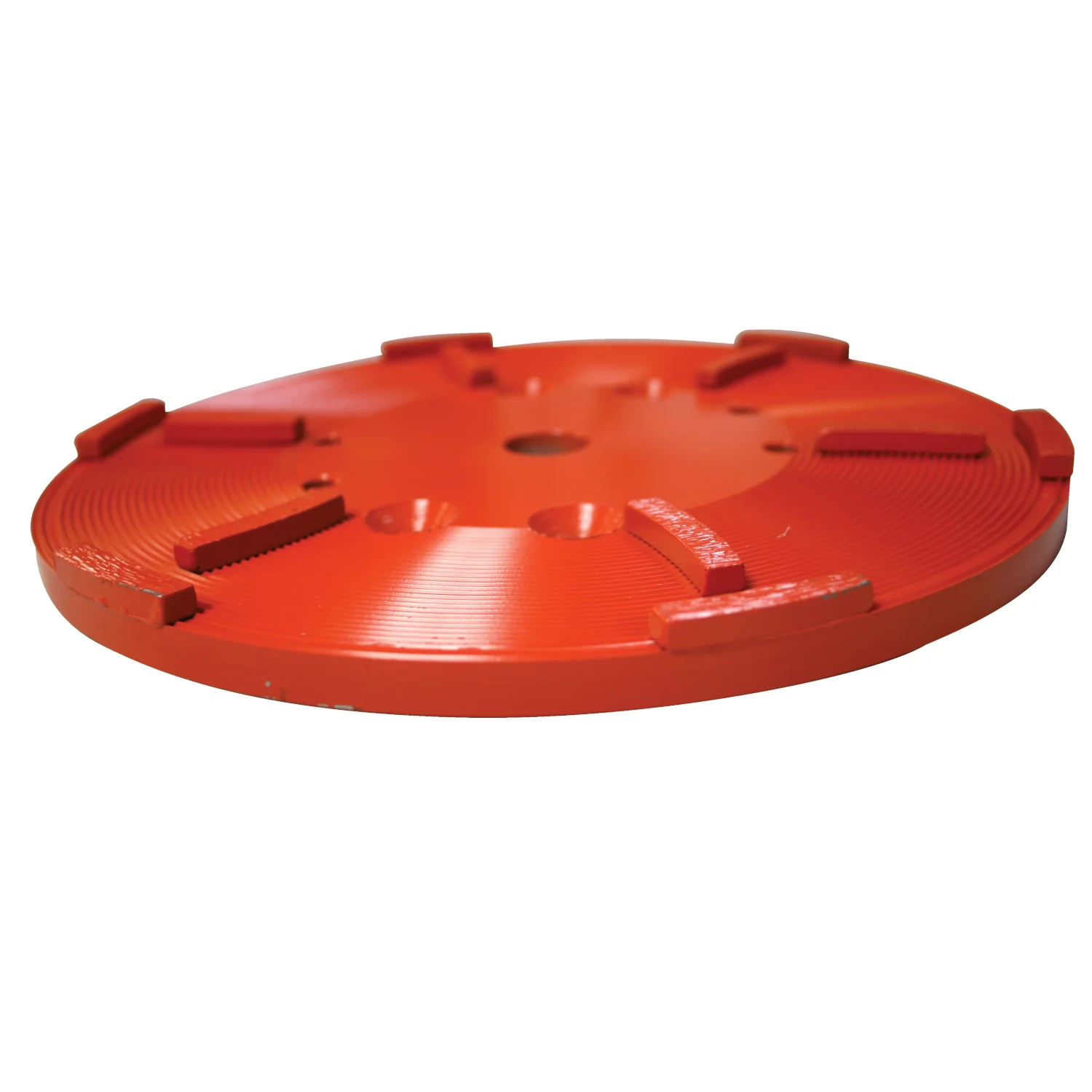

8" Heavy Duty Orange grinding head
Applications
Applications
Smoothing, Paint & Epoxy Removal
Dry/Wet
Dry
Compatibility
Power Compatibility
-
Warranty
Product Warranty
1 Year Warranty
Engine Warranty
-
