Core Cut Joint Saw - 11HP - Gas - 14" Blade - Downcut

Core Cut Joint Saw - 11HP - Gas - 14" Blade - Downcut

DIAMOND PRODUCTS SKU: 4648 Copied!

Is this the right tool for the job?

Best For:

  • Flatwork crews cutting control/expansion joints on outdoor slabs
  • One-operator or two-person crews doing daily slab repair cuts
  • Patches, panel removal, and short trench cuts to 5 in depth

Not Ideal For:

  • Indoor or poorly ventilated spaces (gas exhaust, wet slurry)
  • Early-entry green cuts immediately after finishing
  • Cuts deeper than 5 in or long-run highway production work

Why Pros choose this tool:

  • Downcut action + machine weight → blade stays engaged → straighter joints, less chipping and rework
  • Adjustable depth stop + clear pointer → repeatable cut depth → reliable sealant/backer rod prep
  • Wet-cut hookup + hose port → controls silica and slurry → safer crew and longer blade life

Variant Guidance: Most choose 14" for control joints

$4,317.06
$4,317.06 $4,317.06
Sale Sold out
PAY NO SALES TAX Save up to $427.39 more.
TX residents excluded.
DELIVERY IN 3-5 BUSINESS DAYS Shipping calculated at checkout

Trusted by contractors nationwide

"I've bought 3 products from CTD and each time the experience has been the same - professional and fast delivery. I trust these guys with all my concrete needs."

Diamond Products Authorized
Dealer
Get Accredited Top Quality Store
on Google
Get Accredited
90 day returns
Product Details

CONCRETE JOINT SAW FOR EFFORTLESS PRECISION

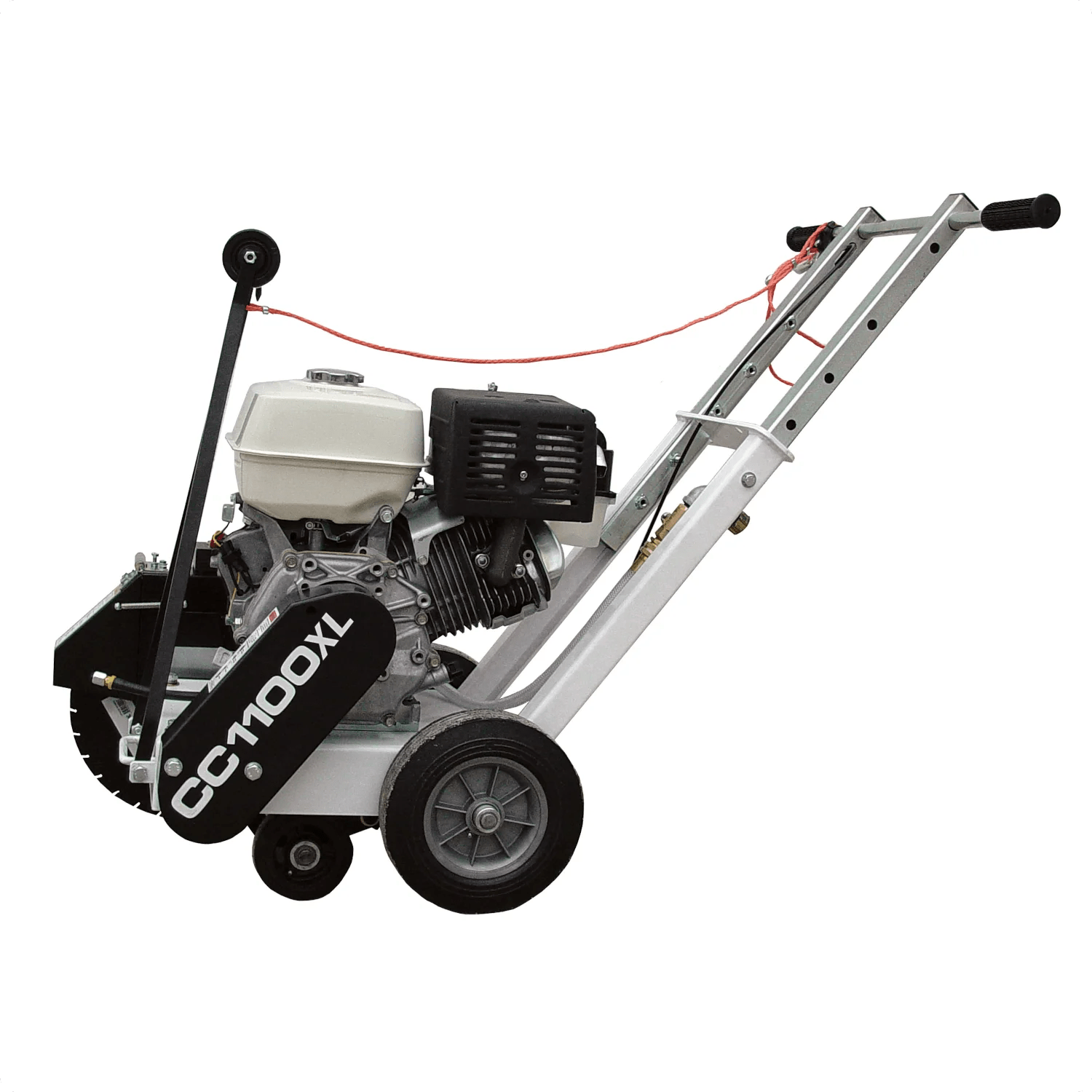

The Diamond Products Joint Cutting Mini Saw (Model CC1111HXL-14) is expertly designed for contractors seeking precision and efficiency. This compact saw offers heavy-duty adjustable operator handles for customizable comfort, ensuring reduced fatigue during prolonged use. Its easy-to-maneuver push drive makes handling effortless, while the upcut and downcut options provide versatile cutting performance, allowing operators to tackle a range of concrete joint projects with confidence.

Available with a 1” arbor size and a robust 2,650 RPM blade shaft, this joint saw is a reliable choice for professionals. The compact size and integrated wheels allow for easy transportation to and from job sites, making it an excellent solution for both small-scale and large-scale applications. The product also comes in various configurations, allowing customers to choose the option that best suits their needs and project specifications.

View full details
Product Specification
Core Cut Joint Saw - 11HP - Gas - 14" Blade - Downcut
General
Manufacturer
Diamond Products - Core Cut
Model
CC1111HXL-14
Power & Performance
Engine/Motor
Honda GX390
Horse Power
11.7HP
Power Source
Gas
Torque
Not specified
Self Propelled Drive
Not specified
Cutting Specifications
Max Blade Size
ꜜ14"
Max Blade Cutting Depth
ꜜ4-5/8"
Cut Direction
Down Cut
Blade Shaft RPM
2650
Blade Arbor Size
1.0"
Blade Width
Not specified
Depth Adjustment
Heavy duty adjustable operator handles
Blade Flange
1.0"
Blade Included
Not specified
Maneuverability
Wheel Material
Easy to maneuver push drive
Front Wheels
3" x 2" x 3/4"
Rear Wheels
8" x 2" x 3/4"
Straight Cut Wheels
Not specified

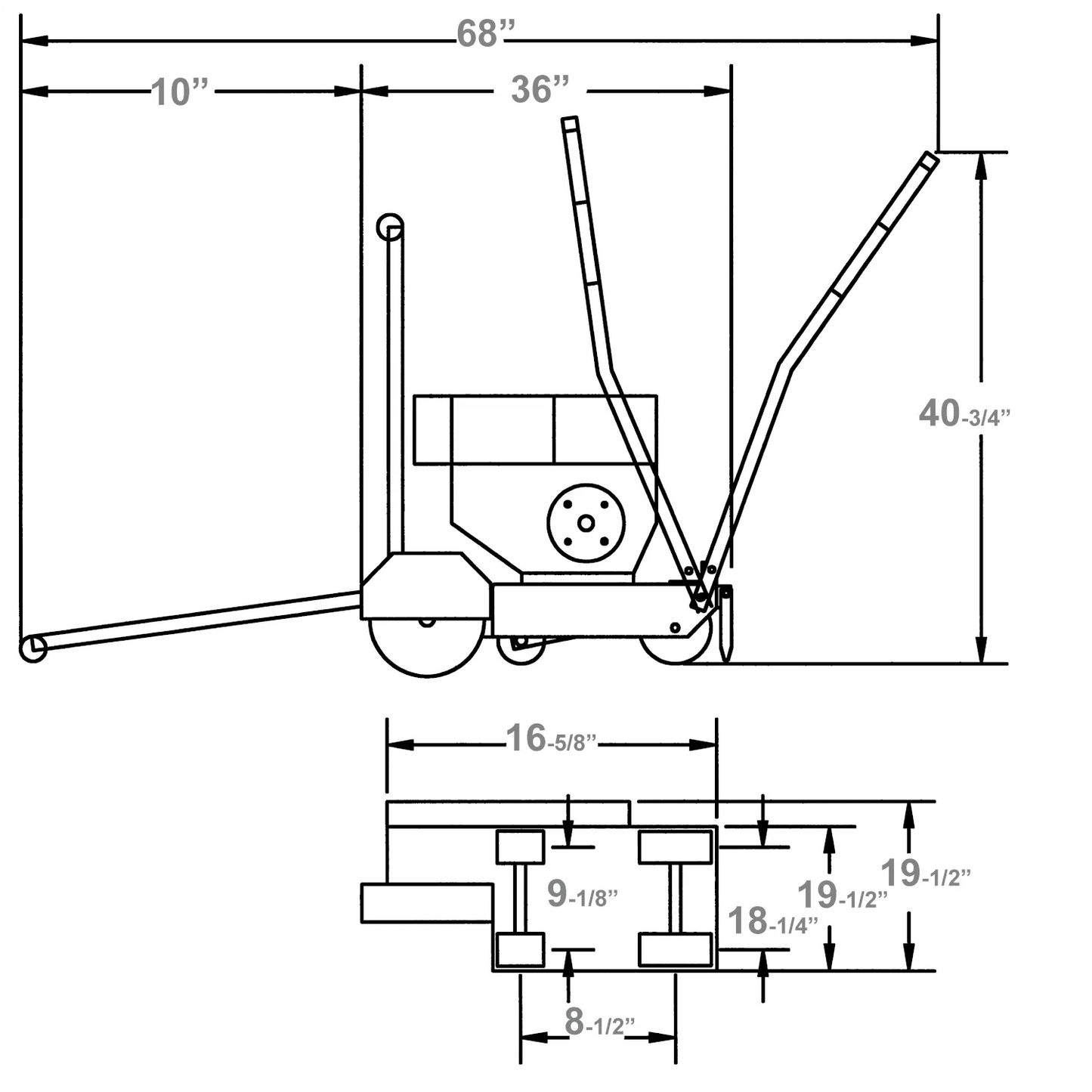

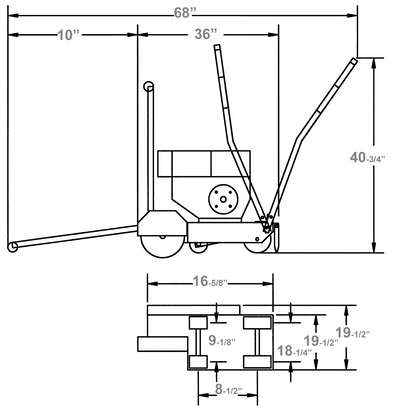

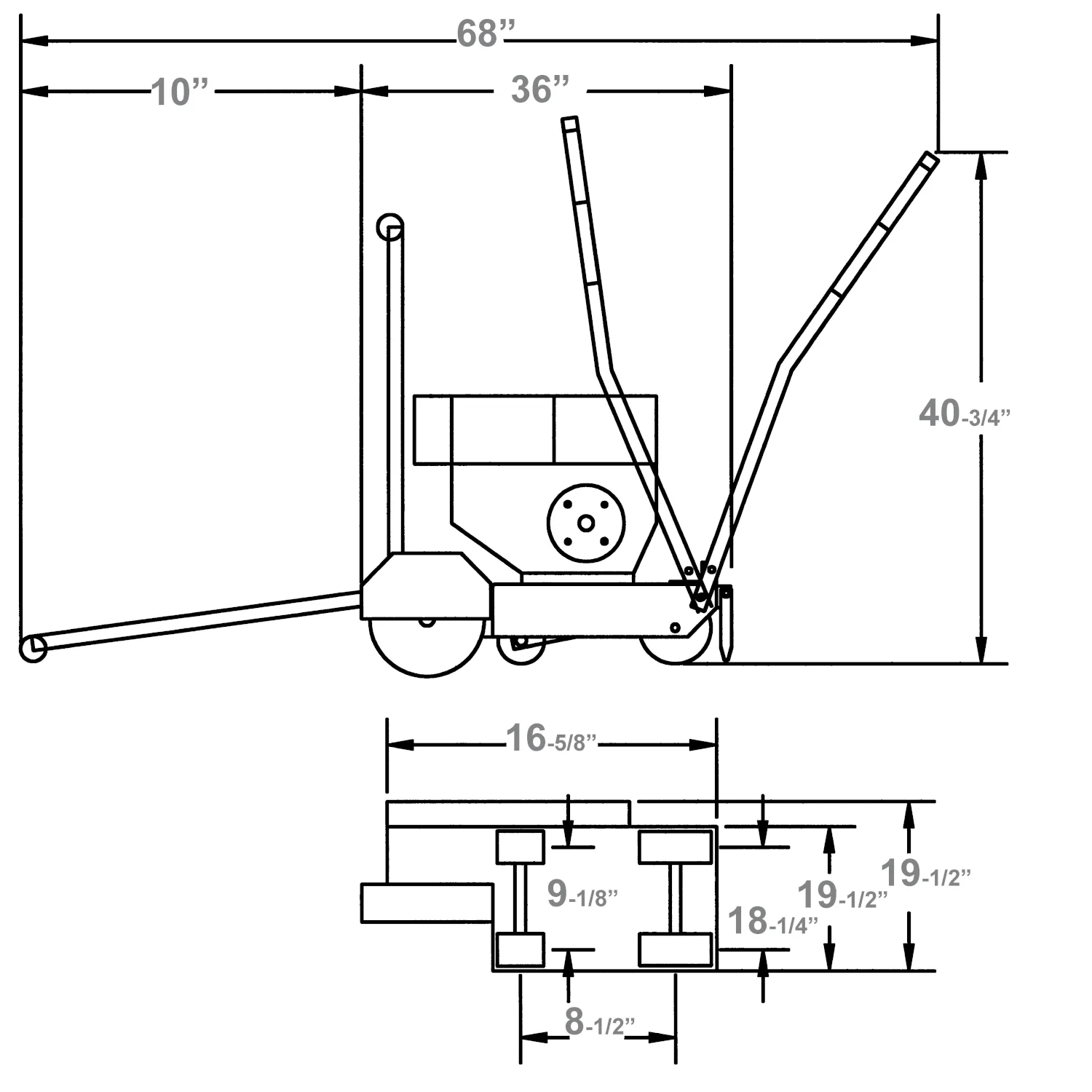

Weight/Dimensions
Dry Weight (lbs)
420
Operating Weight (lbs)
Not specified
Length
Not specified
Width
Not specified
Height
Not specified
Safety and Compliance
Dust Suppression
Not specified
Warranty
Product Warranty
1 year
Engine Warranty
1 year
