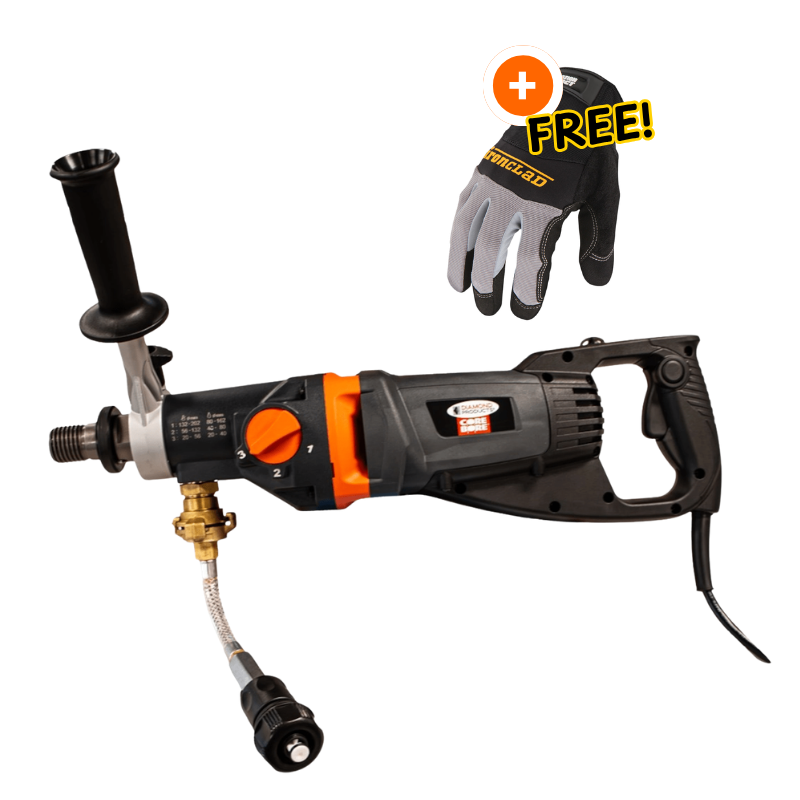

Core Bore Drill CB215 3"-6" - 15 AMP|1PH|115V - Hand-Held

Core Bore Drill CB215 3"-6" - 15 AMP|1PH|115V - Hand-Held

CORE BORE SKU: 4244142 Copied!

Is this the right tool for the job?

Best For:

  • Service techs coring 3–4 in MEP sleeves in concrete walls/slabs daily
  • Short-run coring on fit-outs: a few holes per area, multi-site work
  • Tight access penetrations where a compact hand-held saves setup time

Not Ideal For:

  • Overhead or 5–6 in cores—rig-mount required for control and safety
  • Dry coring in reinforced concrete; plan for water and slurry control
  • Deep sections or heavy rebar; progress slows, use a stand when needed

Why Pros choose this tool:

  • Standard 115V hand-held design → fast setup in tight spots → more holes per shift without rig/anchor time
  • Wet coring capability → controls silica and blowout → cleaner edges, less patching, easier inspections
  • Angle/overhead use capable → accurate placement in walls/ceilings → predictable layouts with less rework

Variant Guidance: Most choose 4" for general coring

$1,162.87
$1,396.00 $1,162.87
Save $233.13 Sold out
PAY NO SALES TAX Save up to $115.12 more.
TX residents excluded.
DELIVERY IN 3-5 BUSINESS DAYS Shipping calculated at checkout

Trusted by contractors nationwide

"I've bought 3 products from CTD and each time the experience has been the same - professional and fast delivery. I trust these guys with all my concrete needs."

Core Bore Authorized
Dealer
Get Accredited Top Quality Store
on Google
Get Accredited
90 day returns
Product Details

HAND-HELD CORE DRILL FOR VERSATILE USE

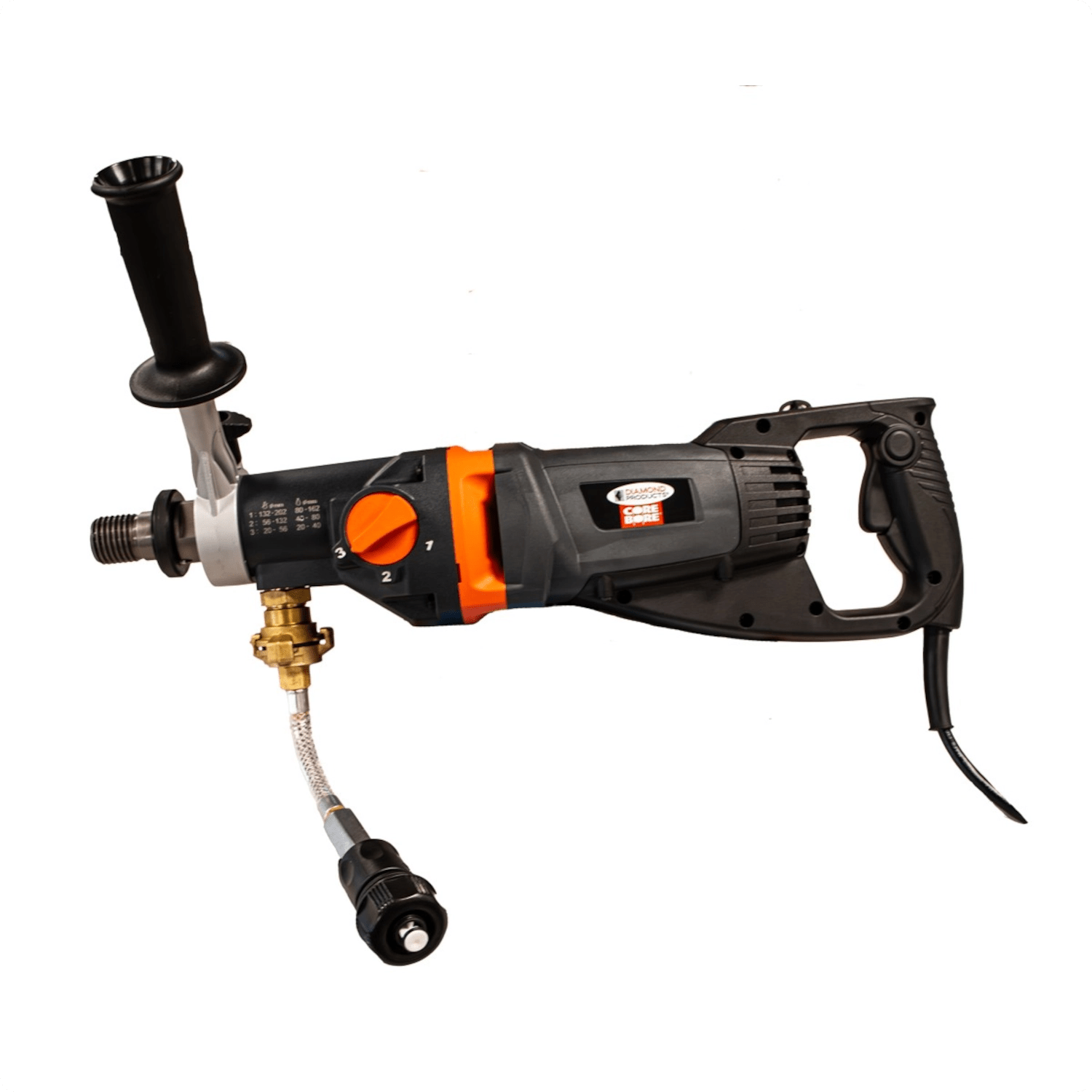

The CB215 Hand-Held Core Drill is designed for both wet and dry drilling, offering unmatched versatility. Powered by a 15 AMP motor with 1800 watts, it operates efficiently at three speeds (1000/1600/4450 RPM). Its integrated convertible port allows seamless switching between water feed for wet drilling and through-the-spindle dust collection for dry drilling.

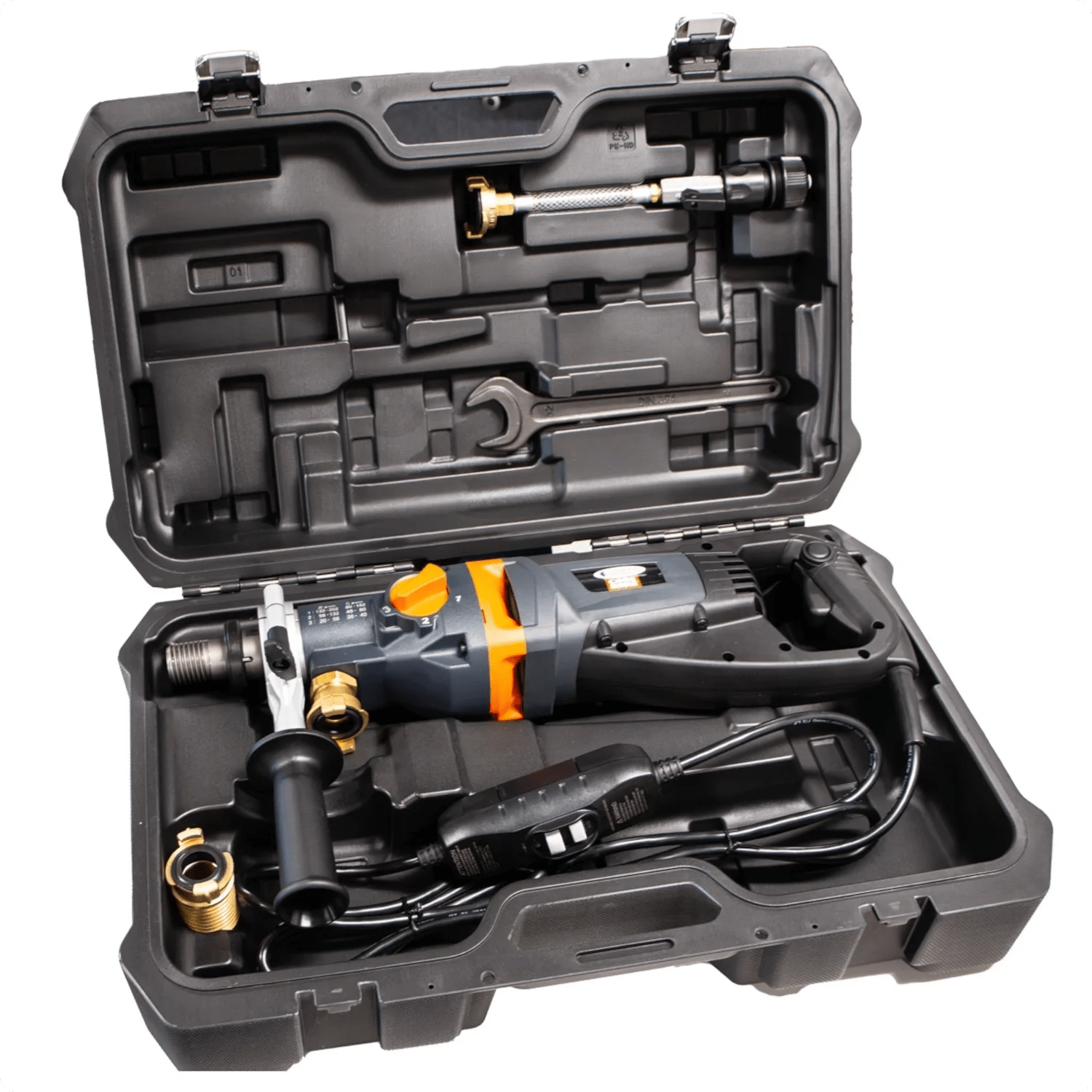

Weighing just 13 lbs, the CB215 is lightweight yet durable, featuring a D-handle for comfortable use and a removable side handle for added stability. With a bit capacity of up to 3 inches handheld and 6 inches when mounted on M-3 or M-4 core rig stands, it’s perfect for a range of applications. Additional features include an LED load indicator, a plastic carrying case, and essential accessories. The CB215 is a reliable choice for precise and efficient core drilling.

View full details
Product Specification
Core Bore Drill CB215 3"-6" - 15 AMP|1PH|115V - Hand-Held
General
Manufacturer
Core Bore
Model #
CB215
SKU/Part #
4244142
Product Type
Core Drill
Product Subtype
Hand-Held
Product Mount
Hand-Held
Power & Performance
Engine/Motor
Electric Motor
Horse Power
~2.4 HP (1800W)
Power Source
Electric
Voltage
115V
Amperage
15 AMP
Power Phase
1PH
Variable Speed
3-Speed
Speed 1 Max RPM
1000 RPM
Speed 2 Max RPM
1600 RPM
Speed 3 Max RPM
4450 RPM
Max Speed RPM
4450 RPM
Drilling Specifications
Recommended Bit Diameter
3" (Hand-Held) / 6" (Mounted)
Max Bit Diameter
ꜜ3"/ꜜ6"
Variable Speed
Yes
Drilling Depth per Pass
User-Dependent
Spindle Features
1.250"-7 with 5/8"-11 adapter
Safety & Compliance
Dust Collection System
Yes (Through-Spindle)
Weight & Dimensions
Weight (lbs)
13
Features
Clutch
Slip Clutch
Thermal Protection
Not specified
LED Load Indicators
Yes
Quick-Release Water Connections
No
Convertible Ports (Wet/Dry)
Yes
Compact Design
Yes
Applications
Applications
Concrete, Masonry, Stone
Dry/Wet
Wet/Dry
Compatibility
Power Compatibility
Standard Electric Supply
Warranty
Product Warranty
1 Year
