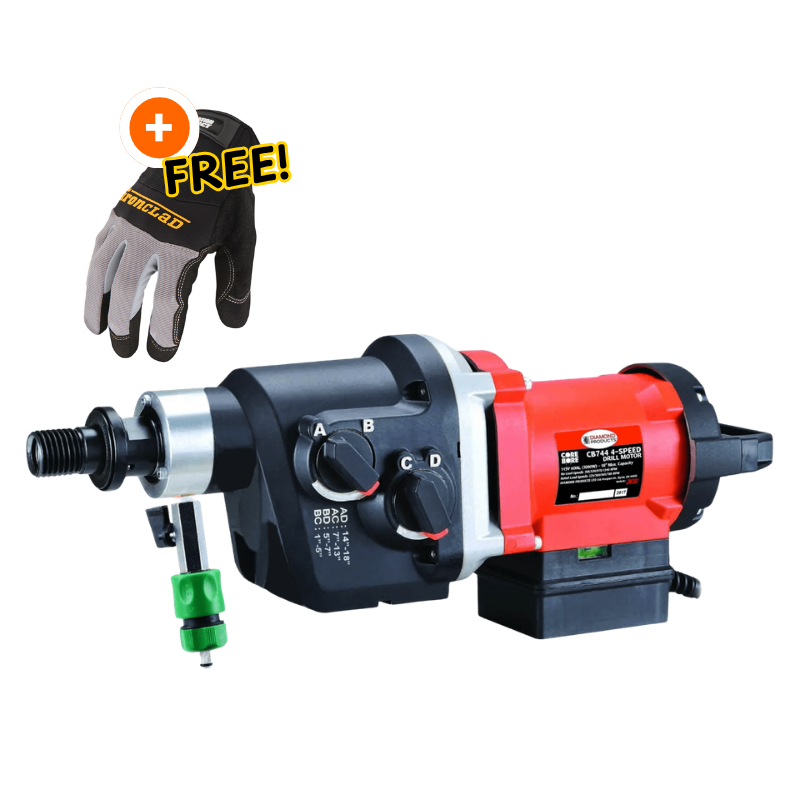

Core Bore Drill CB744 18" - 25AMP|1PH - Rig-Mounted

Core Bore Drill CB744 18" - 25AMP|1PH - Rig-Mounted

CORE BORE SKU: 4244128 Copied!

Is this the right tool for the job?

Best For:

  • MEP and coring subs doing daily slab and wall penetrations in concrete
  • One- or two-person crews needing clean, controlled wet coring
  • Large-diameter sleeve and conduit holes on ongoing commercial work

Not Ideal For:

  • Sites with weak power, long light cords, or small generators
  • Dry-only jobs or areas where water/slurry control isn't allowed
  • Fast 1-2 in. holes; a handheld core drill or rotary hammer is quicker

Why Pros choose this tool:

  • Rig‑mounted base and carriage → stable, plumb coring → safer runs and sleeve‑ready holes with less rework
  • Single‑phase electric drive → consistent torque under load → predictable pace with fewer stalls and glazing
  • Large‑diameter coring capacity → one-pass holes for big sleeves → no step‑coring, faster through‑slab penetrations

Variant Guidance: Most pick 18" for general coring

$2,312.99
$2,777.00 $2,312.99
Save $464.01 Sold out
PAY NO SALES TAX Save up to $228.99 more.
TX residents excluded.
DELIVERY IN 3-5 BUSINESS DAYS Shipping calculated at checkout

Trusted by contractors nationwide

"I've bought 3 products from CTD and each time the experience has been the same - professional and fast delivery. I trust these guys with all my concrete needs."

Core Bore Authorized
Dealer
Get Accredited Top Quality Store
on Google
Get Accredited
90 day returns
Product Details

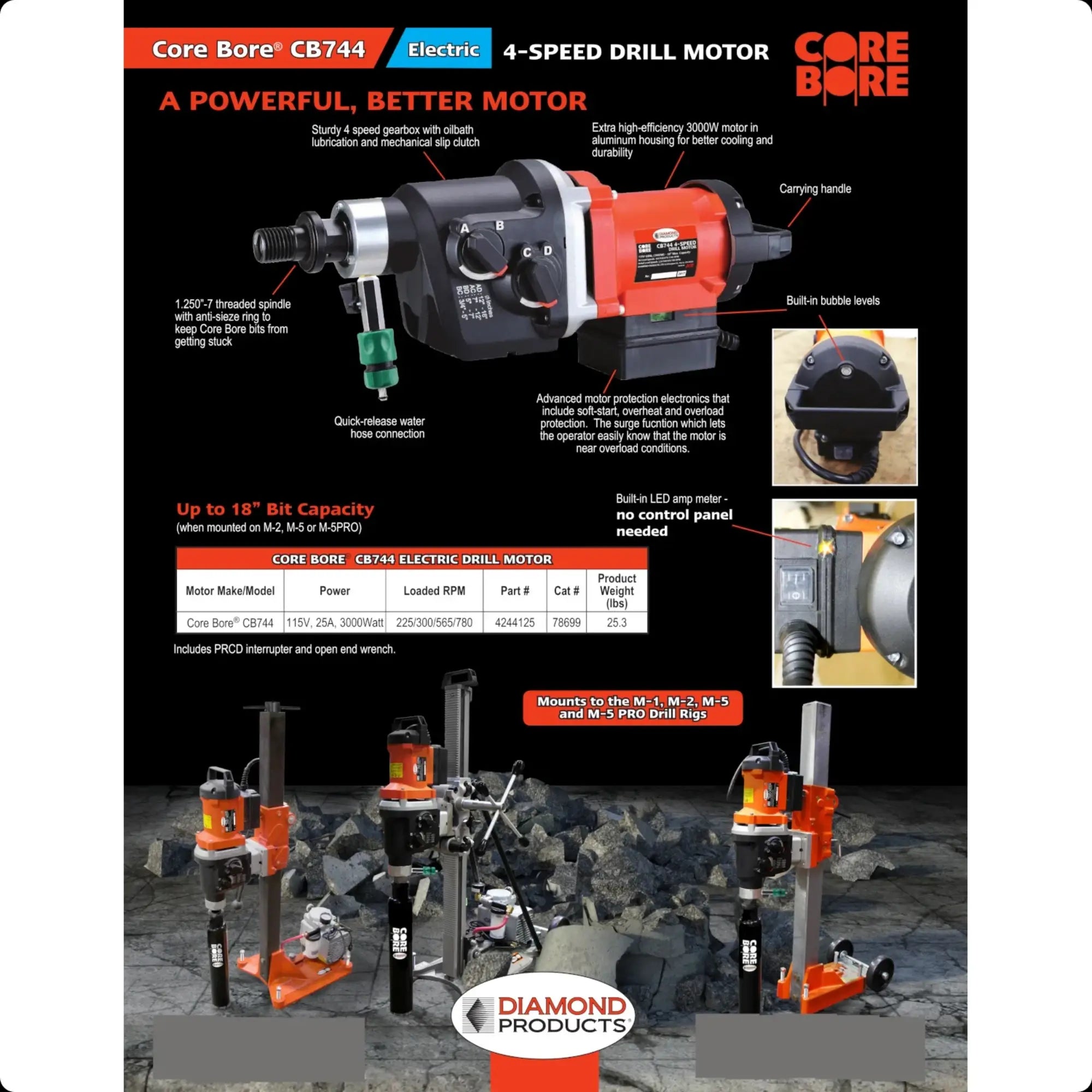

CORE DRILL MACHINE WITH ADVANCED PROTECTION

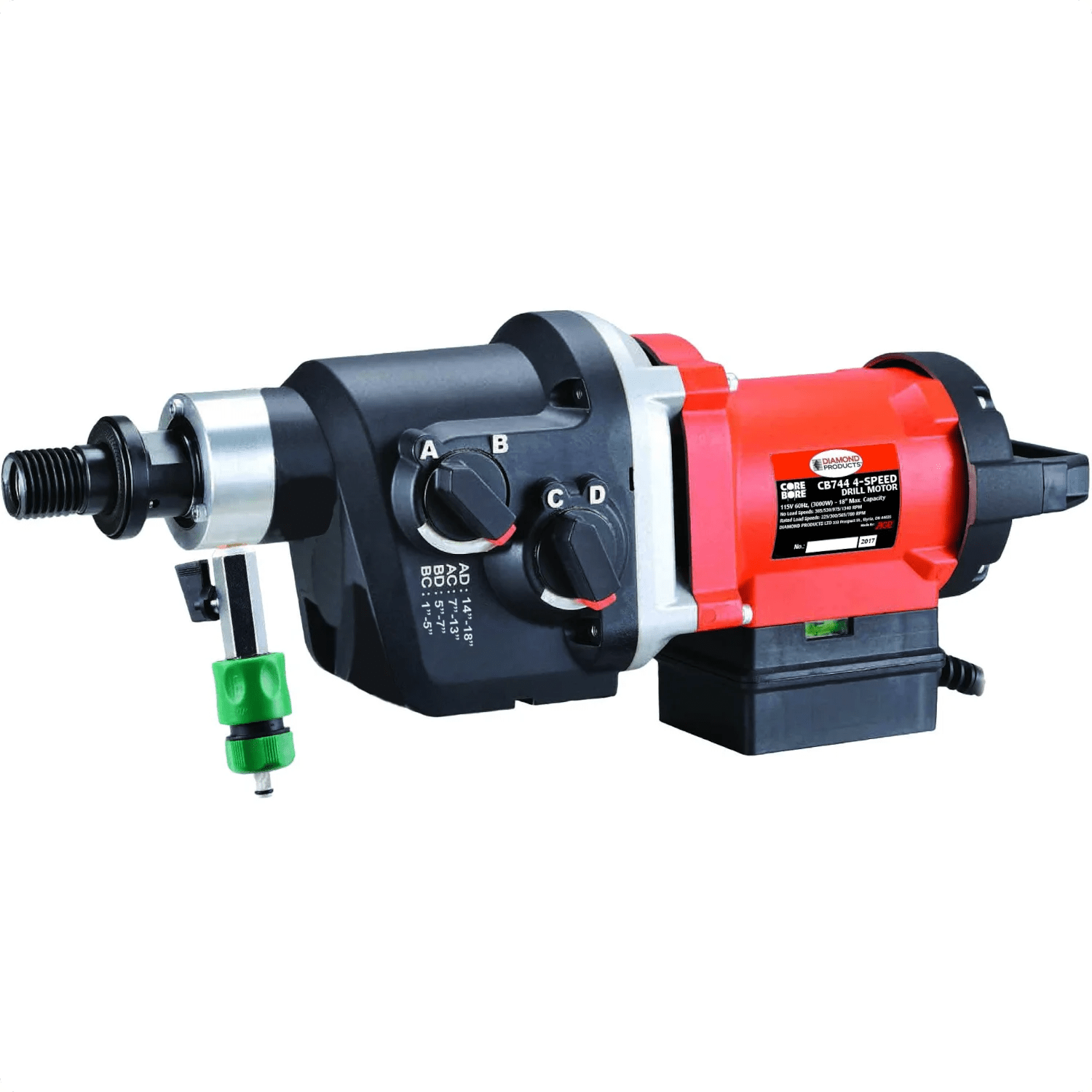

The CB744 Electric 4-Speed Drill Motor is a powerful tool designed for efficiency and precision in concrete coring. Its 25 AMP motor and 115V or 230V operation, combined with a robust 4-speed gearbox (225/300/565/780 RPM), make it ideal for heavy-duty applications. Built-in advanced motor protection electronics, including soft-start and overload protection, ensure durability and reliability.

This 25.3 lbs drill features an anti-seize spindle, quick-release water connection, and built-in bubble levels for convenience. With a bit capacity of up to 18 inches, the CB744 is compatible with M-2, M-5, and M-5 PRO drill rigs. Whether for industrial or professional use, the CB744 guarantees top-notch performance and ease of use.

View full details
Product Specification
Core Bore Drill CB744 18" - 25AMP|1PH - Rig-Mounted
General
Manufacturer
Core Bore
Model #
CB515
SKU/Part #
4244128
Product Type
Core Drill
Product Subtype
Hand-Held
Product Mount
Hand-Held
Power & Performance
Engine/Motor
Electric Motor
Horse Power
~2.4 HP (1800W)
Power Source
Electric
Voltage
115V
Amperage
15 AMP
Power Phase
1PH
Variable Speed
2-Speed
Speed 1 Max RPM
1400 RPM
Speed 2 Max RPM
2300 RPM
Max Speed RPM
2300 RPM
Drilling Specifications
Recommended Bit Diameter
3" (Hand-Held) / 6" (Mounted)
Max Bit Diameter
ꜜ3"/ꜜ6"
Variable Speed
Yes
Drilling Depth per Pass
User-Dependent
Spindle Features
5/8"-11
Safety & Compliance
Dust Collection System
Not applicable
Weight & Dimensions
Weight (lbs)
10.5
Features
Clutch
Slip Clutch
Leveling Bubbles
Bull's Eye Level
Thermal Protection
Overload and Overheat Protection
LED Load Indicators
No
Quick-Release Water Connections
No
Convertible Ports (Wet/Dry)
No
Compact Design
Yes
Applications
Applications
Concrete, Masonry, Stone
Dry/Wet
Wet
Compatibility
Power Compatibility
Standard Electric Supply
Warranty
Product Warranty
1 Year
