Core Bore Drill 3"-6" - 16AMP|1PH - Hand-Held

Core Bore Drill 3"-6" - 16AMP|1PH - Hand-Held

CORE BORESKU: 2600904

$3,236.21
$3,885.00 $3,236.21
Save $648.79 Sold out
PAY NO SALES TAX Save up to $320.38 more.
TX residents excluded.
DELIVERY IN 3-5 BUSINESS DAYS Shipping calculated at checkout
Core Bore Authorized
Dealer
Get Accredited Top Quality Store
on Google
Get Accredited
Questions? (855)-281-1918
90 day return policy
Product Details

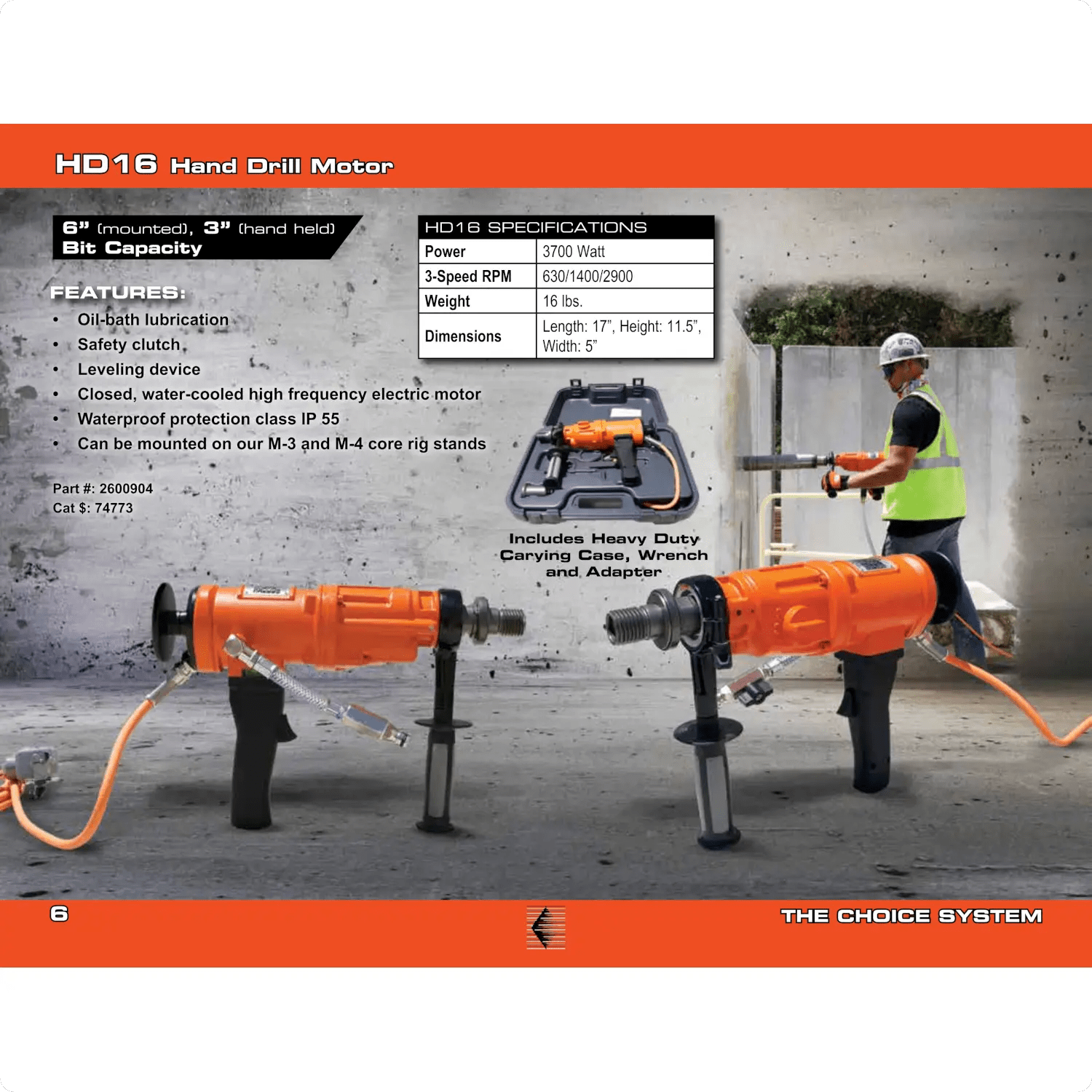

HAND-HELD CORE DRILL FOR HIGH PRECISION

The HD16 Hand Drill Motor is designed for precise and efficient core drilling. Powered by a robust 3700-watt motor, it offers three-speed operation (630/1400/2900 RPM) for versatility across various materials. The HD16 is equipped with oil-bath lubrication, a safety clutch, and a waterproof IP55 protection class for reliability in demanding conditions.

Weighing only 16 lbs, this lightweight drill is ideal for hand-held use (up to 3-inch bit capacity) and can be mounted on M-3 or M-4 core rig stands (up to 6-inch bit capacity). Features include a leveling device, a closed water-cooled motor, and a heavy-duty carrying case with accessories. The HD16 is a trusted choice for professional contractors seeking precision and durability in core drilling tasks.

View full details
Product Specification
Core Bore Drill 3"-6" - 16AMP|1PH - Hand-Held
General
Manufacturer
Weka
Model #
HD16
SKU/Part #
2600904
Product Type
Core Drill
Product Subtype
Hand-Held
Product Mount
Hand-Held
Power & Performance
Engine/Motor
High-Frequency Electric Motor
Horse Power
~5 HP (3700W)
Power Source
Electric
Voltage
Not specified
Amperage
16 AMP
Power Phase
1PH
Variable Speed
3-Speed
Speed 1 Max RPM
630 RPM
Speed 2 Max RPM
1400 RPM
Speed 3 Max RPM
2900 RPM
Max Speed RPM
2900 RPM
Drilling Specifications
Recommended Bit Diameter
3" (Hand-Held) / 6" (Mounted)
Max Bit Diameter
ꜜ3"/ꜜ6"
Variable Speed
Yes
Drilling Depth per Pass
User-Dependent
Spindle Features
Not specified
Safety & Compliance
Dust Collection System
Not applicable
Weight & Dimensions
Weight (lbs)
16
Features
Clutch
Slip Clutch
Thermal Protection
Not specified
LED Load Indicators
No
Quick-Release Water Connections
No
Convertible Ports (Wet/Dry)
No
Compact Design
Yes
Applications
Applications
Concrete, Masonry, Stone
Dry/Wet
Wet
Compatibility
Power Compatibility
Standard Electric Supply
Warranty
Product Warranty
1 Year
