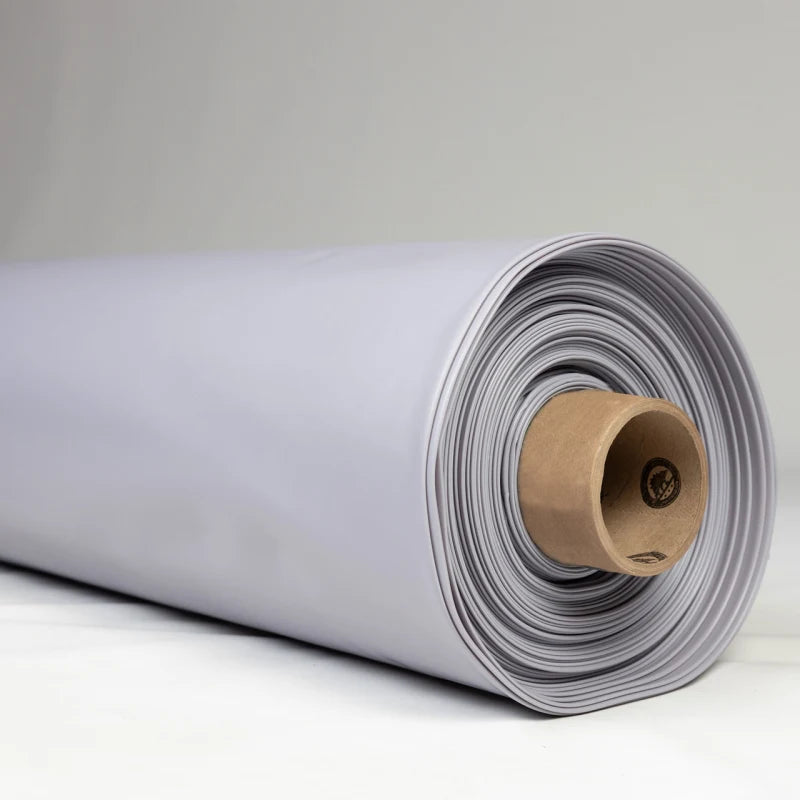

• Drago Wrap Soil Gas Barrier 14' X 105' Foundation 20-Mil Thickness
1 1
IN STOCK QUICK SHIPNO TAXES

Drago Wrap Soil Gas Barrier

Drago Wrap Soil Gas Barrier

STEGO INDUSTRIES SKU: SB1 Copied!

Why this equipment matters

  • Keep gas/moisture control performance consistent -> same Drago Wrap roll -> pours continue without rework.
  • Speed layout on big pours -> large roll format -> faster coverage with fewer changeovers.
  • Reduce risk of gas/moisture lapses -> same sheet material -> no mixed membranes across replacements.
$993.00
$1,045.00 $993.00
Save $52 Sold out
PAY NO SALES TAX Save up to $98.31 more.
TX residents excluded.
DELIVERY IN 3-5 BUSINESS DAYS Shipping calculated at checkout

Trusted by contractors nationwide

"I've bought 3 products from CTD and each time the experience has been the same - professional and fast delivery. I trust these guys with all my concrete needs."

Stego Industries Authorized
Dealer
Get Accredited Top Quality Store
on Google
Get Accredited
90 day returns
Product Details

Soil Gas Barrier for Comprehensive Gas Protection

Drago® Wrap Soil Gas Barrier delivers industry-leading value and protection in the control of soil gases. It also provides superior protection beyond a traditional below-slab vapor barrier against water vapor diffusion. It is a multi-layered plastic extrusion that combines gas barrier technology with only high-grade, prime, virgin resins. It can be used in systems for the control of volatile organic compounds (VOCs), methane, radon, soil poisons, and sulfates.

Comprehensive Gas Protection – Controls a wide range of soil gases including VOCs, methane, radon, soil poisons, and sulfates.

Enhanced Moisture Defense – Outperforms traditional vapor barriers by providing superior resistance to water vapor diffusion.

Premium Multi-Layer Construction – Manufactured with high-grade, prime virgin resins for reliable performance and long-term durability.

Thickness: 20-Mils

Roll Size: 14' x 105' = 1,470 sq ft.

Weight: Approx. 148 lbs.

Roll Core: 86’’

Drago Wrap Soil Gas Barrier (14' x 105') Features Under-Slab Vapor Retarder: ASTM E1745 Compliant

Water Vapor Permeance: 0.0051 perms

Extremely low permeability to prevent soil gas and moisture transmission

Made from game-changing resin technology that provides high performance and longevity

Can be used in commercial, residential, and industrial applications

Drago Wrap Limited Warranty

Made in the USA

Document Downloads
View full details
Product Specification
Drago Wrap Soil Gas Barrier 14' X 105' Foundation 20-Mil Thickness
Details
Application
Below concrete slabs in commercial, residential, and industrial applications
Material
Prime virgin resins
Under-Slab Vapor Retarder
ASTM E1745 compliant
Water Vapor Permeance
0.0051 perms
Push-Through Puncture
173.9 newtons
Tensile Strength
46.0 lbf/in
Benzene Permeation Coefficient
<1.8 x 10-12 m2/second
Toluene Permeation Coefficient
<2.1 x 10-12 m2/second
Ethylbenzene Permeation Coefficient
<1.2 x 10-12 m2/second
M&P-Xylenes Permeation Coefficient
<1.2 x 10-12 m2/second
O-Xylene Permeation Coefficient
<1.1 x 10-12 m2/second
TCE Permeation Coefficient
<3.9 x 10-12 m2/second
PCE Permeation Coefficient
<2.7 x 10-12 m2/second
Methane Transmission Rate
<0.1 mL(STP)/m2*day
Compatible Accessories
DragoSeal Tape; DragoTack Tape; Drago Mastic; Drago Sealant; Drago Sealant Form
Additional Benefits
Designed for commercial, residential, and industrial applications; Efficacy testing for hydrocarbons, chlorinated solvents, water vapor, methane, and radon; Exceptional durability; Resists deterioration; Low maintenance needed; Simple dependable installation; Drago Wrap Limited Warranty
ASTM E1745
Standard Specification for Water Vapor Retarders Used in Contact with Soil or Granular Fill Under Concrete Slabs
ASTM F1249
Test Method for Water Vapor Transmission Rate through Plastic Film and Sheeting Using a Modulated Infrared Sensor
ASTM D4833
Test Method for Index Puncture Resistance of Geotextiles, Geomembranes, and Related Products
ASTM D882
Test Method for Tensile Properties of Thin Plastic Sheeting
ASTM D1709
Test Method for Impact Resistance of Plastic Film by Free-Falling Dart Method
ASTM E154
Test Methods for Water Vapor Retarders Used in Contact with Earth Under Concrete Slabs, on Walls, or as Ground Cover
ASTM D1434
Test Method for Determining Gas Permeability Characteristics of Plastic Film and Sheeting
