Generator 16kW 480V

Generator 16kW 480V

MAKINEX SKU: GEN-16P-MS-480 Copied!

Regular price $9,930.50
Regular price $9,990.00 Sale price $9,930.50
Save $59.50 Sold out
PAY NO SALES TAX Save up to $983.12 more.
DELIVERY IN 3-5 BUSINESS DAYS FREE SHIPPING (lower 48 states)
Quantity

Trusted by contractors nationwide

"I've bought 3 products from CTD and each time the experience has been the same - professional and fast delivery. I trust these guys with all my concrete needs."

Get Accredited
Product Details

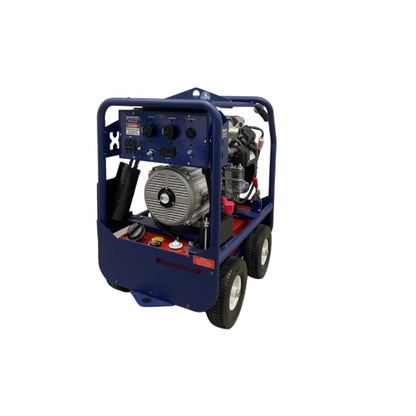

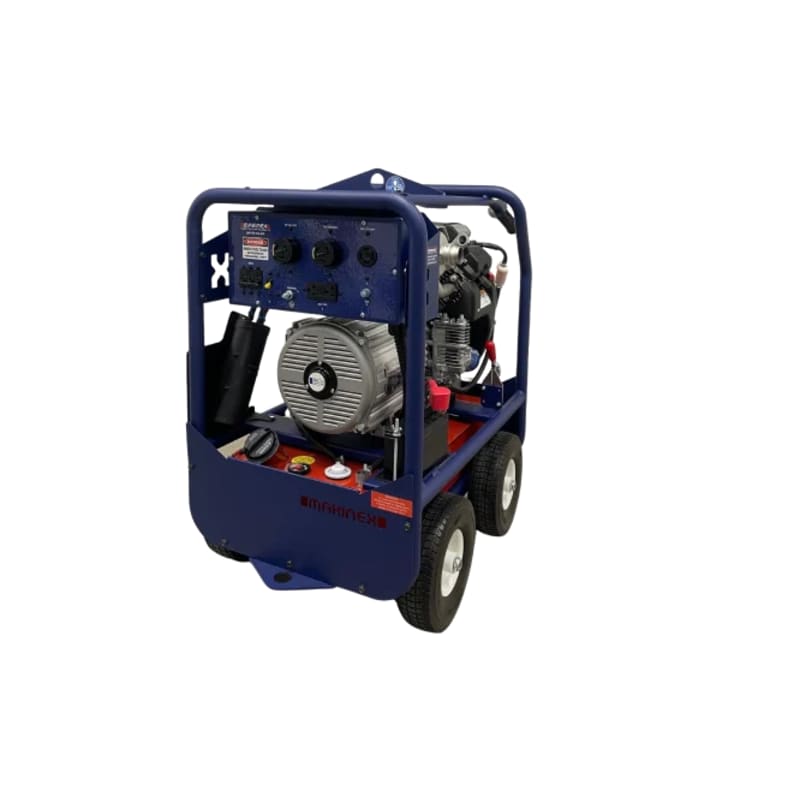

Generator 16kW 480V

Makinex Power is compact, lightweight, and dual-phase! The Makinex Generator Range is a robust, powerful, and reliable solution for providing power to equipment and tools, floor grinding, welders and brick saws, air compressors, and a wide range of applications. They are suitable for use in rental yards, construction sites, and rural areas, and offer a compact lightweight option when moving the generators around on building sites as well as on and off vehicles.

50-State CARB Compliant ✔ CARB Certified — Legal for sale in all 50 states ✔ Meets California's stringent emissions standards ✔ No regional compliance restrictions. Reasons to invest: Our alternator allows you up to 15% more power from the engine. We can boast that it is fully Australian designed. We offer a 1-year warranty. We provide you with the support you need, servicing, spare parts, on-hand advice. Our permanent magnet alternator technology reduces the cost of ownership. Top reasons for choosing Makinex Generators: All Makinex products are designed and built to endure the rigors of the rental market. Advanced alternator tech saves 15% fuel versus similar generators using the same engine. Makinex stands behind its products with technical support, servicing, and spares. Designed for maximum convenience and ease for concrete, masonry, and flooring pros.

Key Features and Benefits

  • Challenges on the Job: Access to 3 phase and single phase power source. Delays, waiting for 3-phase 480V power hook-up. Getting the required outlets close to your work. 3-phase 480V in a simple plug and play format.
  • Solution Benefits: Highly portable, 3-phase 16kVA 480V generator. 3-phase and single phase outlets on same machine. Runs light and heavy duty equipment all together. Reliable Honda GX690 4-stroke gas engine. Comes with 1 year warranty.
Document Downloads
Brochure
Propane Conversion
Parts manual
Operator's manual
View full details
Product Specification
Generator 16kW 480V
Power Specifications
Voltage
110V single phase, 480V three phase
Frequency
60HZ
Max Power
13 kW
Continuous Power
11.5 kW
Auxiliary Power Max
2.2 kW
Auxiliary Power Continuous
2 kW
Three Phase Amps Max
16.9 A
Three Phase Amps Continuous
15A
Single Phase Amps Max
30A
Single Phase Amps Continuous
30A
Engine Type
Twin cylinder air cooled petrol
Engine Model
Honda GX690
Starting System
Electric key start
Displacement
688CC
Fuel Economy
0.92gal @ 50% LOAD
Fuel Tank
9.0G
Working Specifications
Dimensions
30.4 in (L) x 20.8 in (W) x 35.5 in (H)
Weight Specifications
Dry Weight
342lbs

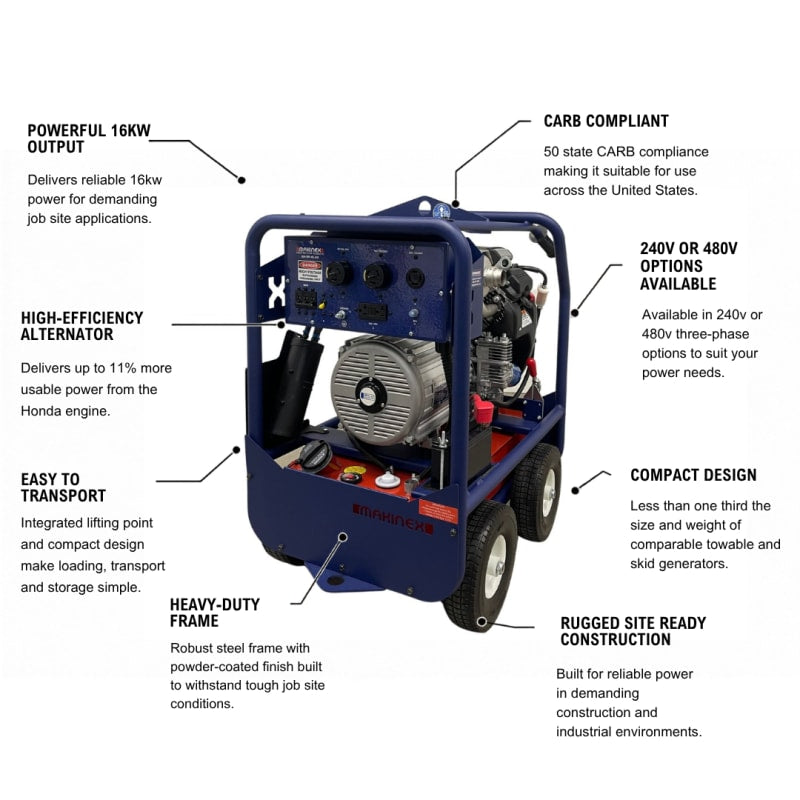

Features and Benefits
Highly Portable
3-phase 16kVA 480V generator
Outlets
3-phase and single phase outlets on same machine
Engine
Reliable Honda GX690 4-stroke gas engine
Warranty
Comes with 1 year warranty
Other Specifications
Noise Level
72dB (7m) NO LOAD
