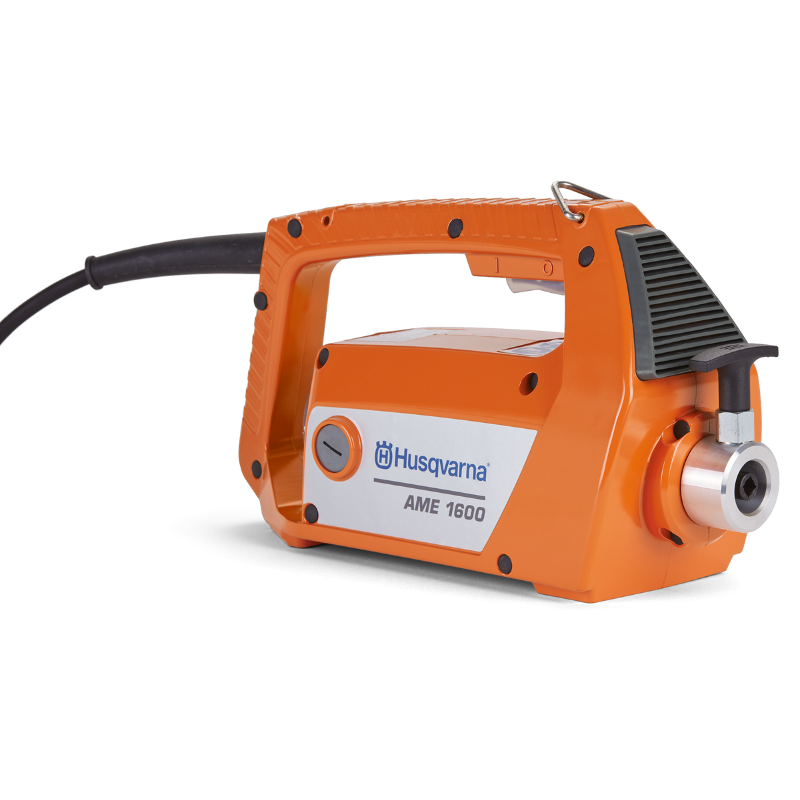

Husqvarna AME 1600 | Internal Vibrator
Husqvarna AME 1600 | Internal Vibrator
HUSQVARNA CONSTRUCTION SKU: 967857801 Copied!
Is this the right tool for the job?
Trusted by contractors nationwide
"I've bought 3 products from CTD and each time the experience has been the same - professional and fast delivery. I trust these guys with all my concrete needs."
Product Details

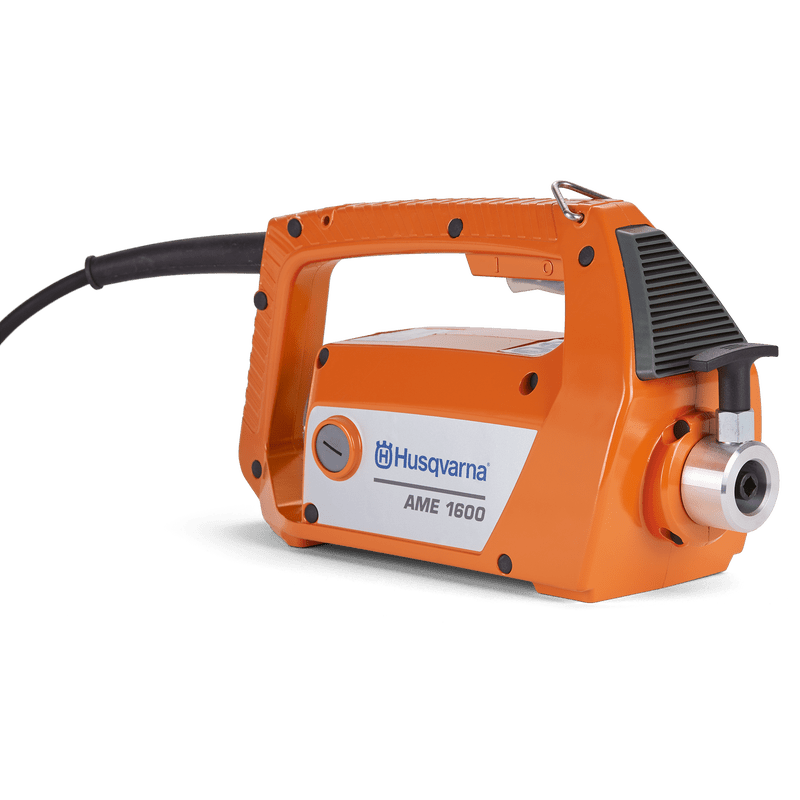

HUSQVARNA INTERNAL VIBRATOR - AME 1600
Ideal for small to mid-sized construction projects, the Husqvarna AME 1600 Internal Vibrator is a versatile tool designed for optimal concrete compaction. This lightweight, portable electric drive unit is compatible with the modular flex-shaft concrete vibrators in the AT series. The AME 1600 offers rapid acceleration and instant speed from the drive unit, enabling users to reduce physical strain and meet tight deadlines.
Constructed with high-quality components and benefiting from oil lubrication, the AME 1600 ensures durability and longevity, keeping life cycle costs low. With a lengthy 16-foot cable and a weight of just 13.5 pounds, this internal vibrator offers impressive maneuverability, making it a practical choice for construction workers operating in physically demanding conditions.

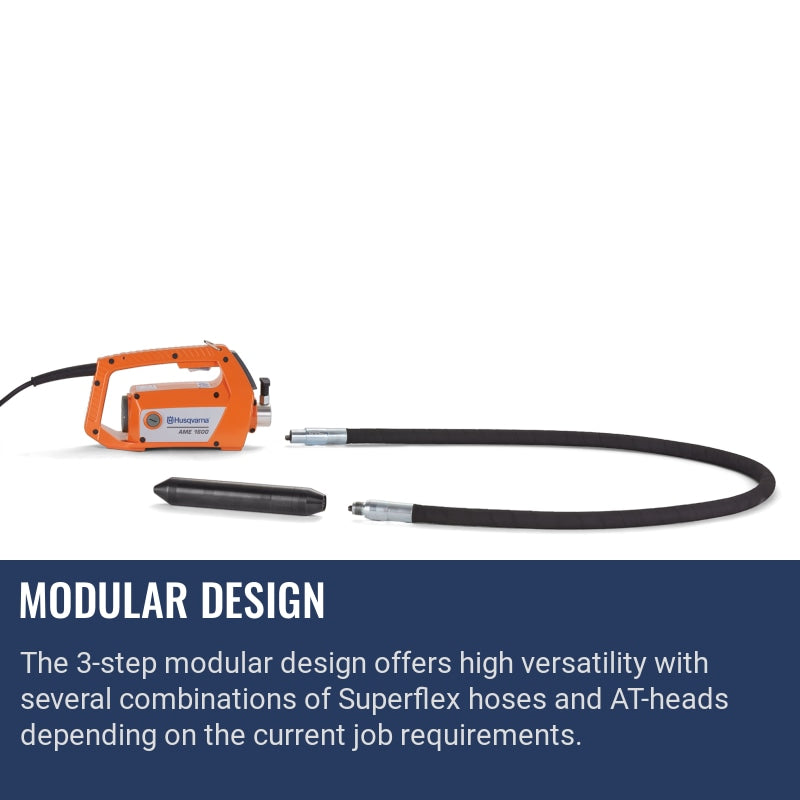

- Compatible with AT series modular flex-shaft concrete vibrators
- Offers rapid acceleration and instant speed

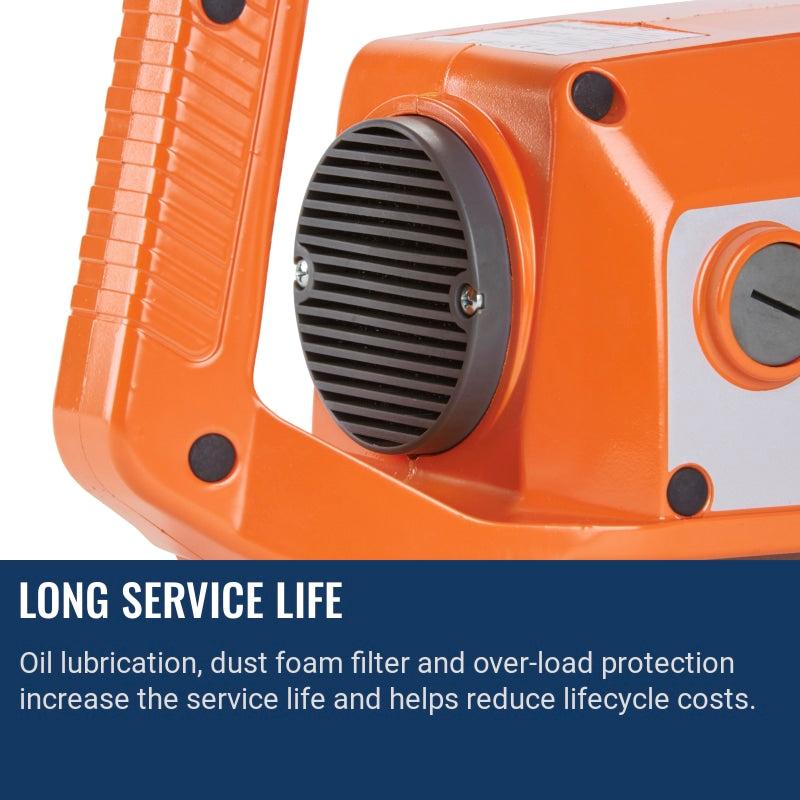

- High-quality components and oil lubrication for extended lifespan
- 16-foot cable length for increased maneuverability
- Lightweight at 13.5 pounds for easy handling
Product Specification
Specifications
Related Equipment
Related Equipment
Service & Maintenance Parts
COMPLETE PRODUCT 55 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HOUSING | 595933101 | 1 | Left + Right | ||
| 2SCREW | 598443301 | 11 | 4.8x22 DIN7981 | ||
| 3SEALING PLUG | 598763601 | 11 | |||
| 4BRUSH | 594634101 | 2 | Brush, 230 V | ||
| 5BRUSH HOLDER | 594634201 | 2 | Brush, 115 V | ||
| 6BRUSH HOLDER | 594634301 | 2 | |||
| 7NUT | 595112401 | 4 | M5 DIN 985-8 zn | ||
| 8FRAME | 594634401 | 1 | |||
| 9BEARING | 594862801 | 1 | 6201 2Z | ||
| 10STATOR | 594634501 | 1 | Stator, 230 V | ||
| 11ROTOR | 594634601 | 1 | Rotor, 230 V | ||
| 12FRAME | 595491701 | 4 | |||
| 13WASHER | 594747901 | 4 | |||
| 14BOLT | 598443501 | 4 | M5x100 ISO4762 8.8 | ||
| 15FRAME | 595491801 | 1 | |||
| 16O-RING | 598443601 | 1 | 36x2 NBR 70 Shore | ||
| 17CONNECTOR | 595491901 | 1 | |||
| 18DRIVER | 594634701 | 1 | |||
| 19PLUG | 594634801 | 1 | |||
| 20SPRING | 595492001 | 1 | |||
| 21NUT | 595204401 | 1 | |||
| 22CONNECTION | 594634901 | 1 | |||
| 23BEARING | 595492101 | 1 | 6003 2Z | ||
| 24BOLT | 598443502 | 1 | M4x8 ISO1207 | ||
| 25WASHER | 594747902 | 1 | 4.3 DIN6798A | ||
| 26PLATE | 595204501 | 1 | |||
| 27COVER | 595492201 | 1 | |||
| 28PROTECTION | 594635101 | 1 | Thermal protector, 230 V | ||
| 29FAN | 595493801 | 1 | |||
| 31SWITCH | 594635001 | 1 | Switch + capacitors | ||
| 32HEAT PROTECTOR | 598445001 | 1 | Thermal protector, 115 V | ||
| 33HOLDER | 595525901 | 1 | |||
| 34RING | 595204701 | 2 | |||
| 35O-RING | 598443603 | 1 | |||
| 36DRIVE BELT | 595204801 | 1 | |||
| 37CABLE | 595492401 | 1 | |||
| 38CABLE | 595492501 | 1 | |||
| 39SCREW | 598443302 | 2 | 3.9x22 DIN7982 | ||
| 40CABLE | 595204901 | 1 | |||
| 41PLUG | 595205001 | 1 | Cable + plug, 230 V | ||
| 42PLUG | 595205101 | 1 | SCHUKO TYPE 2P 16A | ||
| 43SCREW | 598443303 | 2 | 3.5x16 DIN 7981 | ||
| 44COVER | 595492801 | 1 | |||
| 45AIR FILTER | 594635201 | 1 | |||
| 46O-RING | 597431901 | 2 | 23x2mm NBR 70 Shore | ||
| 47BRUSH | 594635301 | 2 | |||
| 48CONNECTION | 594635401 | 1 | |||
| 49MOTOR | 594635501 | 1 | Motor set 230 V | ||
| 50MOTOR | 595492901 | 1 | Motor set 115 V | ||
| 51STATOR | 595204301 | 1 | Stator, 115 V | ||
| 52ROTOR | 595491601 | 1 | Rotor, 115 V | ||
| 53CABLE | 595492601 | 1 | Cable + plug, 115 V, UK | ||
| 54PLUG | 595492701 | 1 | 2P+T 100/130V 16A 115 V UK | ||
| 55CABLE | 598763701 | 1 | Cable + plug, 115 V, US | ||
| 56PLUG | 598763801 | 1 | 125V 15A NEMA 5-15 115 V USA |
DECALS 3 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1STICKER | 598444703 | 1 | Husqvarna & Model decal - right side | ||
| 2STICKER | 598444704 | 1 | Husqvarna & Model decal - left side | ||
| 3STICKER | 598444702 | 1 | Safety |

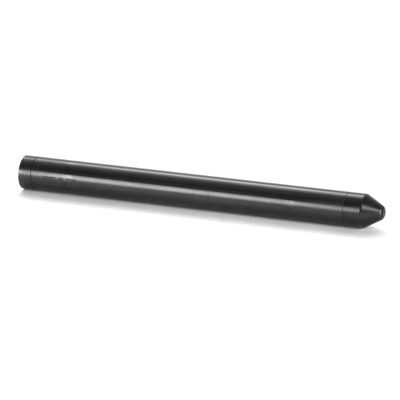

PRODUCT COMPLETE AT 29 7 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1CAP | 594504701 | 1 | |||
| 2O-RING | 595046401 | 1 | 19.2x3 NBR 70 Shore | ||
| 3BEARING | 594529301 | 4 | 608 ZTN9 C4 HT22 | ||
| 4ECCENTRIC | 594504901 | 1 | |||
| 5SEALING | 594269201 | 1 | 12x22x8 B2 DIN3760 | ||
| 6CAP | 594504501 | 1 | |||
| 7TUBE | 594504801 | 1 |
PRODUCT COMPLETE AT 39 8 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1CAP | 594505001 | 1 | |||
| 2O-RING | 595041101 | 2 | 26.3x3 NBR 70 Shore | ||
| 3CONNECTOR | 594505201 | 1 | |||
| 4BEARING | 594529401 | 4 | 6200 ZTN9 C4 HT22 | ||
| 5ECCENTRIC | 594505301 | 1 | |||
| 6SEALING | 594269201 | 1 | 12x22x8 B2 DIN3760 | ||
| 7CAP | 594504501 | 1 | |||
| 8TUBE | 594505101 | 1 |
PRODUCT COMPLETE AT 49 8 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1CAP | 594505401 | 1 | |||
| 2O-RING | 595046501 | 2 | 34.2x3 NBR 70 Shore | ||
| 3CONNECTOR | 595467801 | 1 | |||
| 4BEARING | 594529501 | 4 | 6301 ZTN9 C4 HT22 | ||
| 5ECCENTRIC | 594505501 | 1 | |||
| 6SEALING | 594269201 | 1 | 12x22x8 B2 DIN3760 | ||
| 7CAP | 594504501 | 1 | |||
| 8TUBE | 595467701 | 1 |
PRODUCT COMPLETE AT 59 9 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1CAP | 594505601 | 1 | |||
| 2O-RING | 594267001 | 2 | 44.2x3 NBR 70 Shore | ||
| 3SLEEVE | 594371401 | 2 | |||
| 4ROLLER BEARING | 594371301 | 2 | NJ 303 ECP C3 | ||
| 5ECCENTRIC | 594505701 | 1 | |||
| 6SEALING | 594269201 | 1 | 12x22x8 B2 DIN3760 | ||
| 7CAP | 594504501 | 1 | |||
| 8TUBE | 595183301 | 1 | |||
| 9CONNECTOR | 595467901 | 1 |
SERVICE KIT AT 29 5 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BEARING KIT | 594292801 | 1 | |||
| 2O-RING | 595046401 | 1 | 19.2x3 NBR 70 Shore | ||
| 3BEARING | 594529301 | 4 | 608 ZTN9 C4 HT22 | ||
| 4SEALING | 594269201 | 1 | 12x22x8 B2 DIN3760 | ||
| 5CAP | 594504501 | 1 |
SERVICE KIT AT 39 5 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BEARING KIT | 594292901 | 1 | |||
| 2O-RING | 595041101 | 2 | 26.3x3 NBR 70 Shore | ||
| 3BEARING | 594529401 | 4 | 6200 ZTN9 C4 HT22 | ||
| 4SEALING | 594269201 | 1 | 12x22x8 B2 DIN3760 | ||
| 5CAP | 594504501 | 1 |
SERVICE KIT AT 49 5 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SERVICE KIT | 594293001 | 1 | |||
| 2O-RING | 595046501 | 2 | 34.2x3 NBR 70 Shore | ||
| 3BEARING | 594529501 | 4 | 6301 ZTN9 C4 HT22 | ||
| 4SEALING | 594269201 | 1 | 12x22x8 B2 DIN3760 | ||
| 5CAP | 594504501 | 1 |
SERVICE KIT AT 59 6 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BEARING | 594795301 | 1 | |||
| 2O-RING | 594267001 | 2 | 44.2x3 NBR 70 Shore | ||
| 3SLEEVE | 594371401 | 2 | |||
| 4ROLLER BEARING | 594371301 | 2 | NJ 303 ECP C3 | ||
| 5SEALING | 594269201 | 1 | 12x22x8 B2 DIN3760 | ||
| 6CAP | 594504501 | 1 |

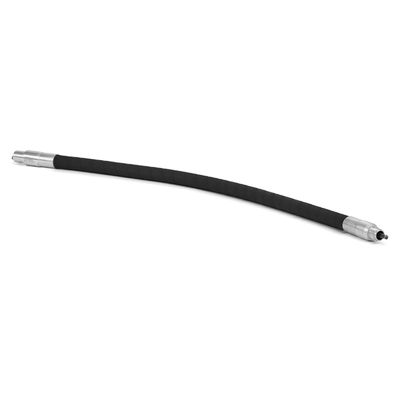

SUPERFLEX 10 3 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HOSE | 598527401 | 1 | Hose, complete 1 m | ||
| 2SHAFT | 594511901 | 1 | |||
| 3O-RING | 595046401 | 1 | 19.2x3 NBR 70 Shore |
SUPERFLEX 20 3 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HOSE | 598527402 | 1 | Hose, complete 2 m | ||
| 2SHAFT | 594505901 | 1 | |||
| 3O-RING | 595046401 | 1 | 19.2x3 NBR 70 Shore |
SUPERFLEX 30 3 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HOSE | 598527403 | 1 | Hose, complete 3 m | ||
| 2SHAFT | 594506201 | 1 | |||
| 3O-RING | 595046401 | 1 | 19.2x3 NBR 70 Shore |
SUPERFLEX 40 3 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HOSE | 598527404 | 1 | Hose, complete 4 m | ||
| 2SHAFT | 594506001 | 1 | |||
| 3O-RING | 595046401 | 1 | 19.2x3 NBR 70 Shore |
Document Downloads
Operator's manual
