Husqvarna BG 245 | Walk-Behind Trowel
Husqvarna BG 245 | Walk-Behind Trowel
HUSQVARNA CONSTRUCTION SKU: 967928801 Copied!
Is this the right tool for the job?
Regular price
$2,889.05
Regular price
$3,394.00
Sale price
$2,889.05
Quantity
Trusted by contractors nationwide
"I've bought 3 products from CTD and each time the experience has been the same - professional and fast delivery. I trust these guys with all my concrete needs."
90 day returns
Product Details

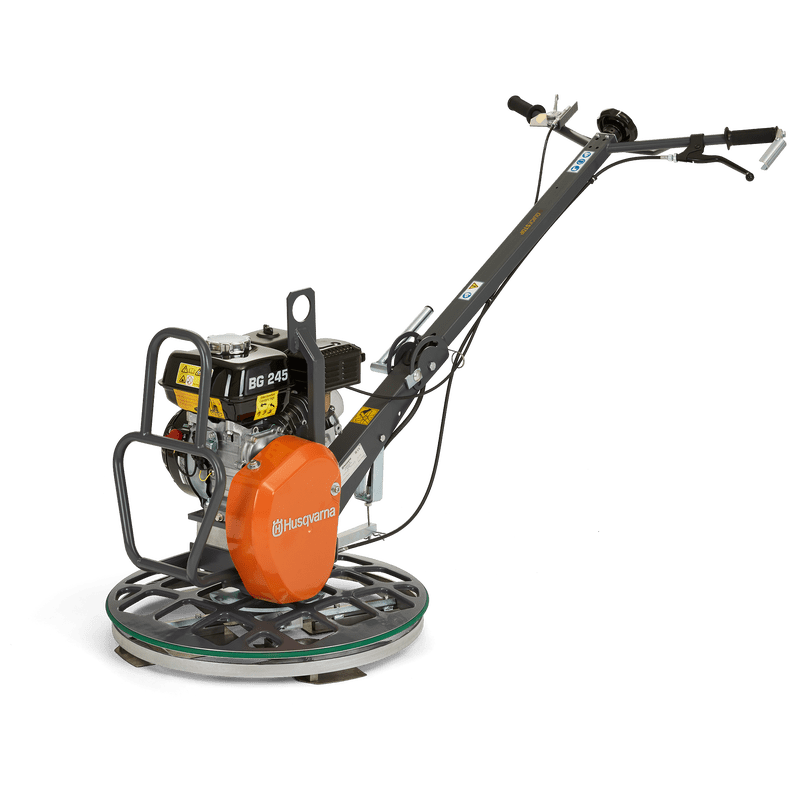

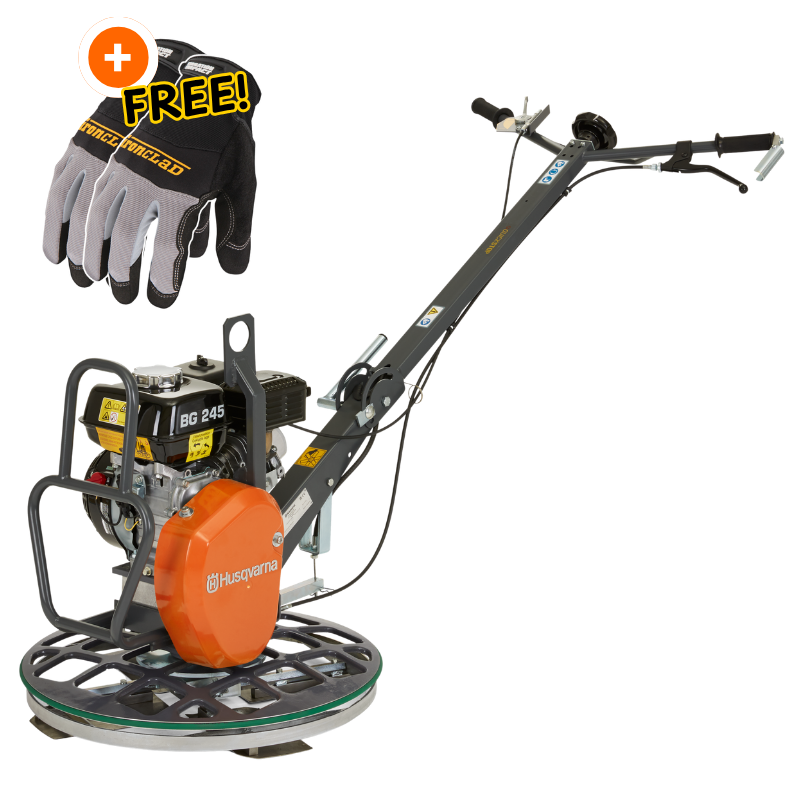

HUSQVARNA WALK-BEHIND TROWEL BG 245: UNMATCHED POWER AND PRECISION
Introducing the Husqvarna BG 245, a petrol-powered, walk-behind trowel built for confined spaces and corners. This exceptional tool is engineered to deliver a smooth, durable concrete surface with its 3.3 hp Honda GX120 engine. Designed with the modern concrete construction worker in mind, it prioritizes efficiency, quality, and durability. Its QUICKSTOP clutch ensures your safety, while its foldable, de-vibrated, and height-adjustable handle offers maximum user comfort.
What sets the BG 245 apart is its robust construction and thoughtfully designed features for increased uptime. The short, foldable handle and the maintenance stand make it easy to store and maintain. Its sound level is measured at 100 dB(A), with a sound pressure level at the operator's ear of 84 dB(A). The Husqvarna BG 245 showcases a vibration value of 6.2 m/s², ensuring reduced physical strain during use.
- Petrol-powered for maximum efficiency
- 3.3 hp Honda GX120 engine for powerful performance
- QUICKSTOP clutch for enhanced safety
- Foldable, de-vibrated, and height-adjustable handle for user comfort
- Maintenance stand for easy upkeep and increased uptime
Product Specification
Specifications
Motor/engine manufacturer
Honda
Motor/engine model
GX120
Engine Power (As rated by the engine manufacturer)
3.3 hp
Exhaust emissions (CO₂ EU V)
976 g/kWh
Power source
Petrol
Handle type
Short foldable
Packaging length (Calc)
47.244 in
Packaging width (Calc)
31.496 in
Packaging height (Calc)
46.457 in
Article gross weight (Calc)
181.881 lbs
Sound level
100 dB(A)
Sound pressure level at operators ear
84 dB(A)
Vibration Value
6.2 m/s²
Warranty
2 year limited warranty
Related Equipment
Related Equipment
Service & Maintenance Parts

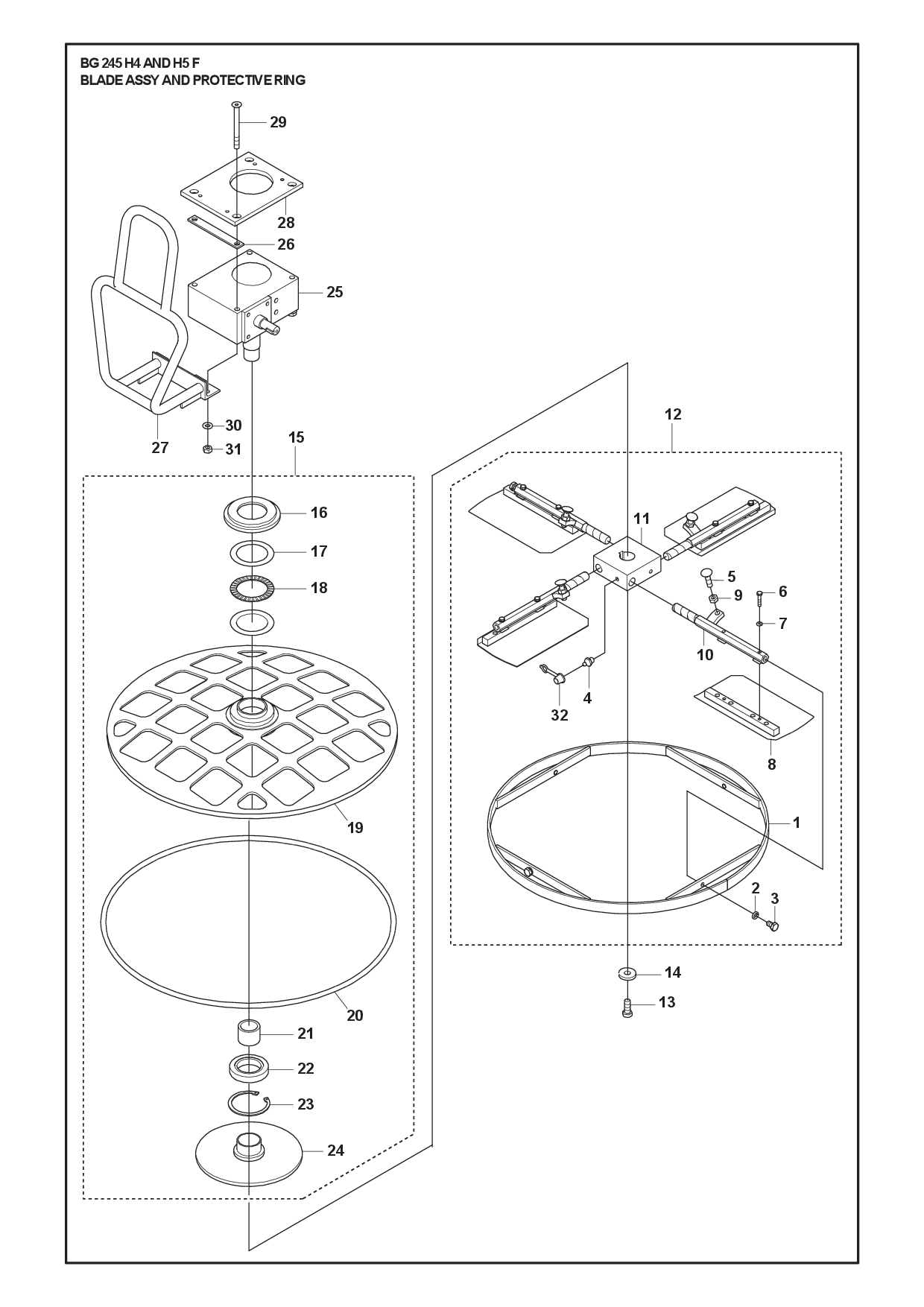

BLADE ASSY AND PROTECTIVE RING 32 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1RING | 594243501 | 1 | |||
| 2WASHER | 595113801 | 4 | M10 DIN127-B A2K | ||
| 3SCREW | 595344601 | 1 | M10x16 ISO4017 8.8 A3K | ||
| 4LUBRICATION NIPPLE | 594126801 | 4 | M8x1.25 DIN71412-A ZnB | ||
| 5BOLT | 595350801 | 4 | M10x40 ISO8677 8.8 FZB | ||
| 6SCREW | 595109901 | 8 | M6x30 ISO4014 8.8 A2K | ||
| 7WASHER | 595353101 | 8 | M6 DIN127-B A2K | ||
| 8COMBINATION BLADE KIT | 540211501 | 1 | |||
| 9NUT | 595029401 | 4 | M10 ISO4032 A3K | ||
| 10AXLE | 594243401 | 4 | |||
| 11BLADE | 594243301 | 1 | |||
| 12BLADE SET | 596471501 | 1 | Blade assembly, complete | ||
| 13BOLT | 594119001 | 1 | M12x30 DIN933-8.8 FZB | ||
| 14WASHER | 594124001 | 1 | 13x36x6 FZB | ||
| 15RING | 595298801 | 1 | Protective ring, complete | ||
| 16SLEEVE | 594251801 | 1 | |||
| 17WASHER | 594220901 | 2 | |||
| 18BEARING | 594220801 | 1 | |||
| 19RING | 595297101 | 1 | |||
| 20RING | 594252801 | 1 | |||
| 21BEARING | 594226801 | 1 | |||
| 22BEARING | 595038101 | 1 | 6010-2RS1 | ||
| 23RING | 595114201 | 1 | D80 DIN472 | ||
| 24PRESSURE PLATE | 594244201 | 1 | |||
| 25GEARBOX | 594231301 | 1 | |||
| 26PLATE | 595443701 | 1 | |||
| 27BRACKET | 595297301 | 1 | |||
| 28PLATE | 595297201 | 1 | |||
| 29SOCKET | 594287901 | 4 | M10?110 DIN7991-10.9 ZnB | ||
| 30WASHER | 595113301 | 4 | M10 ISO7089 200HV A2K | ||
| 31NUT | 595029401 | 4 | M10 ISO4032 A3K | ||
| 32CAP | 597448102 | 1 |

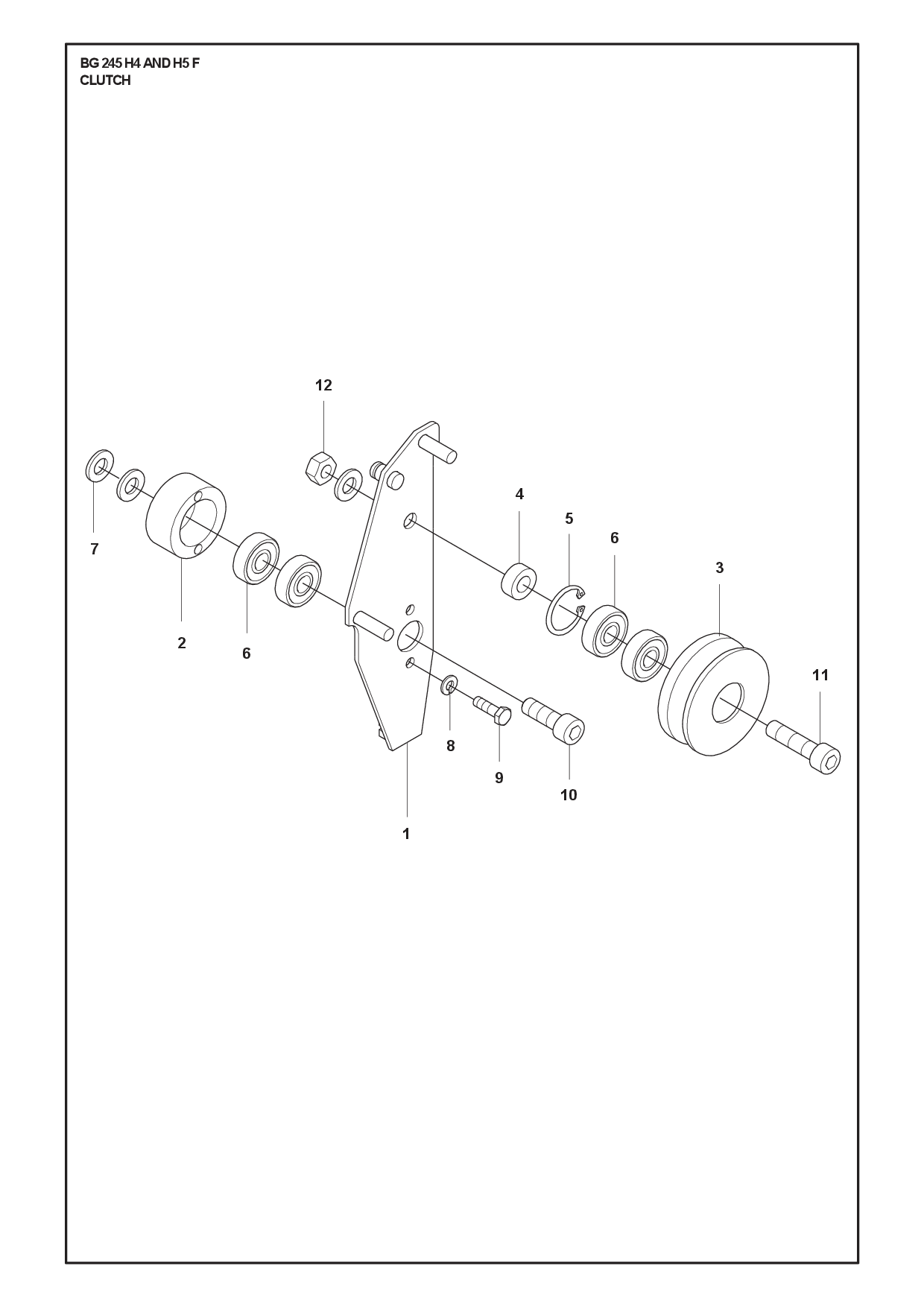

CLUTCH 12 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1DRIVE BELT | 595502201 | 1 | |||
| 2BEARING SLEEVE | 594248901 | 1 | |||
| 3TENSIONER | 594249001 | 1 | |||
| 4WASHER | 594159601 | 1 | 10.5/20?8 | ||
| 5RING | 595037301 | 1 | D 30 DIN472 | ||
| 6BALL BEARING | 594531301 | 4 | |||
| 7WASHER | 595113301 | 3 | M10 ISO 7089 A2K | ||
| 8WASHER | 595353101 | 2 | M6 DIN 127 B | ||
| 9SCREW | 595109801 | 2 | M6x20H ISO4017 8.8 A2K | ||
| 10SCREW | 595348601 | 1 | M10x30 DIN 912-12.9 | ||
| 11SCREW | 595348801 | 1 | M10x40 DIN 912 - 8.8 zn | ||
| 12NUT | 595029401 | 1 | ?10 DIN 934-8 Zn |

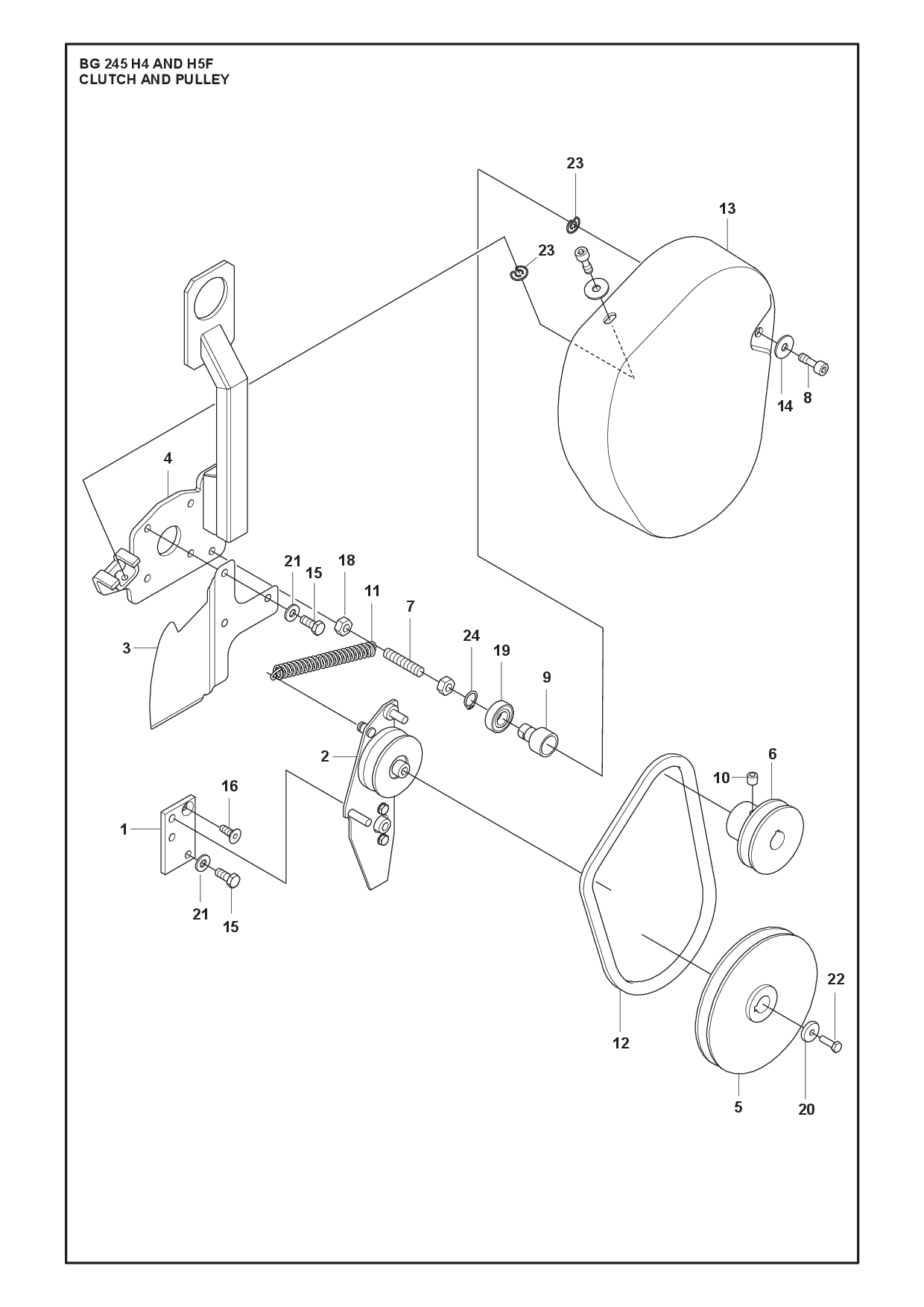

CLUTCH AND PULLEY 25 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BRACKET | 594248701 | 1 | |||
| 2CLUTCH | 595444301 | 1 | |||
| 3PLATE | 595361701 | 1 | |||
| 4HOOK | 594151801 | 1 | |||
| 5PULLEY | 594241601 | 1 | |||
| 6PULLEY | 540222201 | 1 | (Engine GX160) | ||
| 6PINION | 595140801 | 1 | (Engine GX120) | ||
| 7STUD | 595351301 | 1 | M10x50 DIN 976-8.8 ZnB | ||
| 8SCREW | 594642501 | 2 | |||
| 9HOLDER | 594642401 | 1 | |||
| 10SCREW | 595346601 | 2 | M6x8 ISO 4029 45H ZnB | ||
| 11SPRING | 594249501 | 1 | |||
| 12DRIVE BELT | 599133901 | 1 | |||
| 13BELT COVER | 594959301 | 1 | |||
| 14WASHER | 594123701 | 2 | M8 DIN9021 (8.4x25x2)FZB | ||
| 15SCREW | 594117901 | 5 | M8x20 DIN 933 8.8 zn (Engine GX 120) | ||
| 15BOLT | 599283701 | 1 | 5/16-24UNF x 3/4" Grade 5 ZPB (Engine GX160) | ||
| 16SOCKET | 595350101 | 1 | M8x20 DIN 7991-8.8 zn | ||
| 18NUT | 595029401 | 2 | ?10 DIN 934-8 Zn | ||
| 19BALL BEARING | 595115701 | 1 | SKF 6002-2RS1 | ||
| 20WASHER | 595119201 | 1 | 6.4x22x4 | ||
| 21WASHER | 595113601 | 5 | ?8 DIN 6796 ZnB | ||
| 22SCREW | 595109801 | 1 | M6x20H ISO4017 8.8 A2K | ||
| 23LOCKING SPRING | 594650201 | 2 | |||
| 24CIRCLIP | 595037101 | 1 |

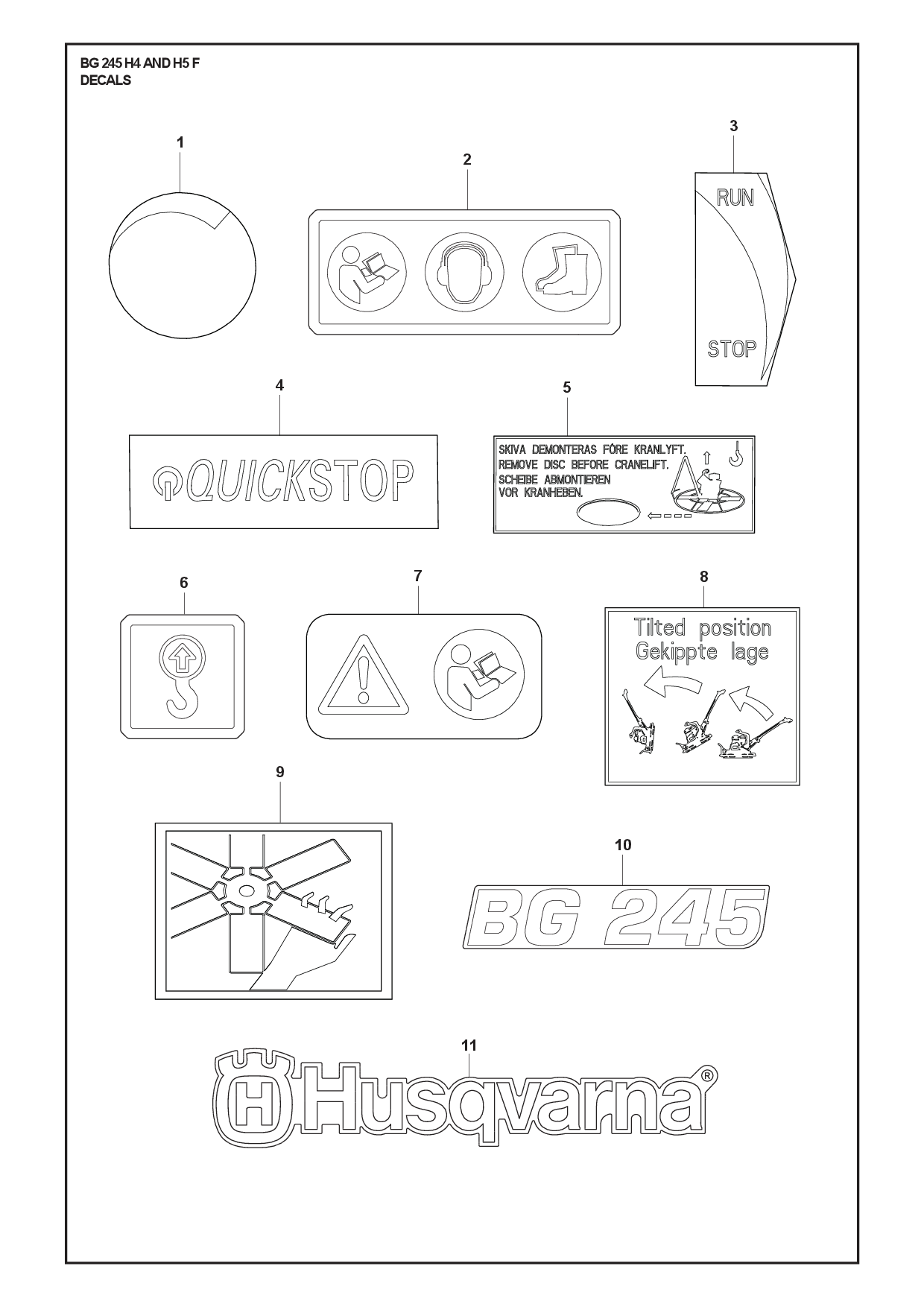

DECALS 10 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1DECAL | 594245801 | 1 | DECAL Blade Angle | ||
| 2DECAL | 594659601 | 1 | Safety | ||
| 3LABEL | 594246801 | 1 | |||
| 4DECAL | 595119101 | 1 | |||
| 5DECAL | 594245901 | 1 | Remove Floating Disc | ||
| 6DECAL | 594660901 | 1 | Lifting Point | ||
| 7LABEL | 594869701 | 1 | Safety, Read instruction | ||
| 8DECAL | 595211201 | 1 | |||
| 9DECAL | 594163001 | 1 | Cutting Hazard | ||
| 10DECAL | 595925701 | 2 | Brand |

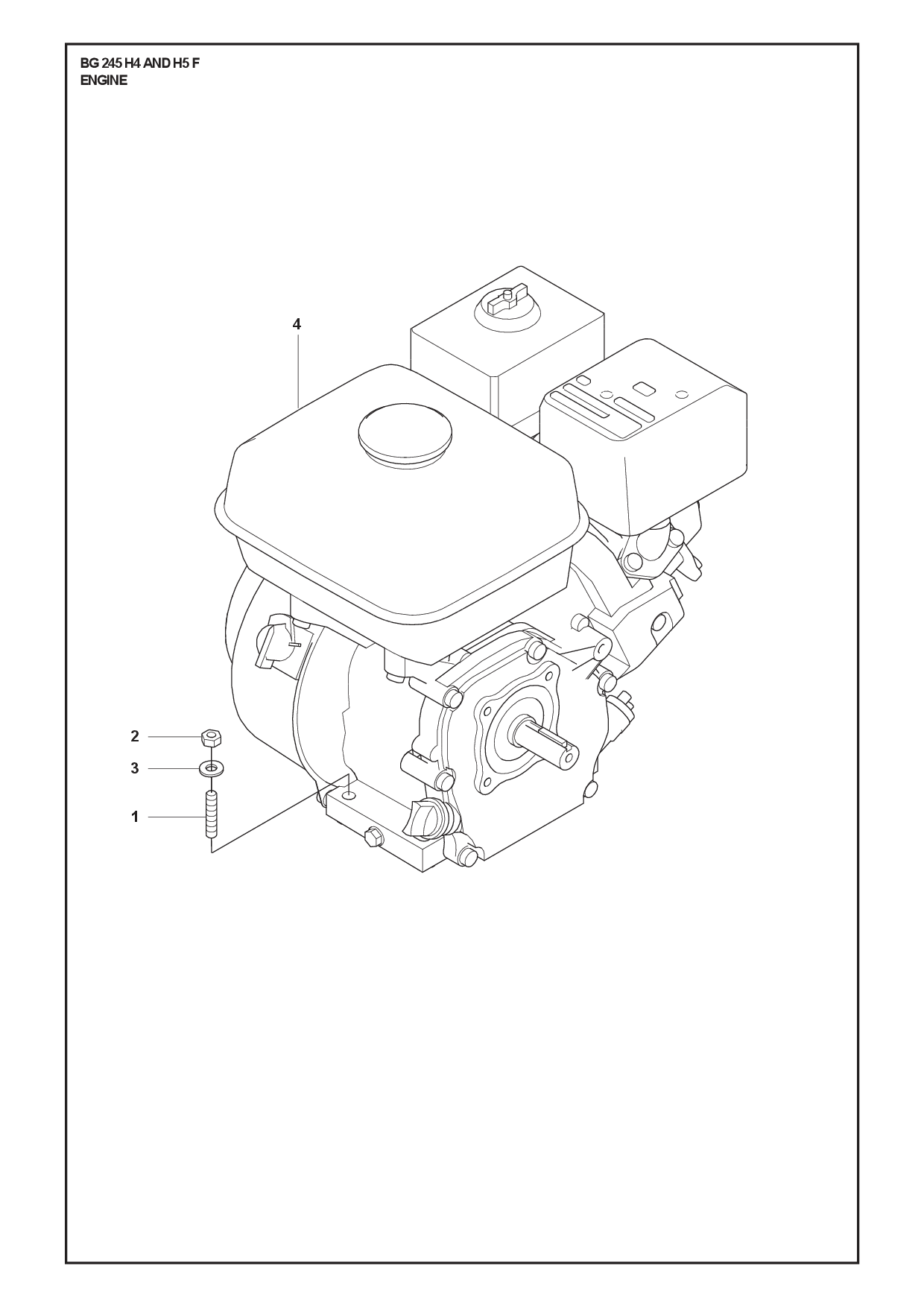

ENGINE 5 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BOLT | 595112001 | 4 | |||
| 2NUT | 595035701 | 4 | M8 DIN 934-8 zn | ||
| 3WASHER | 595113601 | 4 | ?8 DIN 6796 ZnB | ||
| 4ENGINE | 534218901 | 1 | Honda GX160 UH2 QC9 SD NH1 (after SN 202529100044) | ||
| 4ENGINE | 594340001 | 1 | Honda GX120UT3 SXS4 SD NH1(Not available anymore) |

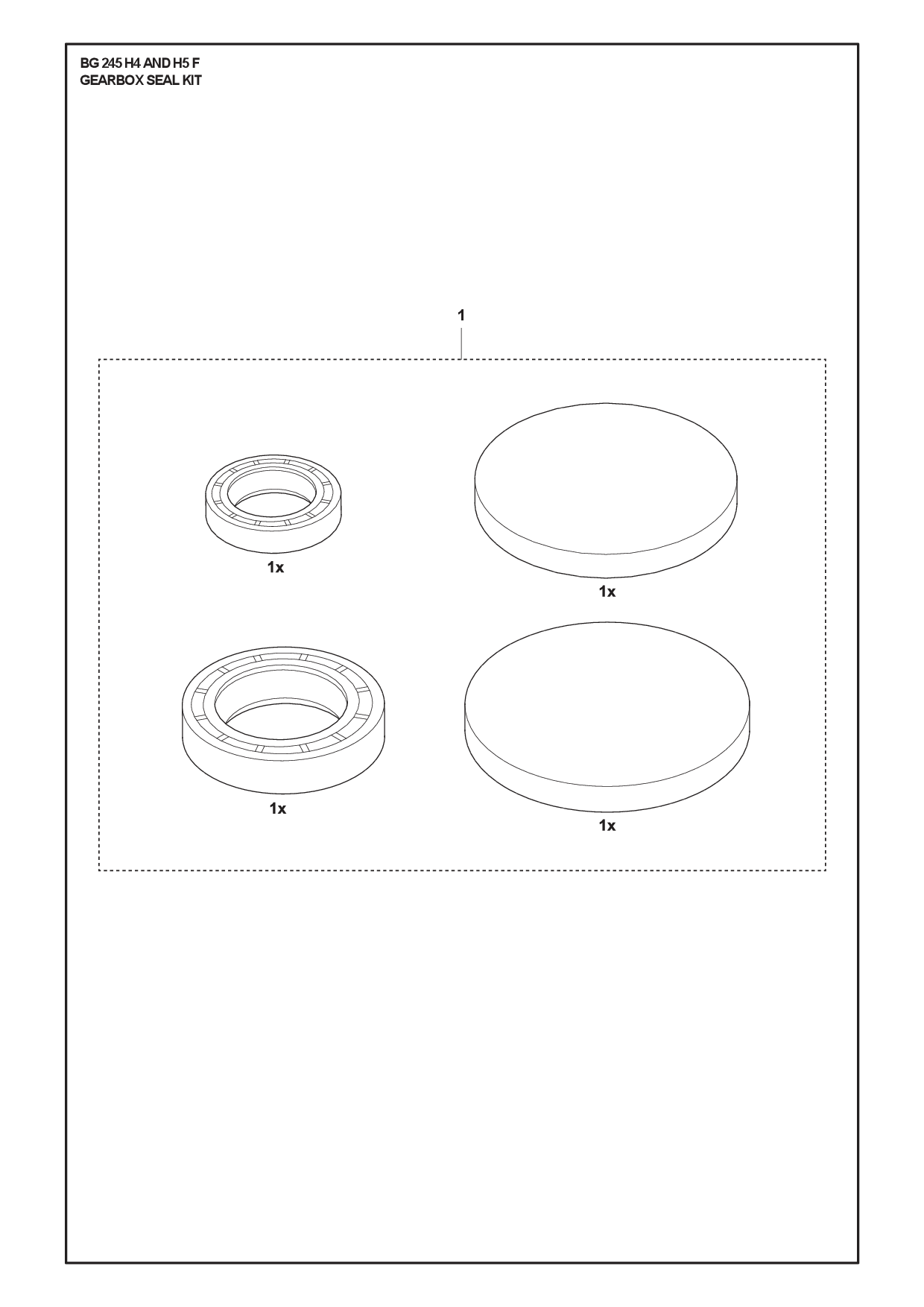

GEARBOX SEAL KIT 1 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SEAL | 594206901 | 1 | Gearbox seal kit (seals & plugs) |

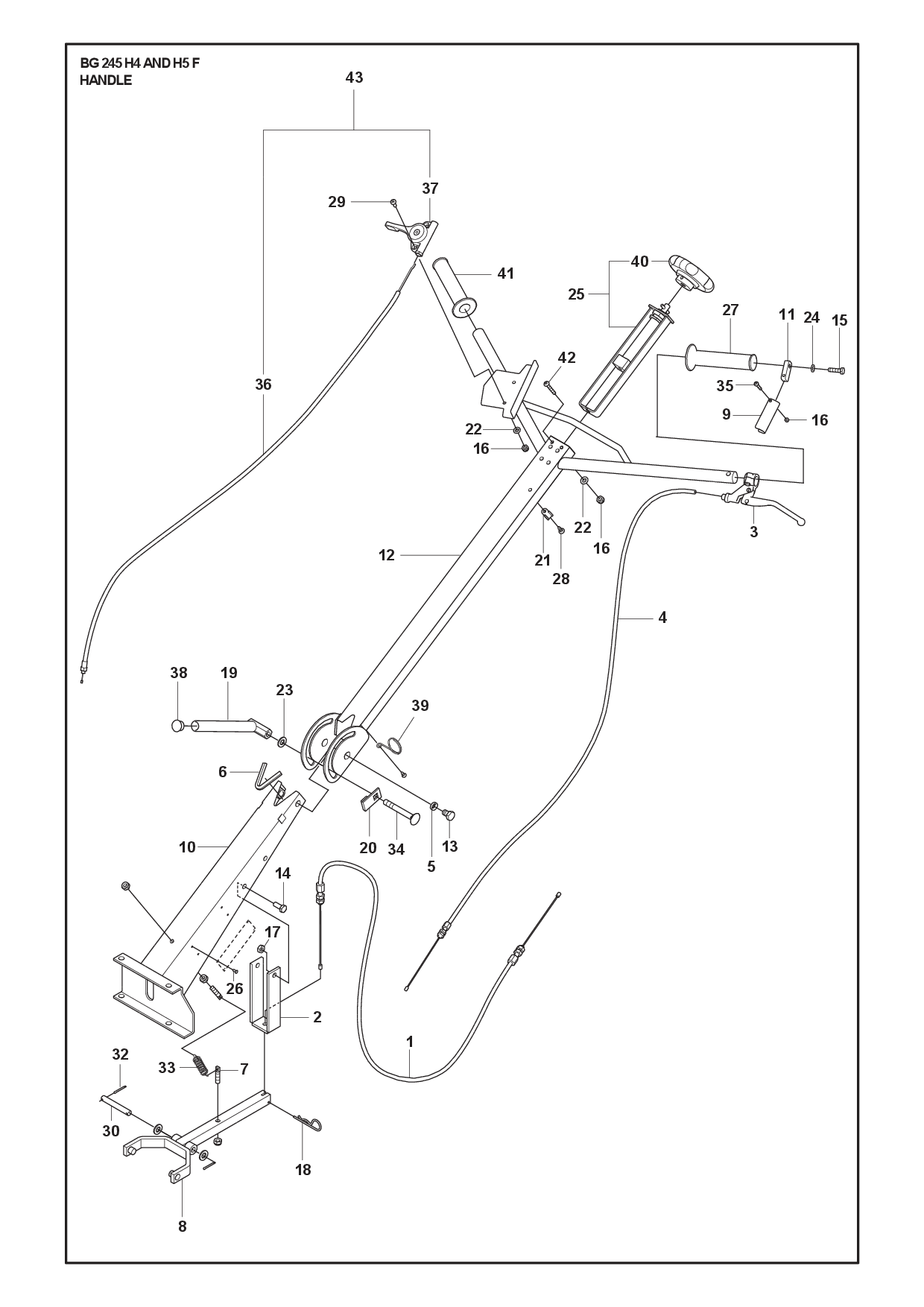

HANDLE 42 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1WIRE | 594252501 | 1 | Blade adjusting cable | ||
| 2CLAMP | 595140901 | 1 | |||
| 3CLUTCH | 594226901 | 1 | |||
| 4CLUTCH | 594251901 | 1 | Clutch cable |
Regular price
$97.18
Regular price
|
|
| 5SLEEVE | 594252701 | 2 | |||
| 6TRIM | 594229501 | 0 | |||
| 7SPRING | 595390801 | 2 | |||
| 8FORK | 594243801 | 1 | |||
| 9HANDLE | 594384601 | 1 | |||
| 10HANDLE | 595297401 | 1 | |||
| 11HANDLE HOLDER | 594384501 | 1 | |||
| 12HANDLE | 594151901 | 1 | |||
| 13CAP | 594118301 | 2 | M10x14 ISO4017-8.8 A3K | ||
| 14SCREW | 594117901 | 2 | M8x20 ISO4017-8.8 A2K | ||
| 15SCREW | 595344301 | 1 | M8x30 ISO4017-8.8 A2K | ||
| 16NUT | 595112401 | 5 | M5 DIN985-8 Zn | ||
| 17NUT | 595112501 | 5 | M8 ISO10511-8 A2K | ||
| 18SPRING PIN | 594117501 | 1 | |||
| 19LOCKING LEVER | 594252601 | 1 | |||
| 20LOCKWASHER | 594253401 | 1 | |||
| 21PIPE CLAMP | 594125201 | 2 | |||
| 22PLANE WASHER | 594123801 | 6 | M5 ISO7089 200HV A2K | ||
| 23WASHER | 595113301 | 3 | M10 ISO7089 200HV A2K | ||
| 24WASHER | 595036601 | 1 | M8 ISO7089 200HV A2K | ||
| 25UNIT | 595520001 | 1 | Blade adjuster, Complete | ||
| 26RIVET | 594793201 | 4 | D2.4X6 DIN7337A | ||
| 27HANDLE | 594223301 | 2 | |||
| 28SCREW | 595111701 | 3 | ST4,2x13 DIN7981C 450 HV FZ | ||
| 29SCREW | 595514701 | 2 | M5?12 DIN7985-4.8 ZnB | ||
| 30SHAFT | 594249101 | 1 | |||
| 32SPLIT PIN | 595343601 | 2 | 2.5?22 DIN94 ZnB | ||
| 33SPRING | 594867801 | 1 | |||
| 34BOLT | 594121901 | 1 | M10x80 DIN603-8.8 ZnB | ||
| 35SCREW | 595514901 | 1 | M5x30 DIN7500-1 Form C-5.8 ZnB | ||
| 36THROTTLE CABLE | 548599403 | 1 | To be ordered only for machines from SN 202321100445 | ||
| 37THROTTLE LEVER | 548484801 | 1 | |||
| 38PLUG | 594230702 | 1 | |||
| 39WIRE HOLDER | 594246501 | 1 | |||
| 40KNOB | 594245701 | 1 | |||
| 41HANDLE | 594866201 | 1 | |||
| 42SCREW | 595350301 | 2 | M5x40 DIN7500-1 Form C-5.8 ZnB | ||
| 43THROTTLE CONTROL ASSY | 541867001 | 1 |

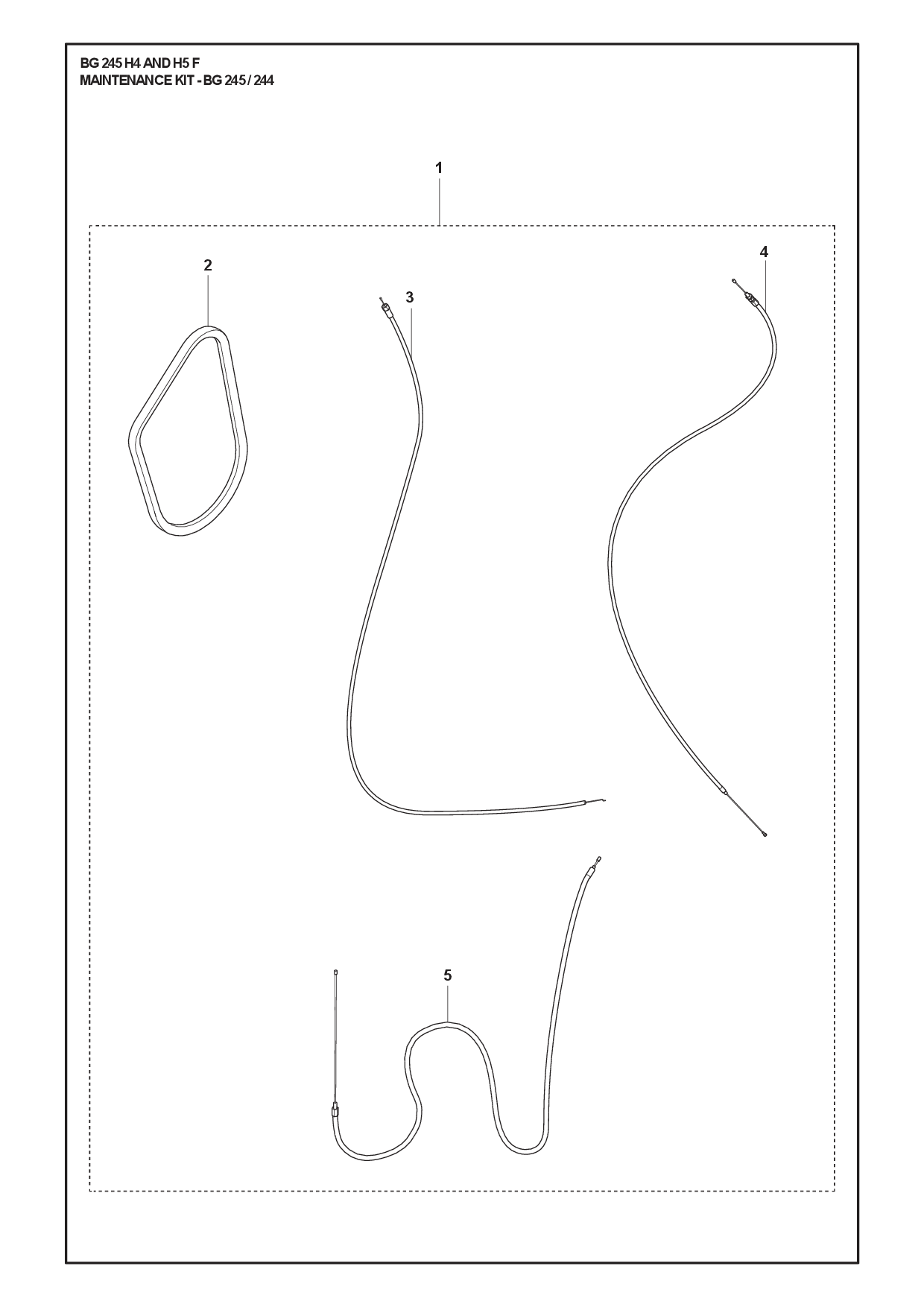

MAINTENANCE KIT 5 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SERVICE KIT | 595379501 | 1 | |||
| 2DRIVE BELT | 599133901 | 1 |
Regular price
$41.63
Regular price
|
||
| 3THROTTLE | 594252001 | 1 | Throttle cable | ||
| 4CLUTCH | 594251901 | 1 | Clutch cable |
Regular price
$97.18
Regular price
|
|
| 5WIRE | 594252501 | 1 | Blade adjusting cable |

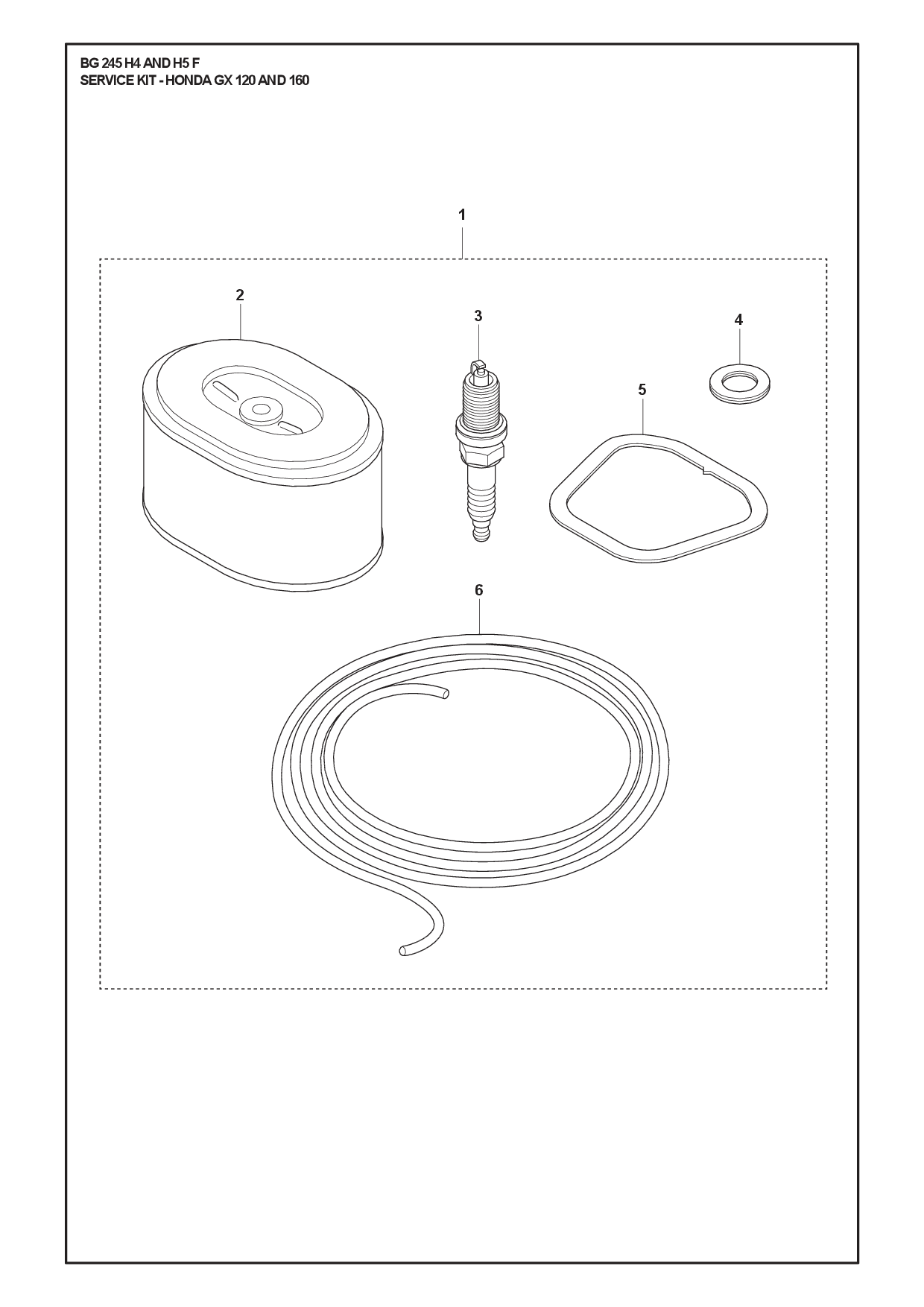

SERVICE KIT 6 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SERVICE KIT | 594200201 | 1 | |||
| 2AIR FILTER | 594302101 | 1 | |||
| 3SPARK PLUG | 594544301 | 1 | BPR6ES (NGK) | ||
| 4GASKET | 595048901 | 1 | |||
| 5GASKET | 594313001 | 1 | |||
| 6ROPE | 595049101 | 1 |

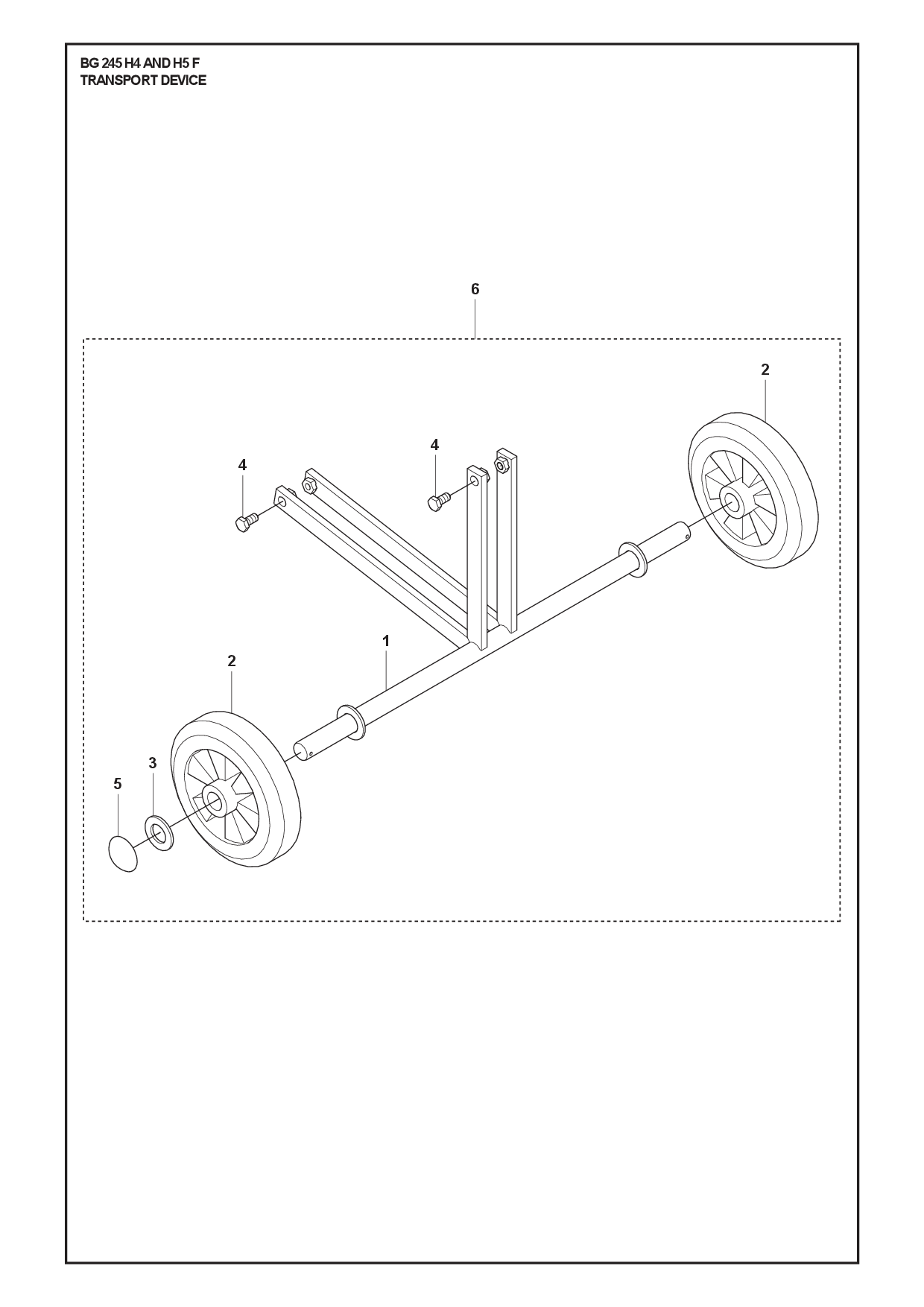

TRANSPORT DEVICE 6 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1FRAME | 595136501 | 1 | |||
| 2WHEEL | 596865953 | 2 | |||
| 3WASHER | 596865957 | 2 | M20 ISO 7090 FZV 200HB | ||
| 4SCREW | 595110101 | 4 | M8x16 ISO4017 8.8 A2K | ||
| 5WASHER | 594768901 | 2 | |||
| 6TRANSPORT WHEEL | 596192201 | 1 | Complete |
Document Downloads
Service bulletin
Operator's manual
