Product Details

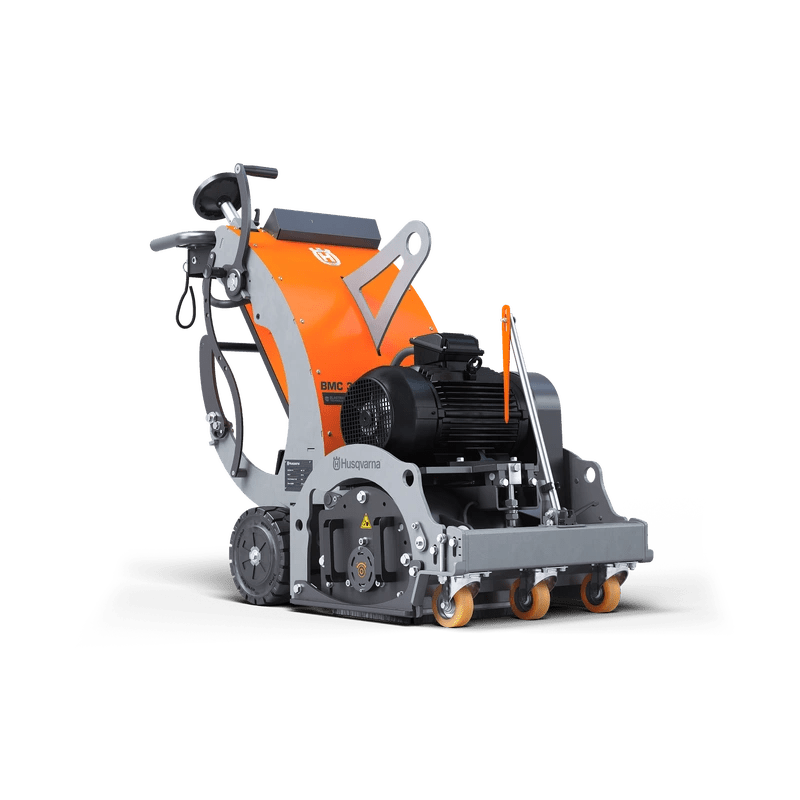

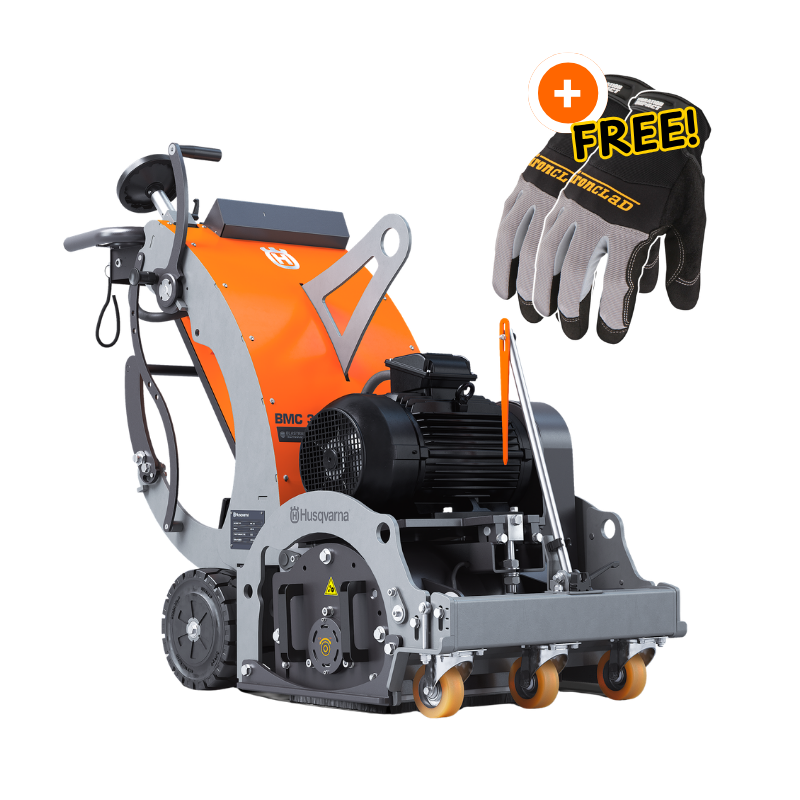

HUSQVARNA FLOOR SHAVER: BMC 335
The Husqvarna BMC 335 is a robust, electric floor shaver, designed to tackle the most challenging sawing tasks. Weighing in at 948 pounds, its hefty weight is a testament to its ability to deliver efficient and intense sawing action. This machine is powered by a 21.5 hp output motor and boasts a 400 V voltage system. It also features an electrical drive system, eliminating the need for the operator to maintain continuous contact with the handle.
This heavy-duty shaver is designed for ergonomic operation, allowing for easy adjustment of speed and tracking. Its unique ability to turn a full 360 degrees enhances its versatility. For added durability, the drum housing is surrounded by dust seals and mounted in the frame by torque bushes, which helps to lower vibration levels. The BMC 335 is a versatile tool, with a range of drums and blades available to handle various floors and applications.
- Working Width: 13 inches
- Output Power: 21.5 hp
- Voltage: 400 V
- Weight: 948 lbs
- Rotational Speed: 3,000 rpm
Product Specification
Specifications
Output power
21.5 hp
Voltage
400 V
Rated current
63 A
Power source
Corded
Rotational speed
3,000 rpm
Working width
13 in
Type of operation
Self-propelled
Product size length
54.6 in
Product size width
26 in
Product size height
46.7 in
Weight
948 lbs
Packaging length (Calc)
66.142 in
Packaging width (Calc)
33.465 in
Packaging height (Calc)
18.898 in
Article gross weight (Calc)
1,047.196 lbs
Sound pressure level at operators ear
90 dB(A)
Vibrations handlebar
2.3 m/s²
Warranty
2 year limited warranty
Related Equipment
Related Equipment
Service & Maintenance Parts

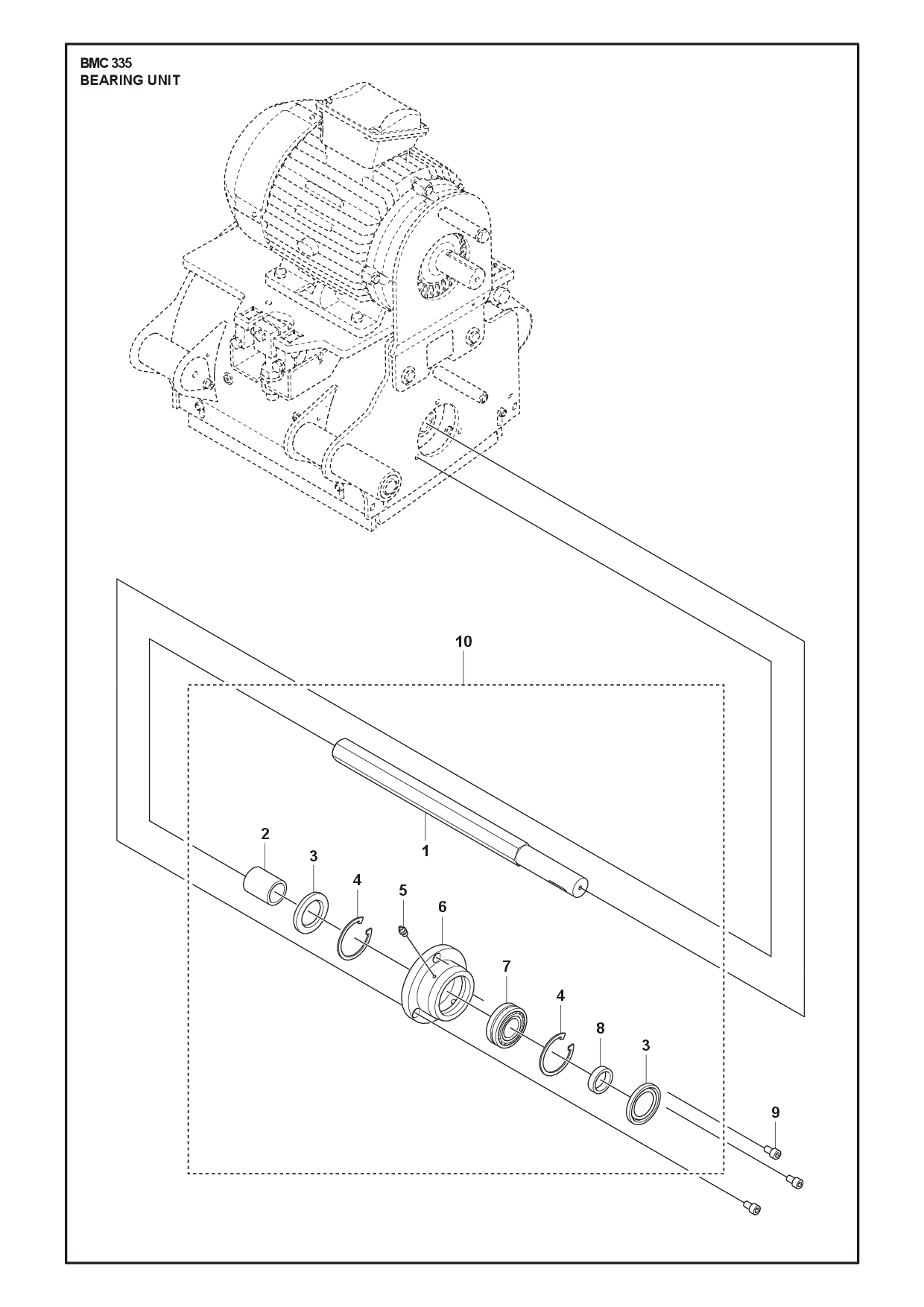

BEARING HOUSING 10 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SUPPORT | 533883301 | 1 | |||
| 2SPACER | 534855601 | 1 | |||
| 3SEAL | 533337901 | 2 | |||
| 4SNAP RING | 595046201 | 2 | |||
| 5NIPPLE | 533843501 | 1 | |||
| 6BEARING HOUSING | 534315601 | 1 | |||
| 7BEARING | 533611201 | 1 | |||
| 8SPACER | 534855701 | 1 | |||
| 9SCREW | 594120701 | 3 | M10x30 ISO 4762 8.8 FZB | ||
| 10BEARING | 534664401 | 1 | Bearing unit LH, complete |

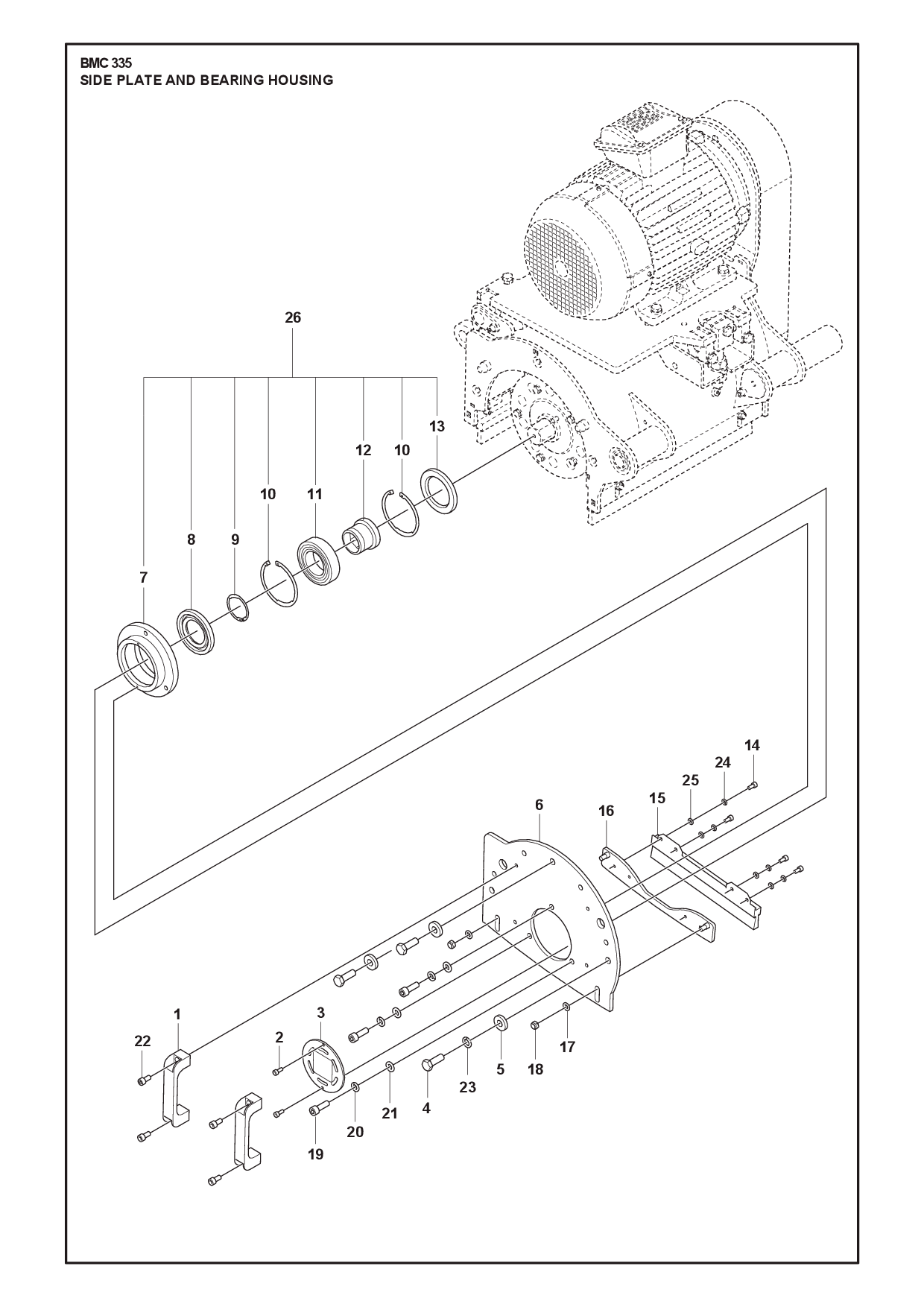

BEARING HOUSING 26 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HANDLE | 534616801 | 2 | |||
| 2SCREW | 596786901 | 2 | M4x10 ISO 4762 8.8 FZB | ||
| 3COVER | 535157102 | 1 | |||
| 4SCREW | 595110301 | 3 | M12x35 ISO 4017 8.8 FZB | ||
| 5WASHER | 595112801 | 3 | M12 ISO 7089 300HV ZPB | ||
| 6PLATE | 546446401 | 1 | |||
| 7BEARING HOUSING | 534315701 | 1 | |||
| 8SEAL | 533255801 | 1 | |||
| 9CIRCLIP | 541330801 | 1 | |||
| 10CIRCLIP | 534389501 | 2 | |||
| 11BEARING | 533611301 | 1 | |||
| 12SUPPORT | 533485001 | 1 | |||
| 13SEAL | 533740901 | 1 | |||
| 14SOCKET | 595347901 | 4 | M6x12 ISO 4762 8.8 FZB | ||
| 15GASKET | 534824502 | 1 | |||
| 16BRUSH | 538869601 | 1 | |||
| 17WASHER | 595061001 | 2 | M8 ISO 7093 A2K | ||
| 18NUT | 595352301 | 2 | M8 ISO7040 8 FZB | ||
| 19SCREW | 594120701 | 3 | M10x30 ISO 4762 8.8 FZB | ||
| 20SPRING WASHER | 735117301 | 3 | M10 DIN 127 B ZPB | ||
| 21WASHER | 595113301 | 3 | M10 ISO 7089 200HV ZPB | ||
| 22SCREW | 595034401 | 4 | M8x16 ISO 4762 8.8 FZB | ||
| 23WASHER | 540385801 | 3 | M12 DIN 127 B ZPB | ||
| 24WASHER | 595353101 | 4 | M6 DIN 127 B ZPB | ||
| 25PLANE WASHER | 595036501 | 4 | M6 ISO 7089 200HV ZPB | ||
| 26BEARING UNIT | 534807801 | 1 | Bearing unit RH, complete |

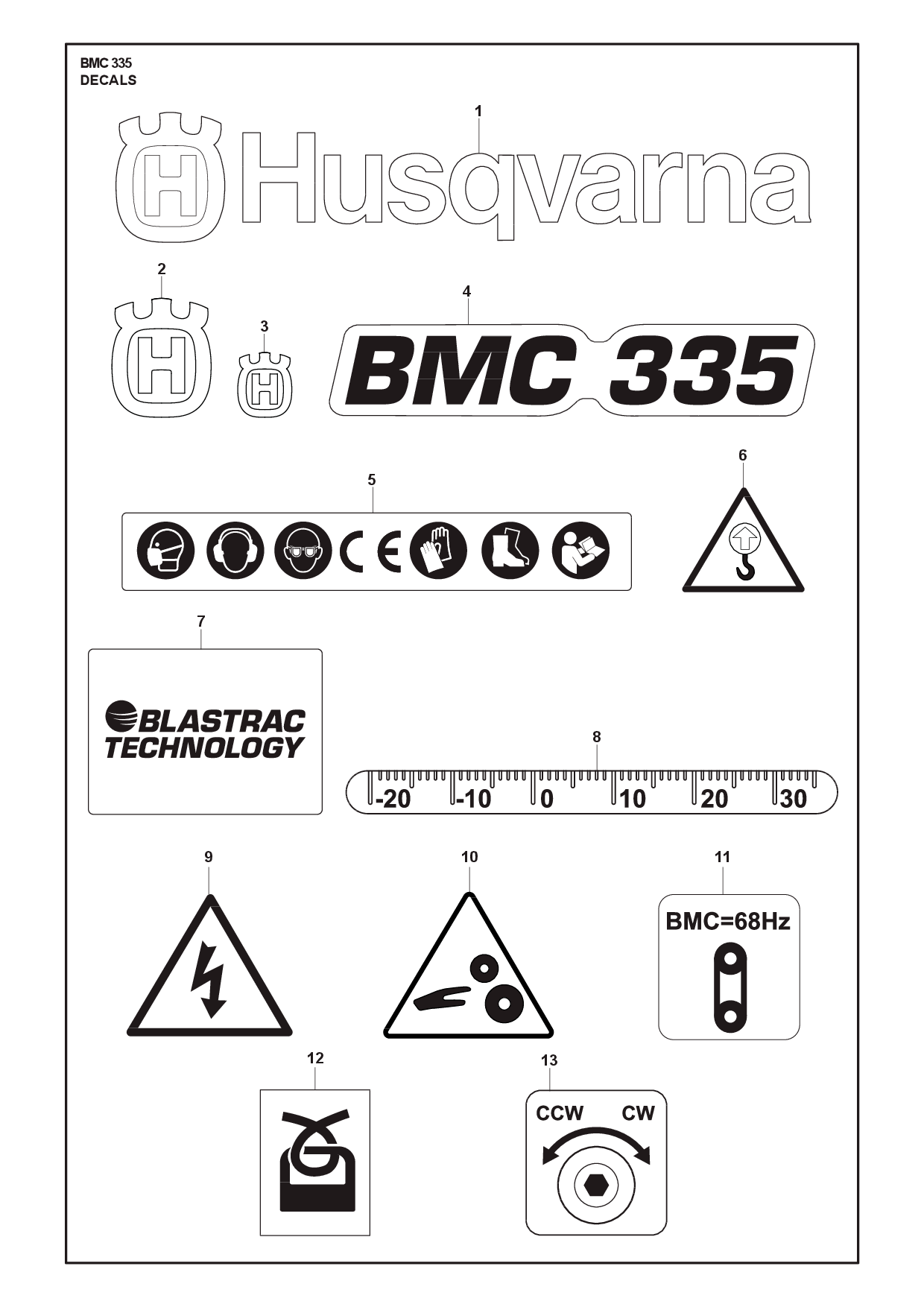

DECALS 13 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1DECAL | 598544301 | 2 | |||
| 2BADGE | 597437001 | 1 | |||
| 3DECAL | 598544501 | 1 | |||
| 4DECAL | 536694101 | 1 | |||
| 5DECAL | 546691401 | 1 | |||
| 6DECAL | 546696401 | 2 | |||
| 7DECAL | 536689101 | 1 | |||
| 8DECAL | 546894101 | 1 | |||
| 9DECAL | 546691201 | 3 | |||
| 10DECAL | 546691001 | 2 | |||
| 11DECAL | 546893901 | 1 | |||
| 12DECAL | 598543902 | 4 | |||
| 13DECAL | 546893801 | 1 |

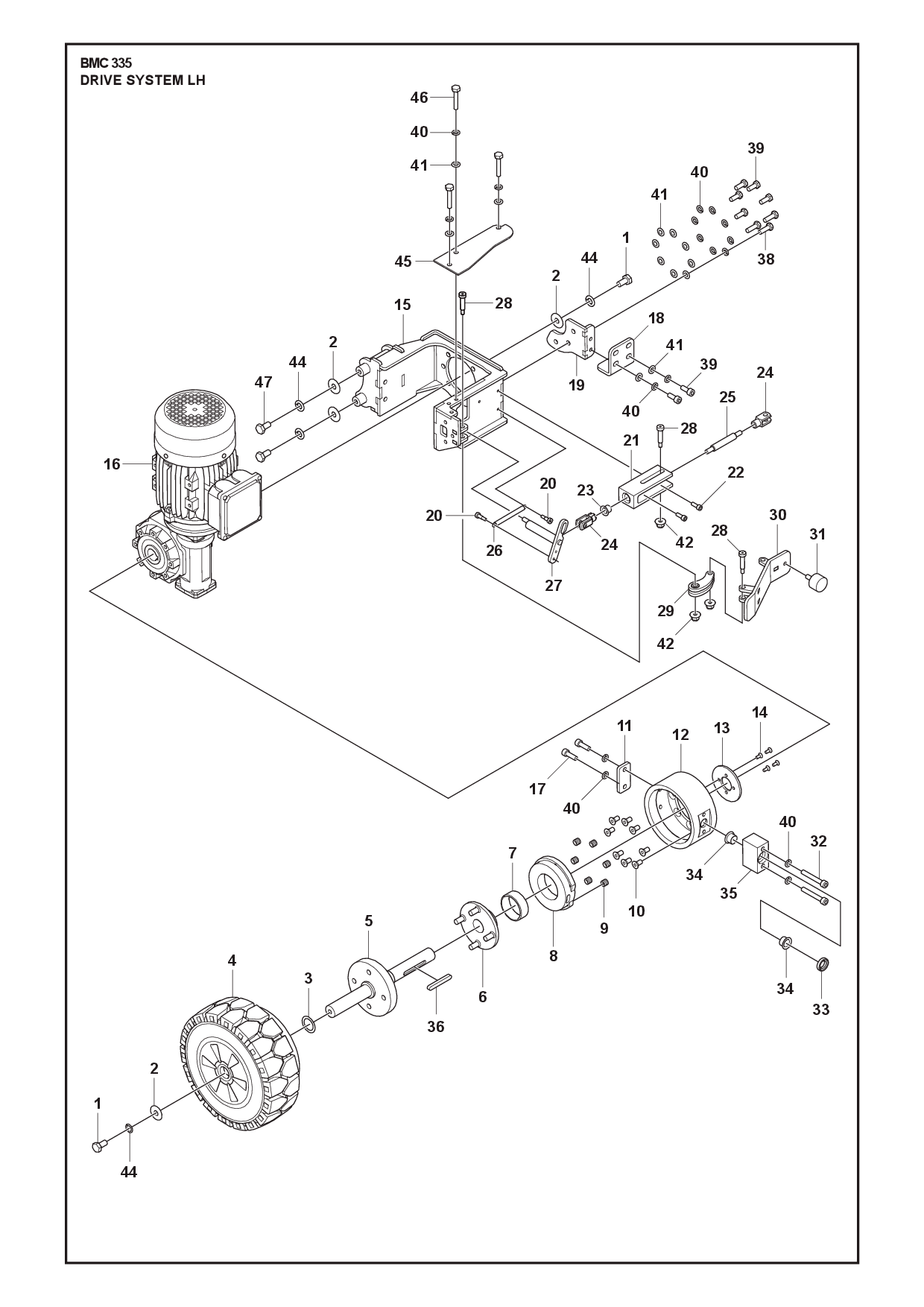

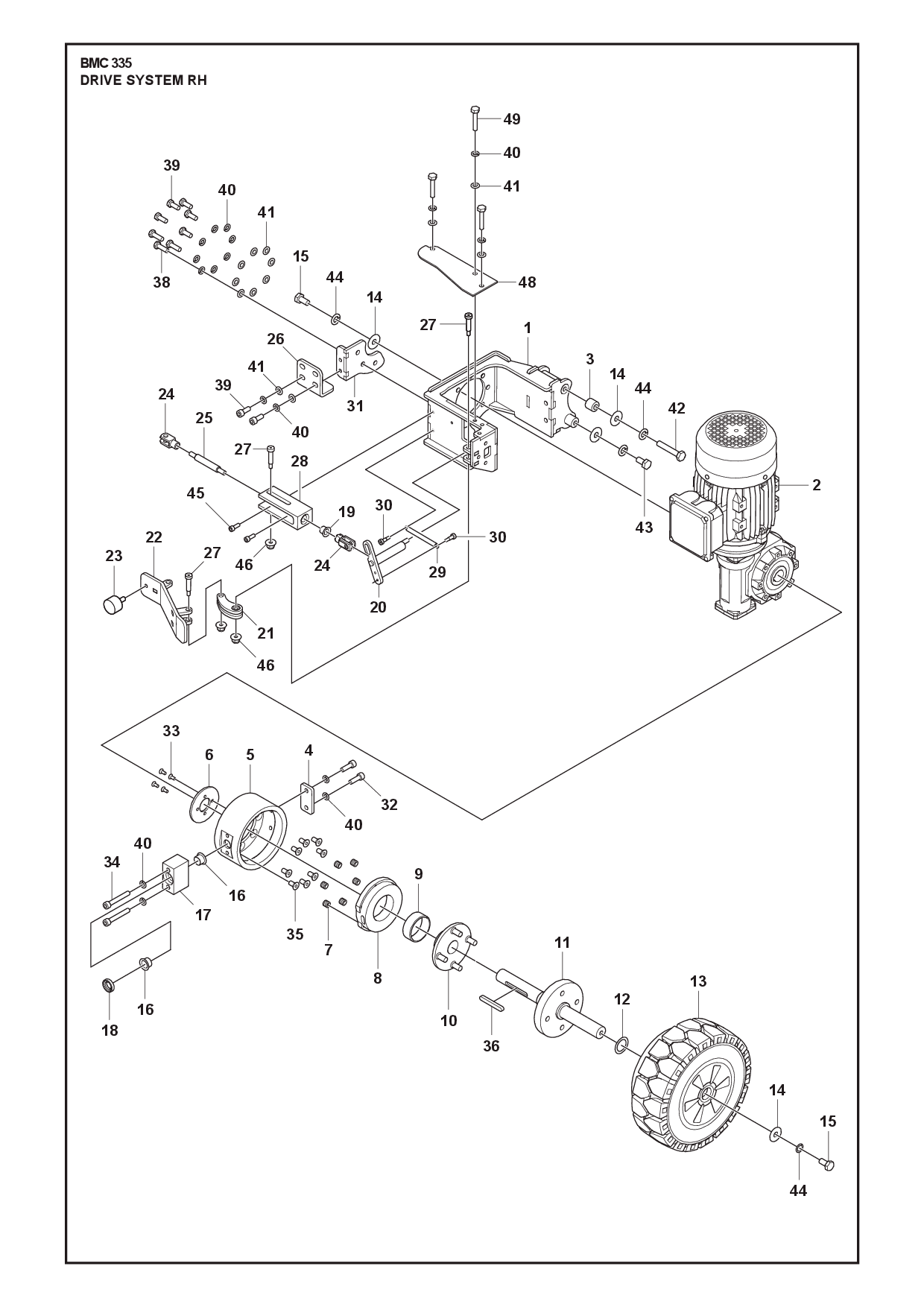

DRIVE 45 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW | 594118401 | 2 | M10x20 ISO 4017 8.8 FZB | ||
| 2PLANE WASHER | 594123501 | 4 | M10 DIN 9021B FZB | ||
| 3SHIM | 598458601 | 1 | |||
| 4WHEEL | 534939001 | 1 | |||
| 5AXLE | 534522301 | 1 | |||
| 6FORK | 534619701 | 1 | |||
| 7BEARING | 534759501 | 1 | |||
| 8PLATE | 534774801 | 1 | |||
| 9SPRING | 534869101 | 6 | |||
| 10SCREW | 596891203 | 8 | M8x16 ISO 10642 10.9 FZB | ||
| 11SPACER | 534855902 | 1 | |||
| 12HOUSING | 535632601 | 1 | |||
| 13LOCKING PLATE | 535208801 | 1 | |||
| 14SCREW | 595111501 | 4 | M5x16 ISO 10642 8.8 FZB | ||
| 15BRACKET | 534522701 | 1 | |||
| 16DRIVE MOTOR | 534239702 | 1 | |||
| 17SCREW | 595348301 | 2 | M8x20 ISO 4762 8.8 ZPB | ||
| 18PLATE | 534872501 | 1 | |||
| 19BRACKET | 534872201 | 1 | |||
| 20SCREW | 534690201 | 2 | |||
| 21BLOCK | 534847201 | 1 | |||
| 22SOCKET | 595347901 | 2 | M6x12 ISO 4762 8.8 FZB | ||
| 23BEARING | 534759201 | 1 | |||
| 24JOINT | 534587601 | 2 | |||
| 25AXLE | 535180101 | 1 | |||
| 26SPRING | 534868201 | 1 | |||
| 27AXLE | 535171601 | 1 | |||
| 28SCREW | 534691601 | 3 | |||
| 29MOUNTING PLATE | 535216601 | 1 | |||
| 30PEDAL | 535224702 | 1 | |||
| 31BUMPER | 533267601 | 1 | |||
| 32SCREW | 595055701 | 2 | M8x55 ISO 4017 8.8 FZB | ||
| 33SEAL | 534791901 | 1 | |||
| 34BEARING | 534759301 | 2 | |||
| 35BLOCK | 535626001 | 1 | |||
| 36KEY | 533514101 | 1 | 8x7x60 DIN 6885A | ||
| 38SCREW | 595033401 | 3 | M8x25 ISO 4017 8.8 FZB | ||
| 39SCREW | 594117901 | 7 | M8x20 ISO 4017 8.8 FZB | ||
| 40WASHER | 595061301 | 17 | M8 DIN 127 B ZPB | ||
| 41WASHER | 595036601 | 13 | M8 ISO 7089 200HV ZPB | ||
| 42NUT | 576645703 | 3 | M6 ISO 7043 8 FZB | ||
| 44SPRING WASHER | 735117301 | 4 | M10 DIN 127 B ZPB | ||
| 45SEAL | 534845201 | 1 | |||
| 46SCREW | 595110101 | 3 | M8x16 ISO 4017 8.8 FZB | ||
| 47SCREW | 595071101 | 2 | M10x25 ISO 4017 8.8 FZB |
DRIVE 47 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BRACKET | 534522901 | 1 | |||
| 2DRIVE MOTOR | 534239702 | 1 | |||
| 3SPACER | 535365701 | 1 | |||
| 4SPACER | 534855902 | 1 | |||
| 5HOUSING | 535632601 | 1 | |||
| 6LOCKING PLATE | 535208801 | 1 | |||
| 7SPRING | 534869101 | 6 | |||
| 8PLATE | 534774801 | 1 | |||
| 9BEARING | 534759501 | 1 | |||
| 10FORK | 534619701 | 1 | |||
| 11AXLE | 534522301 | 1 | |||
| 12SHIM | 598458601 | 1 | |||
| 13WHEEL | 534939001 | 1 | |||
| 14PLANE WASHER | 594123501 | 4 | M10 DIN 9021B FZB | ||
| 15SCREW | 594118401 | 2 | M10x20 ISO 4017 8.8 FZB | ||
| 16BEARING | 534759301 | 2 | |||
| 17BLOCK | 535626001 | 1 | |||
| 18SEAL | 534791901 | 1 | |||
| 19BEARING | 534759201 | 1 | |||
| 20AXLE | 535173901 | 1 | |||
| 21MOUNTING PLATE | 535216601 | 1 | |||
| 22PEDAL | 535224702 | 1 | |||
| 23BUMPER | 533267601 | 1 | |||
| 24JOINT | 534587601 | 2 | |||
| 25AXLE | 535180101 | 1 | |||
| 26PLATE | 534872501 | 1 | |||
| 27SCREW | 534691601 | 3 | |||
| 28BLOCK | 534847201 | 1 | |||
| 29SPRING | 534868201 | 1 | |||
| 30SCREW | 534690201 | 2 | |||
| 31BRACKET | 534872301 | 1 | |||
| 32SCREW | 595348301 | 2 | M8x20 ISO 4762 8.8 ZPB | ||
| 33SCREW | 595111501 | 4 | M5x16 ISO 10642 8.8 FZB | ||
| 34SCREW | 595055701 | 2 | M8x55 ISO 4017 8.8 FZB | ||
| 35SCREW | 596891203 | 8 | M8x16 ISO 10642 10.9 FZB | ||
| 36KEY | 533514101 | 1 | 8x7x60 DIN 6885A | ||
| 38SCREW | 595033401 | 3 | M8x25 ISO 4017 8.8 FZB | ||
| 39SCREW | 594117901 | 7 | M8x20 ISO 4017 8.8 FZB | ||
| 40WASHER | 595061301 | 17 | M8 DIN 127 B ZPB | ||
| 41WASHER | 595036601 | 13 | M8 ISO 7089 200HV ZPB | ||
| 42BOLT | 594118701 | 1 | M10x45 ISO 4014 8.8 FZB | ||
| 43SCREW | 595071101 | 1 | M10x25 ISO 4017 8.8 FZB | ||
| 44SPRING WASHER | 735117301 | 4 | M10 DIN 127 B ZPB | ||
| 45SOCKET | 595347901 | 2 | M6x12 ISO 4762 8.8 FZB | ||
| 46NUT | 576645703 | 3 | M6 ISO 7043 8 FZB | ||
| 48SEAL | 534845201 | 1 | |||
| 49SCREW | 595110101 | 3 | M8x16 ISO 4017 8.8 FZB |
DRIVE UNIT 30 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BRACKET | 534522901 | 1 | |||
| 2DRIVE MOTOR | 534239702 | 1 | |||
| 3SPACER | 535365701 | 1 | |||
| 4SPACER | 534855902 | 1 | |||
| 5HOUSING | 535632601 | 1 | |||
| 6LOCKING PLATE | 535208801 | 1 | |||
| 7SPRING | 534869101 | 6 | |||
| 8PLATE | 534774801 | 1 | |||
| 9BEARING | 534759501 | 1 | |||
| 10FORK | 534619701 | 1 | |||
| 11AXLE | 534522301 | 1 | |||
| 12BEARING | 534758601 | 2 | |||
| 13WHEEL | 534939001 | 1 | |||
| 15WASHER | 534064101 | 2 | |||
| 16BEARING | 534759301 | 2 | |||
| 17BLOCK | 535626001 | 1 | |||
| 18SEAL | 534791901 | 1 | |||
| 19BEARING | 534759201 | 1 | |||
| 20AXLE | 535173901 | 1 | |||
| 21MOUNTING PLATE | 535216601 | 1 | |||
| 22PEDAL | 535224702 | 1 | |||
| 23BUMPER | 533267601 | 1 | |||
| 24BLOCK | 534847201 | 1 | |||
| 25AXLE | 535180101 | 1 | |||
| 26SPRING | 534868201 | 1 | |||
| 27SCREW | 534691601 | 3 | |||
| 28BLOCK | 534847201 | 1 | |||
| 29SPRING | 534868201 | 1 | |||
| 30SCREW | 534690201 | 2 | |||
| 31BRACKET | 534872301 | 1 |
DRIVE UNIT 32 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW IHSCM | 576426701 | 1 | |||
| 2WASHER | 534064101 | 1 | |||
| 3BEARING | 534758601 | 2 | |||
| 4WHEEL | 534939001 | 1 | |||
| 5AXLE | 534522301 | 1 | |||
| 6FORK | 534619701 | 1 | |||
| 7BEARING | 534759501 | 1 | |||
| 8PLATE | 534774801 | 1 | |||
| 9SPRING | 534869101 | 6 | |||
| 10SCREW IHCSFM | 725644951 | 8 | |||
| 11SPACER | 534855902 | 1 | |||
| 12HOUSING | 535632601 | 1 | |||
| 13LOCKING PLATE | 535208801 | 1 | |||
| 14SCREW IHCSFM | 725632751 | 4 | |||
| 15BRACKET | 534522701 | 1 | |||
| 16DRIVE MOTOR | 534239702 | 1 | |||
| 19BRACKET | 534872201 | 1 | |||
| 20SCREW | 534690201 | 2 | |||
| 21BLOCK | 534847201 | 1 | |||
| 22SCREW | 593500701 | 2 | |||
| 23BEARING | 534759201 | 1 | |||
| 25AXLE | 535180101 | 1 | |||
| 26BLOCK | 534847201 | 1 | |||
| 27AXLE | 535171601 | 1 | |||
| 28SCREW | 534691601 | 3 | |||
| 29MOUNTING PLATE | 535216601 | 1 | |||
| 30PEDAL | 535224702 | 1 | |||
| 31BUMPER | 533267601 | 1 | |||
| 32SCREW EHHM | 725238151 | 2 | |||
| 33SEAL | 534791901 | 1 | |||
| 34BEARING | 534759301 | 2 | |||
| 35BLOCK | 535626001 | 1 |

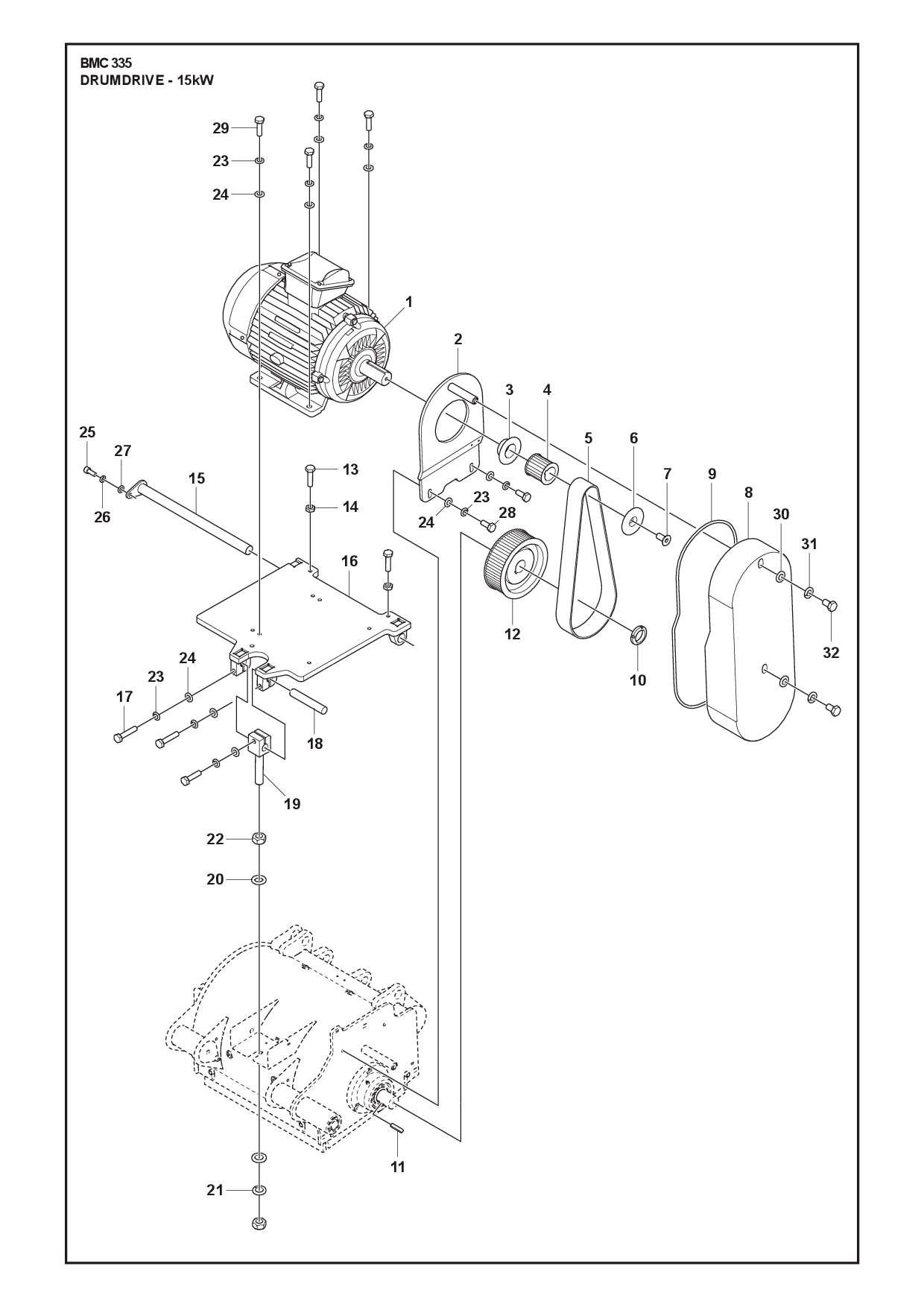

DRIVE UNIT 32 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1MOTOR | 536545601 | 1 | |||
| 2MOUNTING PLATE | 535217302 | 1 | |||
| 3SPACER RING | 534863501 | 1 | |||
| 4PULLEY | 534637301 | 1 | |||
| 5DRIVE BELT | 534319501 | 1 | |||
| 6BUSH | 534725101 | 1 | |||
| 7SCREW | 540573202 | 1 | M12x30 ISO 10642 8.8 Zn | ||
| 8DRIVE BELT | 533867302 | 1 | |||
| 9STRIP | 534518607 | 1 | |||
| 10SHAFT | 533587301 | 1 | M35x1.5 DIN 1804 | ||
| 11KEY | 540576402 | 1 | 10x8x25 DIN 6885 | ||
| 12PULLEY | 534637501 | 1 | |||
| 13SCREW EHHM | 725250171 | 2 | M10x50 ISO4017 8.8 ZPB | ||
| 14NUT | 595029401 | 2 | M10 ISO 4032 8 FZB | ||
| 15AXLE | 535215101 | 1 | |||
| 16PLATE | 535214402 | 1 | |||
| 17BOLT | 594118701 | 3 | M10x45 ISO 4014 8.8 FZB | ||
| 18LOCKING PIN | 535357001 | 1 | |||
| 19EYE BOLT | 534571501 | 1 | |||
| 20WASHER | 596865946 | 2 | M20 ISO 7089 200HV ZPB | ||
| 21LOCKWASHER | 504749603 | 1 | M20 DIN 7980 ZPB | ||
| 22NUT | 540386501 | 2 | M20 ISO 4032 8 ZPB | ||
| 23SPRING WASHER | 735117301 | 9 | M10 DIN 127 B ZPB | ||
| 24WASHER | 595113301 | 9 | M10 ISO 7089 200HV ZPB | ||
| 25SCREW | 595348301 | 1 | M8x20 ISO 4762 8.8 ZPB | ||
| 26WASHER | 595061301 | 1 | M8 DIN 127 B ZPB | ||
| 27WASHER | 595036601 | 1 | M8 ISO 7089 200HV ZPB | ||
| 28SCREW | 594118401 | 2 | M10x20 ISO 4017 8.8 FZB | ||
| 29SCREW | 594118601 | 4 | M10x35 ISO 4017 8.8 FZB | ||
| 30FENDER | 540782201 | 2 | 12x30x3 | ||
| 31WASHER | 540385801 | 2 | M12 DIN 127 B ZPB | ||
| 32BOLT | 595345201 | 2 | M12x20 ISO 4017 8.8 FZB |

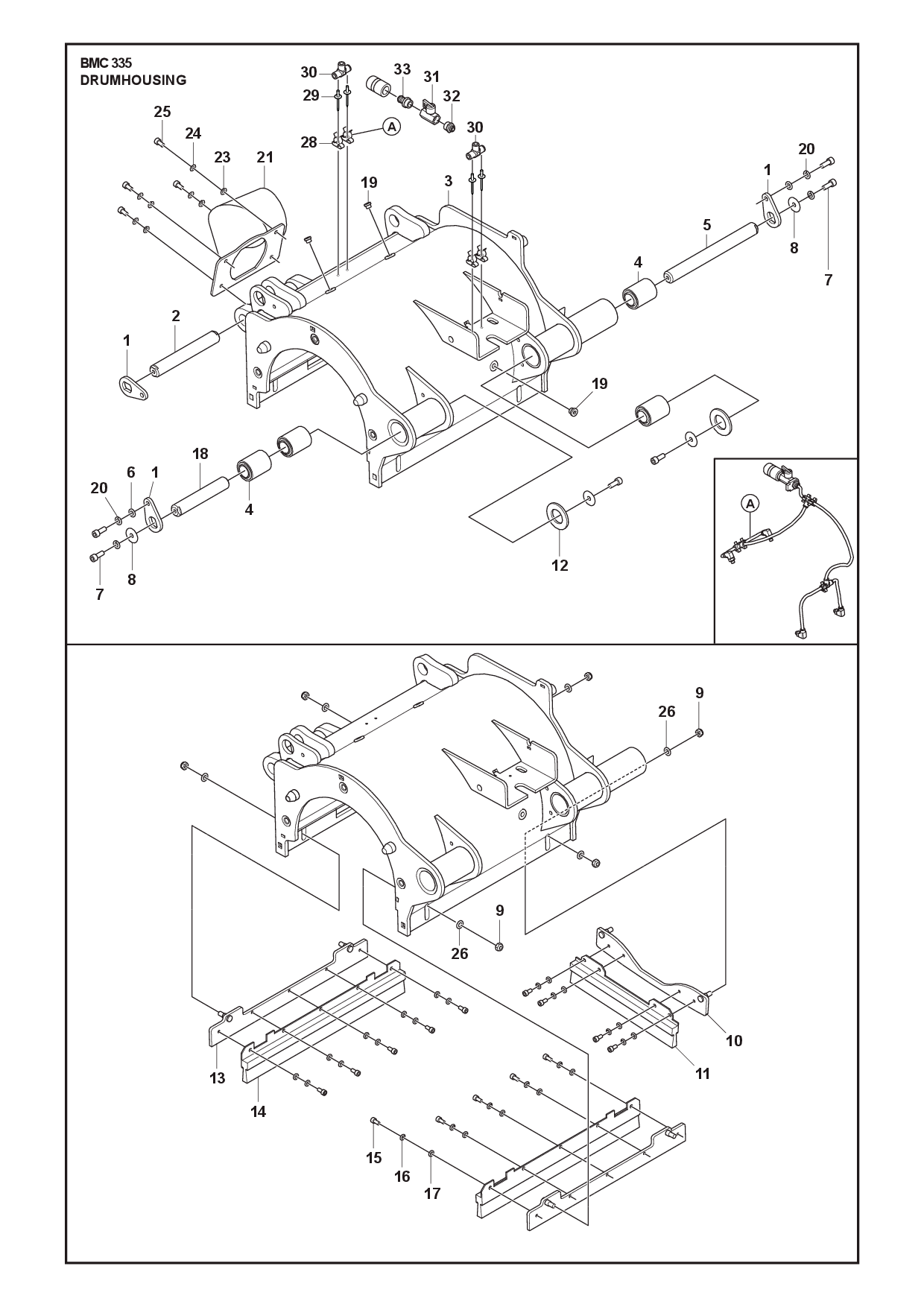

DRUM 31 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1PLATE | 535159101 | 4 | |||
| 2PIN | 535216301 | 1 | |||
| 3HOUSING | 535168202 | 1 | |||
| 4BUSH | 534906501 | 4 | |||
| 5AXLE | 535359701 | 1 | |||
| 6WASHER | 595036601 | 4 | M8 ISO 7089 200HV ZPB | ||
| 7SCREW | 595348301 | 10 | M8x20 ISO 4762 8.8 ZPB | ||
| 8WASHER | 540578801 | 4 | M8 DIN 9021B FZB | ||
| 9NUT | 595352301 | 6 | M8 ISO7040 8 FZB | ||
| 10GASKET | 534824502 | 1 | |||
| 11BRUSH | 538869601 | 1 | |||
| 12WASHER | 536313501 | 2 | |||
| 13SEAL | 534823702 | 2 | |||
| 14BRUSH | 534839201 | 2 | |||
| 15SOCKET | 595347901 | 14 | M6x12 ISO 4762 8.8 FZB | ||
| 16WASHER | 595353101 | 14 | M6 DIN 127 B ZPB | ||
| 17PLANE WASHER | 595036501 | 14 | M6 ISO 7089 200HV ZPB | ||
| 19COUPLING | 533266701 | 4 | |||
| 20WASHER | 595061301 | 10 | M8 DIN 127 B ZPB | ||
| 21BRACKET | 536545901 | 1 | |||
| 23PLANE WASHER | 595036501 | 4 | M6 ISO 7089 200HV ZPB | ||
| 24WASHER | 595353101 | 4 | M6 DIN 127 B ZPB | ||
| 25SCREW | 595344201 | 4 | M6x12 ISO 4017 8.8 FZB | ||
| 26WASHER | 595061001 | 6 | M8 ISO 7093 A2K | ||
| 27HOSE | 533259501 | 6 | |||
| 28PIPE CLAMP | 533199501 | 6 | |||
| 29RIVET | 595187701 | 4 | 3,2x11 | ||
| 30COUPLING | 533375401 | 3 | |||
| 31COUPLING | 533500701 | 1 | |||
| 32VALVE | 533252301 | 1 | |||
| 33HOSE | 533278101 | 1 |
DRUM 24 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1PLATE | 535159101 | 4 | |||
| 2PIN | 535216301 | 1 | |||
| 3HOUSING | 535168202 | 1 | |||
| 4BUSH | 534906501 | 4 | |||
| 5AXLE | 535359701 | 1 | |||
| 6WASHER | 734116301 | 8 | |||
| 7SCREW IHSCM | 725545101 | 8 | |||
| 8WASHER | 538891401 | 4 | |||
| 9NUT | 576645704 | 6 | |||
| 10GASKET | 534824502 | 2 | |||
| 11BRUSH | 538869601 | 1 | |||
| 12PLATE | 535159001 | 2 | |||
| 13SEAL | 534823702 | 1 | |||
| 14BRUSH | 534839201 | 2 | |||
| 15SCREW | 593497301 | 14 | |||
| 17WASHER | 734115201 | 14 | |||
| 18PIN | 535359801 | 1 | |||
| 19HOSE | 534784101 | 1 | 0.5m | ||
| 20HOSE CLAMP | 534629001 | 2 | |||
| 21BRACKET | 536545901 | 1 | drum housing | ||
| 22WASHER | 533481901 | 4 | M6 FLAT WASHER , DIN 125, 1-A | ||
| 23WASHER | 534691501 | 4 | M6 spring lock washer | ||
| 24SCREW IHSCM | 725536601 | 4 | M 6 X 12 8.8 ZPB | ||
| 25HOUSING ASSY | 548534601 | 1 | kit suitable for machines with old drum housing |
DRUM 7 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 2PLATE | 534806401 | 2 | Retaining plate | ||
| 3DRUM SHAFT | 534537901 | 1 | Spare shaft Ø22mm | ||
| 4DRUM | 533873301 | 1 | Drum (empty) without shafts NOT ORDERABLE PART for illustration purpose only | ||
| 5DRUM | 534431501 | 1 | Drum complete filled with Flails 8pt. | ||
| 6DRUM | 533127301 | 1 | Drum complete filled with Milling cutters | ||
| 7DRUM | 534444501 | 1 | Drum complete filled with Flails 12pt. | ||
| 8DRUM | 533873601 | 1 | Drum (empty) BMP-335 with 5 shafts 22 mm |

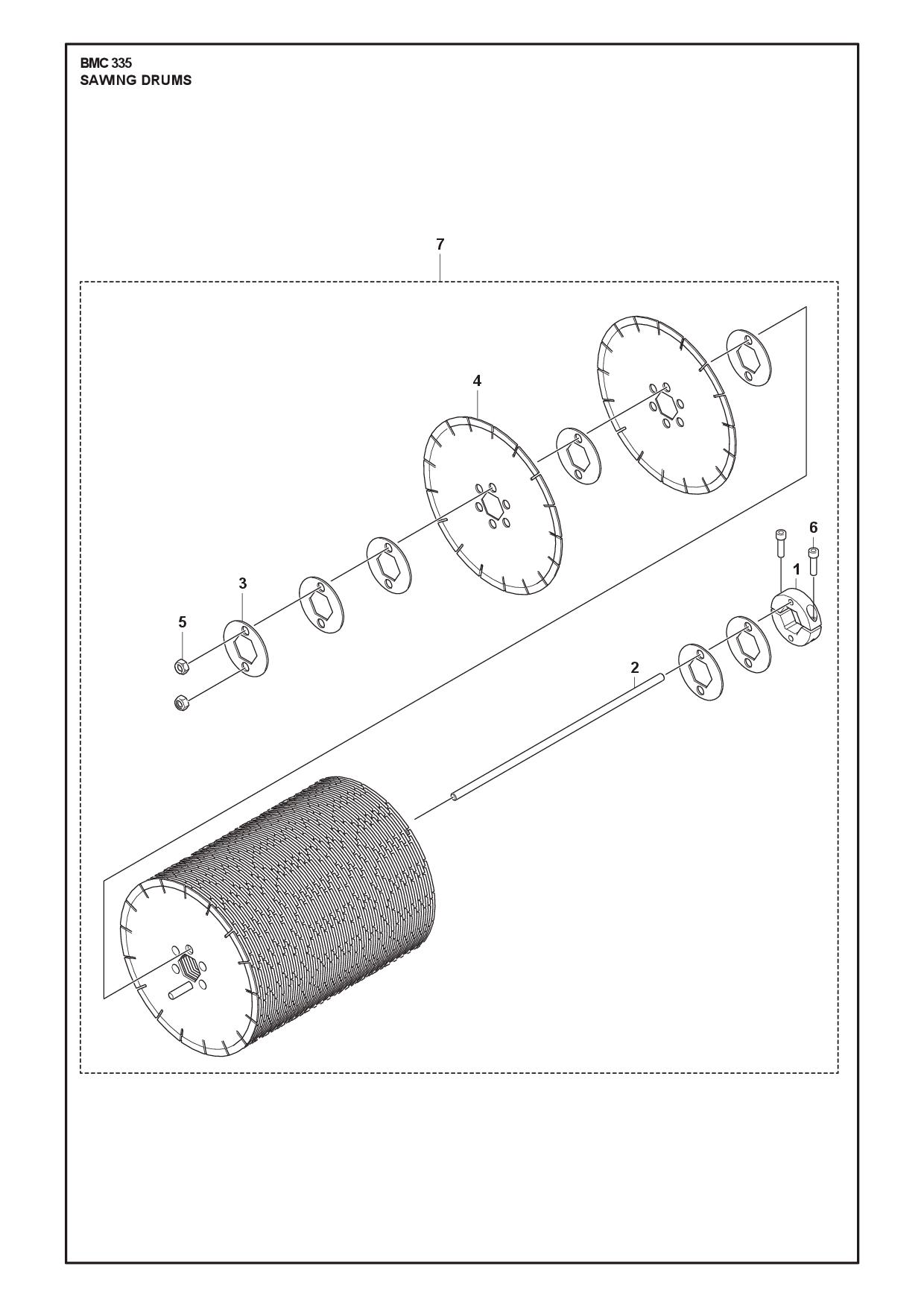

DRUM 11 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1CLAMP | 534623501 | 2 | |||
| 2ROD | 533804401 | 2 | |||
| 3SPACER | 533806001 | 85 | 2,5 mm | ||
| 4SHAVER BLADE | 533772201 | 80 | ELITE-SHAVE™ M 255 | ||
| 4SHAVER BLADE | 534510701 | 80 | ELITE-SHAVE™ S 255 | ||
| 4SHAVER BLADE | 534510901 | 80 | ELITE-SHAVE™ H 255 | ||
| 5LOCK NUT | 594122901 | 2 | M10 nylock nut | ||
| 6SCREW | 595348401 | 2 | M8x30 | ||
| 7DRUM | 533473601 | 1 | Green blades | ||
| 7DRUM | 534819501 | 1 | Blue blades | ||
| 7DRUM | 534819601 | 1 | Red blades |
DRUM MOTOR 24 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1MOTOR | 536545601 | 1 | |||
| 2MOUNTING PLATE | 535217302 | 1 | |||
| 3SPACER RING | 534863501 | 1 | |||
| 4PULLEY | 534637301 | 1 | |||
| 5DRIVE BELT | 534319501 | 1 | |||
| 6BUSH | 534725101 | 1 | |||
| 7SCREW | 595680401 | 1 | |||
| 8DRIVE BELT | 533867302 | 1 | |||
| 9SCREW EHHM | 725253271 | 1 | |||
| 10SHAFT | 533587301 | 1 | |||
| 11KEY | 533460101 | 1 | |||
| 12PULLEY | 534637501 | 1 | |||
| 13SCREW EHHM | 725253271 | 2 | |||
| 14SCREW EHHM | 725249971 | 3 | |||
| 15HEXAGON NUT | 731232001 | 2 | |||
| 16PLATE | 535214402 | 1 | |||
| 17BOLT | 536144801 | 2 | |||
| 18LOCKING PIN | 535357001 | 1 | |||
| 19EYE BOLT | 534571501 | 1 | |||
| 21WASHER | 542173035 | 2 | |||
| 22LOCKWASHER | 538892401 | 1 | |||
| 23AXLE | 535215101 | 1 | |||
| 24SCREW IHSCM | 725545101 | 1 | |||
| 25SCREW EHHM | 725249771 | 4 |

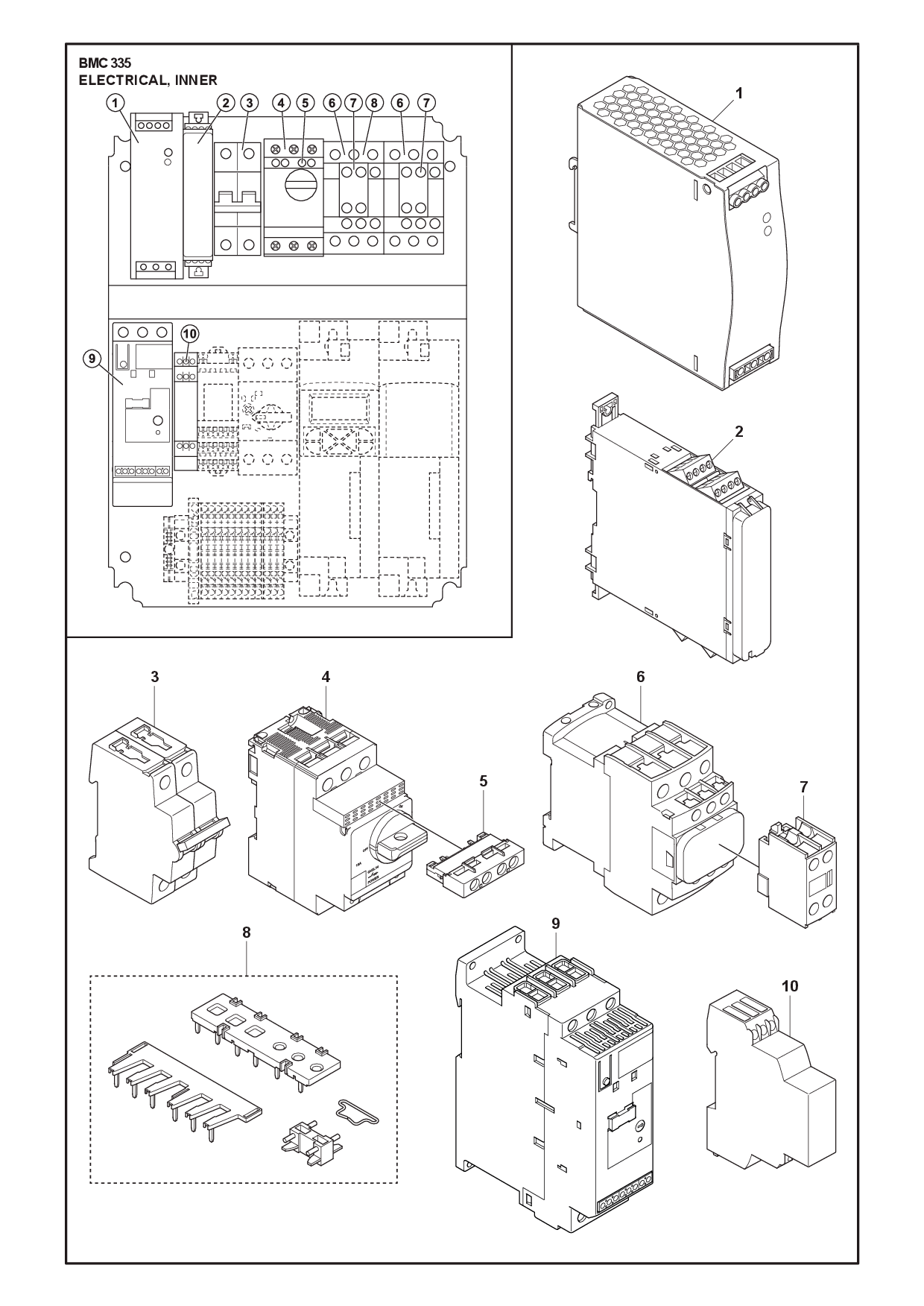

ELECTRICAL, INNER 10 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1POWER UNIT | 540746001 | 1 | MEANWELL WDR-120-24 | ||
| 2RELAY | 533838401 | 1 | XPS-BAC14AP | ||
| 3RELAY | 533756301 | 1 | C60N-1492-SPM2C020 | ||
| 4CIRCUIT BREAKER | 547017762 | 1 | GV2-L14 | ||
| 5CONTACTOR | 533915101 | 1 | GV-AE11 | ||
| 6CONTACTOR | 547699001 | 2 | LC1-D32-BL | ||
| 7CONTACTOR | 533666401 | 2 | LAD-N11 | ||
| 8CIRCUIT BREAKER | 534658701 | 1 | LAD-9R1 | ||
| 9STARTER | 533671501 | 1 | 150-C30NBR | ||
| 10UNIT | 535633701 | 1 | RM17-TG00 |

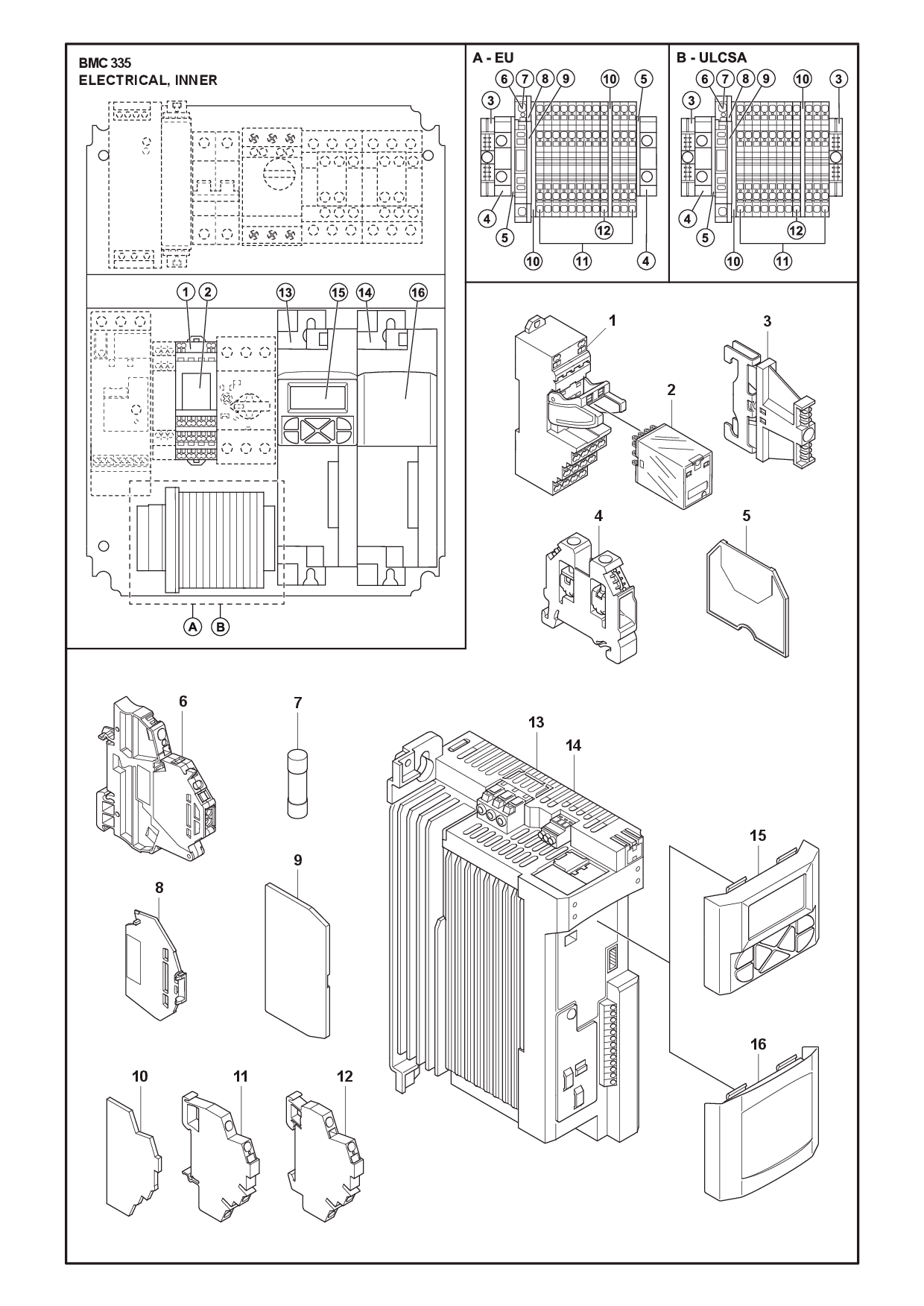

ELECTRICAL, INNER 17 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HOLDER | 536573301 | 1 | PYF14PU | ||
| 2RELAY | 533961201 | 1 | OMRON MY4IN1D2 24VDC | ||
| 3SUPPORT | 533517901 | 1 | EINDSTEUN V4 CON.ACC | ||
| 4TERMINAL | 533596201 | 2 | WT 10 PE | ||
| 5PLATE | 538755401 | 2 | APN 10 | ||
| 6FUSE | 547690203 | 1 | WEID ZSI 2.5 | ||
| 7FUSE | 547717601 | 1 | SIBA 70-007-33/2.5A | ||
| 8PLATE | 547717301 | 1 | WEID ZAP/THNE/ZSI2.5 | ||
| 9PLATE | 538796901 | 1 | WEID ZAP/TW 3 | ||
| 10PLATE | 547017430 | 2 | WEID ZAP/TW ZDK2.5-2 | ||
| 11TERMINAL | 534404801 | 11 | WEID ZDK 2.5-2 | ||
| 12TERMINAL | 534404901 | 1 | WEID ZDK 2.5-2PE | ||
| 13FREQUENCY INVERTER | 536364301 | 2 | I51AE175F10010000S, unprogrammed | ||
| 13FREQUENCY INVERTER | 536364303 | 1 | I51AE175F10010000S, programmed, LH | ||
| 14FREQUENCY INVERTER | 536364304 | 1 | I51AE175F10010000S, programmed, RH | ||
| 15MODULE | 535651101 | 1 | I5MADK0000000S | ||
| 16DUST COVER | 538905601 | 1 | I5ZAA0000M |

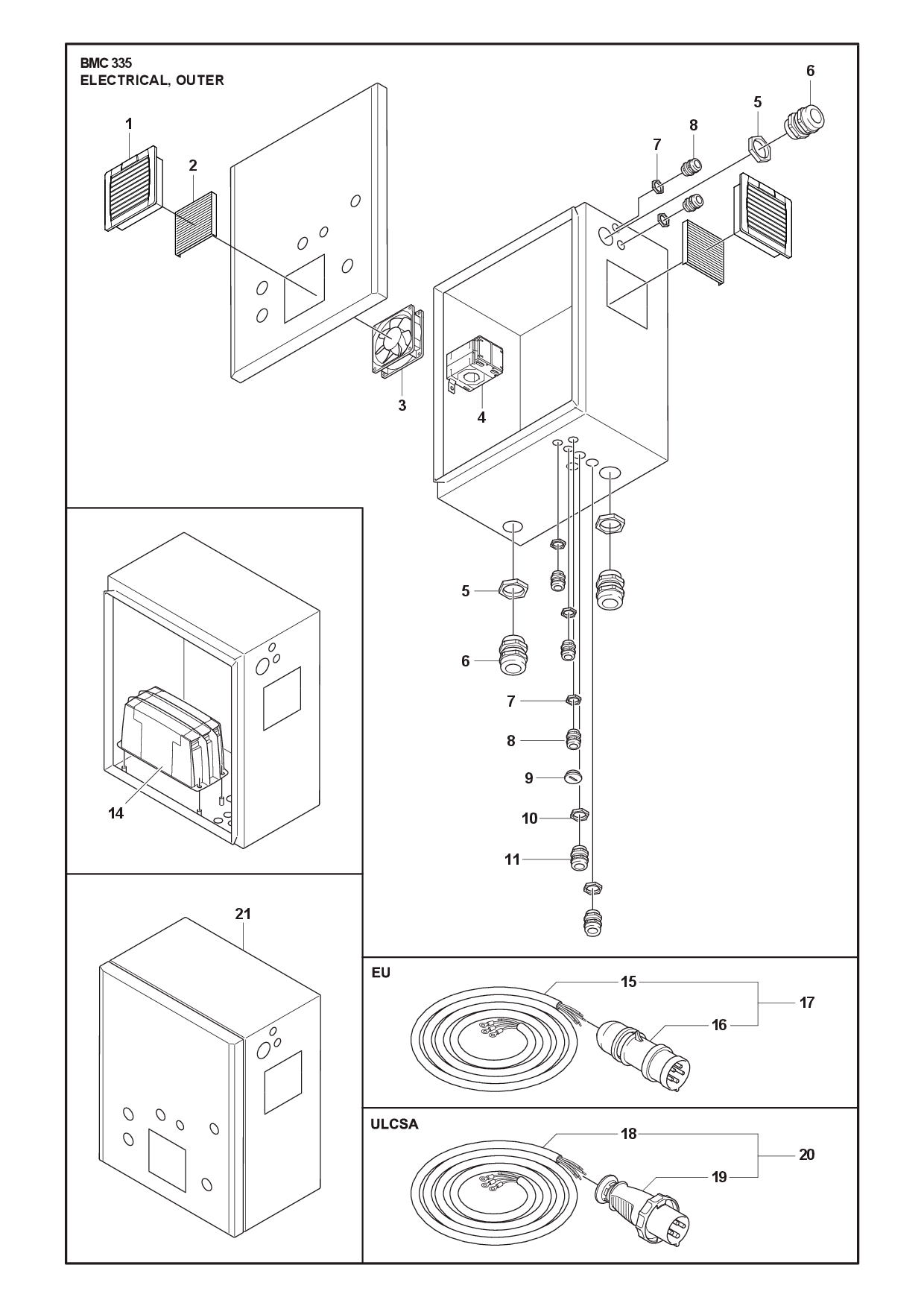

ELECTRICAL, OUTER 20 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1GUARD | 538783201 | 2 | 250-1612 KAST KL.BEH | ||
| 2FILTER | 534564201 | 2 | EFA100R5 | ||
| 3FAN | 538770701 | 1 | FAN 80*80*20MM 24 VDC/ NMB | ||
| 4TRANSFORMER | 533855101 | 1 | M55E-94E-NTLSDL-C7 | ||
| 5CABLE | 534027901 | 1 | Cable gland nut M32, brass, nickel-plated | ||
| 6CABLE | 533795201 | 1 | Cable gland M32, brass, nickel-plated | ||
| 7CABLE | 534027101 | 5 | Cable gland nut M16, brass, nickel-plated | ||
| 8CABLE | 533984901 | 5 | Cable gland M16, brass, nickel-plated | ||
| 9CABLE | 534029401 | 1 | Cable gland plug M20, brass, nickel-plated | ||
| 10NUT | 538776601 | 2 | Cable gland nut M20 EMC/EMV, brass, nickel-plated | ||
| 11NUT | 538777001 | 2 | Cable gland M20 EMC/EMV, brass, nickel-plated | ||
| 12CABLE | 534028001 | 2 | Cable gland nut M40, brass, nickel-plated | ||
| 13CABLE | 533999701 | 2 | Cable gland M40, brass, nickel-plated | ||
| 14FILTER | 547717701 | 1 | FN3025 HL-50-72 | ||
| 15CABLE | 548387801 | 1 | H07RN-F 4*10 mm2 | ||
| 16PLUG | 534768101 | 1 | ABL S53S35 | ||
| 17CABLE ASSY | 540528301 | 1 | |||
| 18CABLE | 547717101 | 1 | Super VU-Tron 4*AWG8 Cable 90º C (UL) Type W, 2000V | ||
| 19CONNECTION | 547717801 | 1 | Walther 269419 | ||
| 20CABLE ASSY | 540528401 | 1 |

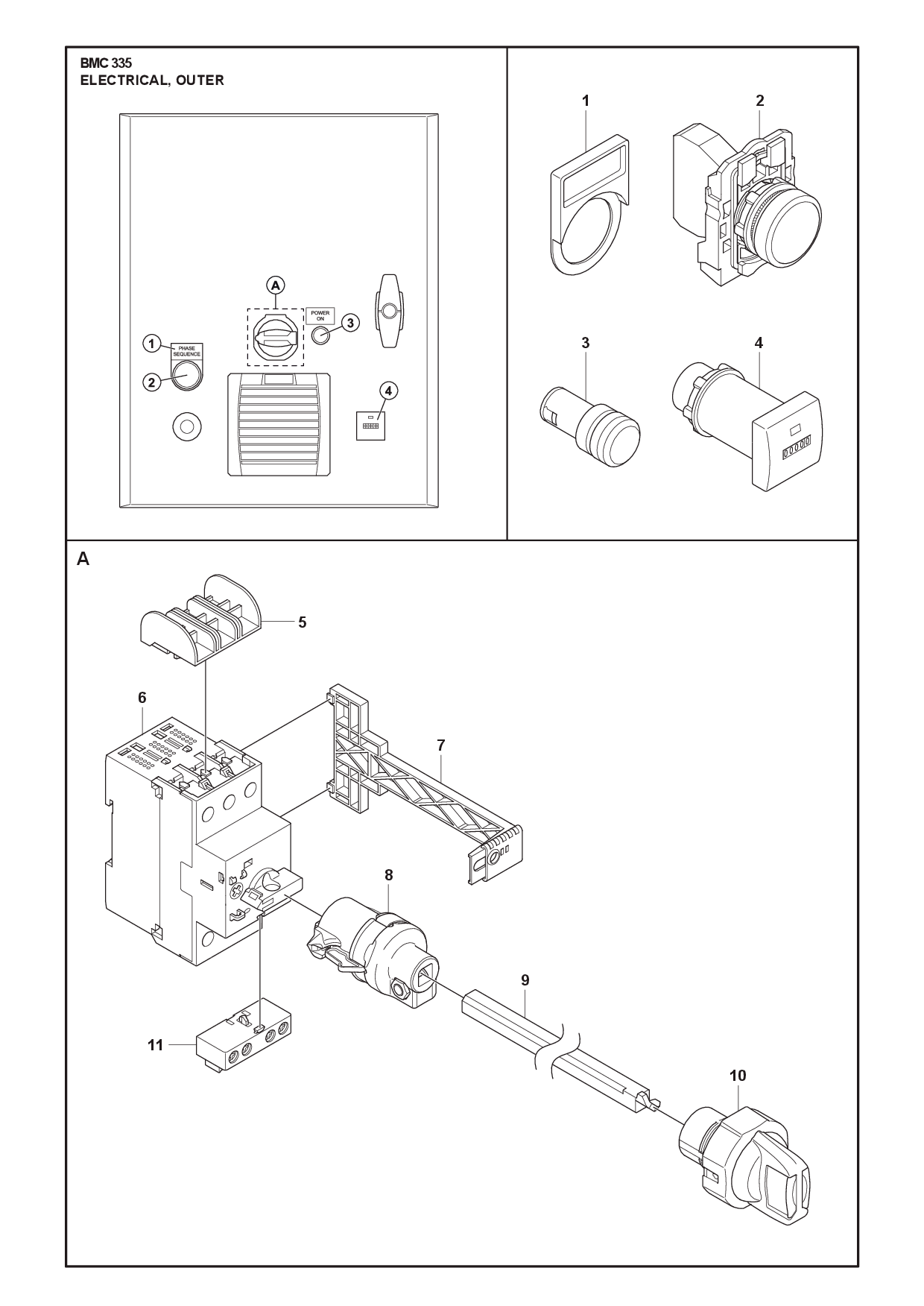

ELECTRICAL, OUTER 11 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HOLDER | 533971701 | 1 | ZBZ-35 | ||
| 2LIGHT | 533992801 | 1 | XB5-AVB4 | ||
| 3LAMP | 538753601 | 1 | 909-2468 | ||
| 4HOUR METER | 534026001 | 1 | XB5-DSB | ||
| 5ADAPTER | 547715101 | 1 | 140MT-C-TE | ||
| 6MOTOR | 533694103 | 1 | 140MT-D9E-C36 | ||
| 7SHAFT | 547715001 | 1 | 140MT-C-SHS | ||
| 8COUPLER | 547714901 | 1 | 140MT-C-DNC | ||
| 9SHAFT | 547716701 | 1 | 140MT-S1 | ||
| 10HANDLE | 547716801 | 1 | 140MT-SB | ||
| 11CONTACT | 547716901 | 1 | 140MT-C-AFA11 |
ELECTRIC BOX 5 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1ELECTRONIC BOX | 534343902 | 1 | |||
| 4CONTACTOR | 533915101 | 1 | |||
| 5HOUR METER | 534026001 | 1 | |||
| 6POWER UNIT | 533445401 | 1 | |||
| 6POWER UNIT | 540746001 | 1 |

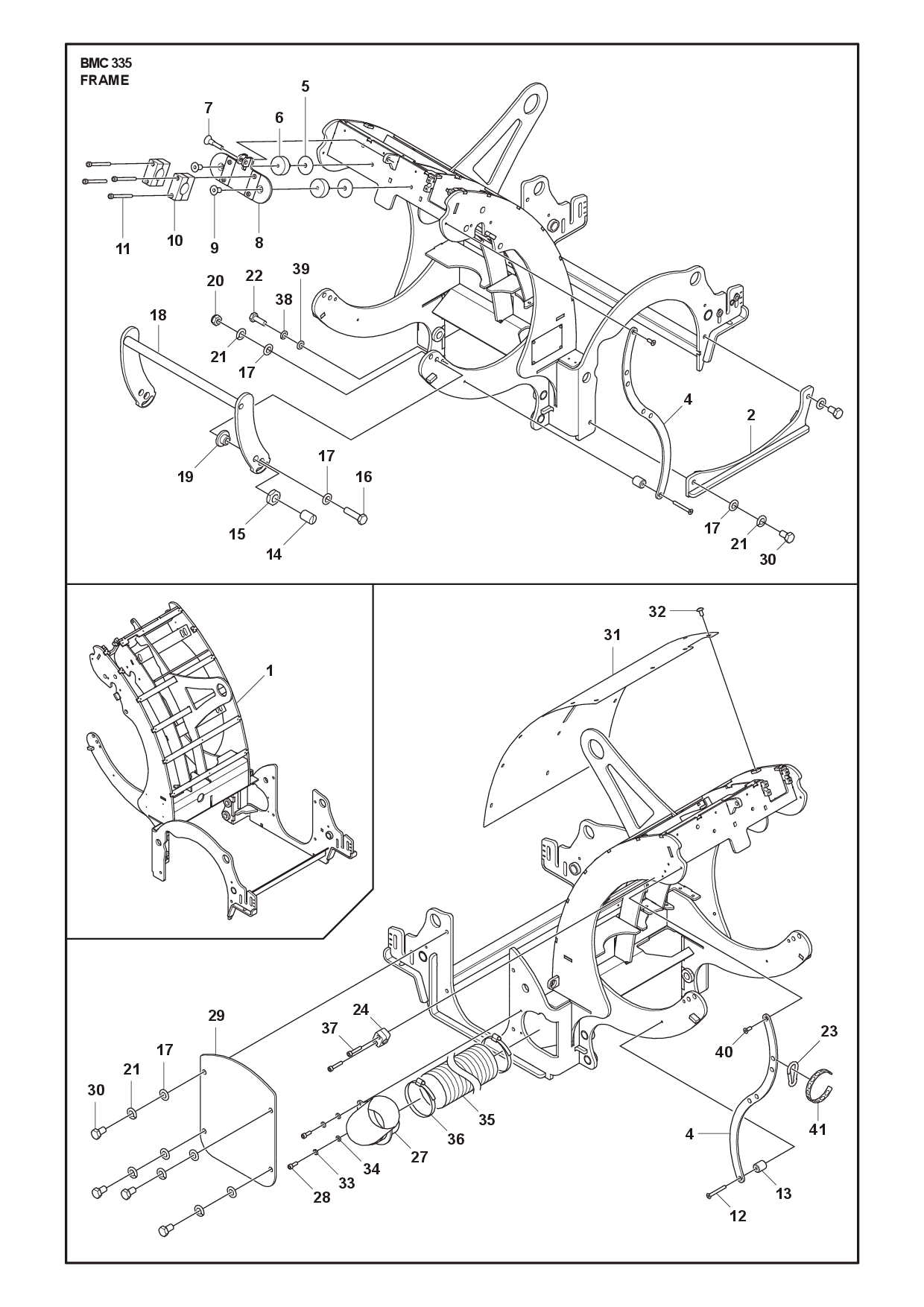

FRAME 38 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1FRAME | 535181902 | 1 | |||
| 2SUPPORT | 535251102 | 1 | |||
| 4BAR | 535241402 | 2 | |||
| 5WASHER | 540388401 | 2 | 10x50x3 | ||
| 6ABSORBER | 540381301 | 2 | |||
| 7PIN | 533256401 | 1 | |||
| 8CLAMP | 535258002 | 1 | |||
| 9SCREW | 593507601 | 2 | M10x16 ISO 10642 10.9 ZP | ||
| 10PIPE CLAMP | 533767701 | 2 | |||
| 11SCREW | 540388501 | 4 | M6x65 ISO 4762 8.8 ZPB | ||
| 12SCREW | 596891204 | 2 | M6x60 ISO 10642 10.9 FZB | ||
| 13BUSH | 535245001 | 2 | |||
| 14SPRING | 533278401 | 2 | |||
| 15NUT | 540386901 | 2 | M20 ISO 4035 4 ZPB | ||
| 16SCREW | 596889702 | 2 | M12x45 ISO4017 12.9 | ||
| 17FENDER | 540782201 | 10 | 12x30x3 | ||
| 18SUPPORT | 535254802 | 1 | |||
| 19BUSHING | 533250601 | 2 | |||
| 20NUT | 595112701 | 2 | M12 ISO7040 8 FZB | ||
| 21WASHER | 540385801 | 8 | M12 DIN 127 B ZPB | ||
| 22SCREW | 594120701 | 2 | M10x30 ISO 4762 8.8 FZB | ||
| 23HOOK | 540513701 | 2 | |||
| 24PIPE CLAMP | 533015801 | 1 | |||
| 27HOSE | 534874902 | 1 | |||
| 28SCREW | 595034201 | 2 | M6x16 ISO 4762 8.8 ZPB | ||
| 29COVER | 535157002 | 1 | |||
| 30SCREW | 595345301 | 5 | M12x25 ISO 4017 8.8 A3K | ||
| 31PLATE | 535185502 | 1 | |||
| 32SCREW | 540578201 | 15 | M5x10 7380 8.8 a2 | ||
| 33WASHER | 595353101 | 2 | M6 DIN 127 B ZPB | ||
| 34PLANE WASHER | 595036501 | 2 | M6 ISO 7089 200HV ZPB | ||
| 35HOSE | 534784101 | 1 | |||
| 36HOSE CLAMP | 534629001 | 2 | |||
| 37SCREW | 594120301 | 2 | M6x35 ISO 4762 8.8 ZPB | ||
| 38SPRING WASHER | 735117301 | 2 | M10 DIN 127 B ZPB | ||
| 39WASHER | 595113301 | 2 | M10 ISO 7089 200HV ZPB | ||
| 40SCREW | 593507801 | 2 | M6x16 ISO 14581 8.8 ZP DL | ||
| 41CHAIN | 533088802 | 1 |
FRAME 32 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1FRAME | 535181902 | 1 | |||
| 2SUPPORT | 535251102 | 1 | |||
| 3AXLE | 535192701 | 2 | |||
| 4BAR | 535241402 | 2 | |||
| 5WASHER | 584815901 | 2 | |||
| 6ABSORBER | 533848201 | 2 | |||
| 7PIN | 533256401 | 1 | |||
| 8CLAMP | 535258002 | 1 | |||
| 9SCREW IHCSFM | 725649101 | 2 | |||
| 10PIPE CLAMP | 533767701 | 2 | |||
| 11SCREW | 538894101 | 4 | |||
| 12SCREW IHCSFM | 725638001 | 2 | |||
| 13BUSH | 535245001 | 2 | |||
| 14SPRING | 533278401 | 2 | |||
| 15HEXAGON NUT | 533244501 | 2 | |||
| 16SCREW EHHM | 725254171 | 2 | |||
| 17WASHER | 734117801 | 12 | |||
| 18SUPPORT | 535254802 | 1 | |||
| 19BUSHING | 533250601 | 2 | |||
| 20WASHER | 533836901 | 2 | |||
| 21LOCK NUT | 593495301 | 2 | |||
| 22SCREW EHHM | 725249571 | 2 | |||
| 23HOOK | 533214001 | 3 | |||
| 24PIPE CLAMP | 534757401 | 1 | |||
| 25WASHER | 534677301 | 2 | |||
| 26SCREW IHSCM | 576426701 | 4 | |||
| 27HOSE | 534874902 | 1 | |||
| 28SCREW | 593500701 | 2 | |||
| 29COVER | 535157002 | 1 | |||
| 30SCREW EHHFM | 576654802 | 4 | |||
| 31PLATE | 535185502 | 1 | |||
| 32SCREW IHSCFM | 503200770 | 16 |
HEIGHT ADJUSTMENT 26 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 2WHEEL | 535352501 | 1 | |||
| 3SPINDLE | 534858301 | 1 | |||
| 4ADJUSTER | 534619901 | 1 | |||
| 5CLAMP | 534391501 | 1 | |||
| 6SCREW IHCSFM | 725637051 | 2 | |||
| 7BEARING | 534758901 | 1 | |||
| 8BLOCK | 534847001 | 1 | |||
| 9WASHER | 734116301 | 2 | |||
| 10SCREW | 534615101 | 2 | |||
| 13BEARING | 534758801 | 1 | |||
| 14BLOCK | 534846901 | 1 | |||
| 16NUT | 538914101 | 2 | |||
| 17STUD | 534880401 | 1 | |||
| 18SCREW IHSCM | 576426701 | 4 | |||
| 19WASHER | 534064101 | 2 | |||
| 20BUSHING | 531469501 | 4 | |||
| 21ELBOW | 535634001 | 1 | |||
| 22LEVER | 536981301 | 1 | |||
| 23MOUNTING PLATE | 535217401 | 1 | |||
| 24BEARING | 531484501 | 2 | |||
| 25MOUNTING PLATE | 535218101 | 1 | |||
| 26HANDLE | 535192902 | 1 | |||
| 27BUSHING | 533897501 | 1 | |||
| 28LOCKING PIN | 533271701 | 1 | |||
| 29SCREW | 538912401 | 1 | |||
| 30HANDLE GRIP | 533916301 | 1 |
HEIGHT ADJUSTMENT 21 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SPRING | 534868201 | 1 | |||
| 2SCREW | 536054101 | 4 | |||
| 3PLATE | 535257101 | 1 | |||
| 4BLOCK | 534847101 | 2 | |||
| 5BLOCK | 535215401 | 1 | |||
| 6NIPPLE | 534732301 | 2 | |||
| 7PLATE | 535161402 | 1 | |||
| 8BLOCK | 535215501 | 1 | |||
| 9PLATE | 535257201 | 1 | |||
| 10STUD | 535249501 | 1 | |||
| 11KNOB | 534761901 | 3 | |||
| 12BAR | 535229602 | 1 | |||
| 13SCREW EHHFM | 506570106 | 1 | |||
| 14CONTROL CABLE | 534409601 | 1 | |||
| 15SCREW EHHM | 580703601 | 2 | |||
| 16BRACKET | 535192802 | 1 | |||
| 17BUSH | 534906501 | 2 | |||
| 18SCREW IHSCM | 725545101 | 4 | |||
| 19SUPPORT | 535187702 | 1 | |||
| 20GAS SPRING | 533298201 | 1 | |||
| 21PLATE | 535244201 | 1 |

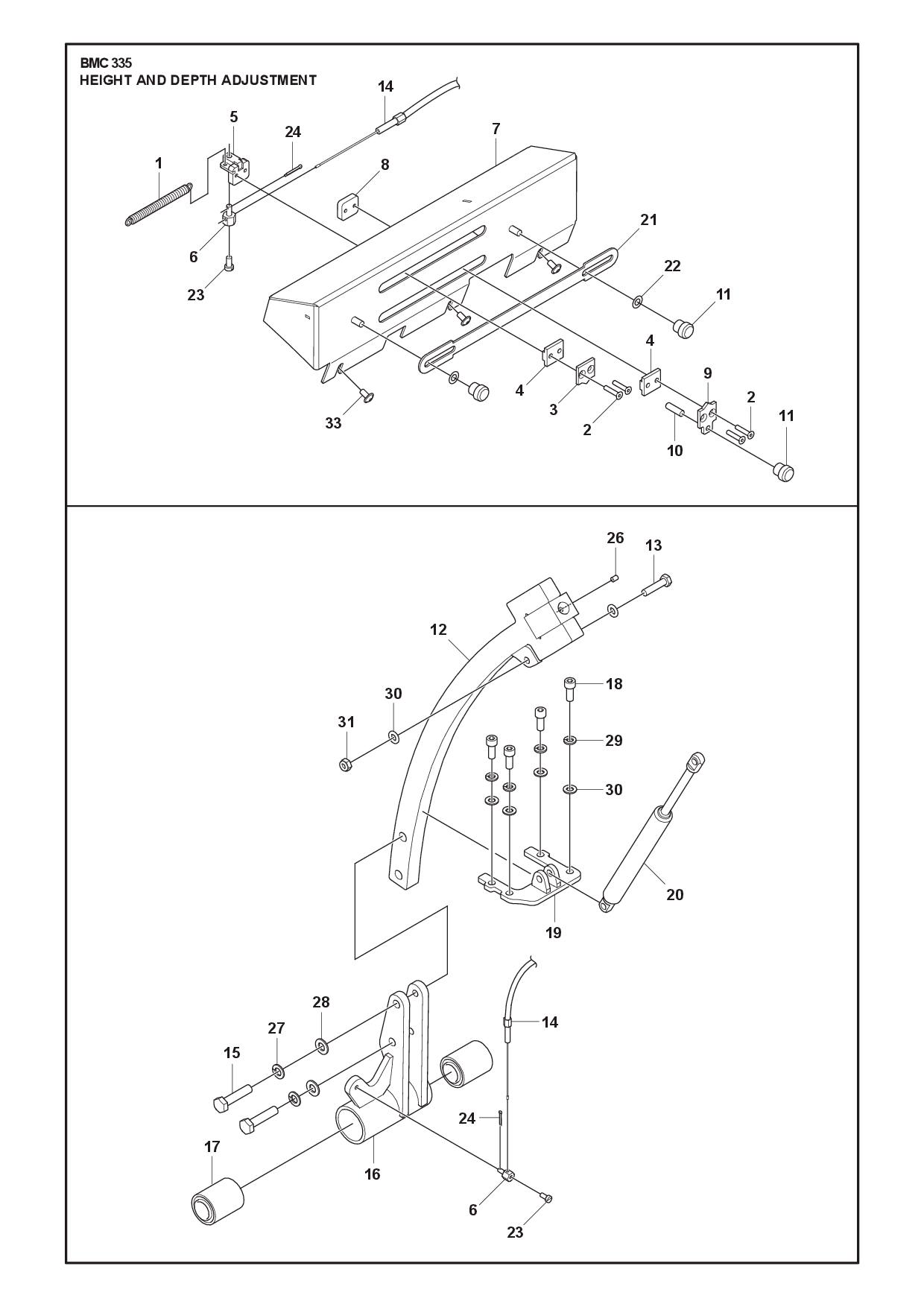

HEIGHT ADJUSTMENT 31 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SPRING | 534868201 | 1 | |||
| 2SCREW | 540388001 | 4 | M4x20 ISO 10642 10.9 FZB | ||
| 3PLATE | 535257101 | 1 | |||
| 4BLOCK | 534847101 | 2 | |||
| 5BLOCK | 535215401 | 1 | |||
| 6NIPPLE | 534732301 | 2 | |||
| 7PLATE | 535161402 | 1 | |||
| 8BLOCK | 535215501 | 1 | |||
| 9PLATE | 535257201 | 1 | |||
| 10SCREW | 540578301 | 1 | M6x20 ISO 4029 45H | ||
| 11KNOB | 534761901 | 3 | |||
| 12BAR | 535229602 | 1 | |||
| 13BOLT | 595110201 | 2 | |||
| 14CONTROL CABLE | 534409601 | 1 | |||
| 15BOLT | 594118701 | 2 | M10x45 ISO 4014 8.8 FZB | ||
| 16BRACKET | 535192802 | 1 | |||
| 17BUSH | 534906501 | 2 | |||
| 18SCREW | 595348301 | 4 | M8x20 ISO 4762 8.8 ZPB | ||
| 19SUPPORT | 535187702 | 1 | |||
| 20GAS SPRING | 533298201 | 1 | |||
| 21PLATE | 535244201 | 1 | |||
| 22PLANE WASHER | 595036501 | 2 | M6 ISO 7089 200HV ZPB | ||
| 23SCREW | 595111001 | 2 | M5x10 ISO 4762 8.8 FZB | ||
| 24PARTS CATALOGUE | 540578101 | 2 | 2x20 DIN 94 | ||
| 26SCREW | 529512501 | 1 | M6x8 ISO 4027 45H FZB | ||
| 27SPRING WASHER | 735117301 | 2 | M10 DIN 127 B ZPB | ||
| 28WASHER | 595113301 | 2 | M10 ISO 7089 200HV ZPB | ||
| 29WASHER | 595061301 | 4 | M8 DIN 127 B ZPB | ||
| 30WASHER | 595036601 | 6 | M8 ISO 7089 200HV ZPB | ||
| 31NUT | 595112501 | 2 | M8 ISO 10511 8 A2K | ||
| 33SCREW | 540578201 | 3 | M5x10 7380 8.8 a2 |

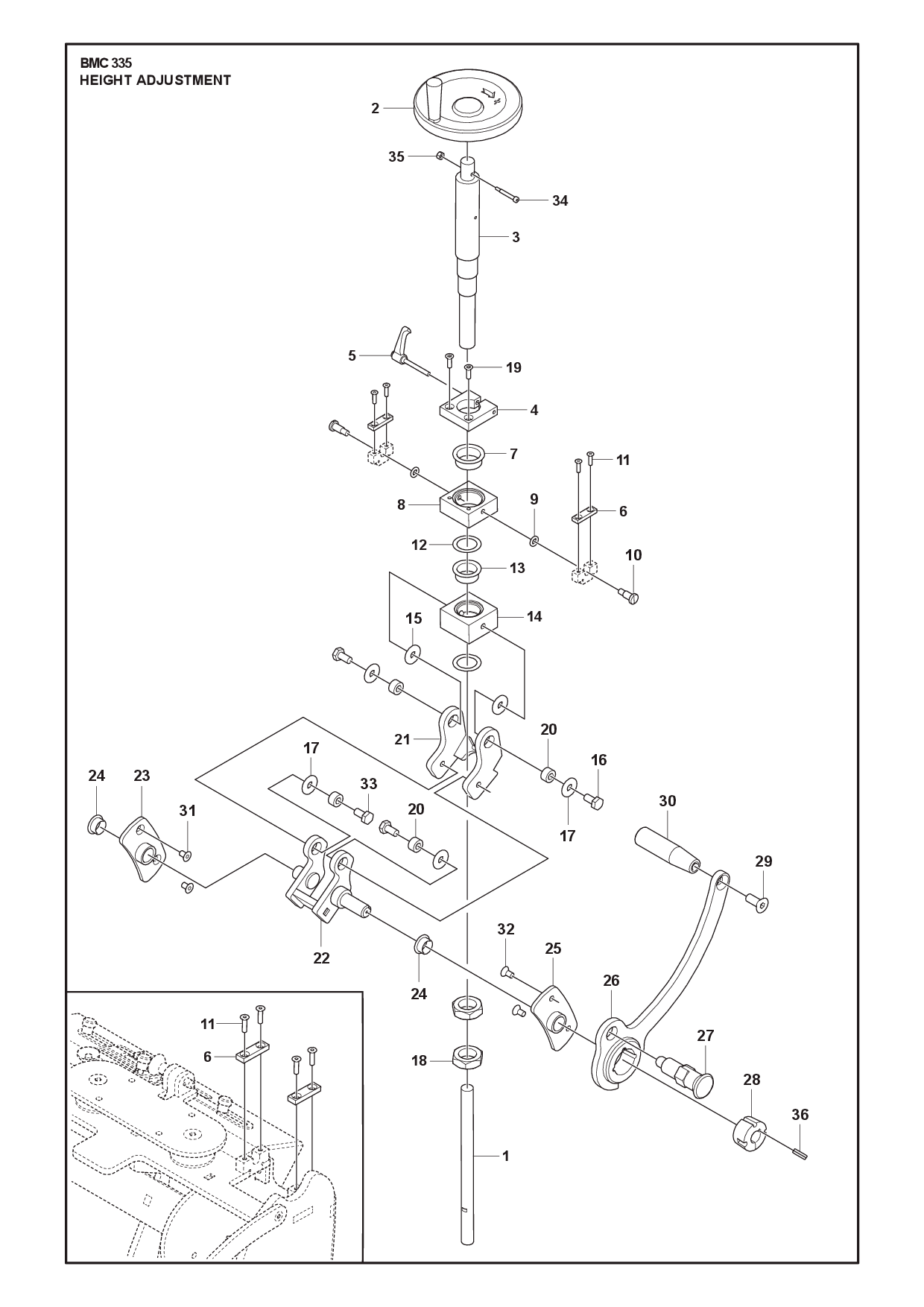

HEIGHT ADJUSTMENT 36 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1STUD | 534880401 | 1 | |||
| 2WHEEL | 535352501 | 1 | |||
| 3SPINDLE | 534858301 | 1 | |||
| 4CLAMP | 534391501 | 1 | |||
| 5ADJUSTER | 534619901 | 1 | |||
| 6AXLE | 535192701 | 2 | |||
| 7BEARING | 534758901 | 1 | |||
| 8BLOCK | 534847001 | 1 | |||
| 9WASHER | 595036601 | 2 | M8 ISO 7089 200HV ZPB | ||
| 10SCREW | 534615101 | 2 | |||
| 11SCREW | 594399001 | 4 | M5x10 ISO 10642 10.9 FZB | ||
| 12WASHER | 540573601 | 2 | |||
| 13BEARING | 534758801 | 1 | |||
| 14BLOCK | 534846901 | 1 | |||
| 15RING | 541064301 | 2 | Plastic washer | ||
| 16SCREW | 594118401 | 2 | M10x20 ISO 4017 8.8 FZB | ||
| 17PLANE WASHER | 594123501 | 4 | M10 DIN 9021B FZB | ||
| 18NUT | 538914101 | 2 | M27x1,5 | ||
| 19SCREW IHCSFM | 725637051 | 2 | M6x20 ISO 10642 10.9 FZB | ||
| 20BUSHING | 531469501 | 4 | |||
| 21ELBOW | 534545901 | 1 | |||
| 22LEVER | 535639002 | 1 | |||
| 23MOUNTING PLATE | 535217401 | 1 | |||
| 24BEARING | 531484501 | 2 | |||
| 25MOUNTING PLATE | 535218101 | 1 | |||
| 26HANDLE | 535192902 | 1 | |||
| 27LOCKING PIN | 533271701 | 1 | |||
| 28BUSHING | 533897501 | 1 | |||
| 29SCREW | 540573202 | 1 | M12x30 ISO 10642 8.8 Zn | ||
| 30HANDLE GRIP | 533916301 | 1 | |||
| 31SCREW | 540573203 | 2 | M8x12 ISO 10642 8.8 Zn | ||
| 32SCREW | 596891203 | 2 | M8x16 ISO 10642 10.9 FZB | ||
| 33SCREW | 595071101 | 2 | M10x25 ISO 4017 8.8 FZB | ||
| 34SCREW | 540387001 | 1 | |||
| 35LOCK NUT | 595069201 | 1 | |||
| 36PARALLEL KEY | 593505401 | 1 | 6x6x25 ISO 6885 A |
PULLEYS & BELTS 10 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1DRIVE BELT | 534319401 | 1 | |||
| 2PULLEY | 534637601 | 1 | |||
| 10DRIVE BELT | 534636701 | 1 | |||
| 11PULLEY | 534637601 | 1 | |||
| 12BELT COVER | 534320401 | 1 | |||
| 13HOOK | 534626501 | 1 | |||
| 14SHAFT | 533587301 | 1 | |||
| 15PULLEY | 534637201 | 1 | |||
| 16DRUM | 534431501 | 1 | |||
| 18SERVICE KIT | 534249201 | 1 |
REMOTE CONTROL 9 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 340REMOTE CONTROL | 536981501 | 1 | |||
| 341UNIT | 536981601 | 1 | |||
| 342CHARGER | 533572401 | 1 | CHARGER 230V AC | ||
| 342PLUG | 538993001 | 1 | UK | ||
| 342PLUG | 538993002 | 1 | US | ||
| 342PLUG | 538993004 | 1 | EU | ||
| 342PLUG | 538993003 | 1 | AU | ||
| 343BATTERY | 533686501 | 1 | |||
| 344CARRIER | 533824201 | 1 |
SIDE COVER 23 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HANDLE | 534616801 | 2 | |||
| 2COVER | 535157102 | 1 | |||
| 3SCREW IHSCM | 725528901 | 2 | |||
| 4SCREW EHHM | 725253871 | 3 | |||
| 5WASHER | 533836901 | 3 | |||
| 6PLATE | 535212202 | 1 | |||
| 7BEARING HOUSING | 534315701 | 1 | |||
| 8SEAL | 533255801 | 1 | |||
| 9RING | 533220501 | 1 | |||
| 10CIRCLIP | 534389501 | 2 | |||
| 11BEARING | 533611301 | 1 | |||
| 12SUPPORT | 533485001 | 1 | |||
| 13SEAL | 533740901 | 1 | |||
| 14SCREW | 593497301 | 4 | |||
| 15BRUSH | 538869601 | 1 | |||
| 16GASKET | 534824502 | 1 | |||
| 17WASHER | 734116301 | 2 | |||
| 18NUT | 576645704 | 2 | |||
| 19SCREW IHSCM | 725549501 | 3 | |||
| 20WASHER | 533321101 | 3 | |||
| 21WASHER | 734117201 | 3 | |||
| 22SCREW IHSCM | 725544901 | 4 | |||
| 23BEARING UNIT | 534807801 | 1 | Article 7-13 |
STEERING 17 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1PLATE | 536546101 | 1 | |||
| 2POTENTIOMETER | 533829401 | 2 | |||
| 3JOYSTICK | 534654401 | 2 | |||
| 4BUTTON | 533990401 | 2 | |||
| 5STOP | 533749201 | 1 | |||
| 6METER | 536977501 | 1 | |||
| 8SCREW | 536054601 | 11 | |||
| 9SWITCH | 533387401 | 1 | |||
| 10KEY | 533289101 | 1 | |||
| 11CORD | 533810801 | 1 | |||
| 12BOX | 534409102 | 1 | |||
| 13SEAL | 536977601 | 1 | |||
| 14COVER | 534416401 | 1 | |||
| 15BAR | 535190002 | 1 | |||
| 16TUBE | 533407601 | 2 | |||
| 17BUMPER | 533267601 | 1 | |||
| 18SCREW IHSCFM | 503200770 | 4 |

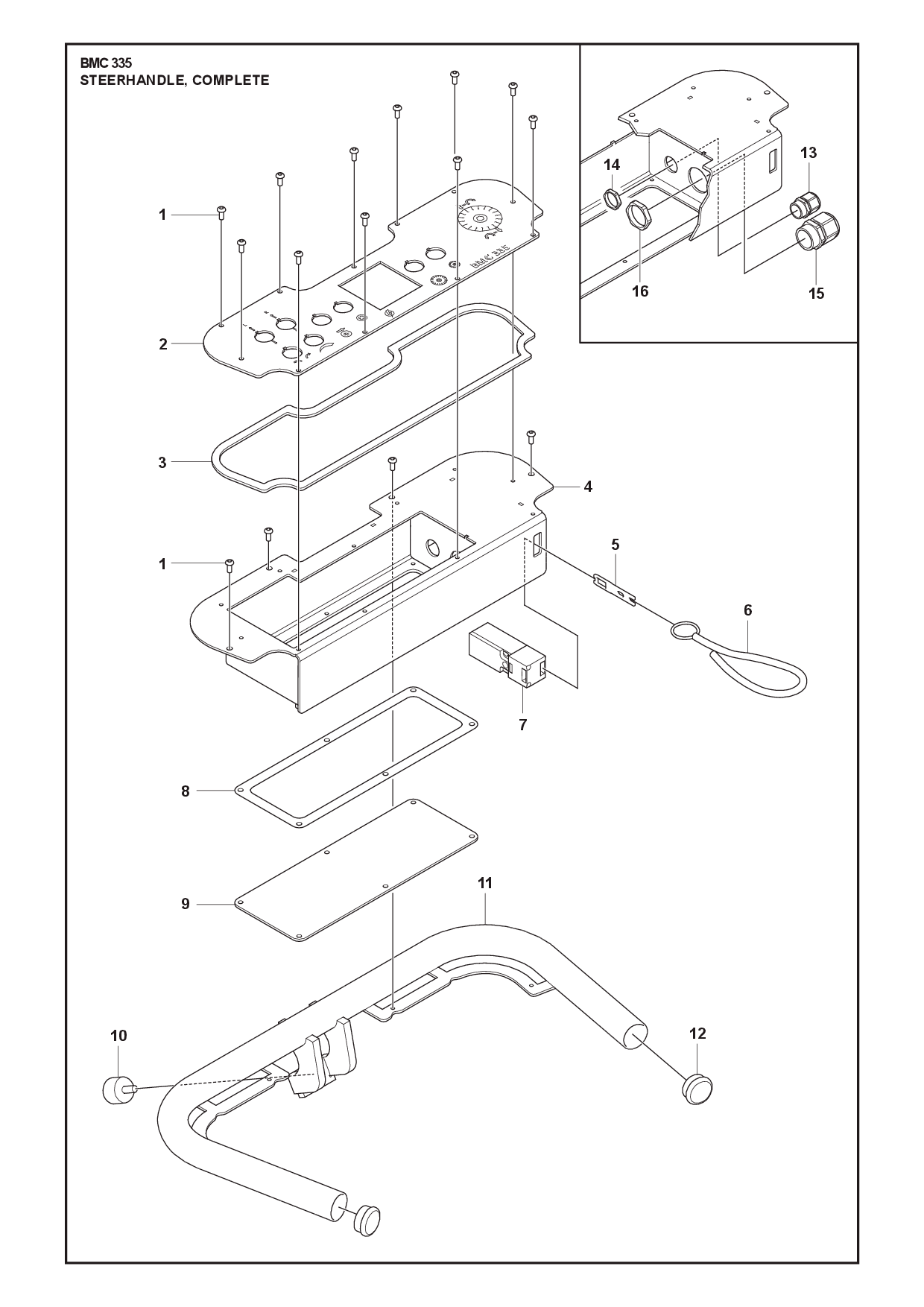

STEERING 15 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW | 594399001 | 15 | M5x10 ISO 10642 10.9 FZB | ||
| 3SEAL | 538769301 | 1 | |||
| 4BOX | 534409102 | 1 | |||
| 5KEY | 533289101 | 1 | XCS-Z11 | ||
| 6CORD | 533810801 | 1 | |||
| 7SWITCH | 533387401 | 1 | XCS-PA792 | ||
| 8SEAL | 536977601 | 1 | |||
| 9COVER | 534416401 | 1 | |||
| 10BUMPER | 533267601 | 1 | |||
| 11HANDLE | 536938202 | 1 | |||
| 12TUBE | 533407601 | 2 | |||
| 13CABLE | 533984901 | 1 | Cable gland M16, brass, nickel-plated | ||
| 14CABLE | 534027101 | 1 | Cable gland nut M16, brass, nickel-plated | ||
| 15CABLE | 533795201 | 1 | Cable gland M32, brass, nickel-plated | ||
| 16CABLE | 534027901 | 1 | Cable gland nut M32, brass, nickel-plated |

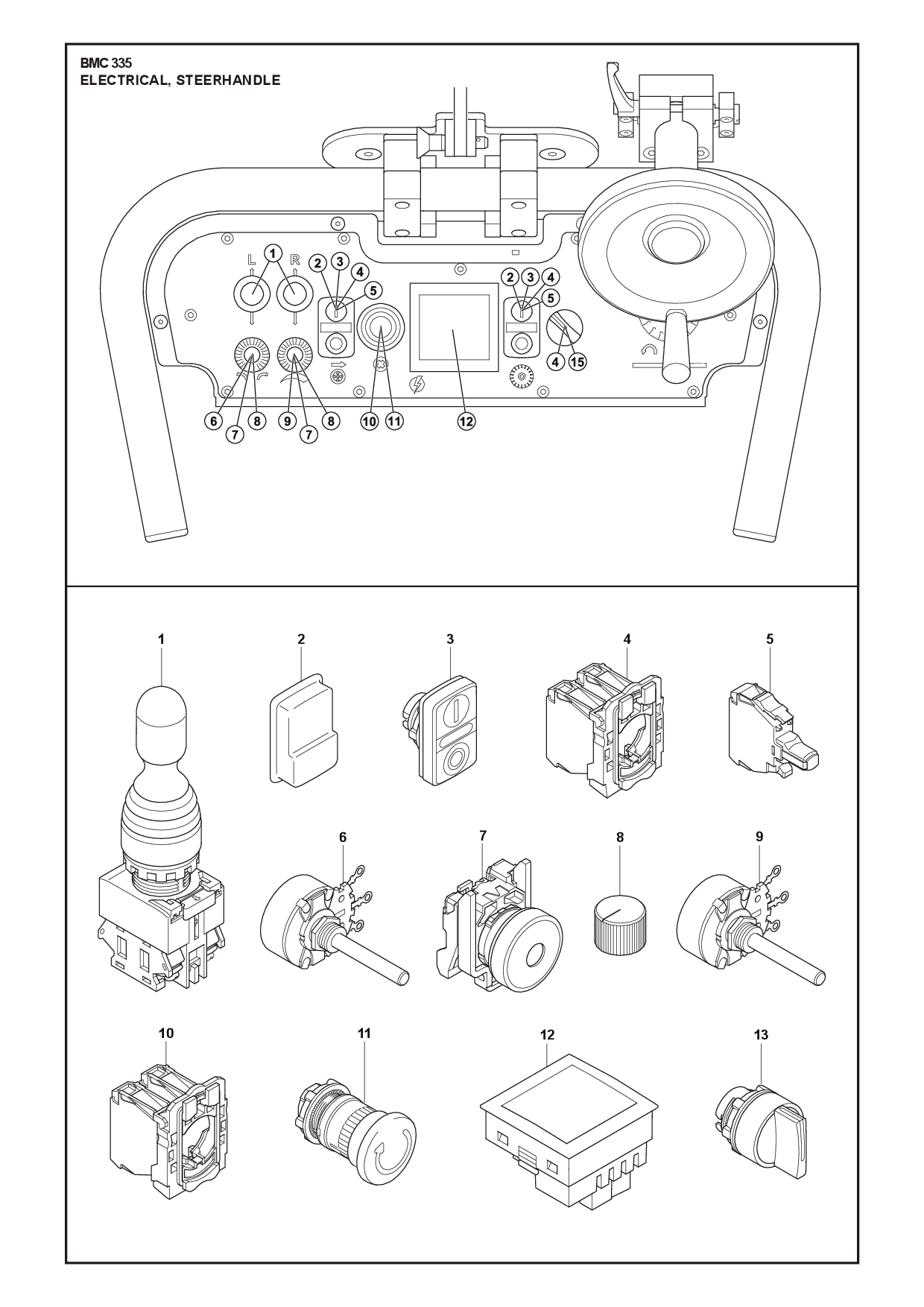

STEERING 12 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1JOYSTICK | 534654401 | 2 | LAS0-K-20C21 | ||
| 2SHOE | 533989601 | 2 | ZBA-710 | ||
| 3BUTTON | 533990401 | 2 | ZB5-AW7A3741 | ||
| 4CONTACT | 533894001 | 3 | ZB5-AZ105 | ||
| 5BLOCK | 547017560 | 2 | ZBVB1, white | ||
| 7HOLDER | 533994301 | 2 | ZB4-BD912 | ||
| 8KNOB | 547690232 | 2 | MENTOR 506.611 | ||
| 9POTENTIOMETER | 534771201 | 1 | 10 kOhm | ||
| 10CONTACT | 533387001 | 1 | ZB5-AZ104 | ||
| 11STOP | 533749201 | 1 | ZB5-AS844 | ||
| 12METER | 536977501 | 1 | |||
| 13SWITCH | 533403101 | 1 | ZB5-AD2 |
WATER SYSTEM 9 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 2HOSE | 533278101 | 1 | |||
| 3VALVE | 533252301 | 1 | |||
| 4COUPLING | 533500701 | 1 | |||
| 5HOSE | 533259501 | 7 | |||
| 6PIPE CLAMP | 533199501 | 6 | |||
| 7COUPLING | 533375401 | 3 | |||
| 8COUPLING | 533266701 | 4 | |||
| 9HOSE CLAMP | 534629001 | 2 | |||
| 10HOSE | 534784101 | 1 |

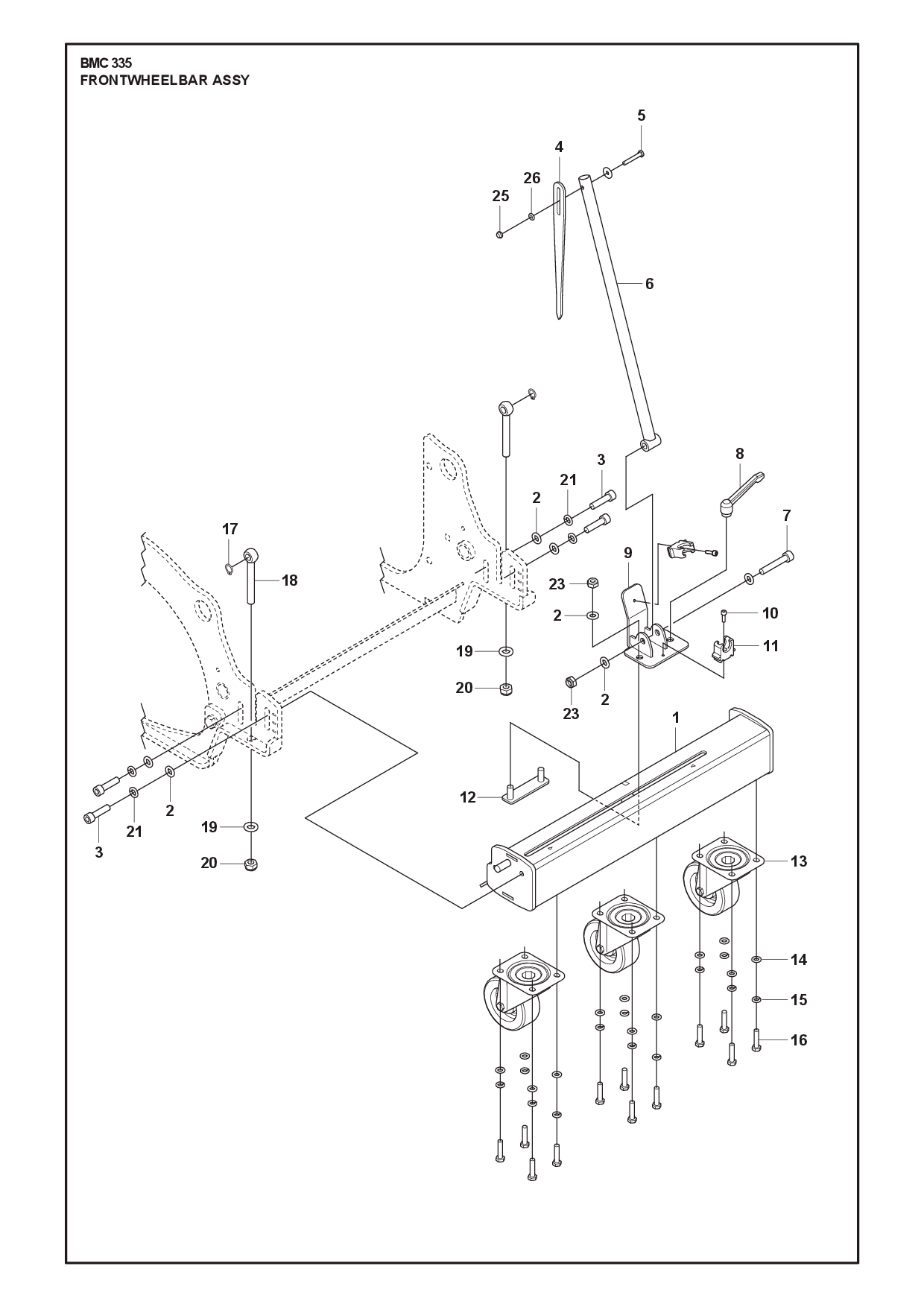

WHEEL 25 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BRACKET | 535183802 | 1 | |||
| 2WASHER | 595113301 | 6 | M10 ISO 7089 200HV ZPB | ||
| 3SCREW | 594120701 | 4 | M10x30 ISO 4762 8.8 FZB | ||
| 4INDICATOR | 534513102 | 1 | |||
| 5SCREW | 594120301 | 1 | M6x35 ISO 4762 8.8 ZPB | ||
| 6PIPE | 534513302 | 1 | |||
| 7SCREW | 540388301 | 1 | M10x55 ISO 4762 8.8 ZPB | ||
| 8CLAMP | 533512101 | 1 | |||
| 9INDICATOR | 534513202 | 1 | |||
| 10SCREW | 595111001 | 2 | M5x10 ISO 4762 8.8 FZB | ||
| 11CLAMP | 534390801 | 2 | |||
| 12BLOCK | 534341601 | 1 | |||
| 13WHEEL | 534385401 | 3 | |||
| 14WASHER | 595036601 | 12 | M8 ISO 7089 200HV ZPB | ||
| 15WASHER | 595061301 | 12 | M8 DIN 127 B ZPB | ||
| 16SCREW | 595033401 | 12 | M8x25 ISO 4017 8.8 FZB | ||
| 17CIRCLIP | 595113901 | 2 | |||
| 18BOLT | 535641301 | 2 | |||
| 19WASHER | 595113401 | 2 | M12 ISO 7089 200HV ZPB | ||
| 20NUT | 595112701 | 2 | M12 ISO7040 8 FZB | ||
| 21SPRING WASHER | 735117301 | 4 | M10 DIN 127 B ZPB | ||
| 23LOCK NUT | 594122901 | 1 | M10 ISO 10511 8 A3K | ||
| 24WASHER | 595037001 | 2 | M5 DIN 6798 A | ||
| 25LOCK NUT | 595036001 | 1 | M6 ISO7040 8 FZB | ||
| 26PLANE WASHER | 595036501 | 2 | M6 ISO 7089 200HV ZPB |
WHEEL ASSY 20 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BRACKET | 535183802 | 1 | |||
| 2WASHER | 734117201 | 7 |
Regular price
$22.68
Regular price
|
||
| 3SCREW IHSCM | 576426701 | 4 | |||
| 4INDICATOR | 534513102 | 1 | |||
| 5SCREW | 536057601 | 1 | |||
| 6PIPE | 534513302 | 1 | |||
| 7SCREW | 597883201 | 1 | |||
| 8CLAMP | 533512101 | 1 | |||
| 9INDICATOR | 534513202 | 1 | |||
| 10SCREW IHSCM | 725532901 | 2 |
Regular price
$22.78
Regular price
|
||
| 11CLAMP | 534390801 | 2 | |||
| 12BLOCK | 534341601 | 1 | |||
| 13WHEEL | 534385401 | 3 | |||
| 14WASHER | 734116301 | 12 |
Regular price
$22.68
Regular price
|
||
| 15WASHER | 534693901 | 12 | |||
| 16SCREW | 725245751 | 12 |
Regular price
$22.50
Regular price
|
||
| 17RETAINER RING | 533722901 | 2 | |||
| 18BOLT | 535641301 | 2 | |||
| 19WASHER | 734117801 | 2 |
Regular price
$10.51
Regular price
|
||
| 20LOCK NUT | 593495301 | 2 |
Document Downloads
Workshop manual
Service bulletin
Operator's manual
Illustrated part list
Compatable Accessories
Related Tools
Concrete Focus
From pouring to resurfacing, we sell tools built for concrete pros.
Expert Support
Get guidance from experts who understand jobsite challenges.
Fast Delivery
Get your tools fast with our nationwide shipping network and local partnerships.
Talk to an expert now (855) 281-1918
Get fast, expert help choosing the right concrete tools or equipment for your job. Ask about availability, specs, troubleshooting, or get friendly guidance before you place an order.
