Husqvarna BS 75 | Floor Scraper
Husqvarna BS 75 | Floor Scraper
HUSQVARNA CONSTRUCTION SKU: 970615002 Copied!
Is this the right tool for the job?
Regular price
$7,259.00
Regular price
$9,083.00
Sale price
$7,259.00
Quantity
Trusted by contractors nationwide
"I've bought 3 products from CTD and each time the experience has been the same - professional and fast delivery. I trust these guys with all my concrete needs."
90 day returns
Product Details
HUSQVARNA FLOOR SCRAPER BS 75 - YOUR TRUSTED PARTNER FOR RENOVATION JOBS

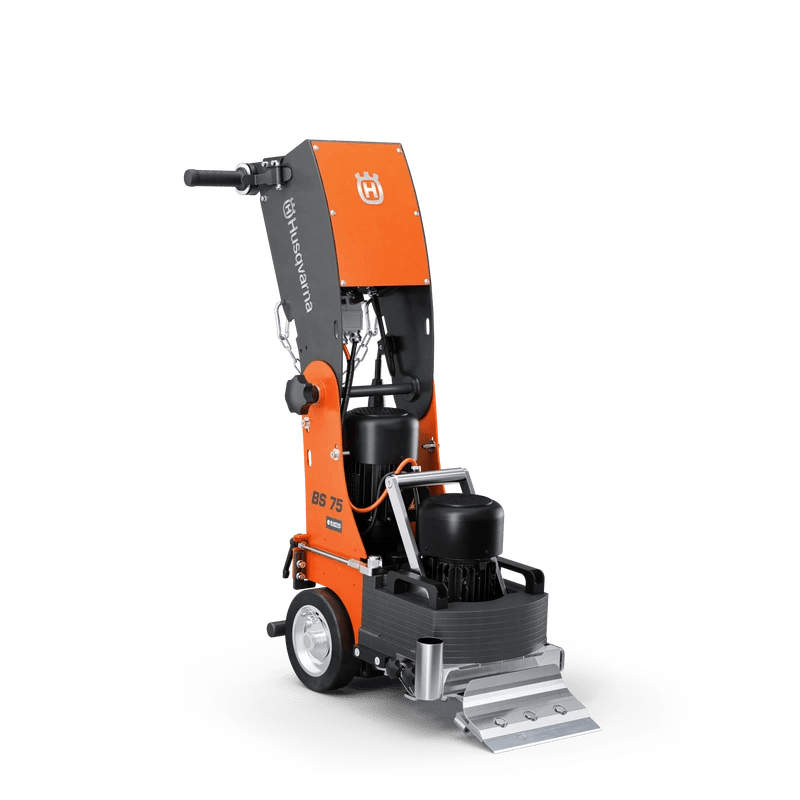

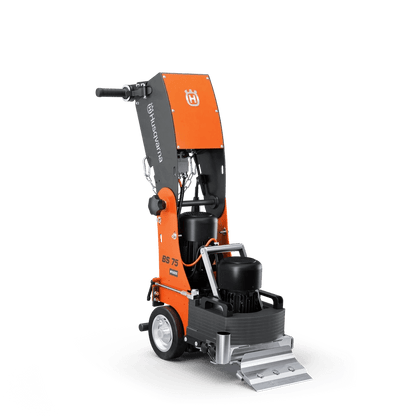

The Husqvarna BS 75 Floor Scraper is a powerful self-propelled machine, designed for both indoor and outdoor medium-sized renovation tasks. Constructed of robust metal for longevity and durability, this floor scraper delivers reliable performance with its forward and backward function, speed control, and low maintenance electronic components.
For the ease of transportation, the BS 75 can be conveniently disassembled into 3 pieces. Moreover, an additional 10 lbs weight can be added to enhance its efficiency on resilient floors. With a selection of blades and chisels, it capably removes most old floor coverings such as linoleum, vinyl, carpet, adhesives, and glue.
- Output Power: 2 hp
- Voltage: 110 V
- Weight: 282 lbs
- Working Width: 20 in
- Type of Operation: Self-propelled
Product Specification
Specifications
Output power
2 hp
Voltage
110 V
Rated current
16 A
Power source
Corded
Working width
20 in
Type of operation
Self-propelled
Product size length
34.3 in
Product size width
20.1 in
Product size height
41.8 in
Weight
282 lbs
Packaging length (Calc)
23.622 in
Packaging width (Calc)
39.37 in
Packaging height (Calc)
39.37 in
Article gross weight (Calc)
273.373 lbs
Sound level
70 dB(A)
Vibrations handlebar
4 m/s²
Warranty
1 year limited warranty
Related Equipment
Related Equipment
Service & Maintenance Parts

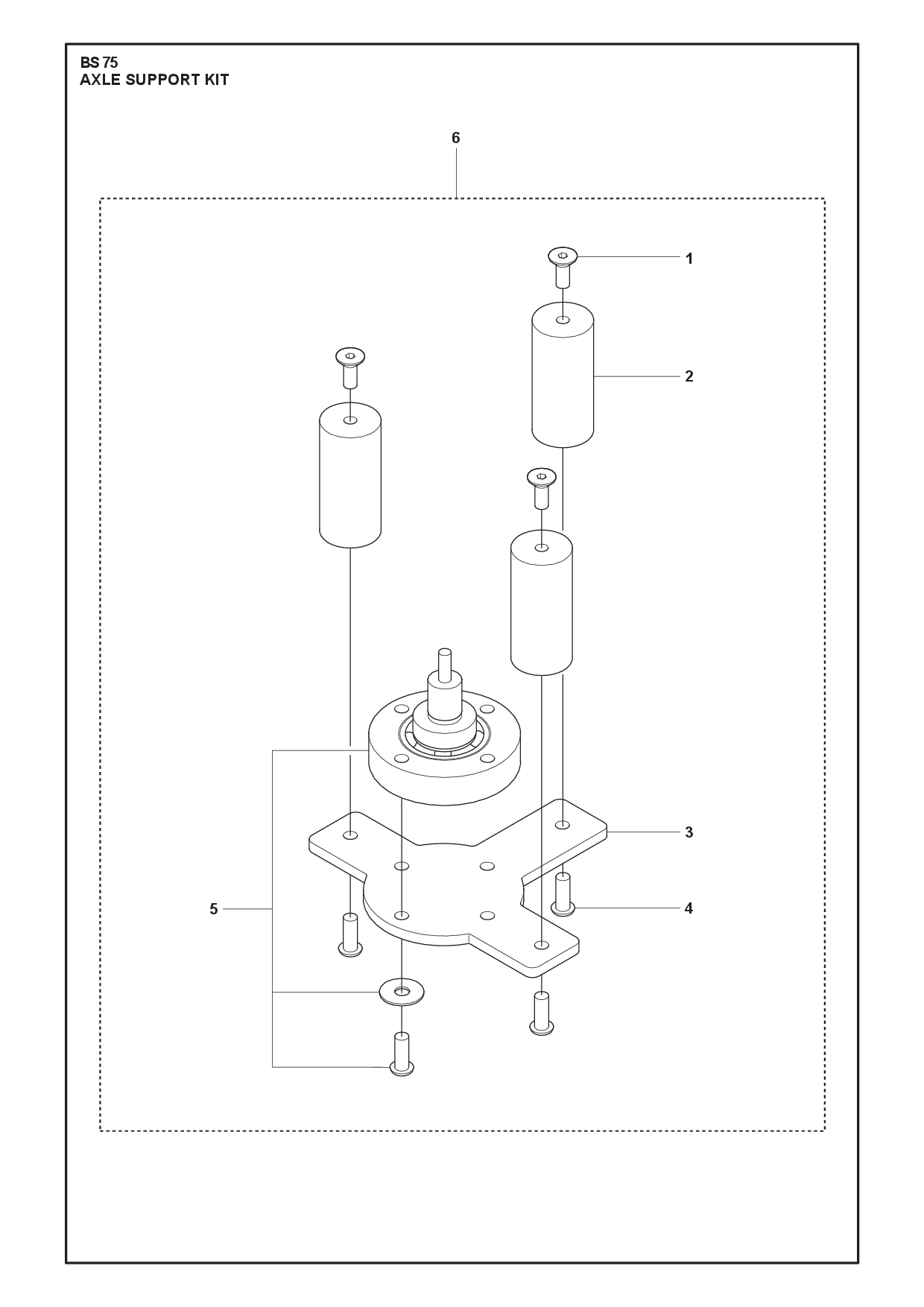

AXLE SUPPORT 6 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW | 531140658 | 3 | |||
| 2BUSH | 535250301 | 3 | |||
| 3PLATE | 535250201 | 1 | |||
| 4SCREW IHPANM | 504750202 | 3 | |||
| 5AXLE | 534304302 | 1 | |||
| 6AXLE | 536997601 | 1 | Article 1-5 - Axle support kit BS-75 |

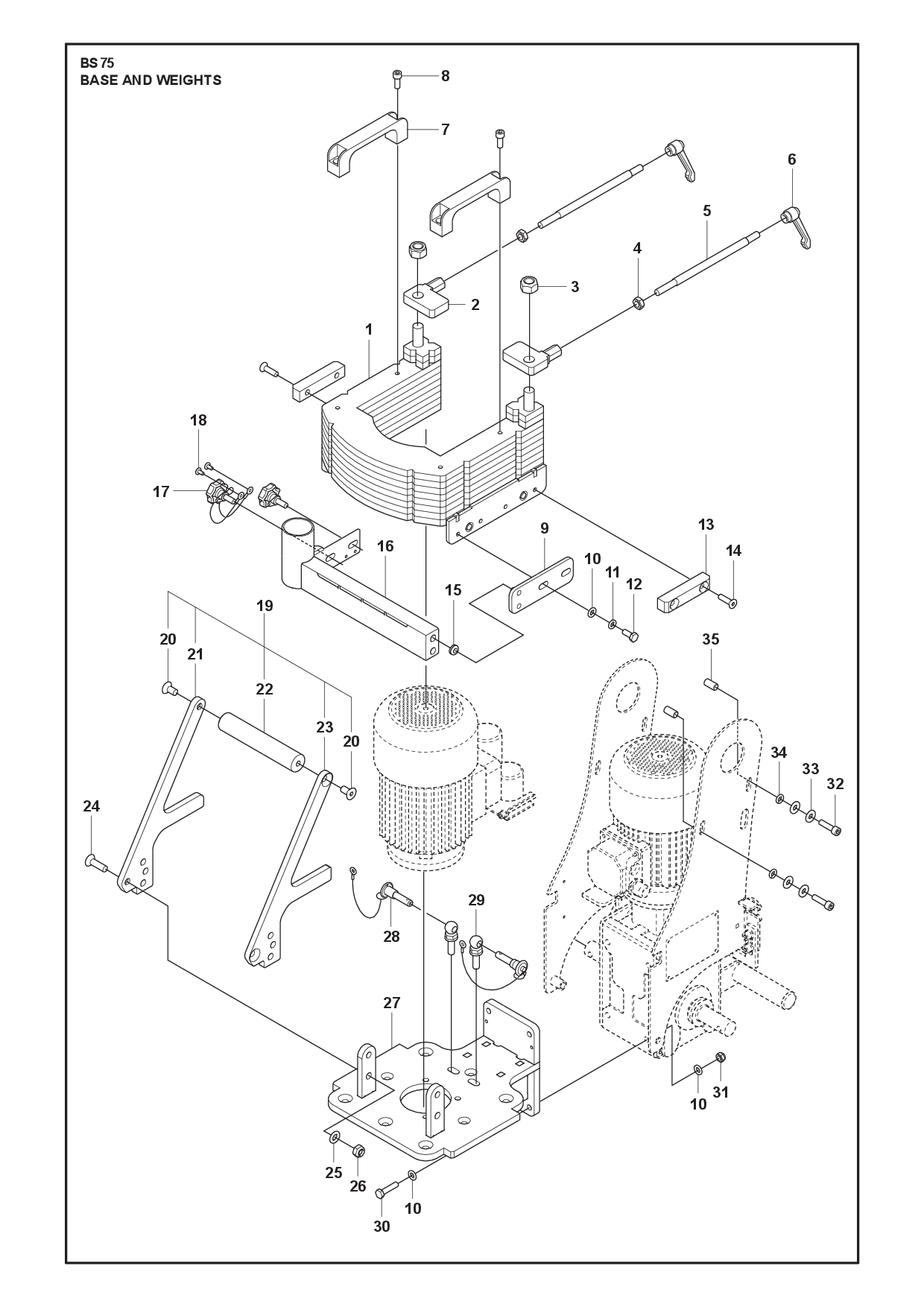

BASE ASSY 35 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1WEIGHT | 540394601 | 1 | WEIGHT 25kG | ||
| 2LEVER | 540395201 | 2 | Clamping lever part 1 | ||
| 3NUT | 534686401 | 2 | Nut M16 | ||
| 4HEXAGON NUT | 731232001 | 2 |
Regular price
$19.79
Regular price
|
||
| 5LEVER | 540511001 | 2 | Clamping lever part 2 | ||
| 6CLAMP | 540306201 | 2 | Clamp lever M10x14 | ||
| 7HANDLE | 540518701 | 2 | |||
| 8SCREW IHSCM | 725544901 | 4 | Screw M8X16 | ||
| 9BRACKET | 540513101 | 1 | Suction bar bracket | ||
| 10WASHER | 734116301 | 10 | M8 washer |
Regular price
$19.79
Regular price
|
|
| 11SPRING WASHER | 735116401 | 2 | M8 spring washer) |
Regular price
$19.79
Regular price
|
|
| 12SCREW IHSCM | 725544901 | 2 | Screw M8x16 | ||
| 13STRIP | 540510601 | 2 | Protection strip | ||
| 14SCREW IHCSFM | 725645501 | 4 | Screw M8X30 | ||
| 15GROMMET | 540510101 | 2 | Grommet 8x1,25 | ||
| 16BAR | 540513001 | 1 | Suction bar | ||
| 17KNOB | 540509601 | 2 | Knob M8x20 with chain | ||
| 18CAP | 534330301 | 2 | Screw M5X10 | ||
| 19HANDLE | 534666901 | 1 | Lifting Handle complete | ||
| 20SCREW IHCSFM | 725649151 | 2 | M10x20 counter sunk screw | ||
| 21PLATE | 540512001 | 1 | Right Plate | ||
| 22SHAFT | 540510901 | 1 | Bar | ||
| 23PLATE | 540512101 | 1 | Left Plate | ||
| 24SCREW | 534679001 | 2 | ScrewM10X40 | ||
| 25WASHER | 734117201 | 2 | M10 washer |
Regular price
$19.79
Regular price
|
|
| 26HEXAGON LOCKING NUT | 732252001 | 2 | M10 lock nut |
Regular price
$19.79
Regular price
|
|
| 27CHASSIS | 540394401 | 1 | Chassis base | ||
| 28PIN | 540509401 | 2 | Quick release pin | ||
| 29CAP | 534694401 | 2 | CAP M10X50 hex. socket head cap s. | ||
| 30SCREW EHHM | 725245771 | 4 | M8x35 external hex bolt | ||
| 31HEXAGON LOCKING NUT | 732251801 | 4 | M8 lock nut |
Regular price
$19.79
Regular price
|
|
| 32SCREW IHSCM | 725545101 | 4 | M8x20 internal hex screw | ||
| 33WASHER | 734116301 | 4 | M8 washer |
Regular price
$19.79
Regular price
|
|
| 34SPRING WASHER | 735116401 | 4 | M8spring washer |
Regular price
$19.79
Regular price
|
|
| 35NUT | 534694801 | 4 | Nut M8X20 Round CONN nut |

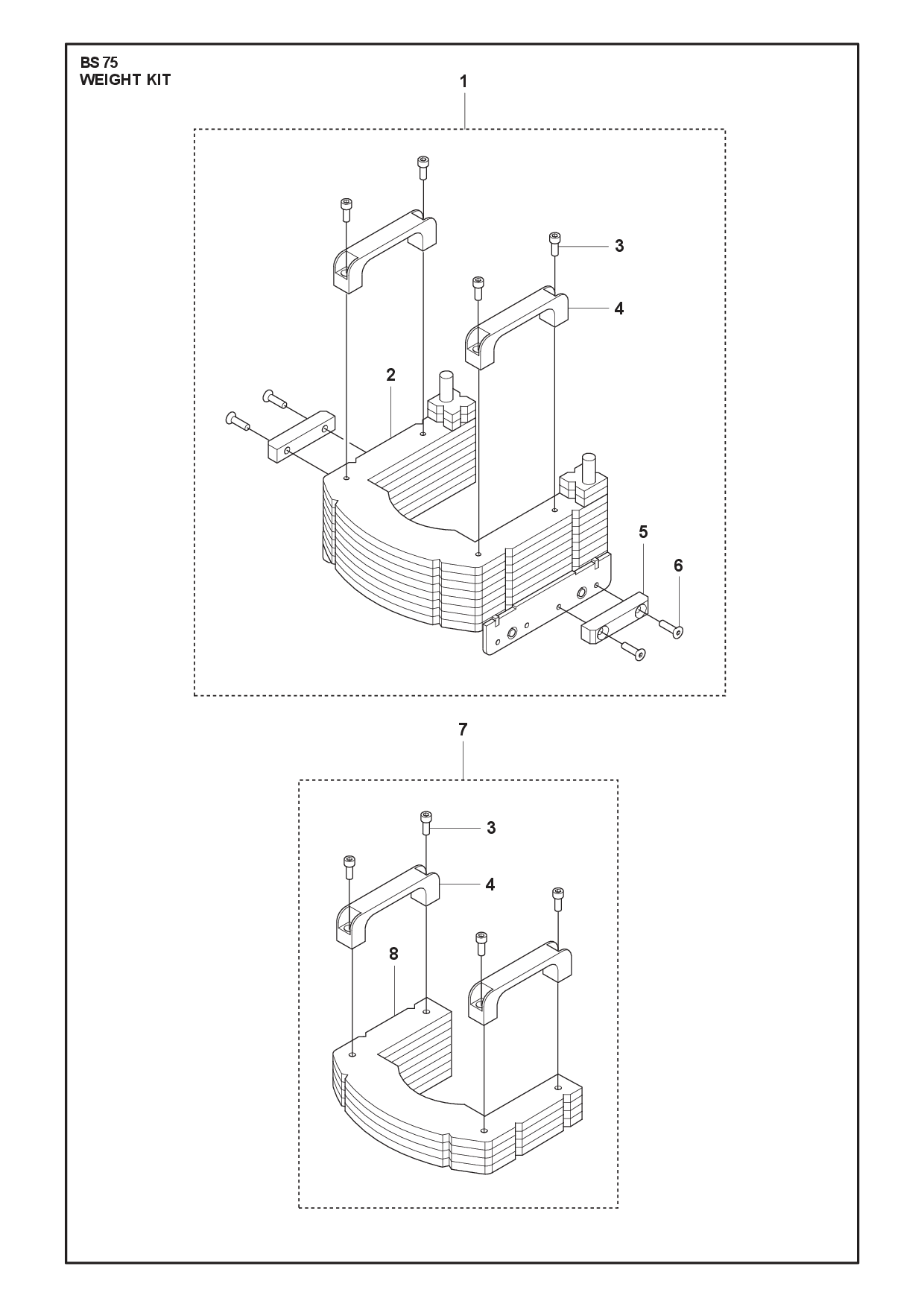

BASE PLATE 14 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HANDLE | 534616801 | 2 | Handle grip | ||
| 2WEIGHT | 535266502 | 1 | Weight block without handles and levers | ||
| 3LEVER | 534393101 | 2 | Clamping lever part 1 | ||
| 4NUT | 591838001 | 2 | M10-Nut | ||
| 5LEVER | 534394001 | 2 | Clamping lever part 2 | ||
| 6CLAMP | 533512101 | 2 | Clamp lever | ||
| 7STRIP | 534781201 | 2 | Protection strip | ||
| 8GROMMET | 534603401 | 2 | Grommet 8x1.25 | ||
| 9BAR | 534874201 | 1 | Suction bar incl. knobs and grommets | ||
| 10KNOB | 534691001 | 2 | M8x20 with chain | ||
| 11HANDLE | 534666901 | 1 | Lifting handle complete | ||
| 12PIN | 533653701 | 2 | Quick release pin |
Regular price
$0.00
Regular price
|
|
| 13CHASSIS | 535148902 | 1 | Chassis base | ||
| 14SPACER RING | 538906901 | 4 | M10x20 |

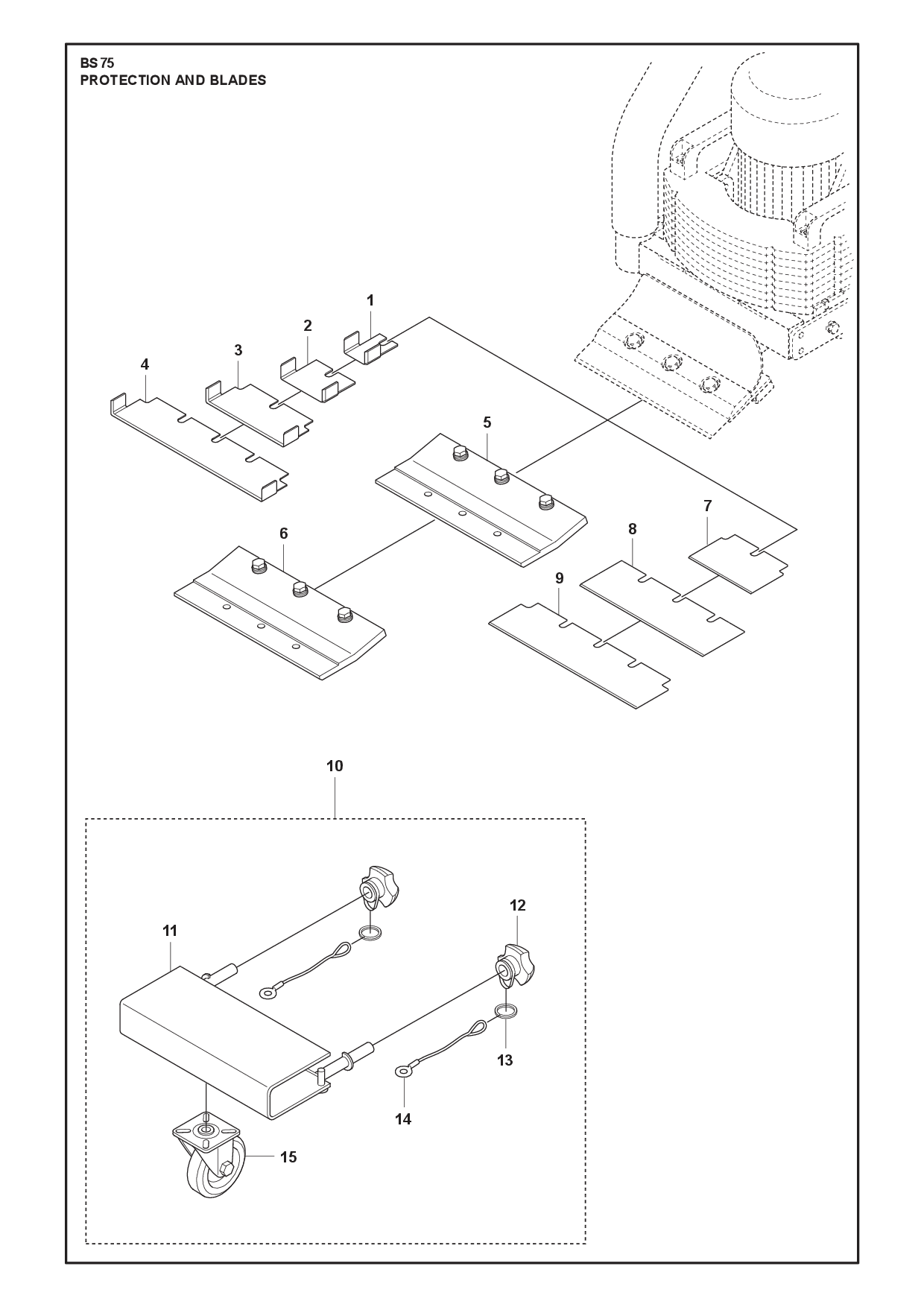

BLADE ASSY 15 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCRAPER BLADE | 534826301 | 1 | Self-scoring blade 50mm/2” - 2.5mm - E20050-SS | ||
| 2SCRAPER BLADE | 534825101 | 1 | Self-scoring blade 100mm/4” - 2.5mm - E20100-SS | ||
| 3SCRAPER BLADE | 538875101 | 1 | Self-scoring blade 150mm/6” - 1.5mm - E20151-SS | ||
| 4SCRAPER BLADE | 538875201 | 1 | Self-scoring blade 300mm/12” - 1.5mm - E20301-SS | ||
| 5ADJUSTER | 536988101 | 1 | Blade angle adjustment 4 degrees | ||
| 6ADJUSTER | 536988102 | 1 | Blade angle adjustment 8 degrees | ||
| 7SCRAPER BLADE | 535227701 | 1 | Premium blade 150mm/6” - 1.5mm - E20150-P | ||
| 8SCRAPER BLADE | 535227801 | 1 | Premium blade 250mm/10” - 1.5mm - E20250-P | ||
| 9SCRAPER BLADE | 535227901 | 1 | Premium blade 300mm/12” - 1.5mm - E20300-P | ||
| 10PROTECTION ASSY | 547133301 | 1 | Blade protection kit BS 75 3 - bolts version | ||
| 11PROTECTION | 535108802 | 1 | Blade protection base | ||
| 12KNOB | 534676601 | 2 | M10 knob | ||
| 13RING | 534859201 | 2 | Split ring 16mm | ||
| 14CABLE | 534375601 | 2 | Lanyard cable | ||
| 15SWIVEL | 534882701 | 1 | Front castor wheel |
CHASSIS 39 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HANDLE | 534611302 | 1 | |||
| 2PLATE | 535236201 | 2 | |||
| 3UNIT | 535180502 | 1 | |||
| 4CAP | 534778601 | 1 | |||
| 5WHEEL | 548552501 | 1 | |||
| 6SEAL | 533218801 | 2 | |||
| 7ADAPTER PLATE | 535027401 | 1 | |||
| 8KEY | 533514101 | 1 | |||
| 9SHAFT | 533425101 | 1 | |||
| 10MOTOR KIT | 534804902 | 1 | MOTOR + GEARBOX | ||
| 11CLAMP | 534402901 | 1 | |||
| 12CHASSIS | 535148902 | 1 | |||
| 13BEARING HOUSING | 533671001 | 1 | |||
| 14BEARING | 533794401 | 1 | |||
| 15BUSH | 533269801 | 1 | |||
| 17BEARING PLATE | 533496101 | 1 | |||
| 18BEARING | 533430601 | 1 | |||
| 19ABSORBER | 533851901 | 5 | |||
| 20WASHER | 534574701 | 5 | |||
| 21HEAD | 534421602 | 1 | |||
| 22COVER | 534328702 | 1 | |||
| 23WASHER | 538903701 | 3 | |||
| 24SCREW EHHM | 725249371 | 3 | |||
| 25HANDLE | 534666901 | 1 | |||
| 26STRIP | 534781201 | 2 | |||
| 27WEIGHT | 535266502 | 1 | |||
| 28PROTECTION | 535108802 | 1 | |||
| 29HANDLE | 534616801 | 2 | |||
| 30LEVER | 534393101 | 2 | |||
| 31LEVER | 534394001 | 2 | |||
| 32CLAMP | 533512101 | 2 | |||
| 33MOTOR | 534709702 | 1 | 0,75 kW 115V/ 50-60Hz | ||
| 33MOTOR | 534710102 | 1 | 0,75 kW 230V/ 50-60Hz | ||
| 34PLATE | 533238701 | 1 | |||
| 35PIN | 533653701 | 2 | PIN | ||
| 36CAPACITOR | 534327601 | 1 | Big START UP capacitor 230-240V | ||
| 36CAPACITOR | 533210601 | 1 | Big START UP capacitor 110 -120V | ||
| 37CAPACITOR | 533210701 | 1 | Small RUN capacitor 110-120V | ||
| 37CAPACITOR | 534853201 | 1 | Small RUN capacitor 230-240V |

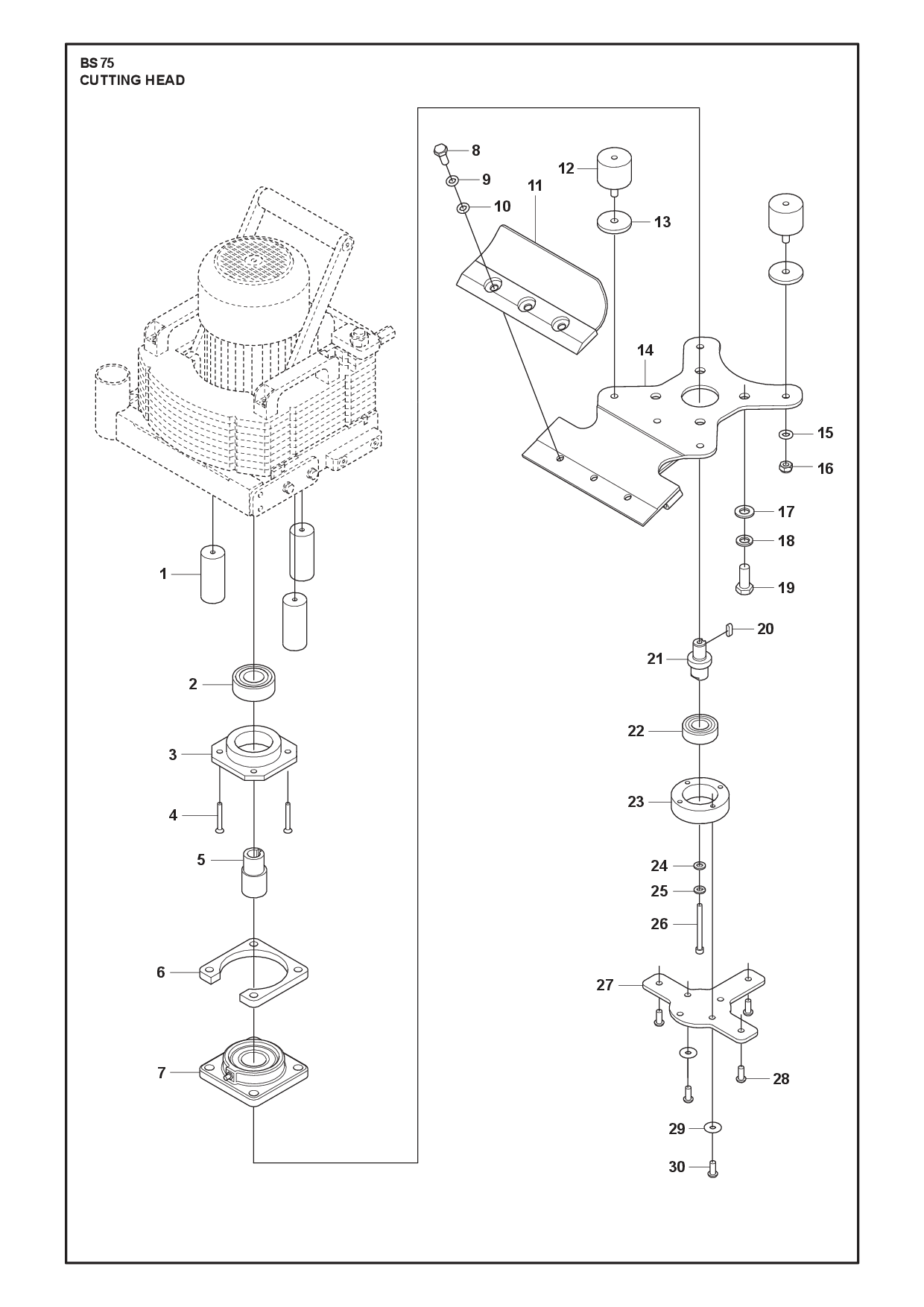

CUTTING HEAD 30 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BUSHING | 540511401 | 3 | Support bearing plate bush | ||
| 2BEARING | 533794401 | 1 | Bearing | ||
| 3BEARING HOUSING | 540395001 | 1 | Support bearing housing | ||
| 4SCREW | 534693101 | 4 | M6X45 | ||
| 5BUSHING | 540511501 | 1 | Eccentric bush | ||
| 6BEARING PLATE | 540510801 | 1 | BEARING PLATE | ||
| 7BEARING | 533430601 | 1 | Kit | ||
| 8SCREW | 534678201 | 3 | SCREW EHHM M10 x 25 | ||
| 9WASHER | 734117201 | 3 | M10 washer |
Regular price
$19.79
Regular price
|
|
| 10SPRING WASHER | 735117301 | 3 | M10 spring washer | ||
| 11COVER | 540512301 | 1 | Blade cover BS 75 | ||
| 12ABSORBER | 533851901 | 5 | Shock absorber - BS-110 | ||
| 13WASHER | 540511901 | 5 | Fill up washer | ||
| 14HEAD | 540395401 | 5 | Cutting head BS 75 | ||
| 15WASHER | 734117201 | 5 |
Regular price
$19.79
Regular price
|
||
| 16HEXAGON LOCKING NUT | 732252001 | 5 | ECROU FREIN NYLSTOP M10 |
Regular price
$19.79
Regular price
|
|
| 17WASHER | 546721301 | 4 | M14 Washer | ||
| 18WASHER | 534684801 | 4 | M14 Spring washer | ||
| 19BOLT | 534685901 | 4 | M14 x 35 | ||
| 20PARALLEL KEY | 593505401 | 1 | 6x6x20 | ||
| 21SUPPORT | 540383101 | 1 | Support bearing axle extended | ||
| 22BEARING | 534312901 | 1 | BEARING | ||
| 23FLANGE | 540510501 | 1 | Flange support bearing | ||
| 24WASHER | 734115201 | 1 |
Regular price
$19.79
Regular price
|
||
| 25WASHER | 735115301 | 1 |
Regular price
$19.79
Regular price
|
||
| 26SCREW IHSCM | 725538401 | 1 | M6X70 | ||
| 27PLATE | 540511301 | 1 | Support bearing plate | ||
| 28SCREW IHPANM | 504750202 | 3 | SCREW IHPANM M8X20 10.9 | ||
| 29WASHER | 734116541 | 4 |
Regular price
$19.79
Regular price
|
||
| 30SCREW IHPANM | 504750202 | 4 | SCREW IHPANM |
CUTTING HEAD 27 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BUSH | 535250301 | 3 | Support bearing plate bush | ||
| 2BEARING | 533794401 | 1 | Bearing | ||
| 3BEARING HOUSING | 533671001 | 1 | Support bearing housing | ||
| 4SCREW | 537566001 | 4 | M6 x 45 | ||
| 5BUSH | 533269801 | 1 | Eccentric bush | ||
| 6BEARING PLATE | 533496101 | 1 | Bearing plate | ||
| 7BEARING | 533430601 | 1 | Bearing cutting head | ||
| 8SCREW EHHM | 725253271 | 3 | M10 x 25 | ||
| 9WASHER | 538903701 | 3 | |||
| 10COVER | 534328702 | 1 | Blade cover BS 75 | ||
| 11ABSORBER | 533851901 | 5 | Shock absorber - BS-110 | ||
| 12WASHER | 534574701 | 5 | Fill up washer | ||
| 13HEAD | 534421602 | 5 | Cutting head BS 75 | ||
| 14WASHER | 734117201 | 5 | |||
| 15NUT FLANGE | 576645705 | 5 | |||
| 16BOLT | 538898401 | 4 | M14 x 35 | ||
| 17KEY | 533483901 | 1 | 6x6x20 | ||
| 18SUPPORT | 547472601 | 1 | Support bearing axle extended | ||
| 19BEARING | 534312901 | 1 | Bearing | ||
| 20FLANGE | 535170701 | 1 | Flange support bearing | ||
| 21WASHER | 586061403 | 1 | |||
| 22WASHER | 533481901 | 1 | |||
| 23BOLT | 593104501 | 1 | M6 x 70 | ||
| 24PLATE | 535250201 | 1 | Support bearing plate | ||
| 25WASHER | 734116441 | 4 | |||
| 26SCREW IHPANM | 504750202 | 4 | |||
| 27SCREW | 535897701 | 3 | Socket Buttonhead Screw |

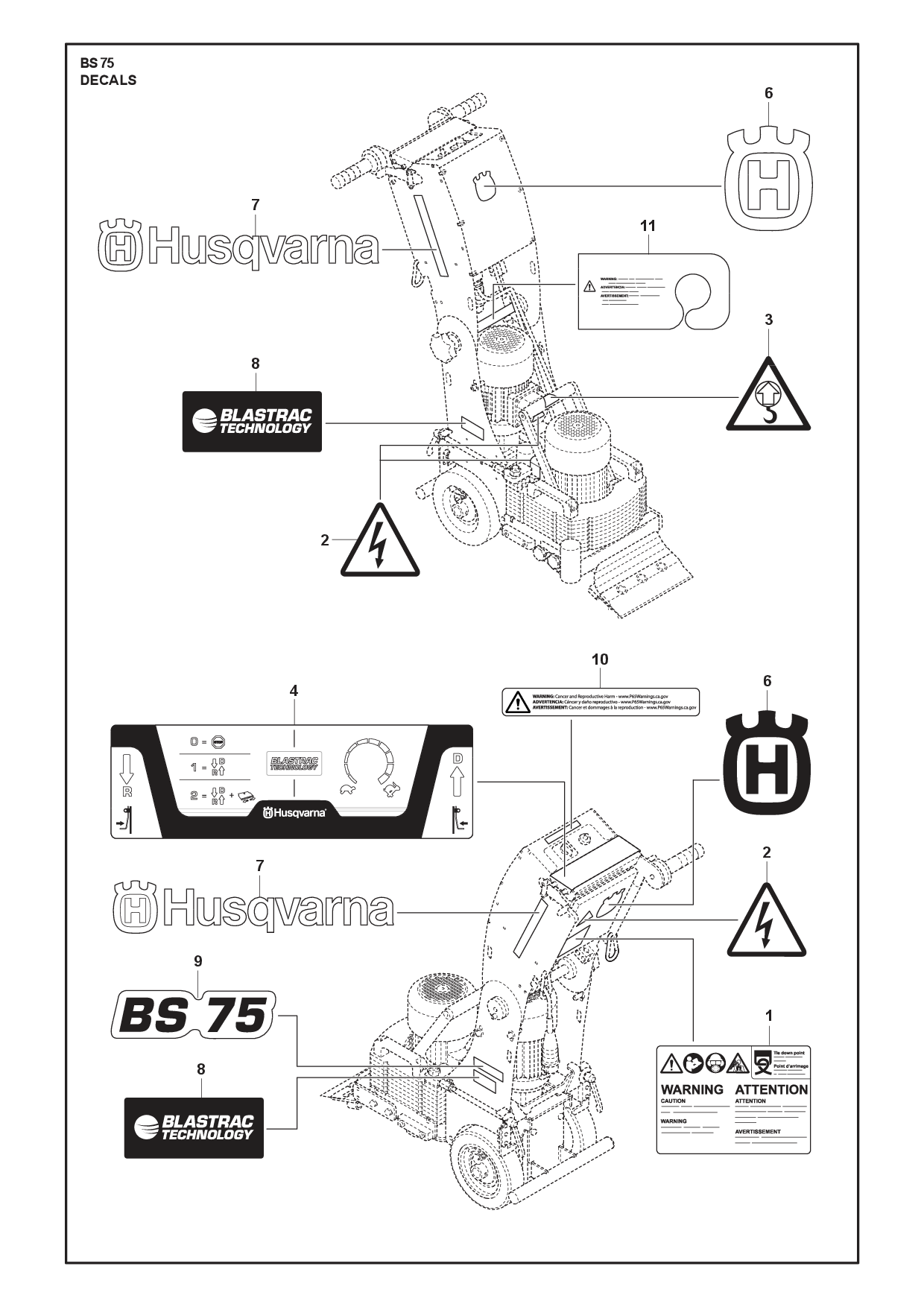

DECALS 11 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1DECAL | 546691401 | 1 | CE horizontal | ||
| 2DECAL | 546691201 | 3 | Electrical warning triangle | ||
| 3DECAL | 546696401 | 1 | Lifting point decal | ||
| 4DECAL | 546827901 | 1 | BS 75 – 110 drive system decal | ||
| 5DECAL | 576973401 | 1 | HVA Crown alu brushed (70mm) | ||
| 6DECAL | 598544501 | 1 | HVA Crown Grey (180mm) | ||
| 7DECAL | 529507001 | 2 | HVA text silver decal (232mm) | ||
| 8DECAL | 536688901 | 2 | Blastrac technology decal 55mm | ||
| 9DECAL | 536694501 | 2 | DECAL product name BS 75 | ||
| 10LABEL | 595871701 | 1 | LABEL Carton Prop 65 | ||
| 11HANG TAG | 595865401 | 1 | HANG TAG Prop 65 |

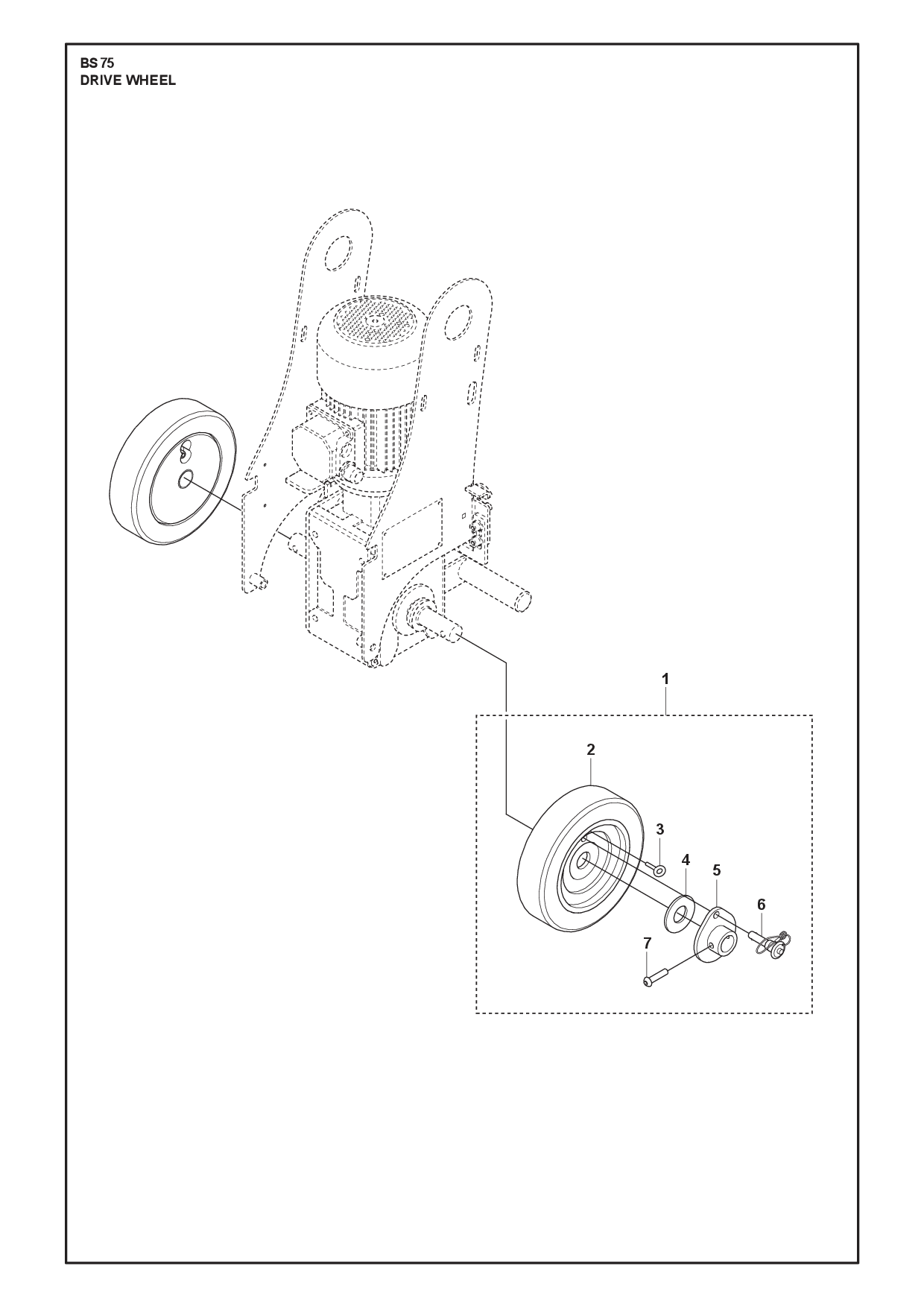

DRIVE WHEEL ASSY 9 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BEARING | 533111201 | 1 | BS-110 | ||
| 2WHEEL | 533529201 | 1 | with HUB - BS-110, BS-75 | ||
| 3PIN | 533653701 | 1 | QUICK RELEASE PIN | ||
| 4WASHER | 536467001 | 1 | SLIDING THRUST WASHER | ||
| 5HUB | 534940201 | 1 | Wheel Hub | ||
| 6PIN | 533653701 | 1 | QUICK RELEASE PIN | ||
| 7CABLE | 534375601 | 1 | CABLE | ||
| 8RING | 534859201 | 1 | Split ring 16mm | ||
| 9SCREW | 504466901 | 1 | SCREW IHSHMC |

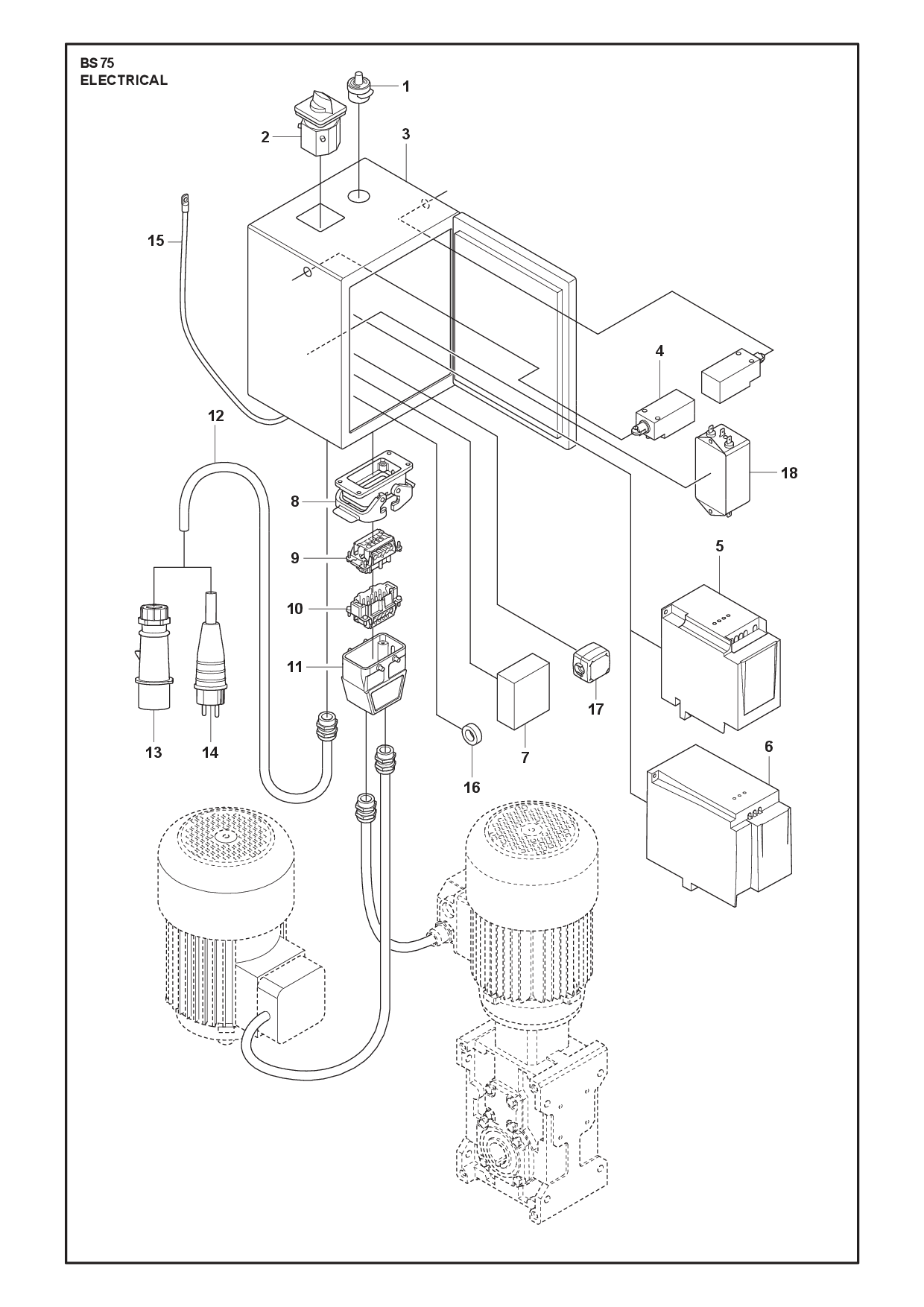

ELECTRICAL 21 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1POTENTIOMETER | 533386101 | 1 | Potentiometer 10k - BS-110 | ||
| 2SWITCH | 534890401 | 1 | |||
| 3BOX | 534560701 | 1 | Empty box BS-75 | ||
| 4SWITCH | 534668101 | 2 | Limit switch | ||
| 5FREQUENCY INVERTER | 534590701 | 1 | Frequency inverter 230V BS75 / BS110 Empty | ||
| 5FREQUENCY INVERTER | 534590702 | 1 | Frequency inverter 230V BS75 / BS110 Programmed | ||
| 6FREQUENCY INVERTER | 533765701 | 1 | Frequency inverter 110V BS75 / BS110 Empty | ||
| 6FREQUENCY INVERTER | 533765702 | 1 | Frequency inverter 110V BS75 / BS110 Programmed | ||
| 7FILTER | 547535601 | 1 | Multi-stage AC/DC EMI, For 220-230 Volt version only | ||
| 8PLUG | 534768701 | 1 | Plug housing female | ||
| 9CONNECTOR | 534643301 | 1 | Inner plug female connector | ||
| 10CONNECTOR | 534643501 | 1 | Inner plug male connector | ||
| 11PLUG | 534768501 | 1 | Plug for double swivel | ||
| 12POWER UNIT | 534772501 | 1 | Power supply cable 1pc=950mm | ||
| 13PLUG | 534767201 | 1 | Plug 16A 2p+E/110-130V | ||
| 14PLUG | 534767501 | 1 | Plug 230V 16A 2P + earth P | ||
| 16RING | 547017652 | 1 | Ferrite rings T60006-L2025-W380, For 110 Volt version only | ||
| 17CLAMP | 547017616 | 1 | Snap ferrite w safety key tech, For 110 Volt version only | ||
| 18FILTER | 547810801 | 1 | EMC 2-line filters SIFI-H B84113H0000B116, For 110 Volt version only | ||
| 19PLUG | 538775401 | 1 | 15A wiring devices | ||
| 20CIRCUIT BREAKER | 534605901 | 1 | CIRCUIT BREAKER GV2-P20 |
ELECTRICAL 17 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1POTENTIOMETER | 533386101 | 1 | Potentiometer 10k - BS-110 | ||
| 2SWITCH | 534890401 | 1 | |||
| 3BOX | 534560701 | 1 | Empty box BS-75 | ||
| 4SWITCH | 534668101 | 2 | Limit switch | ||
| 5FREQUENCY INVERTER | 534590701 | 1 | Frequency inverter 230V BS75 / BS110 Empty | ||
| 6FREQUENCY INVERTER | 533765701 | 1 | Frequency inverter 110V BS75 / BS110 Empty | ||
| 7FILTER | 547535601 | 1 | Multi-stage AC/DC EMI, For 220-230 Volt version only | ||
| 8PLUG | 534768701 | 1 | Plug housing female | ||
| 9CONNECTOR | 534643301 | 1 | Inner plug male connector | ||
| 10CONNECTOR | 534643501 | 1 | Inner plug male connector | ||
| 11PLUG | 534768501 | 1 | Plug for double swivel | ||
| 12POWER UNIT | 534772501 | 1 | Power supply cable 1pc=950mm | ||
| 13PLUG | 534767201 | 1 | Plug 16A 2p+E/110-130V | ||
| 14PLUG | 534767501 | 1 | Plug 230V 16A 2P + earth P | ||
| 16RING | 547017652 | 1 | Ferrite rings T60006- L2025-W380, For 110 Volt version only | ||
| 17CLAMP | 547017616 | 1 | Snap ferrite w safety key tech, For 110 Volt version only | ||
| 18FILTER | 547810801 | 1 | EMC 2-line filters SIFI-H B84113H0000B116, For 110 Volt version only |
FRAME 35 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1MOTOR | 540513401 | 1 | BS-110 0,75kW 230V/50-60Hz motor | ||
| 2FAN COVER | 540822201 | 1 | Fan cover vibration motor black | ||
| 3FAN | 540822101 | 1 | Cooling fan | ||
| 4CAPACITOR | 541008401 | 1 | Big start up capacitor 0-30?f 450V | ||
| 5CAPACITOR | 541008301 | 1 | Small operating capacitor 450V 25?f | ||
| 6HOLDER KIT | 540455101 | 1 | |||
| 7FAN COVER | 540822301 | 1 | Fan cover vibration motor black | ||
| 8FAN | 534412701 | 1 | Cooling fan | ||
| 9CAPACITOR | 541008201 | 1 | Start up capacitor small 1?f O65mm | ||
| 10CAPACITOR | 541008101 | 1 | Run capacitor (Large) | ||
| 11GROMMET | 540510101 | 2 | Grommet 8x1,25 | ||
| 12MOTOR | 540510201 | 1 | BS-110 0,75kW 115V/50-60Hz moto | ||
| 13HANDLE | 540395601 | 1 | HANDLE BOTTOM BS 75 | ||
| 14PLATE | 540512201 | 2 | PLATE scraper | ||
| 15WASHER | 734116301 | 4 | WASHER ISO 7089 M8 |
Regular price
$19.79
Regular price
|
|
| 16SPRING WASHER | 735116401 | 4 | SPRING WASHER M8 |
Regular price
$19.79
Regular price
|
|
| 17SCREW IHSCM | 725544901 | 4 | Screw M8x16 inhex FZB | ||
| 18SCREW EHHM | 725245771 | 4 | external hex bolt M8X35 | ||
| 19WASHER | 734116301 | 4 | Washer M8 |
Regular price
$19.79
Regular price
|
|
| 20FOOTPLATE | 540381801 | 1 | Foot rest | ||
| 21CAP | 540514501 | 2 | |||
| 22HEXAGON LOCKING NUT | 732251801 | 4 | Lock nut M8 |
Regular price
$19.79
Regular price
|
|
| 23ADAPTER PLATE | 540511801 | 2 | ADAPTER PLATE | ||
| 24SEAL | 540509501 | 2 | V-ring seal fi 28 | ||
| 25SHAFT | 540395101 | 1 | |||
| 26KEY | 533514101 | 1 | Key - 8 x 7 x 60mm | ||
| 27SCREW EHHM | 725237071 | 4 | |||
| 28MOTOR KIT | 534804904 | 1 | |||
| 29MOTOR | 540381401 | 1 | |||
| 30CAP | 534694401 | 2 | Eye bolt M10x50 | ||
| 31PIN | 540509401 | 2 | Quick release pin | ||
| 32PLATE | 540510701 | 1 | PLATE Fill up | ||
| 33WASHER | 734117201 | 2 | washer |
Regular price
$19.79
Regular price
|
|
| 34SPRING WASHER | 735117301 | 2 | M10 spring washer | ||
| 35HEXAGON NUT | 731232001 | 2 | Nut M10 |
Regular price
$19.79
Regular price
|
FRAME 24 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1MOTOR | 534710102 | 1 | 0.75kW 230V / 50-60Hz | ||
| 2FAN COVER | 534567102 | 1 | Fan cover vibration motor black | ||
| 3FAN | 534412701 | 2 | Cooling fan | ||
| 4CAPACITOR | 534327601 | 1 | Big start up capacitor 0-30µf 450V | ||
| 5CAPACITOR | 534853201 | 1 | Small operating capacitor 450V 25µf | ||
| 6CLAMP | 534402901 | 1 | Condensator clamp | ||
| 7FAN COVER | 534567102 | 1 | Fan cover vibration motor black | ||
| 8FAN | 534412701 | 1 | Cooling fan | ||
| 9CAPACITOR | 533210601 | 1 | Start up capacitor small 1µf Ø65mm | ||
| 10CAPACITOR | 533210701 | 1 | Run capacitor (Large) | ||
| 11CLAMP | 535151501 | 1 | Condesator clamp front | ||
| 12CLAMP | 535151601 | 1 | Condesator clamp back | ||
| 13MOTOR | 534709702 | 1 | 0.75kW 115V / 50-60Hz | ||
| 14HANDLE | 534611302 | 1 | Bottom handle section BS-75 | ||
| 15PLATE | 535236201 | 2 | Scraper plate | ||
| 16MOTOR KIT | 534804902 | 1 | Motor and reductor 0.75kW,3x230/400V | ||
| 17PIN | 533653701 | 4 | Quick release pin | ||
| 18PLATE | 533238701 | 1 | Fill up plate | ||
| 19KEY | 533514101 | 1 | Key - 8 x 7 x 60mm | ||
| 20SHAFT | 533425101 | 1 | Drive shaft - BS-110, BS-75 | ||
| 21SEAL | 533218801 | 2 | V-Rring seal | ||
| 22ADAPTER PLATE | 535027401 | 2 | Adapter plate | ||
| 23CAP | 534778601 | 2 | Protection cap 30mm | ||
| 24UNIT | 535180502 | 1 | Foot rest |

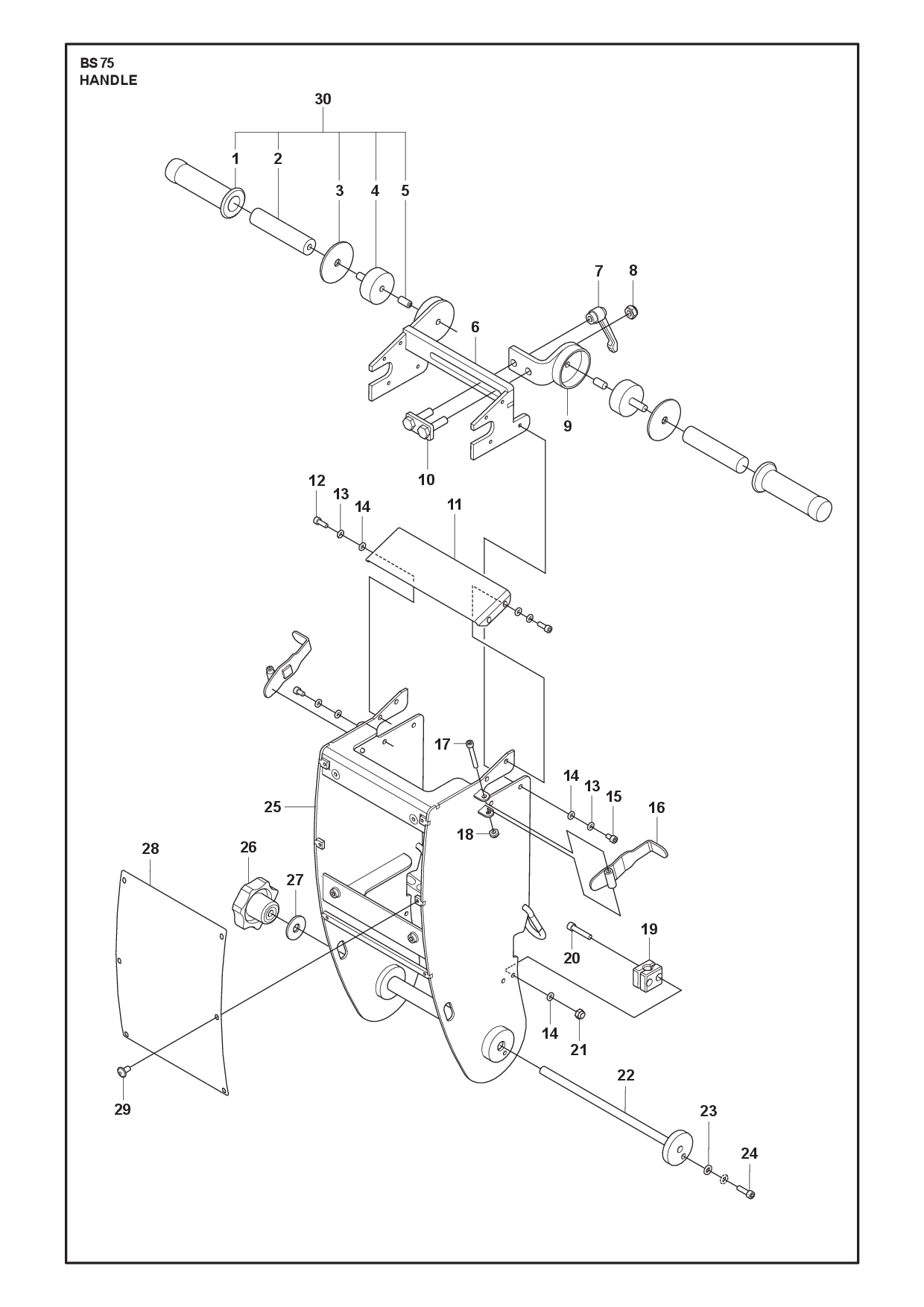

HANDLE 30 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1GRIP | 536894001 | 2 | Handle grip 25 mm | ||
| 2BAR | 540365201 | 2 | |||
| 3WASHER | 540512401 | 2 | |||
| 4ABSORBER | 540381301 | 2 | Shock absorber 50x20mm | ||
| 5SCREW | 533381901 | 2 | SET SCREW M10 x 20 - BS- | ||
| 6HANDLE BRACKET | 540396001 | 1 | HANDLEBRACKET | ||
| 7CLAMP | 540306201 | 1 | Clamp level M10x14 | ||
| 8HEXAGON LOCKING NUT | 732252001 | 1 | ECROU FREIN NYLSTOP M10 |
Regular price
$19.79
Regular price
|
|
| 9BRACKET | 540512601 | 1 | |||
| 10PLATE | 540512501 | 1 | |||
| 11COVER | 540512801 | 1 | |||
| 12SCREW IHSCM | 725536801 | 2 | M6X16 | ||
| 13WASHER | 735115301 | 4 | M6 spring washer |
Regular price
$19.79
Regular price
|
|
| 14WASHER | 734115201 | 4 | M6 washer |
Regular price
$19.79
Regular price
|
|
| 15SCREW IHSCM | 725536601 | 4 | M6X12) IHSCM | ||
| 16SWITCH | 540512701 | 2 | |||
| 17SCREW IHSCM | 725537901 | 2 | |||
| 18HEXAGON LOCKING NUT | 732251601 | 2 |
Regular price
$19.79
Regular price
|
||
| 19PIPE CLAMP | 540301201 | 1 | Pipeclamp (set) 12mm black | ||
| 20SCREW IHSCM | 725537401 | 2 | |||
| 21NUT | 534686401 | 2 | |||
| 22AXLE | 540511101 | 1 | |||
| 23WASHER | 734115201 | 1 |
Regular price
$19.79
Regular price
|
||
| 24SCREW IHSCM | 725537001 | 1 | SCREW IHSCM ISO 4762 M6x20 | ||
| 25HANDLE | 540395801 | 1 | Uper part | ||
| 26KNOB | 540513601 | 1 | |||
| 27WASHER | 734118041 | 1 | |||
| 28PLATE | 540513201 | 1 | |||
| 29CAP | 534330301 | 6 | M5x10 ball head screw | ||
| 30HANDLE | 540821701 | 1 |
HANDLE 23 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HANDLE GRIP | 534612901 | 2 | Grip 25mm | ||
| 2BAR | 534611201 | 2 | Handle bar | ||
| 3WASHER | 534614201 | 2 | Handle washer | ||
| 4ABSORBER | 533848201 | 2 | Shock absorber - BS-110, BS-75 | ||
| 5SCREW | 533381901 | 2 | Set screw M10x20 | ||
| 6HANDLE BRACKET | 535190302 | 1 | Handle bracket | ||
| 7CLAMP | 533512101 | 1 | M10 x 14mm Clamp lever, (Black) | ||
| 8HEXAGON LOCKING NUT | 533292901 | 1 | M10 Hexagon locking nut | ||
| 9BRACKET | 535243802 | 1 | Slide bracket | ||
| 10PLATE | 535244001 | 1 | Slide plate | ||
| 11COVER | 535154802 | 1 | Cover | ||
| 12SCREW | 597552501 | 2 | M6 x 45 | ||
| 13LOCK NUT | 732211601 | 2 | M6 Hexagon locking nut | ||
| 14SWITCH | 534880702 | 2 | Switch lever BS 75, BS 110 | ||
| 15PIPE CLAMP | 534044401 | 2 | Pipe clamp 15MM | ||
| 16AXLE | 534302901 | 1 | Handle axle | ||
| 17WASHER | 734115201 | 1 | M6 washer | ||
| 18SCREW | 593500701 | 1 | M6 x 20 | ||
| 19HANDLE | 534611702 | 1 | Handleframe BS-75 | ||
| 20WASHER | 538903301 | 1 | DIN 9021 - 13 | ||
| 21UNIT | 534665601 | 1 | Starknob M12x80 | ||
| 22PLATE | 534557702 | 1 | Electrobox cover plate | ||
| 23HANDLE | 533697801 | 1 | Flex handle COMPLETE - BS-110, BS-75 |
PROTECTION FRAME 16 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCRAPER BLADE | 534826301 | 1 | Self-scoring blade 50mm/2" - 2.5mm - E20050-SS | ||
| 2SCRAPER BLADE | 534825101 | 1 | Self-scoring blade 100mm/4" - 2.5mm - E20100-SS | ||
| 3SCRAPER BLADE | 538875101 | 1 | Self-scoring blade 150mm/6" - 1.5mm - E20151-SS | ||
| 4SCRAPER BLADE | 538875201 | 1 | Self-scoring blade 300mm/12" - 1.5mm - E20301-SS | ||
| 5ADJUSTER | 536988101 | 1 | Blade angle adjustment 4 degrees | ||
| 6ADJUSTER | 536988102 | 1 | Blade angle adjustment 8 degrees | ||
| 7SCRAPER BLADE | 535227701 | 1 | Premium blade 150mm/6" - 1.5mm - E20150-P | ||
| 8SCRAPER BLADE | 535227801 | 1 | Premium blade 250mm/10" - 1.5mm - E20250-P | ||
| 9SCRAPER BLADE | 535227901 | 1 | Premium blade 300mm/12" - 1.5mm - E20300-P | ||
| 10PROTECTION ASSY | 547133301 | 1 | Blade protection kit BS 75 3 bolts version | ||
| 11PROTECTION | 535108802 | 1 | Blade protection base | ||
| 12KNOB | 534676601 | 2 | M10 knob | ||
| 13RING | 534859201 | 2 | Split ring 16mm | ||
| 14CABLE | 534375601 | 2 | Lanyard cable | ||
| 15SWIVEL | 534882701 | 1 | Front castor wheel | ||
| 16WEIGHT KIT | 533114801 | 1 | Extra weight kit BS 75 | 10 kg |
SUPPORT 6 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW IHCSFM | 725645101 | 3 | IHCSFM M8x20 8.8 ZPB) | ||
| 2BUSHING | 540511401 | 3 | bushing | ||
| 3PLATE | 540511301 | 3 | PLATE | ||
| 4SCREW IHPANM | 504750202 | 3 | SCREW IHPANM M8X20 10.9 | ||
| 5AXLE | 540821901 | 1 | kit | ||
| 6AXLE | 540821801 | 1 | AXLE SUPPORT KIT |
VACUUM ATTACHMENT 8 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BAR | 534874201 | 1 | Suction bar kit | ||
| 8GROMMET | 540510101 | 2 | Grommet 8x1,25 | ||
| 9BAR | 540513001 | 1 | BAR suction | ||
| 10KNOB | 540509601 | 2 | M8x20 Knob with chain | ||
| 15SCREW IHSCM | 725544901 | 2 | Screw M8x16 | ||
| 18CAP | 534330301 | 2 | Screw M5x10 | ||
| 20WASHER | 734116301 | 2 | M8 Washer |
Regular price
$19.79
Regular price
|
|
| 21SPRING WASHER | 735116401 | 2 | M8 Spring Washer |
Regular price
$19.79
Regular price
|
WEIGHT KITS 8 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1WEIGHT KIT | 541153501 | 1 | WEIGHT KIT 25kG | ||
| 2WEIGHT | 540394601 | 1 | WEIGHT 25kG | ||
| 3HANDLE | 540518701 | 2 | HANDLE | ||
| 4STRIP | 540510601 | 2 | STRIP | ||
| 4SCREW IHSCM | 725544901 | 4 | SCREW | ||
| 5SCREW IHCSFM | 725645501 | 4 | Screw | ||
| 6WEIGHT KIT | 541153601 | 1 | Weight 10 kG kit | ||
| 7WEIGHT | 540394601 | 1 | Weight |
WHEEL 7 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1WHEEL | 548552501 | 1 | Wheel kit | ||
| 2WHEEL | 548515801 | 1 | with HUB - BS-110, BS-75 | ||
| 3UNIT | 540513801 | 1 | M5x15 eye bolt | ||
| 4SPACER RING | 540523701 | 1 | SPACER RING Sliding Thrust | ||
| 5HUB | 540488701 | 1 | HUB wheel | ||
| 6PIN | 540509401 | 1 | Quick release pin | ||
| 7DRIVE SCREW | 540179901 | 1 | DRIVE SCREW Steel zinc p 10.9 |
Document Downloads
Service bulletin
Operator's manual
Compatable Accessories
Concrete Focus
From pouring to resurfacing, we sell tools built for concrete pros.
Expert Support
Get guidance from experts who understand jobsite challenges.
Fast Delivery
Get your tools fast with our nationwide shipping network and local partnerships.
Talk to an expert now (855) 281-1918
Get fast, expert help choosing the right concrete tools or equipment for your job. Ask about availability, specs, troubleshooting, or get friendly guidance before you place an order.
