Product Specification
Specifications
Service & Maintenance Parts

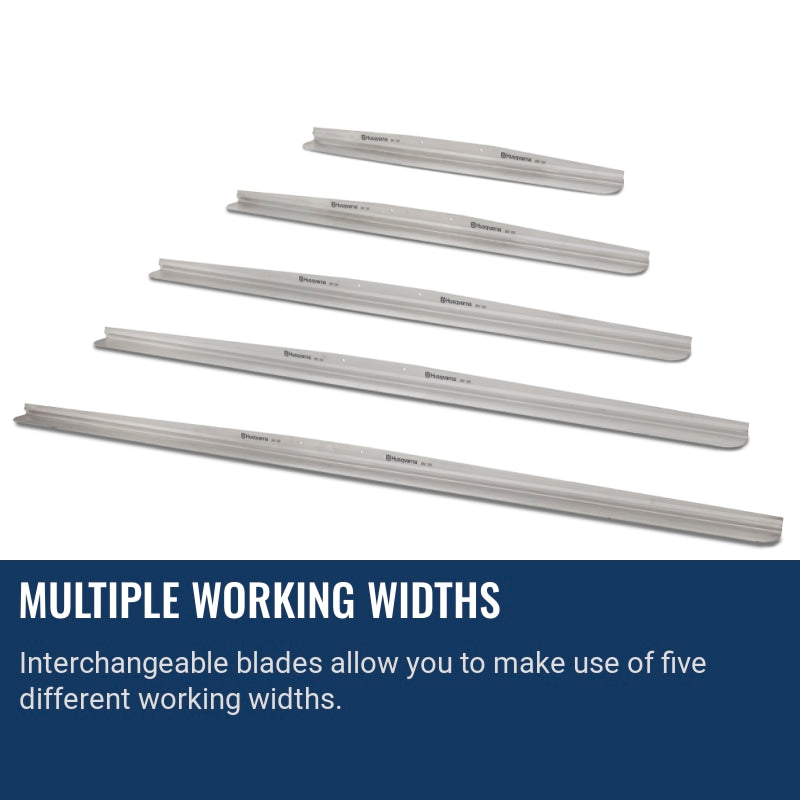

BLADE 5 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREED BLADE SET | 967858701 | 1 | 6 ft (1.8m) | ||
| 1SCREED BLADE SET | 967858801 | 1 | 8 ft (2.4m) | ||
| 1SCREED BLADE SET | 967858901 | 1 | 10 ft (3m) | ||
| 1SCREED BLADE SET | 967859001 | 1 | 12 ft (3.6m) | ||
| 1SCREED BLADE SET | 967859101 | 1 | 14 ft (4.2m) |
DECALS 6 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1DECAL | 574382101 | 1 | HEIGHT 55MM |
Regular price
$7.06
Regular price
|
|
| 2DECAL | 599866301 | 2 | BV30i |
Regular price
$9.36
Regular price
|
|
| 3DECAL | 599866401 | 1 | BV30i |
Regular price
$5.34
Regular price
|
|
| 4DECAL | 594660901 | 2 |
Regular price
$0.63
Regular price
|
||
| 5DECAL | 596636901 | 1 | |||
| 6LABEL | 595871701 | 1 | Prop 65 |
Regular price
$3.84
Regular price
|
ECCENTRIC ELEMENT 38 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BRACKET | 594626701 | 1 | |||
| 1BRACKET | 548377501 | 1 | |||
| 2SCREW | 595465801 | 2 | |||
| 3WASHER | 595043901 | 2 | |||
| 4WASHER | 595167801 | 2 | |||
| 5PLATE | 594699401 | 2 | Locking | ||
| 6SCREW | 594785601 | 2 | |||
| 7WASHER | 594691201 | 2 | |||
| 8NUT | 594409201 | 2 | M12 DIN6927 | ||
| 9SCREW | 595065801 | 1 | |||
| 10COVER | 529375501 | 1 | ECCENTRIC | ||
| 11SCREW | 594398901 | 1 | HC M10X16 DIN913 | ||
| 12ECCENTRIC | 599892201 | 1 | BV30i | ||
| 13HUB | 594699001 | 1 | |||
| 14HEXAGON NUT | 594122601 | 1 | M10x10 | ||
| 15BRACKET | 595278501 | 1 | |||
| 16ABSORBER | 594229701 | 4 | |||
| 17WASHER | 595036601 | 4 | |||
| 18NUT | 595352301 | 4 | |||
| 19MOTOR | 599625401 | 1 | |||
| 20SOCKET | 595347501 | 8 | |||
| 21WASHER | 503230402 | 4 | 5.4x9x1.8 Zn FLAKE (DELTA PROTECT) | ||
| 22CIRCLIP | 595113901 | 1 | |||
| 23BEARING | 594261401 | 1 | |||
| 24RING | 595046301 | 1 | |||
| 25DRIVE SHAFT | 599625201 | 1 | |||
| 26DAMPER | 594229601 | 1 | |||
| 27SCREW | 595348001 | 2 | |||
| 28HUB | 594698301 | 1 | |||
| 29RING | 594681201 | 1 | |||
| 30RING | 594256101 | 1 | |||
| 31WASHER | 594400301 | 2 | |||
| 32BEARING | 594550801 | 3 | |||
| 33SPACER | 594698501 | 1 | |||
| 34RING | 594266001 | 1 | |||
| 35SEAL | 594222101 | 1 | |||
| 36SHAFT | 594698401 | 1 | |||
| 37SLEEVE | 594253501 | 1 |

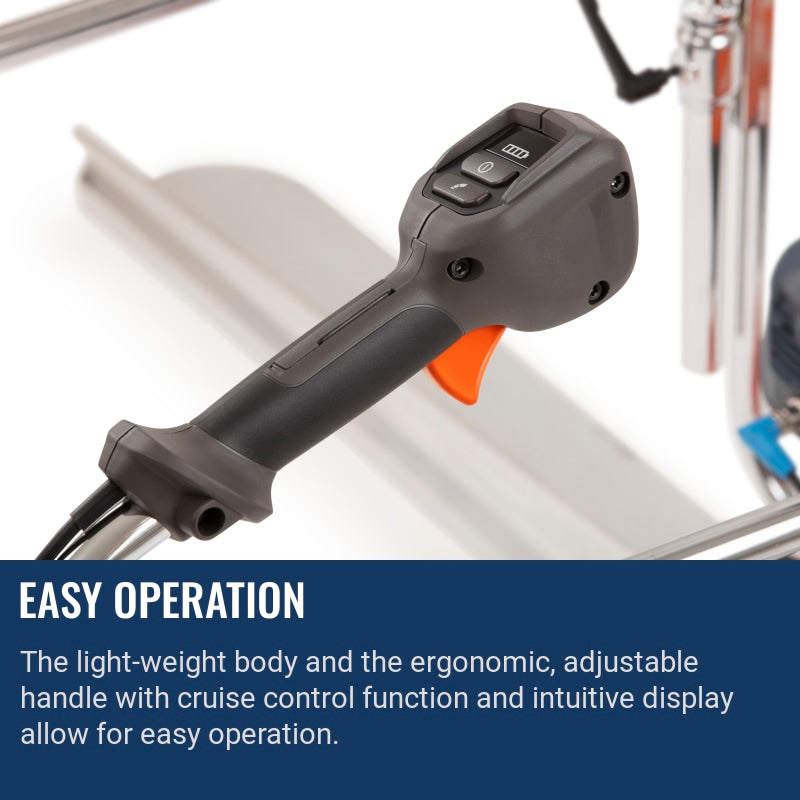

HANDLE 29 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1FRAME | 529567401 | 1 | FRAME | ||
| 2LEVER | 594683101 | 2 | LEVER |
Regular price
$26.08
Regular price
|
|
| 3PLATE | 594699101 | 2 | PLATE |
Regular price
$24.49
Regular price
|
|
| 4WASHER | 594889801 | 4 | WASHER |
Regular price
$5.34
Regular price
|
|
| 5WASHER | 595167701 | 4 | WASHER | ||
| 6SCREW | 595033501 | 4 | SCREW |
Regular price
$0.55
Regular price
|
|
| 7WASHER | 595036601 | 4 | WASHER |
Regular price
$0.21
Regular price
|
|
| 8NUT | 595352301 | 5 | NUT |
Regular price
$0.29
Regular price
|
|
| 9SCREW | 595344301 | 1 | SCREW |
Regular price
$0.44
Regular price
|
|
| 10BRACKET | 595461102 | 1 | BRACKET |
Regular price
$30.80
Regular price
|
|
| 11BAR | 594699301 | 1 | BAR |
Regular price
$55.39
Regular price
|
|
| 12BRACKET | 529476701 | 1 | BRACKET |
Regular price
$13.39
Regular price
|
|
| 13SCREW | 594833001 | 1 | SCREW |
Regular price
$2.69
Regular price
|
|
| 14HANDLE | 599625701 | 1 | HANDLE | ||
| 15HANDLE | 537172805 | 1 | HANDLE | ||
| 16SCREW ITXSCFM | 525755106 | 1 | SCREW ITXSCFM | ||
| 17NUT | 595112401 | 1 | NUT |
Regular price
$0.21
Regular price
|
|
| 18BRACKET | 537172902 | 1 | BRACKET | ||
| 19CONNECTION | 599626501 | 1 | CONNECTION |
Regular price
$101.39
Regular price
|
|
| 20BRACKET | 529565701 | 7 | BRACKET | ||
| 21HANDLE | 599625801 | 1 | HANDLE |
Regular price
$219.63
Regular price
|
|
| 22SCREW ITXSCFM | 525755109 | 1 | SCREW ITXSCFM |
Regular price
$4.89
Regular price
|
|
| 23CONTROL PANEL | 529454301 | 1 | CONTROL PANEL |
Regular price
$161.89
Regular price
|
|
| 24HANDLE HALF | 593165401 | 1 | HANDLE HALF | ||
| 25HANDLE HALF | 593165501 | 1 | HANDLE HALF | ||
| 26THROTTLE CONTROL ASSY | 593044301 | 1 | THROTTLE CONTROL ASSY | ||
| 27SPRING | 593838601 | 1 | SPRING | ||
| 28COVER | 593913001 | 1 | COVER | ||
| 29SCREW ITXSCT | 580292901 | 3 | SCREW ITXSCT |
Regular price
$1.56
Regular price
|
MOTOR 22 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|

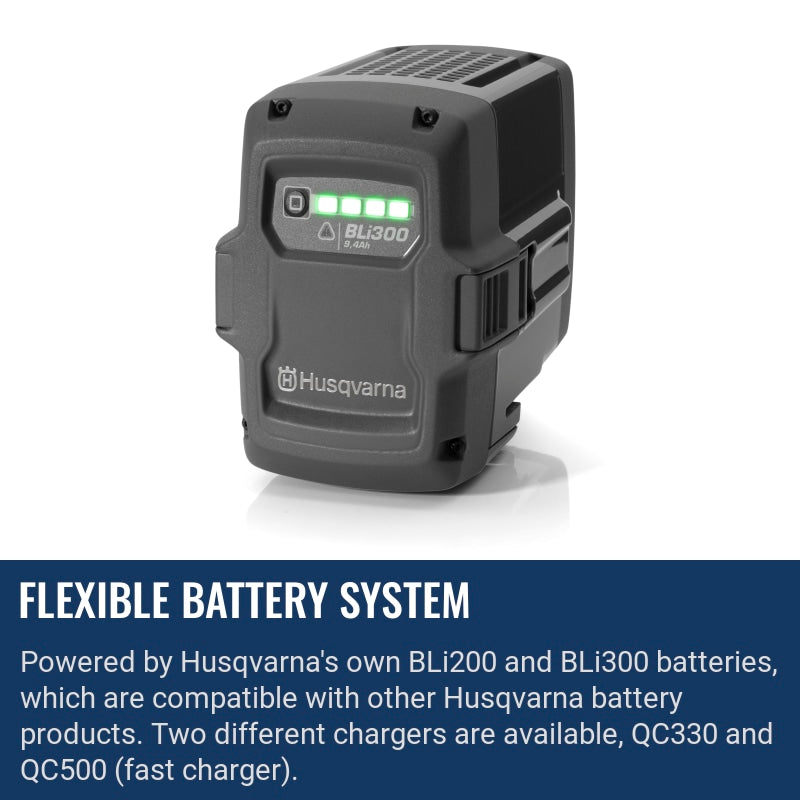

| 1HOLDER | 597275001 | 1 | BATTERY |
Regular price
$132.99
Regular price
|
|
| 3FILTER | 599890601 | 1 | AIR |
Regular price
$2.63
Regular price
|
|
| 4SCREW | 529768501 | 2 | DIN 7985 |
Regular price
$0.96
Regular price
|
|
| 5PUSH BUTTON | 577996601 | 1 |
Regular price
$5.60
Regular price
|
||
| 6SPRING | 585480001 | 1 | PUSH OUT |
Regular price
$5.69
Regular price
|
|
| 7SCREW CCRPANT | 503212813 | 4 | |||
| 8BRACKET | 599626001 | 1 | MOTOR CONTROLLER | ||
| 9CABLE ASSY | 599823401 | 1 | Battery Power Cable BV30i |
Regular price
$37.45
Regular price
|
|
| 10CONNECTION | 599626301 | 1 | WIRE ELECTRIC MOTOR | ||
| 11CONTROL UNIT | 597627603 | 1 | G4. a Digital Blower |
Regular price
$268.75
Regular price
|
|
| 12CONNECTION | 599626401 | 1 | CABLE FIRST PART |
Regular price
$62.89
Regular price
|
|
| 13SCREW ITXSCFM | 525755107 | 5 | INTERNAL TORX SOCKET HEAD CAP FLANGED |
Regular price
$2.63
Regular price
|
|
| 14MOTOR ASSY | 529925201 | 1 | EL.MOTOR and NEW FAN | ||
| 15FAN | 599625901 | 1 | MOTOR | ||
| 16MOTOR | 599625301 | 1 | UPPER FLANGE | ||
| 17COVER | 597275101 | 1 | NOT ORDERABLE PART | ||
| 18TAPE | 529771702 | 1 | SELF-ADHESIVE ANTI-FRICTION |
Regular price
$10.68
Regular price
|
|
| 19SCREW ITXSCT | 580292901 | 8 |
Regular price
$1.56
Regular price
|
||
| 20MOTOR HOUSING | 597274901 | 1 | NOT ORDERABLE PART | ||
| 21SCREW | 595110801 | 4 | M4x16 8.8 FZB ISO4762 DIN912 |
Regular price
$1.50
Regular price
|
|
| 22WASHER | 595992801 | 4 | |||
| 23AIR FILTER COVER | 546553801 | 1 | Filter brace, retainer rings and screws |
Regular price
$49.70
Regular price
|
MOTOR 23 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HOLDER | 597275001 | 1 | BATTERY | ||
| 2INSERT | 546298401 | 1 | |||
| 3FILTER | 599890601 | 1 | AIR | ||
| 4SCREW | 529768501 | 2 | DIN 7985 | ||
| 5PUSH BUTTON | 577996601 | 1 | |||
| 6SPRING | 546298301 | 1 | PUSH OUT | ||
| 7SCREW CCRPANT | 503212813 | 4 | |||
| 8BRACKET | 599626001 | 1 | MOTOR CONTROLLER | ||
| 9CABLE ASSY | 599823401 | 1 | Battery Power Cable BV30i | ||
| 10CONNECTION | 599626301 | 1 | WIRE ELECTRIC MOTOR | ||
| 11CONTROL UNIT | 597627603 | 1 | G4. a Digital Blower | ||
| 12CONNECTION | 599626401 | 1 | CABLE FIRST PART | ||
| 13SCREW ITXSCFM | 525755107 | 5 | INTERNAL TORX SOCKET HEAD CAP FLANGED | ||
| 14MOTOR ASSY | 529925201 | 1 | EL.MOTOR and NEW FAN | ||
| 15FAN | 599625901 | 1 | MOTOR | ||
| 16MOTOR | 599625301 | 1 | UPPER FLANGE | ||
| 17COVER | 597275102 | 1 | CONTROLLER | ||
| 18TAPE | 529771702 | 1 | SELF-ADHESIVE ANTI-FRICTION | ||
| 19SCREW ITXSCT | 580292901 | 8 | |||
| 20MOTOR HOUSING | 597274902 | 1 | |||
| 21SCREW | 595110801 | 4 | M4x16 8.8 FZB ISO4762 DIN912 | ||
| 22WASHER | 595992801 | 4 | |||
| 23AIR FILTER COVER | 546553801 | 1 | Filter brace, retainer rings and screws |
RETROFIT KIT 8 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SERVICE KIT | 546298601 | 1 | Service kit | ||
| 2HOLDER | 597275001 | 1 | |||
| 3SPRING | 546298301 | 1 | |||
| 4INSERT | 546298401 | 1 | |||
| 5PUSH BUTTON | 577996601 | 1 | |||
| 6DECAL | 599866301 | 2 | |||
| 7DECAL | 599866401 | 1 | |||
| 8DECAL | 574382101 | 1 |
RETROFIT KIT 8 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SERVICE KIT | 547652001 | 1 | |||
| 2MOTOR HOUSING | 597274902 | 1 | |||
| 3COVER | 597275102 | 1 | |||
| 4TAPE | 529771702 | 1 | SELF-ADHESIVE ANTI-FRICTION | ||
| 5FILTER | 599890601 | 1 | AIR | ||
| 6SCREW | 529768501 | 2 | DIN 7985 | ||
| 7AIR FILTER COVER | 546553801 | 1 | Filter brace, retainer rings and screws | ||
| 8CONNECTION | 599626401 | 1 | CABLE FIRST PART |
Document Downloads
Service bulletin
Operator's manual
Illustrated part list
