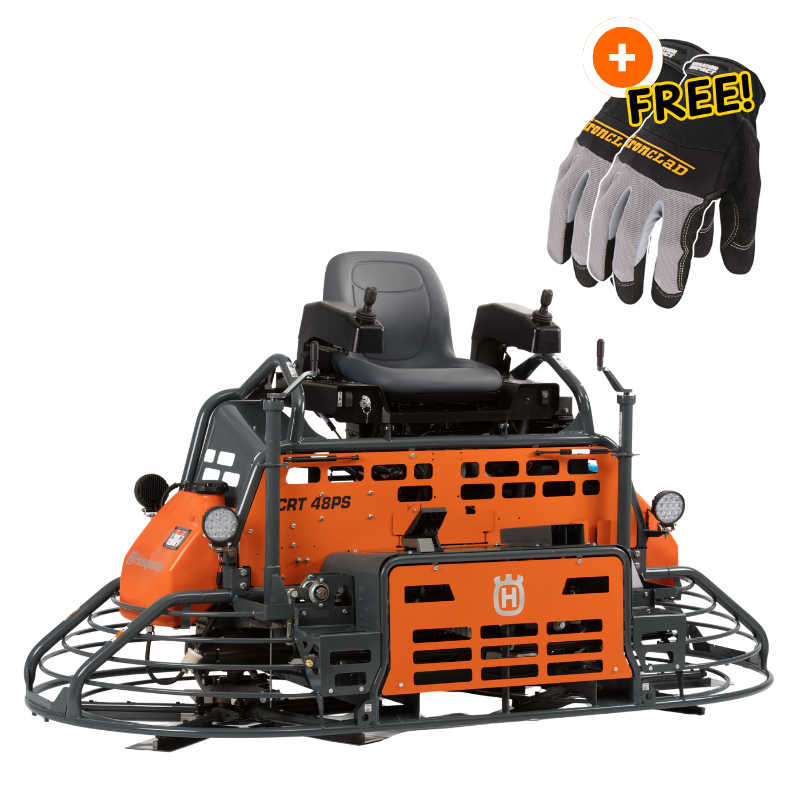

Husqvarna CRT 48 PS I | Ride-On Trowel

Husqvarna CRT 48 PS I | Ride-On Trowel

HUSQVARNA CONSTRUCTION SKU: 970461606 Copied!

Is this the right tool for the job?

Best For:

  • Large slabs: warehouses, DCs, plants, parking decks
  • 2–6 person flatwork crews with a trained ride‑on operator
  • Daily multi‑bay pours needing fast, consistent hard‑trowel finish

Not Ideal For:

  • Edges, columns, and penetrations—requires separate edging tools
  • Tight rooms or congested bays without turn/ramp access
  • Indoor work without active ventilation (gas engine exhaust)

Why Pros choose this tool:

  • Dual 48-in rotors, weighted chassis → high sq ft/hour, fast float → stay ahead of set; fewer stop lines and overtime
  • Power-steer joysticks, low effort → straighter passes, less fatigue → consistent FF/FL and finish across operators
  • On-seat pitch and pan-to-blade change → control timing from float to burnish → cleaner burnish, fewer ridges and lap lines
$36,019.00
$46,782.56 $36,019.00
Save $10,763.56 Sold out
PAY NO SALES TAX* Save up to $3,565.88 more. *Except for Tennessee, Illinois
DELIVERY IN 3-5 BUSINESS DAYS Shipping calculated at checkout
Pay with Credit Key

Financing from $3,601.90/mo • Up to 12 mo. terms

Pay by Bank & Net 30 Terms also available

Trusted by contractors nationwide

"I've bought 3 products from CTD and each time the experience has been the same - professional and fast delivery. I trust these guys with all my concrete needs."

Husqvarna Construction Authorized
Dealer
Get Accredited Top Quality Store
on Google
Get Accredited

Trusted by Teams That Keep America Running

Serving military, government, infrastructure, education, and utility organizations nationwide.

90 day returns
Product Details

HUSQVARNA RIDE-ON TROWEL CRT 48 PS: HIGH PRODUCTIVITY WITH EXCELLENT RESULTS

The Husqvarna CRT 48 PS Ride-On Trowel is a high-performance machine designed to deliver superior results in large-scale troweling tasks. This robust machine, with a troweling diameter of 48 inches and powered by a 37 hp Vanguard engine, offers optimal maneuverability and a high surface capacity. It's a perfect choice for finishing surfaces from 10,000 to 25,000 square feet. With its balanced power-to-weight ratio, it ensures operational efficiency in varied site conditions.

Providing a virtually fatigue-free operation, this Husqvarna trowel is equipped with an electro-hydraulic joystick control for accurate maneuvering. The hydraulic control cylinder is triggered by electrical signals, offering a precise and responsive control. The CRT 48 PS comes in two variants, 37V-PS and 57K-PS, accommodating diverse needs.

  • Troweling diameter of 48 inches
  • Powered by a 37 hp Vanguard EFI-37HP engine
  • Optimal maneuverability with electro-hydraulic joystick control
  • High surface capacity ideal for 10,000 to 25,000 square feet
  • Two control modes for varied site conditions
View full details
Product Specification
Husqvarna CRT 48 PS I | Ride-On Trowel

POWER TROWEL CRT 48 | 37V-PS

Specifications
Motor/engine manufacturer
Vanguard
Motor/engine model
EFI-37HP
Engine Power (As rated by the engine manufacturer)
37 hp
Power/fuel type
Petrol
Exhaust emissions (CO₂ EU V)
809.92 g/kWh
Power source
Petrol
Troweling diameter
48 in
Blades
10 pcs
Packaging length (Calc)
107.008 in
Packaging width (Calc)
55.748 in
Packaging height (Calc)
64.016 in
Article gross weight (Calc)
1,541 lbs
Sound pressure level at operators ear
94.8 dB(A)
Sound power level, measured
110.2 dB(A)
Vibration Value
2.2 m/s²
Warranty
2 year limited warranty
Related Equipment
Service & Maintenance Parts
BLADE ASSY, LEFT 30 parts
BLADE ASSY, LEFT diagram
Part Article number Qty Comment Price Details
1UNIT 535789401 1
$3,022.25
$3,454.00 $3,022.25
View part
101HUB 599074901 1
$346.09
$418.00 $346.09
View part
103HOLDER 598999401 1
$65.79
$79.20 $65.79
View part
104YOKE 598999001 1
$112.00
$128.00 $112.00
View part
105LINK 598993301 5
$25.46
$29.10 $25.46
View part
106TUBE 598993401 2
$2.69
$3.07 $2.69
View part
107CAP 598998701 1 24Nm/18ft.lbs (S1)
$110.25
$126.00 $110.25
View part
108SHAFT 599107701 5
$165.89
$195.00 $165.89
View part
109WASHER 599166001 1
$6.68
$7.63 $6.68
View part
110PLUG 598995801 1
$0.55
$0.63 $0.55
View part
111SHAFT 599167801 1
$28.18
$32.20 $28.18
View part
112RING 599001101 1 BLADE LIFT, LEFT
$122.79
$150.00 $122.79
View part
115COMBINATION BLADE KIT 540211504 1 Order Screw Kit #540665001
$97.39
$98.40 $97.39
View part
120RING 599013201 1
$423.39
$510.00 $423.39
View part
170PLUG 599163401 5
$0.16
$0.18 $0.16
View part
171PLUG 599063601 15
$0.29
$0.33 $0.29
View part
200MOUNT 598993501 1
$21.61
$24.70 $21.61
View part
284CAP 599169201 7 Cap
$0.16
$0.18 $0.16
View part
414BOLT 574892005 15 HHCS 5/16"-18 UNC x1-3/4" GR5 Unplated
$1.36
$1.55 $1.36
View part
420SCREW 599163001 5 SHSB 1/2"x1/2"
$1.36
$1.55 $1.36
View part
424SCREW 725249751 2 M10x35 ISO 4017 8,8 ZPB
$2.61
$2.98 $2.61
View part
444SCREW 599165001 10 SHSB 1/2"x3/4"x1-3/8"
$1.36
$1.55 $1.36
View part
445SCREW EHHM 725250051 1 M10x45 ISO 4014 8,8 ZPB
484WASHER 542173035 2 M20 ISO 7089 200HV ZPB
$2.69
$3.07 $2.69
View part
514PIN 542020616 2 Cotter pin 1/4"x1-1/2" Zn
$0.44
$0.50 $0.44
View part
516PIN 541204924 1 Cotter pin 3/16"x2" Zn
$1.36
$1.55 $1.36
View part
590BLADE BUSHING 598999101 1
$53.38
$61.00 $53.38
View part
613FITTING 599162101 7 AM10 DIN 71412
$0.63
$0.71 $0.63
View part
701BALL BEARING 598431901 1 6014-2RS1 C3
$58.98
$67.40 $58.98
View part
702RING 599167201 1 RING-NILOS,6014 ZAV
$39.19
$30.70 $39.19
View part
BLADE ASSY, RIGHT 30 parts
BLADE ASSY, RIGHT diagram
Part Article number Qty Comment Price Details
1UNIT 535789402 1
$3,022.25
$3,454.00 $3,022.25
View part
101HUB 599074901 1
$346.09
$418.00 $346.09
View part
102RING 599001001 1 Blade lifting ring, right
$122.79
$150.00 $122.79
View part
103HOLDER 598999401 1
$65.79
$79.20 $65.79
View part
104YOKE 598999001 1
$112.00
$128.00 $112.00
View part
105LINK 598993301 5
$25.46
$29.10 $25.46
View part
106TUBE 598993401 2
$2.69
$3.07 $2.69
View part
107CAP 598998701 1 24Nm/18ft.lbs (S1)
$110.25
$126.00 $110.25
View part
108SHAFT 599107701 5
$165.89
$195.00 $165.89
View part
109WASHER 599166001 1
$6.68
$7.63 $6.68
View part
110PLUG 598995801 1
$0.55
$0.63 $0.55
View part
111SHAFT 599167801 1
$28.18
$32.20 $28.18
View part
115COMBINATION BLADE KIT 540211504 1 Order Screw Kit #540665001
$97.39
$98.40 $97.39
View part
120RING 599013201 1
$423.39
$510.00 $423.39
View part
170PLUG 599163401 5
$0.16
$0.18 $0.16
View part
171PLUG 599063601 15
$0.29
$0.33 $0.29
View part
200MOUNT 598993501 1
$21.61
$24.70 $21.61
View part
284CAP 599169201 7
$0.16
$0.18 $0.16
View part
414BOLT 574892005 15 HHCS 5/16"-18 UNC x1-3/4" GR5 Unplated
$1.36
$1.55 $1.36
View part
420SCREW 599163001 5 SHSB 1/2"x1/2"
$1.36
$1.55 $1.36
View part
424SCREW 725249751 2 M10x35 ISO 4017 8,8 ZPB
$2.61
$2.98 $2.61
View part
444SCREW 599165001 10 SHSB 1/2"x3/4"x1-3/8"
$1.36
$1.55 $1.36
View part
445SCREW EHHM 725250051 1 M10x45 ISO 4014 8,8 ZPB
484WASHER 542173035 2 M20 ISO 7089 200HV ZPB
$2.69
$3.07 $2.69
View part
514PIN 542020616 2 Cotter pin 1/4"x1-1/2" Zn
$0.44
$0.50 $0.44
View part
516PIN 541204924 1 Cotter pin 3/16"x2" Zn
$1.36
$1.55 $1.36
View part
590BLADE BUSHING 598999101 1
$53.38
$61.00 $53.38
View part
613FITTING 599162101 7 AM10 DIN 71412
$0.63
$0.71 $0.63
View part
701BALL BEARING 598431901 1 6014-2RS1 C3
$58.98
$67.40 $58.98
View part
702RING 599167201 1 RING-NILOS,6014 ZAV
$39.19
$30.70 $39.19
View part
DECALS 10 parts
DECALS diagram
Part Article number Qty Comment Price Details
1LABEL DRILL 599047301 1
$40.16
$45.90 $40.16
View part
2LABEL DRILL 599043101 1
$7.99
$9.13 $7.99
View part
3LABEL DRILL 599002501 2
$6.68
$7.63 $6.68
View part
4DECAL 599235101 1
$5.34
$6.10 $5.34
View part
5DECAL 599235001 1
$5.34
$6.10 $5.34
View part
6DECAL 599235301 2
$6.68
$7.63 $6.68
View part
7DECAL 580401613 1
8LABEL 599963601 2
9HANG TAG 595865401 1
$5.75
$4.60 $5.75
View part
10LABEL 595871701 1
$3.84
$3.07 $3.84
View part
DECALS 9 parts
DECALS diagram
Part Article number Qty Comment Price Details
1LABEL DRILL 599051501 1
2LABEL DRILL 599055401 1
3LABEL DRILL 599002501 2
4DECAL 599235101 1
5DECAL 599235001 1
6DECAL 599235301 2
8LABEL 599963601 2
9DECAL 587112001 1
10LABEL 529752801 1
DRIVE 36 parts
DRIVE diagram
Part Article number Qty Comment Price Details
96LEVER 599058301 1 Right cross
$411.25
$470.00 $411.25
View part
98LEVER 599058401 1 Left cross
$665.88
$761.00 $665.88
View part
179BRACKET 599008801 1 Gearbox bracket, left
$695.63
$795.00 $695.63
View part
180BRACKET 599022901 1 Gearbox bracket, right
$586.25
$670.00 $586.25
View part
211CLUTCH 599032701 1
$409.00
$480.00 $409.00
View part
215CLUTCH 599032801 1
$479.00
$561.00 $479.00
View part
216DRIVE BELT 599032601 1 13-1/4"
$102.95
$85.40 $102.95
View part
217JOINT 598995201 1
$259.88
$297.00 $259.88
View part
218JOINT 599021701 1
$254.63
$291.00 $254.63
View part
219SPACER 599105401 1
$32.29
$26.20 $32.29
View part
225BEARING 598994501 2 UCP 207-23
$24.06
$27.50 $24.06
View part
226WASHER 599165401 1
$1.36
$1.55 $1.36
View part
238SHAFT 599123601 1
$140.00
$160.00 $140.00
View part
240FITTING 598994801 1
$143.29
$173.00 $143.29
View part
284CAP 599169201 8
$0.16
$0.18 $0.16
View part
317FITTING 599172901 2
$4.03
$4.60 $4.03
View part
319HOSE 599083401 2
$39.19
$30.70 $39.19
View part
405SCREW IHSCM 725537001 12 M6x20 ISO 4762 8,8 ZPB
407SCREW EHHM 725237071 1 M6x20 ISO 4017 8,8 ZPB
412SCREW IHSCM 725537801 3 M6x40 ISO 4762 8.8 ZPB
$19.79
$2.76 $19.79
View part
428SCREW EHHM 725254551 4 M12x65 ISO 4014 8.8 ZPB
$3.91
$4.47 $3.91
View part
433SCREW 597979101 4 M14x50 ISO 4017 8,8 ZPB
$2.76
$3.16 $2.76
View part
434SCREW 599175101 1 HHCS 7/16"-20 SAE x5-1/2" GR5 (57K)
$1.36
$1.55 $1.36
View part
434SCREW 599173601 1 HHCS 7/16"-20 SAE x4-1/2" GR5 (37V)
$1.36
$1.55 $1.36
View part
463NUT 598556501 4 M14 DIN 985 8 ZPB
$2.76
$3.16 $2.76
View part
466HEXAGON LOCKING NUT 732252201 12 M12 ISO 7040 8 ZPB
$19.79
$1.50 $19.79
View part
476SCREW EHHM 725254171 12 M12x45 ISO 4017 8,8 ZPB
$1.13
$1.29 $1.13
View part
488WASHER 599165701 8
$0.16
$0.18 $0.16
View part
490WASHER 599164401 1
$1.36
$1.55 $1.36
View part
491WASHER 734117801 20 M12 ISO 7089 200HV ZPB
$6.29
$0.53 $6.29
View part
502SNAP RING 542206205 1
543KEY 541400448 2 3/16"x3/16"x1"
$7.99
$9.13 $7.99
View part
547KEY 599172401 2 1/4"x1/4"x2-1/4"
$12.16
$13.90 $12.16
View part
588BEARING 598993101 6
$4.03
$4.60 $4.03
View part
589BLOCK 599012601 6
$75.95
$86.80 $75.95
View part
700SPACER 535546001 3
$19.19
$15.70 $19.19
View part
ENGINE COMPARTMENT 14 parts
ENGINE COMPARTMENT diagram
Part Article number Qty Comment Price Details
23BELT GUARD 599033601 1
121WIRE 599033401 1
222HEAT SHIELD 599043501 1
223HEAT SHIELD 599043601 1
403SCREW EHHM 725245371 1 M8x25 ISO 4017 8,8 A2K
406SCREW 599458501 5 M6x16 DIN 6921S 8.8 ZPB
419SCREW EHHM 725246271 4 M8x55 ISO 4017 8.8 ZPB
449SCREW EHHFM 506570104 8 M8x20 DIN 6921 8.8 ZPB
451SCREW 599176901 2
454HEXAGON LOCKING NUT 732251801 5 M8 ISO 7040 8 ZPB
460NUT 576645704 8 M8 ISO 7043 8 FZB
470LOCK NUT 599166801 5 Lugs 060023
485WASHER 734116301 6 M8 ISO 7089 200HV ZPB
493WASHER 734116541 2 M8 ISO 7093 ZPB
ENGINE COMPARTMENT 28 parts
ENGINE COMPARTMENT diagram
Part Article number Qty Comment Price Details
9SHIELD 599123001 1
12BRACKET 599121201 1
46FUEL HOSE 599481201 1 28"
121WIRE 599077801 1
182HOSE CLAMP 539300073 2 0,21"-0,63"
241CAP 599034301 1
243BOTTLE 599034201 1
250GASKET 599064501 1
253BUMPER 598999801 6
265CABLE 599173201 2
279BRACKET 599112101 1
298PLATE 599044701 1
299SHIELD 599044501 1
300BRACKET 599075401 1
406SCREW 599458501 6 M6x16 DIN 6921S 8.8 ZPB
429BOLT 596320101 2 M6x12 ISO 4017 8.8 ZPB
435SCREW EHHFM 506570103 4 M8x16 DIN 6921 8.8 ZPB
453NUT 593356401 6
457NUT 539976979 12 3/8"-16 hex, Nyloc
480SCREW 599177801 2 M10x25
481WASHER 734117201 12 M10 ISO 7089 200HV ZPB
495WASHER 734117441 14 M10 ISO 7093 ZPB
707SCREW 599173501 12 M10x20
730HOSE 599075501 1 152 mm
1004HOSE 599480601 1
1005HOSE 599480602 1
1006FAN 599480701 1
1020RADIATOR 599480301 1
ENGINE INSTALLATION 6 parts
ENGINE INSTALLATION diagram
Part Article number Qty Comment Price Details
1ENGINE 599076401 1 VTWIN EFI #61E3770141J1 Stub Shaft
$6,939.39
$8,341.00 $6,939.39
View part
12PLATE 599022001 1
$227.99
$276.00 $227.99
View part
13BRACKET 599021901 2
$30.80
$35.20 $30.80
View part
253BUMPER 598999801 4
$6.68
$7.63 $6.68
View part
457NUT 539976979 8 3/8"-16 hex, Nyloc
495WASHER 734117441 8 M10 ISO 7093 ZPB
$19.79
$1.88 $19.79
View part
ENGINE INSTALLATION 40 parts
ENGINE INSTALLATION diagram
Part Article number Qty Comment Price Details
1ENGINE 599102401 1 Kubota WG1605-G-E3-WKR-1 (EG522-2900)
8AIR CLEANER 599104601 1
23BELT GUARD 599111801 1
124CABLE 541201014 1
182HOSE CLAMP 539300073 1 0,21"-0,63"
190HOSE 599074001 1
201PIPE 599111901 1
202PIPE 599112001 1
205HOSE 599124001 1
206BRACKET 599110701 1
207CAP 599124601 1
219SPACER 599105401 1
245SHAFT 599122001 1
281HOSE CLAMP 539300073 4 Wormdrive SAE 32
283CLAMP 599174501 2
301BRACKET 529797301 1
406SCREW EHHFM 585980601 3 M6x16 EN 1665 8,8 ZPB
435SCREW EHHFM 506570103 8 M8x16 DIN 6921 8.8 ZPB
436SCREW EHHFM 585972801 2 M8x30 EN 1665 8,8 ZPB
449SCREW EHHFM 506570104 5 M8x20 DIN 6921 8.8 ZPB
459NUT FLANGE 576645705 4 M10 DIN 6926 8 FZB
460NUT 576645704 8 M8 ISO 7043 8 FZB
480SCREW 599177801 6 M10x25
481WASHER 734117201 2 M10 ISO 7089 200HV ZPB
485WASHER 734116301 1 M8 ISO 7089 200HV ZPB
547KEY 599172401 1 1/4"x1/4"x2-1/4"
651BRACKET 599122901 1
652BRACKET 599123101 1
653SHIELD 599123302 1
670HOSE 599125901 1
672SCREW 599168901 2
673NUT 576645706 2 M12 DIN 6926 8 FZB
674SCREW EHHFM 585973101 4 M10x25 EN 1665 8.8 ZPB
675WASHER 576823101 4
676BRACKET 599077701 1
688FITTING 599073601 1
707SCREW 599173501 2 M10x20, 48Nm/35ft.lbs (S3)
1001CONVERTER 599075701 1
1002GASKET 599480901 1
1003GASKET 599480902 1
FRAME 9 parts
FRAME diagram
Part Article number Qty Comment Price Details
2FRAME 599019201 1
$6,272.19
$7,538.00 $6,272.19
View part
3FRAME 599122501 1
$320.99
$388.00 $320.99
View part
31CYLINDER 599033101 1
$22.93
$26.20 $22.93
View part
32STUD 599168701 2
$15.29
$12.50 $15.29
View part
123LIGHT 599076901 4
447SCREW 599608601 8
$2.69
$3.07 $2.69
View part
459NUT 599582901 8
460NUT 599570601 2
$1.35
$1.54 $1.35
View part
901CABLE 529927101 4
$37.36
$42.70 $37.36
View part
FUEL HOSE ROUTING 29 parts
FUEL HOSE ROUTING diagram
Part Article number Qty Comment Price Details
42TANK 599131302 1
43CAP 599073301 1
45BLADE BUSHING 598990401 1
182CLAMP 542020049 6 0,21"-0,63"
185VALVE 599117801 1
271GROMMET 599068801 1
273FITTING 599071201 1
278BRACKET 599072701 1
680FITTING 599072601 1 SAE#4 MORB MALE to 1/4" BARB
681ADAPTER 599072801 1 SAE#4 FEMALE to SAE#3 MORB MALE
682ADAPTER 599072901 1 SAE#6 MORB MALE to SAE#5 MALE
683FITTING 599073001 1 SAE#5 FEMALE to 5/16" BARB
684ADAPTER 599073101 1 M10 MALE to SAE#4 MALE
685FITTING 599073201 1 #4 FEMALE to 1/4" BARB
686FITTING 599073401 1 SAE#6 MALE to 90DEG,5/16" BARB
687FITTING 599073501 1 90QC 5/16"-5/16"
821FUEL PUMP 529584901 1
822MODULE 599480101 1
1030FUEL HOSE 599481001 1 ID 5/16" - 310 mm
1031FUEL HOSE 599481002 1 ID 5/16" - 410 mm
1032FUEL HOSE 599481003 1 ID 5/16" - 540 mm
1033FUEL HOSE 599481004 1 ID 5/16" - 940 mm
1034FUEL HOSE 599481202 1 ID 1/4" - 1500 mm
1035WIRE 599481701 1 10"
1036WIRE 599481702 1 14"
1037WIRE 599481703 1 19"
1038WIRE 599481704 1 46"
1039WIRE 599481705 1 58"
1100MANIFOLD 599480801 1
GEARBOX, LEFT 37 parts
GEARBOX, LEFT diagram
Part Article number Qty Comment Price Details
1GEARBOX ASSY 599340302 1 Gearbox assy LH, CRT 48
$3,487.79
$4,193.00 $3,487.79
View part
56GEARBOX 598992101 1
$461.49
$556.00 $461.49
View part
57COVER 598992201 2
$46.73
$53.40 $46.73
View part
59COVER 598991501 1
$102.38
$117.00 $102.38
View part
60GEAR 598991801 1 Wormgear, left hand
$373.09
$451.00 $373.09
View part
62SHAFT 598999201 1
$202.13
$231.00 $202.13
View part
71SHIM 536852802 1 Shim kit, side cover, 4pcs
$42.44
$48.50 $42.44
View part
75SHIM 536852801 1 Shim kit, upper cover, 5pcs
$81.20
$92.80 $81.20
View part
83COVER 598993001 1 Fan cover, LH
$29.58
$33.80 $29.58
View part
85VALVE 599170501 1
$2.69
$3.07 $2.69
View part
88FAN 598992601 1 Fan, LH
99WORM GEAR 598995001 1 Worm, LH
$215.25
$246.00 $215.25
View part
227WASHER 599165801 1 1-1/8"x0,281"x0,187"
$1.36
$1.55 $1.36
View part
228FITTING 599125401 1
$114.39
$139.00 $114.39
View part
400STUD 599167401 2 M4x20 DIN 976
$0.69
$0.63 $0.69
View part
407SCREW EHHM 725237071 1 M6x20 ISO 4017 8,8 ZPB
408SCREW 599168201 2 M4x14
$0.16
$0.18 $0.16
View part
409STUD 599168101 2 M4x25 DIN 976
$0.79
$0.71 $0.79
View part
412SCREW IHSCM 725537801 1 M6x40 ISO 4762 8.8 ZPB
$19.79
$2.76 $19.79
View part
416SCREW EHHM 725245171 8 M8x20 ISO 4017 8,8 ZPB
427SCREW EHHM 725253871 2 M12x35 ISO 4017 8,8 ZPB
$2.61
$2.98 $2.61
View part
468LOCK NUT 542167485 4 M4 Locknut, fiber
$0.63
$0.71 $0.63
View part
482WASHER 734114601 6 M5 ISO 7089 200HV ZPB
$19.79
$1.50 $19.79
View part
483WASHER 734115201 1 M6 ISO 7089 200HV ZPB
$19.79
$2.87 $19.79
View part
541KEY 599164801 1 3/8"x3/8"x1-1/2"
$1.36
$1.55 $1.36
View part
542KEY 599167601 1 3/8"x3/8"x4"
$1.36
$1.55 $1.36
View part
545KEY 541203404 1 1/4"x1/4"x1"
560O-RING 598992301 2 2-3/8"x3/32" NBR 70 Shore
$1.36
$1.55 $1.36
View part
561O-RING 598992401 1 7-1/4"x1/8" NBR 70 Shore
$4.03
$4.60 $4.03
View part
570SEAL 599164501 1 RING, NILOS LM501349/LM501310 AV
$22.23
$25.40 $22.23
View part
580BEARING 599164601 2 LM48510
$5.34
$6.10 $5.34
View part
581BEARING 599164701 2 LM501310
$10.94
$12.50 $10.94
View part
582BEARING 598994701 2 LM48548
$48.48
$55.40 $48.48
View part
583BEARING 599165601 2 LM501349
$10.94
$12.50 $10.94
View part
600SEAL 599047501 2 13054
$17.59
$20.10 $17.59
View part
601SEAL 599047601 2 16078
$17.59
$20.10 $17.59
View part
616PLUG 599171001 3 3/8in NPTF (S8)
$1.36
$1.55 $1.36
View part
GEARBOX, RIGHT 37 parts
GEARBOX, RIGHT diagram
Part Article number Qty Comment Price Details
1GEARBOX ASSY 599340301 1 Gearbox assy RH, CRT 48
56GEARBOX 598992101 1
57COVER 598992201 2
59COVER 598991501 1
61GEAR 598991601 1 Wormgear, right hand
62SHAFT 598999201 1
71SHIM 536852802 1 Shim kit, side cover, 4pcs
75SHIM 536852801 1 Shim kit, upper cover, 5pcs
82COVER 598992701 1 Fan cover, RH
85VALVE 599170501 1
87FAN 598992501 1 Fan, RH
100WORM GEAR 598995101 1 Worm, RH
227WASHER 599165801 1 1-1/8"x0,281"x0,187"
228FITTING 599125401 1
400STUD 599167401 2 M4x20 DIN 976
407SCREW EHHM 725237071 1 M6x20 ISO 4017 8,8 ZPB
408SCREW 599168201 2 M4x14
409STUD 599168101 2 M4x25 DIN 976
412SCREW IHSCM 725537801 1 M6x40 ISO 4762 8.8 ZPB
416SCREW EHHM 725245171 8 M8x20 ISO 4017 8,8 ZPB
427SCREW EHHM 725253871 2 M12x35 ISO 4017 8,8 ZPB
468LOCK NUT 542167485 2 M4 Locknut, fiber
482WASHER 734114601 4 M5 ISO 7089 200HV ZPB
483WASHER 734115201 1 M6 ISO 7089 200HV ZPB
541KEY 599164801 1 3/8"x3/8"x1-1/2"
542KEY 599167601 1 3/8"x3/8"x4"
545KEY 541203404 1 1/4"x1/4"x1"
560O-RING 598992301 2 2-3/8"x3/32" NBR 70 Shore
561O-RING 598992401 1 7-1/4"x1/8" NBR 70 Shore
570SEAL 599164501 1 RING, NILOS LM501349/LM501310 AV
580BEARING 599164601 2 LM48510
581BEARING 599164701 2 LM501310
582BEARING 598994701 2 LM48548
583BEARING 599165601 2 LM501349
600SEAL 599047501 2 13054
601SEAL 599047601 2 16078
616PLUG 599171001 3 3/8in NPTF (S8)
HYDRAULIC MANIFOLD 9 parts
HYDRAULIC MANIFOLD diagram
Part Article number Qty Comment Price Details
1MANIFOLD 599050701 1
2VALVE 546942601 1
3FITTING 546943101 1 6 x 6 x 45
4PLUG 546942901 1 5mm
5VALVE 546942801 1 100-2000PSI
6MANIFOLD 546942701 1
7FITTING 546943201 1 4 x 4
8PLUG 546943001 1 No.6 SAE
9FITTING 546943301 1 9/16in UNF
HYDRAULIC PIPING 31 parts
HYDRAULIC PIPING diagram
Part Article number Qty Comment Price Details
35PUMP 599118901 1
135PLATE 599120501 1
136RADIATOR 599116901 1
140RESERVOIR 599050801 1 Hydraulic tank, complete
141HOSE KIT 599120201 1 Hydraulic hoses, set
142SHROUD 599120901 1
150DRIVE BELT 599117601 1 BELT-GUARD,CRT PUMP
151PULLEY 599108401 1 PULLEY-DRIVE PUMP
152PULLEY 599119001 1 PULLEY-DRIVEN MA38 X 1-1/8
153DRIVE BELT 599120301 1 A21
154PUMP 599115801 1 PUMP, BRACKET WELDMENT
282HOSE CLAMP 576315205 3 SAE12
321FITTING 599120701 1 4601-12-08
322FITTING 576414843 1 FF6400-6-6
323FITTING 576414837 1 FF6400-12-12
324FITTING 598990901 1
403SCREW EHHM 725245371 2 M8x25 ISO 4017 8,8 A2K
406SCREW 599458501 9 M6x16 DIN 6921S 8.8 ZPB
449SCREW EHHFM 506570104 12 M8x20 DIN 6921 8.8 ZPB
454HEXAGON LOCKING NUT 732251801 4 M8 ISO 7040 8 ZPB
460NUT 576645704 10 M8 ISO 7043 8 FZB
470LOCK NUT 599166801 5 Lugs 060023
485WASHER 734116301 6 M8 ISO 7089 200HV ZPB
545KEY 541203404 1 1/4"x1/4"x1"
902HYDRAULIC HOSE 599507101 1 22"
903HYDRAULIC HOSE 599507201 1 47"
904HYDRAULIC HOSE 599507301 1 30,5"
905HYDRAULIC HOSE 599507501 1 55"
906HYDRAULIC HOSE 599507601 2 24"
907HYDRAULIC HOSE 599507701 2 16"
908HYDRAULIC HOSE 599507801 2 27"
HYDRAULIC PIPING 21 parts
HYDRAULIC PIPING diagram
Part Article number Qty Comment Price Details
140RESERVOIR 599050801 1 Hydraulic tank, complete
141HOSE KIT 599074101 1 Hydraulic hoses, set
145RADIATOR 599117001 1
149BRACKET 599077301 2
282HOSE CLAMP 576315205 3 SAE12
323FITTING 576414837 1 FF6400-12-12
324FITTING 598990901 1
435SCREW EHHFM 506570103 4 M8x16 DIN 6921 8.8 ZPB
460NUT 576645704 4 M8 ISO 7043 8 FZB
691FITTING 599073701 1
692FITTING 599073801 1
693FITTING 599073901 1
902HYDRAULIC HOSE 599507101 1 22"
903HYDRAULIC HOSE 599507201 1 47"
904HYDRAULIC HOSE 599528801 1 27,5"
905HYDRAULIC HOSE 599528901 1 31,5"
906HYDRAULIC HOSE 599507601 2 24"
907HYDRAULIC HOSE 599507701 2 16"
908HYDRAULIC HOSE 599507801 2 27"
1000HOSE KIT 599074101 1
1015HYDRAULIC PUMP 599075201 1
HYDRAULIC TANK 20 parts
HYDRAULIC TANK diagram
Part Article number Qty Comment Price Details
139MANIFOLD 599050701 1 Hydraulic manifold, complete
140RESERVOIR 599050801 1 Hydraulic tank, complete
148BRACKET 599053701 1
416SCREW EHHM 725245171 6 M8x20 ISO 4017 8,8 ZPB
423SCREW 725245751 4 M8x35 ISO 4017 8.8 ZPB
454HEXAGON LOCKING NUT 732251801 6 M8 ISO 7040 8 ZPB
485WASHER 734116301 4 M8 ISO 7089 200HV ZPB
493WASHER 734116541 4 M8 ISO 7093 ZPB
913FILTER 599508001 1
914CAP 599508101 1
915O-RING 599508401 1
916SPRING 599508201 1
917FILTER HOUSING 599508301 1
918O-RING 599508501 1
919O-RING 599508601 1
920SEPARATOR 599508701 1
921BREATHER 599508801 1
922FILTER 599508901 1
999HYDRAULIC TANK 599506901 1
1001HYDRAULIC TANK 599506801 1 Sight glass
PANELS 40 parts
PANELS diagram
Part Article number Qty Comment Price Details
4PLATE 599130102 1
5PLATE 599030401 1
6PANEL ASSY 599130702 1
7BRACKET 599054101 1
10PLATE 599021801 1
16PANEL 599122201 1
17PANEL 599122101 1
25PLATE 599033301 1
27STRUT 599125701 1
28STRUT 599074201 1
129ELECTRICAL SYSTEM 599050501 1 Hydraulic controller, programmed
181SWITCH 598994601 1
204LEVER 599035601 1
207THROTTLE CABLE 546514301 1 Throttle cable 37V
234GUARD 599032301 1
302PLATE 599120601 1
311SPRING 599110601 1
406SCREW 599458501 37 M6x16 DIN 6921S 8.8 ZPB
416SCREW EHHM 725245171 4 M8x20 ISO 4017 8.8 ZPB
421SCREW EHHM 725232971 2 M5x16 ISO 4017 8.8 ZPB
422SCREW 599171801 1 M6x50
435SCREW EHHFM 506570103 2 M8x16 DIN 6921 8.8 ZPB
441SCREW 599163701 2
446SCREW EHHM 725232771 2 M5x12 ISO 4017 8.8 ZPB
452HEXAGON LOCKING NUT 732251601 1 M6 ISO 7040 8 ZPB
453NUT 593356401 18 M6 8 ZPB lock, serated
458HEXAGON LOCKING NUT 732251401 9 M5 ISO 7040 8 ZPB
460NUT 599570601 2 M8 DIN 6923S 8 ZPB
470LOCK NUT 599166801 17 Lugs 060023
482WASHER 734114601 4 M5 ISO 7089 200HV ZPB
485WASHER 734115201 2 M6 ISO 7089 200HV ZPB
493WASHER 734116541 4 M8 ISO 7093 ZPB
515PIN 599163501 1 Cotter pin 0.073"x1-3/16" Zn
655COVER 599131102 1
656LATCH 599070601 1
657SCREW EHHM 725233371 1 M5x25 ISO 4017 8.8 ZPB
700PIVOT 599076001 1
706HEX BOLT 6MM X 50 MM 505821801 2 M6x50
1000RELAY 599463401 2 50A, 12V
1110THROTTLE CABLE 599506601 1 Throttle cable cpl. 37V
PANELS 37 parts
PANELS diagram
Part Article number Qty Comment Price Details
4PLATE 599130102 1
5PLATE 599030401 1
6PANEL ASSY 599130702 1
7BRACKET 599054101 1
10PLATE 599021801 1
16PANEL 599122301 1
17PANEL 599122101 1
25PLATE 599033301 1
129ELECTRICAL SYSTEM 599050501 1 Hydraulic controller, programmed
181SWITCH 598994601 1
204LEVER 599035601 1
234GUARD 599032301 1
311SPRING 599171901 1
406SCREW 599458501 37 M6x16 DIN 6921S 8.8 ZPB
416SCREW EHHM 725245171 4 M8x20 ISO 4017 8.8 ZPB
421SCREW EHHM 725232971 2 M5x16 ISO 4017 8.8 ZPB
422SCREW 599171801 1 M6x50
435SCREW EHHFM 506570103 2 M8x16 DIN 6921 8.8 ZPB
441SCREW 599163701 2
446SCREW EHHM 725232771 2 M5x12 ISO 4017 8.8 ZPB
452HEXAGON LOCKING NUT 732251601 1 M6 ISO 7040 8 ZPB
453NUT 593356401 18 M6 8 ZPB lock, serated
458HEXAGON LOCKING NUT 732251401 9 M5 ISO 7040 8 ZPB
460NUT 599570601 2 M8 DIN 6923S 8 ZPB
470LOCK NUT 599166801 17 Lugs 060023
482WASHER 734114601 4 M5 ISO 7089 200HV ZPB
485WASHER 734115201 2 M6 ISO 7089 200HV ZPB
493WASHER 734116541 4 M8 ISO 7093 ZPB
515PIN 599163501 1 Cotter pin 0.073"x1-3/16" Zn
655COVER 599131102 1
656LATCH 599070601 1
657SCREW EHHM 725233371 1 M5x25 ISO 4017 8.8 ZPB
700PIVOT 599076001 1
706HEX BOLT 6MM X 50 MM 505821801 2 M6x50
1000RELAY 599463401 2 50A, 12V
1002RELAY 529585001 1
1110THROTTLE CABLE 599558501 1 Throttle cable cpl. 35L
PITCH CONTROL 29 parts
PITCH CONTROL diagram
Part Article number Qty Comment Price Details
1LEVER ASSY 540883401 1 Right hand, complete
2LEVER ASSY 540883402 1 Left hand, complete
32STUD 599168701 2 M8x10
191TUBE 599004201 1
192PLATE 599062401 1
193TUBE 599062501 1
194ROD 599169401 1 Right hand thread
195ROD 599169501 1 Left hand thread
196TUBE 599004601 1 Right hand thread
197TUBE 599004701 1 Left hand thread
198CABLE 599004801 1 Pitch cable
199HANDLE 599005101 1 Handle, 24Nm/18ft.lbs
284CAP 599169201 1
304BLADE BUSHING 599004301 1
305HUB 599004401 1
306RING 599169301 1 Nilos ring
307BALL 599169601 2
308PLATE 599004901 1
309CRANK 599047401 1
310SPRING 599004101 2
330CYLINDER 599048501 1
408SCREW 599168201 4 M4x14
455LOCK NUT 542166256 1 5/16"-24 Locknut, fiber
460NUT 599570601 2 M8 DIN 6923S 8 ZPB
479SCREW IHSCM 725545101 4 M8x20 ISO 4762 8,8 ZPB
500PIPE 599173101 1
517PIN 599163301 1 Roll pin 1/4"x1-1/2"
518PIN 599160001 1 Roll pin 8x36
614FITTING 599176601 1 AM6 DIN 71412
SEAT ASSY 53 parts
SEAT ASSY diagram
Part Article number Qty Comment Price Details
11SEAT 529855601 1
14PLATE 599045201 1
18HOUSING 599051701 2
20BRACKET 599040901 1
21SWITCH 599026901 1 Seat switch
22BRACKET 599026401 1
29PLATE 599053201 1
30HOLDER 598988501 1
32STUD 599168701 5 M8x10
33JOYSTICK 599039401 1 Dual axis joystick
34JOYSTICK 599039501 1 Single axis joystick
37SPRING 599016401 2 90 lb
38PLATE 599061101 1
65INSERT 598992901 1
66BRACKET 599052701 1
67BRACKET 599060901 1
68BRACKET 599061001 1
70BRACKET 599053301 1
128WIRING ASSY 599050401 1
130SWITCH 599070801 1 Light switch
131SWITCH 599012801 1 Switch
132PLUG 599048001 1
133HOUR METER 598994301 1 Hour meter
136LIGHT 599124401 1
137LIGHT 599044401 3
220SWITCH 599002701 1
401SCREW 599173901 8 M4x20
406SCREW EHHFM 585980601 16 M6x16 EN 1665 8,8 ZPB
407SCREW EHHM 725237071 4 M6x20 ISO 4017 8,8 ZPB
415SCREW IHSCM 725545101 4 M8x20 ISO 4762 8,8 ZPB
442SCREW 599169101 4 #10x3/4" GR
452HEXAGON LOCKING NUT 732251601 4 M6 ISO 7040 8 ZPB
453NUT 593356401 8
454HEXAGON LOCKING NUT 732251801 4 M8 ISO 7040 8 ZPB
460NUT 576645704 9 M8 ISO 7043 8 FZB
464HEXAGON THIN NUT 731431801 4 M8 ISO 4035 St 04 ZPB
465NUT 539976978 2 Nut 1/4"-20 Hex Nyloc ZD
468LOCK NUT 542167485 8 M4 Locknut, fiber
470LOCK NUT 599166801 8 Lugs 060023
474LATCH 599062001 1
487WASHER 734113601 8 M4 ISO 7089 200HV ZPB
489WASHER 599160701 4
491WASHER 734117801 6 M12 ISO 7089 200HV ZPB
499BUMPER 598989701 4
503BUMPER 599053101 2
520PIN 599173301 6 Clevis pin 1/2"x1"
609RIVET 599167901 4
620GROMMET 599054501 2
645RUBBER SHOE 546419801 2 Upper switch
646RUBBER SHOE 546419901 2 Base
725PIN 599160101 6 Cotter pin 3.2x25
997KEY 536584701 1 Key
998KEY 599479001 1 Key fob, Husqvarna
SERVICE KIT 8 parts
SERVICE KIT diagram
Part Article number Qty Comment Price Details
1SERVICE KIT 546430901 1 KIT for CRT 48-37V
$69.56
$79.50 $69.56
View part
2OIL FILTER 546433901 1
$23.01
$26.30 $23.01
View part
3AIR FILTER 546434001 1
$34.74
$39.70 $34.74
View part
4FILTER 546722301 1
$10.89
$13.20 $10.89
View part
5FUEL FILTER 546434101 1
$12.29
$15.00 $12.29
View part
6SPARK PLUG 546434201 2
$17.09
$13.90 $17.09
View part
7SEALING 546434301 1
$13.65
$15.60 $13.65
View part
8GASKET 546448001 2
$32.89
$39.70 $32.89
View part
SERVICE KIT 7 parts
SERVICE KIT diagram
Part Article number Qty Comment Price Details
1SERVICE KIT 546431101 1 KIT for CRT 48-57K
2OIL FILTER 546448101 1
3AIR FILTER 546448201 1
4AIR FILTER 546448301 1
5FUEL FILTER 546448401 1
6SPARK PLUG 546448501 4
7DRIVE BELT 546448601 1
STEERING 22 parts
STEERING diagram
Part Article number Qty Comment Price Details
138ACTUATOR 599050601 3
146BRACKET 599052401 2
147BRACKET 599051001 1
154LINK 599016001 1
157LINK 599038401 2
163SPACER 599054801 4
164PLATE 599053801 4
284CAP 599169201 3
416SCREW EHHM 725245171 4 M8x20 ISO 4017 8,8 ZPB
426SCREW 599172501 6 HHCS 1/2"-20x1-3/4" GR
430BOLT 587428801 3 HSCS 1/2"-20x1" GR
439SCREW EHHM 725245376 16 M8x25 ISO 4017 10.9 ZPB
454HEXAGON LOCKING NUT 732251801 4 M8 ISO 7040 8 ZPB
460NUT 576645704 16 M8 ISO 7043 8 FZB
461LOCK NUT 546673001 4
484WASHER 542173035 4 M20 ISO 7089 200HV ZPB
485WASHER 734116301 16 M8 ISO 7089 200HV ZPB
511PIN 599175601 2 Clevis pin 3/4"x3-1/2"
512PIN 599174101 1 Clevis pin 3/4"x3-3/4"
514PIN 542020616 3 Cotter pin 1/4"x1-1/2" Zn
587BEARING 598996901 6 0,875"
700SPACER 599054201 2
TANK ASSY AND BATTERY 51 parts
TANK ASSY AND BATTERY diagram
Part Article number Qty Comment Price Details
2FRAME 599019201 1
39VALVE 598998801 1
42TANK 599131302 1
43CAP 599073301 1 57K
43CAP 599070901 1 37V
44CAP 599030201 1
45BLADE BUSHING 598990401 2
47VALVE 599061701 1
48WATER PUMP KIT 599463101 1
49ELBOW 598993901 2
50JET 598994001 2
51FITTING 598994101 2
54FITTING 599169001 1
55BRACKET 599061501 1
58SCREEN 599061801 1
124CABLE 541201014 1
172PAD 598988001 1
173BATTERY 581271801 1
174BOX 598999901 1
176CABLE 599036101 1 40"
177CABLE 599036201 1 16"
182CLAMP 542020049 12 0,21"-0,63"
183FUEL HOSE 599481203 1 ID 1/4" - 1525 mm
184LOOM 599465605 1 53"
185VALVE 599000501 1 37V
185VALVE 599117801 1 57K only
271GROMMET 599068801 1
272VENT 599068701 1 37V
272FITTING 599071201 1 57K
275FITTING 599104401 1 37V only
416SCREW EHHM 725245171 8 M8x20 ISO 4017 8.8 ZPB
418SCREW EHHM 725229571 4 M4x20 ISO 4017 8.8 ZPB
435SCREW EHHFM 506570103 1 M8x16 DIN 6921 8.8 ZPB
447SCREW EHHM 725249571 1 M10x30 ISO 4017 8.8 ZPB
459NUT 599582901 1 M10 DIN 6923S 8 ZPB
460NUT 576645704 1 M8 ISO 7043 8 FZB
468LOCK NUT 542167485 4 M4 Locknut, fiber
482WASHER 734114601 4 M5 ISO 7089 200HV ZPB
493WASHER 734116541 8 M8 ISO 7093 ZPB
494LOCKWASHER 599167501 1 M10 BN783 A2K
710TANK 599131202 1
800HOSE 599465504 1 70"
801LOOM 599465606 1 68"
802HOSE 599465501 1 3,5"
803LOOM 599465603 1 30"
804FUEL HOSE 599481204 1 ID 1/4" - 1830 mm
805LOOM 599465604 1 43"
909HOSE 599465503 2 24.5"
910LOOM 599465602 2 23,5"
911HOSE 599465502 1 5"
912LOOM 599465601 1 3"
Document Downloads
Compatable Accessories
Compatability
Product Video

Concrete Focus

From pouring to resurfacing, we sell tools built for concrete pros.

Expert Support

Get guidance from experts who understand jobsite challenges.

Fast Delivery

Get your tools fast with our nationwide shipping network and local partnerships.

Talk to an expert now (855) 281-1918

Get fast, expert help choosing the right concrete tools or equipment for your job. Ask about availability, specs, troubleshooting, or get friendly guidance before you place an order.

Click to Call
