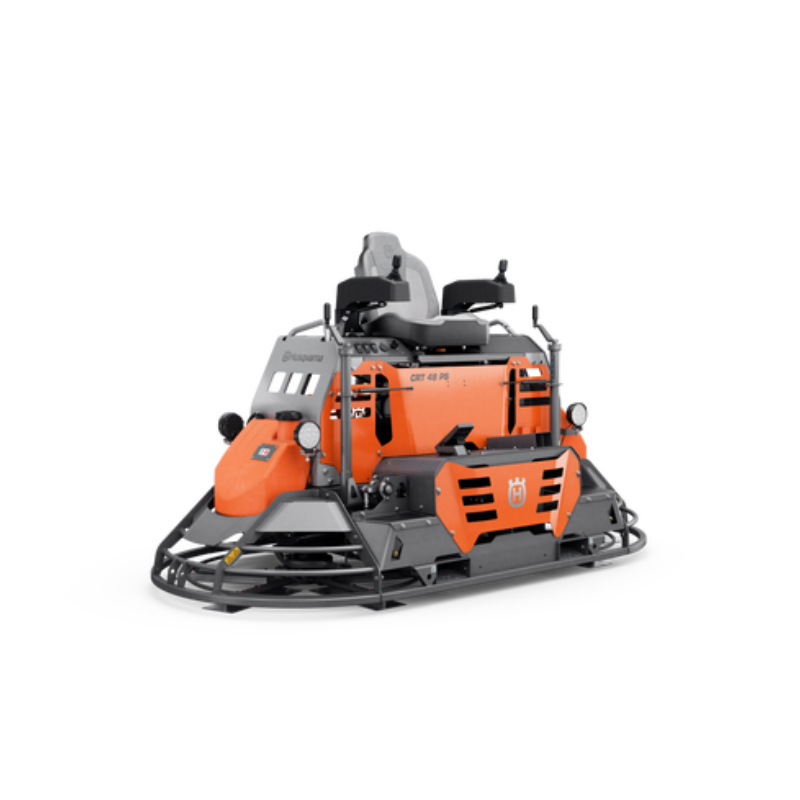

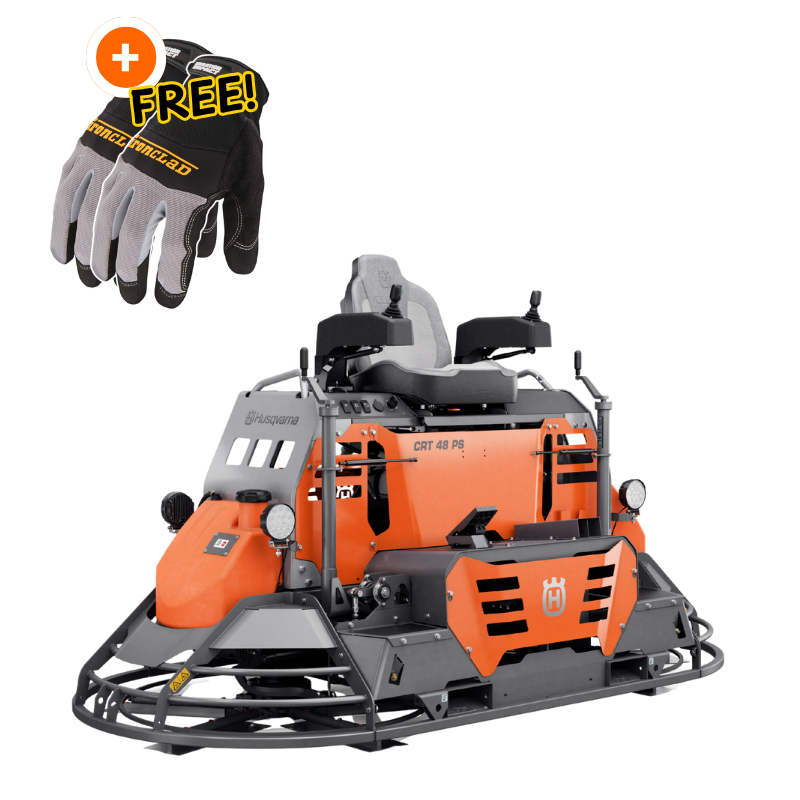

Husqvarna CRT 48 PS Petrol/LPG II
Husqvarna CRT 48 PS Petrol/LPG II
HUSQVARNA CONSTRUCTION SKU: 970461614 Copied!
Is this the right tool for the job?
Regular price
$40,059.00
Regular price
$51,750.00
Sale price
$40,059.00
Quantity
Trusted by contractors nationwide
"I've bought 3 products from CTD and each time the experience has been the same - professional and fast delivery. I trust these guys with all my concrete needs."
90 day returns
Product Details
Husqvarna CRT 48 PS Petrol/LPG
The Husqvarna CRT 48 PS ride-on trowel with power steering achieves high productivity with excellent results, thanks to its optimal manoeuvrability, high surface capacity, and balanced power-to-weight ratio. Ideal for finishing surfaces from 1,000 m² up to 2,500 m², the CRT 48 PS delivers consistent, high-quality finishes. The electro-hydraulic joystick control enables accurate manoeuvring and virtually fatigue-free operation, while offering two control modes to suit operator preference in varying site conditions. The Dual Fuel model can run on either petrol or LPG, allowing flexibility for applications where alternative fuel is preferred or required. Operators can easily toggle between the two during operation or use either fuel exclusively.
Key Features
- Power Steering: Enhanced manoeuvrability for high productivity and precision control.
- High Surface Capacity: Designed for finishing surfaces from 1,000 m² to 2,500 m².
- Electro-Hydraulic Joystick: Enables accurate control and reduces operator fatigue.

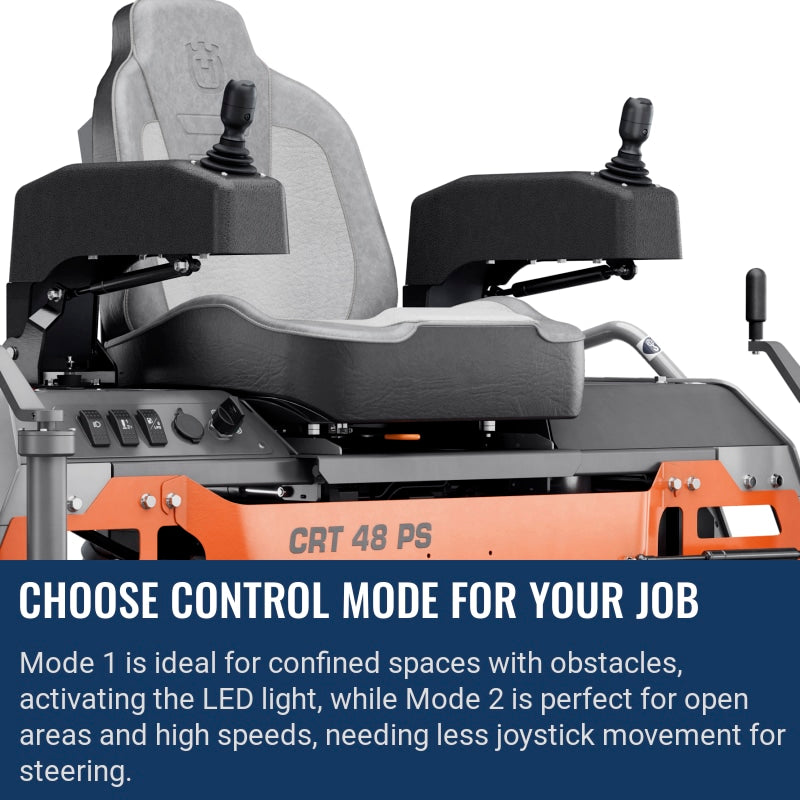

- Two Control Modes: Adjustable to match operator preference and site conditions.
- Dual Fuel Capability: Runs on either petrol or LPG, with seamless toggling between fuels.
- Balanced Power-to-Weight Ratio: Ensures stability, efficiency, and excellent finishing results.
With its combination of power, precision, and versatility, the Husqvarna CRT 48 PS Petrol/LPG ride-on trowel is the professional’s choice for large-scale concrete finishing projects, delivering exceptional results in any fuel configuration.
Product Specification
Product Info
Manufacturer
Husqvarna
Product Type
Husqvarna CRT 48 PS Petrol/LPG
Part #
970461614
Dimensions & Weight
Packaging length (in.)
107.008 in
Packaging width (in.)
55.748 in
Packaging height (in.)
64.606 in
Article gross weight (lbs.)
1,826.001 lbs
Other Specs
Motor/engine manufacturer
Kubota
Motor/engine model
WG1605-GL-E3-HQV-1
Engine power (rated)
57 hp
Exhaust emissions (CO₂ EU V)
939.1 g/kWh
Power source
Petrol/LPG
Troweling diameter
48 in
Blades
10 pcs
Sound pressure level at operators ear
95.2 dB(A)
Sound power level, measured
112.3 dB(A)
Warranty
Husqvarna CRT 48 PS Petrol LPG Warranty
1 year limited warranty
Related Equipment
Related Equipment
Service & Maintenance Parts

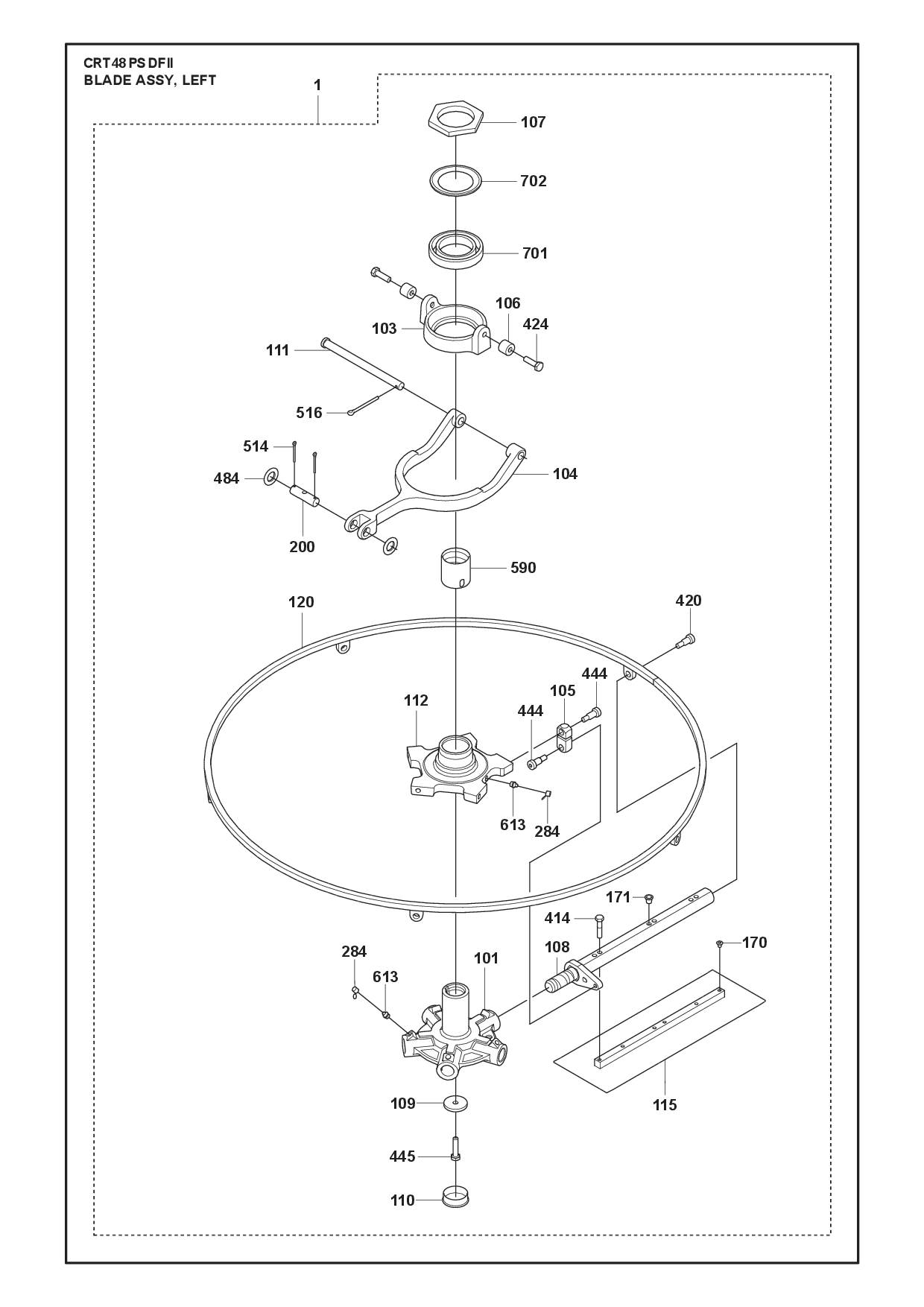

BLADE ASSY, LEFT 30 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1UNIT | 535789401 | 1 | |||
| 101HUB | 599074901 | 1 | |||
| 103HOLDER | 598999401 | 1 | |||
| 104YOKE | 598999001 | 1 | |||
| 105LINK | 598993301 | 5 | |||
| 106TUBE | 598993401 | 2 | |||
| 107CAP | 598998701 | 1 | 24Nm/18ft.lbs (S1) | ||
| 108SHAFT | 599107701 | 5 | |||
| 109WASHER | 599166001 | 1 | |||
| 110PLUG | 598995801 | 1 | |||
| 111SHAFT | 599167801 | 1 | |||
| 112RING | 599001101 | 1 | BLADE LIFT, LEFT | ||
| 115COMBINATION BLADE KIT | 540211504 | 1 | Order Screw Kit #540665001 | ||
| 120RING | 599013201 | 1 | |||
| 170PLUG | 599163401 | 5 | |||
| 171PLUG | 599063601 | 15 | |||
| 200MOUNT | 598993501 | 1 | |||
| 284CAP | 599169201 | 7 | Cap | ||
| 414BOLT | 574892005 | 15 | HHCS 5/16"-18 UNC x1-3/4" GR5 Unplated | ||
| 420SCREW | 599163001 | 5 | SHSB 1/2"x1/2" | ||
| 424SCREW | 725249751 | 2 | M10x35 ISO 4017 8,8 ZPB | ||
| 444SCREW | 599165001 | 10 | SHSB 1/2"x3/4"x1-3/8" | ||
| 445SCREW EHHM | 725250051 | 1 | M10x45 ISO 4014 8,8 ZPB | ||
| 484WASHER | 542173035 | 2 | M20 ISO 7089 200HV ZPB | ||
| 514PIN | 542020616 | 2 | Cotter pin 1/4"x1-1/2" Zn | ||
| 516PIN | 599165101 | 1 | Cotter pin 3/16"x2" Zn | ||
| 590BLADE BUSHING | 598999101 | 1 | |||
| 613FITTING | 599162101 | 7 | AM10 DIN 71412 | ||
| 701BALL BEARING | 598431901 | 1 | 6014-2RS1 C3 | ||
| 702RING | 599167201 | 1 | RING-NILOS,6014 ZAV |

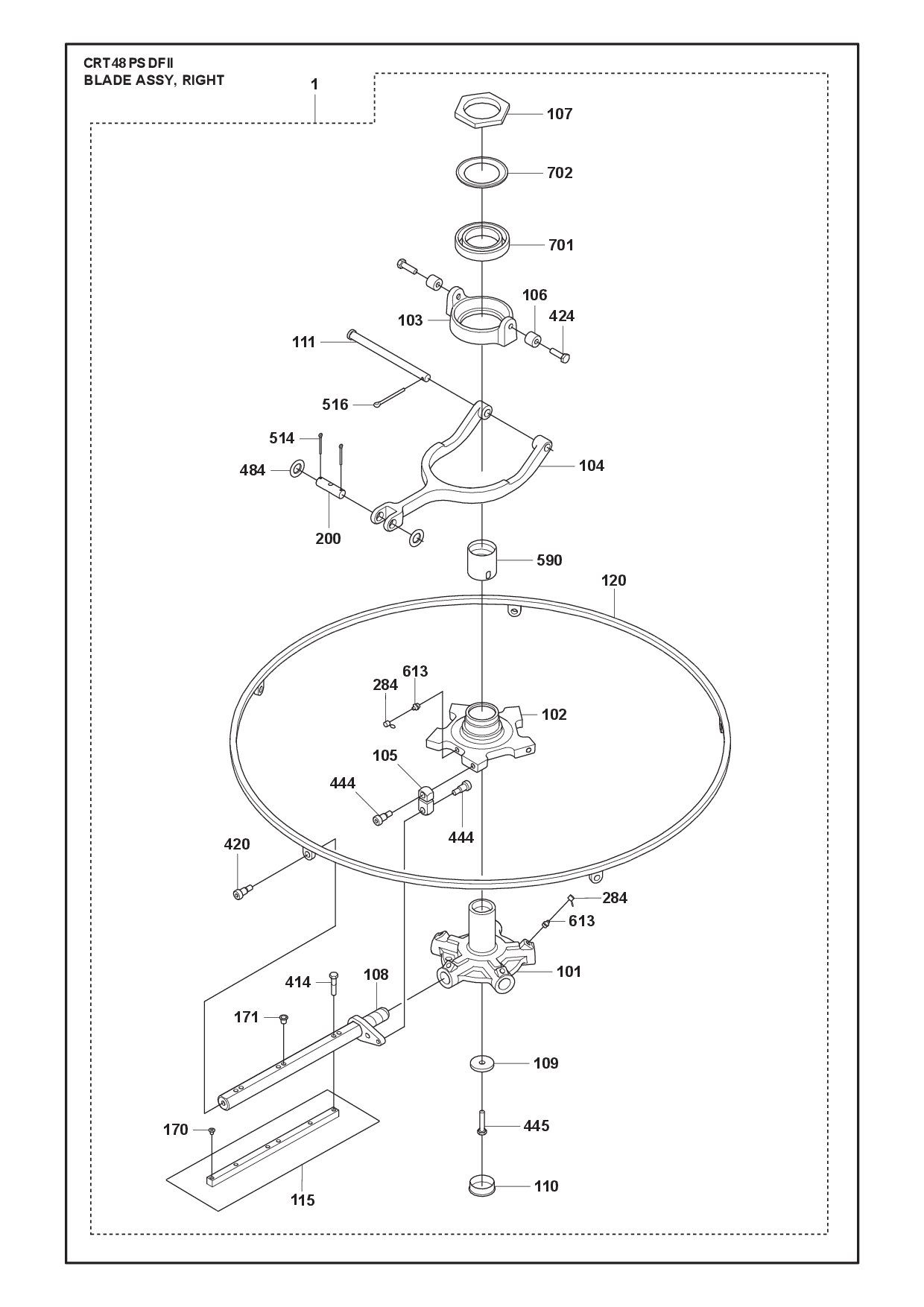

BLADE ASSY, RIGHT 30 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1UNIT | 535789402 | 1 | |||
| 101HUB | 599074901 | 1 | |||
| 102RING | 599001001 | 1 | Blade lifting ring, right | ||
| 103HOLDER | 598999401 | 1 | |||
| 104YOKE | 598999001 | 1 | |||
| 105LINK | 598993301 | 5 | |||
| 106TUBE | 598993401 | 2 | |||
| 107CAP | 598998701 | 1 | 24Nm/18ft.lbs (S1) | ||
| 108SHAFT | 599107701 | 5 | |||
| 109WASHER | 599166001 | 1 | |||
| 110PLUG | 598995801 | 1 | |||
| 111SHAFT | 599167801 | 1 | |||
| 115COMBINATION BLADE KIT | 540211504 | 1 | Order Screw Kit #540665001 | ||
| 120RING | 599013201 | 1 | |||
| 170PLUG | 599163401 | 5 | |||
| 171PLUG | 599063601 | 15 | |||
| 200MOUNT | 598993501 | 1 | |||
| 284CAP | 599169201 | 7 | |||
| 414BOLT | 574892005 | 15 | HHCS 5/16"-18 UNC x1-3/4" GR5 Unplated | ||
| 420SCREW | 599163001 | 5 | SHSB 1/2"x1/2" | ||
| 424SCREW | 725249751 | 2 | M10x35 ISO 4017 8,8 ZPB | ||
| 444SCREW | 599165001 | 10 | SHSB 1/2"x3/4"x1-3/8" | ||
| 445SCREW EHHM | 725250051 | 1 | M10x45 ISO 4014 8,8 ZPB | ||
| 484WASHER | 542173035 | 2 | M20 ISO 7089 200HV ZPB | ||
| 514PIN | 542020616 | 2 | Cotter pin 1/4"x1-1/2" Zn | ||
| 516PIN | 599165101 | 1 | Cotter pin 3/16"x2" Zn | ||
| 590BLADE BUSHING | 598999101 | 1 | |||
| 613FITTING | 599162101 | 7 | AM10 DIN 71412 | ||
| 701BALL BEARING | 598431901 | 1 | 6014-2RS1 C3 | ||
| 702RING | 599167201 | 1 | RING-NILOS,6014 ZAV |

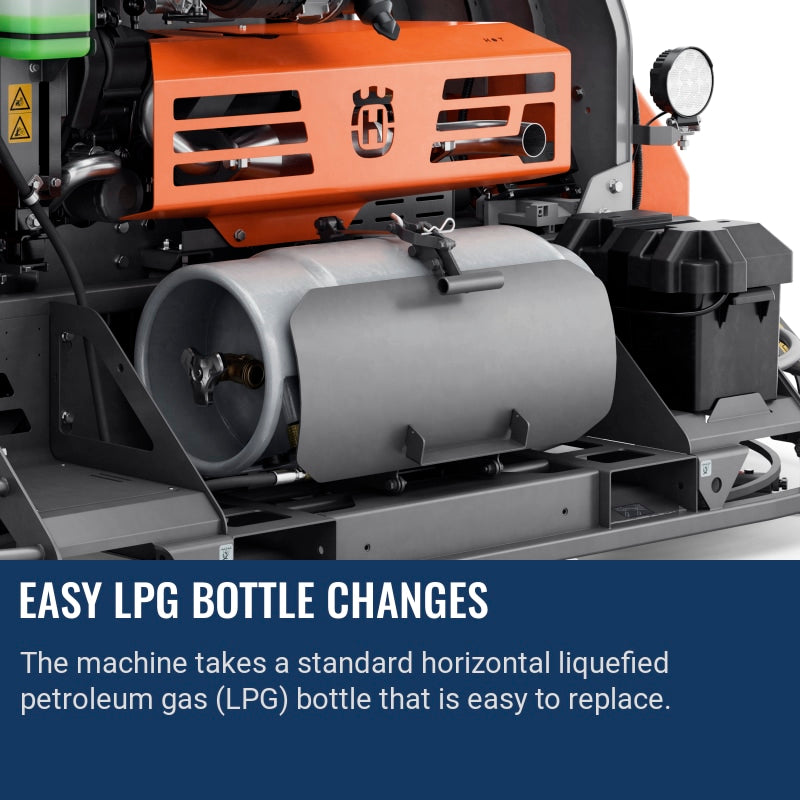

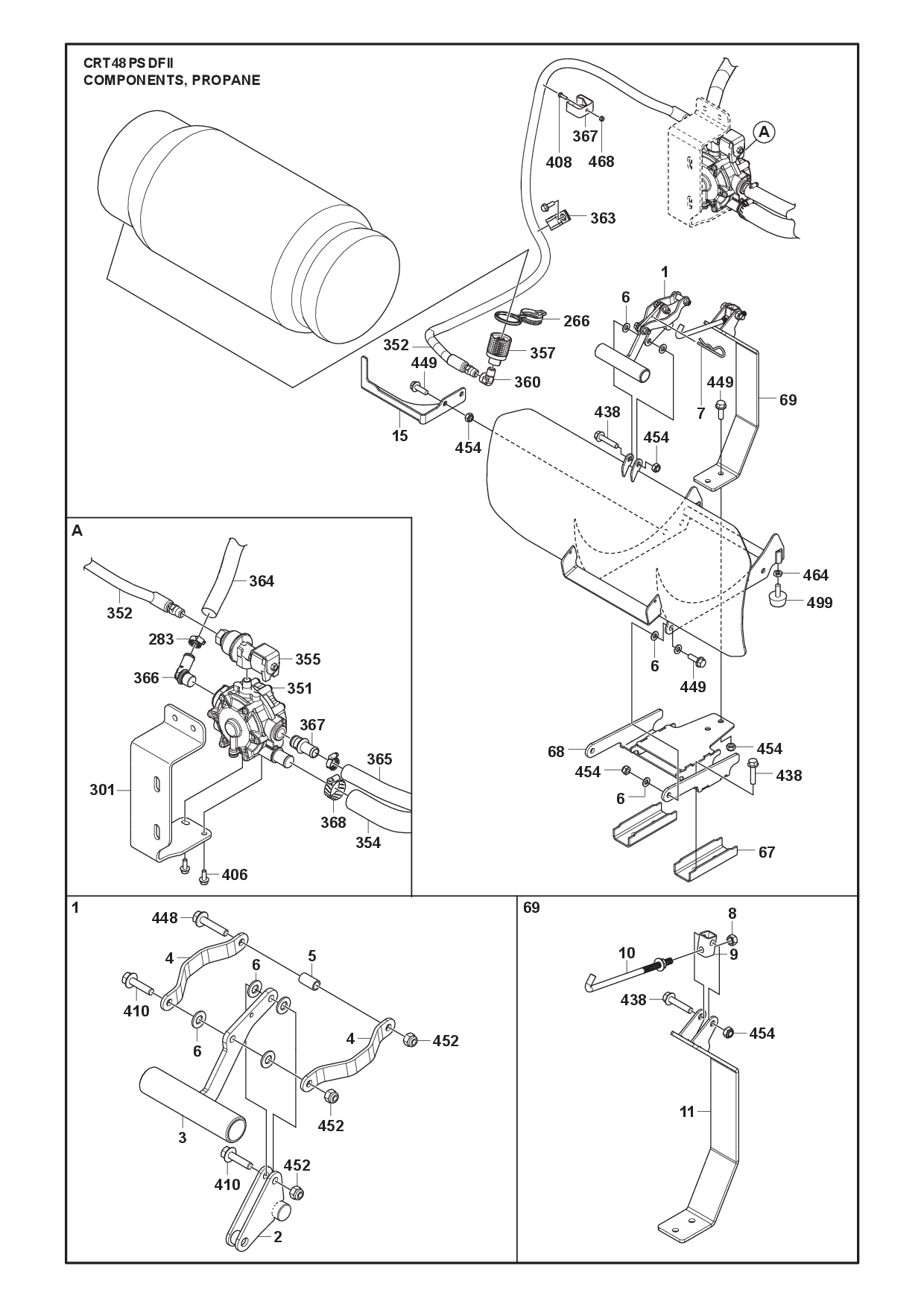

COMPONENTS, PROPANE 43 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1LATCH ASSY | 548492201 | 1 | Latch assy | ||
| 2BASE | 548491201 | 1 | |||
| 3HANDLE | 548491301 | 1 | |||
| 4BRACKET | 548491401 | 2 | |||
| 5SPACER | 548640001 | 1 | |||
| 6BUSHING | 546702201 | 12 | M8x1.6 Nylon | ||
| 7COTTER | 534058201 | 1 | |||
| 8NUT | 539990196 | 1 | 5/16-18 UNC-2A | ||
| 9CONNECTION | 548491501 | 1 | |||
| 10HOOK | 548491601 | 1 | |||
| 11BRACKET | 548491001 | 1 | |||
| 14COVER | 548490801 | 1 | |||
| 15BRACKET | 548490901 | 1 | |||
| 67PLATE | 548216501 | 2 | |||
| 68BRACKET | 548491101 | 1 | |||
| 69BRACKET | 548546101 | 1 | Hook assy | ||
| 266CAP | 599110801 | 1 | |||
| 283CLAMP | 599174501 | 4 | 9/16" x 1-1/16", SST | ||
| 301BRACKET | 547163501 | 1 | |||
| 351HOUSING | 534990901 | 1 | |||
| 352HOSE | 547623601 | 1 | Tank to vap. (hose only) | ||
| 354HOSE | 536128902 | 1 | 3/4?, 609 mm | ||
| 355VALVE | 534994601 | 1 | |||
| 357CONNECTOR | 599110001 | 1 | Connector - LP tank | ||
| 360CONNECTOR | 547623701 | 1 | Elbow, 1/4" x 1/4" | ||
| 362NIPPLE | 534991201 | 1 | Ø16, straight | ||
| 363CLAMP | 542190560 | 1 | |||
| 364HOSE | 536128803 | 1 | 5/8?, 711 mm | ||
| 365HOSE | 536128802 | 1 | 5/8?, 508 mm | ||
| 366NIPPLE | 534991001 | 1 | Ø16, 110° | ||
| 367CLIP | 599168301 | 1 | |||
| 368HOSE CLAMP | 576315205 | 2 | SAE 12 | ||
| 406SCREW | 599458501 | 2 | M6x16 DIN 6921S 8.8 ZPB | ||
| 408SCREW | 599168201 | 1 | M4x14 | ||
| 410SCREW EHHFM | 585980301 | 2 | M6x25 EN 1665 8.8 ZPB | ||
| 438SCREW EHHFM | 585975501 | 6 | M8x40 EN 1665 8.8 ZPB | ||
| 448SCREW | 599608501 | 1 | M6x30 DIN 6921S 8.8 ZPB | ||
| 449SCREW EHHFM | 506570105 | 6 | M8x25 DIN 6921 8.8 ZPB | ||
| 452HEXAGON LOCKING NUT | 732251601 | 3 | M6 ISO 7040 8 ZPB | ||
| 454HEXAGON LOCKING NUT | 732251801 | 8 | M8 ISO 7040 8 ZPB | ||
| 464HEXAGON THIN NUT | 731431801 | 2 | M8 ISO 4035 St 04 ZPB | ||
| 468LOCK NUT | 542167485 | 1 | M4 Locknut, fiber | ||
| 499BUMPER | 598989701 | 2 |

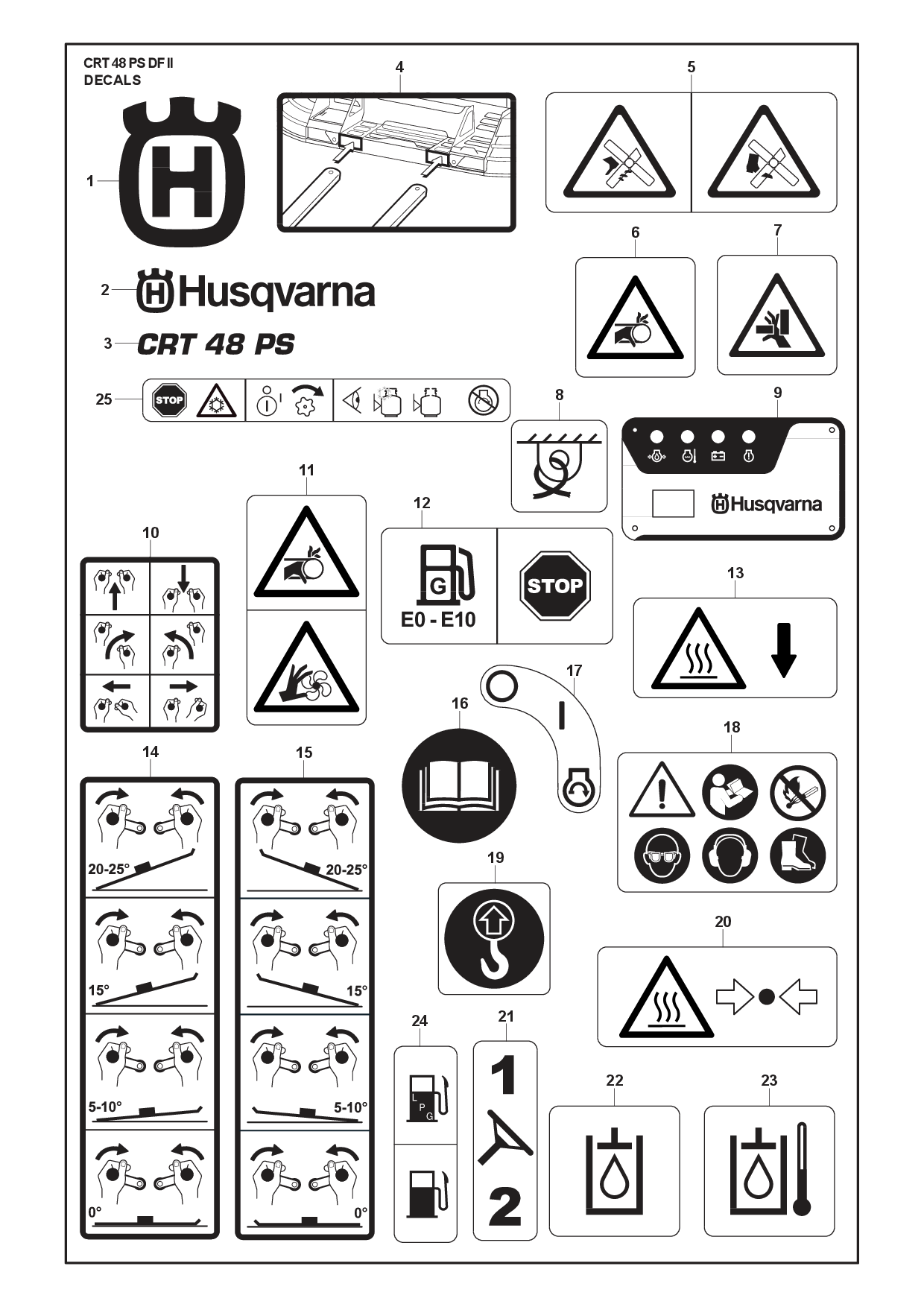

DECALS 25 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1DECAL | 599235001 | 1 | |||
| 2DECAL | 547263601 | 2 | |||
| 3DECAL | 547022002 | 1 | |||
| 4LABEL | 548686701 | 4 | |||
| 5LABEL | 548630601 | 4 | |||
| 6LABEL | 548676501 | 2 | |||
| 7LABEL | 548641701 | 1 | |||
| 8LABEL | 548642001 | 4 | |||
| 9DECAL | 546907001 | 1 | |||
| 10LABEL | 548667501 | 1 | |||
| 11LABEL | 548667201 | 2 | |||
| 12LABEL | 548641401 | 1 | |||
| 13LABEL | 548630702 | 1 | |||
| 14LABEL | 548641901 | 1 | |||
| 15LABEL | 548641902 | 1 | |||
| 16LABEL | 548642601 | 1 | |||
| 17LABEL | 548642201 | 1 | |||
| 18LABEL | 548461301 | 1 | |||
| 19LABEL | 599963601 | 2 | |||
| 20LABEL | 548667601 | 1 | |||
| 21LABEL | 548667401 | 1 | |||
| 22LABEL | 548642801 | 1 | |||
| 23LABEL | 548642901 | 1 | |||
| 24LABEL | 548667301 | 1 | |||
| 25LABEL | 548667701 | 1 |

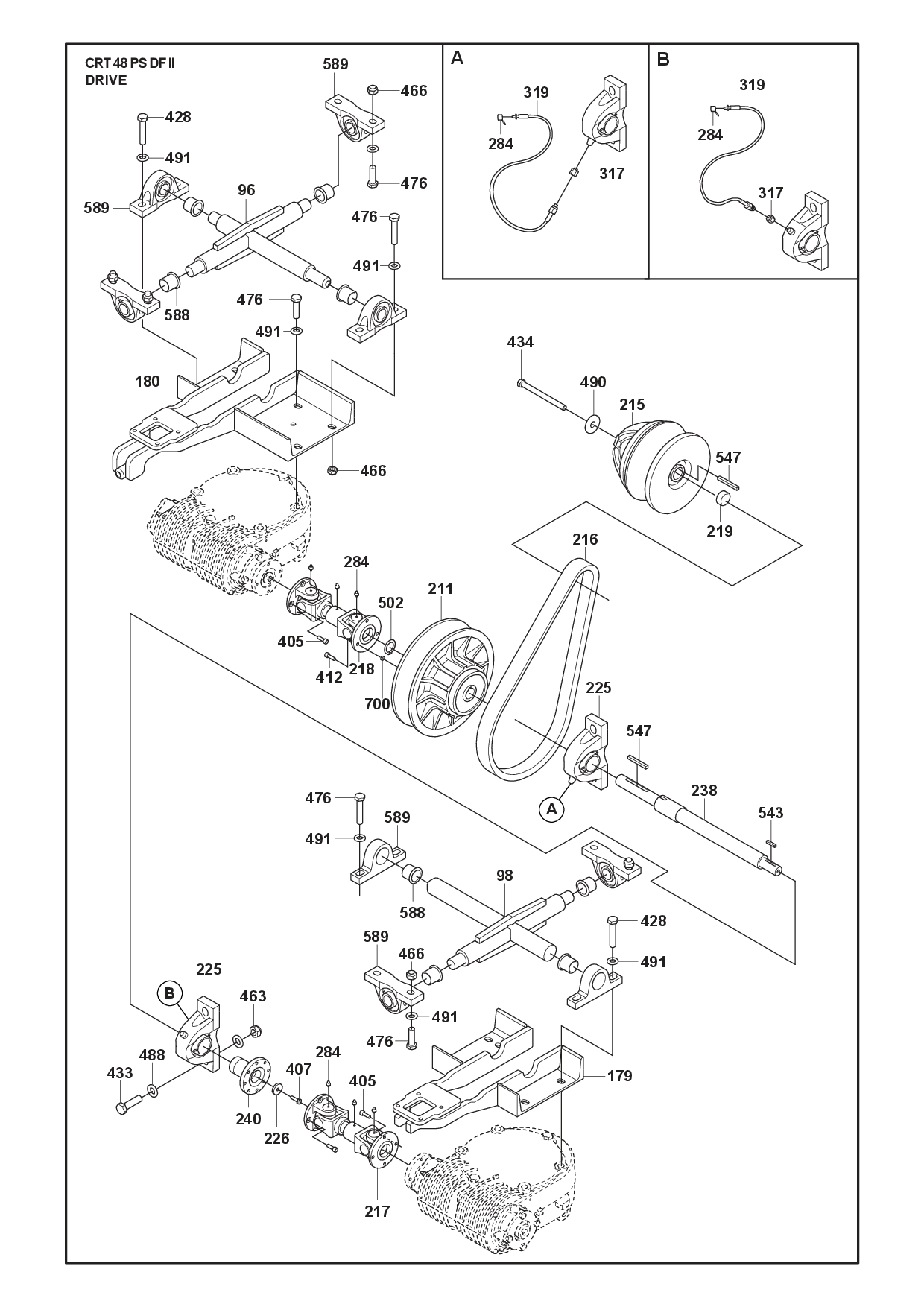

DRIVE 37 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 96LEVER | 599058301 | 1 | Right cross | ||
| 98LEVER | 599058401 | 1 | Left cross | ||
| 179BRACKET | 599008801 | 1 | Gearbox bracket, left | ||
| 180BRACKET | 599022901 | 1 | Gearbox bracket, right | ||
| 211CLUTCH | 599032701 | 1 |
Regular price
$409.00
Regular price
|
||
| 215CLUTCH | 599032801 | 1 |
Regular price
$479.00
Regular price
|
||
| 216DRIVE BELT | 599032601 | 1 | 13-1/4" |
Regular price
$102.95
Regular price
|
|
| 217JOINT | 598995201 | 1 | |||
| 218JOINT | 599021701 | 1 | |||
| 219SPACER | 599105401 | 1 | 57K | ||
| 219SPACER | 599022101 | 1 | 37V | ||
| 225BEARING | 598994501 | 2 | UCP 207-23 | ||
| 226WASHER | 599165401 | 1 | |||
| 238SHAFT | 599123601 | 1 | |||
| 240FITTING | 598994801 | 1 | |||
| 284CAP | 599169201 | 8 | |||
| 317FITTING | 599172901 | 2 | |||
| 319HOSE | 599083401 | 2 | |||
| 405SCREW IHSCM | 725537001 | 12 | M6x20 ISO 4762 8,8 ZPB | ||
| 407SCREW EHHM | 725237071 | 1 | M6x20 ISO 4017 8,8 ZPB | ||
| 412SCREW IHSCM | 725537801 | 3 | M6x40 ISO 4762 8.8 ZPB |
Regular price
$19.79
Regular price
|
|
| 428SCREW EHHM | 725254551 | 4 | M12x65 ISO 4014 8.8 ZPB | ||
| 433SCREW | 597979101 | 4 | M14x50 ISO 4017 8,8 ZPB | ||
| 434SCREW | 599175101 | 1 | HHCS 7/16"-20 SAE x5-1/2" GR5 (57K) | ||
| 434SCREW | 599167701 | 1 | HHCS 7/16"-20 SAE x4-1/2" GR5 (37V) | ||
| 463NUT | 598556501 | 4 | M14 DIN 985 8 ZPB | ||
| 466HEXAGON LOCKING NUT | 732252201 | 12 | M12 ISO 7040 8 ZPB |
Regular price
$19.79
Regular price
|
|
| 476SCREW EHHM | 725254171 | 12 | M12x45 ISO 4017 8,8 ZPB | ||
| 488WASHER | 599165701 | 8 | |||
| 490WASHER | 599164401 | 1 | |||
| 491WASHER | 734117801 | 20 | M12 ISO 7089 200HV ZPB |
Regular price
$6.29
Regular price
|
|
| 502SNAP RING | 542206205 | 1 | |||
| 543KEY | 541400448 | 1 | 3/16"x3/16"x1" | ||
| 547KEY | 523233901 | 2 | 1/4"x1/4"x2-1/4" | ||
| 588BEARING | 598993101 | 6 | |||
| 589BLOCK | 599012601 | 6 | |||
| 700SPACER | 535546001 | 3 |

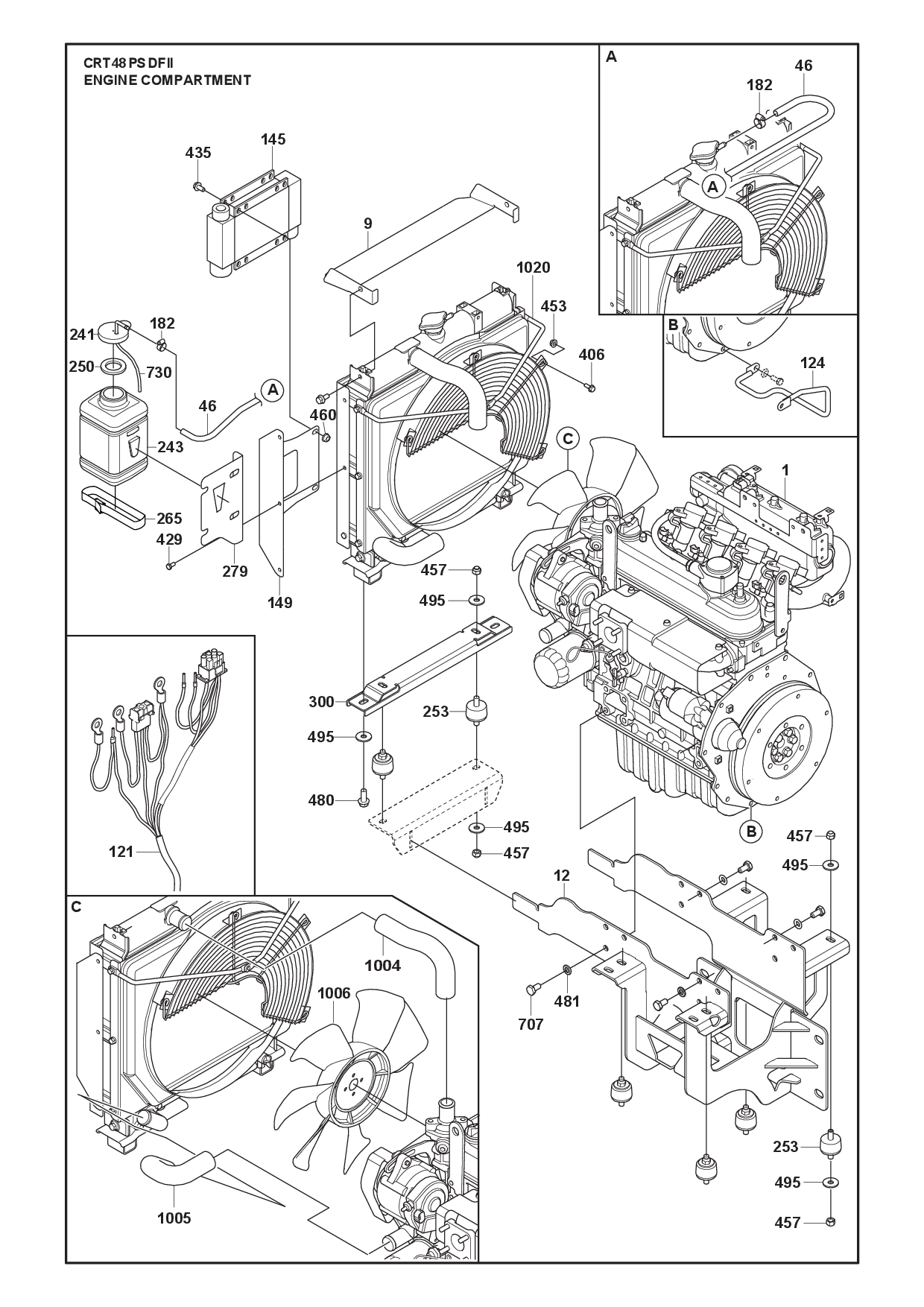

ENGINE COMPARTMENT 31 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1ENGINE | 529777001 | 1 | WG1605-GL-E3-HQV-1 (EG526-25000) | ||
| 9BRACKET | 548571501 | 1 | |||
| 12BRACKET | 599121201 | 1 | |||
| 46FUEL HOSE | 599481201 | 1 | 28" | ||
| 121HARNESS | 547049601 | 1 | |||
| 124CABLE | 531080601 | 1 | |||
| 145RADIATOR | 599117001 | 1 | |||
| 149BRACKET | 599077301 | 2 | |||
| 182CLAMP | 542020049 | 3 | SAE004 | ||
| 241CAP | 599034301 | 1 | |||
| 243BOTTLE | 599034201 | 1 | |||
| 250GASKET | 599064501 | 1 | |||
| 253BUMPER | 598999801 | 6 | |||
| 265CABLE | 599173201 | 2 | |||
| 279BRACKET | 599112101 | 1 | |||
| 300BRACKET | 599075401 | 1 | |||
| 406SCREW | 599458501 | 4 | M6x16 DIN 6921S 8.8 ZPB | ||
| 429BOLT | 596320101 | 2 | M6x12 ISO 4017 8.8 ZPB | ||
| 435SCREW EHHFM | 506570103 | 4 | M8x16 DIN 6921 8.8 ZPB | ||
| 453NUT | 593356401 | 4 | M6 8 ZPB LOCK | ||
| 457NUT | 539976979 | 12 | 3/8"-16 hex, Nyloc | ||
| 460NUT | 576645704 | 4 | M8 ISO 7043 8 FZB | ||
| 480SCREW | 599177801 | 2 | M10x25 | ||
| 481WASHER | 734117201 | 12 | M10 ISO 7089 200HV ZPB | ||
| 495WASHER | 734117441 | 14 | M10 ISO 7093 ZPB | ||
| 707SCREW | 599173501 | 12 | M10x1,25x20 | ||
| 730HOSE | 599075501 | 1 | 152 mm | ||
| 1004HOSE | 599480601 | 1 | |||
| 1005HOSE | 599480602 | 1 | |||
| 1006FAN | 599480701 | 1 | |||
| 1020RADIATOR | 599480301 | 1 |

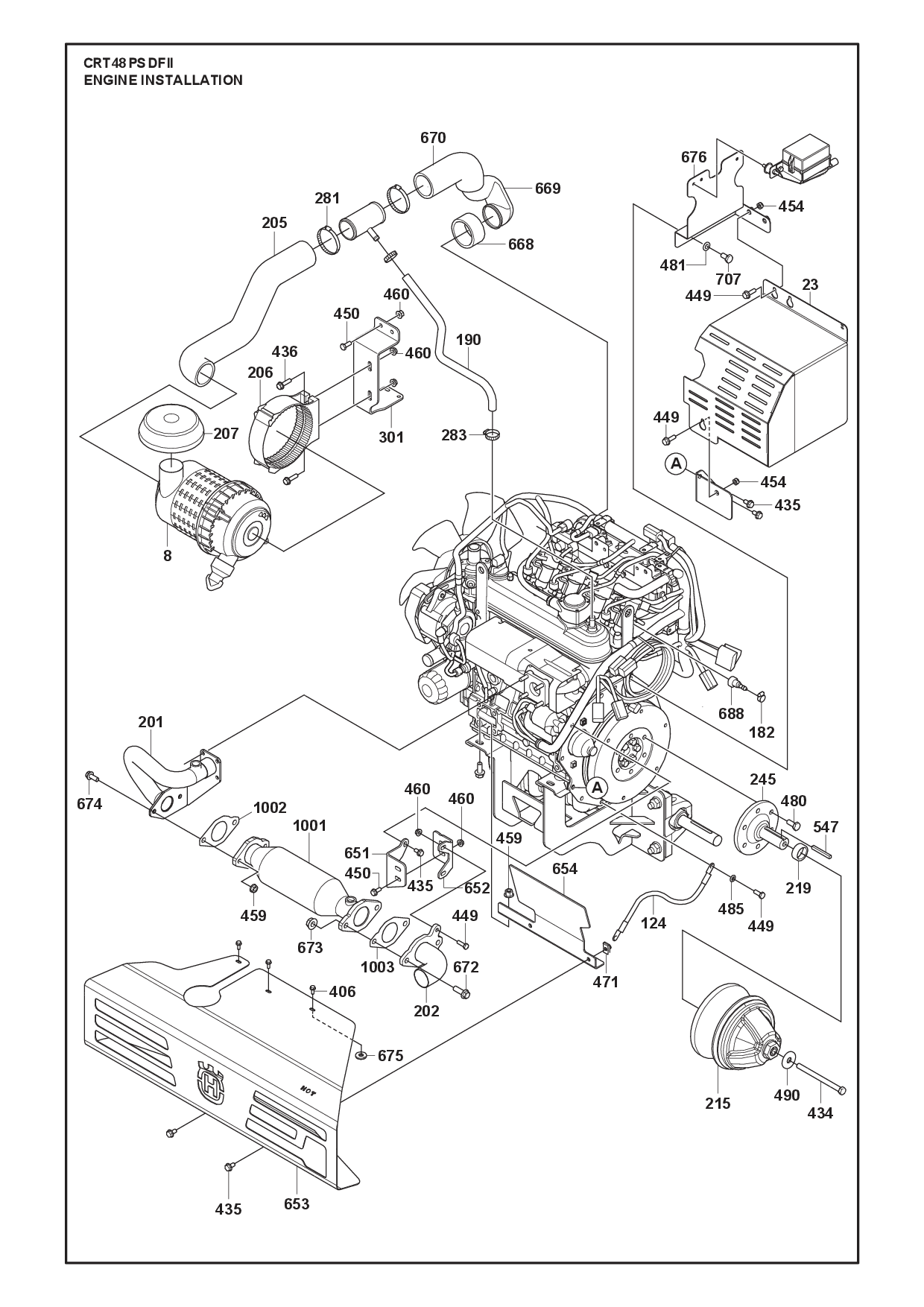

ENGINE INSTALLATION 51 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 8AIR CLEANER | 599104601 | 1 | |||
| 23BELT GUARD | 548655001 | 1 | |||
| 124CABLE | 531080601 | 1 | |||
| 182CLAMP | 542020049 | 1 | SAE004 | ||
| 190HOSE | 599074001 | 1 | |||
| 201PIPE | 599111901 | 1 | |||
| 202PIPE | 537526301 | 1 | |||
| 205HOSE | 599124001 | 1 | |||
| 206BRACKET | 599110701 | 1 | |||
| 207CAP | 599124601 | 1 | |||
| 215CLUTCH | 599032801 | 1 | |||
| 219SPACER | 599105401 | 1 | |||
| 245SHAFT | 599122001 | 1 | |||
| 281CLAMP | 599164101 | 4 | Wormdrive SAE 32 | ||
| 283CLAMP | 599174501 | 2 | 9/16" x 1-1/16", SST | ||
| 301BRACKET | 547163501 | 1 | |||
| 406SCREW EHHFM | 585980601 | 3 | M6x16 EN 1665 8,8 ZPB | ||
| 434SCREW | 599175101 | 1 | HHCS 7/16"-20 SAE x5-1/2" GR5 (57K) | ||
| 435SCREW EHHFM | 506570103 | 6 | M8x16 DIN 6921 8.8 ZPB | ||
| 436SCREW EHHFM | 585972801 | 2 | M8x30 EN 1665 8,8 ZPB | ||
| 449SCREW EHHFM | 506570105 | 4 | M8x25 DIN 6921 8.8 ZPB | ||
| 450SCREW EHHFM | 506570104 | 4 | M8x20 DIN 6921 8.8 ZPB | ||
| 454HEXAGON LOCKING NUT | 732251801 | 3 | M8 ISO 7040 8 ZPB | ||
| 459NUT FLANGE | 576645705 | 4 | M10 DIN 6926 8 FZB | ||
| 460NUT | 576645704 | 8 | M8 ISO 7043 8 FZB | ||
| 471NUT | 542167555 | 2 | Lugs 080025 | ||
| 480SCREW | 599177801 | 6 | M10x25 | ||
| 481WASHER | 734117201 | 2 | M10 ISO 7089 200HV ZPB | ||
| 485WASHER | 734116301 | 1 | M8 ISO 7089 200HV ZPB | ||
| 490WASHER | 599164401 | 1 | |||
| 547KEY | 523233901 | 1 | 1/4"x1/4"x2-1/4" | ||
| 651BRACKET | 599122901 | 1 | |||
| 652BRACKET | 599123101 | 1 | |||
| 653SHIELD | 537526401 | 1 | |||
| 654BRACKET | 547616201 | 1 | |||
| 655HEAT DEFLECTOR | 548736201 | 1 | |||
| 656PIPE CLAMP | 548736301 | 1 | |||
| 667HOSE CLAMP | 542166631 | 2 | |||
| 668HOSE | 536115601 | 1 | |||
| 669AIR INTAKE | 534099401 | 1 | |||
| 670HOSE | 534099601 | 1 | |||
| 672SCREW | 599168901 | 2 | |||
| 673NUT | 576645706 | 2 | M12 DIN 6926 8 FZB | ||
| 674SCREW EHHFM | 585973101 | 4 | M10x25 EN 1665 8.8 ZPB | ||
| 675WASHER | 576823101 | 1 | |||
| 676BRACKET | 546812201 | 1 | |||
| 688CONNECTOR | 529931301 | 1 | SAE J2044 STRAIGHT | ||
| 707SCREW | 599173501 | 2 | M10x20, 48Nm/35ft.lbs (S3) | ||
| 1001CONVERTER | 599075701 | 1 | |||
| 1002GASKET | 599480901 | 1 | |||
| 1003GASKET | 599480902 | 1 |

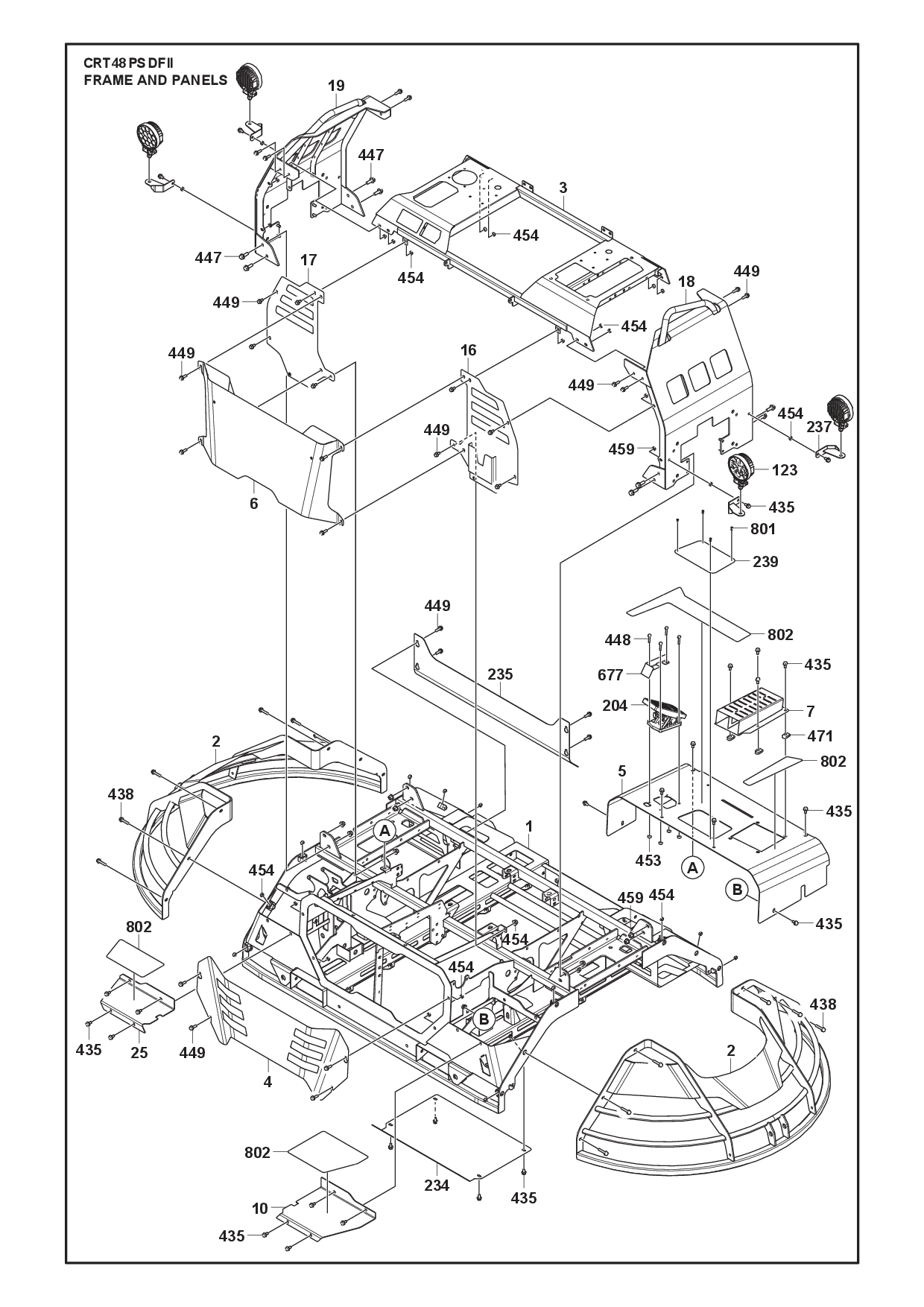

FRAME 32 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1FRAME ASSY | 546273001 | 1 | |||
| 2FRAME ASSY | 546286401 | 2 | |||
| 3SEAT | 546526101 | 1 | |||
| 4PANEL | 546426801 | 1 | |||
| 5PLATE | 546361901 | 1 | |||
| 6PANEL | 546422101 | 1 | |||
| 7BRACKET | 546369201 | 1 | |||
| 10STEP | 546355201 | 1 | |||
| 16PANEL | 546422001 | 1 | |||
| 17PANEL | 546422002 | 1 | |||
| 18FRAME ASSY | 547543701 | 1 | |||
| 19FRAME ASSY | 547543702 | 1 | |||
| 25STEP | 546355101 | 1 | |||
| 123LIGHT | 599076901 | 4 | |||
| 204CONTROL | 599123701 | 1 | |||
| 234PLATE | 546358001 | 1 | |||
| 235PLATE | 546355001 | 1 | |||
| 236PLATE | 546357801 | 1 | |||
| 237BRACKET | 546812901 | 4 | |||
| 239PLATE | 546396501 | 1 | |||
| 435SCREW EHHFM | 506570103 | 26 | M8x16 DIN 6921 8.8 ZPB |
Regular price
$10.46
Regular price
|
|
| 438SCREW EHHFM | 585975501 | 12 | M8x40 EN 1665 8.8 ZPB | ||
| 447SCREW EHHFM | 585980401 | 8 | M10x30 EN 1665 8.8 ZPB |
Regular price
$19.79
Regular price
|
|
| 448SCREW | 599608501 | 4 | M6x30 DIN 6921S 8.8 ZPB | ||
| 449SCREW EHHFM | 506570105 | 28 | M8x25 DIN 6921 8.8 ZPB | ||
| 453NUT | 593356401 | 4 | M6 8 ZPB lock, serated | ||
| 454HEXAGON LOCKING NUT | 732251801 | 44 | M8 ISO 7040 8 ZPB |
Regular price
$19.79
Regular price
|
|
| 459NUT FLANGE | 576645705 | 8 | M10 DIN 6926 8 FZB | ||
| 471NUT | 542167555 | 4 | Lugs 080025 | ||
| 677GUARD | 599124701 | 1 | |||
| 801RIVET | 722795309 | 8 | 4,0 x 13,9 | ||
| 802TAPE | 546719101 | 1 | Anti slip tape, kit |

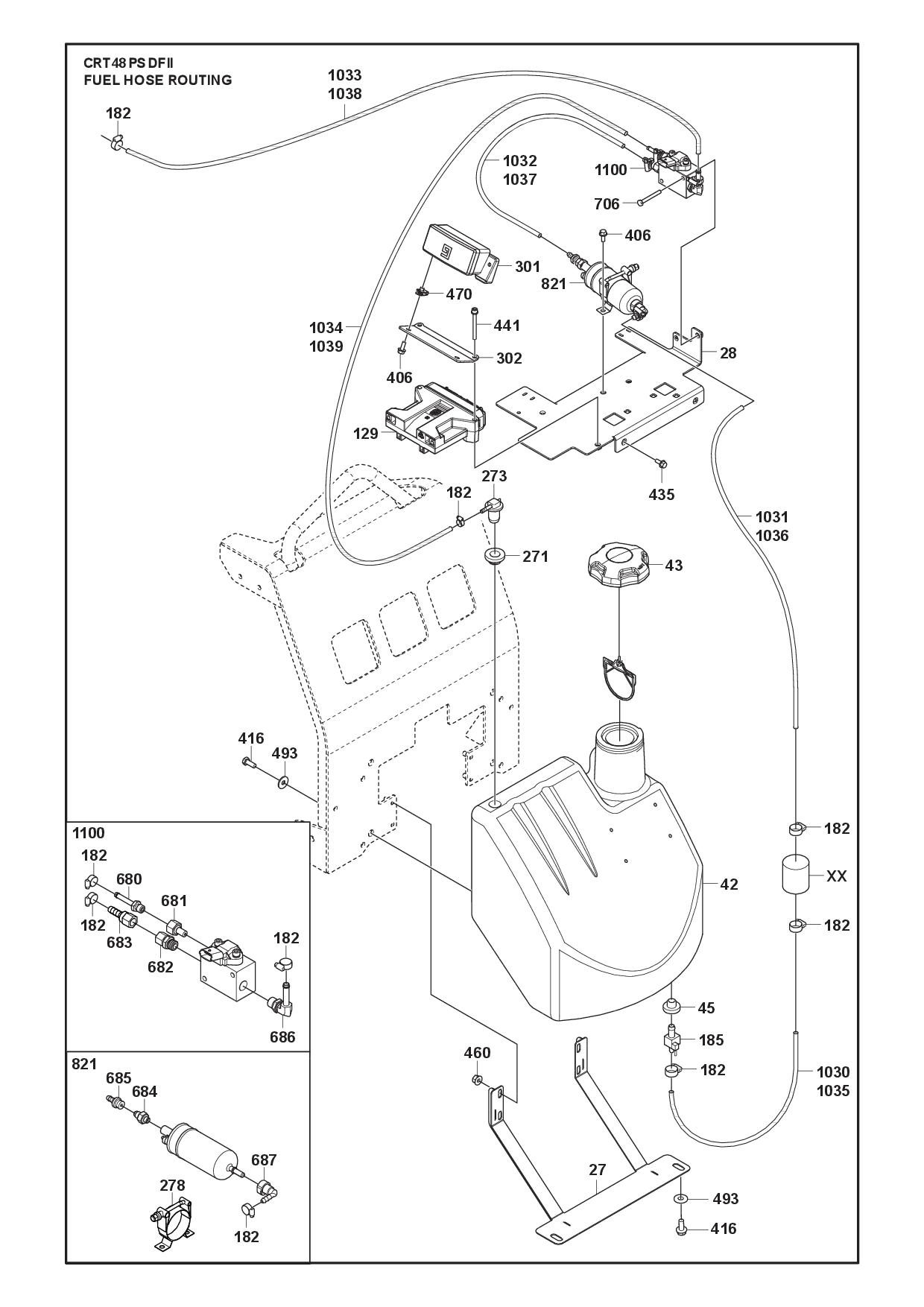

FUEL HOSE ROUTING 41 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 27BRACKET | 546527101 | 1 | |||
| 28BRACKET | 546557801 | 1 | |||
| 42TANK | 599131302 | 1 | |||
| 43CAP | 599073301 | 1 | |||
| 45BLADE BUSHING | 598990401 | 1 | |||
| 129ELECTRICAL SYSTEM | 599050501 | 1 | |||
| 182CLAMP | 542020049 | 6 | SAE004 | ||
| 185VALVE | 599117801 | 1 | |||
| 271GROMMET | 599068801 | 1 | |||
| 273FITTING | 599071201 | 1 | |||
| 278BRACKET | 599072701 | 1 | |||
| 301HARNESS | 547049601 | 1 | Fuse box, part of wire harness | ||
| 302PLATE | 546558201 | 1 | |||
| 406SCREW | 599458501 | 2 | M6x16 DIN 6921S 8.8 ZPB | ||
| 416SCREW EHHM | 725245171 | 6 | M8x20 ISO 4017 8.8 ZPB | ||
| 435SCREW EHHFM | 506570103 | 3 | M8x16 DIN 6921 8.8 ZPB | ||
| 441SCREW | 599163701 | 2 | M6x60 | ||
| 460NUT | 576645704 | 4 | M8 ISO 7043 8 FZB | ||
| 470LOCK NUT | 599166801 | 2 | Lugs 060023 | ||
| 493WASHER | 734116541 | 6 | M8 ISO 7093 ZPB | ||
| 680FITTING | 599072601 | 1 | SAE#4 MORB MALE to 1/4" BARB | ||
| 681ADAPTER | 599072801 | 1 | SAE#4 FEMALE to SAE#3 MORB MALE | ||
| 682ADAPTER | 599072901 | 1 | SAE#6 MORB MALE to SAE#5 MALE | ||
| 683FITTING | 599073001 | 1 | SAE#5 FEMALE to 5/16" BARB | ||
| 684ADAPTER | 599073101 | 1 | M10 MALE to SAE#4 MALE | ||
| 685FITTING | 599073201 | 1 | #4 FEMALE to 1/4" BARB | ||
| 686FITTING | 599073401 | 1 | SAE#6 MALE to 90DEG,5/16" BARB | ||
| 687FITTING | 599073501 | 1 | 90QC 5/16"-5/16" | ||
| 706HEX BOLT 6MM X 50 MM | 505821801 | 2 | M6x50 | ||
| 821FUEL PUMP | 529584901 | 1 | |||
| 1030FUEL HOSE | 599481001 | 1 | ID 5/16" - 310 mm | ||
| 1031FUEL HOSE | 599481002 | 1 | ID 5/16" - 410 mm | ||
| 1032FUEL HOSE | 599481003 | 1 | ID 5/16" - 540 mm | ||
| 1033FUEL HOSE | 599481004 | 1 | ID 5/16" - 940 mm | ||
| 1034FUEL HOSE | 599481202 | 1 | ID 1/4" - 1500 mm | ||
| 1035WIRE | 599481701 | 1 | 10" | ||
| 1036WIRE | 599481702 | 1 | 14" | ||
| 1037WIRE | 599481703 | 1 | 19" | ||
| 1038WIRE | 599481704 | 1 | 46" | ||
| 1039WIRE | 599481705 | 1 | 58" | ||
| 1100MANIFOLD | 529585201 | 1 |

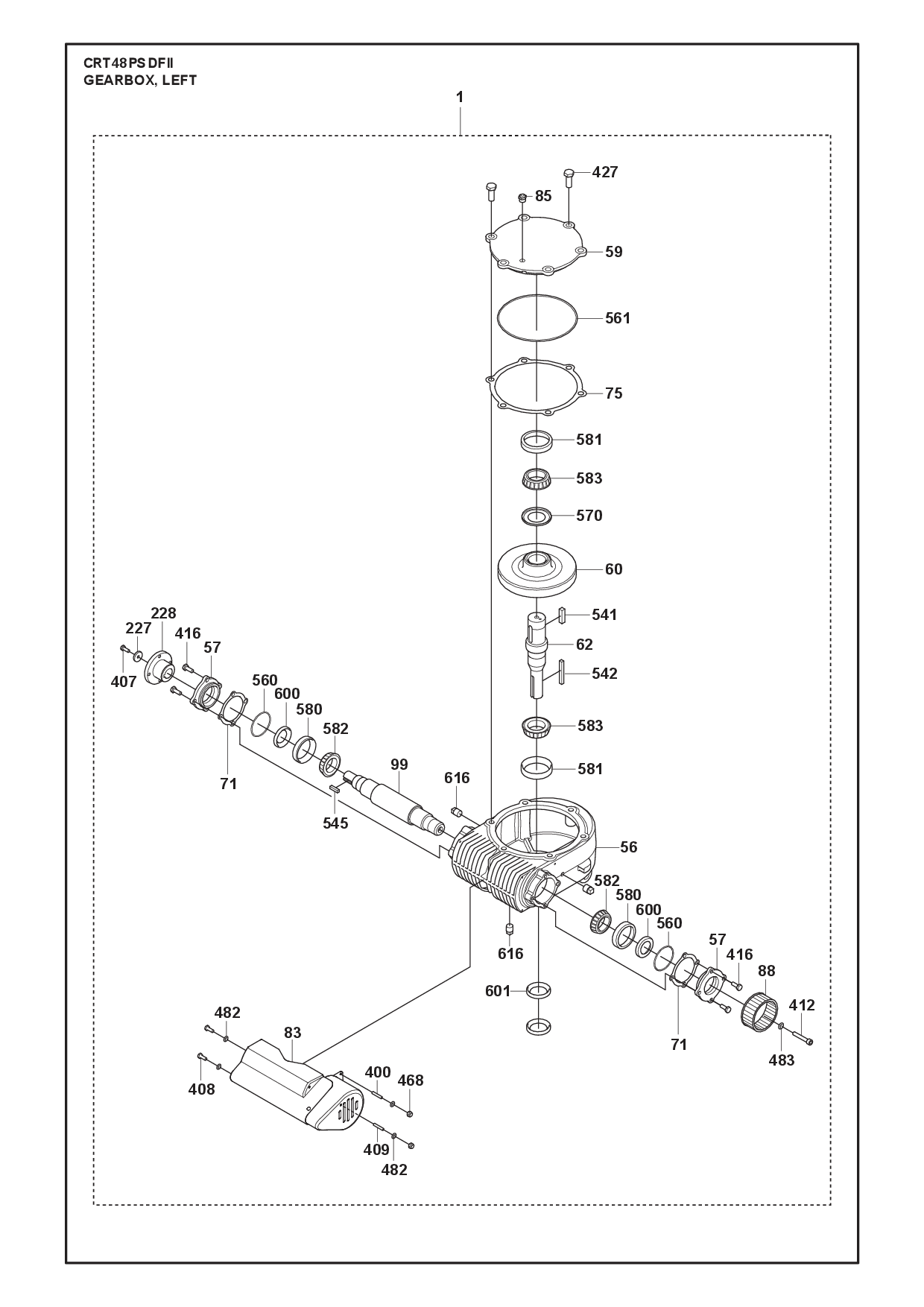

GEARBOX, LEFT 37 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1GEARBOX ASSY | 599340302 | 1 | Gearbox assy LH, CRT 48 | ||
| 56GEARBOX | 598992101 | 1 | |||
| 57COVER | 598992201 | 2 | |||
| 59COVER | 598991501 | 1 | |||
| 60GEAR | 598991801 | 1 | Wormgear, left hand | ||
| 62SHAFT | 598999201 | 1 | |||
| 71SHIM | 536852802 | 1 | Shim kit, side cover, 4pcs | ||
| 75SHIM | 536852801 | 1 | Shim kit, upper cover, 5pcs | ||
| 83COVER | 598993001 | 1 | Fan cover, LH | ||
| 85VALVE | 599170501 | 1 | |||
| 88FAN | 598992502 | 1 | Fan, LH | ||
| 99WORM GEAR | 598995001 | 1 | Worm, LH | ||
| 227WASHER | 599165801 | 1 | 1-1/8"x0,281"x0,187" | ||
| 228FITTING | 599125401 | 1 | |||
| 400STUD | 599167401 | 2 | M4x20 DIN 976 | ||
| 407SCREW EHHM | 725237071 | 1 | M6x20 ISO 4017 8,8 ZPB | ||
| 408SCREW | 599168201 | 2 | M4x14 | ||
| 409STUD | 599168101 | 2 | M4x25 DIN 976 | ||
| 412SCREW IHSCM | 725537801 | 1 | M6x40 ISO 4762 8.8 ZPB | ||
| 416SCREW EHHM | 725245171 | 8 | M8x20 ISO 4017 8,8 ZPB | ||
| 427SCREW EHHM | 725253871 | 2 | M12x35 ISO 4017 8,8 ZPB | ||
| 468LOCK NUT | 542167485 | 4 | M4 Locknut, fiber | ||
| 482WASHER | 734114601 | 6 | M5 ISO 7089 200HV ZPB | ||
| 483WASHER | 734115201 | 1 | M6 ISO 7089 200HV ZPB | ||
| 541KEY | 599164801 | 1 | 3/8"x3/8"x1-1/2" | ||
| 542KEY | 599167601 | 1 | 3/8"x3/8"x4" | ||
| 545KEY | 541203404 | 1 | 1/4"x1/4"x1" | ||
| 560O-RING | 598992301 | 2 | 2-3/8"x3/32" NBR 70 Shore | ||
| 561O-RING | 598992401 | 1 | 7-1/4"x1/8" NBR 70 Shore | ||
| 570SEAL | 599164501 | 1 | RING, NILOS LM501349/LM501310 AV | ||
| 580BEARING | 599164601 | 2 | LM48510 | ||
| 581BEARING | 599164701 | 2 | LM501310 | ||
| 582BEARING | 598994701 | 2 | LM48548 | ||
| 583BEARING | 599165601 | 2 | LM501349 | ||
| 600SEAL | 599047501 | 2 | 13054 | ||
| 601SEAL | 599047601 | 2 | 16078 | ||
| 616PLUG | 599171001 | 3 | 3/8in NPTF (S8) |

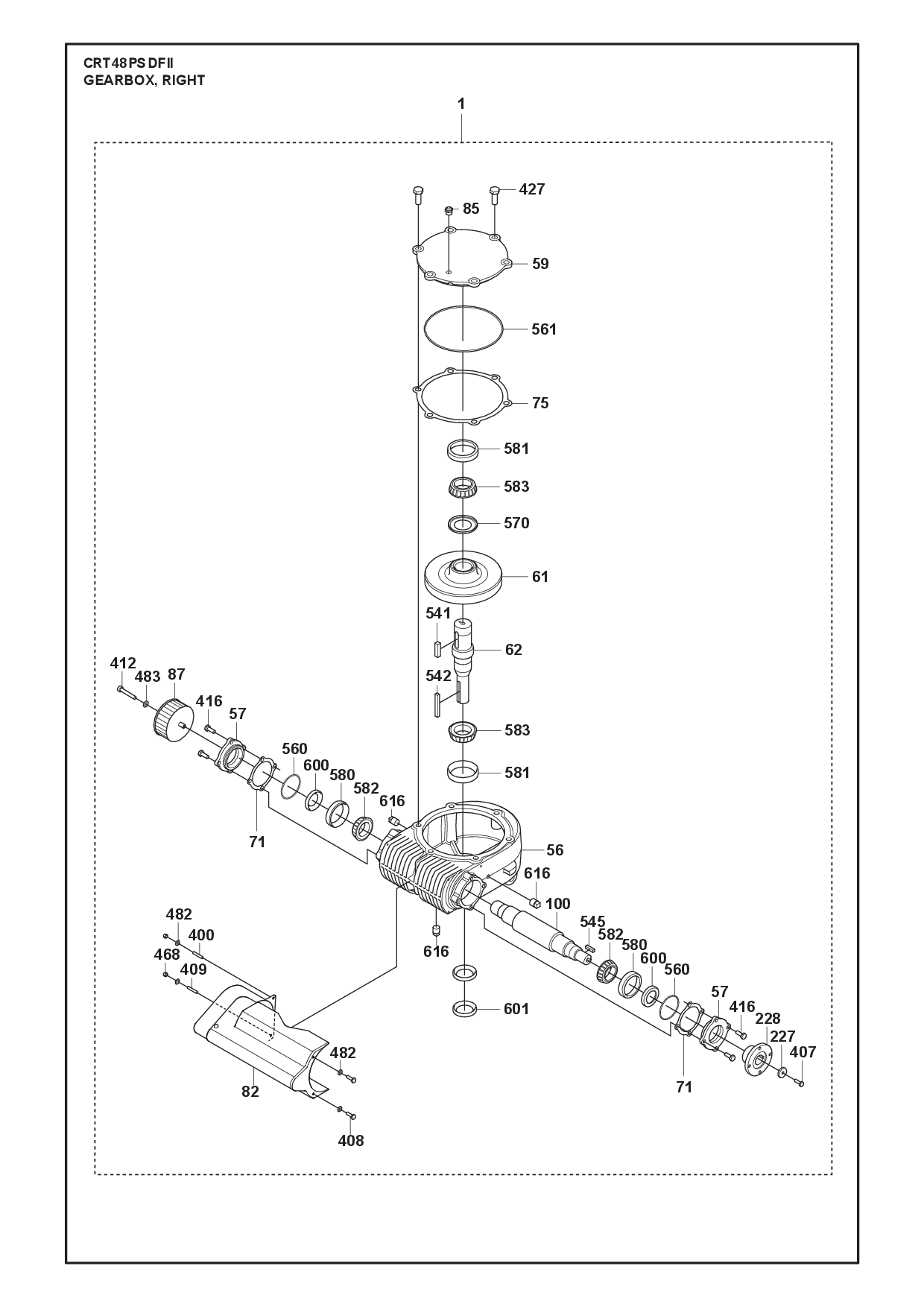

GEARBOX, RIGHT 37 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1GEARBOX ASSY | 599340301 | 1 | Gearbox assy RH, CRT 48 | ||
| 56GEARBOX | 598992101 | 1 | |||
| 57COVER | 598992201 | 2 | |||
| 59COVER | 598991501 | 1 | |||
| 61GEAR | 598991601 | 1 | Wormgear, right hand | ||
| 62SHAFT | 598999201 | 1 | |||
| 71SHIM | 536852802 | 1 | Shim kit, side cover, 4pcs | ||
| 75SHIM | 536852801 | 1 | Shim kit, upper cover, 5pcs | ||
| 82COVER | 598992701 | 1 | Fan cover, RH | ||
| 85VALVE | 599170501 | 1 | |||
| 87FAN | 598992501 | 1 | Fan, RH | ||
| 100WORM GEAR | 598995101 | 1 | Worm, RH | ||
| 227WASHER | 599165801 | 1 | 1-1/8"x0,281"x0,187" | ||
| 228FITTING | 599125401 | 1 | |||
| 400STUD | 599167401 | 2 | M4x20 DIN 976 | ||
| 407SCREW EHHM | 725237071 | 1 | M6x20 ISO 4017 8,8 ZPB | ||
| 408SCREW | 599168201 | 2 | M4x14 | ||
| 409STUD | 599168101 | 2 | M4x25 DIN 976 | ||
| 412SCREW IHSCM | 725537801 | 1 | M6x40 ISO 4762 8.8 ZPB | ||
| 416SCREW EHHM | 725245171 | 8 | M8x20 ISO 4017 8,8 ZPB | ||
| 427SCREW EHHM | 725253871 | 2 | M12x35 ISO 4017 8,8 ZPB | ||
| 468LOCK NUT | 542167485 | 2 | M4 Locknut, fiber | ||
| 482WASHER | 734114601 | 4 | M5 ISO 7089 200HV ZPB | ||
| 483WASHER | 734115201 | 1 | M6 ISO 7089 200HV ZPB | ||
| 541KEY | 599164801 | 1 | 3/8"x3/8"x1-1/2" | ||
| 542KEY | 599167601 | 1 | 3/8"x3/8"x4" | ||
| 545KEY | 541203404 | 1 | 1/4"x1/4"x1" | ||
| 560O-RING | 598992301 | 2 | 2-3/8"x3/32" NBR 70 Shore | ||
| 561O-RING | 598992401 | 1 | 7-1/4"x1/8" NBR 70 Shore | ||
| 570SEAL | 599164501 | 1 | RING, NILOS LM501349/LM501310 AV | ||
| 580BEARING | 599164601 | 2 | LM48510 | ||
| 581BEARING | 599164701 | 2 | LM501310 | ||
| 582BEARING | 598994701 | 2 | LM48548 | ||
| 583BEARING | 599165601 | 2 | LM501349 | ||
| 600SEAL | 599047501 | 2 | 13054 | ||
| 601SEAL | 599047601 | 2 | 16078 | ||
| 616PLUG | 599171001 | 3 | 3/8in NPTF (S8) |

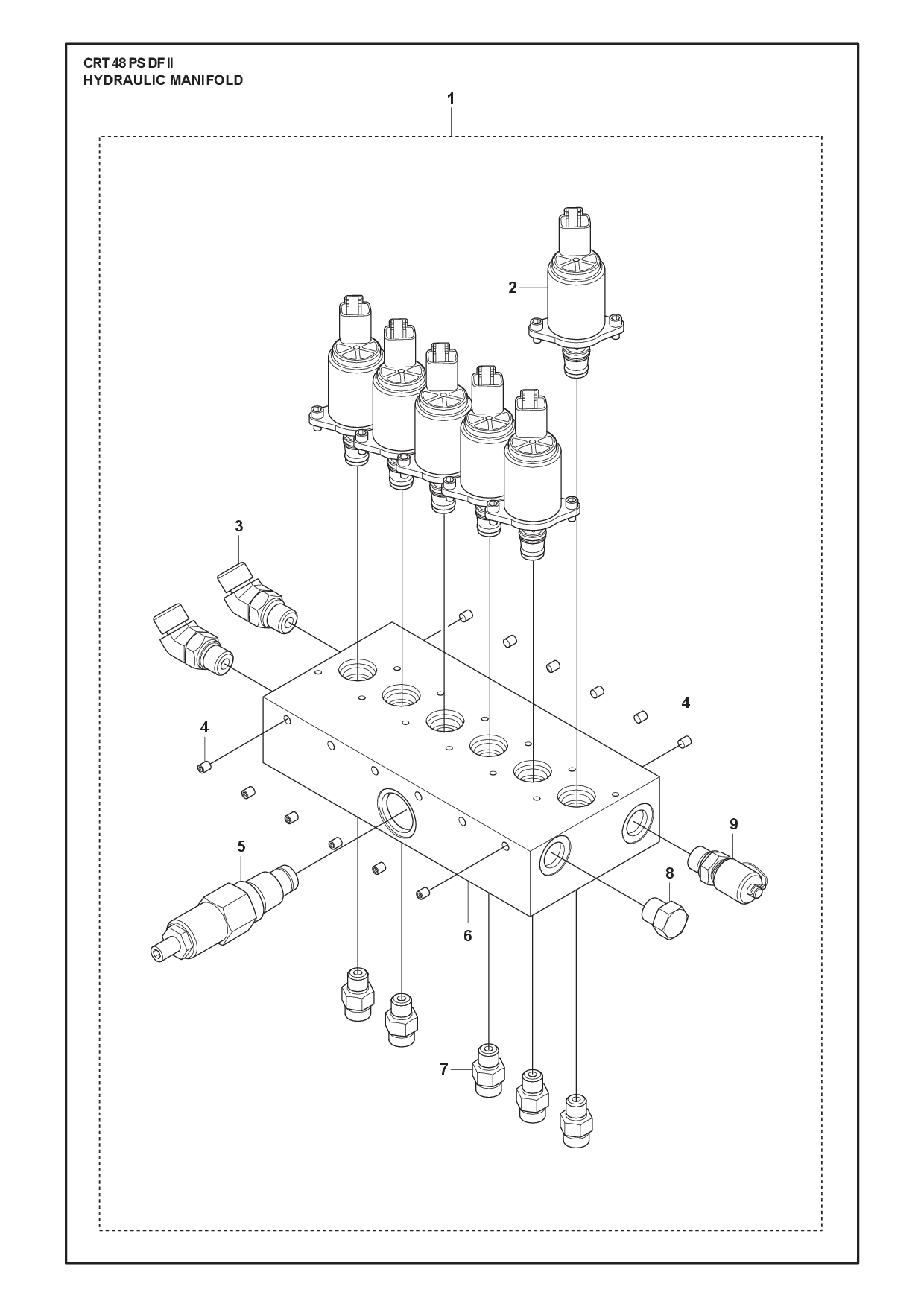

HYDRAULIC MANIFOLD 9 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1MANIFOLD | 599050701 | 1 | |||
| 2VALVE | 546942601 | 1 | |||
| 3FITTING | 546943101 | 1 | 6 x 6 x 45 | ||
| 4PLUG | 546942901 | 1 | 5mm | ||
| 5VALVE | 546942801 | 1 | 100-2000PSI | ||
| 6MANIFOLD | 546942701 | 1 | |||
| 7FITTING | 546943201 | 1 | 4 x 4 | ||
| 8PLUG | 546943001 | 1 | No.6 SAE | ||
| 9FITTING | 546943301 | 1 | 9/16in UNF |

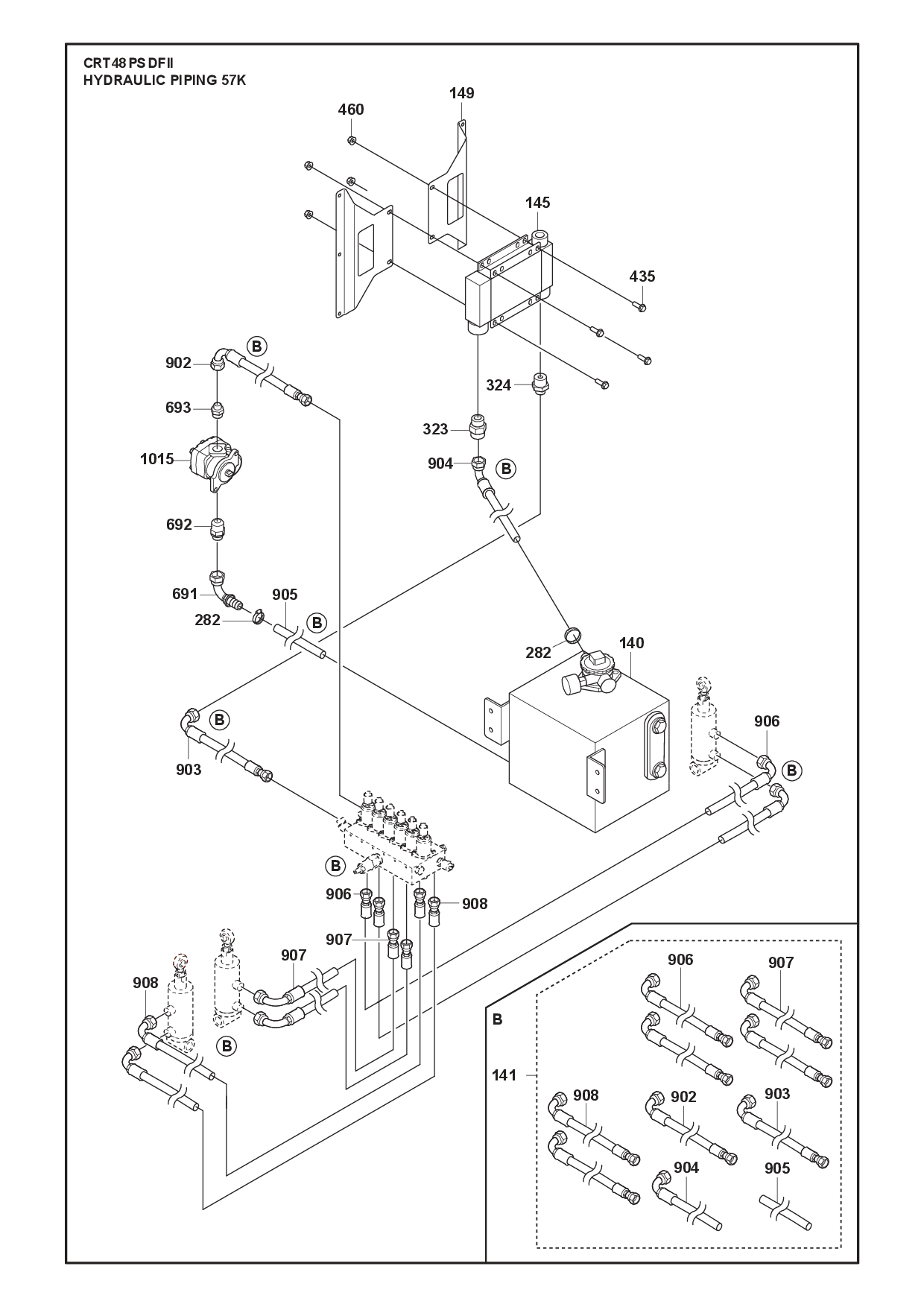

HYDRAULIC PIPING 20 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 140RESERVOIR | 599050801 | 1 | Hydraulic tank, complete | ||
| 141HOSE KIT | 599074101 | 1 | Hydraulic hoses, set | ||
| 145RADIATOR | 599117001 | 1 | |||
| 149BRACKET | 599077301 | 2 | |||
| 282HOSE CLAMP | 576315205 | 3 | SAE12 | ||
| 323FITTING | 598997801 | 1 | |||
| 324FITTING | 598990901 | 1 | |||
| 435SCREW EHHFM | 506570103 | 4 | M8x16 DIN 6921 8.8 ZPB | ||
| 460NUT | 576645704 | 4 | M8 ISO 7043 8 FZB | ||
| 691FITTING | 599073701 | 1 | |||
| 692FITTING | 599073801 | 1 | |||
| 693FITTING | 599073901 | 1 | |||
| 902HYDRAULIC HOSE | 599507101 | 1 | 22" | ||
| 903HYDRAULIC HOSE | 599507201 | 1 | 47" | ||
| 904HYDRAULIC HOSE | 599528801 | 1 | 27,5" | ||
| 905HYDRAULIC HOSE | 599528901 | 1 | 31,5" | ||
| 906HYDRAULIC HOSE | 599507601 | 2 | 24" | ||
| 907HYDRAULIC HOSE | 599507701 | 2 | 16" | ||
| 908HYDRAULIC HOSE | 599507801 | 2 | 27" | ||
| 1015HYDRAULIC PUMP | 599075201 | 1 |

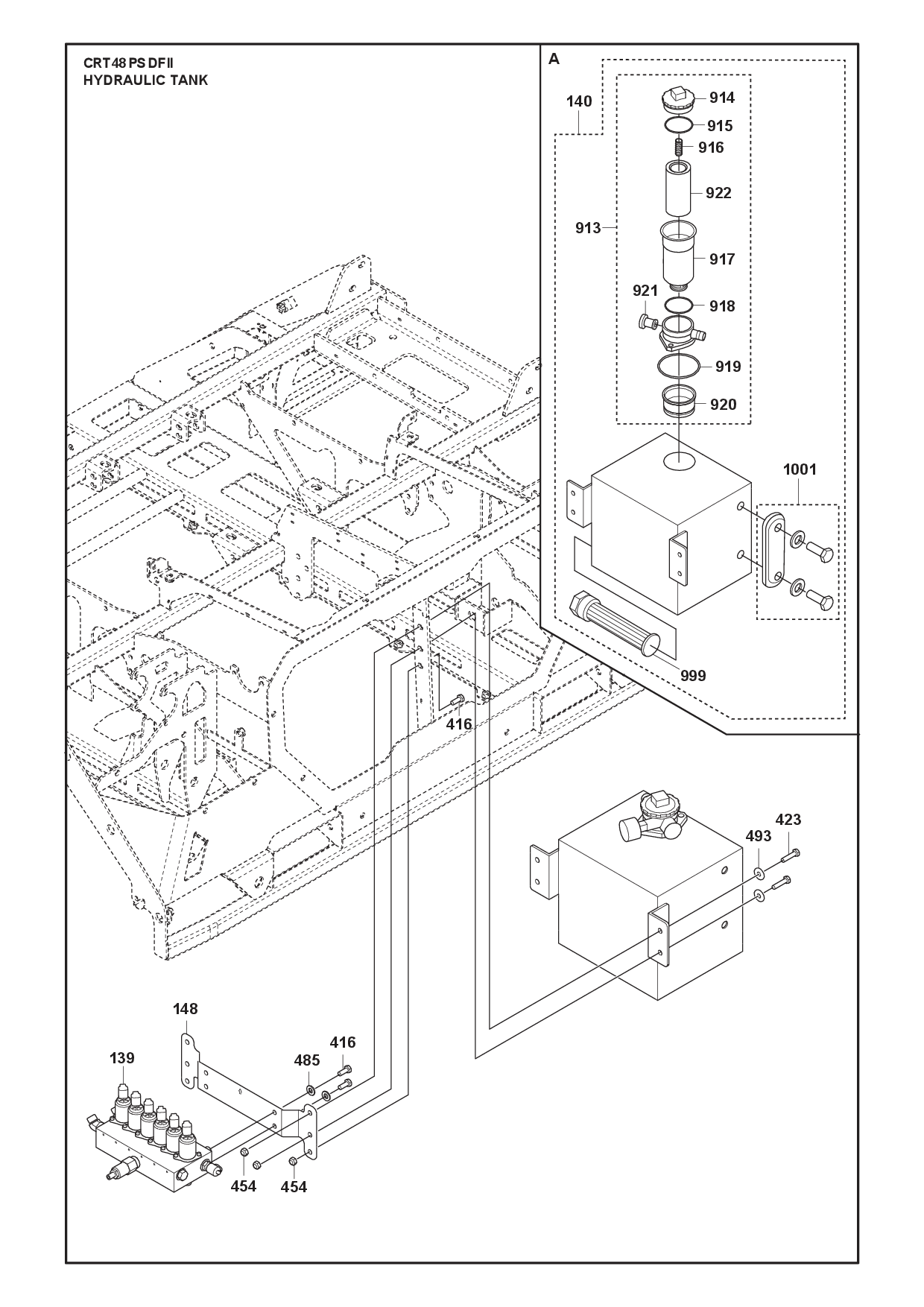

HYDRAULIC TANK 20 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 139MANIFOLD | 599050701 | 1 | Hydraulic manifold, complete | ||
| 140RESERVOIR | 599050801 | 1 | Hydraulic tank, complete | ||
| 148BRACKET | 599053701 | 1 | |||
| 416SCREW EHHM | 725245171 | 6 | M8x20 ISO 4017 8,8 ZPB | ||
| 423SCREW | 725245751 | 4 | M8x35 ISO 4017 8.8 ZPB | ||
| 454HEXAGON LOCKING NUT | 732251801 | 6 | M8 ISO 7040 8 ZPB | ||
| 485WASHER | 734116301 | 4 | M8 ISO 7089 200HV ZPB | ||
| 493WASHER | 734116541 | 4 | M8 ISO 7093 ZPB | ||
| 913FILTER | 599508001 | 1 | |||
| 914CAP | 599508101 | 1 | |||
| 915O-RING | 599508401 | 1 | |||
| 916SPRING | 599508201 | 1 | |||
| 917FILTER HOUSING | 599508301 | 1 | |||
| 918O-RING | 599508501 | 1 | |||
| 919O-RING | 599508601 | 1 | |||
| 920SEPARATOR | 599508701 | 1 | |||
| 921BREATHER | 599508801 | 1 | |||
| 922FILTER | 599508901 | 1 | |||
| 999HYDRAULIC TANK | 599506901 | 1 | |||
| 1001HYDRAULIC TANK | 599506801 | 1 | Sight glass |

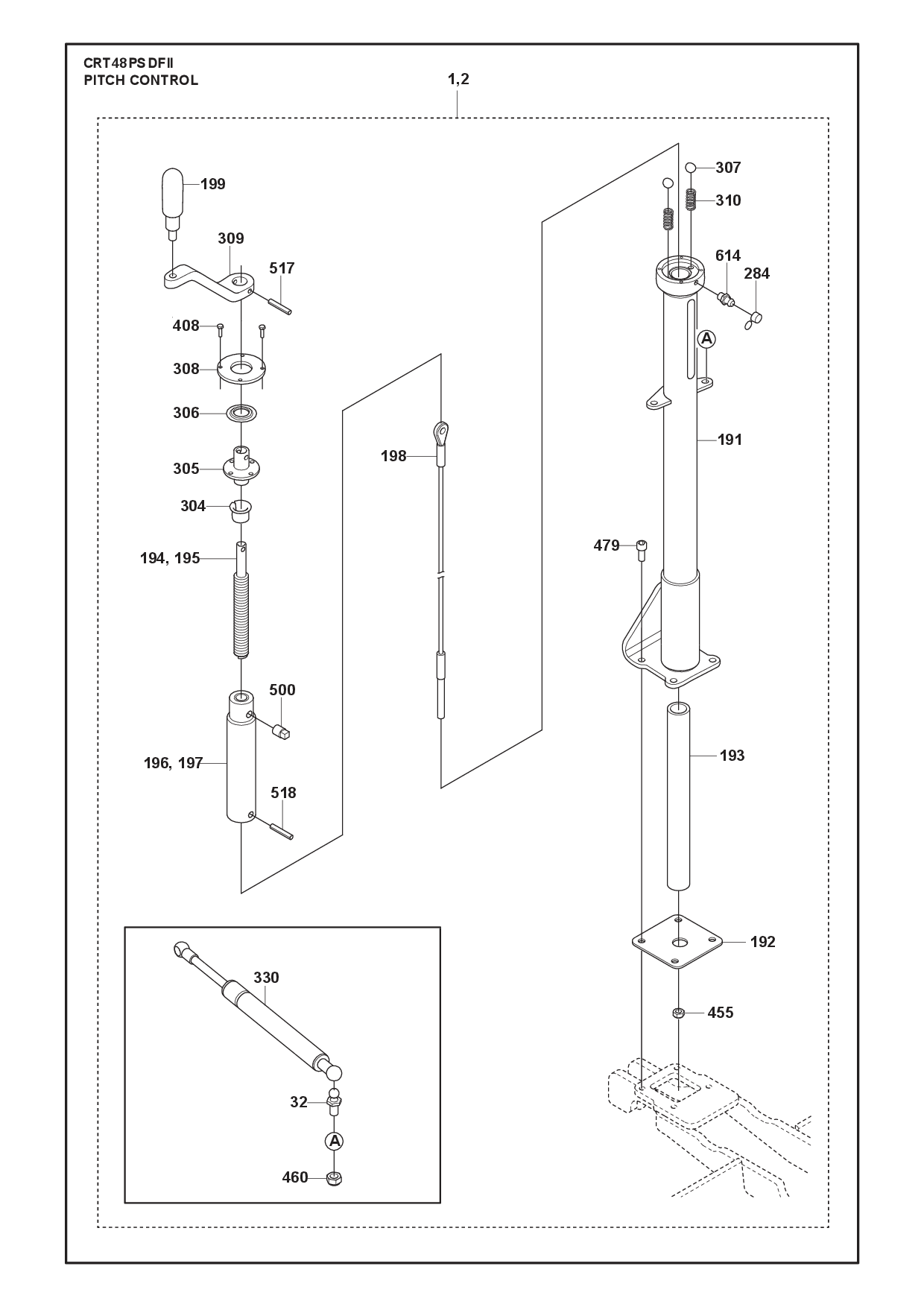

PITCH CONTROL 29 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1LEVER ASSY | 547627801 | 1 | Right hand, complete | ||
| 2LEVER ASSY | 547627802 | 1 | Left hand, complete | ||
| 32STUD | 599168701 | 2 | M8x10 | ||
| 191TUBE | 547604801 | 1 | |||
| 192PLATE | 547627701 | 1 | |||
| 193TUBE | 599062501 | 1 | |||
| 194ROD | 599169401 | 1 | Right hand | ||
| 195ROD | 599169501 | 1 | Left hand | ||
| 196TUBE | 599004601 | 1 | Right hand | ||
| 197TUBE | 599004701 | 1 | Left hand | ||
| 198CABLE | 599004801 | 1 | Pitch cable | ||
| 199HANDLE | 599005101 | 1 | Handle, 24Nm/18ft.lbs | ||
| 284CAP | 599169201 | 1 | |||
| 304BLADE BUSHING | 599004301 | 1 | |||
| 305HUB | 599004401 | 1 | |||
| 306RING | 599169301 | 1 | Nilos ring | ||
| 307BALL | 599169601 | 2 | |||
| 308PLATE | 599004901 | 1 | |||
| 309CRANK | 599047401 | 1 | |||
| 310SPRING | 599004101 | 2 | |||
| 330GAS SPRING | 547708501 | 1 | 5", 20 lbs | ||
| 408SCREW | 599168201 | 4 | M4x14 | ||
| 455LOCK NUT | 596040301 | 1 | 5/16"-24 Locknut, fiber | ||
| 460NUT | 599570601 | 2 | M8 DIN 6923S 8 ZPB | ||
| 479SCREW IHSCM | 725545101 | 4 | M8x20 ISO 4762 8,8 ZPB | ||
| 500PIPE | 599173101 | 1 | |||
| 517PIN | 599163301 | 1 | Roll pin 1/4"x1-1/2" | ||
| 518PIN | 599160001 | 1 | Roll pin 8x36 | ||
| 614FITTING | 599176601 | 1 | AM6 DIN 71412 |

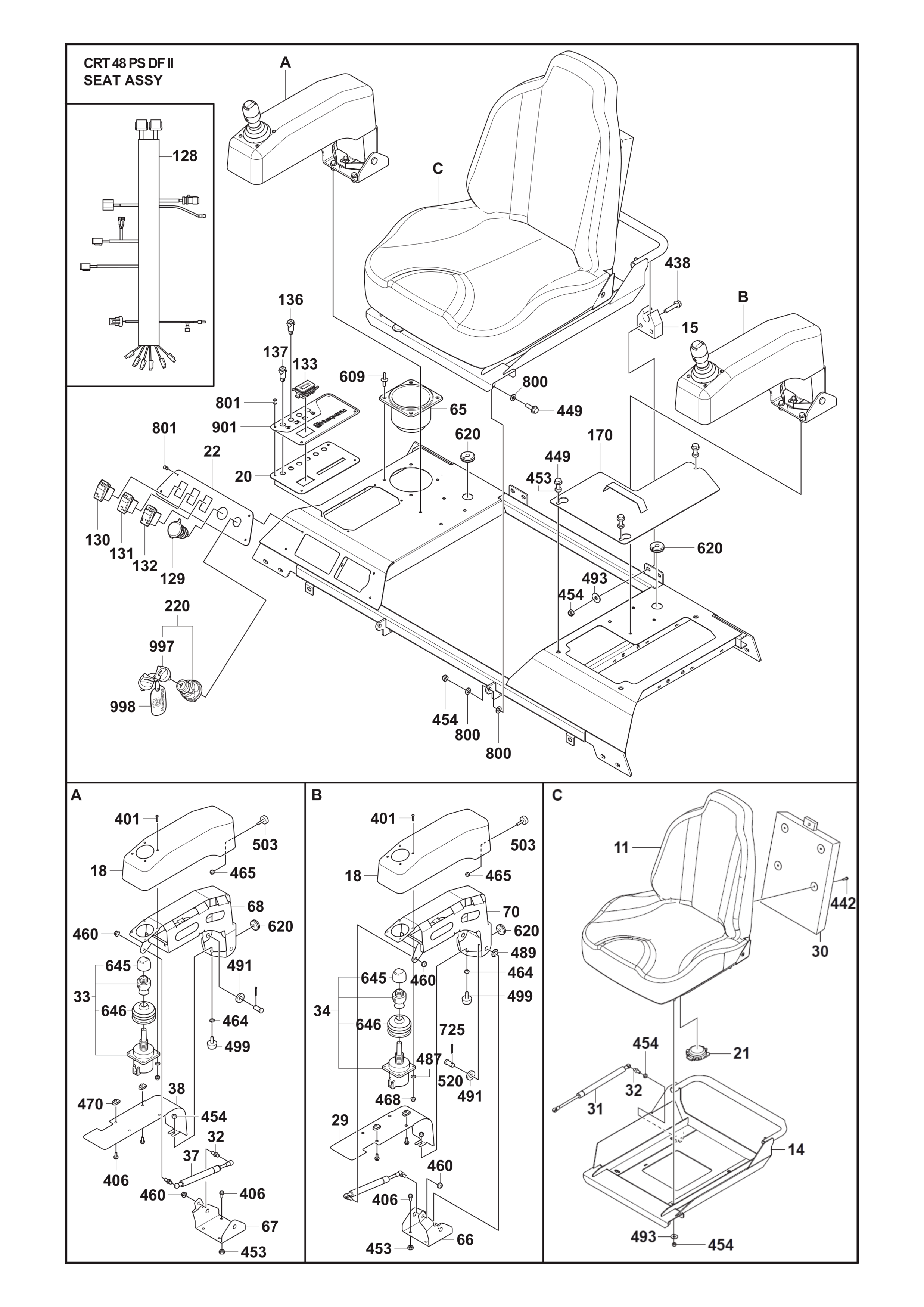

SEAT 59 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 11SEAT | 529855601 | 1 | |||
| 14SEAT BRACKET | 547331701 | 1 | |||
| 18HOUSING | 599051701 | 2 | |||
| 20PLATE | 546508101 | 1 | |||
| 21SWITCH | 599026901 | 1 | Seat switch | ||
| 22PLATE | 546548101 | 1 | |||
| 29PLATE | 599053201 | 1 | |||
| 30HOLDER | 598988501 | 1 | |||
| 31CYLINDER | 599033101 | 1 | |||
| 32STUD | 599168701 | 5 | M8x10 | ||
| 33JOYSTICK | 599039401 | 1 | Dual axis joystick | ||
| 34JOYSTICK | 599039501 | 1 | Single axis joystick | ||
| 37SPRING | 599016401 | 2 | 90 lb | ||
| 38PLATE | 599061101 | 1 | |||
| 65INSERT | 598992901 | 1 | |||
| 66BRACKET | 599052701 | 1 | |||
| 67BRACKET | 599060901 | 1 | |||
| 68BRACKET | 599061001 | 1 | |||
| 70BRACKET | 599053301 | 1 | |||
| 128WIRING ASSY | 548218601 | 1 | |||
| 129CHARGER | 547190101 | 1 | USB | ||
| 130SWITCH | 599012803 | 1 | Light switch | ||
| 131SWITCH | 599012802 | 1 | Steer mode | ||
| 132SWITCH | 599012804 | 1 | Fuel | ||
| 133HOUR METER | 598994301 | 1 | Hour meter | ||
| 136LIGHT | 599124401 | 1 | Amber light | ||
| 137LIGHT | 599044401 | 3 | Red light | ||
| 170PLATE | 546525201 | 1 | |||
| 220IGNITION SWITCH | 587681001 | 1 | Ignition switch | ||
| 401SCREW | 599173901 | 8 | M4x20 | ||
| 406SCREW EHHFM | 585980601 | 16 | M6x16 EN 1665 8,8 ZPB | ||
| 438SCREW EHHFM | 585975501 | 4 | M8x40 EN 1665 8.8 ZPB | ||
| 442SCREW | 599169101 | 4 | #10x3/4" GR | ||
| 449SCREW EHHFM | 506570105 | 5 | M8x25 DIN 6921 8.8 ZPB | ||
| 453NUT | 593356401 | 11 | |||
| 454HEXAGON LOCKING NUT | 732251801 | 13 | M8 ISO 7040 8 ZPB | ||
| 460NUT | 576645704 | 4 | M8 ISO 7043 8 FZB | ||
| 464HEXAGON THIN NUT | 731431801 | 4 | M8 ISO 4035 St 04 ZPB | ||
| 465LOCKING NUT | 578496601 | 2 | Locking nut 1/4"-20 UNC | ||
| 468LOCK NUT | 542167485 | 8 | M4 Locknut, fiber | ||
| 470LOCK NUT | 599166801 | 8 | Lugs 060023 | ||
| 487WASHER | 734113601 | 8 | M4 ISO 7089 200HV ZPB | ||
| 489WASHER | 599160701 | 4 | |||
| 491WASHER | 734117801 | 4 | M12 ISO 7089 200HV ZPB | ||
| 493WASHER | 734116541 | 8 | |||
| 499BUMPER | 598989701 | 4 | |||
| 503BUMPER | 599053101 | 2 | |||
| 520PIN | 599173301 | 4 | Clevis pin 1/2"x1" | ||
| 609RIVET | 599167901 | 4 | |||
| 620GROMMET | 599054501 | 2 | |||
| 645RUBBER SHOE | 546419801 | 2 | Upper switch | ||
| 646RUBBER SHOE | 546419901 | 2 | Base | ||
| 725PIN | 599160101 | 4 | Cotter pin 3.2x25 | ||
| 800BUSHING | 546702201 | 6 | NYLON M8 1.6mm | ||
| 801RIVET | 722795309 | 8 | 4,0 x 13,9 | ||
| 901DECAL | 546906901 | 1 | |||
| 901DECAL | 546907001 | 1 | |||
| 997IGNITION SWITCH | 587681001 | 1 | |||
| 998HANG TAG | 548610301 | 1 |

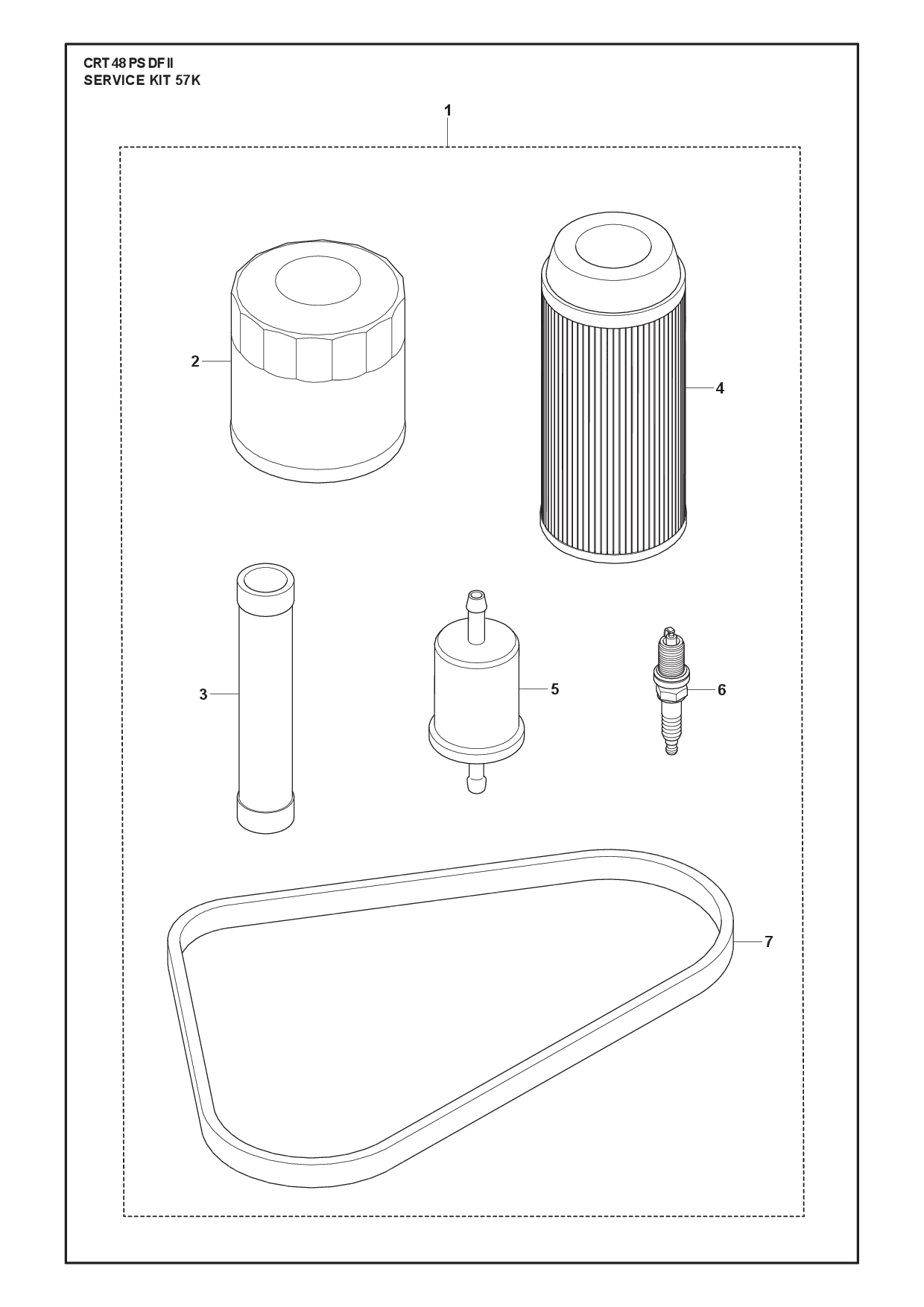

SERVICE KIT 7 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SERVICE KIT | 546431101 | 1 | KIT for CRT 48-57K | ||
| 2OIL FILTER | 546448101 | 1 | |||
| 3AIR FILTER | 546448201 | 1 | |||
| 4AIR FILTER | 546448301 | 1 | |||
| 5FUEL FILTER | 546448401 | 1 | |||
| 6SPARK PLUG | 546448501 | 4 | |||
| 7DRIVE BELT | 546448601 | 1 |

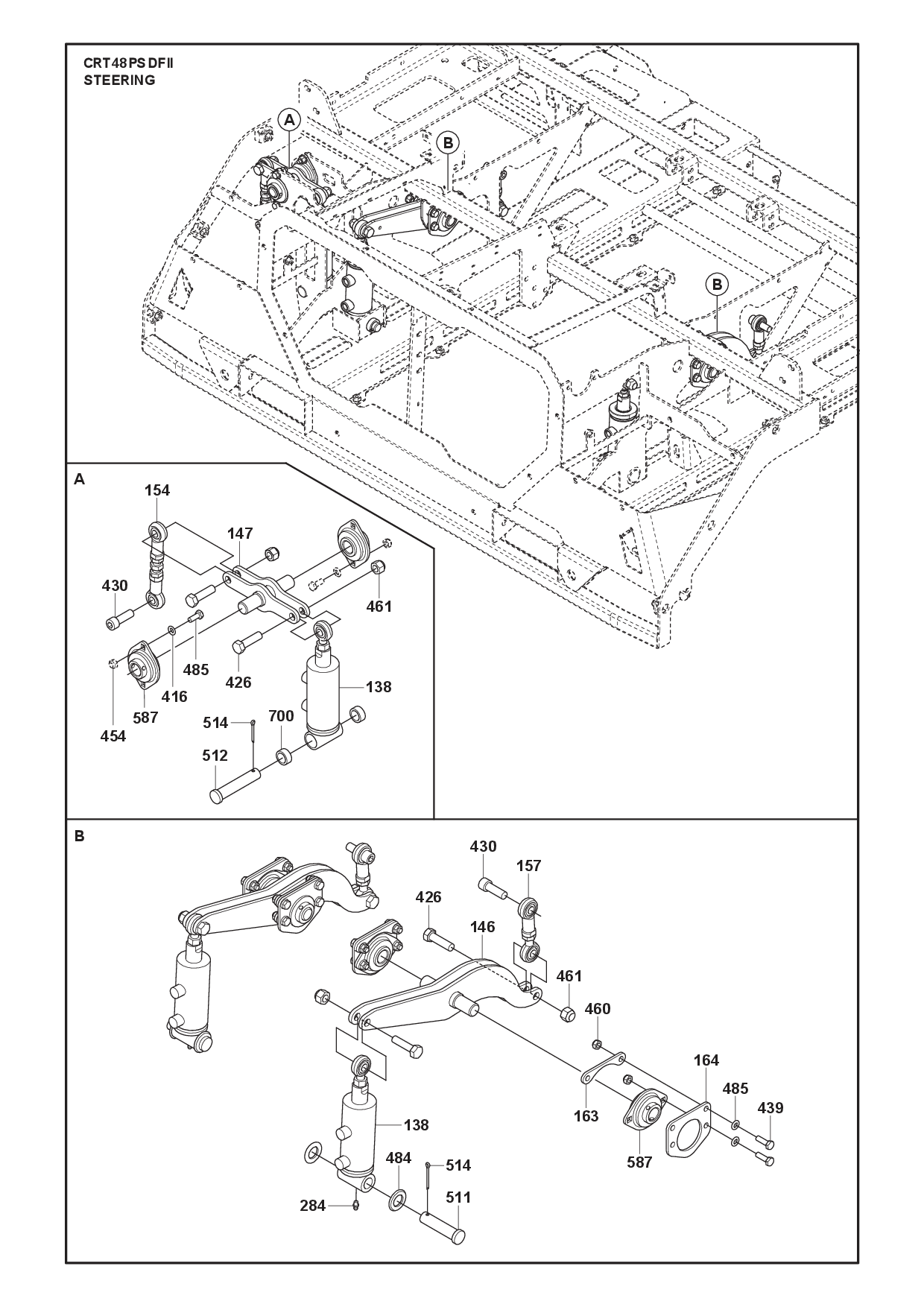

STEERING 22 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 138ACTUATOR | 599050601 | 3 | |||
| 146BRACKET | 599052401 | 2 | |||
| 147BRACKET | 599051001 | 1 | |||
| 154LINK | 599016001 | 1 | |||
| 157LINK | 599038401 | 2 | |||
| 163SPACER | 599054801 | 4 | |||
| 164PLATE | 599053801 | 4 | |||
| 284CAP | 599169201 | 3 | |||
| 416SCREW EHHM | 725245171 | 4 | M8x20 ISO 4017 8,8 ZPB | ||
| 426SCREW | 599172501 | 6 | HHCS 1/2"-20x1-3/4" GR | ||
| 430BOLT | 587428801 | 3 | HSCS 1/2"-20x1" GR | ||
| 439SCREW EHHM | 725245376 | 16 | M8x25 ISO 4017 10.9 ZPB | ||
| 454HEXAGON LOCKING NUT | 732251801 | 4 | M8 ISO 7040 8 ZPB | ||
| 460NUT | 576645704 | 16 | M8 ISO 7043 8 FZB | ||
| 461LOCK NUT | 546673001 | 4 | |||
| 484WASHER | 542173035 | 4 | M20 ISO 7089 200HV ZPB | ||
| 485WASHER | 734116301 | 16 | M8 ISO 7089 200HV ZPB | ||
| 511PIN | 599175601 | 2 | Clevis pin 3/4"x3-1/2" | ||
| 512PIN | 599174101 | 1 | Clevis pin 3/4"x3-3/4" | ||
| 514PIN | 542020616 | 3 | Cotter pin 1/4"x1-1/2" Zn | ||
| 587BEARING | 598996901 | 6 | 0,875" | ||
| 700SPACER | 599054201 | 2 |
Document Downloads
Operator's manual
Service bulletin
Compatable Accessories
Concrete Focus
From pouring to resurfacing, we sell tools built for concrete pros.
Expert Support
Get guidance from experts who understand jobsite challenges.
Fast Delivery
Get your tools fast with our nationwide shipping network and local partnerships.
Talk to an expert now (855) 281-1918
Get fast, expert help choosing the right concrete tools or equipment for your job. Ask about availability, specs, troubleshooting, or get friendly guidance before you place an order.
