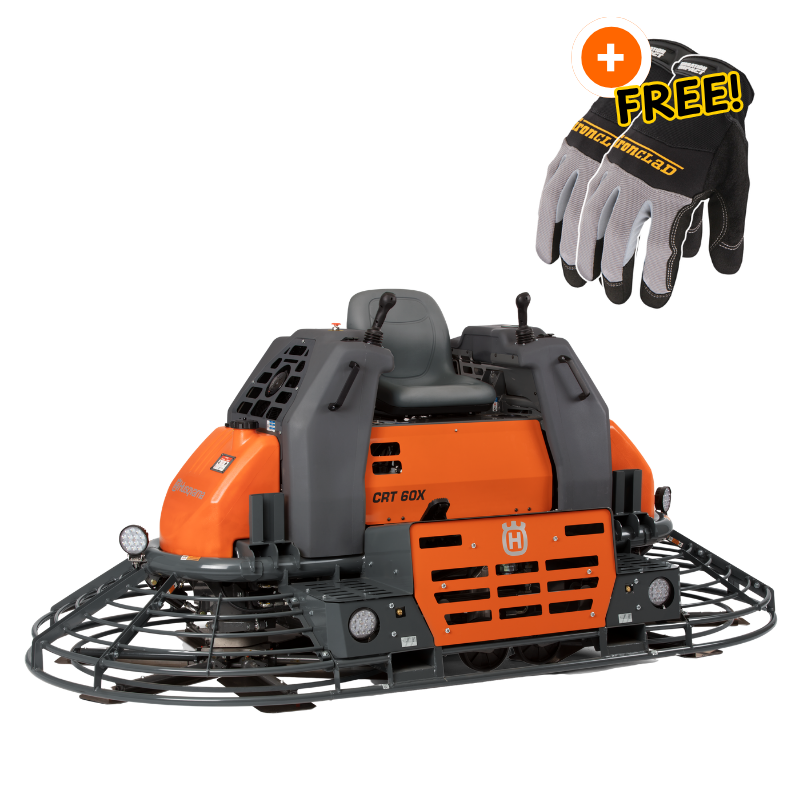

Husqvarna CRT 60X | Ride-On Trowel

Name: Husqvarna CRT 60X | Ride-On Trowel
Brand: Husqvarna Construction
SKU: 970461801
Price: 66649.00 USD
Availability: InStock

HUSQVARNA CONSTRUCTION SKU: 970461801 Copied!

Is this the right tool for the job?

Best For:

Large slab-on-grade, warehouse, and hangar floors needing daily finish
Ride-on crews (2–6 ops) with edgers, chasing the set on big pours
Parking decks and tilt-up panels needing tight, burnished finishes

Not Ideal For:

Enclosed interiors without proven ventilation (gas exhaust)
Tight rooms or congested layouts; columns/penetrations limit access
Thin toppings/overlays that can't carry machine weight or blade pressure

Why Pros choose this tool:

Wide twin-rotor deck → covers more slab per pass → fewer operators; stay ahead of set on big pours
Balanced weight & torque → burns in faster with fewer passes → tight, dense finish ready for coatings
Gas power with quick refuel → no charging delays mid-shift → keep rotors turning to hit the window

$66,649.00

~~$88,404.00~~ $66,649.00

Save $21,755 Sold out

Trusted by contractors nationwide

"I've bought 3 products from CTD and each time the experience has been the same - professional and fast delivery. I trust these guys with all my concrete needs."

Authorized
Dealer

Top Quality Store
on Google

Talk to an expert (855)-281-1918

Secure checkout

90 day returns

Product Details

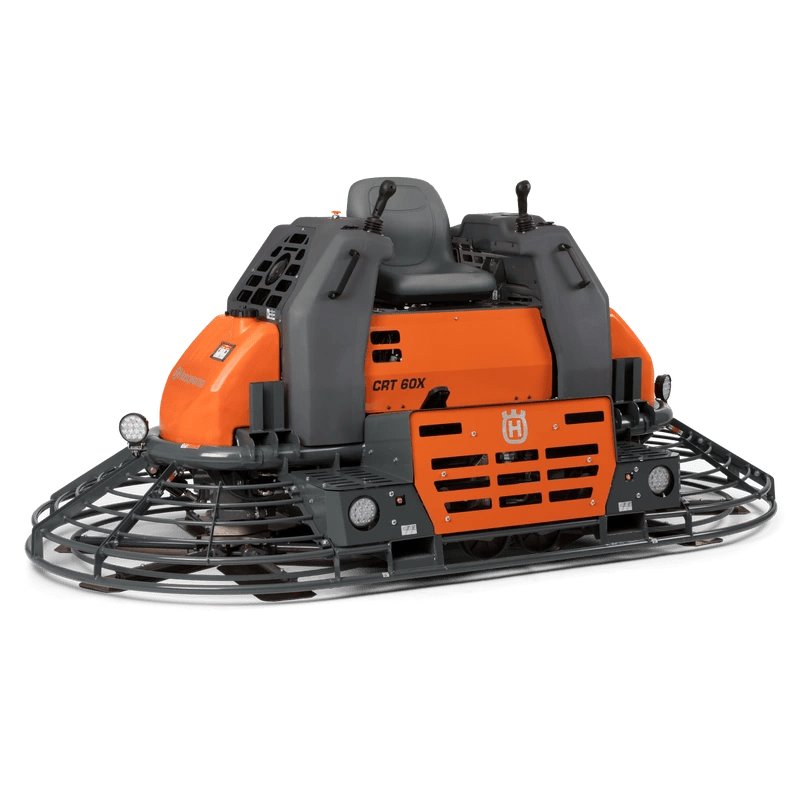

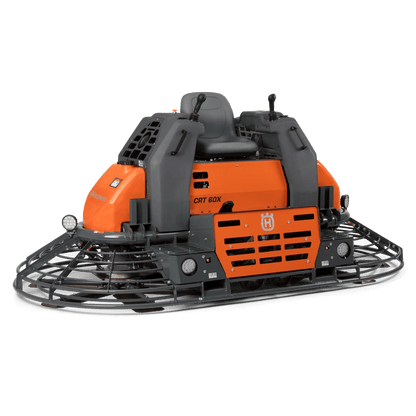

HUSQVARNA RIDE-ON TROWEL - CRT 60X

Experience the power of innovation with the Husqvarna CRT 60X Ride-On Trowel. Engineered for large-scale panning and high-friction applications, this machine is designed to handle areas from 20,000 to 50,000 sq ft. The on-board computer controller constantly monitors the engine speed and adjusts the hydraulic load simultaneously, ensuring optimum performance all the time.

With the power steering via joysticks, you can maneuver the machine precisely with minimal fatigue. The patented hydraulic wheel kit allows for an easy change of float pans or blades, eliminating the need for cranes or forklifts. This robust machine is powered by a 74 hp Diesel engine from Kohler, ensuring reliable and efficient operation.

60 in Troweling Diameter: Capable of wide coverage for efficient working.

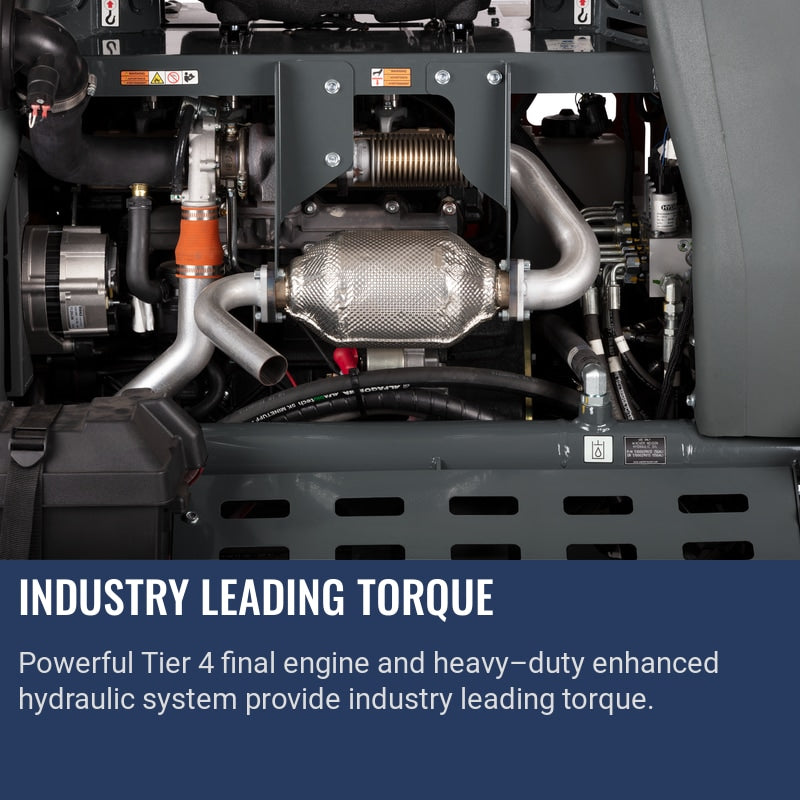

74 hp Diesel Power Source: Offers reliable, consistent power for demanding tasks.

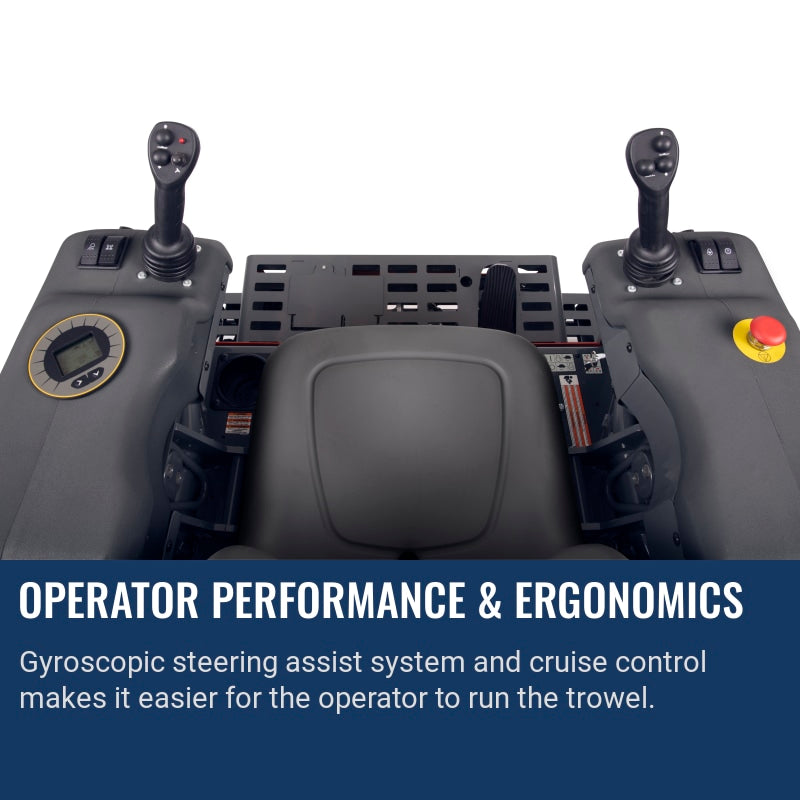

Power Steering Via Joysticks: Allows for precise maneuvering and less fatigue.
Hydraulic Wheel Kit: Enables easy change of float pans or blades without the need for heavy lifting equipment.

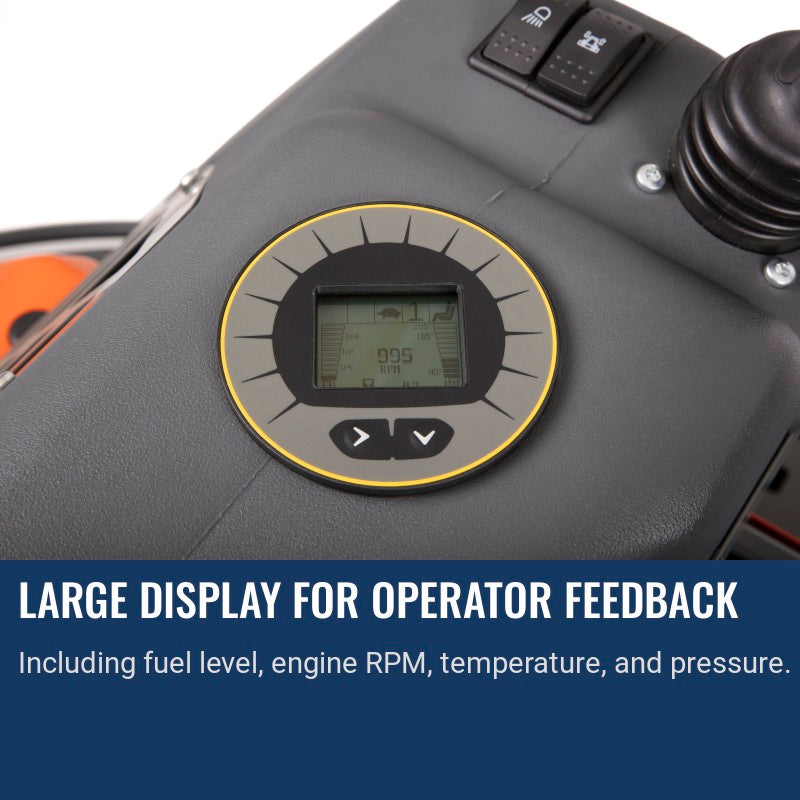

Computer Controller: Monitors and adjusts engine speed and hydraulic load for optimal performance.

View full details

Product Specification

Specifications

Motor/engine manufacturer

Kohler

Motor/engine model

KDI2504TCR

Engine Power (As rated by the engine manufacturer)

74 hp

Power source

Diesel

Troweling diameter

60 in

Blades

12 pcs

Packaging length (Calc)

130.512 in

Packaging width (Calc)

67.52 in

Packaging height (Calc)

65 in

Article gross weight (Calc)

2,976.241 lbs

Sound pressure level at operators ear

93.4 dB(A)

Sound power level, measured

115.5 dB(A)

Vibration Value

1.4 m/s²

Warranty

2 year limited warranty

Service & Maintenance Parts

AIR CLEANER & REAR PANEL 20 parts

Part	Article number	Qty	Comment
13AIR FILTER	599071401	1
14BRACKET	599071501	1
15HOSE	599079301	1
17HOOD	599071601	1
42PIPE	599112601	1
43BRACKET	599079501	1
44BRACKET	599079601	1
181PLATE	599106601	1
182PLATE	599106701	1
208SCREW EHHFM	506570104	1	M8 x 20, 25Nm/18ft.lbs
212SCREW EHHFM	506570103	11	M8 x 16, 25Nm/18ft.lbs
214SCREW IHSCM	725545501	6
229SCREW EHHFM	585972801	1	M8 x 30, 25Nm/18ft.lbs
246LOCK NUT	522919401	2	M8, DIN985
250NUT	576645704	6	M8
262HEXAGON NUT	731231801	6
274WASHER	734116301	6
276WASHER	734116541	2
317CLAMP	599164101	1	1,56-2,50
500AIR CLEANER	599517201	1

BATTERY & LIGHT 8 parts

Part	Article number	Qty	Comment
127BATTERY	599049501	1	4"
130CABLE	599036201	1	16"
131CABLE	598991701	1
133LIGHT	599076901	6
147PAD	598988001	1
148BOX	598999901	1
231SCREW EHHFM	585235901	1	M12 x 25, 86Nm/63ft.lbs, ISO 4017
649STRAP	599512601	1

BLADE MECHANISM, RIGHT AND LEFT 30 parts

Part	Article number	Qty	Comment
51SHAFT	599062901	1
53HUB	599058601	1
55SHAFT	599059701	6
56RING	599014901	1
57RING	599014301	1
58RING	599014401	1
59LINK	598993301	6
60HOLDER	599014601	1
61BEARING	599054901	1
62BUSHING	599174301	1
63RETAINER RING	599174401	1
64LINK	599055001	2
65WASHER	599063001	1
66PLUG	599055101	1
67COMBINATION BLADE KIT	540211505	1	Order Screw Kit #540665201
194SCREW	599177301	1	M14 X 90, 188Nm/139ft.lbs
199SCREW	599163001	6	3/8-16 x 1-3/8in, 18Nm/13ft.lbs
200SCREW	599165001	6	1/2 x 3/4in, 18Nm/13ft.lbs
210SCREW	599165901	6	M8 x 45, 18Nm/13ft.lbs
220SCREW	599176201	2	85Nm/63ft.lbs
225SCREW	596320801	24	5/16-18 x 2in, 18Nm/13ft.lbs
248NUT	599175201	5	176Nm/130ft.lbs
274WASHER	734116301	18
275LOCKWASHER	599161901	12	8,DIN6796
279WASHER	599166301	5	13
314SPACER	599069401	6
315FITTING	599162101	6	AM10, DIN71412
322PLUG	599163401	6
342CAP	599169201	6
398KEY	599176101	1	10 x 8 x 48

DECALS 6 parts

Part	Article number	Qty
103LABEL DRILL	599107301	1
112DECAL	599235001	1
115LABEL DRILL	599118801	1
118DECAL	599235201	1
120LABEL DRILL	599077601	1
2001DECAL	599235301	2

DRIVE MOTOR HOUSING, LEFT 28 parts

Part	Article number	Qty	Comment
54YOKE	599050301	1
68PIVOT	599080901	1	Left
71HOUSING	599068401	1
72SPACER	599104001	2
83MOTOR	599078501	1
90CYLINDER	599068901	1
196SCREW	599161101	10	M12 x 35, 120Nm/89ft.lbs, ISO 4017
201SCREW	597979101	4	M14 x 50, 135Nm/100ft.lbs,ISO 4017
204SCREW	725249751	6	M10 x 35, 49Nm/36ft.lbs, ISO 4017
211BOLT	596435301	2	1/2-13 x 1.25"
242NUT	598556501	4	M14, ISO 7035
243NUT	732212051	6	M10, ISO 7042
255HEXAGON LOCKING NUT	732252271	10	M12
271WASHER	734117201	6
273WASHER	599165701	4	M14, ISO 7090
279WASHER	599166301	12	13
287WASHER	734117771	10	13
316BEARING	598994501	2
360FITTING	599070401	1	No.10 ORF xNo.10 ORB
370FITTING	598997401	1	No.10 ORB xNo.10 ORFS
373FITTING	598990701	2	SAE No.4 x 90
379PIN	599175401	2
380PIN	599164901	3	1/8 x 1-1/2"
381PIN	599175301	4
448FITTING	598987401	1
607HOSE	599500901	1	70.00"
632HOSE	599517401	1	70.00"
1000SEAL KIT	599517301	1	Seal KIT Drive motor CRT60

DRIVE MOTOR HOUSING, RIGHT 25 parts

Part	Article number	Qty	Comment
54YOKE	599050301	1
69UNIT	599080501	1
70HOUSING	599068101	1
72SPACER	599104001	2
83MOTOR	599078501	1
90CYLINDER	599068901	1
196SCREW	599161101	10	M12 x 35, 120Nm/89ft.lbs, ISO 4017
201SCREW	597979101	8	M14 x 50, 99Nm/73ft.lbs, ISO 4017
211BOLT	596435301	2	1/2-13 x 1.25in, 36Nm/27ft.lbs
242NUT	598556501	8	M14, ISO 7035
255HEXAGON LOCKING NUT	732252271	10	M12
273WASHER	599165701	8	M14, ISO 7090
279WASHER	599166301	10	13
287WASHER	734117771	10	13
316BEARING	598994501	4
370FITTING	598997401	2	No.10 ORB X No.10 ORFS, 18Nm/13ft.lbs
373FITTING	598990701	2	SAE No.4 x 90
378PIN	599175301	1
379PIN	599175401	2
380PIN	599164901	2	1/8 x 1-1/2"
381PIN	599165301	2	1/2 x 2"
448FITTING	598987401	1	55Nm/41ft.lbs
606HOSE	599500601	1	33.00"
631HOSE	599501402	1	33.00"
1000SEAL KIT	599517301	1	Seal KIT Drive motor CRT60

ENGINE COMPARTMENT 33 parts

Part	Article number	Qty	Comment
1ENGINE	599078301	1
4BRACKET	599079101	1
5MOUNT	599079201	2
18FAN	599113401	1
19SPACER	599113001	1
22BRACKET	599116501	1
27BRACKET	599082301	1
28BRACKET	599079401	1
29GUARD	599112901	1
30BRACKET	599112701	1
39HOSE	599079801	1
132WIRING	599078101	1
160CLAMP	599161701	1	0,21-0,63
197SCREW EHHM	725250351	4
207SCREW EHHFM	585980601	2	M6 x 16, 10Nm/7ft.lbs
231SCREW EHHFM	585235901	8	M12 x 25, 86Nm/63ft.lbs, ISO 4017
232SCREW EHHFT	725236461	14	M6 x 10, 10Nm/7ft.lbs
238SCREW EHHM	725237651	4	M6 x 35, 10Nm/7ft.lbs, ISO 4014
243NUT	732212051	4
246LOCK NUT	522919401	1	M8, DIN985
254NUT	593356401	2	M6
261NUT	539200282	2	3/8-16"
269WASHER	599160201	4
270WASHER	599170801	4
271WASHER	734117201	4
279WASHER	599166301	16	13
292SCREW	599343301	1	M8 x 18, 25Nm/18ft.lbs, ISO 4017
295CLAMP	599177001	1	1 1/2"
300CLAMP	599168401	2
317CLAMP	599164101	2	1,56-2,50
321BUMPER	599113201	2
347HOSE	599118502	1	5/16 X 33"
386HOSE	599111701	1

FRAME 12 parts

Part	Article number	Qty	Comment	Price	Details
31FRAME	599117301	1
32FRAME	599055501	1
129CABLE	598995401	1	13"
195SCREW	599171101	11	M8 x 25
208SCREW EHHFM	506570104	4	M8 x 20, 25Nm/18ft.lbs	Regular price $19.79 Regular price ~~$6.28~~ Sale price $19.79	View part
222SCREW	725245101	1
231SCREW EHHFM	585235901	12	M12 x 25, 86Nm/63ft.lbs, ISO 4017	Regular price $19.79 Regular price ~~$10.30~~ Sale price $19.79	View part
246LOCK NUT	522919401	4	M8, DIN985
247LOCK NUT	599163801	15	M8
255HEXAGON LOCKING NUT	732252271	12	M12
279WASHER	599166301	12
284LOCKWASHER	599167501	1	M10

FRONT PANEL 38 parts

Part	Article number	Qty	Comment
33GUARD	599060001	1
34GUARD	599066101	1
79CONNECTOR	599513201	1	66 pin
86MOUNT	598985501	4
95PLATE	599079701	1
97UNIT	599081701	1
123INSULATION	599083801	1
137THROTTLE	598985301	1
172MOUNT	599079001	1
173PANEL	599114701	1
178PLATE	599130602	1
179PLATE	599130402	1
183GRILLE	599078001	1
184GRILLE	599077901	1
198SCREW	599168201	2	M4 x 14, ISO 4017
212SCREW EHHFM	506570103	24	M8 x 16, 25Nm/18ft.lbs
219SCREW EHHM	725249371	2	M10 x 25, 49Nm/36ft.lbs, ISO 4017
222SCREW	725245101	2
224SCREW EHHM	725245951	8	M8 x 40, 25Nm/18ft.lbs, ISO 4014
234SCREW	531119208	1	M5 x 12, 6Nm/4ft.lbs, ISO 4017
235SCREW	579566101	8	M8 x 16
236SCREW	593167401	2	M5 x 25, 6Nm/4ft.lbs, ISO 4017
240SCREW	599517701	3	M6 x 25
241SCREW	725244751	2
243NUT	732212051	4	M10, ISO 7042
244LOCK NUT	732211401	3
245LOCK NUT	599159801	2
246LOCK NUT	522919401	10	M8, DIN985
249NUT	531208491	3	M6, DIN985
250NUT	576645704	4	M8
254NUT	593356401	12	M6
271WASHER	734117201	4
276WASHER	734116541	8
280WASHER	734114601	3
292SCREW	599343301	1
293SCREW	725236851	4
310HINGE	599015201	2
311LATCH	599070601	3

FUEL HOSE ROUTING AND FUEL COOLER 14 parts

FUEL HOSE ROUTING AND FUEL COOLER diagram

Part	Article number	Qty	Comment
74RADIATOR	599083901	1
160CLAMP	599161701	1	0,21-0,63
165FITTING	599062301	2	5/16 x 1/4" x 90 NPT
168FITTING	599117901	2	#8 x 1/4"
169PLUG	599118001	2	#12
212SCREW EHHFM	506570103	4	M8 x 16, 25Nm/18ft.lbs
250NUT	576645704	4	M8
427FITTING	598985801	1	5/16"
655HOSE	599118504	1	ID 5/16" x 1500 mm
656HOSE	599118502	1	ID 5/16" x 965 mm
657HOSE	599118503	1	ID 5/16" x 1220 mm
658HOSE	599118505	1	ID 5/16" x 1755 mm
659MOTOR	599517501	1	12V
660HOSE	599118506	1	ID 5/16" - 915 mm

HYDRAULIC BLOCK 15 parts

Part	Article number	Qty	Comment
1MANIFOLD	599078601	1	Complete
2SPOOL	546193901	1
3CHECK VALVE	546194101	3
4SOLENOID	546195201	2
5FITTING	546195101	1	SAE-8
6UNIT	546194301	11
7FITTING	546194901	13	SAE-6 X 11/16IN
8UNIT	546194401	2
9PISTON	546194201	3
10SENSOR	546194801	1	SAE-4
11VALVE	546193801	1
12SENSOR	546194701	1
13FITTING	546195001	1	SAE-8 X 13/16IN
14FITTING	546194601	1
15SOLENOID	546194501	7

HYDRAULIC FILTER & HYDRAULIC PIPING 21 parts

HYDRAULIC FILTER & HYDRAULIC PIPING diagram

Part	Article number	Qty	Comment
81FITTING	599003401	2	No.12 x 10
94TANK	599121001	1
98FILTER	598985601	1
99BRACKET	599081901	1
160CLAMP	599161701	1	0,21-0,63
170CLAMP	599172801	1	20-32
171CLAMP	599001401	1
208SCREW EHHFM	506570104	2	M8 x 20, 25Nm/18ft.lbs
226SCREW EHHM	725249171	4	M10 x 20, 49Nm/36ft.lbs, ISO 4017
229SCREW EHHFM	585972801	2	M8 x 30, 25Nm/18ft.lbs
250NUT	576645704	7	M8
271WASHER	734117201	4
363FITTING	599104701	1
394FITTING	599084301	1	12 x 12 x 12
430OIL FILTER	598985701	1
441FITTING	599074401	1	#12 ORFS X #4SAE
444FITTING	599084401	1	6 x 4
704HOSE	599501201	1	31.00"
705HOSE	599501301	1	36"
706HOSE	599501403	1
707HOSE	599501801	1	1625mm/64"

HYDRAULIC PIPING & HYDRAULIC COOLER 33 parts

HYDRAULIC PIPING & HYDRAULIC COOLER diagram

Part	Article number	Qty	Comment
30MOTOR	599517601	1	Fan motor - 12V
50CAP	599516501	1	Radiator cap - 2 Bar
84PUMP	599078901	1
87OIL	599080301	1
100CLAMP	599161601	8	0,81 x 1,25"
214SCREW IHSCM	725545501	4
226SCREW EHHM	725249171	2	M10 x 20, 49Nm/36ft.lbs, ISO 4017
229SCREW EHHFM	585972801	4	M8 x 30, 25Nm/18ft.lbs
250NUT	576645704	4	M8
271WASHER	734117201	2
301HOUSING	598985201	1
302STRAINER	598981101	1
303SEAL	599082901	1
304SEAL	599083101	1	Lower
354FITTING	598987801	1	No.8 x 10
355FITTING	599082601	1	3/4"
356FITTING	598990501	2	SAE No.8 x 90
357FITTING	598988601	1
358FITTING	599084601	1	10 x 8 x 8
367FITTING	599082701	2	1"
369FITTING	598988101	1	No.8
371FITTING	598992801	1	90
397FITTING	599084501	1	16 x 16
446FITTING	599087101	1	ORB-26 x 25mm x 25mm
709HOSE	599518301	1	838mm/33"
713HOSE	599501303	1	880mm/35"
714HOSE	599501903	1	750mm/30"
715HOSE	599501904	1	1850mm/73"
716HOSE	599501702	1	1100mm/43"
717HOSE	599501701	1	1041mm/41"
718HOSE	599501001	1
719HOSE	599501002	1	838mm/33"
720HOSE	599501703	1	1300mm/51"

LEFT SIDE SHELL 15 parts

Part	Article number	Qty	Comment
136JOYSTICK	599066301	1
139SWITCH	599066401	1
140SWITCH	599070801	1
144HOUSING	599069201	1
176HOUSING	599080101	1	Left, Display side
186PLATE	599118201	1
192PANEL	599118101	1
214SCREW IHSCM	725545501	4
216SCREW	599173801	6	M6 x 16
260LOCK NUT	599166801	6	M6
334INDICATOR	599078201	1
390RECEPTACLE	599175801	6
391SCREW	599175901	6
393RETAINER RING	599176001	6
396HANDLE	599069301	2

PUMP FRONT 12 parts

Part	Article number	Qty	Comment
75SENSOR	598985401	1
81FITTING	599003401	1	No.12 x 10
93FITTING	599107801	1	No.6
373FITTING	598990701	2	SAE No.4 x 90
376FITTING	599084901	1	6 x 4
377FITTING	598990601	1	SAE No.4
450FITTING	599087301	1	#6 x #6
451SENSOR	599087201	2	6000 psi
452FITTING	599087401	1	#6 x #6
701HOSE	599501003	1	848mm/33"
702HOSE	599501404	1	216mm/9"
703HOSE	599501405	1	483mm/19"

PUMP MOUNT 19 parts

Part	Article number	Qty	Comment
35PUMP	599113301	1
36PUMP	599113601	1
37PUMP	599113701	1
40PIPE	599112501	1
82PUMP	599078801	1
129CABLE	598995401	1	13"
160CLAMP	599161701	1	0,21-0,63
207SCREW EHHFM	585980601	1
211BOLT	596435301	2	1/2-13 x 1.25"
221SCREW IHSCM	725545101	1	M8 x 20, 24Nm/18ft.lbs, ISO4762
249NUT	531208491	1	M6, DIN985
281WASHER	734118041	2	A13, DIN9021
285SCREW	599161201	8	5/16-18 x 1-1/4", 18Nm/13ft.lbs
286SCREW	594976901	1	3/8-16 x 1in, 31Nm/23ft.lbs
295CLAMP	599177001	1	1 1/2"
324CLAMP	599177701	1	2"
427FITTING	598985801	1	5/16"
1000HOSE KIT	599515901	1
1001SEAL KIT	599515501	1

PUMP REAR 18 parts

Part	Article number	Qty	Comment
81FITTING	599003401	2	No.12 x 10
82PUMP	599078801	1
100CLAMP	599161601	1	0.81-1,5
354FITTING	598987801	1	No.8 x 10
362FITTING	599070501	1	No.12 x 12 x 45
364VALVE	599082401	1	19 psi
365FITTING	599084801	2	4 x 6
366FITTING	599084701	1	10 x 10
375FITTING	599124501	1
441FITTING	599074401	2	#12 ORFS X #4SAE
449FITTING	598997801	1	No.12
618HOSE	599501601	1	710mm/28"
619HOSE	599501602	1	1727mm/68"
622HOSE	599501302	1	472mm/19"
623HOSE	599501902	1	590mm/23"
624HOSE	599501304	1
625HOSE	599501901	1	539mm/21"
700HOSE	599501004	1	900mm/35"

RADIATOR 23 parts

Part	Article number	Qty	Comment
6RADIATOR	599113501	1
20BOTTLE	599034201	1
21CAP	599034301	1
23BRACKET	599111101	1
24BRACKET	599111201	1
27BRACKET	599082301	1
28BRACKET	599079401	1
30BRACKET	599112701	1
38PIPE	599111601	1
46HOSE	599124301	1	1.5" x 3.5"
48HOSE	599113801	1	2"
50HOSE	599123201	2	1.38"
160CLAMP	599161701	2	0,21-0,63
164FITTING	599114401	1	1/16"
165FITTING	599062301	1	5/16x1/4in x 90 NPT
232SCREW EHHFT	725236461	9	M6 x 10, 10Nm/7ft.lbs
246LOCK NUT	522919401	1	M8, DIN985
317CLAMP	599164101	8	1,56-2,50
351CABLE	599173201	2
359GASKET	599064501	1
385BUMPER	599113101	1
387PIPE	599118601	1
418HOSE	599017901	1

RIGHT SIDE SHELL 21 parts

Part	Article number	Qty	Comment
135JOYSTICK	599066201	1
138SWITCH	599085701	1
143KEY	599164201	1
144HOUSING	599069201	2
145RECEPTACLE	599062801	1
146SWITCH	599039701	1
149SWITCH	599085801	1
152SWITCH	599002701	1
153SWITCH	599114001	1
175HOUSING	599113901	1
177PANEL	599081601	1
189PANEL	599080201	1
191BRACKET	599116701	1
214SCREW IHSCM	725545501	4
215SCREW	599176301	4
216SCREW	599173801	6	M6 x 16
260LOCK NUT	599166801	6	M6
390RECEPTACLE	599175801	6
391SCREW	599175901	6
393RETAINER RING	599176001	6
396HANDLE	599069301	2

SEAT ASSY 28 parts

Part	Article number	Qty	Comment
32FRAME	599055501	1
77BRACKET	599117101	1
78BRACKET	599117201	1
104SEAT	599104101	1
105BRACKET	599026401	1
106BRACKET	599040901	1
107SWITCH	599026901	1
108INSERT	598992901	1
109RIVET	599167901	4
113HOLDER	598988501	1
117INSULATOR	599116801	1
126INSULATOR	599114201	1
166PLATE	599114301	1
193SCREW	505156101	6	M6 x 16
206SCREW IHSCM	725544901	4	M8 x 16, 25Nm/18ft.lbs
212SCREW EHHFM	506570103	2	M8 x 16, 25Nm/18ft.lbs
218SCREW	599169101	4
223SCREW	599174701	4	1/2 x 2,00"
234SCREW	531119208	1	M5 x 12, 6Nm/4ft.lbs
244LOCK NUT	732211401	1
249NUT	531208491	6	M6
250NUT	576645704	7	M8
259LOCK NUT	546673001	4
279WASHER	599166301	4
280WASHER	734114601	2
311LATCH	599070601	1
318RING	599107601	2
352GROMMET	599512801	1

SERVICE KIT 5 parts

Part	Article number	Qty	Comment
1SERVICE KIT	546431301	1	KIT for CRT 60-74LX
2OIL FILTER	546448701	1
3AIR CLEANER	599517201	1
4FUEL FILTER	546448801	1
5DRIVE BELT	546448901	1

STEERING HYDRAULIC SYSTEM 15 parts

Part	Article number	Qty	Comment
89ACTUATOR	599068601	3
230SCREW	599177501	3	1/2-13 x 2-1/2
233SCREW	599177401	3	5/8-11 x 2-1/2
252NUT	594096301	3
257NUT	539990625	3
279WASHER	599166301	3	13
283WASHER	734118601	3	16, ISO7090
374FITTING	598987501	6
600HYDRAULIC HOSE	599516101	1	28.5"
601HYDRAULIC HOSE	599516102	1	27.25"
602HOSE	599078702	1	42.00"
603HOSE	599078703	1	41.00"
604HOSE	599500301	1	75.00"
605HOSE	599500302	1	73.00"
700HOSE	599501004	1

TANKS & WATER LINE 29 parts

Part	Article number	Qty	Comment
101CAP	599030201	1
102BRACKET	599104801	2
110TANK	599131402	2
111CAP	599112401	1
114GAUGE	599079901	1	14"
122BLADE BUSHING	598989201	1
125PLUG	599071001	1
154PUMP	599061601	1
155SCREEN	599061801	1
156VALVE	599061701	1
157FITTING	598994101	2
158JET	598994001	2
159ELBOW	598993901	2
160CLAMP	599161701	3	0,21-0,63
161VALVE	598998801	2
162FITTING	599169001	1
163BLADE BUSHING	598990401	4
205SCREW EHHM	725232971	2	M5 x 16, 6Nm/4ft.lbs
212SCREW EHHFM	506570103	8	M8 x 16, 25Nm/18ft.lbs
217SCREW	599170901	8	M6 x 10
244LOCK NUT	732211401	2
327FITTING	599117701	1
336VALVE	599117801	1	5/16"
345FITTING	599021201	1
650HOSE	598994204	1	3/8 x 13"
651HOSE	598994203	1	3/8 x 11"
652HOSE	598994205	1	3/8 x 17"
653HOSE	598994206	1	3/8 x 35"
654HOSE	598994202	1	3/8 x 3"

WHEEL KIT 14 parts

Part	Article number	Qty	Comment
368UNIT	599072001	2
373FITTING	598990701	4	SAE No.4 x 90
382PIN	599175501	4	3/4 x 4"
383PIN	599175601	8	3/4 x 3-1/2"
400CYLINDER	599069101	2
401WHEEL	599069001	4
402BRACKET	599061201	4
403PIN	599164901	12	1/8 x 1-1/2"
404WASHER	542173035	12
608HOSE	599500401	1	16.00"
609HOSE	599500701	2	39.00"
610HOSE	599500501	1	31.00"
611HOSE	599500801	1	46.00"
627HOSE	599501401	1	20.00"

WIRING HARNESS & FUSE BOX 30 parts

Part	Article number	Qty	Comment
2FUSE	599511401	2	2A
3FUSE	599511402	1	3A
5FUSE	599511403	5	5A
10FUSE	599511404	1
15FUSE	599511405	3	15A
20FUSE	599511406	2	20A
25FUSE	599511407	1	25A
30CIRCUIT BREAKER	599513301	1	30A
35RELAY	599517101	8	290
50FUSE	599511408	1	50A
51RELAY	599517001	1	70V
52RELAY	599516901	1
60FUSE	599511409	1	60A
132WIRING	599078101	1
134CONTROL UNIT	599078401	1	CRT60-74L
150CONTROL	599112201	1
185BRACKET	599118701	1
198SCREW	599168201	4	M4 x 14, ISO 4017
213SCREW EHHM	725237271	4	M6 x 25, 10Nm/7ft.lbs, ISO 4017
239SCREW	599517901	4	M6 x 1 x 20, 10Nm/7ft.lbs
245LOCK NUT	599159801	2
249NUT	531208491	4	M6, DIN985
254NUT	593356401	4	M6
269WASHER	599160201	4
1006FUSE BOX	599515001	1	Fuse box
1007FUSE BOX	599515401	1	Fuse box
1020COVER	599516601	1	Cover, electrical box
1021COVER	599516701	1	Cover, electrical box
1025PROTECTIVE CAP	599516401	2	Protective cap
1029ADAPTER	599516301	1	Adapter wiring harness

Document Downloads

Service bulletin

Workshop manual

WM. CRT 60. 2020-03
PDF EN

Operator's manual

OM, Husqvarna, CRT 60-74LX, 2019-12
PDF EN

Warranty

Husqvarna CRT 60X Ride On Trowel Warranty
PDF

Compatable Accessories

Compatability

Husqvarna CRT 60X | Ride-On TrowelSKU: 970461801

Product Video

From pouring to resurfacing, we sell tools built for concrete pros.

Get guidance from experts who understand jobsite challenges.

Get your tools fast with our nationwide shipping network and local partnerships.

Talk to an expert now (855) 281-1918

Get fast, expert help choosing the right concrete tools or equipment for your job. Ask about availability, specs, troubleshooting, or get friendly guidance before you place an order.

Click to Call

Your cart is empty

Your cart

Estimated total

Husqvarna CRT 60X | Ride-On Trowel
