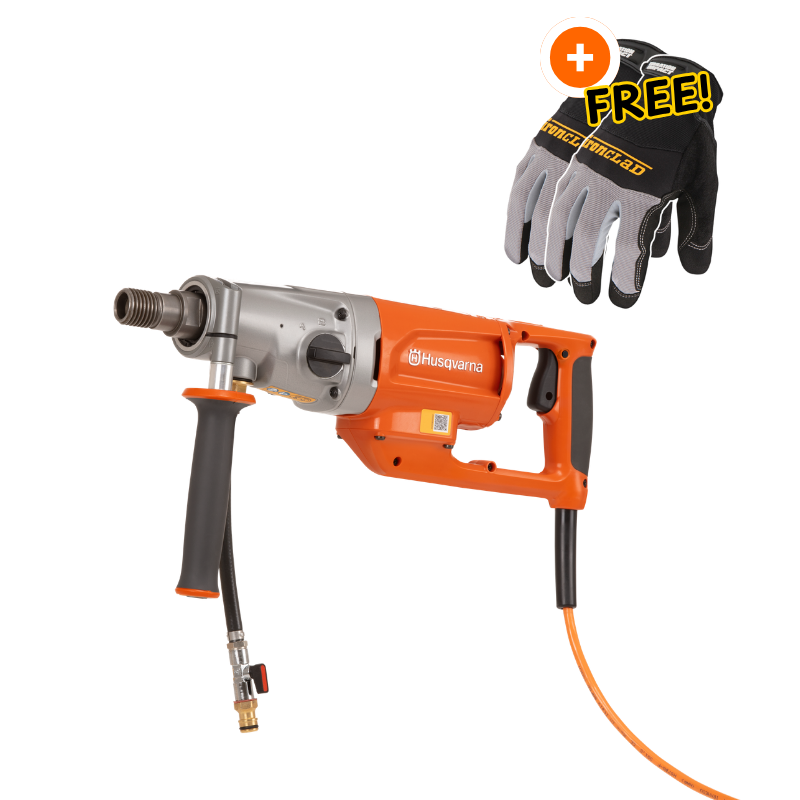

Husqvarna DM 200 | Handheld Core Drill

Husqvarna DM 200 | Handheld Core Drill

HUSQVARNA CONSTRUCTION SKU: 970445703 Copied!

Is this the right tool for the job?

Best For:

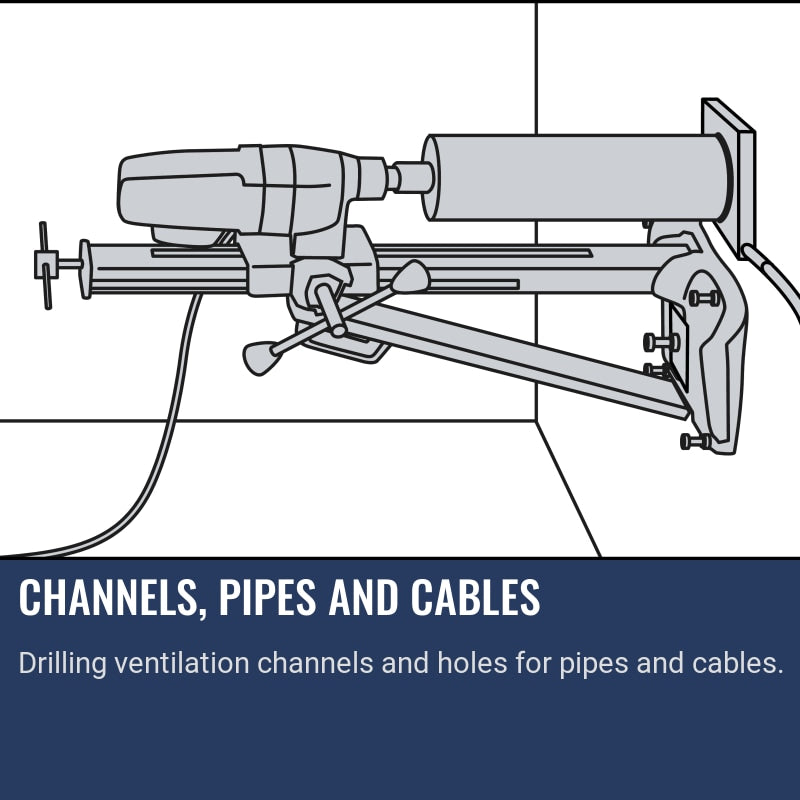

  • MEP/fire techs coring 1–3 in wall sleeves for pipe/conduit daily
  • One-operator handheld coring in concrete/CMU on service calls
  • Light-duty wet coring with mains power on multi-site jobs

Not Ideal For:

  • Large diameters or deep cores; use a rig and extensions for that work

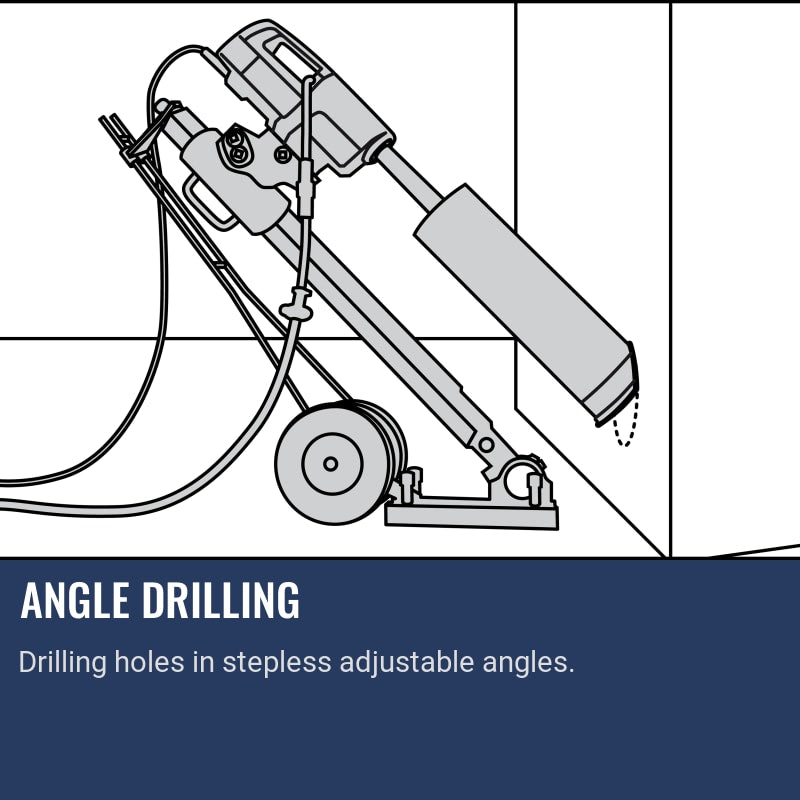

  • Overhead or angle coring handheld; rigging and anchoring required
  • Heavy rebar, poor power supply, or no water plan will slow you down

Why Pros choose this tool:

  • 120V corded motor → steady power for small-medium cores → no battery swaps; consistent indoor pace
  • Wet or dry coring capability → controls silica and keeps edges clean → cleaner holes, less patching and cleanup
  • Diamond coring method vs hammering → true, plumb holes with clean breakout → sleeves fit right; fewer touch-ups
Regular price $1,729.00
Regular price $2,087.00 Sale price $1,729.00
Save $358 Sold out
PAY NO SALES TAX* Save up to $171.17 more. *Except for Tennessee, Illinois
DELIVERY IN 3-5 BUSINESS DAYS Shipping calculated at checkout
Quantity

Financing from $172.90/mo • Up to 12 mo. terms

Pay by Bank & Net 30 Terms also available

Trusted by contractors nationwide

"I've bought 3 products from CTD and each time the experience has been the same - professional and fast delivery. I trust these guys with all my concrete needs."

Get Accredited

Trusted by Teams That Keep America Running

Serving military, government, infrastructure, education, and utility organizations nationwide.

Product Details

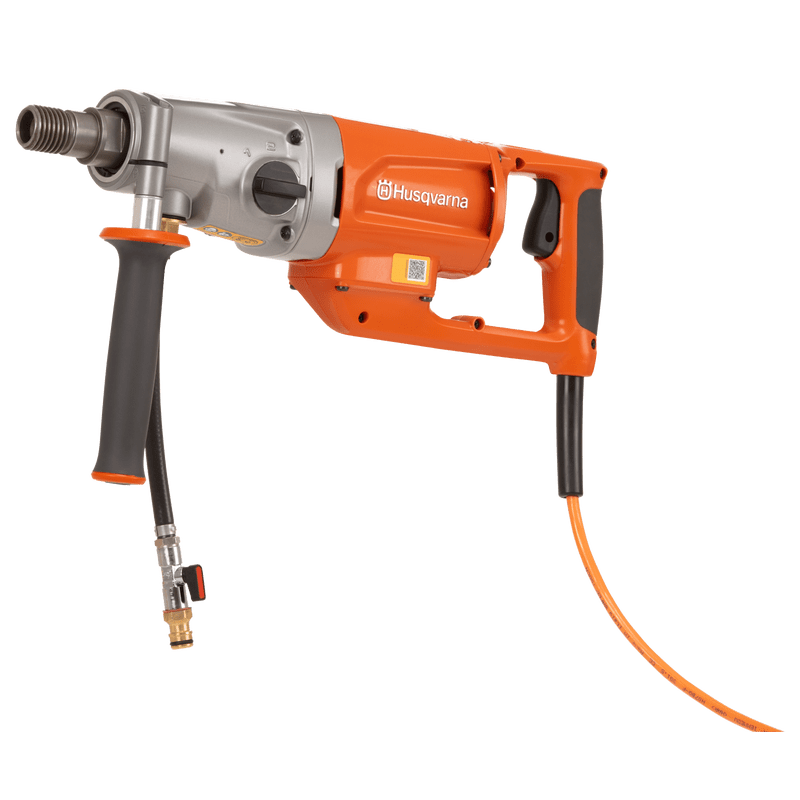

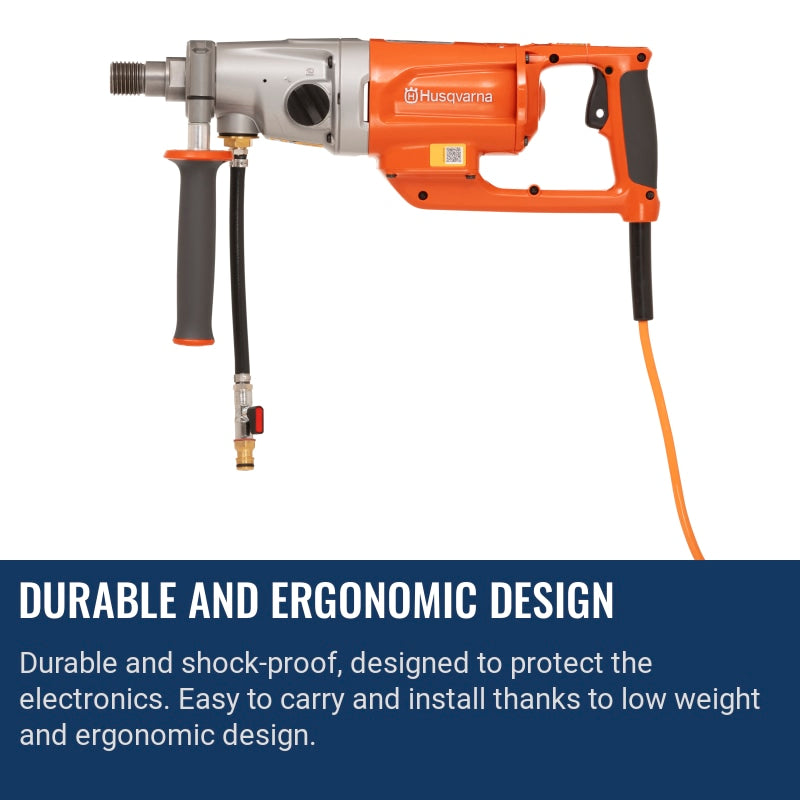

HUSQVARNA HANDHELD CORE DRILL - DM 200

The Husqvarna DM 200 is a robust handheld electric core drill, built for both dry and wet drilling. With a powerful 2.68 hp motor, this corded tool is designed to cater to the needs of both professional and semi-professional users. The DM 200 offers superior control thanks to its ergonomically designed D-handle, ensuring precision in tasks such as installing ventilation, plumbing pipes, electrical sockets, and cables.

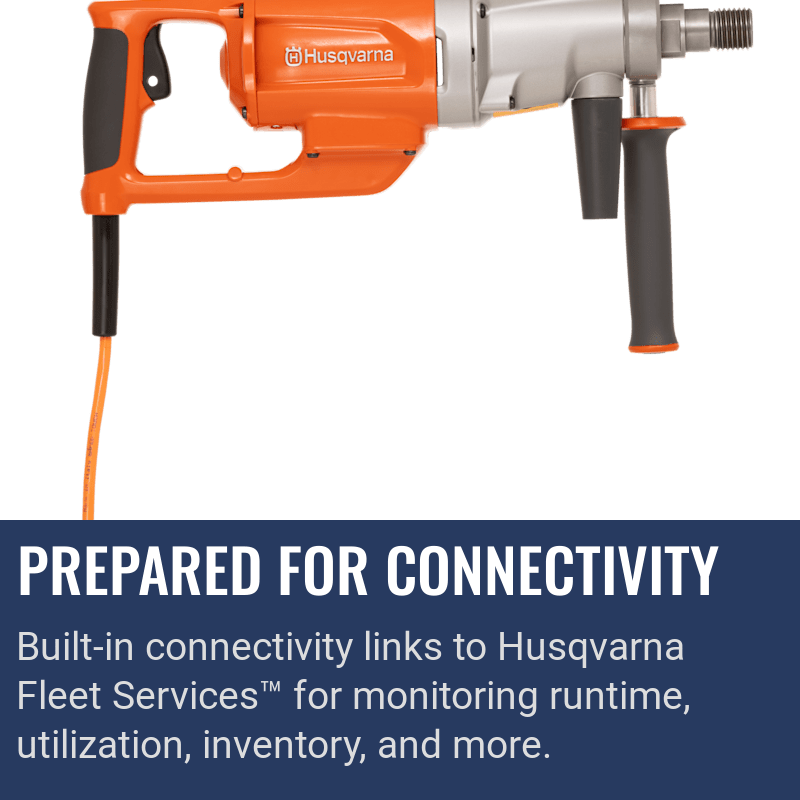

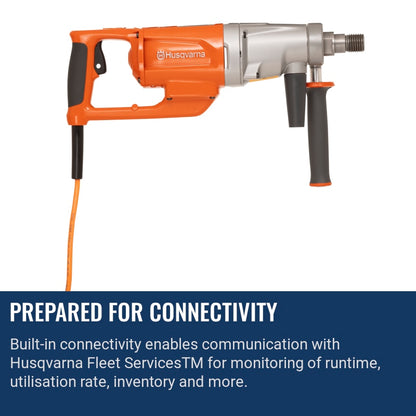

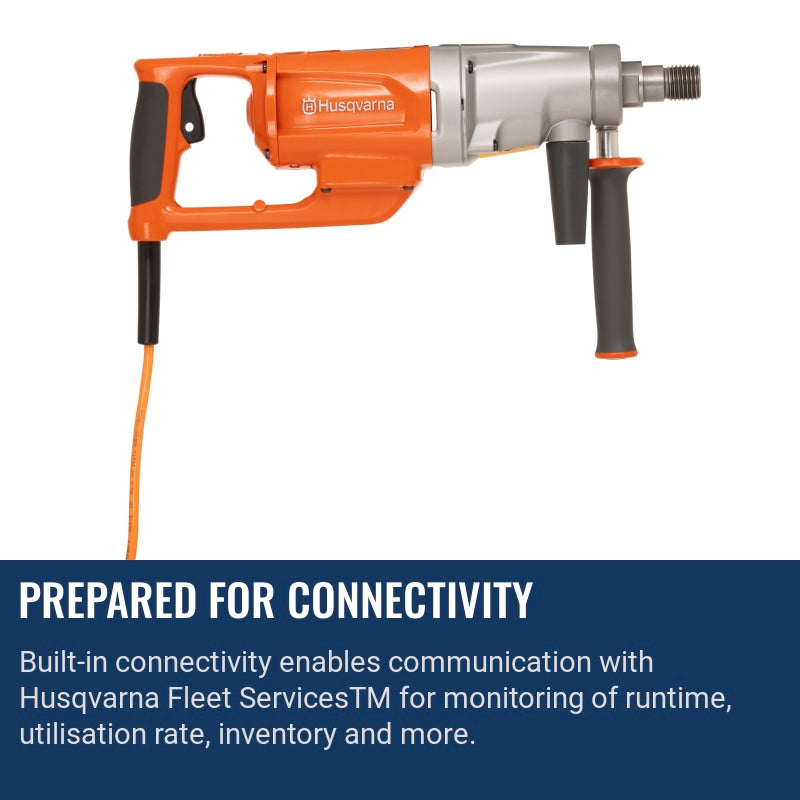

Equipped with Husqvarna Fleet Services™, the DM 200 allows for efficient monitoring of runtime, location, and inventory. Weighing a mere 11.5 lbs, this core drill is light yet durable, providing optimal ease of use. This tool has a maximum handheld drill bit diameter of 4 inches, making it a versatile addition to your toolkit.

  • Powerful 2.68 hp motor for efficient drilling
  • Corded for continuous power supply
  • Lightweight at just 11.5 lbs for easy handling
  • Maximum handheld drill bit diameter of 4 inches
  • Husqvarna Fleet Services™ for efficient monitoring
View full details
Product Specification
Husqvarna DM 200 | Handheld Core Drill
Specifications
Rated input power
2.68 hp
Frequency
50-60 Hz
Voltage
100-120 V
Phases
1 ph
Power source
Corded
Drill bit diameter handheld, max
4 in
Recommended drill bit diameter, min
1 in
Coolant
Wet /dry

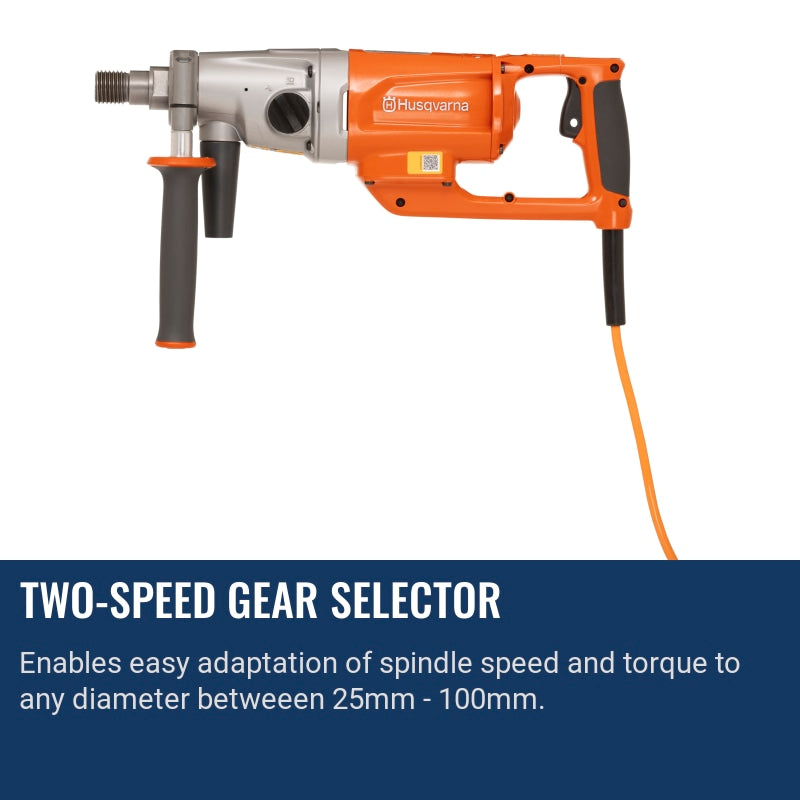

Number of gearbox speeds
2
Spindle speed unloaded gear 1
1,250 rpm
Spindle speed unloaded gear 2
2,600 rpm
Water connector
Gardena Male
Water pressure, max
43.5 psi
Mounting collar
2.36 in
Spindle thread, inner
G 1/2"
Spindle thread, outer
1 1/4" 7 UNC
Product size length
19.3 in
Product size width
4.73 in
Product size height
10.83 in
Weight
11.5 lbs
Packaging length (Calc)
21.654 in
Packaging width (Calc)
7.48 in
Packaging height (Calc)
15.748 in
Article gross weight (Calc)
26.015 lbs
Sound power level, guaranteed (LWA)
99 dB(A)
Sound pressure level at operators ear
88 dB(A)
Warranty
2 year limited warranty
Service & Maintenance Parts
ACCESSORIES 5 parts
ACCESSORIES diagram
Part Article number Qty Comment Price Details
1START DEVICE 522935001 1
2BRACKET 504098701 1 DM 200, DM 230
3KEY 531140952 1 DM 220
Regular price $44.29
Regular price $51.50 Sale price $44.29
View part
4SCREW 542139768 1 DM 220
5HANDLE 576024901 1 DM 220
ELECTRICAL 23 parts
ELECTRICAL diagram
Part Article number Qty Comment Price Details
1PRINTED CIRCUIT BOARD 599779004 1 230V
1PRINTED CIRCUIT BOARD 599779005 1 120V
Regular price $611.39
Regular price $736.00 Sale price $611.39
View part
1PRINTED CIRCUIT BOARD 599779006 1 230V w/o BLEM
2SCREW 599782701 3
Regular price $4.76
Regular price $5.44 Sale price $4.76
View part
3COOLER 599779301 1
Regular price $219.59
Regular price $265.00 Sale price $219.59
View part
4SCREW 599782901 4
Regular price $4.76
Regular price $5.44 Sale price $4.76
View part
5SCREW 599782801 1
Regular price $4.76
Regular price $5.44 Sale price $4.76
View part
6PIN 599781801 1
Regular price $47.19
Regular price $56.90 Sale price $47.19
View part
7BLOCK 599781701 1
Regular price $134.75
Regular price $154.00 Sale price $134.75
View part
8PRESSURE SPRING 599779501 1
Regular price $14.09
Regular price $17.10 Sale price $14.09
View part
9WASHER 543052710 1
10WASHER 598809401 1
Regular price $2.69
Regular price $3.07 Sale price $2.69
View part
11SCREW 598809001 1
Regular price $2.69
Regular price $3.07 Sale price $2.69
View part
12CABLE ASSY 598738105 1 USA, Japan
Regular price $120.75
Regular price $138.00 Sale price $120.75
View part
13CABLE ASSY 598738101 1 EU
Regular price $97.20
Regular price $113.40 Sale price $97.20
View part
13CABLE ASSY 598738102 1 AU
13CABLE ASSY 598738103 1 BR
13CABLE ASSY 598738104 1 INCL PLUG, CH
Regular price $428.75
Regular price $490.00 Sale price $428.75
View part
14PLUG 598738002 1 120V
15CIRCUIT BREAKER 536244901 1 230V
16CABLE 599781301 1 230V, EU, CH, AU
Regular price $72.36
Regular price $82.70 Sale price $72.36
View part
16CABLE 599781302 1 230V, BR
Regular price $338.63
Regular price $387.00 Sale price $338.63
View part
16CABLE 599781303 1 120V, UK
Regular price $463.75
Regular price $530.00 Sale price $463.75
View part
GEARBOX 43 parts
GEARBOX diagram
Part Article number Qty Comment Price Details
1SPINDLE SHAFT 599769901 1 ASSY 1 1/4" UNC
1SPINDLE SHAFT 599769903 1 ASSY 32/28.9 Japan
2PARALLEL KEY 599772401 1 A5x5x30
3RETAINER RING 543052745 1
4BALL BEARING 543052786 1
5NUT 504023401 1
7CLAMPING SLEEVE 582062601 1
8WASHER 504027701 1
9WASHER 543052716 1
10SPACER 588926402 1
11HANDLE 574169401 1
12SCREW EHHM 725251151 1
13LID 536808301 1
14RETAINER RING 543052750 1
15RETAINER RING 543052744 1
16SEAL 543052771 2
17SLEEVE 599771801 2
18BUSHING 543052923 1
19O-RING 599772301 2 RDR47x1,5
20BUSHING 543052924 1
21GEAR HOUSING 599766901 1
22SCREW 599782001 3 5,0x50
23SCREW 599781901 1 5,0x70
24LEVER 599769801 1 GEARSHIFT
25PIN 543052732 1
26SCREW 543052661 1
27WASHER 543052711 1
28GEARSHIFT LEVER 599769701 1
29O-RING 598731901 1
30PIN 543052730 1
31HANDLE SUPPORT ASSY 590869702 1
33O-RING 502496504 1
34HOSE ASSY 501072201 1
35HOSE CLAMP 576129701 2
36HOSE 581893601 1
37NUT 501558001 1 Incorrect P/N for Ref N for this PL
37VALVE ASSY 587437802 1
38O-RING 505103501 1
39STRAINER 589780701 1
40COUPLER 503266003 1 US
40COUPLER 503266004 1
41VACUUM SYSTEM 575872201 1
42ADAPTER 531353001 1
MOTOR 21 parts
MOTOR diagram
Part Article number Qty Comment Price Details
2GEAR WHEEL 547354101 1
Regular price $291.19
Regular price $351.00 Sale price $291.19
View part
4COVER ASSY 548662101 1
Regular price $233.49
Regular price $282.00 Sale price $233.49
View part
5NEEDLE BEARING 543052791 2
Regular price $15.14
Regular price $17.30 Sale price $15.14
View part
6O-RING 543052780 1
Regular price $4.55
Regular price $5.20 Sale price $4.55
View part
7RADIAL SEAL 598733001 1
Regular price $26.20
Regular price $30.57 Sale price $26.20
View part
8BALL BEARING 543052789 1
9PINION 547354201 1
Regular price $138.59
Regular price $168.00 Sale price $138.59
View part
10CLUTCH ASSY 599773301 1
Regular price $344.29
Regular price $416.00 Sale price $344.29
View part
11BEARING 543052912 1
12GEAR WHEEL 599772901 1
Regular price $659.79
Regular price $794.00 Sale price $659.79
View part
13HEXAGON NUT 543052706 1
14WASHER 543052736 1
15ROTOR 548634101 1 120V
Regular price $346.09
Regular price $418.00 Sale price $346.09
View part
15ROTOR 548634001 1 230 V
Regular price $346.09
Regular price $418.00 Sale price $346.09
View part
16BALL BEARING 543052782 1
17BALL BEARING 598965501 1
Regular price $17.33
Regular price $19.80 Sale price $17.33
View part
18AIR CONDUCTOR 599772601 1
Regular price $53.90
Regular price $61.60 Sale price $53.90
View part
19SCREW 599782101 2 4,2x90
Regular price $8.18
Regular price $9.34 Sale price $8.18
View part
20STATOR 599772502 1 120 V
Regular price $1,098.99
Regular price $1,322.00 Sale price $1,098.99
View part
20STATOR 599772501 1 230 V
Regular price $1,098.99
Regular price $1,322.00 Sale price $1,098.99
View part
21O-RING 599772701 1
Regular price $12.34
Regular price $14.10 Sale price $12.34
View part
REAR HANDLE 23 parts
REAR HANDLE diagram
Part Article number Qty Comment Price Details
1HANDLE HALF 547354301 1
Regular price $111.59
Regular price $135.00 Sale price $111.59
View part
2CORD 543052865 1
3SCREW 599782401 2 4x10
Regular price $5.64
Regular price $6.44 Sale price $5.64
View part
4TRIGGER 547354401 1
Regular price $217.69
Regular price $263.00 Sale price $217.69
View part
5CABLE 599781201 1 230V, DM 200
Regular price $65.19
Regular price $74.50 Sale price $65.19
View part
5CABLE 599781202 1 120V, DM 200
Regular price $80.76
Regular price $92.30 Sale price $80.76
View part
6CABLE 599778601 1 230V, DM 200
Regular price $65.89
Regular price $75.30 Sale price $65.89
View part
6CABLE 599778602 1 120V, DM 200
Regular price $82.08
Regular price $93.80 Sale price $82.08
View part
7CORD 543052851 1
Regular price $5.88
Regular price $6.71 Sale price $5.88
View part
8COVER 599778201 2
Regular price $30.99
Regular price $37.40 Sale price $30.99
View part
9SCREW 599782301 2 4x10
Regular price $5.64
Regular price $6.44 Sale price $5.64
View part
10SCREW 599782601 2 M3x6
Regular price $4.76
Regular price $5.44 Sale price $4.76
View part
11WASHER 543052708 1
Regular price $2.80
Regular price $3.20 Sale price $2.80
View part
12CARBON BRUSH 599778401 2 230V
Regular price $96.25
Regular price $110.00 Sale price $96.25
View part
12CARBON BRUSH 599778402 2 120V
Regular price $52.50
Regular price $60.00 Sale price $52.50
View part
13BRUSH HOLDER 599778301 1
Regular price $140.00
Regular price $160.00 Sale price $140.00
View part
14MOTOR HOUSING 548633401 1
Regular price $305.38
Regular price $349.00 Sale price $305.38
View part
15LEVEL 543052817 1
16LEVEL 599778801 1
Regular price $23.10
Regular price $26.40 Sale price $23.10
View part
17SCREW 599782201 8 5,0x20
Regular price $5.64
Regular price $6.44 Sale price $5.64
View part
18SCREW 543052691 5 3,9x19
19CABLE ASSY 541396701 1 120 V, DM 210
19CABLE ASSY 541396702 1 110 V, DM 210
Regular price $29.31
Regular price $33.50 Sale price $29.31
View part
