Husqvarna DM 220 Handheld Core Drill by Husqvarna

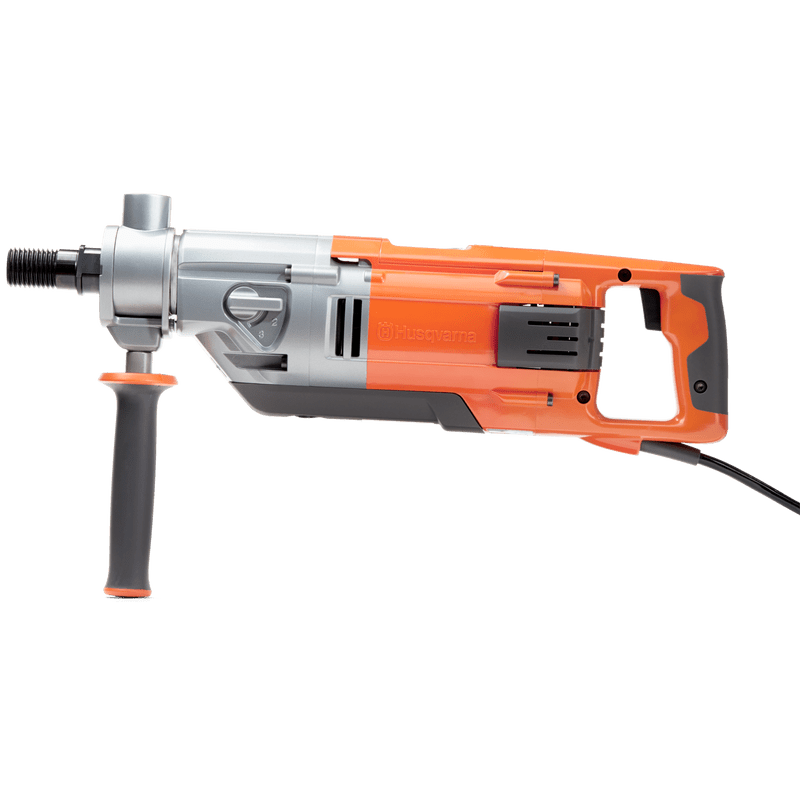

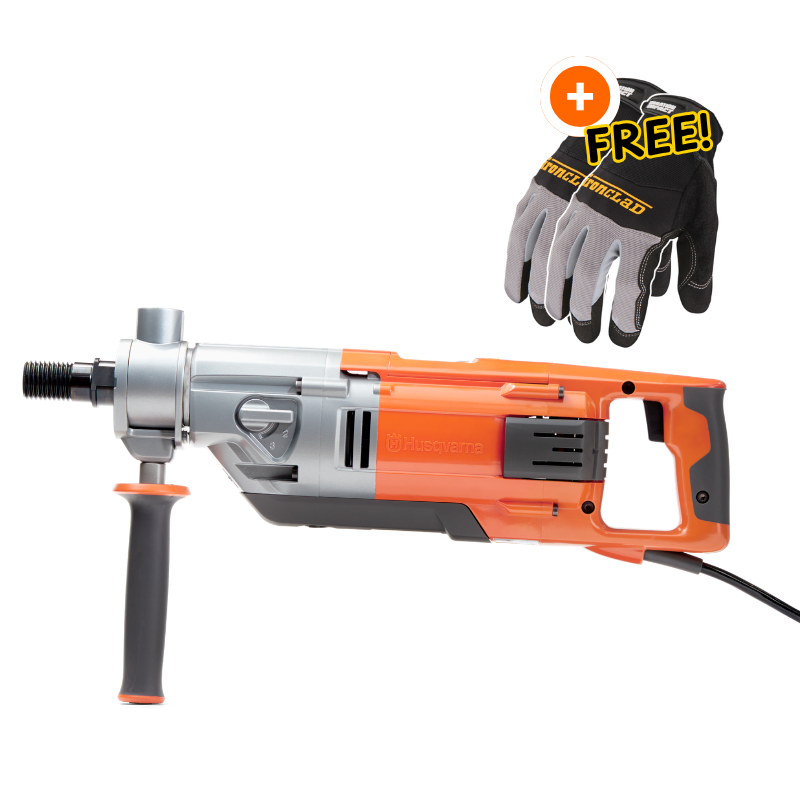

Husqvarna DM 220 | Handheld Core Drill

SKU 966563503
Save $369.40
$2,979.00
$2,609.60
BBB - Best Price Guarantee

Notify me when back in stock

  • Need Fast Shipping? Call (855) 281-1918
  • Most products arrive in 3-9 business days
  • 90 Day, no-hassle, FREE EZ-Returns

HUSQVARNA HANDHELD CORE DRILL - POWER AND PRECISION IN YOUR HANDS

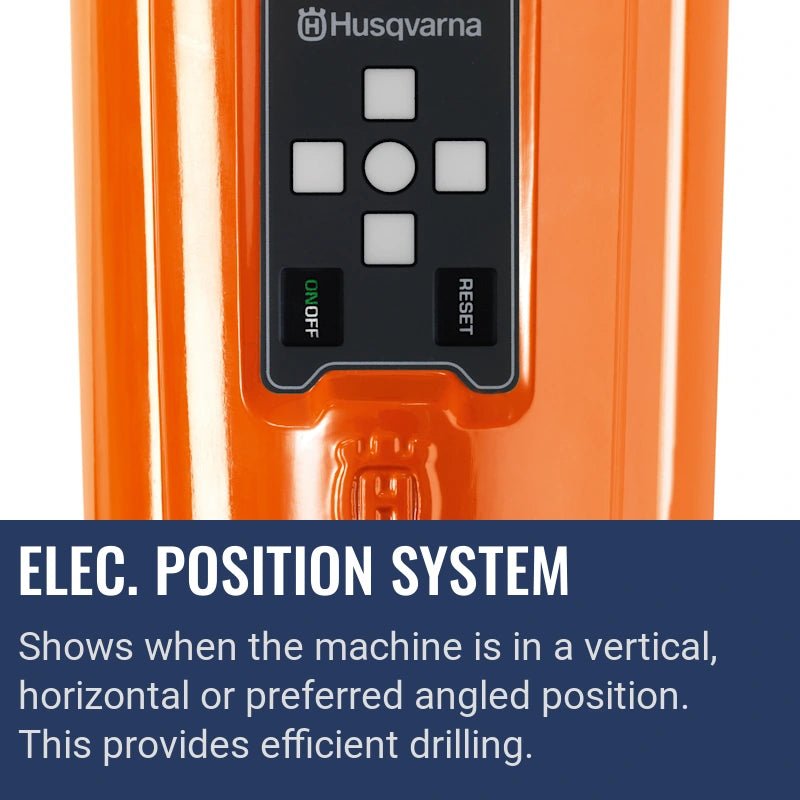

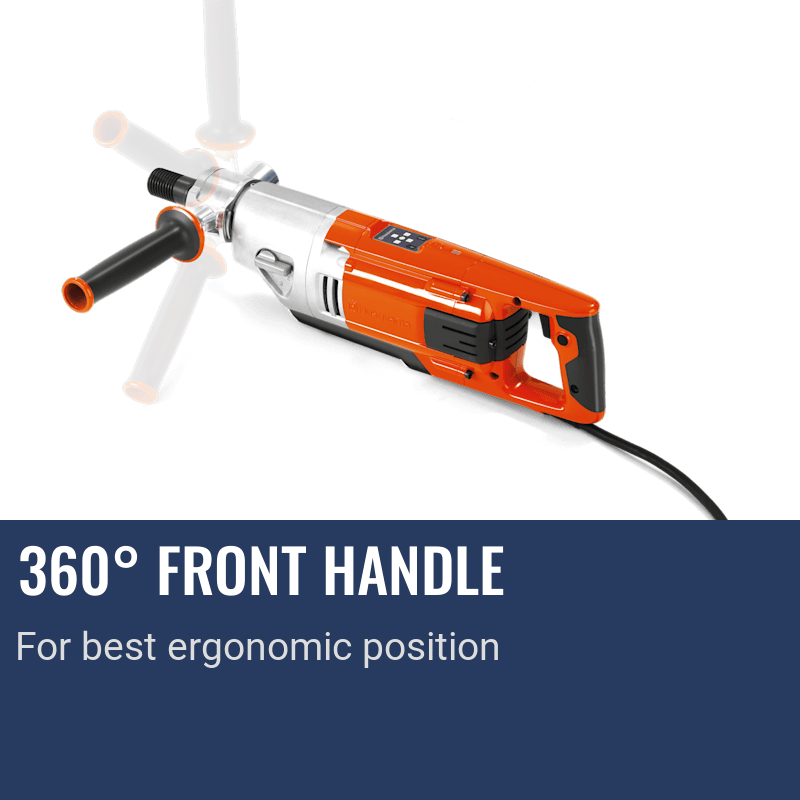

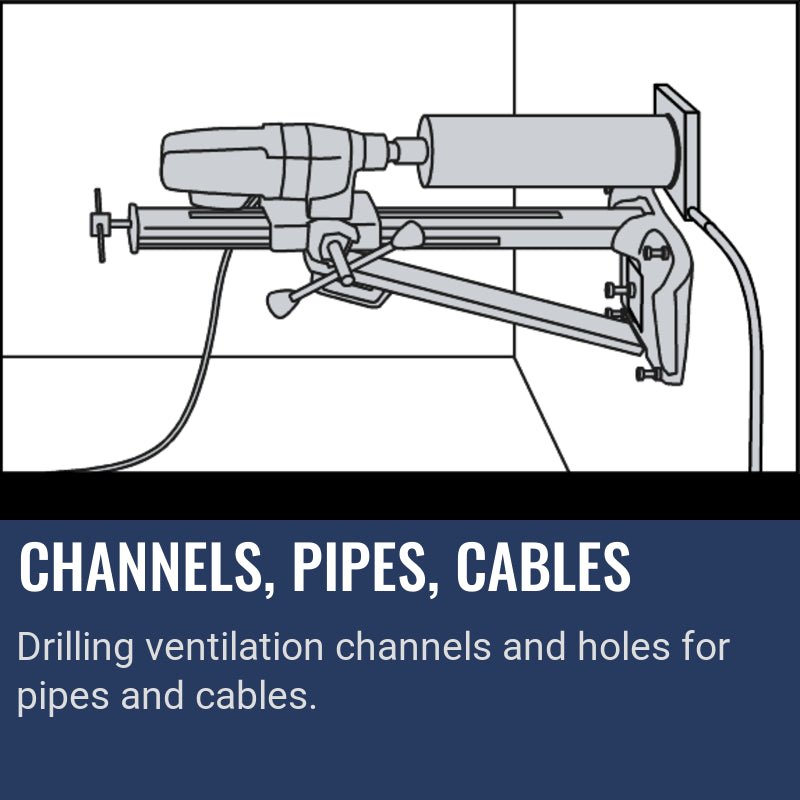

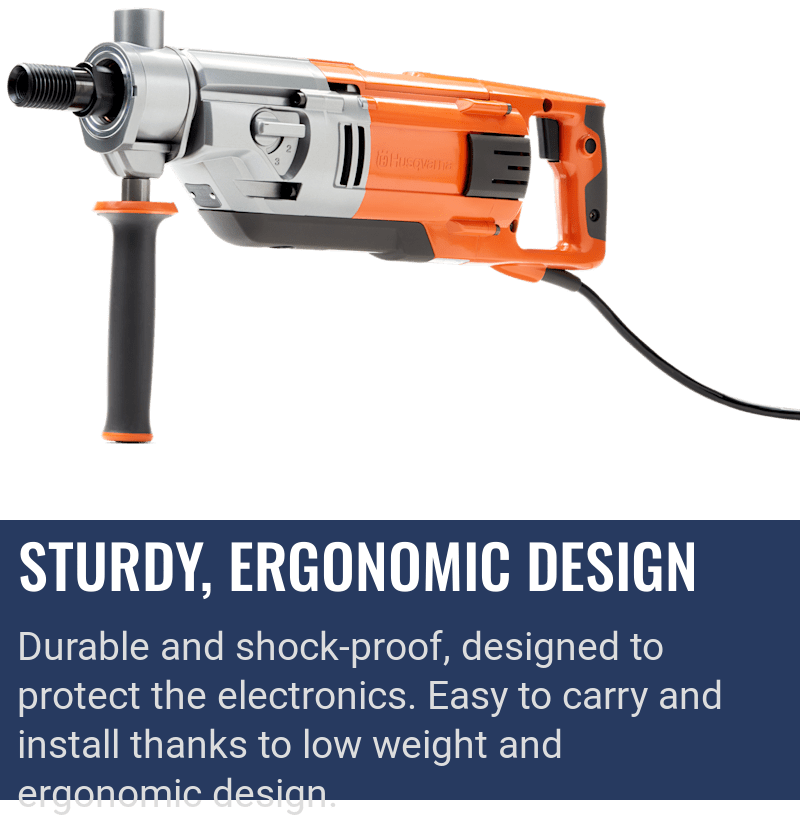

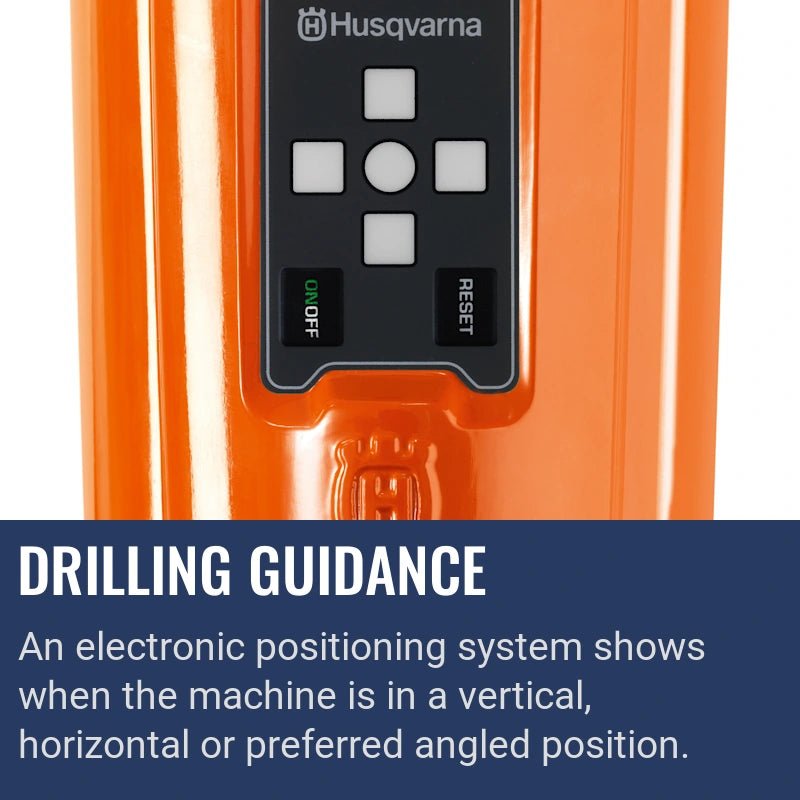

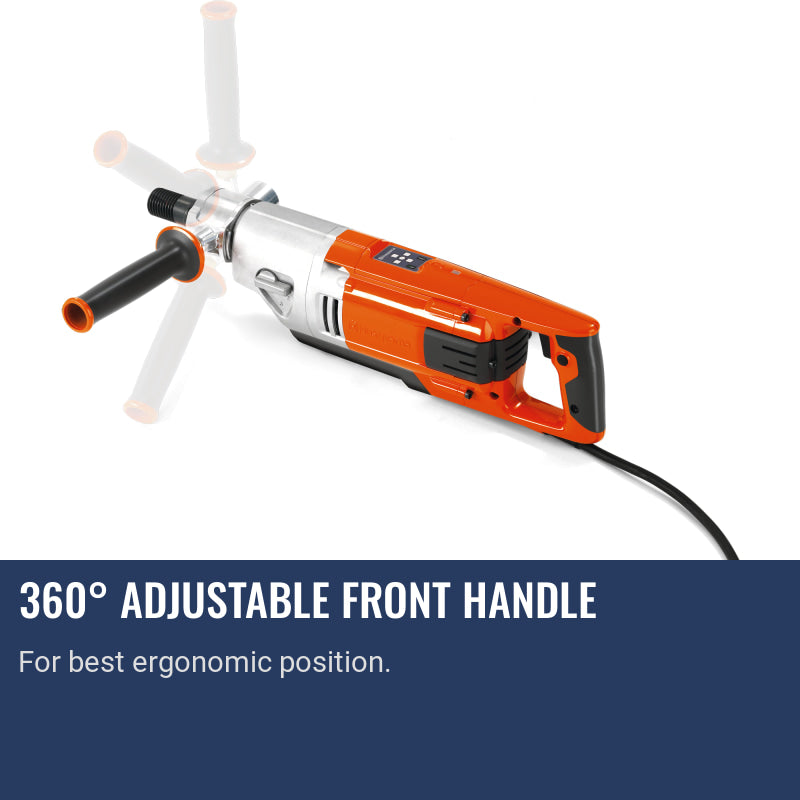

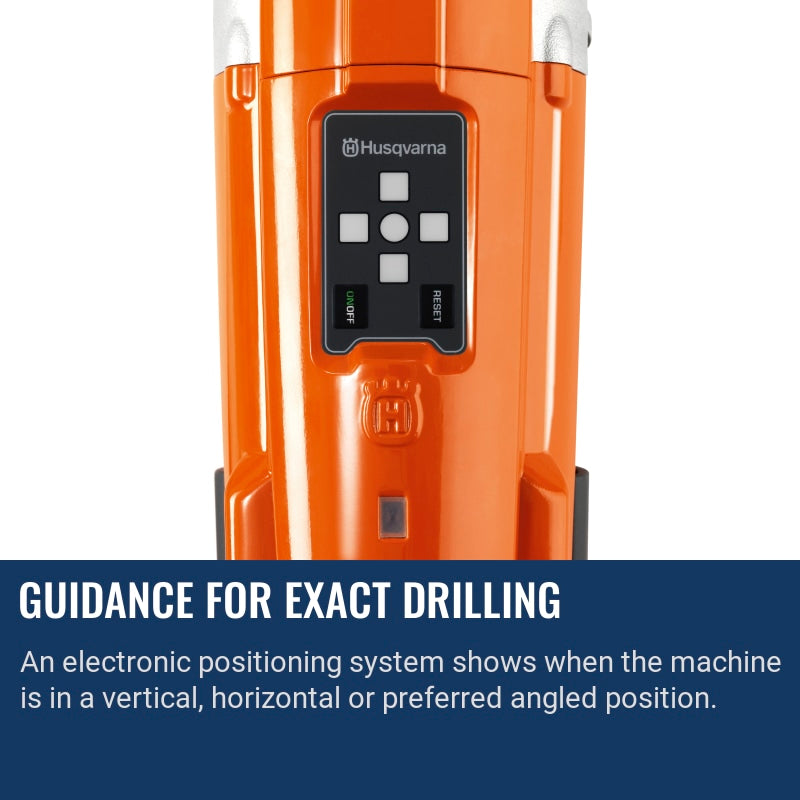

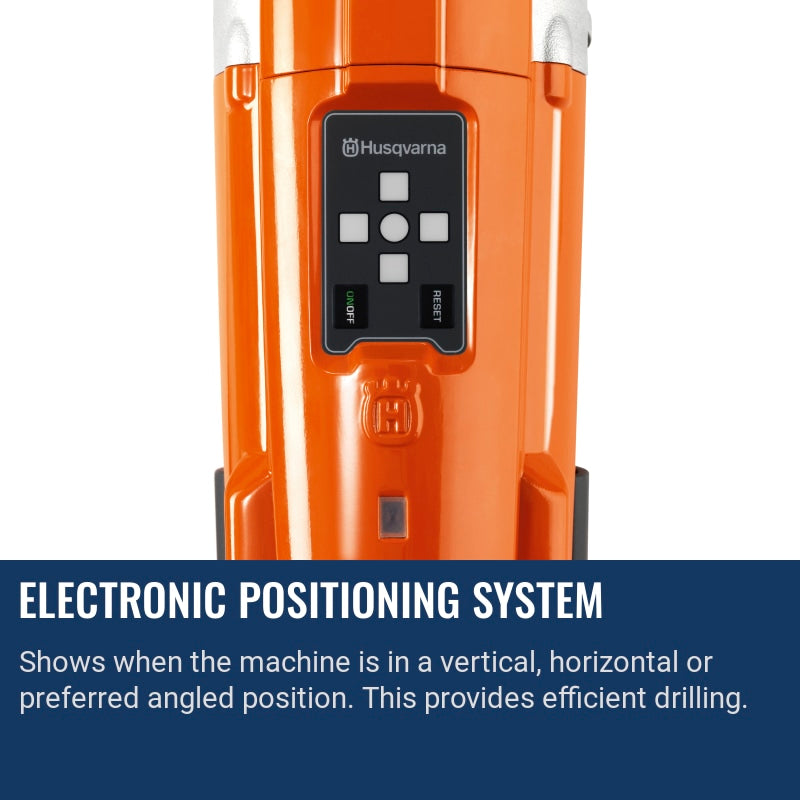

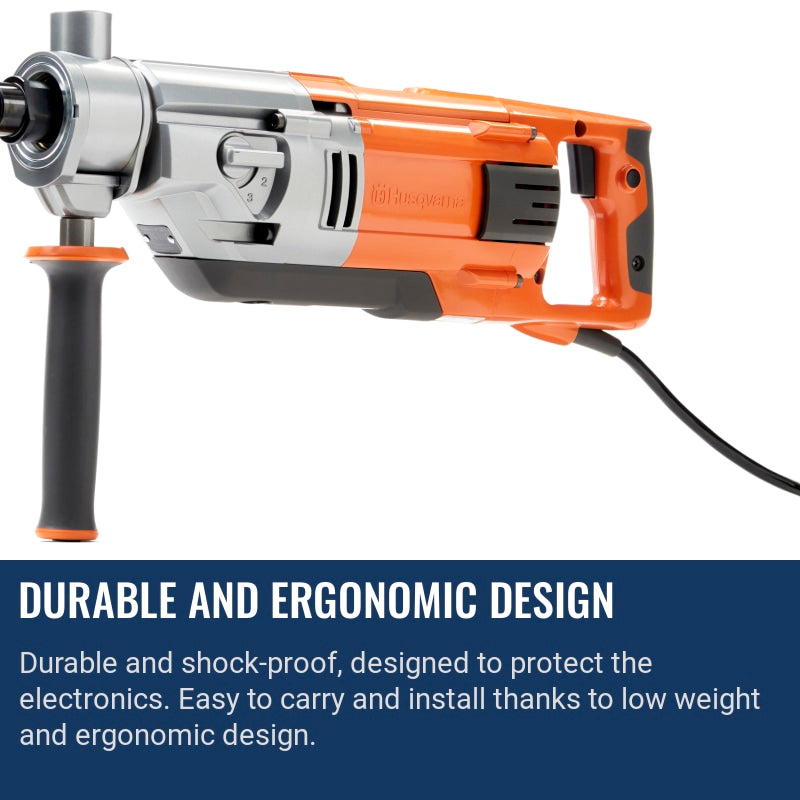

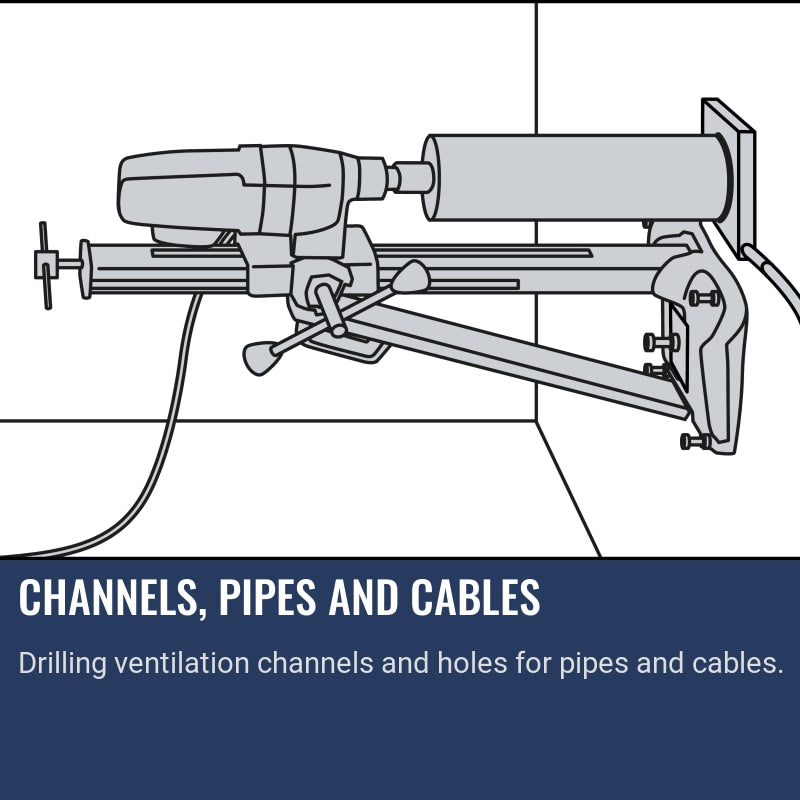

Experience the perfect blend of precision and power with the Husqvarna DM 220 Handheld Core Drill. Designed for both dry and wet drilling, this versatile tool is equipped with a unique level guiding system and a LED indicator for optimal accuracy. The ergonomic D-handle ensures you maintain good control while drilling up to 4 inches handheld or up to 6 inches with a stand, making this tool ideal for light applications such as ventilation, plumbing pipes, electrical sockets and cables.

Whether you're a seasoned professional or just starting out, the DM 220 is a reliable choice. Its corded power source offers consistent performance, and weighing just 16.5 lbs, it's easy to handle. With three gearbox speeds and a rated input power of 2.5 hp, you can trust the DM 220 to deliver the power you need without compromising on precision.

  • Corded Power Source
  • 2.5 HP Rated Input Power
  • 16.5 lbs Weight
  • 4 in Maximum Handheld Drill Bit Diameter
  • 3 Gearbox Speeds

Compatible Accessories

PRODUCT SPECIFICATIONS

Rated input power 2.5 hp
Frequency 60 Hz
Voltage 100-120 V
Phases 1 ph
Power source Corded
Drill bit diameter handheld, max 4 in
Drill bit diameter with stand, max 6 in
Recommended drill bit diameter, min 1 in
Coolant Wet /dry
Number of gearbox speeds 3
Spindle speed unloaded gear 1 730 rpm
Spindle speed unloaded gear 2 1,700 rpm
Spindle speed unloaded gear 3 3,600 rpm
Water connector G 1 / 4"
Water pressure, max 116 psi
Spindle thread, inner 5/8" 11 UNC
Spindle thread, outer 1 1/4" 7 UNC
Product size length 22.4 in
Product size width 4.2 in
Product size height 15 in
Weight 16.5 lbs
Packaging length (Calc) 25.984 in
Packaging width (Calc) 20.472 in
Packaging height (Calc) 5.906 in
Article gross weight (Calc) 31.306 lbs
Sound power level, guaranteed (LWA) 108 dB(A)
Sound power level, measured 107 dB(A)
Sound pressure level at operators ear 93 dB(A)
