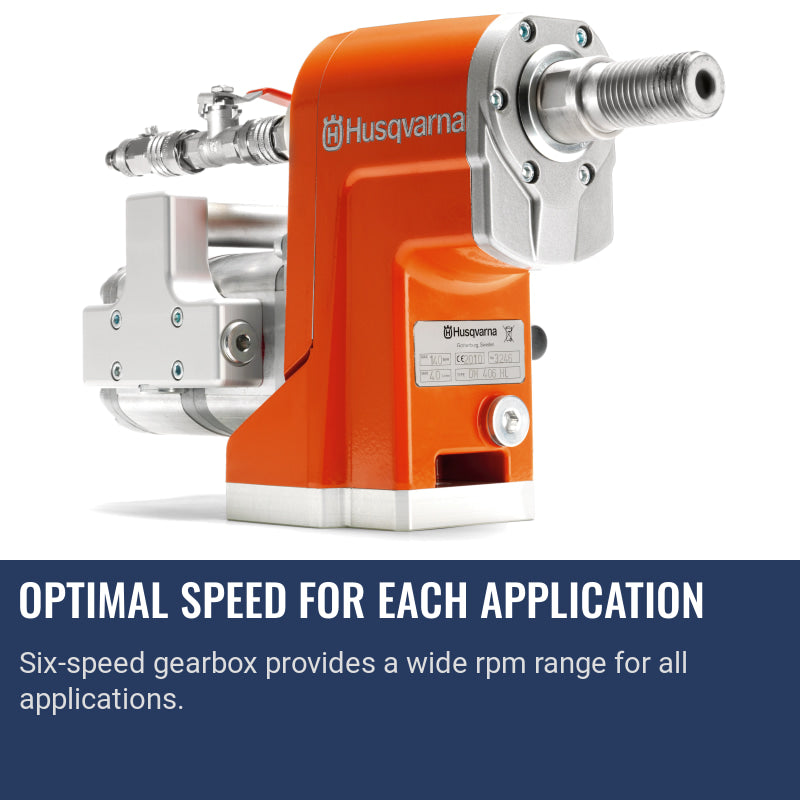

  • Husqvarna DM 406 H Optimal speed for each application

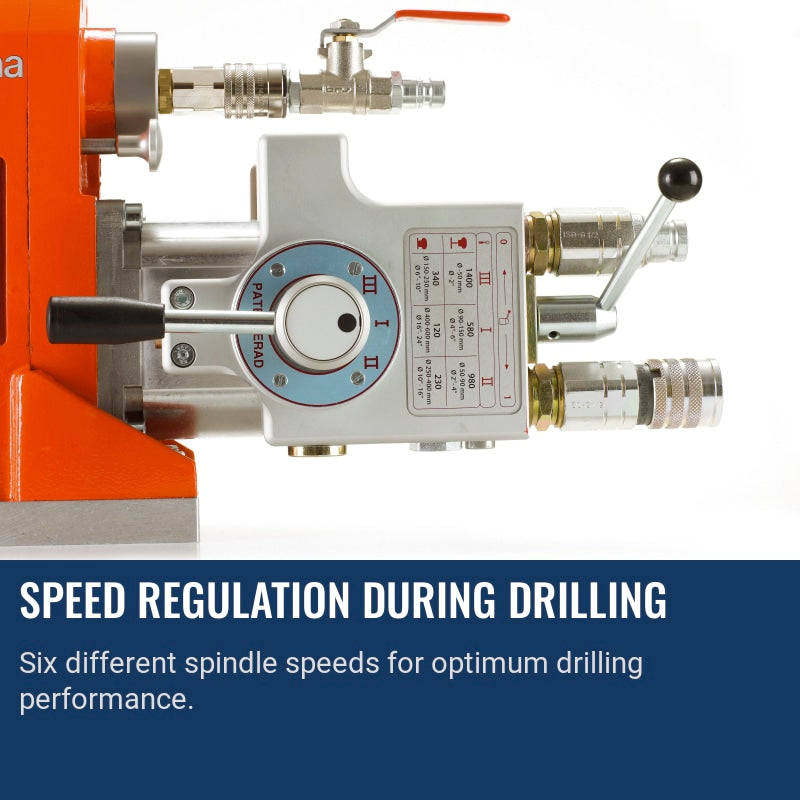

  • Husqvarna DM 406 H Speed regulation during drilling
  • tcp80 Iron Clad Gloves
  • Iron Clad tcp80 Glove Sizing
  • Pay No Sales Tax
  • Concrete Tools Direct Fast Shipping
1 7
IN STOCK QUICK SHIPNO TAXES

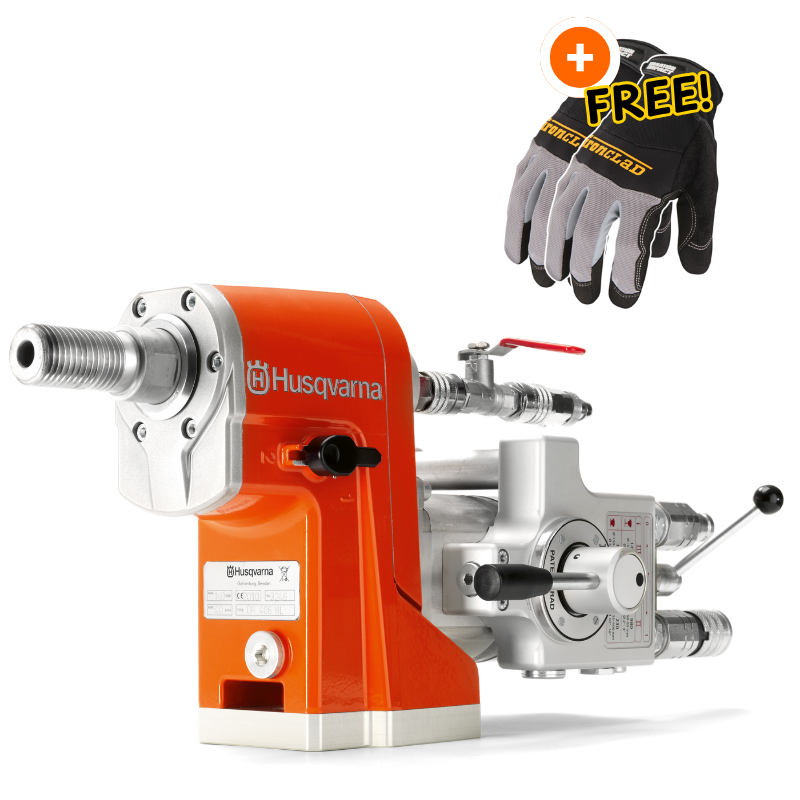

Husqvarna DM 406 H | Core Drill Motor

Husqvarna DM 406 H | Core Drill Motor

HUSQVARNA CONSTRUCTION SKU: 965158207 Copied!

Is this the right tool for the job?

Best For:

  • Rig-mounted large cores in reinforced concrete walls and slabs
  • One- to two-person crews coring daily across multi-site projects
  • MEP, fire, HVAC sleeves and utility bundles through walls/slabs

Not Ideal For:

  • Small anchor holes - rotary hammers are faster and safer
  • Hand-held overhead work - rig mount is required for safety
  • Sites prohibiting water/slurry - this is for wet coring setups

Why Pros choose this tool:

  • Hydraulic torque delivery → cuts clean through rebar, hard mix → minimal blowout; holes pass inspection
  • No live electric at the head → safer wet coring around slurry → fewer GFCI trips; easier compliance
  • Rig‑mounted stability with steady feed → plumb, accurate placement → sleeves fit; less patching and rework
$7,999.00
$9,059.00 $7,999.00
Save $1,060 Sold out
PAY NO SALES TAX* Save up to $791.90 more. *Except for Tennessee, Illinois
DELIVERY IN 3-5 BUSINESS DAYS Shipping calculated at checkout
Pay with Credit Key

Financing from $799.90/mo • Up to 12 mo. terms

Pay by Bank & Net 30 Terms also available

Trusted by contractors nationwide

"I've bought 3 products from CTD and each time the experience has been the same - professional and fast delivery. I trust these guys with all my concrete needs."

Husqvarna Construction Authorized
Dealer
Get Accredited Top Quality Store
on Google
Get Accredited
90 day returns
Product Details

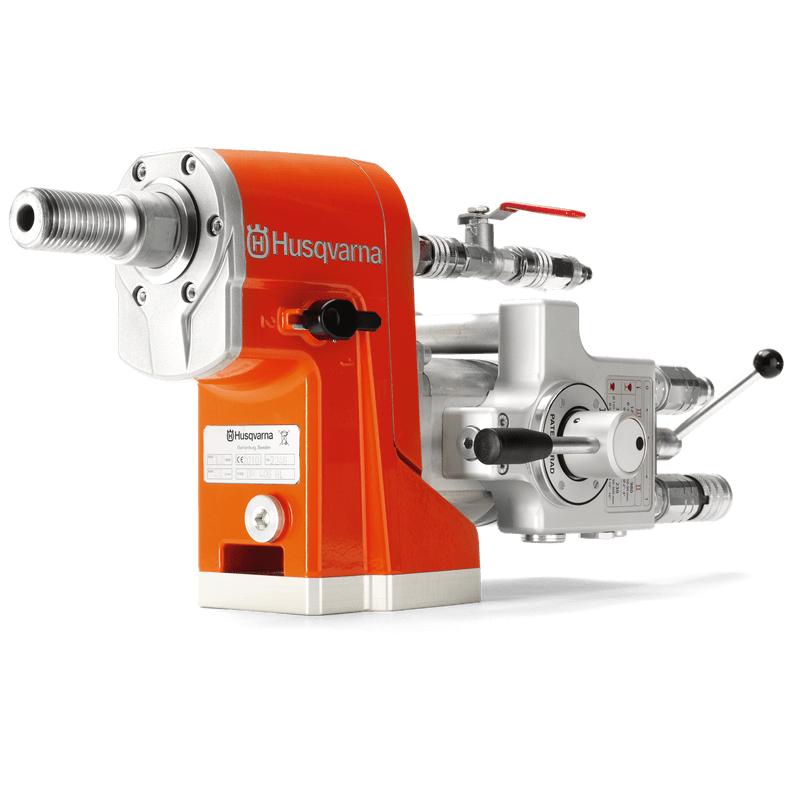

HUSQVARNA CORE DRILL MOTOR - THE ULTIMATE SOLUTION FOR HEAVIER DRILLING

Introducing the Husqvarna DM 406 H Core Drill Motor, a robust and powerful hydraulic tool designed to handle heavy-duty drilling tasks with ease. With its ability to drill holes as large as 24 inches in diameter, this device is an excellent choice for projects requiring high production rates, particularly when using large diameter core bits. The DM 406 H stands out with its efficiency and ease of use, thanks to its ability to change hydraulic speed while drilling. This makes it ideal for creating large and deep holes, waste evacuation pipes, and stitch drilling in a variety of materials, including reinforced concrete.

This drill motor is not only powerful with its 125 hp rated input power but also portable, weighing only 35 lbs. The maximum drill bit diameter with the stand is 25.6 inches, and the spindle speed can reach up to 1400 rpm in unloaded gear 2. It has a wet coolant system and a maximum hydraulic pressure of 2,030 psi. Built to last, the DM 406 H is your reliable partner for all heavy-duty drilling tasks.

  • Power Source: Hydraulic
  • Rated Input Power: 125 hp
  • Weight: 35 lbs
  • Drill Bit Diameter with Stand, Max: 25.6 in
  • Spindle Speed Unloaded Gear 2: 1,400 rpm
View full details
Product Specification
Husqvarna DM 406 H | Core Drill Motor
Specifications
Rated input power
125 hp
Power source
Hydraulic
Drill bit diameter with stand, max
25.6 in
Recommended drill bit diameter, min
1.97 in
Drill bit diameter, max
26 in
Coolant
Wet
Number of gearbox speeds
2
Spindle speed unloaded gear 1
340 rpm
Spindle speed unloaded gear 2
1,400 rpm
Water connector
R 1 / 2"
Water pressure, max
116 psi
Spindle thread, outer
1 1/4" 7 UNC
Hydraulic pressure, max
2,030 psi
Product size length
10.2 in
Product size width
8.3 in
Product size height
20.5 in
Weight
35 lbs
Packaging length (Calc)
22.047 in
Packaging width (Calc)
9.055 in
Packaging height (Calc)
15.551 in
Article gross weight (Calc)
46.297 lbs
Sound power level, guaranteed (LWA)
113 dB(A)
Sound power level, measured
112 dB(A)
Sound pressure level at operators ear
98 dB(A)
Warranty
2 year limited warranty
