Husqvarna DMS 180 | Core Drill With Stand

Husqvarna DMS 180 | Core Drill With Stand

HUSQVARNA CONSTRUCTION SKU: 966916101 Copied!

Is this the right tool for the job?

Best For:

  • MEP sleeve penetrations in concrete walls/slabs on TI and retrofit jobs
  • One- or two-person crews on daily site-to-site calls needing repeatable cores
  • Medium-duty wet coring where power is available and slurry can be managed

Not Ideal For:

  • Large-diameter or deep cores in heavy rebar; use a heavier rig
  • Sites without reliable power or water; limited by mains and wet coring
  • Finished spaces where slurry containment isn’t feasible or allowed

Why Pros choose this tool:

  • Rack-and-pinion stand feed → straight, stable coring → cleaner holes and less patching/rework
  • Electric wet coring (corded) → fume‑free, steady feed → safer indoor work, supports silica controls
  • Compact, semi‑portable rig → one‑operator setup and moves → hit more penetrations per day with lower labor
$1,669.00
$1,941.00 $1,669.00
Save $272 Sold out
PAY NO SALES TAX* Save up to $165.23 more. *Except for Tennessee, Illinois
DELIVERY IN 3-5 BUSINESS DAYS FREE SHIPPING (lower 48 states)
Pay with Credit Key

Financing from $166.90/mo • Up to 12 mo. terms

Pay by Bank & Net 30 Terms also available

Trusted by contractors nationwide

"I've bought 3 products from CTD and each time the experience has been the same - professional and fast delivery. I trust these guys with all my concrete needs."

Husqvarna Construction Authorized
Dealer
Get Accredited Top Quality Store
on Google
Get Accredited
90 day returns
Product Details

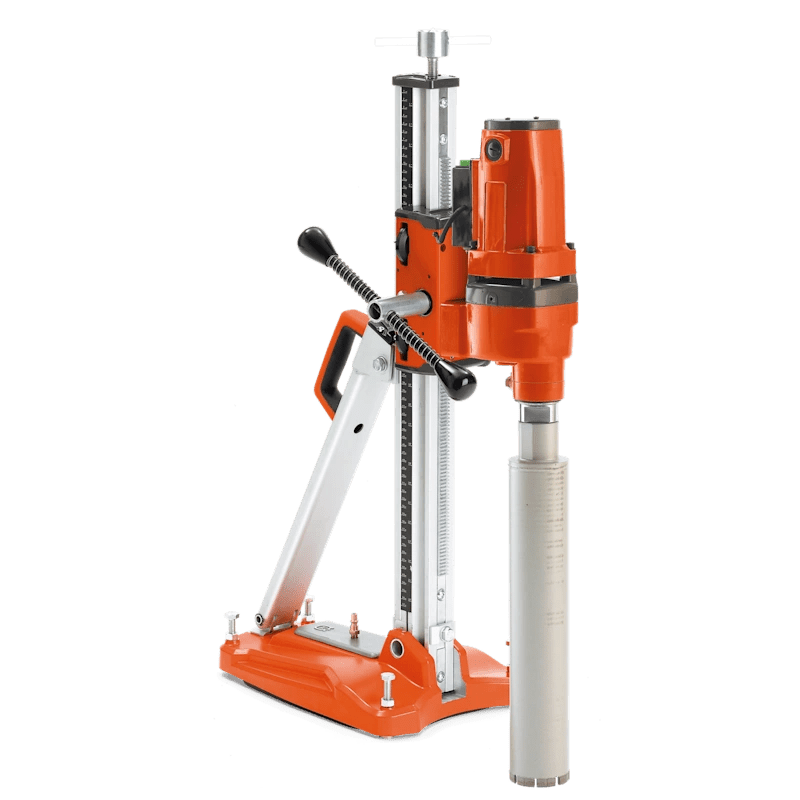

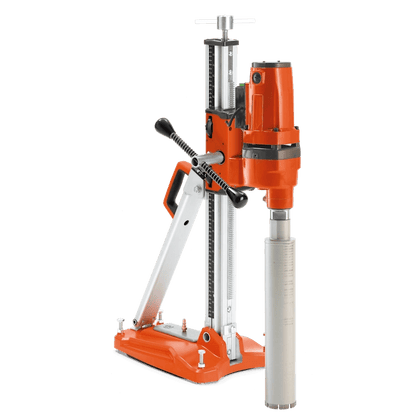

HUSQVARNA CORE DRILL WITH STAND - EXPERT PERFORMANCE IN A COMPACT PACKAGE

Meet the Husqvarna DMS 180 - a robust, lightweight core drill rig designed for the professional who values efficiency and performance. This compact powerhouse comes with a 2.5 hp rated input power, making it ideal for your heavy-duty drilling needs. With a drill bit diameter max of 6 inches, it's built to handle even the toughest of jobs. It's perfect for construction workers looking for a high-quality, durable, and safe tool that can withstand varied weather and rigorous working conditions.

The Husqvarna DMS 180 is not only powerful, but it's also user-friendly. With its fixed column installation and corded power source, it's easy to set up and use. Plus, at just 51.4 lbs, it's relatively light, reducing physical strain and helping you meet those tight deadlines. Whether you're working for a small construction firm or self-employed, this core drill rig is your ticket to performance and efficiency.

  • 2.5 hp rated input power
  • Drill bit diameter max of 6 inches
  • Fixed column installation
  • Corded power source
  • Lightweight at 51.4 lbs
View full details
Product Specification
Husqvarna DMS 180 | Core Drill With Stand
Specifications
Rated input power
2.5 hp
Frequency
60 Hz
Voltage
100-120 V
Phases
1 ph
Power source
Corded
Recommended drill bit diameter, min
1 in
Drill bit diameter, max
6 in
Coolant
Wet
Number of gearbox speeds
1
Water connector
G 1 / 4"
Water pressure, max
116 psi
Spindle thread, outer
1 1/4" 7 UNC
Column's Angling
-
Column installation
Fixed
Rated current
15 A
Product size length
20.6 in
Product size width
10.5 in
Product size height
33.9 in
Weight
51.4 lbs
Packaging length (Calc)
37.402 in
Packaging width (Calc)
21.26 in
Packaging height (Calc)
13.386 in
Article gross weight (Calc)
61.729 lbs
Sound power level, guaranteed (LWA)
108 dB(A)
Sound power level, measured
107 dB(A)
Sound pressure level at operators ear
93 dB(A)
Warranty
2 year limited warranty
Service & Maintenance Parts
BASE PLATE 16 parts
BASE PLATE diagram
Part Article number Qty Comment Price Details
1NIPPLE 541404071 1
$28.57
$8.82 $28.57
View part
2COVER KIT 579242701 1
$69.98
$51.50 $69.98
View part
3GASKET 541404903 1
4SCREW IHCSFM 725636601 6
5GUARD 541404892 1
6SCREW IHCSFM 725644901 1
$22.78
$2.87 $22.78
View part
7CIRCLIP 735311500 2
8BASE 541404887 1
9PIVOT 541404900 1
10PARALLEL PIN 720130650 2
11SCREW 541404080 4
12BASE 541404861 1
$390.83
$385.00 $390.83
View part
13HEXAGON NUT 731232001 4
$22.78
$2.87 $22.78
View part
14CAP 541404084 4
15SCREW IHSCM 725536801 4
16GASKET 578932101 1
$51.61
$32.60 $51.61
View part
COLUMN 14 parts
COLUMN diagram
Part Article number Qty Comment Price Details
1SCREW 541404809 1
2SCREW IHSCM 725528901 4
3GUARD 541404868 1
4DECAL 541404820 1
5DECAL 541404054 2
6COLUMN 541405067 1
7COLUMN 541404870 1
8PARALLEL PIN 720130650 2
9COLUMN 541404881 1
10COLUMN 541404817 1
11COLUMN 541404818 1
12SCREW 593250101 3
13COLUMN 541404869 1
14SCREW EHHM 725250751 1
MOTOR 14 parts
MOTOR diagram
Part Article number Qty Comment Price Details
1SCREW 522836701 2
2COVER 522798601 1
3SCREW IHSCM 725538655 4
4WASHER 522836801 4
5WASHER 522836901 4
6MOTOR HOUSING 522798701 1
7CARBON BRUSH 522798801 2
8COVER 522798901 1
9SCREW 522836701 2
10ELECTRONIC BOX 522799001 1
11STATOR 522799101 1
12BALL BEARING 738230034 1
13ROTOR 522799201 1
14GEARBOX 522799301 1
SHREDDER CASE 35 parts
SHREDDER CASE diagram
Part Article number Qty Comment Price Details
1GRIP 531140672 1
2SPRING 541405163 2
3SHAFT 541404905 1
4DECAL 541405047 1
5HANDLE 541405137 1
6LOCK NUT 732211801 1
$22.78
$2.87 $22.78
View part
7BALL 541404133 1
8SHAFT 541404044 1
9CIRCLIP 735311900 2
$22.78
$2.87 $22.78
View part
10BALL BEARING 738210304 2
$114.19
$97.00 $114.19
View part
11DRIVE SHAFT 587922301 1
12CARRIAGE 541404798 1
13LEVEL 541405036 1
14SCREW 593574401 8
15GUARD 541404800 1
16SCREW IHSCM 725529301 4
$22.78
$2.87 $22.78
View part
17ECCENTRIC 541404803 4
18ECCENTRIC DISC 541404805 2
19SCREW IHSCM 725545101 2
20SCREW IHSCM 725545301 3
22ROLLER 599710501 4
23SPACER 541404036 4
24BRAKE 579270101 1
26BRAKE 541404864 1
$33.02
$13.40 $33.02
View part
27BRAKE 541404816 1
28GUARD 541404862 1
29SHAFT 541404804 2
30GUIDE 541404032 4
32PARALLEL KEY 582697305 1
33PLATE 541404801 1
34DECAL 541405136 1
35HEXAGON NUT 731232001 1
$22.78
$2.87 $22.78
View part
36WASHER 734117201 3
$22.68
$2.76 $22.68
View part
37SCREW EHHM 725249771 1
$22.78
$2.87 $22.78
View part
38COLLAR 541404802 1
SUPPORT 17 parts
SUPPORT diagram
Part Article number Qty Comment Price Details
1SCREW IHSCM 725528901 2
2GUARD 541404899 1
3SUPPORT 541404884 1
4HANDLE 541404909 1
5WASHER 734116301 2
$22.68
$2.76 $22.68
View part
6SCREW IHSCM 725545101 2
7DRILL 541404098 1
8RIVET 722782503 2
9PLATE 541405096 1
10SCREW EHHM 725249771 1
$22.78
$2.87 $22.78
View part
11WASHER 734117201 1
$22.68
$2.76 $22.68
View part
12COLUMN 541405067 1
13SCREW EHHM 725250951 1
14WASHER 734117201 3
$22.68
$2.76 $22.68
View part
15SUPPORT 541404824 2
16SUPPORT 541404822 1
17BUSHING 541404827 1
$45.73
$26.50 $45.73
View part
