Product Specification

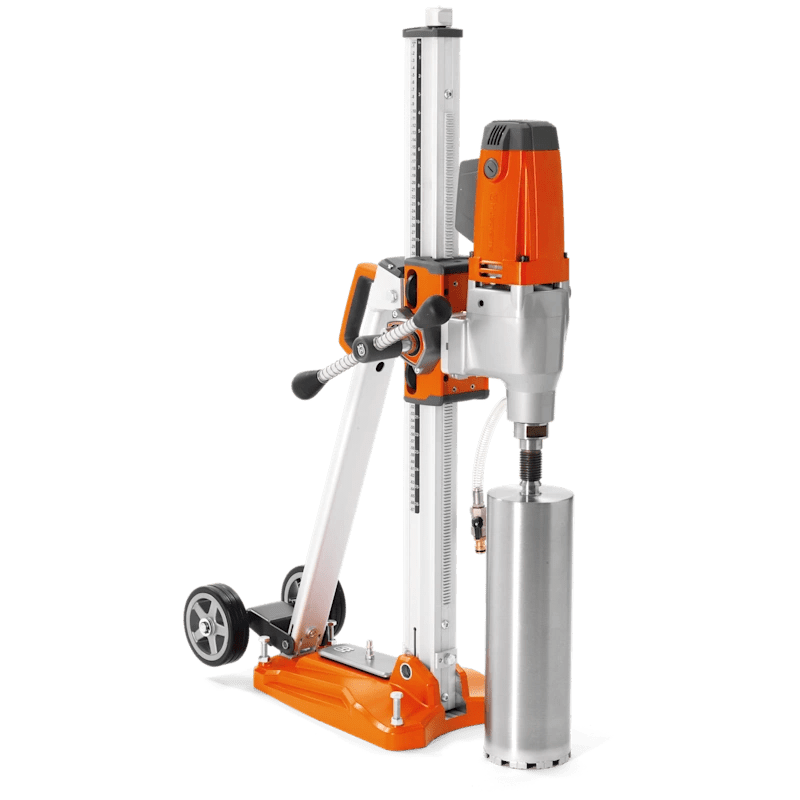

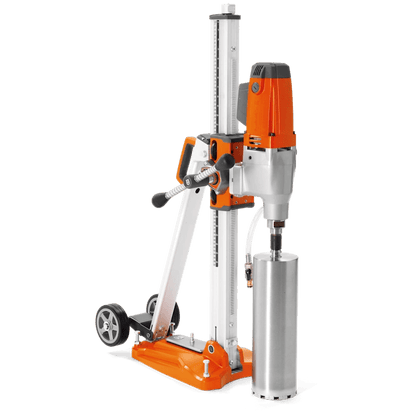

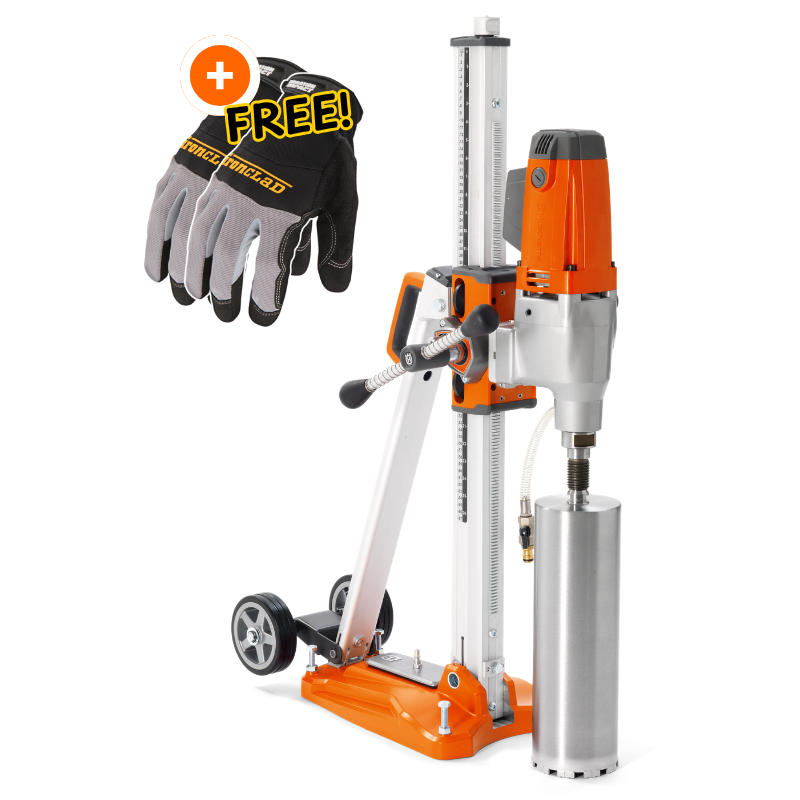

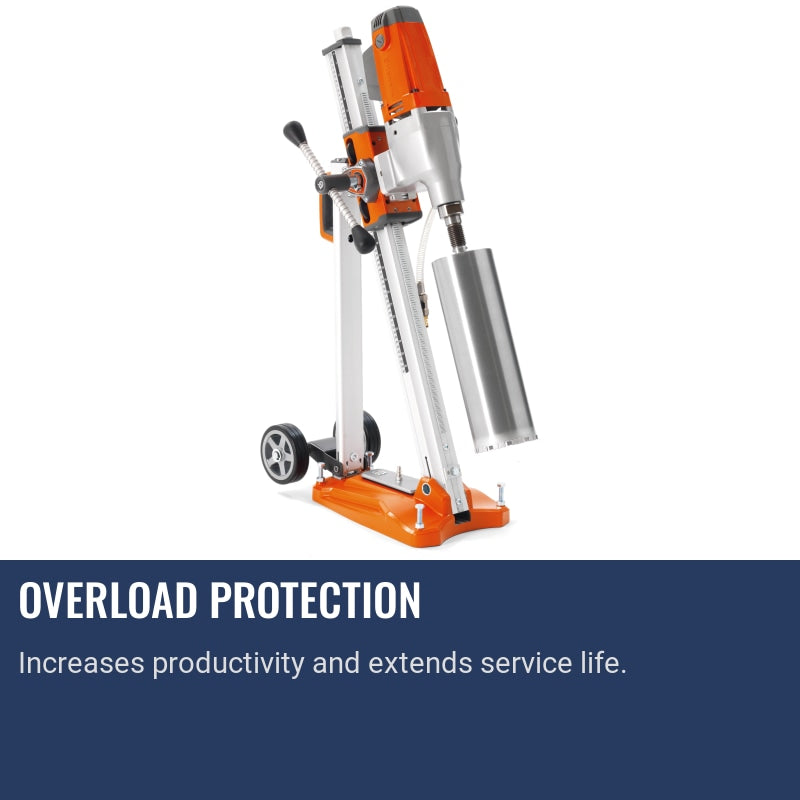

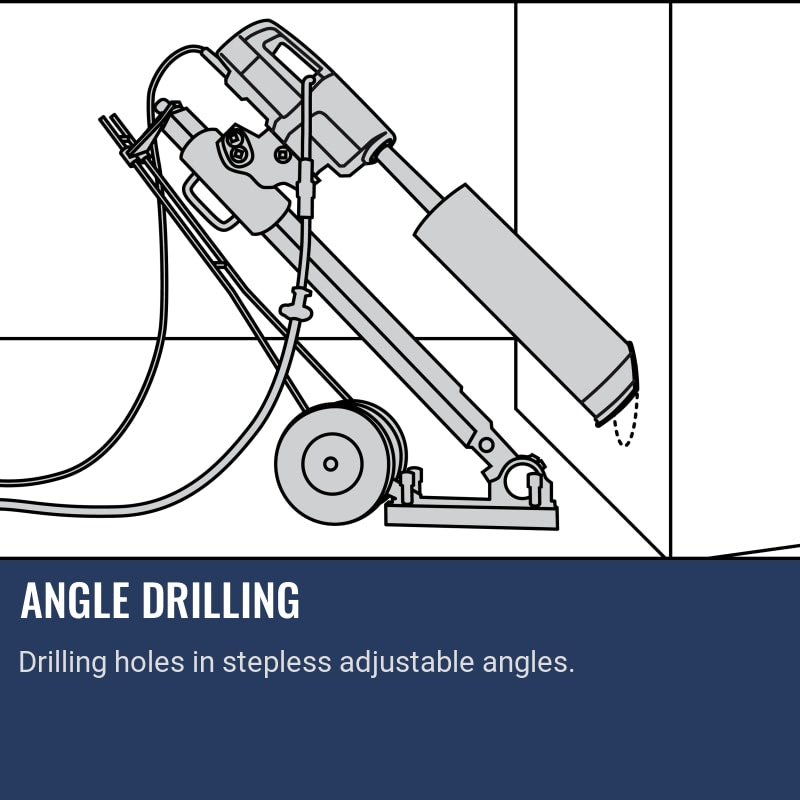

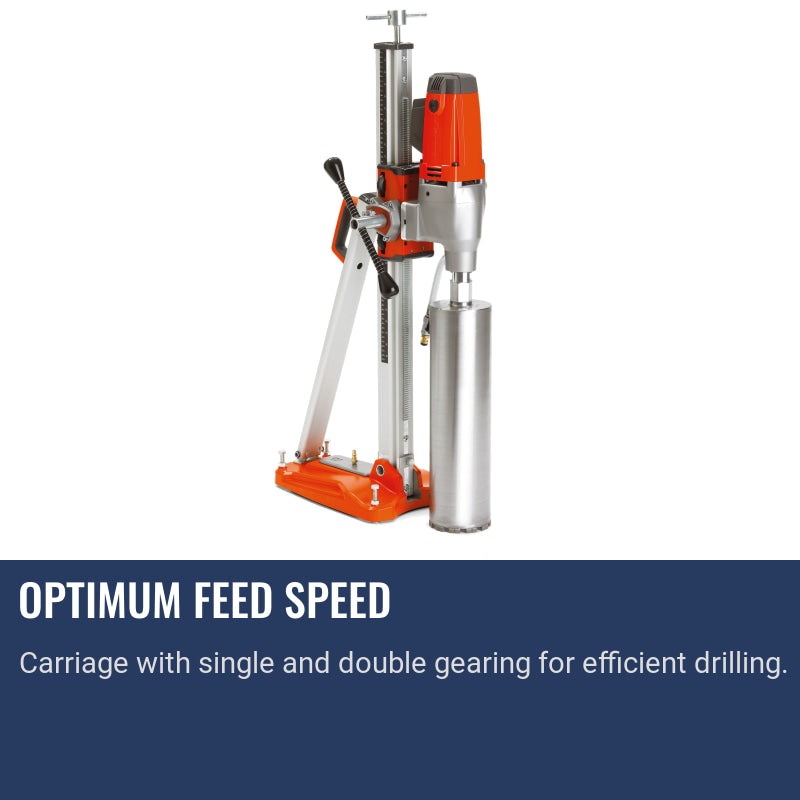

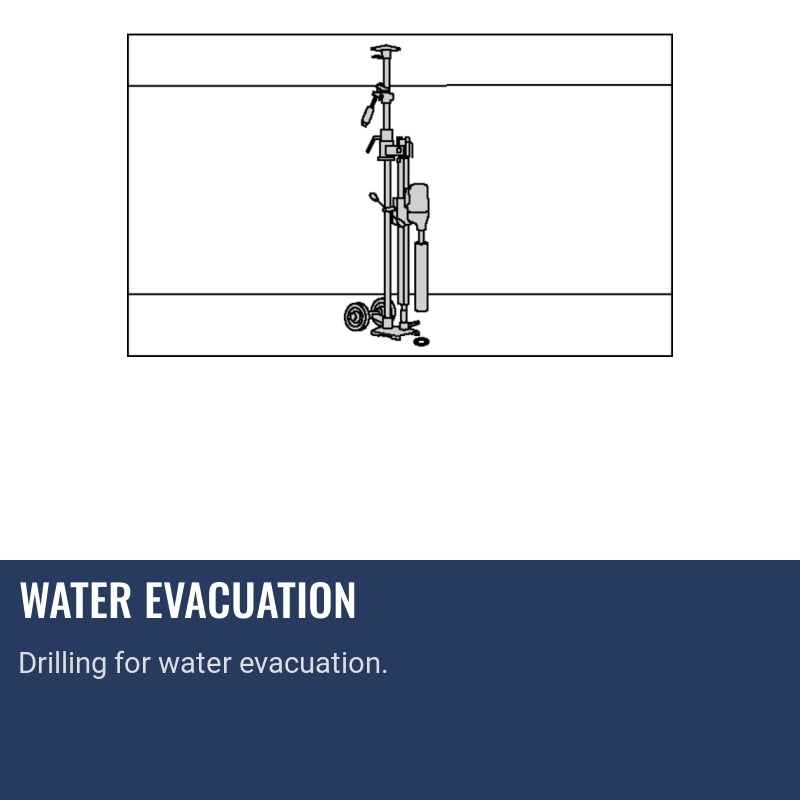

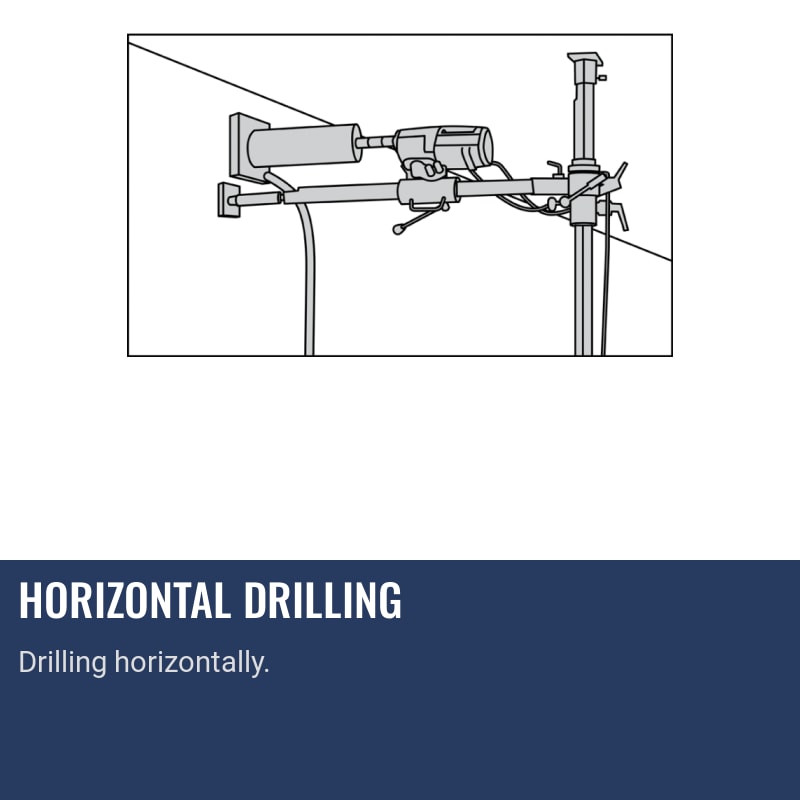

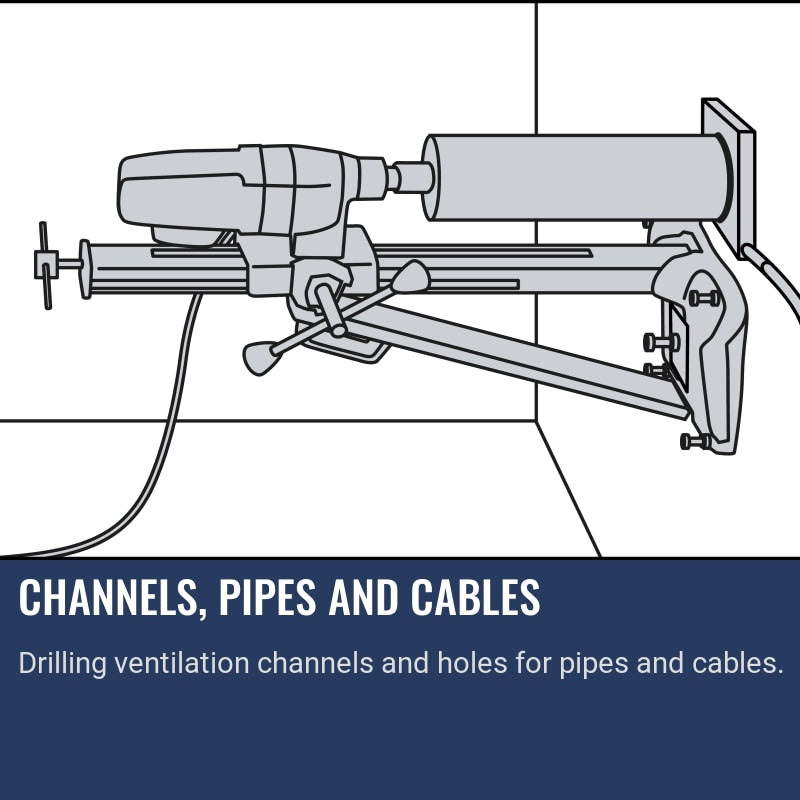

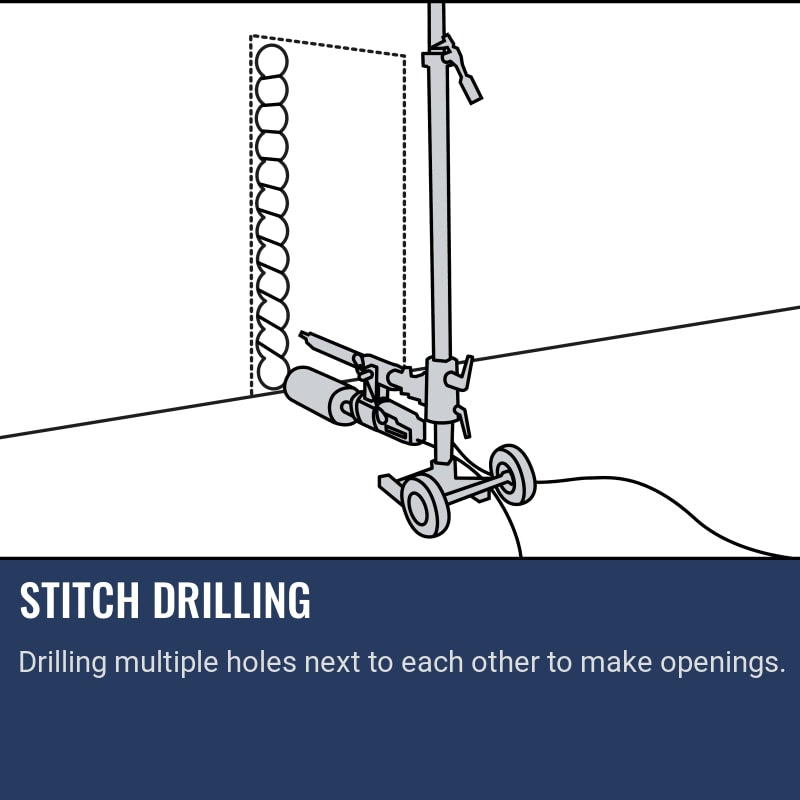

DRILL MOTOR DMS 240 100-120 V | 1-ph | 60 Hz | US
Specifications
Service & Maintenance Parts
BACK SUPPORT 24 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW | 593571601 | 2 | |||
| 2GUARD | 541404899 | 1 | |||
| 3SUPPORT | 541404883 | 1 | |||
| 4HANDLE | 541404909 | 1 | |||
| 5WASHER | 734116301 | 2 |
Regular price
$2.86
Regular price
|
||
| 6SCREW | 593333801 | 2 | |||
| 7DRILL | 541404098 | 1 | |||
| 8RIVET | 722782503 | 2 | |||
| 9PLATE | 541405167 | 1 | |||
| 10SCREW EHHM | 725249771 | 1 |
Regular price
$2.99
Regular price
|
||
| 11WASHER | 734117201 | 1 |
Regular price
$2.86
Regular price
|
||
| 12BUSHING | 541404827 | 2 |
Regular price
$27.50
Regular price
|
||
| 13SCREW EHHM | 725250951 | 1 | |||
| 14COLUMN | 541405067 | 1 | |||
| 15CIRCLIP | 735311700 | 4 |
Regular price
$2.99
Regular price
|
||
| 16WASHER | 734118201 | 4 |
Regular price
$4.47
Regular price
|
||
| 17WHEEL | 541405084 | 2 | |||
| 18FRAME | 541405087 | 1 | |||
| 19SCREW | 593332301 | 1 | |||
| 20SCREW EHHM | 725250951 | 1 | |||
| 21WASHER | 734117201 | 1 |
Regular price
$2.86
Regular price
|
||
| 22SUPPORT | 541404824 | 1 | |||
| 23SUPPORT | 541404822 | 1 | |||
| 24BUSHING | 541404827 | 1 |
Regular price
$27.50
Regular price
|

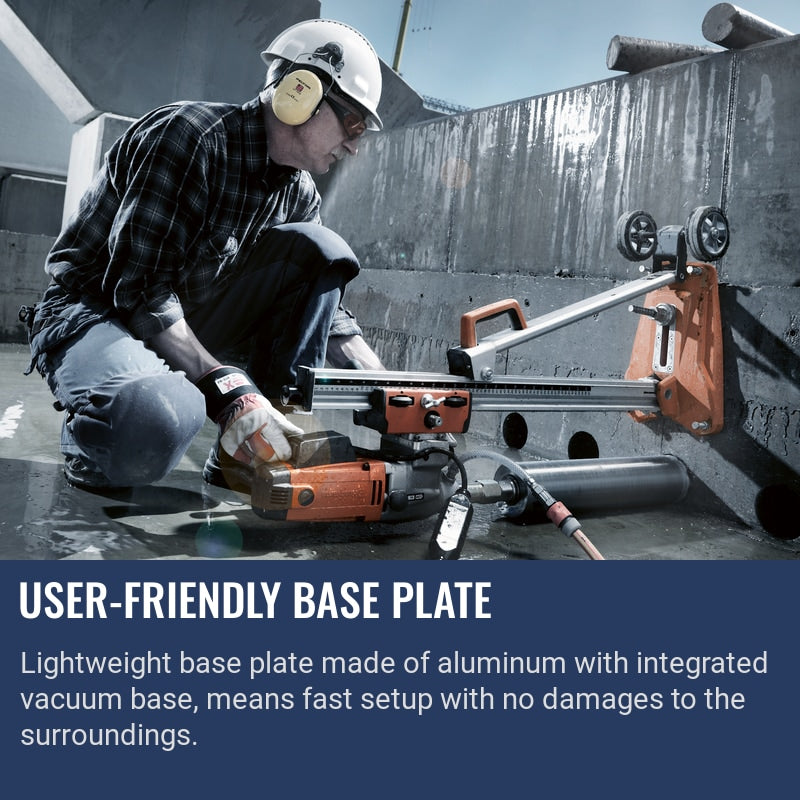

BASE PLATE 16 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1NIPPLE | 541404071 | 1 |
Regular price
$28.57
Regular price
|
||
| 2COVER KIT | 541404904 | 1 | |||
| 3GASKET | 541404903 | 1 | |||
| 4SCREW | 593331701 | 6 | |||
| 5GUARD | 541404892 | 1 | |||
| 6SCREW | 593332001 | 1 | |||
| 7BASE | 541404887 | 1 | |||
| 8PARALLEL PIN | 720130650 | 4 | |||
| 9PIVOT | 541405088 | 1 | Used with wheel kit | ||
| 10CIRCLIP | 735311500 | 4 | |||
| 11SCREW | 541404080 | 4 | |||
| 12HEXAGON NUT | 731232001 | 4 |
Regular price
$2.99
Regular price
|
||
| 13BASE | 541404861 | 1 |
Regular price
$399.00
Regular price
|
||
| 14CAP | 541404084 | 4 | |||
| 15SCREW | 593571001 | 4 | |||
| 16GASKET | 578932101 | 1 |
Regular price
$33.80
Regular price
|
CARRIAGE 54 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1LEVER | 541404101 | 1 | Complete |
Regular price
$82.30
Regular price
|
|
| 2GRIP | 531140672 | 2 | |||
| 3SPRING | 541405163 | 2 | |||
| 4SHAFT | 541404905 | 1 | |||
| 5DECAL | 541405047 | 1 | |||
| 6HANDLE | 541405137 | 1 | |||
| 7LOCK NUT | 732211801 | 1 |
Regular price
$2.99
Regular price
|
||
| 8BALL | 541404133 | 1 | |||
| 9SHAFT | 541404044 | 1 | |||
| 10CARRIAGE | 579243003 | 1 | Not for Single Speed | ||
| 11DECAL | 541404935 | 1 | |||
| 12SCREW IHSCM | 725537455 | 5 | |||
| 13BEARING | 541404910 | 2 | |||
| 14GEAR | 589530901 | 1 | |||
| 15BALL BEARING | 522805601 | 1 | |||
| 16GEAR WHEEL KIT | 579242902 | 1 | Not for Single Speed | ||
| 17SHAFT | 597303201 | 1 | |||
| 18COVER PLATE | 541404928 | 1 | |||
| 19SCREW IHCSFM | 725628756 | 1 | |||
| 20CIRCLIP | 735311900 | 2 |
Regular price
$2.99
Regular price
|
||
| 21BALL BEARING | 738210304 | 2 |
Regular price
$101.00
Regular price
|
||
| 22DRIVE SHAFT | 587922301 | 1 | |||
| 23LEVEL | 541405036 | 1 | |||
| 24SCREW | 593574401 | 4 | |||
| 25GUARD | 541404800 | 1 | |||
| 26SCREW IHSCM | 725529301 | 4 |
Regular price
$2.99
Regular price
|
||
| 27ECCENTRIC | 541404803 | 4 | |||
| 28ECCENTRIC DISC | 541404805 | 2 | |||
| 29SCREW | 593333801 | 2 | |||
| 30BRACKET | 575848301 | 1 |
Regular price
$142.00
Regular price
|
||
| 31PLATE | 590494701 | 1 | |||
| 32SCREW | 593332301 | 16 | |||
| 33WEDGE | 525540701 | 1 | |||
| 34SCREW | 593333301 | 2 | |||
| 35BRACKET | 577950601 | 1 |
Regular price
$512.00
Regular price
|
||
| 36LOCK | 577836201 | 1 | |||
| 37SCREW IHSETM | 728745506 | 1 | |||
| 38BOLT | 577836101 | 1 | |||
| 39PIN | 510202701 | 1 | |||
| 40SCREW | 593574701 | 2 | |||
| 41HEXAGON THIN NUT | 731431801 | 1 |
Regular price
$2.99
Regular price
|
||
| 42INDEXABLE HANDLE, NUT M8 | 543850216 | 1 |
Regular price
$13.90
Regular price
|
||
| 43PARALLEL KEY | 582697305 | 1 | |||
| 44SCREW | 593574201 | 4 | |||
| 45GUIDE | 541404032 | 4 | |||
| 46GUARD | 541404862 | 1 | |||
| 47SHAFT | 541404804 | 2 | |||
| 48BRAKE | 579270101 | 1 | |||
| 49BRAKE | 541404864 | 1 |
Regular price
$13.90
Regular price
|
||
| 50SPRING | 541405043 | 1 | |||
| 51BRAKE | 541404816 | 1 | |||
| 52ROLLER | 599710501 | 1 | |||
| 53GASKET | 541405180 | 1 | |||
| 54GEAR HOUSING | 541404927 | 1 |
COLUMN 14 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW | 541404809 | 1 | |||
| 2SCREW | 593571601 | 4 | |||
| 3GUARD | 541404868 | 1 | |||
| 4DECAL | 541404054 | 2 | |||
| 5RACK | 541404878 | 1 | |||
| 6SCREW | 593250101 | 3 | |||
| 7DECAL | 541404882 | 1 | |||
| 8PARALLEL PIN | 720130650 | 2 | |||
| 9COLUMN | 541404795 | 1 | |||
| 10COLUMN | 541405067 | 1 | |||
| 11COLUMN | 541404870 | 1 | |||
| 12COLUMN | 541404881 | 1 | |||
| 13COLUMN | 541404869 | 1 | |||
| 14SCREW EHHM | 725250751 | 1 |
GEAR BOX 13 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BALL BEARING | 738220117 | 3 | |||
| 2CLUTCH ASSY | 525583301 | 1 | |||
| 3BALL BEARING | 738220217 | 2 | |||
| 4SHAFT ASSY | 586925301 | 1 | |||
| 5SEAL | 586987702 | 2 | From S/N 202314400070 | ||
| 5SEAL | 586987701 | 2 | Before S/N 202314400070 | ||
| 6SLEEVE | 546396201 | 1 | From S/N 202314400070 | ||
| 7SPINDLE SHAFT | 546349901 | 1 | |||
| 8GEAR WHEEL KIT | 586925101 | 1 | |||
| 9KIT | 586925401 | 1 | |||
| 10KIT | 586925001 | 1 | |||
| 11GEAR WHEEL KIT | 586925201 | 1 | |||
| 12BALL BEARING | 738220519 | 2 |
Regular price
$50.60
Regular price
|
GEAR BOX 14 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BALL BEARING | 738220217 | 1 | |||
| 2COVER | 586926001 | 1 | |||
| 3GEARSHIFT LEVER | 521899201 | 1 | |||
| 4SEAL | 575291701 | 1 | |||
| 5GEAR HOUSING | 586925901 | 1 | |||
| 6HOSE ASSY | 501072201 | 1 |
Regular price
$92.80
Regular price
|
||
| 7VALVE ASSY | 587437802 | 1 | |||
| 8HOSE CLAMP | 576129701 | 1 |
Regular price
$6.10
Regular price
|
||
| 9HOSE | 581893601 | 1 |
Regular price
$19.79
Regular price
|
||
| 10NIPPLE | 582086301 | 1 |
Regular price
$25.65
Regular price
|
||
| 11COUPLER | 503266004 | 1 | ROW |
Regular price
$9.39
Regular price
|
|
| 11COUPLER | 503266003 | 1 | US |
Regular price
$8.39
Regular price
|
|
| 12STRAINER | 589780701 | 1 |
Regular price
$5.89
Regular price
|
||
| 13O-RING | 505103501 | 1 |
Regular price
$6.10
Regular price
|
MOTOR 28 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW CRCSFM | 724330555 | 4 | |||
| 2MOTOR COVER | 521898401 | 1 | |||
| 3SCREW IHSCM | 725538855 | 4 |
Regular price
$5.93
Regular price
|
||
| 4LOCKWASHER | 521898501 | 4 | |||
| 5WASHER | 734115201 | 4 |
Regular price
$2.99
Regular price
|
||
| 6MOTOR HOUSING | 521898601 | 1 | |||
| 7BRUSH | 529839001 | 2 | |||
| 8COVER | 521898701 | 2 | |||
| 9ELECTRONIC BOX | 586925801 | 1 | 110 V | ||
| 9ELECTRONIC BOX | 586925701 | 1 | 230 V | ||
| 10SCREW | 548805001 | 3 | |||
| 11SWITCH | 521898801 | 1 | 110 V | ||
| 11MAIN SWITCH | 522807801 | 1 | 230 V | ||
| 12SWITCH | 522811102 | 1 | For 230 V ONLY | ||
| 13CABLE | 505352901 | 1 | EU | ||
| 13CABLE | 505352907 | 1 | SAUDI | ||
| 13CABLE ASSY | 537542201 | 1 | US, PRCD INCLUDED | ||
| 13CABLE | 505352904 | 1 | UK, PRCD NOT INCLUDED | ||
| 13CABLE | 505352905 | 1 | AUS, PRCD INCLUDED | ||
| 13CABLE | 505352906 | 1 | BR, PRCD INCLUDED | ||
| 14STATOR | 521898901 | 1 | 110 V | ||
| 14STATOR | 522807901 | 1 | 230 V | ||
| 15BALL BEARING | 738220019 | 1 | |||
| 16ROTOR | 521899101 | 1 | 110 V |
Regular price
$796.00
Regular price
|
|
| 16ROTOR | 522808001 | 1 | 230 V |
Regular price
$817.00
Regular price
|
|
| 17CAPACITOR | 586925601 | 1 | 110 V | ||
| 17CAPACITOR | 586925501 | 1 | 230 V | ||
| 18AIR CONDUCTOR | 582661301 | 1 |
Document Downloads
Service bulletin
Workshop manual
Operator's manual
