Husqvarna Blastrac DC2-48 | Dust Collector
Husqvarna Blastrac DC2-48 | Dust Collector
HUSQVARNA CONSTRUCTION SKU: 970692401 Copied!
Is this the right tool for the job?
Regular price
$83,469.00
Regular price
$92,757.00
Sale price
$83,469.00
Quantity
Trusted by contractors nationwide
"I've bought 3 products from CTD and each time the experience has been the same - professional and fast delivery. I trust these guys with all my concrete needs."
90 day returns
Product Details

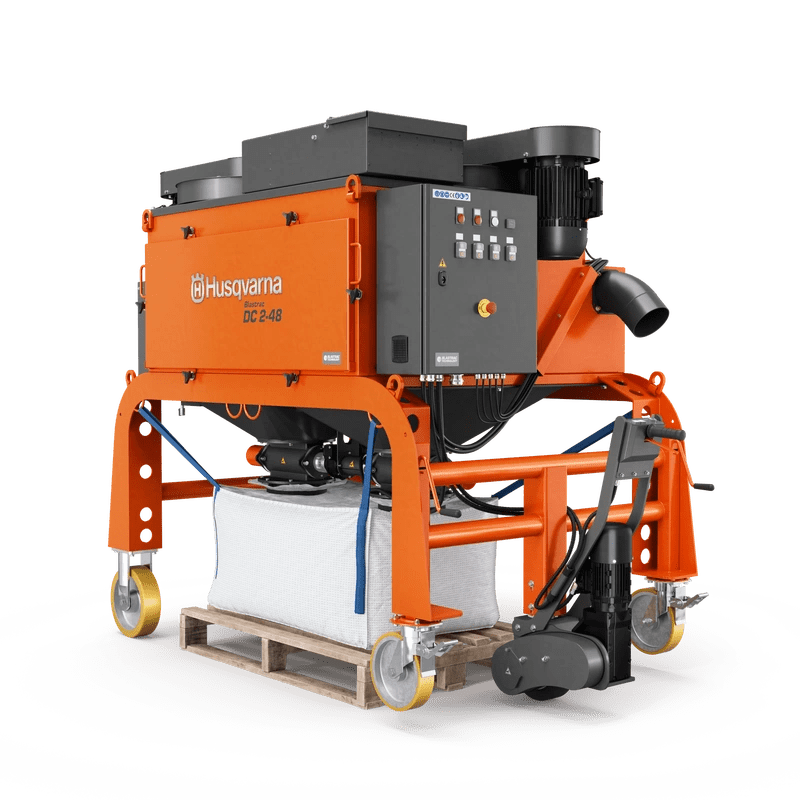

HUSQVARNA DUST COLLECTOR - THE BLASTRAC DC2-48

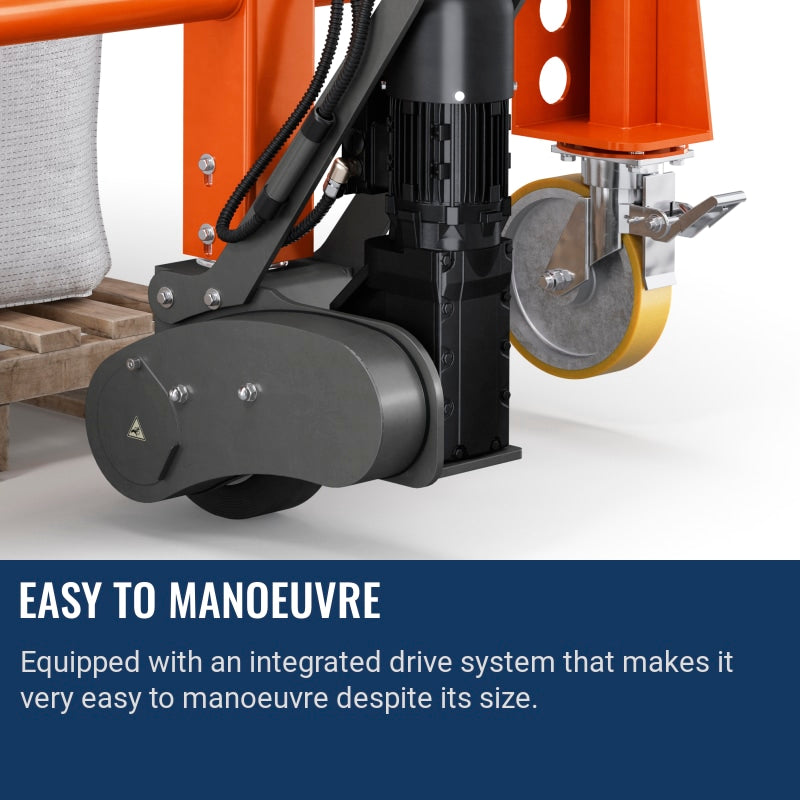

Efficiency, quality, and durability are the guiding principles behind the Husqvarna Blastrac DC 2-48 Dust Collector. Specifically designed to connect with the Husqvarna Blastrac 2-48DS shot blaster, this dust collector is a game-changer for concrete and asphalt surfaces. Its lower height and integrated drive system make it exceptionally maneuverable, while its 20 high-quality M-class cartridge filters ensure thorough and efficient dust collection.

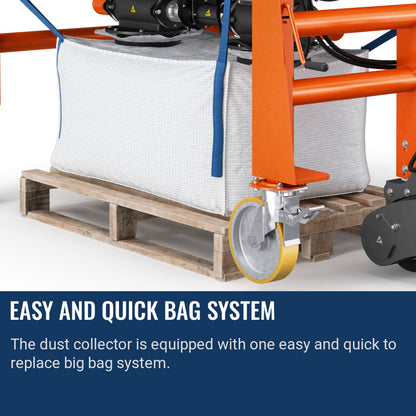

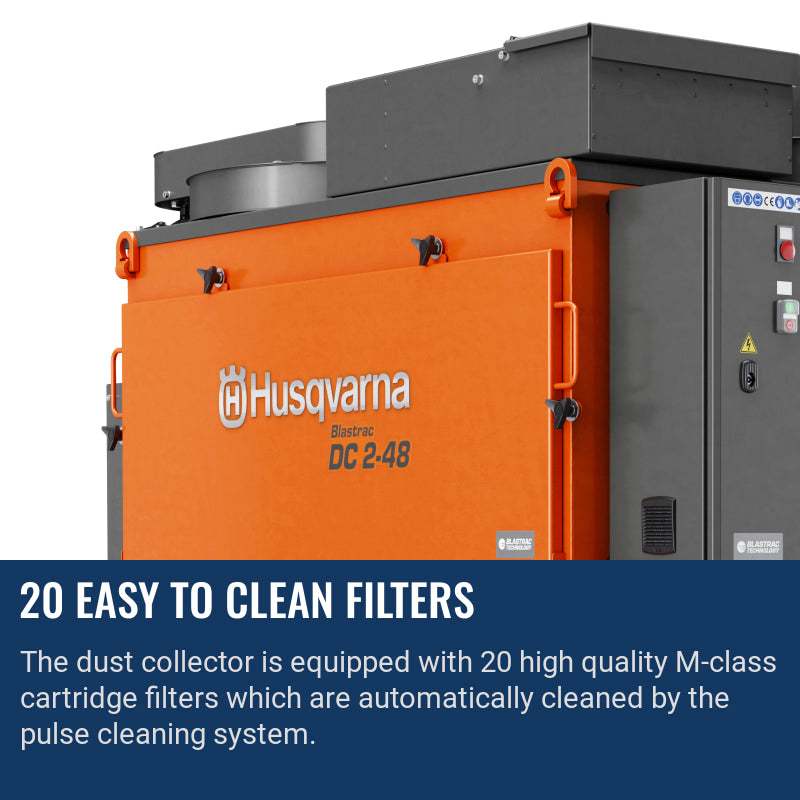

The automatic pulse filter cleaning system simplifies the maintenance process, making filter cleaning a breeze. Dust is conveniently collected in a big bag system, which is quick and easy to replace, reducing downtime and increasing productivity. Whether you're a concrete construction worker in a small to mid-sized firm or a self-employed professional, the Husqvarna Blastrac DC 2-48 Dust Collector is the tool you need to get the job done right.
- Power Source: Corded
- Phases: 3 ph
- Rated Input Power: 20 hp
- Air Flow: 2,590 cfm
- Container Capacity: 85 gal (US)
Product Specification
Specifications
Rated input power
20 hp
Phases
3 ph
Voltage
480 V
Rated current
32 A
Frequency
60 Hz
Power source
Corded
Air flow
2,590 cfm
Container capacity
85 gal (US)
Product size length
91 in
Product size width
54 in
Product size height
77 in
Weight
2,094 lbs
Packaging length (Calc)
90 in
Packaging width (Calc)
60 in
Packaging height (Calc)
85 in
Article gross weight (Calc)
2,093.999 lbs
Warranty
2 year limited warranty
Service & Maintenance Parts
BAGGER 26 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SEAL | 533022401 | 1 | |||
| 2HOPPER | 535170002 | 1 | |||
| 3COVER | 533224802 | 2 | For shaft | ||
| 4VALVE | 533226502 | 2 | |||
| 5COUPLING | 534812601 | 2 | Rotex | ||
| 6COUPLING | 534414501 | 1 | For rotex coupling | ||
| 7COVER | 534779302 | 1 | Top | ||
| 8SHAFT | 534414301 | 1 | Coupling shaft | ||
| 9COVER | 534779202 | 1 | Bottom | ||
| 10DUMMY PART | 900000002 | 1 | Adjusting ring 25x40x16 | ||
| 11PLATE | 535166402 | 1 | For drive motor | ||
| 12DRIVE MOTOR | 533694102 | 1 | Motor with Gearbox | ||
| 12MOTOR | 534302102 | 1 | Motor only | ||
| 12COUPLING | 534650202 | 1 | Gearbox only | ||
| 13DUMMY PART | 900000002 | 6 | |||
| 14DUMMY PART | 900000002 | 49 | |||
| 15WASHER | 536063001 | 69 | |||
| 16HEXAGON NUT | 533837201 | 37 | |||
| 17DUMMY PART | 900000002 | 19 | |||
| 18SCREW | 593500701 | 3 | |||
| 19WASHER | 536063601 | 5 | |||
| 20WASHER | 534691501 | 5 | |||
| 21DUMMY PART | 900000002 | 2 | |||
| 22DUMMY PART | 900000002 | 12 | |||
| 24DUMMY PART | 900000002 | 2 | |||
| 25DUMMY PART | 900000002 | 2 |
DRIVE 55 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1COVER | 534387302 | 1 | |||
| 2CHAIN GUARD | 533068002 | 1 | |||
| 3CHAIN | 534024703 | 1 | L=1M | ||
| 4LINK | 533930301 | 1 | Chain link ISO 1/2" | ||
| 5PIN | 533256401 | 1 | Quick release pin | ||
| 6RETAINER | 534863101 | 1 | Sprocket retainer | ||
| 7SPROCKET | 534640601 | 1 | |||
| 8HUB | 534642001 | 1 | |||
| 9WHEEL BRACKET | 546328202 | 1 | |||
| 10DRIVE SPROCKET | 534529201 | 1 | |||
| 11BEARING | 531474201 | 2 | |||
| 12BUSH | 533318901 | 1 | |||
| 13DRIVE SHAFT | 533956301 | 1 | |||
| 14WHEEL | 534907101 | 1 | |||
| 15SCREW | 534678601 | 4 | |||
| 16DRIVE MOTOR | 534439303 | 1 | 1.1kW | ||
| 17DUMMY PART | 900000002 | 1 | M16x40 | ||
| 18DUMMY PART | 900000002 | 1 | |||
| 19BEARING COVER | 534314501 | 1 | |||
| 20V-RING | 534929601 | 1 | V-ring | ||
| 21WASHER | 534686601 | 1 | |||
| 22BEARING | 534313301 | 1 | |||
| 23ROLLER BEARING | 534313001 | 2 | Tapered | ||
| 24V-RING | 534929701 | 1 | V-ring | ||
| 25HANDLE | 535247802 | 1 | |||
| 26PROTECTIVE CAP | 533368001 | 2 | |||
| 27SWITCH | 534668101 | 1 | |||
| 28LEVER | 533783702 | 1 | |||
| 29HANDLE GRIP | 534612901 | 1 | |||
| 30PUSH BUTTON | 533850701 | 2 | |||
| 31SCREW | 593571401 | 2 | |||
| 32POTENTIOMETER | 533613001 | 1 | |||
| 33PLATE | 533571402 | 1 | |||
| 34BOX | 533241402 | 1 | Control box | ||
| 35WASHER | 536064101 | 2 | |||
| 36SCREW | 593497301 | 6 | |||
| 37WASHER | 536063601 | 7 | |||
| 38DUMMY PART | 900000002 | 5 | |||
| 39WASHER | 536063001 | 11 | |||
| 40DUMMY PART | 900000002 | 4 | |||
| 41DUMMY PART | 900000002 | 4 | |||
| 42SCREW | 593570901 | 1 | |||
| 43DUMMY PART | 900000002 | 1 | |||
| 44SCREW | 725245971 | 4 | |||
| 45WASHER | 599283901 | 4 | |||
| 46WASHER | 536063101 | 9 | |||
| 47DUMMY PART | 900000002 | 5 | |||
| 48DUMMY PART | 900000002 | 4 | |||
| 49DUMMY PART | 900000002 | 1 | |||
| 50SCREW | 536253601 | 4 | |||
| 51WASHER | 534691501 | 4 | |||
| 52SCREW | 593333801 | 1 | |||
| 53DUMMY PART | 900000002 | 1 | |||
| 54NUT | 536063801 | 1 | |||
| 55NUT | 538913501 | 2 |
FAN 33 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1MOTOR | 534053602 | 1 | 7.5kW IE3 | ||
| 2SPACER PLATE | 533617701 | 1 | For motor | ||
| 3MOUNTING BRACKET | 533480702 | 1 | |||
| 4TENSIONER | 533162601 | 1 | |||
| 5PULLEY | 533719001 | 1 | Motor side (60Hz) | ||
| 5DRIVE BELT | 533184901 | 1 | Motor side (50Hz) | ||
| 6BUSHING | 533868101 | 1 | Taperlock, motor side | ||
| 7V-BELT | 533437501 | 2 | |||
| 8BELT GUARD | 533157102 | 1 | |||
| 9BUSHING | 531490901 | 1 | Taperlock, fan side | ||
| 10PULLEY | 533880001 | 1 | Fan side | ||
| 11BEARING UNIT | 533779301 | 1 | |||
| 12DUMMY PART | 900000002 | 4 | |||
| 13DUMMY PART | 900000002 | 8 | |||
| 14DUMMY PART | 900000002 | 4 | |||
| 15DUMMY PART | 900000002 | 4 | |||
| 16WASHER | 536063001 | 21 | |||
| 17FAN HOUSING | 533455502 | 1 | |||
| 18IMPELLER | 533463101 | 1 | |||
| 19HUB | 533150701 | 1 | |||
| 20RING | 533037101 | 1 | |||
| 21RING | 534038902 | 1 | For fan | ||
| 22HINGE | 533565401 | 2 | |||
| 23MUFFLER | 533078702 | 1 | |||
| 24LOCK NUT | 732211401 | 4 | |||
| 25DUMMY PART | 900000002 | 4 | |||
| 26DUMMY PART | 900000002 | 5 | |||
| 27DUMMY PART | 900000002 | 12 | |||
| 29DUMMY PART | 900000002 | 13 | |||
| 30BOLT | 533851101 | 1 | M10x35 | ||
| 31DUMMY PART | 900000002 | 8 | |||
| 32WASHER | 536063101 | 4 | |||
| 33DUMMY PART | 900000002 | 4 |
FRAME 37 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1DUMMY PART | 900000002 | 16 | |||
| 2COVER | 535177902 | 1 | For filter housing | ||
| 3COVER | 535151002 | 1 | For compressor | ||
| 4FILTER HOUSING | 535177702 | 1 | |||
| 5RUBBER PLUG | 534014001 | 4 | Shock absorber | ||
| 6PLATE | 534815201 | 2 | Rubber impact plate | ||
| 7EYE BOLT | 533698301 | 5 | M10x120 | ||
| 8BRACKET | 535177502 | 5 | |||
| 9HOUSING | 535165302 | 1 | |||
| 10BAR | 533172101 | 5 | |||
| 11FILTER | 533969201 | 20 | |||
| 12BAG | 533993301 | 1 | Big bag | ||
| 13CASTER | 534809001 | 2 | |||
| 14SWIVEL | 533953401 | 2 | |||
| 15WING NUT | 533293001 | 6 | M10 | ||
| 16ELBOW | 535171702 | 2 | |||
| 17FRAME | 535231102 | 1 | |||
| 18ELECTRONIC BOX | 546328102 | 1 | |||
| 19COVER | 535145202 | 1 | |||
| 21DUMMY PART | 900000002 | 24 | |||
| 22WASHER | 536063101 | 16 | |||
| 23DUMMY PART | 900000002 | 8 | |||
| 24DUMMY PART | 900000002 | 40 | |||
| 25WASHER | 536063601 | 40 | |||
| 26WASHER | 534691501 | 40 | |||
| 27DUMMY PART | 900000002 | 5 | |||
| 28LOCK NUT | 593495301 | 10 | |||
| 29DUMMY PART | 900000002 | 21 | |||
| 30DUMMY PART | 900000002 | 8 | |||
| 31DUMMY PART | 900000002 | 6 | |||
| 32DUMMY PART | 900000002 | 14 | |||
| 33DUMMY PART | 900000002 | 8 | |||
| 34DUMMY PART | 900000002 | 8 | |||
| 35DUMMY PART | 900000002 | 8 | |||
| 36DUMMY PART | 900000002 | 8 | |||
| 37WASHER | 536063001 | 16 | |||
| 38HEXAGON NUT | 533837201 | 8 |
PULSE SYSTEM 52 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1VALVE | 533798101 | 5 | Air valve soleniod 24V AC | ||
| 1DIAPHRAGM ASSY | 534512401 | 5 | For pulse valve | ||
| 1VALVE | 533787801 | 5 | Pulse valve only (without soleniod) | ||
| 2SEAL | 534341901 | 5 | |||
| 3PIPE | 535230001 | 5 | |||
| 4UNIT | 533465401 | 20 | Divider | ||
| 5TANK | 535230102 | 1 | |||
| 6VALVE | 533256701 | 1 | Safety valve | ||
| 7PLUG | 533455601 | 1 | 1/8" | ||
| 8VALVE | 534925601 | 1 | With muffler | ||
| 9ADAPTER | 546993401 | 1 | Male | ||
| 10ADAPTER | 546993501 | 1 | Straight | ||
| 11ADAPTER | 546993601 | 1 | Male BSP | ||
| 12ADAPTER | 534739901 | 3 | Straight 6x1/8"mbsp for hose | ||
| 13HOSE | 534784601 | 1 | PU 6x4mm Blue (use 2m) | ||
| 14COMPRESSOR | 534306701 | 1 | |||
| 14AIR FILTER | 548677901 | 1 | |||
| 14FILTER HOUSING | 548678001 | 1 | |||
| 15BRACKET | 535150902 | 1 | |||
| 16COVER | 535228702 | 1 | |||
| 17BOX | 533250502 | 1 | |||
| 18KNOB | 533656201 | 2 | M8 | ||
| 19CONNECTOR | 533527901 | 1 | Knee 1/4'' MBSPT x 1/4'' FBSP | ||
| 20VALVE | 533838601 | 2 | Mini ball valve 1/4" m/f bsp | ||
| 21HOSE | 546993701 | 1 | |||
| 22STUD | 546993801 | 1 | Male stud | ||
| 23HOSE | 534296001 | 1 | 6mm x 5m | ||
| 24AIR CONDUCTOR | 534295001 | 1 | |||
| 25GAUGE | 533823401 | 1 | |||
| 27FILTER | 533529701 | 2 | For vacuum gauge | ||
| 28HOSE | 534787701 | 1 | PVC 9x6mm Clear (use 1.5m) | ||
| 29MANOMETER | 535162302 | 1 | For manometer | ||
| 30GAUGE | 546390701 | 1 | |||
| 31ADAPTER | 533881701 | 1 | Knee adapter swivel | ||
| 32COUPLER | 533774501 | 1 | Straight | ||
| 33WATER SEPARATOR | 533842701 | 1 | |||
| 34STUD | 546993901 | 1 | Male stud | ||
| 35HEXAGON NUT | 533837201 | 4 | |||
| 36WASHER | 536063001 | 4 | |||
| 37DUMMY PART | 900000002 | 4 | |||
| 39WASHER | 536063101 | 24 | |||
| 40DUMMY PART | 900000002 | 22 | |||
| 41DUMMY PART | 900000002 | 22 | |||
| 42SCREW | 593497301 | 2 | |||
| 43WASHER | 536063601 | 2 | |||
| 44WASHER | 534691501 | 2 | |||
| 45DUMMY PART | 900000002 | 4 | |||
| 46DUMMY PART | 900000002 | 4 | |||
| 47DUMMY PART | 900000002 | 4 | |||
| 48WASHER | 593779101 | 4 | |||
| 49DUMMY PART | 900000002 | 2 | |||
| 50NUT | 536063201 | 4 |
VALVES 4 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1VALVE | 534812001 | 1 | |||
| 2VALVE | 534812401 | 6 | |||
| 3VALVE | 534812301 | 6 | |||
| 4CAP | 534330301 | 24 | M5x10 |
Document Downloads
Service bulletin
Operator's manual
