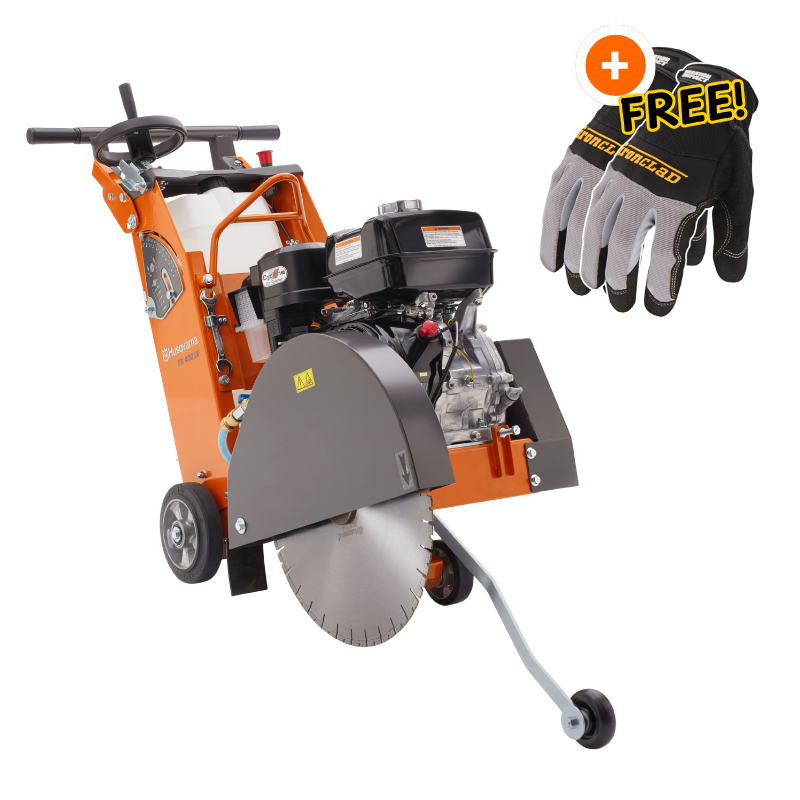

Husqvarna FS400LV | Walk-Behind Floor Saw
Husqvarna FS400LV | Walk-Behind Floor Saw
HUSQVARNA CONSTRUCTION SKU: 967796502 Copied!
Is this the right tool for the job?
Regular price
$2,879.00
Regular price
$3,349.00
Sale price
$2,879.00
Quantity
Trusted by contractors nationwide
"I've bought 3 products from CTD and each time the experience has been the same - professional and fast delivery. I trust these guys with all my concrete needs."
90 day returns
Product Details

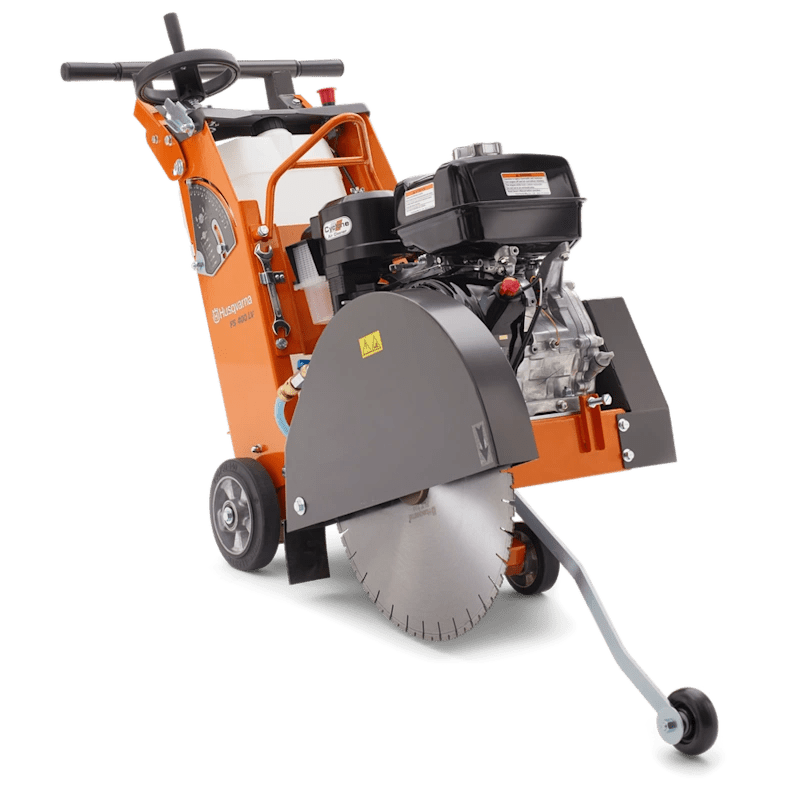

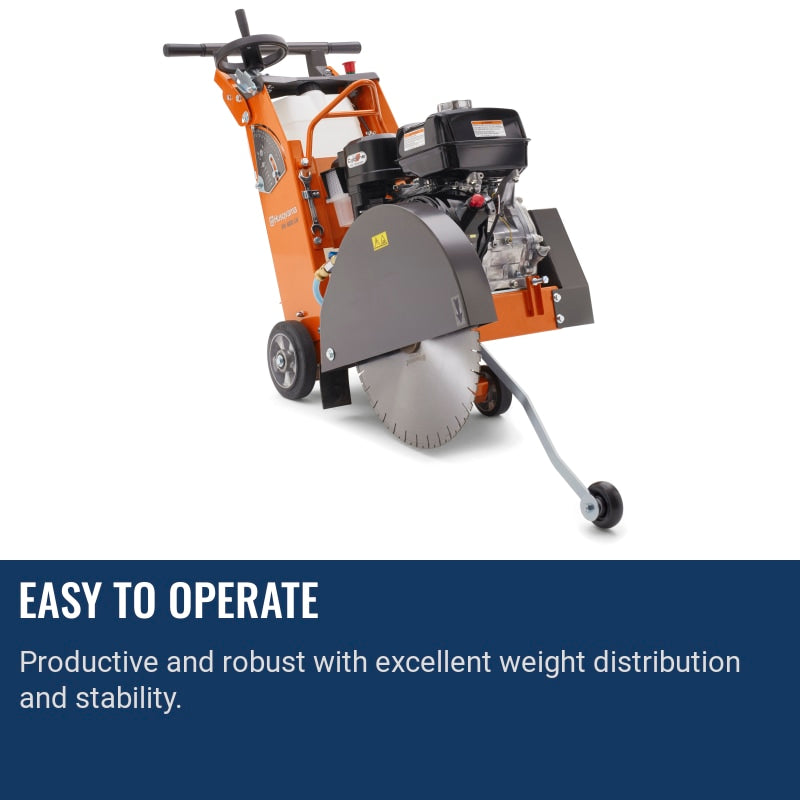

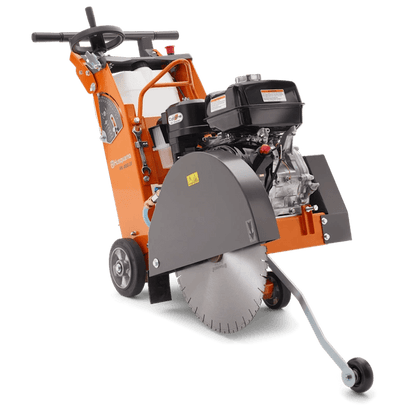

HUSQVARNA WALK-BEHIND FLOOR SAW - FS 400 LV
The Husqvarna FS 400 LV is a robust, all-round, petrol-powered walk-behind floor saw, designed with the professional in mind. With an ergonomic, adjustable handle and perfect weight distribution, it ensures stability and precision, making it ideal for small road repair jobs in concrete or asphalt. Its potent Honda engine delivers 11.7 horsepower, ensuring efficient operations.
With a maximum cutting depth of 7.5 inches and a maximum blade diameter of 20 inches, the FS 400 LV provides flexibility for diverse cutting tasks. Its hand wheel allows for easy blade depth control, making it a reliable tool for consistent and precise cuts. Weighing 220 lbs and having a compact design, it is easy to maneuver, making it a reliable choice for those demanding outdoor jobs.
- Power Source: Petrol
- Engine Power: 11.7 hp
- Maximum Cutting Depth: 7.5 in
- Maximum Blade Diameter: 20 in
- Weight: 220 lbs
Product Specification
Specifications
Motor/engine manufacturer
Honda
Engine Power (As rated by the engine manufacturer)
11.7 hp
Engine cooling
Air
Fuel tank volume
206.3 fl oz
Number of strokes
4-stroke engine
Cylinders
1
Exhaust emissions (CO₂ EU V)
302 g/kWh
Power source
Petrol
Cutting depth, max
7.5 in
Blade diameter, max
20 in
Arbor diameter
1"

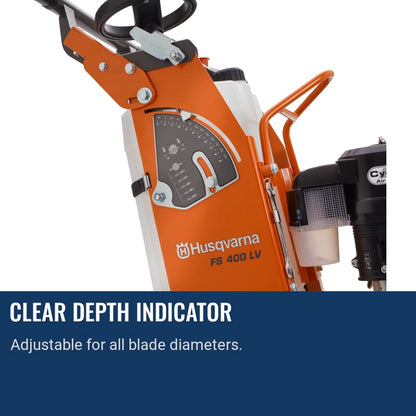

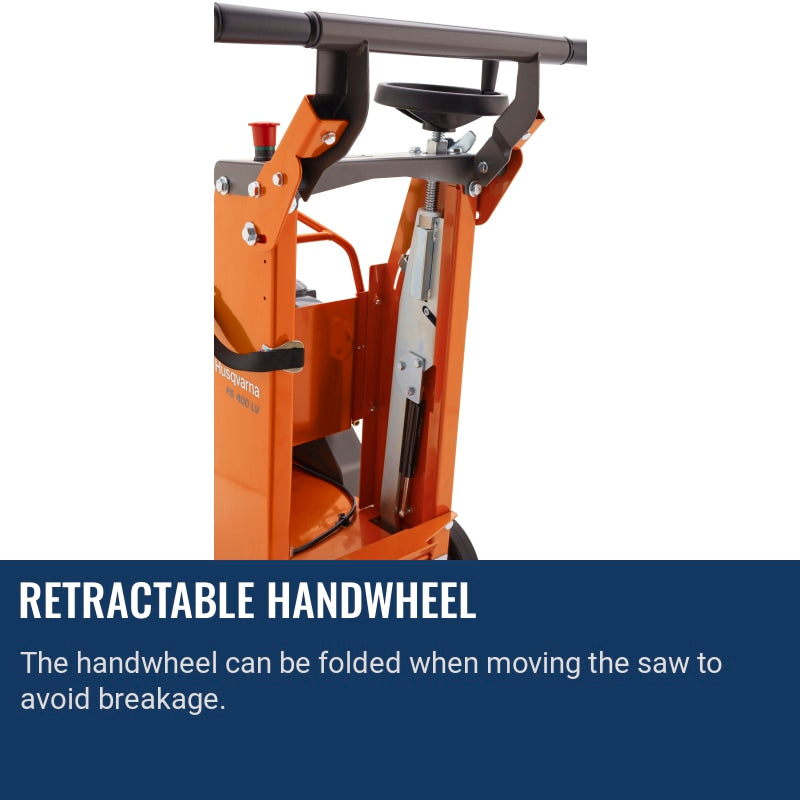

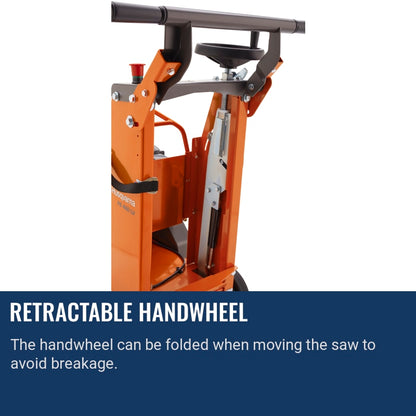

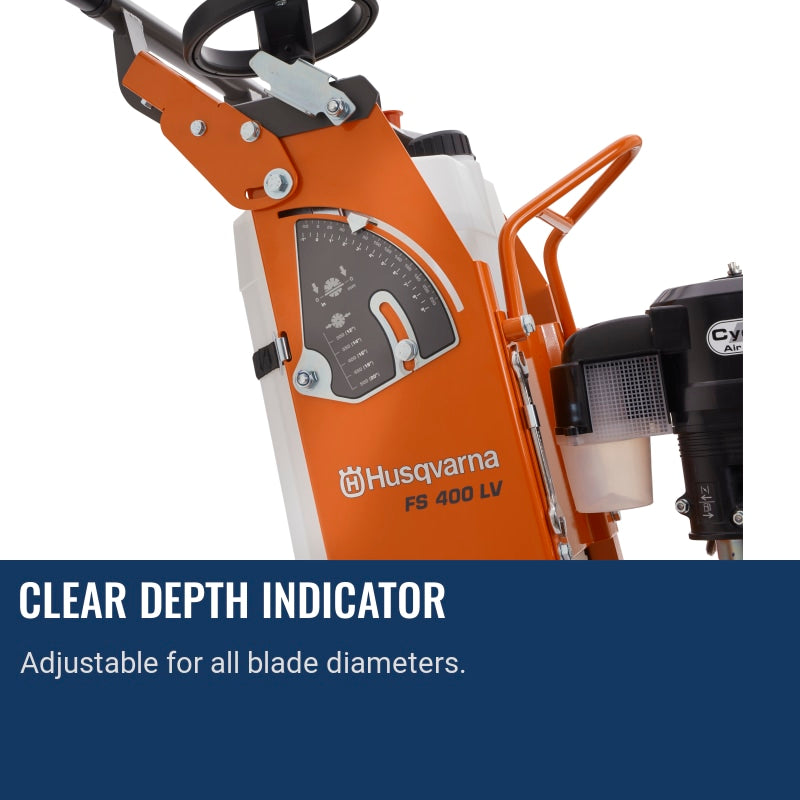

Blade depth control
Hand wheel
Product size length
45.3 in
Product size width
24.2 in
Product size height
37 in
Weight
220 lbs
Packaging length (Calc)
62.598 in
Packaging width (Calc)
36.417 in
Packaging height (Calc)
24.409 in
Article gross weight (Calc)
297.624 lbs
Warranty
1 year limited warranty
Service & Maintenance Parts
BLADE GUARD 33 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BLADE GUARD | 502082901 | 1 | 450mm |
Regular price
$361.39
Regular price
|
|
| 1BLADE GUARD | 593586201 | 1 | 500mm |
Regular price
$437.50
Regular price
|
|
| 2QUICK COUPLING | 543045612 | 1 |
Regular price
$28.19
Regular price
|
||
| 3ADAPTER | 543045610 | 1 |
Regular price
$19.79
Regular price
|
||
| 4TAP | 543045539 | 1 |
Regular price
$28.19
Regular price
|
||
| 5COLLAR | 543045560 | 1 |
Regular price
$5.34
Regular price
|
||
| 6NUT | 543045561 | 1 |
Regular price
$6.68
Regular price
|
||
| 7NOZZLE ASSY | 593111701 | 1 |
Regular price
$29.58
Regular price
|
||
| 8RIVET | 722794402 | 2 | |||
| 9DEFLECTOR | 543042875 | 1 |
Regular price
$7.29
Regular price
|
||
| 10WASHER | 734117441 | 1 |
Regular price
$19.79
Regular price
|
||
| 11SCREW EHHM | 725251551 | 1 | |||
| 13BLADE GUARD | 544950901 | 1 | 450mm |
Regular price
$180.25
Regular price
|
|
| 13BLADE GUARD | 590770501 | 1 | 500mm |
Regular price
$993.13
Regular price
|
|
| 14STICKER | 543850037 | 1 | |||
| 15KIT | 504069201 | 1 |
Regular price
$60.59
Regular price
|
||
| 16SCREW EHHM | 725249771 | 1 |
Regular price
$19.79
Regular price
|
||
| 17WASHER | 734117201 | 2 |
Regular price
$19.79
Regular price
|
||
| 18WASHER | 543046633 | 1 |
Regular price
$2.69
Regular price
|
||
| 19WASHER | 543044732 | 2 | |||
| 20HEXAGON LOCKING NUT | 732252001 | 2 |
Regular price
$19.79
Regular price
|
||
| 21POINTER | 504069101 | 1 |
Regular price
$30.19
Regular price
|
||
| 22HEXAGON NUT | 731232001 | 2 |
Regular price
$19.79
Regular price
|
||
| 23SCREW EHHM | 725250551 | 1 | |||
| 24WHEEL | 543045932 | 1 |
Regular price
$11.49
Regular price
|
||
| 25BLADE BUSHING | 542202075 | 1 | |||
| 26WASHER | 542202106 | 1 | |||
| 28SCREW EHHM | 725236671 | 1 | |||
| 29WASHER | 734115201 | 1 |
Regular price
$19.79
Regular price
|
||
| 30SCREW IHSCM | 725536801 | 2 | |||
| 31NUT | 731712051 | 1 | |||
| 32DECAL | 597086201 | 1 |
Regular price
$4.63
Regular price
|
||
| 33LOCKWASHER | 502083001 | 1 |
Regular price
$2.11
Regular price
|
BLADE SHAFT 15 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BLADE SHAFT | 585313401 | 1 | S/N before 2013 2100001, see service bulletin SB1500010 |
Regular price
$265.79
Regular price
|
|
| 2SCREW EHHM | 725249571 | 4 |
Regular price
$1.36
Regular price
|
||
| 3WASHER | 734117201 | 8 |
Regular price
$19.79
Regular price
|
||
| 4KEY | 543044796 | 1 |
Regular price
$7.29
Regular price
|
||
| 5BEARING | 543045052 | 2 |
Regular price
$143.19
Regular price
|
||
| 6HEXAGON LOCKING NUT | 732252001 | 4 |
Regular price
$19.79
Regular price
|
||
| 7BLADE SHAFT | 581189101 | 1 | S/N before 2013 2100001, see service bulletin SB1500010 |
Regular price
$146.49
Regular price
|
|
| 8KEY | 581492801 | 2 | S/N before 2013 2100001, see service bulletin SB1500010 |
Regular price
$7.99
Regular price
|
|
| 9FLANGE TOOL KIT | 598746701 | 1 |
Regular price
$48.19
Regular price
|
||
| 10TOOL | 597826001 | 1 |
Regular price
$7.76
Regular price
|
||
| 11SCREW | 543077344 | 1 |
Regular price
$30.00
Regular price
|
||
| 12FLANGE | 595280801 | 1 | S/N before 2013 2100001, see service bulletin SB1500010 |
Regular price
$135.49
Regular price
|
|
| 13FLANGE | 597823401 | 1 |
Regular price
$49.13
Regular price
|
||
| 20SCREW IHSETM | 728744505 | 2 |
Regular price
$71.60
Regular price
|
||
| 21PULLEY | 543046571 | 1 |
Regular price
$65.79
Regular price
|
ENGINE 25 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1DRIVE BELT | 588768501 | 1 |
Regular price
$78.99
Regular price
|
||
| 2HEXAGON LOCKING NUT | 732252001 | 4 |
Regular price
$19.79
Regular price
|
||
| 3WASHER | 734117441 | 4 |
Regular price
$19.79
Regular price
|
||
| 4HARNESS | 502304817 | 1 | HONDA GX390UTQXC9 |
Regular price
$39.19
Regular price
|
|
| 4HARNESS | 536592701 | 1 | HONDA GX390H1QXHQ + KOHLER CH440-3330 | ||
| 5SCREW EHHFT | 725236661 | 1 | |||
| 6SOCKET | 543047852 | 1 |
Regular price
$7.99
Regular price
|
||
| 7WIRE HOLDER | 543045099 | 5 |
Regular price
$6.68
Regular price
|
||
| 9DECAL | 543045788 | 1 | 108dB | ||
| 10DECAL | 543045871 | 1 | STOP |
Regular price
$3.69
Regular price
|
|
| 11STOP SWITCH | 582101501 | 1 |
Regular price
$96.09
Regular price
|
||
| 12DEFLECTOR | 543047841 | 1 | HONDA GX390 | ||
| 12DEFLECTOR | 599349290 | 1 | HH 389 MPC | ||
| 13OIL | 542202151 | 1 | |||
| 15SCREW IHSETM | 728744505 | 2 |
Regular price
$71.60
Regular price
|
||
| 16PULLEY | 543046572 | 1 |
Regular price
$65.79
Regular price
|
||
| 17PLATE KIT | 587613801 | 1 |
Regular price
$75.49
Regular price
|
||
| 18SCREW EHHM | 725250251 | 4 |
Regular price
$4.65
Regular price
|
||
| 19ENGINE | 574181103 | 1 | HONDA GX390H1QXHQ - only in FS 400 LV | ||
| 19ENGINE | 577961201 | 1 | HONDA GX390UTQXC9 - only in FS 400 LV |
Regular price
$2,422.29
Regular price
|
|
| 19ENGINE | 536357901 | 1 | KOHLER CH440-3330 - only in FS 400 LV | ||
| 19ENGINE | 537498101 | 1 | HH 389 MPC - only in FS 400 LV S - for a complete spare part list go to product 542026301 |
Regular price
$2,010.00
Regular price
|
|
| 20TERMINAL BLOCK | 510431401 | 1 | HH 389 MPC + HONDA GX390UTQXC9 |
Regular price
$30.80
Regular price
|
|
| 20TERMINAL BLOCK | 510431501 | 1 | HONDA GX390H1QXHQ + KOHLER CH440-3330 |
Regular price
$26.86
Regular price
|
|
| 21DECAL | 536581301 | 1 | WARNING |
FRAME 28 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1PLUG | 543045599 | 1 |
Regular price
$30.00
Regular price
|
||

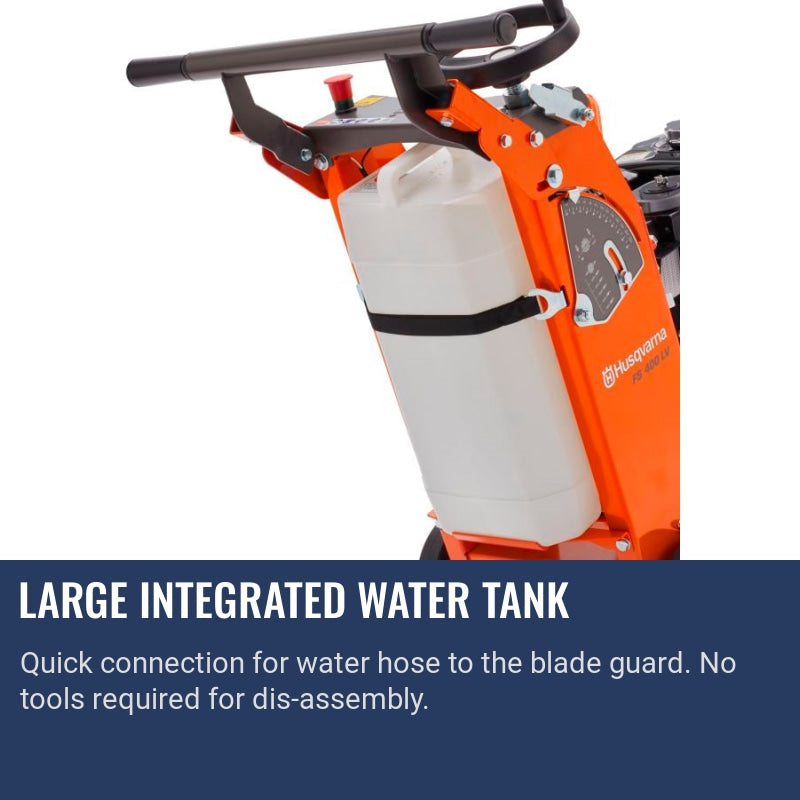

| 2RESERVOIR | 599266701 | 1 | incl. pos. 2,3,26,27 |
Regular price
$143.19
Regular price
|
|
| 2TANK ASSY | 536260401 | 1 | straight nipple |
Regular price
$119.99
Regular price
|
|
| 3QUICK COUPLING | 543045612 | 2 |
Regular price
$28.19
Regular price
|
||
| 4BLADE GUARD | 502082901 | 1 |
Regular price
$361.39
Regular price
|
||
| 5FITTING | 542202308 | 1 | |||
| 6VALVE | 505213401 | 1 |
Regular price
$42.19
Regular price
|
||
| 7SCREW EHHM | 725229571 | 2 | |||
| 8LOCKWASHER | 735216401 | 2 |
Regular price
$0.49
Regular price
|
||
| 9WASHER | 734113601 | 2 | |||
| 10CLIP | 543850344 | 1 | |||
| 11FITTING | 542202321 | 1 | |||
| 12HOSE | 576199302 | 1 | (~ 70cm) | ||
| 13HEXAGON NUT FLANGE | 588222101 | 1 |
Regular price
$19.79
Regular price
|
||
| 14WASHER | 542045640 | 1 | |||
| 15KIT | 504069201 | 1 |
Regular price
$60.59
Regular price
|
||
| 16PARKING BRAKE | 529706802 | 1 |
Regular price
$172.99
Regular price
|
||
| 17SIDE LAMINATE | 542202315 | 1 | US |
Regular price
$176.99
Regular price
|
|
| 18SUPPORT | 534150101 | 1 |
Regular price
$77.39
Regular price
|
||
| 19STRAINER | 534150001 | 1 |
Regular price
$36.39
Regular price
|
||
| 20SCREW EHHFM | 585973101 | 2 |
Regular price
$19.79
Regular price
|
||
| 21WASHER | 590297501 | 2 |
Regular price
$11.79
Regular price
|
||
| 22SCREW IHCSFM | 725636601 | 2 | |||
| 23STICKER | 590567601 | 1 |
Regular price
$10.49
Regular price
|
||
| 24DECAL | 542190617 | 1 |
Regular price
$10.19
Regular price
|
||
| 25NIPPLE | 536994801 | 1 | |||
| 26CLIP | 543850344 | 1 | |||
| 27HOSE | 576199304 | 1 | (~ 100cm) |
Regular price
$23.69
Regular price
|
HANDLE 44 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HANDLE | 585247101 | 1 |
Regular price
$151.59
Regular price
|
||
| 2ARM | 544951101 | 1 |
Regular price
$12.16
Regular price
|
||
| 3HANDLE ASSY | 581793902 | 1 |
Regular price
$145.09
Regular price
|
||
| 4SCREW EHHM | 725244771 | 8 | |||
| 5WASHER | 734116301 | 10 |
Regular price
$19.79
Regular price
|
||
| 6ANTIVIBRATION ELEMENT | 581812801 | 4 |
Regular price
$25.09
Regular price
|
||
| 7ARM | 544951001 | 1 |
Regular price
$12.16
Regular price
|
||
| 8GRIP | 542139568 | 1 |
Regular price
$19.79
Regular price
|
||
| 9RIVET | 722781803 | 2 | |||
| 10SCREW EHHM | 725249371 | 6 |
Regular price
$19.79
Regular price
|
||
| 11WASHER | 734117441 | 11 |
Regular price
$19.79
Regular price
|
||
| 12WASHER | 543044732 | 4 | |||
| 13HEXAGON NUT | 731232001 | 2 |
Regular price
$19.79
Regular price
|
||
| 14SCREW EHHM | 725249771 | 3 |
Regular price
$19.79
Regular price
|
||
| 15WAIST-BELT | 596976601 | 1 |
Regular price
$38.09
Regular price
|
||
| 16WASHER | 543046633 | 2 |
Regular price
$2.69
Regular price
|
||
| 17PANEL | 544950501 | 1 |
Regular price
$91.00
Regular price
|
||
| 18SUPPORT | 544950001 | 1 | |||
| 19SCREW EHHM | 725249171 | 11 |
Regular price
$1.39
Regular price
|
||
| 20WASHER | 734117201 | 10 |
Regular price
$19.79
Regular price
|
||
| 21SCREW EHHM | 725253471 | 2 |
Regular price
$7.75
Regular price
|
||
| 22WASHER | 734117801 | 2 |
Regular price
$6.29
Regular price
|
||
| 23WHEEL | 543045951 | 2 |
Regular price
$43.09
Regular price
|
||
| 24WHEEL AXLE | 543042515 | 2 |
Regular price
$74.79
Regular price
|
||
| 25SEALING STRIP | 543046068 | 1 |
Regular price
$1.36
Regular price
|
||
| 26LOCKWASHER | 502083001 | 2 |
Regular price
$2.11
Regular price
|
||
| 27SCREW EHHM | 725249571 | 2 |
Regular price
$1.36
Regular price
|
||
| 28DECAL | 543045853 | 1 |
Regular price
$3.69
Regular price
|
||
| 29CONSOLE | 504068501 | 1 |
Regular price
$47.69
Regular price
|
||
| 30PANEL | 544950604 | 1 | US and EU |
Regular price
$100.63
Regular price
|
|
| 31HEXAGON LOCKING NUT | 732252001 | 2 |
Regular price
$19.79
Regular price
|
||
| 32SCREW EHHM | 725245171 | 1 | |||
| 33LOCK NUT | 732211801 | 1 |
Regular price
$22.78
Regular price
|
||
| 34PROTECTIVE PLATE | 544949801 | 1 |
Regular price
$31.89
Regular price
|
||
| 35LIFT | 544949901 | 1 |
Regular price
$30.80
Regular price
|
||
| 36RIVET | 543850103 | 2 |
Regular price
$4.20
Regular price
|
||
| 37SPRING | 543046203 | 1 |
Regular price
$9.39
Regular price
|
||
| 38WRENCH | 543045904 | 1 |
Regular price
$6.68
Regular price
|
||
| 39BELT GUARD | 582514703 | 1 |
Regular price
$120.75
Regular price
|
||
| 40SCREW EHHM | 725250171 | 1 |
Regular price
$2.61
Regular price
|
||
| 41FRAME | 544950301 | 1 | 450mm before S/N: 20184300135 | ||
| 41BASEPLATE | 590921601 | 1 |
Regular price
$527.63
Regular price
|
||
| 42DECAL | 586627101 | 1 |
Regular price
$12.16
Regular price
|
||
| 43SCREW EHHFM | 585973101 | 3 |
Regular price
$19.79
Regular price
|
HEIGHT ADJUSTMENT 47 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HANDLE | 543076294 | 1 | |||
| 2BEARING | 504798901 | 1 | |||
| 3HEXAGON NUT | 731232001 | 4 | |||
| 4WASHER | 543044732 | 2 | |||
| 5PLATE | 543076651 | 1 | |||
| 6WASHER | 734117201 | 11 | |||
| 7HEXAGON LOCKING NUT | 732252001 | 2 | |||
| 8SCREW EHHM | 725249771 | 1 | |||
| 9HEIGHT ADJUSTER | 543074515 | 1 | 450mm before S/N: 20184300135 | ||
| 9DEPTH GAUGE | 590774401 | 1 | |||
| 10HEXAGON NUT | 731231801 | 3 | |||
| 11PANEL | 544950501 | 1 | |||
| 12WASHER | 543046633 | 1 | |||
| 13SUPPORT | 543079629 | 1 | 450mm before S/N: 20184300135 | ||
| 13PLATE | 591434501 | 1 | |||
| 14STICKER | 543079619 | 1 | 450mm before S/N: 20184300135 | ||
| 14DECAL | 591434601 | 1 | |||
| 15SCREW EHHM | 725249171 | 6 | |||
| 16SCREW EHHM | 725249571 | 1 | |||
| 17NIPPLE | 504204501 | 2 | |||
| 18WASHER | 734117441 | 1 | |||
| 19WASHER | 543850352 | 1 | |||
| 20SCREW IHSETM | 728744705 | 1 | |||
| 21CONSOLE | 504068501 | 1 | |||
| 22LABEL | 543071267 | 1 | |||
| 23NUT | 543044772 | 2 | |||
| 24WASHER | 543076329 | 4 | |||
| 25HEIGHT ADJUSTER | 543042861 | 1 | |||
| 26HEIGHT ADJUSTER | 587224301 | 1 | 450mm before S/N: 20184300135 | ||
| 26HEIGHT ADJUSTER | 593112701 | 1 | |||
| 27SCREW IHSCM | 725545101 | 1 | |||
| 28SCREW EHHM | 725245171 | 2 | |||
| 29GAS SPRING | 543074526 | 1 | |||
| 30HEXAGON NUT | 731711851 | 2 | |||
| 31SPRING WASHER | 735116401 | 2 | |||
| 32SPRING | 543076293 | 1 | |||
| 33WASHER | 734116301 | 1 | |||
| 34NUT | 543044766 | 1 | |||
| 35CLAMP | 543041959 | 2 | |||
| 36CARRIAGE | 544950401 | 1 | |||
| 37SCREW EHHM | 725249971 | 1 | |||
| 38SPACER | 543040217 | 4 | |||
| 39WHEEL | 543045949 | 2 | |||
| 40NUT | 543044757 | 2 | |||
| 41SCREW EHHM | 725249571 | 2 | |||
| 42DECAL | 586627101 | 2 | |||
| 43LOCKING PLATE | 590914301 | 1 |
Document Downloads
Workshop manual
Operator's manual
Service bulletin
-
SB. Recommended parts list, FS 400 LV, 2022-06PDF EN
-
SB. Battery Specifications for FS and Soff-Cut, 2015-06PDF EN
-
SB. New stop switch, Floor saws FS 400 LV, FS 413, FS 513, FS 520, FS 524, 2015-03PDF EN
-
SB. Updated blade shaft, inner flange and key, FS 400 LV, 2015-03PDF EN
-
SB. Blade shaft greasing, FS 400 LV, 2018-10PDF EN
-
SB. Depth adjustment bearing assembly, FS 400 LV, 2013-01PDF EN
-
SB. Engine model information, FS, SoffCut, PP, 2016-03PDF EN
Illustrated part list
Related Parts
-
Husqvarna Stop Switch Kit 582101501SKU: 582101501 -
Husqvarna 543045539 TAPSKU: 543045539 -
Husqvarna 599266701 Reservoir Reservoir Service Kit 30 LitSKU: 599266701 -
Husqvarna 504069201 Kit Pointer FS400LV With Roller ZincplatedSKU: 504069201 -
Husqvarna Handle 543076294SKU: 543076294 -
Husqvarna Drive Belt 588768501SKU: 588768501 -
Husqvarna 543045949 Wheel ALU Incl. Bearing 125/40SKU: 543045949 -
Husqvarna 585313401 Blade Shaft KitSKU: 585313401 -
Husqvarna 596976601 Waist-Belt Water Tank AssySKU: 596976601 -
Husqvarna 542202315 Side LaminateSKU: 542202315 -
Husqvarna 543045612 Quick CouplingSKU: 543045612 -
Husqvarna Adapter 543045610SKU: 543045610 -
Husqvarna 542139568 GripSKU: 542139568 -
Husqvarna 543045599 Plug PVC Bidon 30L/Noir 15SKU: 543045599 -
Husqvarna 543045932 Wheel 80/25 PVC GrisSKU: 543045932
Concrete Focus
From pouring to resurfacing, we sell tools built for concrete pros.
Expert Support
Get guidance from experts who understand jobsite challenges.
Fast Delivery
Get your tools fast with our nationwide shipping network and local partnerships.
Talk to an expert now (855) 281-1918
Get fast, expert help choosing the right concrete tools or equipment for your job. Ask about availability, specs, troubleshooting, or get friendly guidance before you place an order.
