Product Specifications
Specifications
Motor/engine manufacturer
                    Honda
                  Engine Power (As rated by the engine manufacturer)
                    11.7 hp
                  Engine cooling
                    Air
                  Fuel tank volume
                    206.3 fl oz
                  Number of strokes
                    4-stroke engine
                  Cylinders
                    1
                  Exhaust emissions (CO₂ EU V)
                    743 g/kWh
                  Power source
                    Petrol
                  Cutting depth, max
                    7.6 in
                  Blade diameter, max
                    20 in
                  Arbor diameter
                    1"

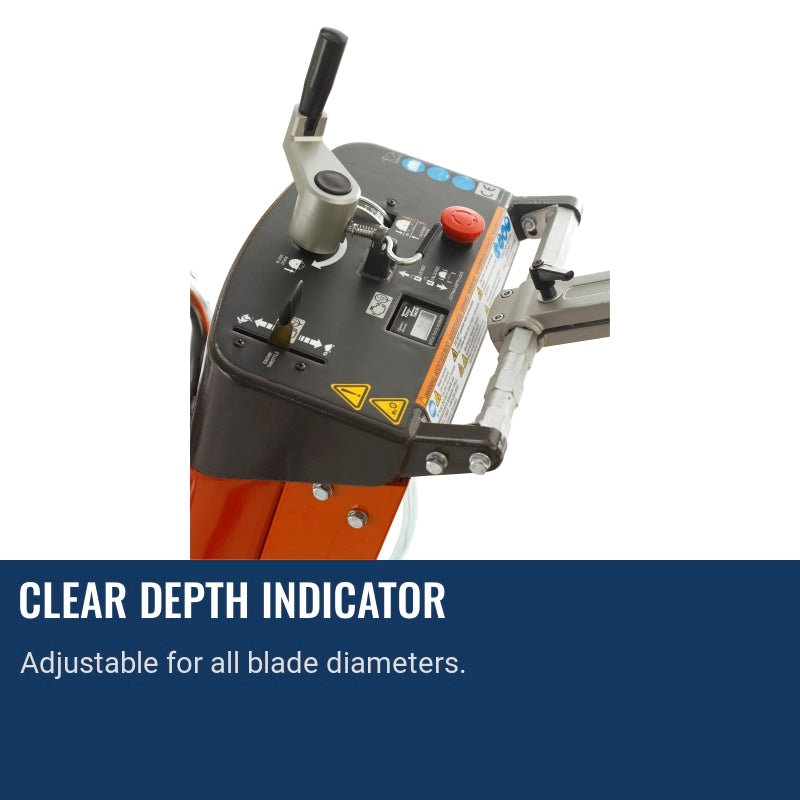

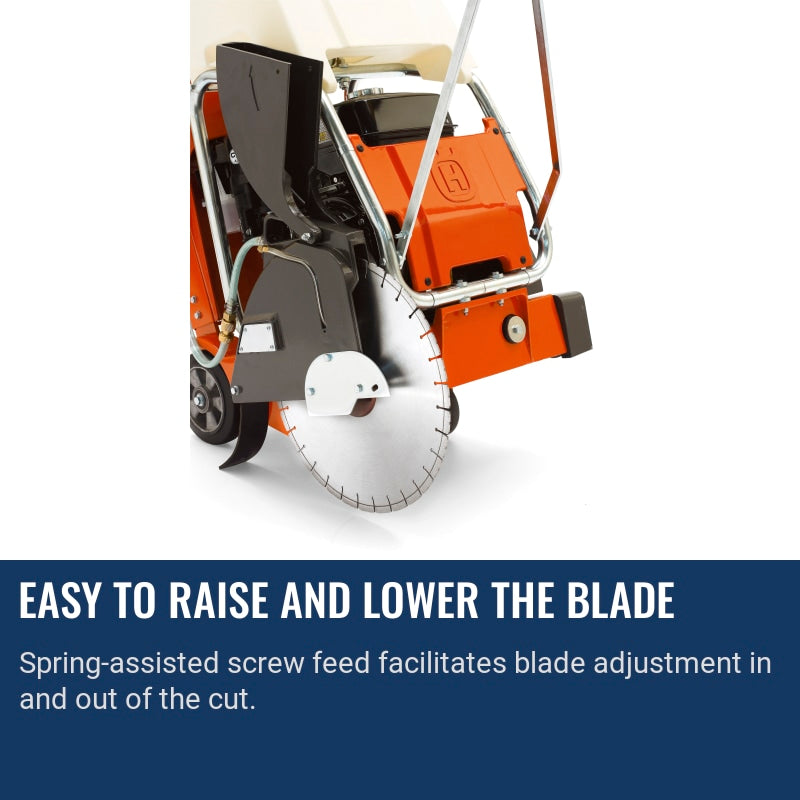

                  Blade depth control
                    Patent-pending spring assist raise/lower with positive lock-type hand crank
                  Product size length
                    61.02 in
                  Product size width
                    19.9 in
                  Product size height
                    47.24 in
                  Weight
                    306 lbs
                  Packaging length (Calc)
                    44.488 in
                  Packaging width (Calc)
                    28.74 in
                  Packaging height (Calc)
                    49.606 in
                  Article gross weight (Calc)
                    365.967 lbs
                  Document Downloads
Operator's manual
Service bulletin
-

                   SB. Recommended parts list, FS 413, 2022-06PDF EN
-

                   SB. Blade shaft pulley, FS 410, FS 413, FS 513, FS 520, FS 524, 2022-03PDF EN
-

                   SB. Battery Specifications for FS and Soff-Cut, 2015-06PDF EN
-

                   SB. New stop switch, Floor saws FS 400 LV, FS 413, FS 513, FS 520, FS 524, 2015-03PDF EN
-

                   SB. Blade guard updates, FS410D, FS413, FS513, FS520, FS524, 2016-04PDF EN
-

                   SB. Engine model information, FS, SoffCut, PP, 2016-03PDF EN
-

                   SB. Engine Stud bolt, FS 410, FS 413, FS 513, FS 520, FS 524, 2021-05PDF EN
