Husqvarna FS 5000 D | Walk-Behind Floor Saw
Husqvarna FS 5000 D | Walk-Behind Floor Saw
HUSQVARNA CONSTRUCTION SKU: 970750208 Copied!
Regular price
$39,599.00
Regular price
$49,999.00
Sale price
$39,599.00
Quantity
Trusted by contractors nationwide
"I've bought 3 products from CTD and each time the experience has been the same - professional and fast delivery. I trust these guys with all my concrete needs."
90 day returns
Product Details

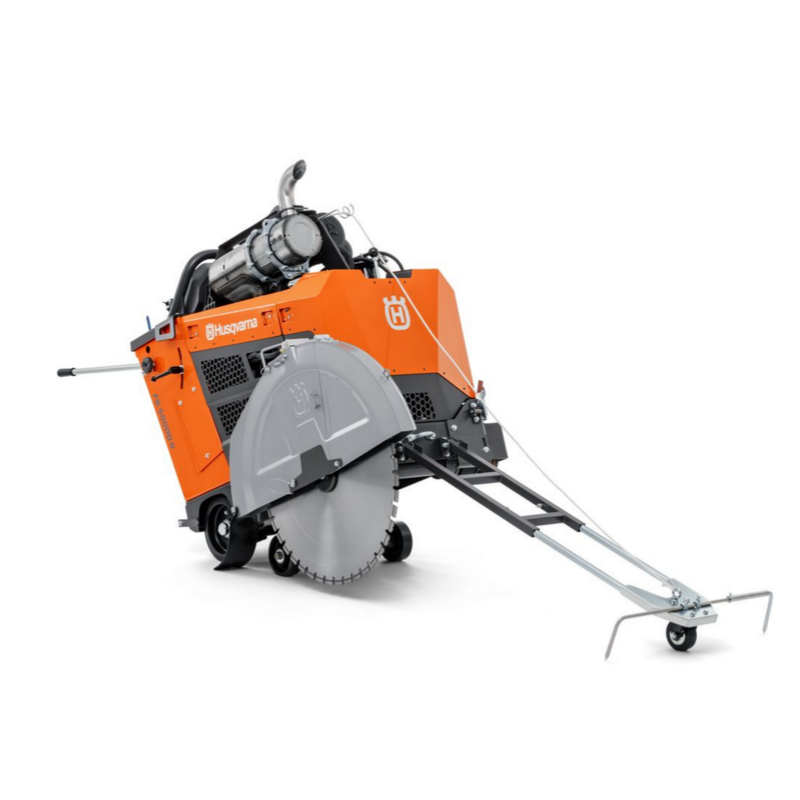

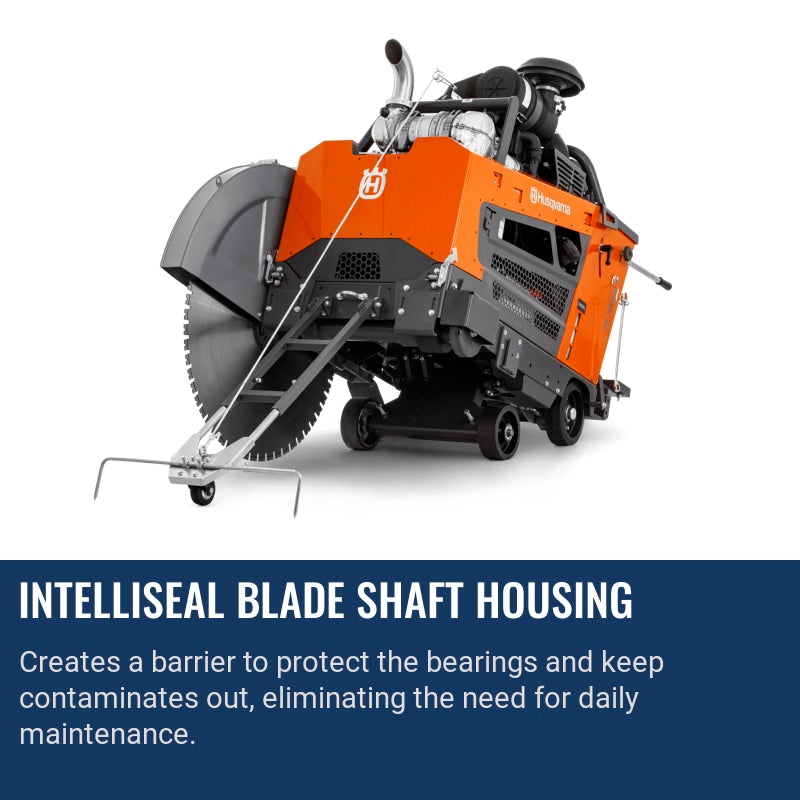

HUSQVARNA WALK-BEHIND FLOOR SAW - FS 5000 D
The Husqvarna FS 5000 D is a powerful diesel walk-behind floor saw engineered for high-performance cutting in asphalt and concrete. Powered by a 47.6 hp Yanmar diesel engine and compliant with EPA Tier 4 and EU Stage V emission standards, it delivers exceptional torque and productivity for demanding professional applications. Its compact, well-balanced design and intuitive controls enhance operator comfort and make it ideal for heavy-duty service work.
Designed for versatility, the FS 5000 D accommodates blades up to 36 inches in diameter and delivers a maximum cutting depth of 15 inches. Available with either a single-speed or 3-speed gearbox, it can be customized with options including an electronic tracking system, 5th wheel, light kit, water pump kit, and weight kits to meet a wide range of jobsite requirements.
- Power Source: Diesel
- Engine Power: 47.6 hp
- Maximum Cutting Depth: 15 in
- Maximum Blade Diameter: 36 in
- EPA Tier 4 & EU Stage V compliant Yanmar diesel engine
Product Specification
FLOOR SAW FS 5000 D 48 hp | 36" | Yanmar | FP
General
Article number
970750208
Power Specifications
Motor/engine manufacturer
Yanmar
Engine Power (As rated by the engine manufacturer)
47.6 hp
Engine cooling
Liquid /Air
Number of strokes
4-stroke engine
Exhaust emissions (CO₂ EU V)
835 g/kWh
Cylinders
4
Power Source
Diesel
Working Specifications
Cutting depth, max
15 in
Blade diameter, max
36 in
Arbor diameter
1"
Blade depth control
Electric hydraulic
Number of gearbox speeds
1
Transmission speed forward
122 fpm
Transmission speed reverse
82 fpm
Output shaft RPM, Speed 1
1,355 rpm
Output shaft RPM, Speed 2
1,526 rpm
Output shaft RPM, Speed 3
2,188 rpm
Product size length
69 in
Product size width
33.4 in
Product size height
51.6 in
Weight Specifications
Weight
1,984 lbs
Other Specifications
Packaging length (Calc)
81.496 in
Packaging width (Calc)
42.992 in
Packaging height (Calc)
65 in
Related Equipment
Related Equipment
Service & Maintenance Parts
BASE PLATE 45 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1PLATE | 540600701 | 1 | KIT | ||
| 2SCREW EHHFM | 585975301 | 4 | |||
| 3SCREW IHCSFM | 502023501 | 2 | |||
| 4LABEL | 599963601 | 1 | |||
| 5SCREW EHHM | 725250381 | 2 | |||
| 6WASHER | 734117201 | 4 |
Regular price
$19.79
Regular price
|
||
| 7CLAMP | 501857901 | 1 | |||
| 8HEXAGON LOCKING NUT | 732252001 | 2 |
Regular price
$19.79
Regular price
|
||
| 9BRACKET | 546816001 | 2 | |||
| 10HEXAGON LOCKING NUT | 732251801 | 1 |
Regular price
$19.79
Regular price
|
||
| 11BRACKET | 505189101 | 1 | |||
| 12SCREW EHHFM | 585972801 | 1 | |||
| 13SCREW EHHFM | 585975601 | 8 | |||
| 14BRACKET | 586141301 | 1 | |||
| 15PROTECTION | 586004101 | 1 | |||
| 16PROTECTION | 586004201 | 1 | |||
| 17PROTECTION | 586175801 | 4 | |||
| 18BRACKET | 586666601 | 1 | |||
| 19SCREW EHHFM | 587259001 | 2 | |||
| 20BRACKET | 586141101 | 1 | |||
| 21SCREW EHHFM | 581249404 | 4 | |||
| 22MOUNT | 579727301 | 1 | |||
| 23MOUNT | 579727201 | 1 | |||
| 24SUPPORT KIT | 588957201 | 1 | Engine support KIT | ||
| 25SCREW EHHFM | 576654803 | 4 | |||
| 26LOOP | 504580302 | 2 | |||
| 27SCREW EHHFM | 585973101 | 16 |
Regular price
$19.79
Regular price
|
||
| 28SCREW IHCSFM | 725649351 | 4 | |||
| 29BRACKET | 588733401 | 1 | |||
| 30BASEPLATE | 547531701 | 1 | |||
| 31INSULATOR | 581167301 | 1 | |||
| 32LOCK | 581106001 | 1 | |||
| 33POINTER | 581115201 | 2 | |||
| 34SCREW EHHFM | 581243301 | 2 | |||
| 36BRACKET | 579359401 | 2 | |||
| 37LOCK | 581106101 | 1 | |||
| 38GUARD | 588831901 | 2 | |||
| 39BRACKET | 588733501 | 1 | |||
| 40SPACER | 587895101 | 2 | |||
| 41SPADE | 588735201 | 2 | |||
| 42SCREW IHCSFM | 725649751 | 4 | |||
| 43RETAINER | 548507901 | 2 | |||
| 44BRACKET | 579362101 | 1 | |||
| 45SERVICE KIT | 588840004 | 1 | complete bracket - left side (incl. Pos. 39-42) | ||
| 46SERVICE KIT | 588840003 | 1 | complete bracket - right side (incl. Pos. 29;40-42) |
BLADE GUARD 43 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HOSE | 548457001 | 1 | 500, 650, 900mm, 30",36" L=1100mm | ||
| 1HOSE | 548457101 | 1 | 750mm, 26", L=1400mm | ||
| 2SCREW EHHFM | 585173901 | 2 | |||
| 3PLUG | 581160401 | 1 | |||
| 4MANIFOLD | 581157201 | 1 | |||
| 5HYDRAULIC KIT | 541208296 | 1 | |||
| 6O-RING | 740430700 | 2 |
Regular price
$25.55
Regular price
|
||
| 7HOOK | 582588801 | 1 | |||
| 8WIRE | 582744401 | 1 | |||
| 9BLADE GUARD | 579467801 | 1 | 500mm | ||
| 9BLADE GUARD | 579509201 | 1 | 650mm, 26" | ||
| 9BLADE GUARD | 579510901 | 1 | 750mm, 30" | ||
| 9BLADE GUARD | 582372601 | 1 | 900mm, 36" | ||
| 10HINGE | 582298701 | 1 | |||
| 11SCREW EHHFM | 585975401 | 5 | |||
| 15LATCH ASSY | 540165901 | 1 | KIT | ||
| 16SCREW EHHFM | 506570105 | 3 | |||
| 17PLATE | 531289201 | 1 | |||
| 18RETAINER | 547027401 | 1 | |||
| 19LATCH | 547352501 | 1 | |||
| 20BLADE GUARD | 540162801 | 1 | 30" US | ||
| 20BLADE GUARD | 540162901 | 1 | 36" US | ||
| 20BLADE GUARD | 582767901 | 1 | 750mm, 30" | ||
| 20BLADE GUARD | 582781801 | 1 | 900mm, 36" | ||
| 20BLADE GUARD | 582870501 | 1 | 650mm, 26" | ||
| 20BLADE GUARD | 582877001 | 1 | 500mm | ||
| 21HEXAGON LOCKING NUT | 732251601 | 2 |
Regular price
$19.79
Regular price
|
||
| 22PLATE | 581603001 | 1 | 3 inch | ||
| 23BLADE GUARD | 540162301 | 1 | 500mm CE | ||
| 23BLADE GUARD | 540162401 | 1 | 650mm CE | ||
| 23BLADE GUARD | 540162501 | 1 | 750mm CE | ||
| 23BLADE GUARD | 540162601 | 1 | 900mm CE | ||
| 23BLADE GUARD | 540162701 | 1 | 26" US | ||
| 23BLADE GUARD | 540162801 | 1 | 30" US | ||
| 23BLADE GUARD | 540162901 | 1 | 36" US | ||
| 24SPLASH GUARD | 581605101 | 1 | 3 inch | ||
| 25HEXAGON LOCKING NUT | 732251801 | 2 |
Regular price
$19.79
Regular price
|
||
| 26PIPE | 586019001 | 1 | 500mm CE | ||
| 26PIPE | 586019101 | 1 | 650mm, 26" | ||
| 26PIPE | 586019201 | 1 | 750mm, 30" | ||
| 26PIPE | 586019301 | 1 | 900mm, 36" |
Regular price
$119.86
Regular price
|
|
| 27BRACKET | 579608301 | 2 | 36" only | ||
| 28SCREW IHCSFM | 725649351 | 8 | 36" only |

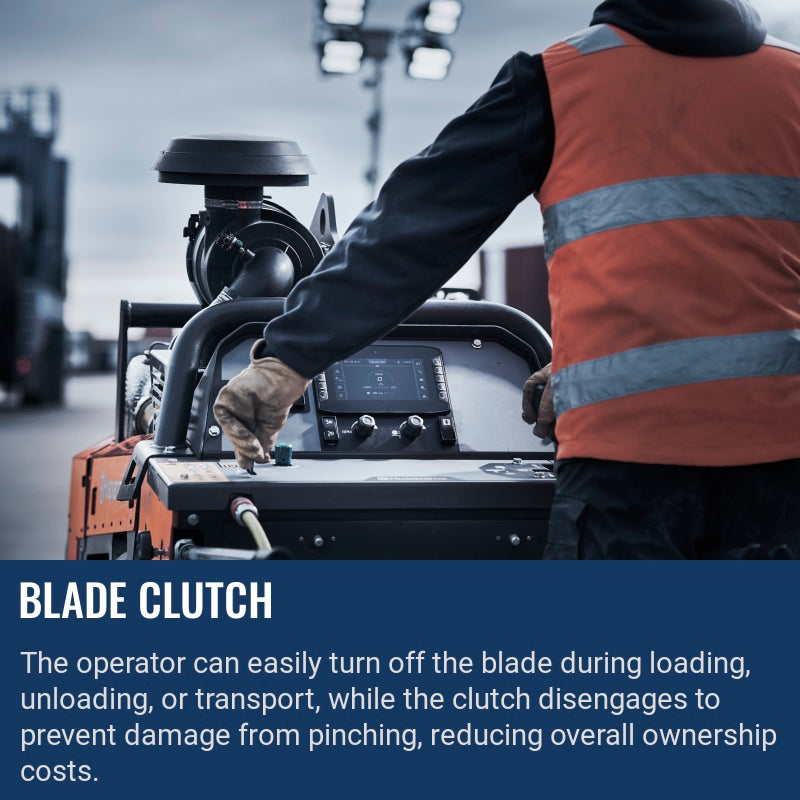

CLUTCH 17 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1CLUTCH | 586701401 | 1 | |||
| 2COIL | 542199396 | 1 | |||
| 3SPRING WASHER | 735116401 | 4 |
Regular price
$19.79
Regular price
|
||
| 4SCREW EHHM | 725245776 | 4 |
Regular price
$19.79
Regular price
|
||
| 5HUB | 542199387 | 1 | |||
| 6RING | 542198953 | 2 | |||
| 7BUSHING | 542199480 | 1 | |||
| 10ROTOR | 542166685 | 1 |
Regular price
$1,279.00
Regular price
|
||
| 11SCREW | 542199053 | 8 | |||
| 12SCREW | 599283601 | 8 | |||
| 13CLUTCH | 581020401 | 1 | |||
| 14SPACER | 580914801 | 1 | |||
| 15COUPLING | 586708301 | 1 | |||
| 16COUPLER | 587277501 | 1 | |||
| 17PLUG | 542183375 | 1 | |||
| 18SWITCH | 547472001 | 1 | Clutch switch | ||
| 19RELAY | 547907301 | 1 | Relay, Safe |

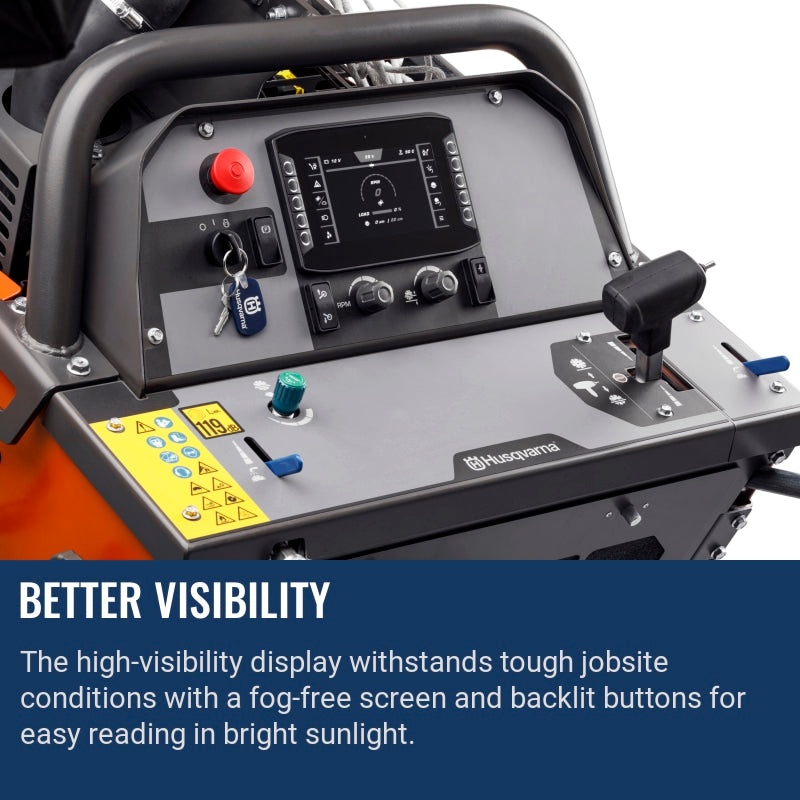

CONTROLS 17 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1DISPLAY | 546652901 | 1 | |||
| 2PANEL ASSY | 540158001 | 1 | Panel incl. decal CE | ||
| 2PANEL ASSY | 540158101 | 1 | Panel incl. decal US | ||
| 3PANEL ASSY | 540157901 | 1 | Panel incl. decal CE/US | ||
| 4BUTTON | 547761101 | 1 | |||
| 5SWITCH | 547472301 | 1 | |||
| 6SCREW | 542199053 | 10 | |||
| 7ELECTRIC MODULE | 547475401 | 2 | |||
| 8PLUG | 547744601 | 2 | |||
| 9KNOB | 548453501 | 2 | |||
| 10SCREW EHHFM | 535475245 | 2 | |||
| 11CABLE ASSY | 540166301 | 2 | |||
| 12HEXAGON LOCKING NUT | 732251601 | 2 |
Regular price
$19.79
Regular price
|
||
| 13PANEL ASSY | 540158201 | 1 | Panel incl. decal CE/US | ||
| 14BRACKET | 546816501 | 1 | |||
| 15WIRING ASSY | 546352501 | 1 | |||
| 16CLAMP | 583959501 | 4 |
COOLING SYSTEM 32 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1RADIATOR ASSY | 596332301 | 1 | |||
| 2SCREW EHHFM | 585975401 | 26 | |||
| 3PLATE | 586667301 | 1 | RH side | ||
| 4BRACKET | 583912101 | 2 | |||
| 5COOLER | 582188101 | 1 | |||
| 6RADIATOR ASSY | 594107701 | 1 | |||
| 7BRACKET | 586667601 | 1 | |||
| 8HOSE ASSY | 581225101 | 1 | |||
| 9PLATE | 586667401 | 1 | LH side | ||
| 10BOLT | 542166624 | 10 | |||
| 11FAN COVER | 580875401 | 1 | Upper | ||
| 12FAN COVER | 580875301 | 1 | Lower | ||
| 13BRACKET | 586349101 | 1 | |||
| 14BRACKET | 581128801 | 2 | |||
| 15BRACKET | 586667701 | 1 | |||
| 16BRACKET | 586667801 | 1 | |||
| 17HOSE CLAMP | 576315203 | 2 | |||
| 18HOSE | 580882901 | 1 | |||
| 19CAP | 542166393 | 1 | |||
| 20TIE WRAP | 542166906 | 1 | |||
| 21CLAMP | 542020049 | 1 | |||
| 22RADIATOR | 584474701 | 1 | |||
| 23HOSE CLAMP | 542206193 | 3 | |||
| 24HOSE | 584618101 | 1 | |||
| 25HEXAGON NUT | 731711851 | 2 | |||
| 26BRACKET | 504735201 | 1 | |||
| 27HOSE | 584469001 | 1 | |||
| 28SCREW EHHFM | 585975601 | 4 | |||
| 29HEAT SHIELD | 586202401 | 1 | |||
| 30HOSE | 580883001 | 1 | |||
| 31CLAMP | 542166630 | 1 | |||
| 32TANK ASSY | 504732701 | 1 |
COVER 20 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1DECAL | 547659701 | 2 | |||
| 2COVER ASSY | 540208501 | 1 | Right side incl. decal | ||
| 3SCREW EHHFM | 585975601 | 2 | |||
| 4PROTECTION | 547106201 | 1 | |||
| 5COVER ASSY | 540208701 | 1 | Left side incl. decal | ||
| 6COVER ASSY | 540207701 | 1 | Front incl. Decals | ||
| 7DECAL | 599235001 | 1 | |||
| 8DECAL | 548482901 | 1 | |||
| 9PLATE | 586617301 | 1 | Rear panel | ||
| 10SCREW EHHFM | 585973301 | 8 | |||
| 11HINGE | 581166701 | 2 | |||
| 12HEXAGON NUT FLANGE | 731711651 | 4 | |||
| 13FILTER | 581158101 | 1 | |||
| 14SPRING | 542040330 | 2 | |||
| 15PLATE | 580830001 | 1 | |||
| 16SCREW EHHFM | 585975401 | 6 | |||
| 17INSULATOR | 581175301 | 2 | |||
| 18INSULATOR | 581175302 | 2 | |||
| 19RETAINER | 586615301 | 2 | |||
| 20LATCH | 586614801 | 8 | KIT |
COVER, REAR 41 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW EHHM | 725245771 | 4 | |||
| 2TURNING KNOB | 504569301 | 2 | |||
| 3HEXAGON NUT | 731711851 | 2 | |||
| 4HEXAGON LOCKING NUT | 732252201 | 2 |
Regular price
$19.79
Regular price
|
||
| 5WASHER | 734117801 | 2 |
Regular price
$6.29
Regular price
|
||
| 6SCREW IHCSFM | 725645301 | 3 | |||
| 7HANDLEBAR | 539300340 | 2 |
Regular price
$109.00
Regular price
|
||
| 8GRIP | 542139568 | 2 |
Regular price
$19.79
Regular price
|
||
| 9SCREW EHHFM | 585980301 | 4 | |||
| 10SCREW EHHFM | 585975401 | 7 | |||
| 11BRACKET | 584135401 | 1 | |||
| 13HANDLE | 586927701 | 2 | |||
| 14WASHER | 539300274 | 2 | |||
| 15LEVER | 585594601 | 2 | |||
| 16WASHER | 542020745 | 2 | |||
| 17BRACKET | 540600301 | 1 | KIT | ||
| 19SCREW EHHFM | 585235901 | 5 |
Regular price
$19.79
Regular price
|
||
| 20COWL PANEL | 540599901 | 1 | KIT | ||
| 20COWL PANEL | 540600001 | 1 | KIT | ||
| 22BRACKET | 540651501 | 1 | KIT | ||
| 23BRACKET | 547663301 | 1 | |||
| 24SCREW EHHFM | 585975601 | 2 | |||
| 25WRENCH | 504626403 | 1 | |||
| 27TOOL HOLDER | 578107301 | 1 | |||
| 28COWL PANEL | 540599701 | 1 | KIT | ||
| 28COWL PANEL | 540599801 | 1 | KIT | ||
| 31SCREW IHCSFM | 725645501 | 2 | |||
| 32HOSE CLAMP | 576315201 | 3 | |||
| 33HOSE | 599476601 | 1 | |||
| 34VALVE | 582691101 | 2 | |||
| 35WASHER | 542045640 | 1 | |||
| 36CONNECTOR | 586022402 | 1 | KIT | ||
| 37BRACKET | 581192201 | 1 | |||
| 38NUT | 542167555 | 2 | |||
| 39CONNECTOR | 597472501 | 1 | |||
| 40HOSE | 599476701 | 1 | |||
| 42HOSE CLAMP | 542206193 | 1 | |||
| 43HEXAGON NUT | 731231601 | 8 |
Regular price
$19.79
Regular price
|
||
| 44SEAL | 579833901 | 1 | |||
| 45HATCH | 579836701 | 1 | |||
| 45HATCH | 579836702 | 1 |
DECALS 21 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1DECAL | 547659601 | 1 | |||
| 2LABEL | 599963601 | 1 | |||
| 3DECAL | 599235001 | 1 | |||
| 4DECAL | 547658501 | 2 | |||
| 5DECAL | 547659701 | 2 | |||
| 6DECAL | 548516601 | 1 | |||
| 7DECAL | 585407201 | 1 | |||
| 8DECAL | 586307501 | 1 | 20"/500mm | ||
| 8DECAL | 586307601 | 1 | 26"/650mm | ||
| 8DECAL | 586307701 | 1 | 30"/750mm | ||
| 8DECAL | 586307801 | 1 | 36"/900mm | ||
| 10DECAL | 547658301 | 1 | |||
| 11DECAL | 547658101 | 1 | CE Only | ||
| 11DECAL | 547658201 | 1 | US Only | ||
| 12DECAL | 547658401 | 1 | |||
| 13DECAL | 586175101 | 1 | US Only | ||
| 14DECAL | 586467501 | 1 | |||
| 15DECAL | 542181059 | 1 | CE Only | ||
| 15DECAL | 585370401 | 1 | US Only | ||
| 16DECAL | 542199435 | 1 | US Only | ||
| 17DECAL | 585299701 | 1 |
ELECTRICAL 23 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1WIRING ASSY | 597037301 | 1 | |||
| 2ELECTRICAL SYSTEM | 581336501 | 1 | |||
| 3HEXAGON NUT | 731711851 | 2 | |||
| 4HEXAGON NUT FLANGE | 731711651 | 6 | |||
| 5HARNESS ASSY | 581073216 | 1 | |||
| 6HARNESS ASSY | 581073214 | 1 | |||
| 7HARNESS ASSY | 581073212 | 1 | |||
| 8HARNESS ASSY | 581073213 | 1 | |||
| 9WING NUT | 577244901 | 2 | |||
| 10PLATE | 581159801 | 1 | |||
| 11ELECTRICAL SYSTEM | 581336301 | 1 | |||
| 12ELECTRICAL SYSTEM | 581336401 | 1 | |||
| 13BOLT | 584650901 | 2 | |||
| 14HARNESS ASSY | 581073215 | 1 | |||
| 15WASHER | 734114601 | 1 |
Regular price
$19.79
Regular price
|
||
| 16SCREW | 531119208 | 1 | SCREW ISO 4014 M 5 X 12 8.8 ZPB | ||
| 17SCREW EHHFM | 585975201 | 2 |
Regular price
$8.69
Regular price
|
||
| 18BRACKET | 581281701 | 1 | |||
| 20SCREW EHHFM | 585997301 | 1 | |||
| 21SCREW EHHFM | 585975601 | 2 | |||
| 22HARNESS ASSY | 581073205 | 1 | |||
| 23CLAMP | 583959501 | 30 | |||
| 24BATTERY | 581271801 | 1 | US Only |
ELECTRICAL 12 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1RELAY | 581074601 | 2 | Relay 70A SPDT ISO-maxi | ||
| 2FUSE | 581412101 | 2 | 60A fuse | ||
| 3FUSE | 531302419 | 2 | 15A fuse (F2 is 25A!) | ||
| 4FUSE | 542166856 | 1 | 7.5A fuse | ||
| 5FUSE | 531302421 | 6 | 25A fuse (+ F2!) | ||
| 6FUSE | 531302420 | 1 | 20A fuse | ||
| 7RELAY | 581074501 | 6 | relay 30A SPDT | ||
| 8RELAY | 547907301 | 2 | relay 30A resistor safe | ||
| 12PRINTED CIRCUIT BOARD SYSTEM | 547889801 | 1 | PCB SYSTEM ASSY | ||
| 13FUSE HOLDER | 501696201 | 1 | fuse holder | ||
| 14HEXAGON NUT | 731231601 | 4 | M6 8 ZPB (ISO 4032) | ||
| 15HEXAGON NUT FLANGE | 731711651 | 4 | Flange nut M6 (ISO 4161) |
ENGINE 32 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1AIR CLEANER | 581058801 | 1 | |||
| 2SCREW EHHFM | 585975601 | 4 | |||
| 3SCREW EHHFM | 585972801 | 1 | |||
| 4BRACKET | 581066701 | 1 | |||
| 5AIR FILTER | 542166453 | 1 |
Regular price
$80.19
Regular price
|
||
| 6AIR FILTER | 542166454 | 1 | |||
| 7HOSE CLAMP | 541200642 | 2 | |||
| 8HOSE | 581104101 | 1 | |||
| 9CAP | 542205164 | 1 | |||
| 10GAUGE | 541200989 | 1 | |||
| 11ADAPTER | 542166880 | 1 | |||
| 12BRACKET | 541058701 | 1 | KIT incl decal | ||
| 14EXHAUST PIPE | 581275101 | 1 | |||
| 15CLAMP | 541200483 | 1 | |||
| 16ENGINE | 579644901 | 1 | |||
| 17VALVE | 542166907 | 1 | |||
| 18OIL FILTER | 542206369 | 1 |
Regular price
$53.29
Regular price
|
||
| 20CLAMP | 542178656 | 1 | |||
| 21HOSE ASSY | 584970901 | 1 | |||
| 22ADAPTER | 581206101 | 1 | |||
| 23SCREW EHHFM | 585973101 | 6 |
Regular price
$19.79
Regular price
|
||
| 24BRACKET | 588954601 | 1 | Left side | ||
| 25BRACKET | 588954801 | 1 | Rigth side | ||
| 26BRACKET | 583898401 | 1 | |||
| 27SCREW EHHFM | 581249402 | 2 | |||
| 28ANTIVIBRATION ELEMENT | 587150101 | 2 | |||
| 29WASHER | 542206356 | 2 | |||
| 30NUT | 576878928 | 2 | |||
| 31DRIVE BELT | 586038601 | 1 | |||
| 32HUB | 586187501 | 1 | |||
| 33FAN | 586187301 | 1 | |||
| 34SCREW EHHFM | 535475240 | 4 |
FRONT POINTER 17 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1POINTER | 540652701 | 1 | |||
| 3SCREW EHHM | 725245171 | 4 | |||
| 4ROPE | 590294101 | 0 | Kit - Rope + Clamp (Pos. 2) | ||
| 5HEXAGON NUT | 731231801 | 4 |
Regular price
$19.79
Regular price
|
||
| 6POINTER | 581222101 | 1 | |||
| 7ROD | 548469001 | 1 | |||
| 8SCREW EHHFM | 585975401 | 4 | |||
| 9EYE BOLT | 584911401 | 1 | |||
| 10HEXAGON LOCKING NUT | 732252001 | 2 |
Regular price
$19.79
Regular price
|
||
| 11WASHER | 734117201 | 2 |
Regular price
$19.79
Regular price
|
||
| 12SCREW EHHFM | 581243301 | 2 | |||
| 13SCREW | 725236451 | 1 | M6S 6x10 | ||
| 14HEXAGON NUT | 731711851 | 5 | |||
| 15BRACKET | 581222501 | 2 | |||
| 16POINTER | 548533601 | 1 | |||
| 17POINTER | 581213701 | 1 | |||
| 18WHEEL ASSY | 579856701 | 1 |
FUEL SYSTEM 23 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1FUEL HOSE | 531369201 | 0 | 500mm | ||
| 2CLAMP | 542020049 | 10 | |||
| 3SCREW EHHFM | 585972801 | 2 | |||
| 4FUEL HOSE | 531369301 | 0 | 700mm | ||
| 5FUEL HOSE | 531369201 | 0 | 800mm | ||
| 6SPRING | 505663701 | 1 | 280mm | ||
| 7FUEL FILTER | 593175401 | 1 |
Regular price
$199.00
Regular price
|
||
| 8SCREW EHHFM | 585980601 | 2 |
Regular price
$19.79
Regular price
|
||
| 9FUEL PUMP | 581767401 | 1 | |||
| 10BRACKET | 580951801 | 1 | |||
| 11FUEL HOSE | 531369201 | 0 | 385mm | ||
| 12HEXAGON NUT | 731711851 | 4 | |||
| 13BRACKET | 584867201 | 1 | |||
| 14SCREW EHHM | 725247151 | 2 | |||
| 15WASHER | 734116301 | 2 |
Regular price
$19.79
Regular price
|
||
| 16SCREW EHHFM | 585975601 | 4 | |||
| 17HOSE ASSY | 581225301 | 1 | 2000mm | ||
| 18HOSE ASSY | 581225201 | 1 | 2000mm | ||
| 19CLAMP | 583959501 | 3 | |||
| 20FITTING | 585244501 | 1 | |||
| 21WATER SEPARATOR | 581767301 | 1 | |||
| 22FILTER | 587689801 | 1 |
Regular price
$159.00
Regular price
|
||
| 23FUEL HOSE | 586275001 | 1 | 203 mm |
FUEL TANK 11 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1ADAPTER | 581129102 | 2 | |||
| 2FUEL TANK ASSY | 540651801 | 1 | KIT | ||
| 3SEALING WASHER | 740382901 | 1 | |||
| 4PLUG | 585595401 | 1 | |||
| 5BRACKET | 583914001 | 1 | |||
| 6PIPE | 587856101 | 1 | |||
| 7TANK CAP | 597722201 | 1 | |||
| 8HOSE | 581053601 | 1 | |||
| 9HOSE CLAMP | 576315207 | 2 | |||
| 10BRACKET | 583966801 | 1 | |||
| 11SCREW EHHFM | 585975401 | 4 |
GEAR BOX 50 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1DRIVE BELT | 505777401 | 4 | 20", 30" 3VX450 |
Regular price
$56.89
Regular price
|
|
| 1DRIVE BELT | 576449150 | 4 | 26" 3VX435 |
Regular price
$59.49
Regular price
|
|
| 1DRIVE BELT | 581294101 | 4 | 36" 3VX460 |
Regular price
$56.89
Regular price
|
|
| 2NUT | 541204833 | 2 | |||
| 3WASHER | 542166480 | 2 | |||
| 4PULLEY | 581096201 | 2 | 26", 30" and 36" | ||
| 4PULLEY | 581096203 | 2 | 20" | ||
| 5KEY | 542164632 | 2 | |||
| 6DRIVE BELT | 587217402 | 2 | 20" | ||
| 6DRIVE BELT | 587217403 | 2 | 26" | ||
| 6DRIVE BELT | 587217404 | 2 | 30" | ||
| 6DRIVE BELT | 587217405 | 2 | 36" | ||
| 7BREATHER | 542206660 | 1 | |||
| 8FITTING | 504537501 | 1 | |||
| 9FITTING | 541204870 | 2 | |||
| 10PROTECTION | 586003301 | 1 | |||
| 11SCREW EHHFM | 585975601 | 2 | |||
| 12SCREW EHHFM | 585980401 | 8 |
Regular price
$19.79
Regular price
|
||
| 13ADAPTER | 542139649 | 1 | |||
| 14TAP | 542160704 | 1 | |||
| 15ANTIVIBRATION ELEMENT | 587150101 | 2 | |||
| 16SCREW | 542166368 | 2 | |||
| 17BRACKET | 542199844 | 1 | |||
| 18WASHER | 542160393 | 2 | |||
| 19WASHER | 542191962 | 2 | |||
| 20SCREW | 542167447 | 2 | |||
| 21BOLT | 539300440 | 2 | |||
| 22WASHER | 542206356 | 2 | |||
| 24SCREW | 542166356 | 2 | |||
| 25WEDGE | 542199045 | 2 | |||
| 26PULLEY | 581108401 | 2 | 20", 26" | ||
| 26PULLEY | 581108403 | 2 | 30" | ||
| 26PULLEY | 581108405 | 2 | 36" | ||
| 27FLANGE | 580939701 | 2 | 20" | ||
| 27FLANGE | 580939702 | 2 | 26", 30" |
Regular price
$359.00
Regular price
|
|
| 27FLANGE | 580962001 | 2 | 36" |
Regular price
$469.00
Regular price
|
|
| 28PIN | 505531901 | 2 |
Regular price
$29.90
Regular price
|
||
| 29COLLAR | 586009201 | 2 | 20" | ||
| 29FLANGE | 586009301 | 2 | 26", 30" |
Regular price
$139.00
Regular price
|
|
| 29FLANGE | 586009401 | 2 | 36" |
Regular price
$142.00
Regular price
|
|
| 30WASHER | 522965942 | 2 | |||
| 31SCREW | 586255701 | 1 | RH Thread, left side |
Regular price
$39.59
Regular price
|
|
| 32SCREW | 586255901 | 1 | LH Thread right side |
Regular price
$38.09
Regular price
|
|
| 33BELT GUARD | 581021101 | 1 | |||
| 34WASHER | 734117201 | 4 |
Regular price
$19.79
Regular price
|
||
| 35SCREW EHHFM | 586120201 | 4 | |||
| 36HEXAGON LOCKING NUT | 732251601 | 4 |
Regular price
$19.79
Regular price
|
||
| 37BELT GUARD | 581021001 | 1 | |||
| 38PLATE | 581521801 | 2 | |||
| 39SPLASH GUARD | 581521601 | 2 |
GEAR BOX 53 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BALL | 542163214 | 1 | |||
| 2NUT | 539990258 | 1 | |||
| 3HANDLE | 547035601 | 1 | SHIFTER 3-SPD Z/P | ||
| 4POINTER | 586865201 | 1 | |||
| 5ROD | 586857501 | 1 | WELD ROD 586857401 + ARM 586964902 | ||
| 6ARM | 586964901 | 1 | |||
| 7WASHER | 542020777 | 2 | LOCK .3125 HI-COLLAR | ||
| 8SCREW | 505772501 | 2 | |||
| 9DRIVE BELT | 541201391 | 4 | 36" | ||
| 9DRIVE BELT | 585515001 | 4 | 26", 30" | ||
| 10NUT | 541204833 | 2 | |||
| 11WASHER | 542166480 | 2 | FS1200T WASHER 1 | ||
| 12PULLEY | 581096202 | 2 | 30", 36" | ||
| 12PULLEY | 581096203 | 2 | 26" | ||
| 13KEY | 542164632 | 2 | |||
| 14FITTING | 504539601 | 1 | BREATHER | ||
| 15FITTING | 504537501 | 1 | PIPE EXTENDER | ||
| 16LOCKING PIN | 586917201 | 1 | 3 SPD 44mm | ||
| 17NUT | 731712451 | 1 | M16 | ||
| 18HEXAGON THIN NUT | 731432001 | 1 | ISO 4035 - M10 04 ZPB | ||
| 19SPRING WASHER | 735117301 | 1 | |||
| 20STUD | 542206416 | 1 | M10x25 | ||
| 21SCREW EHHFM | 585980401 | 6 | EN 1665 - M 10 X 30 8.8 ZPB | ||
| 22TAP | 542160704 | 1 | 4T160704 | ||
| 23FITTING | 541204870 | 2 | |||
| 24ANTIVIBRATION ELEMENT | 587150101 | 2 | |||
| 25SCREW | 542166368 | 2 | HX HD.M16X2.0X90 4T166368 | ||
| 26BRACKET | 542199844 | 1 | C542199845 | ||
| 27WASHER | 542160393 | 2 | FLAT .6875 | ||
| 28WASHER | 542191962 | 4 | 4T191962 | ||
| 29SCREW | 542167447 | 2 | HX HD M16-2.0X45 4T167447 | ||
| 30BOLT | 539300440 | 2 | 300440 | ||
| 31WASHER | 542206356 | 2 | FLAT 2.50X.657X.188 Z/P A542206356 | ||
| 32SCREW | 542166356 | 2 | HX HD M16X2.0X100 4T166356 | ||
| 33WEDGE | 542199045 | 2 | |||
| 34PULLEY | 581108401 | 2 | 26" | ||
| 34PULLEY | 581108402 | 2 | 30" | ||
| 34PULLEY | 581108404 | 2 | 36" | ||
| 35FLANGE | 580939702 | 2 | 26", 30" | ||
| 35FLANGE | 580962001 | 2 | 36" | ||
| 36FLANGE | 586009301 | 2 | 26", 30" | ||
| 36FLANGE | 586009401 | 2 | 36" | ||
| 37PIN | 539300010 | 2 | DOWEL 3/8 X 1 3/4 | ||
| 38WASHER | 522965942 | 2 | c43 .656 x 1.313 | ||
| 39SCREW | 586255901 | 1 | L Thread, right side | ||
| 40SCREW | 586255701 | 1 | R Thread, left side | ||
| 41BELT GUARD | 581021001 | 1 | RH SIDE | ||
| 42WASHER | 734117201 | 4 | 0.5x20x2 St 200HV ZPB | ||
| 43SCREW EHHFM | 586120201 | 4 | M 6 X 20 8.8 ZPB | ||
| 44BELT GUARD | 581021101 | 1 | LH SIDE | ||
| 45PLATE | 581521801 | 2 | |||
| 46SPLASH GUARD | 581521601 | 2 | |||
| 47HEXAGON LOCKING NUT | 732251601 | 4 | M6 8 ZPB. NF |
HYDRAULIC SYSTEM 50 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1PLUG | 581206001 | 1 | |||
| 2ADAPTER | 581205901 | 1 | |||
| 3ADAPTER | 583947201 | 3 | |||
| 4PLATE | 580960601 | 1 | |||
| 5PUMP | 505493201 | 1 |
Regular price
$729.00
Regular price
|
||
| 6ADAPTER | 581205302 | 1 | |||
| 7HYDRAULIC HOSE | 583938901 | 1 | |||
| 8SCREW EHHM | 725245776 | 2 |
Regular price
$19.79
Regular price
|
||
| 9SPRING WASHER | 735116401 | 2 |
Regular price
$19.79
Regular price
|
||
| 10SPACER | 581787701 | 1 | |||
| 11GASKET | 542206211 | 1 | |||
| 12SHCS. M8-1.25 X 25 | 542188338 | 1 | |||
| 13WASHER | 542020777 | 1 | |||
| 14HYDRAULIC HOSE | 583939501 | 1 | |||
| 15FILTER | 542166448 | 1 | |||
| 16ADAPTER | 583958501 | 1 | |||
| 17FILTER | 542166449 | 1 |
Regular price
$40.59
Regular price
|
||
| 18SCREW | 542020301 | 2 | |||
| 19WASHER | 734115441 | 2 | |||
| 20SCREW EHHM | 725249371 | 2 |
Regular price
$19.79
Regular price
|
||
| 21SPRING WASHER | 735117301 | 2 | |||
| 22WASHER | 734117201 | 2 |
Regular price
$19.79
Regular price
|
||
| 23ADAPTER | 581205301 | 4 | |||
| 24HYDRAULIC HOSE | 583938801 | 1 | |||
| 25HYDRAULIC HOSE | 583935801 | 1 | |||
| 26HYDRAULIC HOSE | 583937501 | 1 | |||
| 27BRACKET | 580958401 | 1 | |||
| 28SCREW EHHFM | 585975401 | 2 | |||
| 29SCREW EHHFM | 585973101 | 3 |
Regular price
$19.79
Regular price
|
||
| 30ADAPTER | 581205701 | 4 | |||
| 31SCREW EHHM | 725246951 | 2 |
Regular price
$19.79
Regular price
|
||
| 32SPRING WASHER | 735116401 | 2 |
Regular price
$19.79
Regular price
|
||
| 34VALVE | 581267701 | 1 | |||
| 35HYDRAULIC HOSE | 584142501 | 1 | |||
| 36HYDRAULIC HOSE | 583978501 | 1 | |||
| 37ADAPTER | 541204991 | 4 | |||
| 38HYDRAULIC HOSE | 583976101 | 1 | |||
| 39ADAPTER | 581205501 | 1 | |||
| 40ADAPTER | 590628001 | 1 | |||
| 41HYDRAULIC HOSE | 590628101 | 1 | |||
| 42CONTROL VALVE | 586022501 | 1 | |||
| 43HYDRAULIC HOSE | 584216701 | 1 | |||
| 44HYDRAULIC HOSE | 584216901 | 1 | |||
| 45HYDRAULIC PUMP | 588690601 | 1 |
Regular price
$1,279.00
Regular price
|
||
| 46SOLENOID | 522849115 | 1 |
Regular price
$179.00
Regular price
|
||
| 47COIL | 522849110 | 1 | |||
| 48CAP | 522849119 | 1 | |||
| 49RESERVOIR | 599571201 | 1 | |||
| 50MOTOR | 599589901 | 1 | |||
| 52SEALING RING | 599571701 | 1 |
PARKING BRAKE 6 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BRACKET | 540423501 | 1 | |||
| 2SCREW EHHFM | 585980501 | 2 | |||
| 3WIRE | 540428201 | 2 | |||
| 4HEXAGON LOCKING NUT | 732251401 | 2 |
Regular price
$19.79
Regular price
|
||
| 5BRAKE | 540442401 | 2 | |||
| 6BRACKET | 540423401 | 1 |
SHAFT 16 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SHAFT ASSY | 588078601 | 1 | 14"-20" 1-spd | ||
| 1SHAFT ASSY | 588078602 | 1 | 26" 1 and 3-spd | ||
| 1SHAFT ASSY | 588078603 | 1 | 30" 1-spd | ||
| 1SHAFT ASSY | 588078604 | 1 | 36" 1-spd | ||
| 1SHAFT ASSY | 588078605 | 1 | 30" 3-spd | ||
| 1SHAFT ASSY | 588078606 | 1 | 36" 3-spd | ||
| 2SCREW EHHFM | 585972801 | 4 | |||
| 3NIPPLE | 504204501 | 2 | |||
| 4COVER | 579177201 | 2 | |||
| 5O-RING | 580338001 | 2 | |||
| 6BALL BEARING | 580247201 | 2 | |||
| 7FILTER | 586019601 | 1 | |||
| 8SENSOR | 580989501 | 1 | |||
| 9HOUSING | 579056701 | 1 | |||

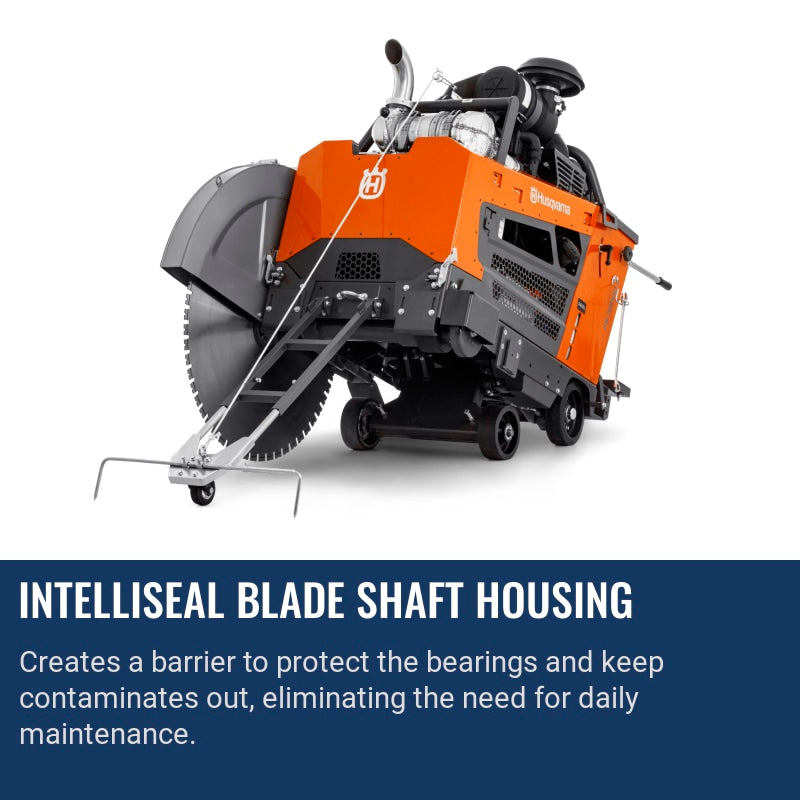

| 10BLADE SHAFT | 588163901 | 1 | |||
| 11GEAR WHEEL | 597217001 | 1 |
SPEED CONTROL 28 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HANDLE ASSY | 540652801 | 1 | KIT | ||
| 2BOOT | 542182146 | 1 | |||
| 3SCREW | 724128551 | 2 | |||
| 4PLATE | 581118501 | 1 | |||
| 5SWITCH | 542182102 | 1 |
Regular price
$69.59
Regular price
|
||
| 6HANDLE | 586946201 | 1 | |||
| 7CLAMP | 583959501 | 4 | |||
| 8WIRING ASSY | 547389701 | 1 | |||
| 9HEXAGON LOCKING NUT | 732252201 | 1 |
Regular price
$19.79
Regular price
|
||
| 10SPRING WASHER | 542183124 | 4 | |||
| 11WASHER | 542020745 | 1 | |||
| 12BEARING BUSH | 581068901 | 1 | |||
| 13BRACKET | 547327701 | 1 | |||
| 14SENSOR | 547396601 | 1 | |||
| 15WASHER | 579425601 | 1 | |||
| 16SCREW EHHI | 586866801 | 1 | |||
| 17ARM | 579745001 | 1 | |||
| 18ROD | 542166466 | 2 | |||
| 19WASHER | 734116301 | 1 |
Regular price
$19.79
Regular price
|
||
| 20NUT | 539976978 | 1 | |||
| 21BUSHING | 542183001 | 2 | |||
| 22SCREW EHHFM | 585980601 | 1 |
Regular price
$19.79
Regular price
|
||
| 23CLAMP | 542166672 | 1 | |||
| 24HEXAGON LOCKING NUT | 732251601 | 1 |
Regular price
$19.79
Regular price
|
||
| 25NUT | 541205253 | 2 | |||
| 26CABLE | 579510102 | 1 | |||
| 27SCREW EHHFM | 585975201 | 2 |
Regular price
$8.69
Regular price
|
||
| 28BRACKET | 587577501 | 1 |
SUSPENSION 21 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW EHHFM | 576654811 | 4 | |||
| 2SCREW EHHFM | 585975201 | 2 | |||
| 3BLOCK | 579595701 | 1 | |||
| 4SHAFT | 579525801 | 1 | |||
| 5CIRCLIP | 735312200 | 2 | SGA 20x1.2 St PP | ||
| 6HYDRAULIC CYLINDER | 579246301 | 1 | |||
| 7SCREW | 542199053 | 2 | |||
| 8SHAFT | 590224101 | 1 | |||
| 9GREASE | 581068801 | 1 | |||
| 10BALL BEARING | 595945601 | 2 | |||
| 11PLATE | 579330301 | 1 | |||
| 12SCREW EHHFM | 585980601 | 6 | |||
| 13SENSOR ASSY | 599634101 | 1 | Sensor 596823001 + 2x screw 597757401 | ||
| 14SENSOR | 596823101 | 1 | Screws included | ||
| 15BOX | 579330201 | 1 | |||
| 16HEXAGON NUT | 731232201 | 2 | |||
| 17SCREW EHHM | 725254671 | 2 | |||
| 18FRONT AXLE | 587715401 | 1 | |||
| 19WHEEL | 590649801 | 2 | |||
| 20WASHER | 542046402 | 4 | |||
| 21CIRCLIP | 735312600 | 2 |
SUSPENSION 17 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW EHHFM | 576654804 | 4 | DIN 6921 | ||
| 2KIT | 587623501 | 1 | ASSY | ||
| 3SWIVEL | 578782801 | 1 | REAR AXLE | ||
| 4DISC | 578783201 | 2 | |||
| 5BEARING BUSH | 580255301 | 2 | |||
| 6NIPPLE | 504204501 | 1 | |||
| 7E-TRACK SYSTEM | 587218301 | 1 | US Only | ||
| 8REAR AXLE | 578783101 | 1 | |||
| 10HYDRAULIC MOTOR | 542198878 | 2 | |||
| 11SCREW EHHFM | 576654806 | 8 | DIN 6921 | ||
| 12SPLIT PIN | 721620301 | 3 | ISO 1234 | ||
| 13REAR WHEEL | 542198842 | 2 | 10 DIAx3/FS 660 | ||
| 14CAP | 539102535 | 2 | |||
| 15SCREW EHHFM | 585972801 | 8 | |||
| 16HUB | 542198843 | 2 | |||
| 17NUT | 578850101 | 1 | CASTLE NUT M24 | ||
| 18WASHER | 581072901 | 1 | REAR AXLE |
TRACK SYSTEM 11 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1CABLE | 598698501 | 1 | |||
| 2CLAMP | 583959501 | 1 | |||
| 3ACTUATOR | 598698301 | 1 |
Regular price
$954.09
Regular price
|
||
| 4BOLT | 542199239 | 1 | |||
| 5PIN | 542177239 | 2 | |||
| 6BRACKET | 586149201 | 1 | |||
| 7LID | 586167301 | 1 | |||
| 8SCREW EHHFM | 585975601 | 3 | |||
| 9BOLT | 542199241 | 1 | |||
| 10BRACKET | 586146001 | 1 | |||
| 11SCREW EHHFM | 585975401 | 2 |
Document Downloads
Operator's manual
Workshop manual
Concrete Focus
From pouring to resurfacing, we sell tools built for concrete pros.
Expert Support
Get guidance from experts who understand jobsite challenges.
Fast Delivery
Get your tools fast with our nationwide shipping network and local partnerships.
Talk to an expert now (855) 281-1918
Get fast, expert help choosing the right concrete tools or equipment for your job. Ask about availability, specs, troubleshooting, or get friendly guidance before you place an order.
