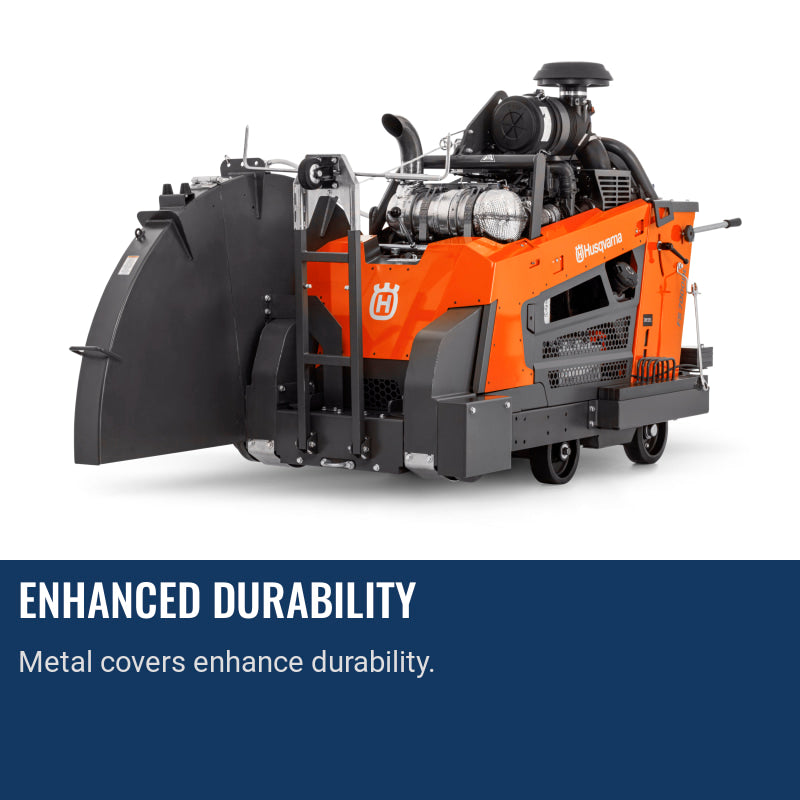

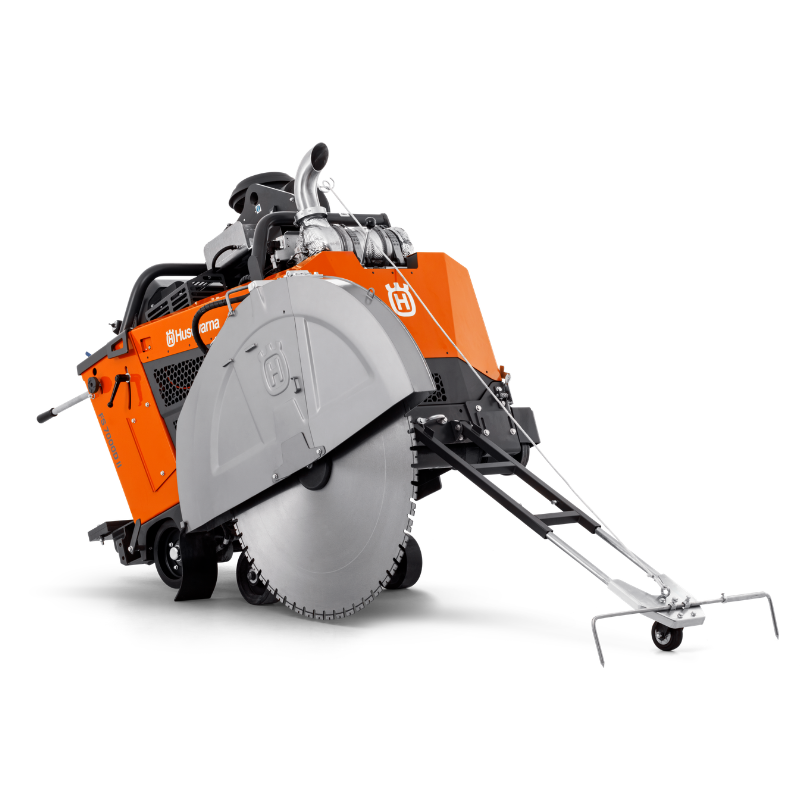

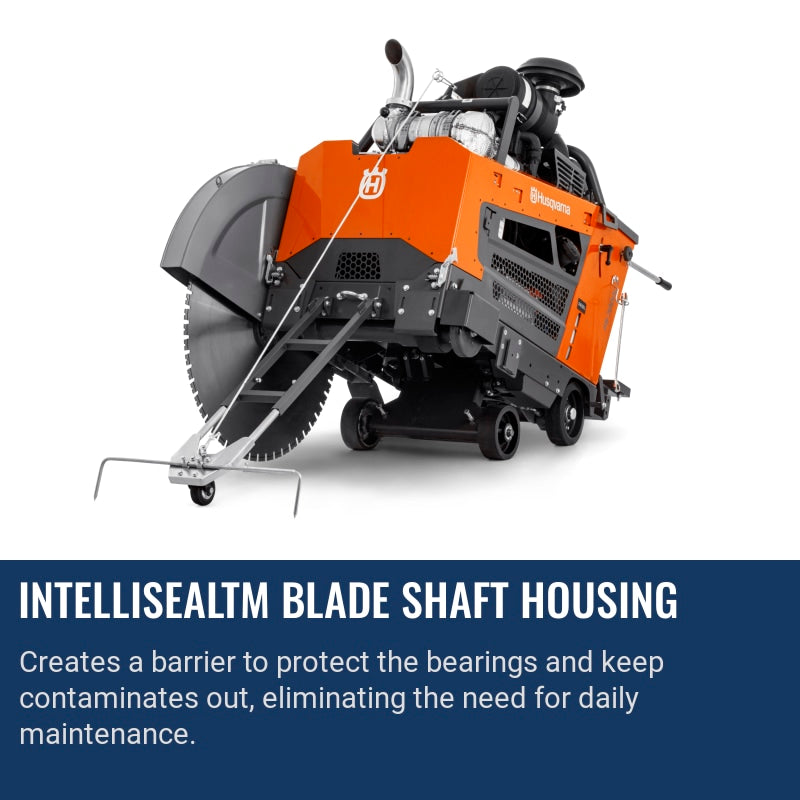

Husqvarna FS 7000 D Tier 4 Walk-Behind Floor Saw
Husqvarna FS 7000 D Tier 4 Walk-Behind Floor Saw
HUSQVARNA CONSTRUCTION SKU: 970750410 Copied!
Regular price
$50,449.00
Regular price
$63,699.00
Sale price
$50,449.00
Quantity
Trusted by contractors nationwide
"I've bought 3 products from CTD and each time the experience has been the same - professional and fast delivery. I trust these guys with all my concrete needs."
90 day returns
Product Details
Husqvarna FS 7000 D Walk-Behind Floor Saw

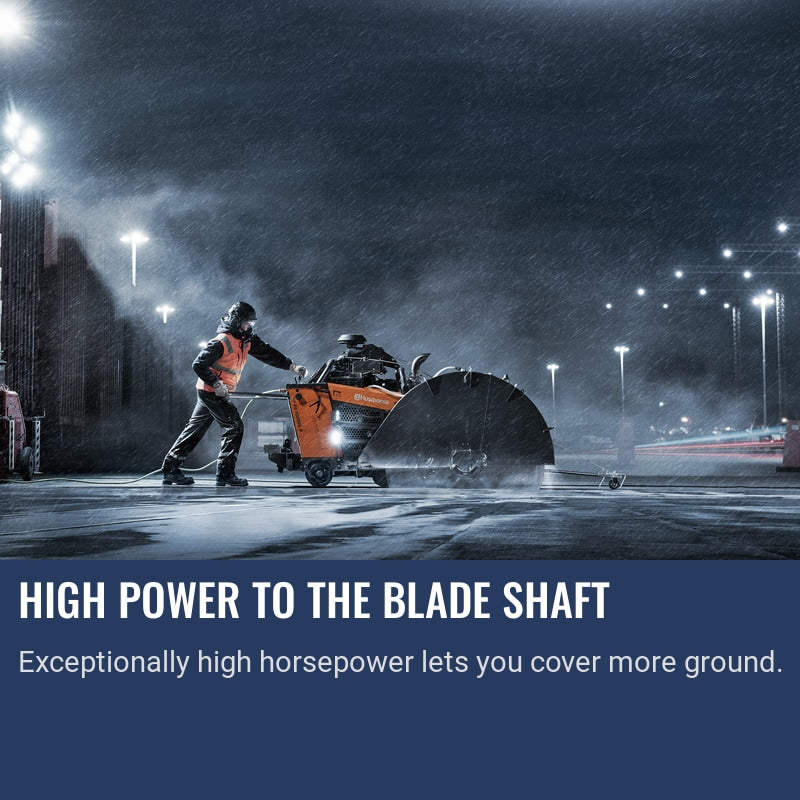

The Husqvarna FS 7000 D is a powerful diesel walk-behind floor saw engineered for high-performance cutting in asphalt and concrete. Its Deutz turbo diesel engine complies with EPA Tier 4 or EU Stage V emissions standards while delivering the torque needed for demanding cutting applications. An optimised size, weight and balance help improve efficiency and handling on the jobsite.

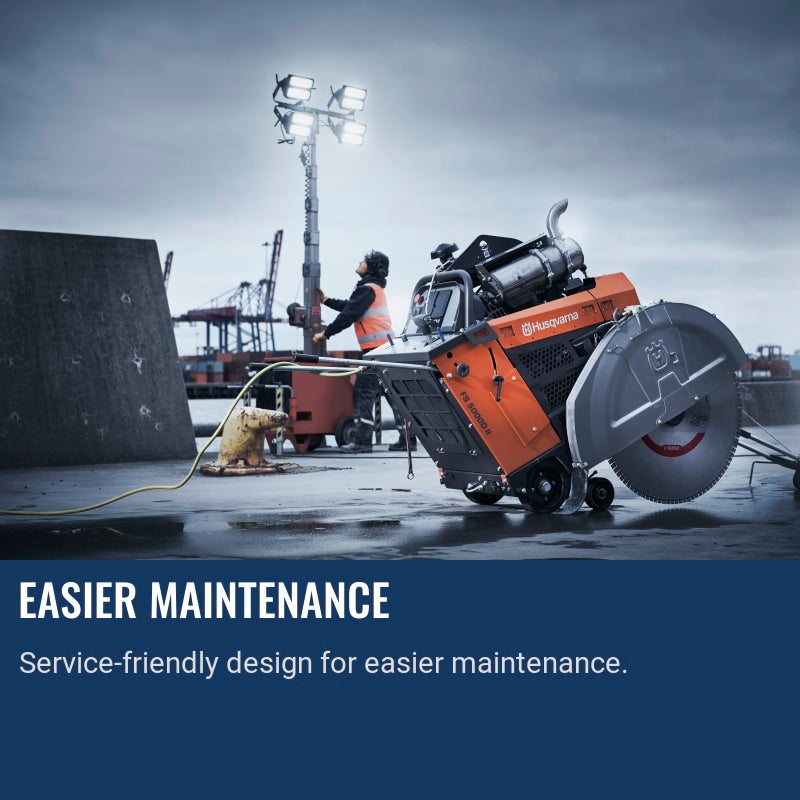

A modern, service-friendly design features intuitive electronic support systems and ergonomic controls for operator convenience. Available with a single-speed or 3-speed gearbox, the FS 7000 D can be configured with options including an electronic tracking system, 5th wheel, light kit, water pump kit and weight kits, making it a reliable and efficient choice for professional cutting applications.
Product Specification
FLOOR SAW FS 7000 D 74 hp | 42" | Deutz | FP
General
Article number
970750410
Motor/engine manufacturer
Deutz
Power Specifications
Engine Power (As rated by the engine manufacturer)
74.3 hp
Engine cooling
Liquid /Air
Number of strokes
4-stroke engine
Exhaust emissions (CO₂ EU V)
225 g/kWh
Cylinders
4
Power Source
Diesel
Working Specifications
Cutting depth, max
17.5 in
Blade diameter, max
42 in
Arbor diameter
1"
Blade depth control
Electric hydraulic
Number of gearbox speeds
1
Transmission speed forward
250 fpm
Transmission speed reverse
250 fpm
Output shaft RPM, Speed 1
1,150 rpm
Output shaft RPM, Speed 2
1,298 rpm
Output shaft RPM, Speed 3
1,861 rpm
Product size length
80.2 in
Product size width
39.5 in
Product size height
57.7 in
Weight Specifications
Weight
2,535 lbs
Article gross weight (Calc)
2,849.999 lbs
Other Specifications
Packaging length (Calc)
81.496 in
Packaging width (Calc)
42.992 in
Packaging height (Calc)
65 in
Related Equipment
Related Equipment
Service & Maintenance Parts
BASE PLATE 41 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW IHCSFM | 502023501 | 2 | |||
| 2SCREW EHHM | 725250381 | 2 | |||
| 3SCREW EHHFM | 585975301 | 2 | |||
| 4SCREW EHHFM | 585980401 | 16 |
Regular price
$19.79
Regular price
|
||
| 5CLAMP | 501857901 | 2 | |||
| 6WASHER | 734117201 | 4 |
Regular price
$19.79
Regular price
|
||
| 7HEXAGON LOCKING NUT | 732252001 | 2 |
Regular price
$19.79
Regular price
|
||
| 8PLATE | 540600701 | 1 | With Decal | ||
| 9BRACKET | 546912601 | 1 | |||
| 10HEXAGON LOCKING NUT | 732251801 | 1 |
Regular price
$19.79
Regular price
|
||
| 12BRACKET | 505189101 | 1 | |||
| 13SCREW EHHFM | 585972801 | 1 | |||
| 14SCREW EHHFM | 585975601 | 4 | |||
| 15BRACKET | 586168001 | 1 | |||
| 16BRACKET | 540650601 | 1 | With Decal | ||
| 17SCREW EHHFM | 587259001 | 2 | |||
| 19BRACKET | 586167901 | 1 | |||
| 20SCREW EHHFM | 576654803 | 4 | |||
| 21SCREW EHHFM | 581243301 | 2 | |||
| 22BRACKET | 588568501 | 1 | |||
| 24POINTER | 581115201 | 2 | |||
| 25MOUNT | 579232201 | 2 | |||
| 26LOOP | 504580302 | 2 | |||
| 27SPADE | 588735201 | 2 | |||
| 28SCREW IHCSFM | 725649751 | 4 | |||
| 29SCREW IHCSFM | 725649351 | 4 | |||
| 30BRACKET | 588733701 | 1 | RH - bracket 588734601 and nut 733212000 (7 pcs) | ||
| 31SCREW EHHFM | 581249405 | 4 | |||
| 32MOUNT | 579727301 | 1 | |||
| 33LOCK | 581107101 | 1 | |||
| 34SPACER | 540868501 | 2 | 6mm | ||
| 35SPACER | 587895101 | 4 | |||
| 36CLAMP | 583959501 | 3 | |||
| 37BASEPLATE | 596909101 | 1 | |||
| 38INSULATOR | 581167201 | 1 | |||
| 39GUARD | 588832101 | 2 | |||
| 40BRACKET | 579359401 | 2 | |||
| 41SCREW EHHFM | 585973101 | 4 |
Regular price
$19.79
Regular price
|
||
| 42BRACKET | 588733801 | 1 | LH - bracket 588734701 and nut 733212000 (7 pcs) | ||
| 43BRACKET | 547297501 | 1 | |||
| 44LOCK | 581107201 | 1 |
BLADE GUARD 50 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HOSE | 548457001 | 1 | 1 spd gear box L 1100mm | ||
| 1HOSE | 548457101 | 1 | 3 spd gear box L 1400mm | ||
| 1HOSE | 548457201 | 1 | 3 spd FS7000DL L 2438mm | ||
| 2SCREW EHHFM | 585173901 | 2 | |||
| 2SCREW EHHM | 725237851 | 4 | 60" |
Regular price
$19.79
Regular price
|
|
| 2SCREW EHHM | 725237951 | 2 | 48" |
Regular price
$19.79
Regular price
|
|
| 4PLUG | 581160401 | 1 | |||
| 5MANIFOLD | 581157201 | 1 | 26", 30", 36" | ||
| 5MANIFOLD | 581157501 | 1 | 42" | ||
| 6HYDRAULIC KIT | 541208296 | 1 | |||
| 7O-RING | 740430700 | 2 | 26", 30", 36", 42" |
Regular price
$25.55
Regular price
|
|
| 9HOOK | 582588801 | 1 | |||
| 10WIRE | 582744401 | 1 | |||
| 12SCREW EHHFM | 585975401 | 5 | 26", 30", 36" | ||
| 13BLADE GUARD | 579509201 | 1 | 26" rear | ||
| 13BLADE GUARD | 579510901 | 1 | 30" rear | ||
| 13BLADE GUARD | 582372601 | 1 | 36" rear | ||
| 13BLADE GUARD | 582372701 | 1 | 42"rear | ||
| 14LATCH ASSY | 540165901 | 1 | 26", 30", 36", 42" | ||
| 15SCREW EHHFM | 506570105 | 3 | |||
| 16PLATE | 531289201 | 1 | |||
| 17RETAINER | 547027401 | 1 | |||
| 18LATCH | 547352501 | 1 | |||
| 19HINGE | 582298101 | 1 | 42" | ||
| 19HINGE | 582298701 | 1 | 26",30", 36" | ||
| 20PLATE | 581599601 | 1 | 42" | ||
| 20PLATE | 581603001 | 1 | 26", 30". 36" | ||
| 21BLADE GUARD | 540162301 | 1 | 500mm, CE | ||
| 21BLADE GUARD | 540162401 | 1 | 650mm, CE | ||
| 21BLADE GUARD | 540162501 | 1 | 750mm, CE | ||
| 21BLADE GUARD | 540162601 | 1 | 900mm, CE | ||
| 21BLADE GUARD | 540162701 | 1 | 26", US | ||
| 21BLADE GUARD | 540162801 | 1 | 30", US | ||
| 21BLADE GUARD | 540162901 | 1 | 36", US | ||
| 21BLADE GUARD | 540650801 | 1 | 42", US | ||
| 21BLADE GUARD | 540650901 | 1 | 1000mm, CE | ||
| 22SPLASH GUARD | 581602401 | 1 | 42" | ||
| 22SPLASH GUARD | 581605101 | 1 | 20",30", 36" | ||
| 23BLADE GUARD | 582767901 | 1 | 30" | ||
| 23BLADE GUARD | 582768001 | 1 | 42 | ||
| 23BLADE GUARD | 582781801 | 1 | 36" | ||
| 23BLADE GUARD | 582870501 | 1 | 26" | ||
| 24BRACKET | 579608301 | 2 | 36", 42" | ||
| 25HEXAGON LOCKING NUT | 732251801 | 2 |
Regular price
$19.79
Regular price
|
||
| 26PIPE | 586019101 | 1 | 26", KIT | ||
| 26PIPE | 586019201 | 1 | 30", KIT | ||
| 26PIPE | 586019301 | 1 | 36", KIT |
Regular price
$119.86
Regular price
|
|
| 26PIPE | 586019401 | 1 | 42", KIT | ||
| 27HEXAGON LOCKING NUT | 732251601 | 2 | 26", 30", 36", 42" |
Regular price
$19.79
Regular price
|
|
| 28SCREW IHCSFM | 725649351 | 8 | 36", 42" |

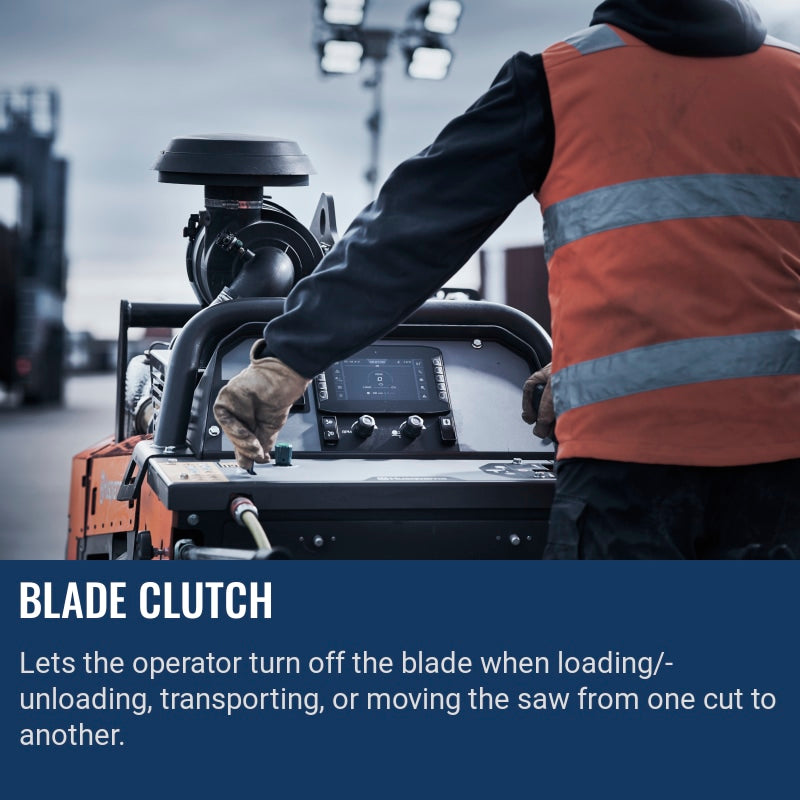

CLUTCH 19 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1CLUTCH ASSY | 541217201 | 1 | |||
| 2BEARING | 542166351 | 1 | |||
| 3ARMATURE | 542199834 | 1 | |||
| 4SCREW | 599283601 | 4 | |||
| 5SCREW | 542199053 | 8 | |||
| 6ROTOR | 542166685 | 1 |
Regular price
$1,279.00
Regular price
|
||
| 7RING | 542198953 | 2 | |||
| 8SCREW EHHM | 725245776 | 4 |
Regular price
$19.79
Regular price
|
||
| 9SPRING WASHER | 735116401 | 4 |
Regular price
$19.79
Regular price
|
||
| 10COIL | 542199396 | 1 | |||
| 11HUB | 542199387 | 1 | |||
| 12BUSHING | 542199480 | 1 | |||
| 13COUPLING | 586708501 | 1 | |||
| 14FLYWHEEL | 541206943 | 1 | |||
| 15SCREW EHHM | 725249176 | 8 | |||
| 16PLUG | 542183375 | 1 | |||
| 17SPRING WASHER | 735117301 | 8 | |||
| 18SWITCH | 547472001 | 1 | |||
| 19RELAY | 547907301 | 1 | Relay, safe |

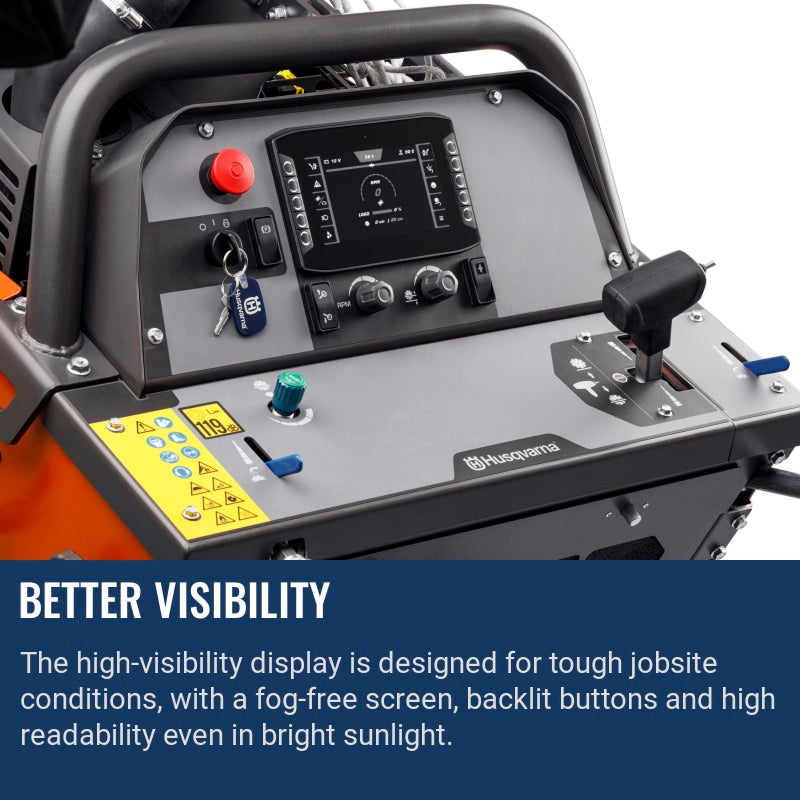

CONTROLS 19 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1DISPLAY | 546652901 | 1 | |||
| 2SWITCH | 547472301 | 1 | |||
| 3SCREW | 542199053 | 10 | |||
| 4PANEL ASSY | 540158301 | 1 | |||
| 5BUTTON | 547761101 | 1 | |||
| 6PANEL ASSY | 540158401 | 1 | CE Only | ||
| 6PANEL ASSY | 540158501 | 1 | US Only | ||
| 7SCREW EHHFM | 535475245 | 2 | |||
| 8PLUG | 547744601 | 3 | |||
| 9KNOB | 548453501 | 2 | |||
| 10ELECTRIC MODULE | 547475401 | 1 | |||
| 11HEXAGON LOCKING NUT | 732251601 | 2 |
Regular price
$19.79
Regular price
|
||
| 12CABLE ASSY | 540166301 | 2 | |||
| 13PANEL ASSY | 540158601 | 1 | |||
| 14BRACKET | 546913001 | 1 | |||
| 15CLAMP | 583959501 | 5 | |||
| 16WIRING ASSY | 546352501 | 1 | |||
| 17SCREW EHHFM | 585975401 | 2 | |||
| 18BRACKET | 547547901 | 1 |
COOLING SYSTEM 28 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1RADIATOR ASSY | 596332101 | 1 | |||
| 2PLATE | 583912401 | 1 | RH side | ||
| 5SCREW EHHFM | 585975401 | 26 | |||
| 6BRACKET | 582749901 | 2 | |||
| 7HOSE CLAMP | 576315203 | 3 | |||
| 8HOSE | 580910201 | 1 | |||
| 9PLATE | 586657601 | 1 | LH side | ||
| 10FAN COVER | 580875201 | 1 | Upper | ||
| 11BRACKET | 586070501 | 1 | |||
| 12BRACKET | 582750101 | 2 | |||
| 13BRACKET | 586348901 | 1 | |||
| 14BOLT | 542166624 | 10 | |||
| 15FAN COVER | 580875101 | 1 | Lower | ||
| 16BRACKET | 586070601 | 1 | |||
| 17BRACKET | 586070801 | 1 | |||
| 18BRACKET | 586070901 | 1 | |||
| 19HOSE CLAMP | 539300073 | 1 | |||
| 21TUBE | 585037101 | 1 | |||
| 22HOSE | 580910301 | 1 | |||
| 23CLAMP | 542020049 | 5 | |||
| 24SCREW EHHFM | 585975601 | 8 | |||
| 25HOSE | 585066601 | 1 | |||
| 26EXPANSION TANK | 540651201 | 1 | Incl. Decal | ||
| 27TUBE | 585037001 | 1 | |||
| 28BRACKET | 585023401 | 1 | |||
| 29HOSE | 585036301 | 1 | |||
| 30BRACKET | 585023201 | 1 | |||
| 31HOSE CLAMP | 576315205 | 2 |
COUNTER WEIGHT 11 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1WEIGHT KIT | 581678901 | 1 | 1-Bar (Pos. 3 - 1 pc) |
Regular price
$379.00
Regular price
|
|
| 1WEIGHT KIT | 581678902 | 1 | 42", 2-Bar (Pos. 3 - 2 pcs) |
Regular price
$1,088.89
Regular price
|
|
| 2HEXAGON LOCKING NUT | 732252201 | 2 |
Regular price
$19.79
Regular price
|
||
| 3WEIGHT | 579360002 | 1 | |||
| 4BRACKET | 579360601 | 1 | |||
| 5BRACKET | 579360901 | 1 | |||
| 6SCREW EHHFM | 585235901 | 4 |
Regular price
$19.79
Regular price
|
||
| 7SCREW EHHFM | 576654804 | 2 | 1-bar | ||
| 7SCREW EHHFM | 576654806 | 2 | 2-bar | ||
| 7SCREW EHHFM | 576654808 | 2 | 3-bar | ||
| 7SCREW EHHM | 725255251 | 2 | 4-bar |
COVER 21 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1PROTECTION | 547186901 | 1 | |||
| 2PROTECTION | 547187001 | 1 | |||
| 3COVER ASSY | 540208901 | 1 | RH side cover incl. decal | ||
| 4SCREW EHHFM | 585975601 | 8 | |||
| 5LATCH | 541254301 | 6 | |||
| 6PROTECTION | 547187101 | 1 | |||
| 7PROTECTION | 547187201 | 4 | |||
| 8COVER ASSY | 540207901 | 1 | Front cover incl. decals | ||
| 9COVER ASSY | 540209101 | 1 | LH side cover incl. decal | ||
| 12PLATE | 586617201 | 1 | |||
| 14LATCH | 541254201 | 2 | |||
| 15FILTER | 583893201 | 1 | |||
| 16RETAINER | 586615201 | 1 | |||
| 17SCREW EHHFM | 585973301 | 8 | |||
| 18HINGE | 581166701 | 2 | |||
| 19SCREW EHHFM | 585975401 | 6 | |||
| 20SPRING | 542040330 | 2 | |||
| 21HEXAGON NUT FLANGE | 731711651 | 4 | |||
| 22PLATE | 580839801 | 1 | |||
| 23INSULATOR | 581175303 | 2 | L 540 | ||
| 24INSULATOR | 581175302 | 2 | L450 |
COVER, REAR 37 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1GRIP | 542139568 | 2 |
Regular price
$19.79
Regular price
|
||
| 2HANDLEBAR | 539300340 | 2 |
Regular price
$109.00
Regular price
|
||
| 3SCREW IHCSFM | 725645151 | 3 | |||
| 4SCREW EHHFM | 585980301 | 4 | |||
| 5HEXAGON NUT | 731711851 | 2 | |||
| 6SCREW EHHM | 725245771 | 2 | |||
| 7WASHER | 734117801 | 2 |
Regular price
$6.29
Regular price
|
||
| 8COWL PANEL | 540651401 | 1 | |||
| 9TURNING KNOB | 504569301 | 2 | |||
| 10WASHER | 542020745 | 2 | |||
| 11LEVER | 585594601 | 2 | |||
| 12SCREW EHHFM | 585975401 | 10 | |||
| 13BRACKET | 540600301 | 1 | |||
| 14HANDLE | 586927701 | 2 | |||
| 15BRACKET | 584149501 | 1 | |||
| 16SCREW IHCSFM | 725645501 | 2 | |||
| 17WASHER | 539300274 | 2 | |||
| 18COWL PANEL | 540651301 | 1 | |||
| 20WRENCH | 504626403 | 1 | |||
| 21SCREW EHHFM | 585235901 | 5 |
Regular price
$19.79
Regular price
|
||
| 23HEXAGON LOCKING NUT | 732252201 | 2 |
Regular price
$19.79
Regular price
|
||
| 24BRACKET | 540651501 | 1 | |||
| 25TOOL HOLDER | 578107301 | 1 | |||
| 26SEAL | 579833901 | 1 | |||
| 27HEXAGON NUT FLANGE | 731711651 | 4 | |||
| 28HEXAGON NUT | 731231601 | 4 |
Regular price
$19.79
Regular price
|
||
| 30SWITCH | 542178724 | 1 | |||
| 31WASHER | 542045640 | 1 | |||
| 33VALVE | 582691101 | 2 | |||
| 34WATER CONNECTOR | 540651601 | 1 | |||
| 35HOSE | 597455601 | 1 | |||
| 36HOSE | 597455701 | 1 | |||
| 37WATER CONNECTOR | 540651701 | 1 | |||
| 38HOSE CLAMP | 542206193 | 1 | |||
| 39HOSE CLAMP | 576315201 | 3 | |||
| 40NUT | 542167555 | 2 | |||
| 41BRACKET | 581192201 | 1 |
DECALS 23 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1DECAL | 586467501 | 1 | |||
| 2DECAL | 547659301 | 1 | |||
| 3LABEL | 599963601 | 1 | |||
| 4DECAL | 547659001 | 1 | CE only | ||
| 4DECAL | 547659101 | 1 | US Only | ||
| 5DECAL | 547659601 | 2 | |||
| 7DECAL | 548482901 | 1 | 3-spd only | ||
| 8DECAL | 599235001 | 1 | |||
| 9DECAL | 585407201 | 1 | |||
| 10DECAL | 548484201 | 1 | US Only | ||
| 10DECAL | 548516601 | 1 | CE only | ||
| 11DECAL | 586307601 | 1 | 26" | ||
| 11DECAL | 586307701 | 1 | 30"(750mm CE) | ||
| 11DECAL | 586307801 | 1 | 36" (900 mm) | ||
| 11DECAL | 586307901 | 1 | 42"(1000 mm) | ||
| 12DECAL | 547659201 | 1 | |||
| 13DECAL | 547659701 | 2 | |||
| 14DECAL | 585299701 | 1 | |||
| 15DECAL | 586175101 | 1 | Decal US only | ||
| 16DECAL | 542181059 | 1 | CE only | ||
| 16DECAL | 585370401 | 1 | US Only | ||
| 17DECAL | 547659401 | 2 | |||
| 18DECAL | 542199435 | 1 | US Only |
ELECTRICAL 27 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1WIRING ASSY | 599813001 | 1 | |||
| 2HARNESS ASSY | 581073203 | 1 | |||
| 3CLAMP | 583959501 | 37 | |||
| 4TIE WRAP | 542166906 | 3 | |||
| 5WIRING ASSY | 540365301 | 1 | |||
| 6RELAY | 547789601 | 1 | |||
| 7WIRING ASSY | 597036901 | 1 | |||
| 8SCREW EHHFM | 585980601 | 1 |
Regular price
$19.79
Regular price
|
||
| 9CABLE | 597562401 | 1 | |||
| 10ELECTRICAL SYSTEM | 581336501 | 1 | |||
| 11HARNESS ASSY | 581073207 | 1 | |||
| 12ELECTRICAL SYSTEM | 581336301 | 1 | |||
| 13HEXAGON NUT | 731711851 | 2 | |||
| 14HEXAGON NUT FLANGE | 731711651 | 4 | |||
| 15SCREW EHHFM | 576654802 | 2 | |||
| 16HARNESS ASSY | 581073213 | 1 | |||
| 17ELECTRICAL SYSTEM | 581336401 | 1 | |||
| 18PLATE | 581159802 | 1 | |||
| 19WING NUT | 577244901 | 2 | |||
| 20BOLT | 584650901 | 2 | |||
| 21WASHER | 734115441 | 2 | |||
| 22HARNESS ASSY | 581073211 | 1 | |||
| 23HARNESS ASSY | 581073204 | 1 | |||
| 24HEXAGON NUT | 731711851 | 1 | |||
| 25SCREW EHHFM | 585975601 | 1 | |||
| 26CABLE ASSY | 540487201 | 1 | |||
| 27BATTERY | 585075501 | 1 | US Only |
ELECTRICAL 8 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1FUSE | 531302419 | 3 | 15A fuse | ||
| 2FUSE | 542166856 | 1 | 7,5A fuse | ||
| 3FUSE | 531302420 | 1 | 20A fuse | ||
| 4FUSE | 531302421 | 5 | 25A fuse | ||
| 5RELAY | 581074501 | 6 | relay 30A | ||
| 6RELAY | 547907301 | 2 | relay 30A Safe | ||
| 7PRINTED CIRCUIT BOARD SYSTEM | 541181001 | 1 | PCB ASSY include PCB 581333601 + FUSE 531302419 | ||
| 8FUSE HOLDER | 501696201 | 1 | fuse holder |
ENGINE 43 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 2BRACKET | 580957001 | 1 | |||
| 3SCREW EHHFM | 585972801 | 1 | |||
| 4AIR CLEANER | 581058901 | 1 | US Only | ||
| 4AIR CLEANER | 597672501 | 1 | CE Only | ||
| 5FILTER | 542191115 | 1 |
Regular price
$84.79
Regular price
|
||
| 6FILTER | 542191116 | 1 | |||
| 8HOOD | 542199566 | 1 | |||
| 9EXHAUST PIPE | 581274901 | 1 | |||
| 10GAUGE | 541200989 | 1 | |||
| 11ADAPTER | 542166880 | 1 | |||
| 12CLAMP | 586368801 | 2 | |||
| 13HOSE CLAMP | 576315208 | 1 | |||
| 14EXHAUST | 596010001 | 1 | Tier 4 | ||
| 14EXHAUST | 596010501 | 1 | Stage V | ||
| 15HOSE | 595531101 | 1 | |||
| 16HOSE CLAMP | 576315207 | 1 | |||
| 17ENGINE ASSY | 547474301 | 1 | Tier 4 | ||
| 17ENGINE | 595942801 | 1 | Stage V | ||
| 18SCREW EHHFM | 585975601 | 8 | |||
| 19CLAMP | 586626601 | 2 | Tier 4 | ||
| 19EXHAUST | 596010501 | 2 | Stage V | ||
| 20BRACKET | 581853701 | 1 | |||
| 21SCREW EHHFM | 585973101 | 4 |
Regular price
$19.79
Regular price
|
||
| 22BRACKET | 580957401 | 1 | |||
| 23PULLEY | 585236701 | 1 | |||
| 24OIL FILTER | 586010801 | 1 | |||
| 25PULLEY | 593324501 | 1 |
Regular price
$889.00
Regular price
|
||
| 26PULLEY | 585237001 | 1 | |||
| 27SPACER | 541054101 | 1 | |||
| 28HOSE ASSY | 584970901 | 1 | |||
| 29ADAPTER | 581727301 | 1 | |||
| 30DRIVE BELT | 586071101 | 1 | |||
| 31SCREW | 586626801 | 4 | |||
| 32DRIVE BELT | 586071102 | 1 | |||
| 33VALVE | 542166907 | 1 | |||
| 34SCREW EHHFM | 576654803 | 4 | |||
| 35SCREW EHHFM | 585975401 | 4 | |||
| 36FAN | 584824601 | 1 | |||
| 37BRACKET | 581079801 | 1 | |||
| 38NUT | 576878928 | 2 | |||
| 39ANTIVIBRATION ELEMENT | 587150101 | 2 | |||
| 40WASHER | 542206356 | 2 | |||
| 41SCREW EHHFM | 581249402 | 2 |
FRONT POINTER 17 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1POINTER | 540652701 | 1 | |||
| 3SCREW EHHM | 725245171 | 4 | |||
| 4ROPE | 590294101 | 0 | Kit - Rope + Clamp (Pos. 2) | ||
| 5HEXAGON NUT | 731231801 | 4 |
Regular price
$19.79
Regular price
|
||
| 6POINTER | 581222101 | 1 | |||
| 7ROD | 548469001 | 1 | |||
| 8SCREW EHHFM | 585975401 | 4 | |||
| 9EYE BOLT | 584911401 | 1 | |||
| 10HEXAGON LOCKING NUT | 732252001 | 2 |
Regular price
$19.79
Regular price
|
||
| 11WASHER | 734117201 | 2 |
Regular price
$19.79
Regular price
|
||
| 12SCREW EHHFM | 581243301 | 2 | |||
| 13SCREW | 725236451 | 1 | M6S 6x10 | ||
| 14HEXAGON NUT | 731711851 | 5 | |||
| 15BRACKET | 581222501 | 2 | |||
| 16POINTER | 548533601 | 1 | |||
| 17POINTER | 581213701 | 1 | |||
| 18WHEEL ASSY | 579856701 | 1 |
FUEL SYSTEM 27 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW EHHFM | 585973101 | 1 | M10x25 8.8 ZPB |
Regular price
$19.79
Regular price
|
|
| 2ADAPTER | 585189001 | 1 | |||
| 3WASHER | 587945901 | 1 | |||
| 4FITTING | 587936501 | 1 | |||
| 5FITTING | 585189401 | 1 | |||
| 6CLAMP | 542020049 | 3 | |||
| 7BRACKET | 531327001 | 1 | |||
| 8SCREW EHHFM | 585173901 | 1 | |||
| 9FUEL FILTER | 534144901 | 1 | |||
| 10SCREW EHHFM | 585975401 | 2 | |||
| 11ADAPTER | 585189201 | 2 | |||
| 12FITTING | 585189501 | 2 | |||
| 13HOSE CLAMP | 539300011 | 3 | |||
| 14FUEL HOSE | 585056001 | 1 | |||
| 15SCREW EHHFM | 585980501 | 4 | |||
| 16FUEL PUMP | 590571301 | 1 | |||
| 17WATER SEPARATOR | 581776901 | 1 |
Regular price
$179.00
Regular price
|
||
| 18BRACKET | 584226401 | 1 | |||
| 19SCREW EHHFM | 506570105 | 3 | DIN 6921 M 8 X 25 8.8 ZPB | ||
| 20FUEL HOSE | 585053001 | 1 | |||
| 21PROTECTION | 596212701 | 1 | |||
| 22PROTECTION | 596212701 | 1 | |||
| 23CLAMP | 542190560 | 3 | |||
| 24HEXAGON NUT | 731711851 | 1 | M8 10 ZPB | ||
| 25HOSE ASSY | 584157001 | 1 | |||
| 26HOSE ASSY | 581226101 | 1 | |||
| 27SCREW EHHFM | 585975201 | 1 | M 10 X 20 8.8 ZPB |
Regular price
$8.69
Regular price
|
FUEL TANK 11 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1FUEL TANK ASSY | 540651801 | 1 | |||
| 2ADAPTER | 581129102 | 2 | |||
| 3PLUG | 585595401 | 1 | |||
| 4SEALING WASHER | 740382901 | 1 | |||
| 5HOSE CLAMP | 576315207 | 2 | |||
| 6TANK CAP | 597722201 | 1 | |||
| 7HOSE | 581053601 | 1 | |||
| 8BRACKET | 583914001 | 1 | |||
| 9PIPE | 587856101 | 1 | |||
| 10BRACKET | 583966801 | 1 | |||
| 11SCREW EHHFM | 585975401 | 4 |
GEAR BOX 47 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 2BREATHER | 542206660 | 1 | |||
| 3PROTECTION | 586021301 | 1 | |||
| 4FITTING | 541204870 | 2 | |||
| 5GEARBOX | 588588701 | 1 |
Regular price
$4,159.00
Regular price
|
||
| 6KEY | 542164632 | 2 | |||
| 7SCREW EHHFM | 585980401 | 12 |
Regular price
$19.79
Regular price
|
||
| 8WASHER | 542166480 | 2 | |||
| 10NUT | 541204833 | 2 | |||
| 11ADAPTER | 542139649 | 1 | |||
| 12ANTIVIBRATION ELEMENT | 587150101 | 2 | |||
| 13DRIVE BELT | 542166362 | 4 | 26", 30" 1spd 3VX450 |
Regular price
$63.39
Regular price
|
|
| 13DRIVE BELT | 542199764 | 4 | 42" 1spd |
Regular price
$79.59
Regular price
|
|
| 13DRIVE BELT | 585514901 | 4 | 36" 1spd 3VX470 |
Regular price
$68.39
Regular price
|
|
| 14TAP | 542160704 | 1 | |||
| 15SCREW | 542166368 | 2 | |||
| 16PULLEY | 581099801 | 2 | 26", 30", 36", 42" | ||
| 17BRACKET | 542166442 | 1 | |||
| 18BOLT | 539300440 | 2 | |||
| 19WASHER | 542206356 | 2 | |||
| 20FLANGE | 522965937 | 2 | 20", 26", 30" FLANGE W/PINS 5" OUTER | ||
| 20FLANGE | 522965938 | 2 | 42" FLANGE W/PINS 7" OUTER | ||
| 20FLANGE | 522965939 | 2 | 36" FLANGE W/PINS 6" OUTER | ||
| 21WASHER | 542160393 | 2 | |||
| 22WASHER | 542191962 | 4 | |||
| 23SCREW | 586255901 | 1 | SCREW HHCS 5/8-11 x 4.25 LH THD GR SAE L=107,95mm |
Regular price
$38.09
Regular price
|
|
| 23SCREW | 586256101 | 1 | SCREW HHCS 5/8-11 x 4.75 LH THD GR SAE L=120,65mm 42" | ||
| 24SCREW | 542167447 | 2 | |||
| 25WASHER | 522965942 | 2 | |||
| 28PIN | 539300010 | 10 | |||
| 29SCREW | 542166356 | 2 | |||
| 30WEDGE | 542199045 | 2 | |||
| 31BELT GUARD | 581020801 | 1 | |||
| 32PLATE | 581521801 | 2 | |||
| 33SCREW EHHFM | 586120201 | 4 | |||
| 36WASHER | 734117201 | 4 |
Regular price
$19.79
Regular price
|
||
| 38PULLEY | 582411601 | 2 | 42" 1-spd A-162,5 | ||
| 38PULLEY | 582411901 | 2 | 36" 1-spd A-138 | ||
| 38PULLEY | 590146101 | 2 | 26" 1 and 3-spd and 30" 3-spd A-106 | ||
| 38PULLEY | 590146201 | 2 | 30" 1-spd A115 | ||
| 39BELT GUARD | 581020901 | 1 | |||
| 40SPLASH GUARD | 581521601 | 2 | |||
| 42FLANGE | 582487001 | 2 | 42" 178MM(7") INNER | ||
| 42FLANGE | 582697201 | 2 | 36" 152.5MM(6") INNER | ||
| 42FLANGE | 590146001 | 2 | 26", 30" 127MM(5") INNER | ||
| 44SCREW | 586255701 | 1 | SCREW HHCS 5/8-11 x 4.25 RH THD GR SAE L=107,95mm |
Regular price
$39.59
Regular price
|
|
| 44SCREW | 586256001 | 1 | SCREW HHCS 5/8-11 x 4.75 RH THD GR SAE L=120,65mm 42" | ||
| 45HEXAGON LOCKING NUT | 732251601 | 4 |
Regular price
$19.79
Regular price
|
GEAR BOX 62 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW EHHFM | 585973301 | 4 | Screw M6x12 | ||
| 2ROD | 547723001 | 1 | |||
| 3BALL | 542163214 | 1 | |||
| 4NUT | 539990258 | 2 | |||
| 5HANDLE | 547035601 | 1 | |||
| 6ARM | 547722901 | 1 | |||
| 7SCREW | 505772501 | 2 | |||
| 8WASHER | 542020777 | 2 | |||
| 9PLATE | 547715401 | 1 | LH Plate belt guard | ||
| 10FITTING | 504539601 | 1 | |||
| 11LOCKING PIN | 586917202 | 1 | LOCKING PIN 3 SPD 64mm | ||
| 12HEXAGON THIN NUT | 731432001 | 1 | |||
| 13STUD | 542206416 | 1 | |||
| 14PLATE | 547715701 | 1 | RH Plate belt guard | ||
| 15KEY | 542164632 | 2 | |||
| 16GEARBOX | 596823901 | 1 | |||
| 17PULLEY | 581099802 | 2 | 30", 36", 42" 109mm | ||
| 17PULLEY | 581099803 | 2 | 26", 130mm | ||
| 18WASHER | 542166480 | 2 | |||
| 19SCREW EHHFM | 585980401 | 8 | |||
| 20NUT | 541204833 | 2 | |||
| 21DRIVE BELT | 504119701 | 4 | 42" DRIVE BELT 3VX580 | ||
| 21DRIVE BELT | 504119706 | 4 | 26" DRIVE BELT 3VX570 | ||
| 21DRIVE BELT | 504119707 | 4 | 30" DRIVE BELT 3VX550 | ||
| 21V-BELT | 541200847 | 4 | 36" DRIVE BELT 3VX560 | ||
| 22TAP | 542160704 | 1 | |||
| 23NUT | 731712451 | 1 | |||
| 24FITTING | 541204870 | 2 | |||
| 25SCREW | 542166368 | 2 | |||
| 26ANTIVIBRATION ELEMENT | 587150101 | 2 | |||
| 27FLANGE | 522965937 | 2 | FLANGE W/PINS 5" OUTER | ||
| 27FLANGE | 522965938 | 2 | 42" FLANGE W/PINS 7" OUTER | ||
| 27FLANGE | 522965939 | 2 | 36" FLANGE W/PINS 6" OUTER | ||
| 28SCREW | 542167447 | 2 | |||
| 29SCREW | 586255901 | 1 | SCREW HHCS 5/8-11 x 4.25 LH THD GR SAE L=107,95mm | ||
| 29SCREW | 586256101 | 1 | SCREW HHCS 5/8-11 x 4.75 LH THD GR SAE L=120,65mm 42" | ||
| 30WASHER | 542160393 | 2 | |||
| 31WASHER | 522965942 | 2 | |||
| 32BRACKET | 542166442 | 1 | |||
| 33PIN | 539300010 | 10 | |||
| 34WASHER | 542191962 | 4 | |||
| 35BOLT | 539300440 | 2 | |||
| 36WASHER | 542206356 | 2 | |||
| 37SPRING WASHER | 735117301 | 1 | |||
| 38SCREW | 542166356 | 2 | |||
| 39WEDGE | 542199045 | 2 | |||
| 40PULLEY | 582411701 | 2 | 36" 3-spd A-121.5 | ||
| 40PULLEY | 582411801 | 2 | 42" 3-spd A-146 | ||
| 40PULLEY | 590146101 | 2 | 26" 1 and 3-spd and 30" 3-spd A-106 | ||
| 41POINTER | 596537701 | 1 | |||
| 42FLANGE | 582487001 | 2 | 42" FLANGE 178MM(7") INNER | ||
| 42FLANGE | 582697201 | 2 | 36" FLANGE 152.5MM(6") INNER | ||
| 42FLANGE | 590146001 | 2 | 26", 30" FLANGE 127MM(5") INNER | ||
| 44HEXAGON LOCKING NUT | 732251601 | 4 | |||
| 45BELT GUARD | 547711801 | 1 | |||
| 46SCREW EHHFM | 586120201 | 4 | |||
| 47PLATE | 581521801 | 2 | |||
| 48SPLASH GUARD | 581521601 | 2 | |||
| 49BELT GUARD | 547711901 | 1 | |||
| 50WASHER | 734117201 | 4 | |||
| 53SCREW | 586255701 | 1 | SCREW HHCS 5/8-11 x 4.25 RH THD GR SAE L=107,95mm | ||
| 53SCREW | 586256001 | 1 | SCREW HHCS 5/8-11 x 4.75 RH THD GR SAE L=120,65mm 42" |
HYDRAULIC SYSTEM 45 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1CONTROL VALVE | 586410101 | 1 | ASSY | ||
| 2ADAPTER | 583965901 | 2 | |||
| 3HYDRAULIC HOSE | 584267401 | 1 | |||
| 4HYDRAULIC HOSE | 584216701 | 1 | |||
| 5HYDRAULIC HOSE | 584216901 | 1 | |||
| 6HYDRAULIC HOSE | 584267101 | 1 | |||
| 7PLATE | 580960601 | 1 | |||
| 8HYDRAULIC PUMP | 581053201 | 1 |
Regular price
$1,099.00
Regular price
|
||
| 9SCREW EHHFM | 585975401 | 1 | |||
| 10WASHER | 734116301 | 1 |
Regular price
$19.79
Regular price
|
||
| 11PUMP | 505289510 | 1 | |||
| 12O-RING | 542198949 | 1 | |||
| 13SCREW | 542020301 | 2 | |||
| 14PLUG | 581206001 | 1 | |||
| 15ADAPTER | 581205301 | 4 | |||
| 16WASHER | 734115441 | 2 | |||
| 17ADAPTER | 583966202 | 1 | |||
| 18SCREW EHHM | 725249576 | 2 | |||
| 19WASHER | 734117201 | 2 |
Regular price
$19.79
Regular price
|
||
| 20SPRING WASHER | 735117301 | 2 | |||
| 21ADAPTER | 583947201 | 3 | |||
| 22FILTER | 542166449 | 1 |
Regular price
$40.59
Regular price
|
||
| 23HYDRAULIC HOSE | 594974901 | 1 | |||
| 24HYDRAULIC HOSE | 584270701 | 1 | |||
| 25HYDRAULIC HOSE | 590688701 | 1 | |||
| 26HYDRAULIC PUMP | 588690601 | 1 |
Regular price
$1,279.00
Regular price
|
||
| 27SOLENOID | 522849115 | 1 |
Regular price
$179.00
Regular price
|
||
| 28CAP | 522849119 | 1 | |||
| 29COIL | 522849110 | 1 | |||
| 30ADAPTER | 583968201 | 4 | |||
| 31MOTOR | 599589901 | 1 | |||
| 32VALVE | 581267701 | 1 | |||
| 33RESERVOIR | 599571201 | 1 | |||
| 34SEALING RING | 599571701 | 1 | |||
| 36SCREW EHHFM | 585973101 | 3 |
Regular price
$19.79
Regular price
|
||
| 37BRACKET | 580958401 | 1 | |||
| 38SCREW EHHFM | 585975601 | 2 | |||
| 39ADAPTER | 541205102 | 4 | |||
| 40HYDRAULIC HOSE | 584280001 | 1 | |||
| 41HYDRAULIC MOTOR | 542198878 | 2 |
Regular price
$929.00
Regular price
|
||
| 43HYDRAULIC HOSE | 584284701 | 1 | |||
| 44HYDRAULIC HOSE | 584280501 | 1 | |||
| 46ADAPTER | 590628001 | 1 | |||
| 47ADAPTER | 581205501 | 1 | |||
| 48HYDRAULIC HOSE | 590628101 | 1 |
PARKING BRAKE 6 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BRACKET | 540423501 | 1 | |||
| 2SCREW EHHFM | 585980501 | 2 | |||
| 3WIRE | 540428201 | 2 | |||
| 4HEXAGON LOCKING NUT | 732251401 | 2 |
Regular price
$19.79
Regular price
|
||
| 5BRAKE | 540442401 | 2 | |||
| 6BRACKET | 540423401 | 1 |
SHAFT 18 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BLADE SHAFT | 590199901 | 1 | 36" 3-spd 1 | ||
| 1BLADE SHAFT | 590200001 | 1 | 42" 3-spd | ||
| 1BLADE SHAFT | 590200501 | 1 | 42" 1-spd | ||
| 1BLADE SHAFT | 590200601 | 1 | 36" 1-spd 1 | ||
| 1BLADE SHAFT | 591394901 | 1 | 30" 1-spd 1 | ||
| 1BLADE SHAFT | 591395001 | 1 | 26" 1 and 3-spd and 30" 3-spd | ||
| 3SCREW EHHFM | 585972801 | 4 | |||
| 4NIPPLE | 504204501 | 2 | |||
| 5COVER | 582377301 | 2 | |||
| 6O-RING | 580338001 | 2 | |||
| 7BEARING | 582581501 | 2 | |||
| 8SPACER | 582610601 | 2 | |||
| 9FILTER | 586019601 | 1 | |||
| 10SENSOR | 580989501 | 1 | |||
| 11CLAMP | 583959501 | 1 | |||
| 12HOUSING | 580295301 | 1 | |||
| 13BLADE SHAFT | 582370001 | 1 | |||
| 14GEAR WHEEL | 597202501 | 1 |
SPEED CONTROL 24 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1PLATE | 581118501 | 1 | |||
| 2SWITCH | 542182102 | 1 |
Regular price
$69.59
Regular price
|
||
| 3BOOT | 542182146 | 1 | |||
| 4CLAMP | 583959501 | 2 | |||
| 5SCREW | 724128551 | 2 | |||
| 6HANDLE | 586946201 | 1 | |||
| 7HANDLE ASSY | 540652801 | 1 | |||
| 8WIRING ASSY | 547389701 | 1 | |||
| 9HEXAGON LOCKING NUT | 732252201 | 1 |
Regular price
$19.79
Regular price
|
||
| 10SPRING WASHER | 542183124 | 4 | |||
| 11WASHER | 542020745 | 1 | |||
| 12SENSOR | 547396601 | 1 | sensor | ||
| 13BRACKET | 547327701 | 1 | |||
| 14SCREW EHHI | 586866801 | 1 | |||
| 15ROD | 542166466 | 2 | |||
| 16BEARING BUSH | 581068901 | 1 | |||
| 17WASHER | 579425601 | 1 | |||
| 18CABLE | 579510103 | 1 |
Regular price
$99.99
Regular price
|
||
| 19BUSHING | 542183001 | 2 | bushing | ||
| 20ARM | 579745001 | 1 | |||
| 21NUT | 541205253 | 2 | |||
| 22WASHER | 539990122 | 1 | |||
| 23WASHER | 734115441 | 1 | |||
| 24NUT | 539976978 | 1 |
SUSPENSION 23 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW EHHFM | 576654803 | 1 | |||
| 2BLOCK | 579595601 | 1 | |||
| 3SHAFT | 579525801 | 1 | |||
| 4CIRCLIP | 735312200 | 2 | SGA 20x1.2 St PP | ||
| 5SCREW EHHFM | 576654807 | 1 | |||
| 6HYDRAULIC CYLINDER | 579246401 | 1 | |||
| 8SCREW | 576654813 | 4 | |||
| 11SCREW | 542199053 | 2 | |||
| 12SHAFT | 590224201 | 1 | |||
| 13GREASE | 581068801 | 1 | |||
| 14SCREW EHHM | 725254671 | 2 | |||
| 15BALL BEARING | 595945601 | 2 | |||
| 16HEXAGON NUT | 731232201 | 2 | |||
| 17FRONT AXLE | 587715501 | 1 | |||
| 18PLATE | 579330301 | 1 | |||
| 19WASHER | 542046402 | 4 | |||
| 20BALL BEARING | 542191714 | 4 | |||
| 21WHEEL | 590649901 | 2 | |||
| 22CIRCLIP | 735312600 | 2 | SGA 25x1.2 St PP | ||
| 23SENSOR ASSY | 599634101 | 1 | Sensor 596823001 + 2x screw 597757401 | ||
| 24SCREW EHHFM | 585980601 | 6 | |||
| 25SENSOR | 596823101 | 1 | Screws included | ||
| 26BOX | 579330201 | 1 |
SUSPENSION 16 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1KIT | 587623501 | 1 | |||
| 3SCREW EHHFM | 576654804 | 4 | |||
| 6BEARING BUSH | 580255301 | 2 | |||
| 8DISC | 578783201 | 2 | |||

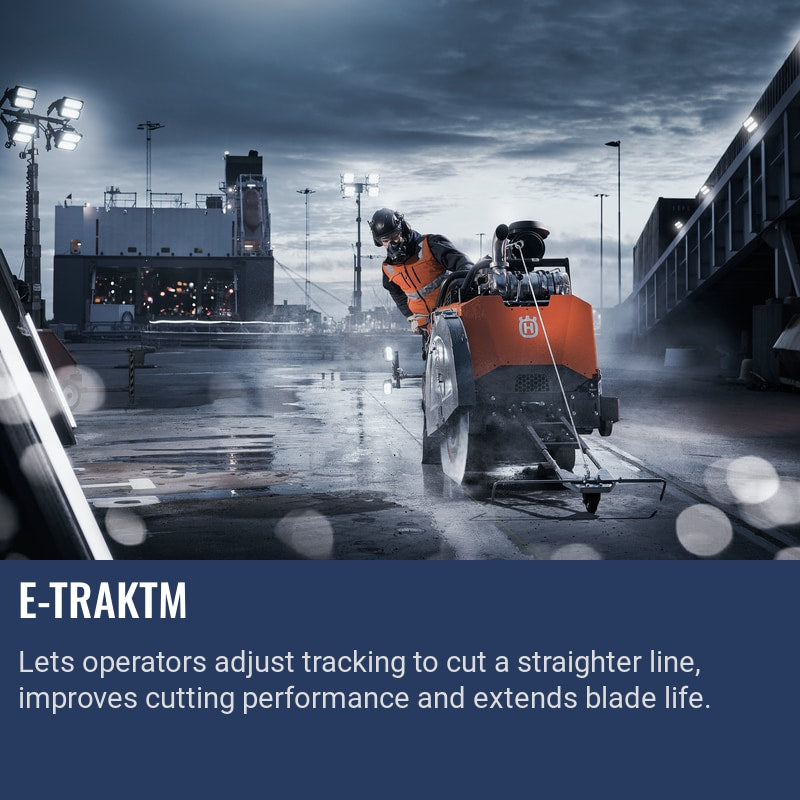

| 9E-TRACK SYSTEM | 587218401 | 1 | US only | ||
| 10NIPPLE | 504204501 | 1 | |||
| 11SWIVEL | 578782801 | 1 | |||
| 12REAR AXLE | 590198201 | 1 | incl. 2x pos 6 | ||
| 13SPLIT PIN | 721620301 | 3 | |||
| 14HUB | 542198843 | 2 | |||
| 15REAR WHEEL | 542198842 | 2 | |||
| 16WASHER | 581072901 | 1 | |||
| 17NUT | 578850101 | 1 | |||
| 18SCREW EHHFM | 585972801 | 8 | |||
| 19SCREW EHHFM | 576654806 | 8 | |||
| 20CAP | 539102535 | 2 |
TRACK SYSTEM 10 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1CLAMP | 583959501 | 2 | |||
| 2CABLE | 598698401 | 1 | |||
| 3BRACKET | 546839501 | 1 | |||
| 4BOLT | 531437401 | 2 | |||
| 5ACTUATOR | 534112801 | 1 | |||
| 6PIN | 542177239 | 2 | |||
| 7BRACKET | 546839401 | 1 | |||
| 8SCREW EHHFM | 585975401 | 2 | |||
| 9LID | 531391101 | 1 | |||
| 10SCREW EHHFM | 585975601 | 3 |
Document Downloads
Operator's manual
-
Water Pump Kit for FS, 2026-05PDF EN ES FR
-
Water Pump Kit for FS, 2026-05PDF EN DE FR NL
-
5th Wheel for FS, 2026-06. en. de. fr. nlPDF EN ES FR
-
5th Wheel for FS, 2026-06. en. de. fr. nlPDF EN DE FR NL
-
Dual light for FS, 2026-05, en.de.fr.nlPDF EN ES FR
-
FS 7000D II, FS 7000DL II. 2026-07. en. fr. esPDF EN ES FR
Concrete Focus
From pouring to resurfacing, we sell tools built for concrete pros.
Expert Support
Get guidance from experts who understand jobsite challenges.
Fast Delivery
Get your tools fast with our nationwide shipping network and local partnerships.
Talk to an expert now (855) 281-1918
Get fast, expert help choosing the right concrete tools or equipment for your job. Ask about availability, specs, troubleshooting, or get friendly guidance before you place an order.
