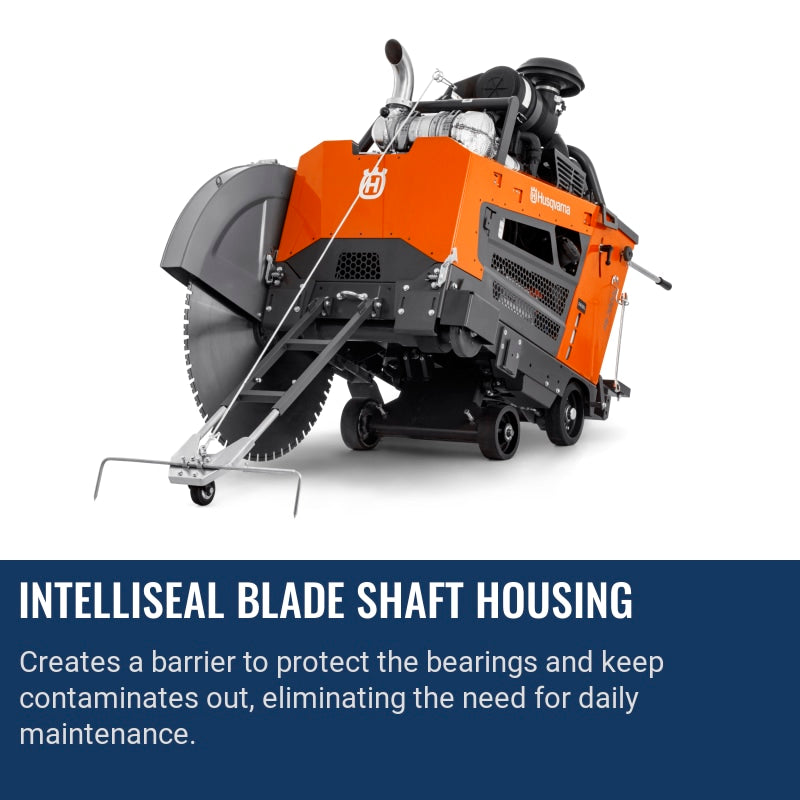

Husqvarna FS 7000 DL Tier 4 | Walk-Behind Floor Saw
Husqvarna FS 7000 DL Tier 4 | Walk-Behind Floor Saw
HUSQVARNA CONSTRUCTION SKU: 970750601 Copied!
Regular price
$81,809.00
Regular price
$103,299.00
Sale price
$81,809.00
Quantity
Trusted by contractors nationwide
"I've bought 3 products from CTD and each time the experience has been the same - professional and fast delivery. I trust these guys with all my concrete needs."
90 day returns
Product Details

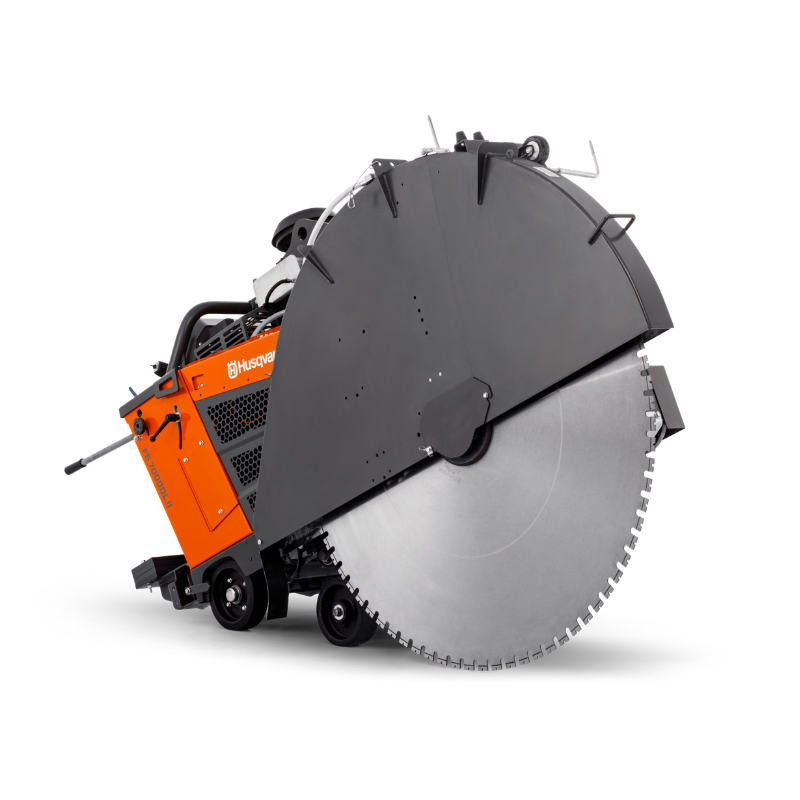

HUSQVARNA WALK-BEHIND FLOOR SAW - FS 7000 DL TIER 4
The Husqvarna FS 7000 DL Tier 4 is a powerful diesel walk-behind floor saw engineered for deep cutting in asphalt and concrete. Powered by a 74.3 hp Deutz turbo diesel engine, it delivers high sustainable torque and productivity for demanding professional applications. Its optimized size, weight, and balance improve cutting efficiency, while intuitive electronic support systems and ergonomic controls enhance operator comfort and convenience.
Designed for heavy-duty cutting, the FS 7000 DL accommodates blades up to 60 inches in diameter and provides a maximum cutting depth of 25 inches. It is available with either a single-speed or 3-speed gearbox and can be equipped with options such as an electronic tracking system, light kit, water pump kit, and weight kits. A fifth wheel is included as standard to help ensure easy operation and maneuverability.
- Power Source: Diesel
- Engine Power: 74.3 hp
- Maximum Cutting Depth: 25 in
- Maximum Blade Diameter: 60 in
- EPA Tier 4 compliant Deutz turbo diesel engine
Product Specification
FLOOR SAW FS 7000 DL 74 hp | 60" | Deutz | 3SPD ETRK | 5th WL
General
Article number
970750601
Power Specifications
Motor/engine manufacturer
Deutz
Engine Power (As rated by the engine manufacturer)
74.3 hp
Engine cooling
Liquid /Air
Number of strokes
4-stroke engine
Cylinders
4
Power Source
Diesel
Working Specifications
Cutting depth, max
25 in
Blade diameter, max
60 in
Arbor diameter
1"
Blade depth control
Electric hydraulic

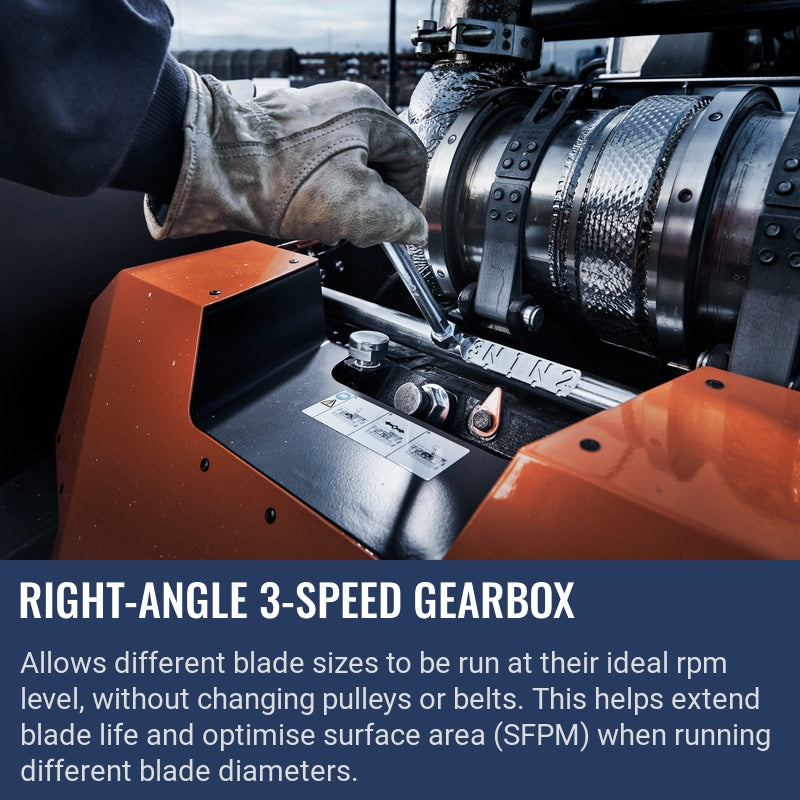

Number of gearbox speeds
3
Transmission speed forward
250 fpm
Transmission speed reverse
250 fpm
Output shaft RPM, Speed 1
820 rpm
Output shaft RPM, Speed 2
957 rpm
Output shaft RPM, Speed 3
1,373 rpm
Product size length
107 in
Product size width
38.9 in
Product size height
57.7 in
Weight Specifications
Weight
3,086 lbs
Other Specifications
Packaging length (Calc)
91.26 in
Packaging width (Calc)
42.992 in
Packaging height (Calc)
65.984 in
Related Equipment
Related Equipment
Service & Maintenance Parts
BASE PLATE 48 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW EHHFM | 585980401 | 6 |
Regular price
$19.79
Regular price
|
||
| 2SCREW EHHFM | 585975301 | 2 | |||
| 3SCREW IHCSFM | 502023501 | 2 | |||
| 4SCREW EHHM | 725250381 | 2 | |||
| 5CLAMP | 501857901 | 1 | |||
| 6WASHER | 734117201 | 4 |
Regular price
$19.79
Regular price
|
||
| 7HEXAGON LOCKING NUT | 732251801 | 1 |
Regular price
$19.79
Regular price
|
||
| 8HEXAGON LOCKING NUT | 732252001 | 2 |
Regular price
$19.79
Regular price
|
||
| 9PLATE | 540600701 | 1 | |||
| 10BRACKET | 546912601 | 1 | |||
| 12BRACKET | 505189101 | 1 | |||
| 13SCREW EHHFM | 585972801 | 1 | |||
| 14SCREW EHHFM | 585975601 | 4 | |||
| 15BRACKET | 582199701 | 1 | |||
| 16HEXAGON LOCKING NUT | 732252201 | 2 |
Regular price
$19.79
Regular price
|
||
| 17PROTECTION | 586175801 | 4 | |||
| 18BRACKET | 540650601 | 1 | Incl. decal | ||
| 19SCREW EHHFM | 587259001 | 2 | |||
| 20WEIGHT | 579360002 | 3 | 1pcs | ||
| 22BRACKET | 582011901 | 1 | |||
| 23BRACKET | 501704401 | 1 | |||
| 24SCREW EHHFM | 581249402 | 6 | |||
| 25SCREW EHHFM | 585235901 | 4 |
Regular price
$19.79
Regular price
|
||
| 26WASHER | 539976982 | 4 | |||
| 27BRACKET | 501703701 | 1 | |||
| 28ENGINE | 501871501 | 1 | 48" | ||
| 29ENGINE | 501871401 | 1 | 48" | ||
| 30SCREW EHHFM | 576654808 | 2 | 3 Bars M12x80 | ||
| 30SCREW EHHM | 725255251 | 2 | 4 Bars M12x100 | ||
| 31INSULATOR | 581167201 | 1 | |||
| 32SCREW EHHFM | 585975201 | 8 |
Regular price
$8.69
Regular price
|
||
| 33SCREW EHHFM | 576654803 | 4 | |||
| 34BRACKET | 582012401 | 1 | 48" | ||
| 35POINTER | 581115201 | 2 | |||
| 36BRACKET | 588568501 | 1 | |||
| 37SCREW EHHFM | 581243301 | 2 | |||
| 38MOUNT | 579232201 | 2 | |||
| 39BASEPLATE | 596909301 | 1 | |||
| 40SCREW EHHFM | 585973101 | 8 |
Regular price
$19.79
Regular price
|
||
| 41BRACKET | 579359401 | 2 | |||
| 42GUARD | 588832101 | 2 | |||
| 43LOOP | 504580302 | 1 | |||
| 44BRACKET | 582011901 | 1 | |||
| 45WASHER | 734117201 | 4 |
Regular price
$19.79
Regular price
|
||
| 46BRACKET | 547297601 | 1 | 48" | ||
| 47SCREW EHHM | 725251551 | 2 | |||
| 48WASHER | 542160393 | 2 | |||
| 49NUT | 576878928 | 2 |
BASE PLATE 59 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW EHHFM | 585980401 | 6 | 30mm | ||
| 2SCREW EHHFM | 585975301 | 2 | |||
| 3SCREW IHCSFM | 502023501 | 2 | |||
| 4SCREW EHHM | 725250381 | 2 | |||
| 5CLAMP | 501857901 | 1 | |||
| 7HEXAGON LOCKING NUT | 732251801 | 1 | |||
| 8HEXAGON LOCKING NUT | 732252001 | 2 | |||
| 9PLATE | 540600701 | 1 | |||
| 10BRACKET | 546912601 | 1 | |||
| 12BRACKET | 505189101 | 1 | |||
| 13SCREW EHHFM | 585972801 | 1 | |||
| 14SCREW EHHFM | 585975601 | 4 | |||
| 15BRACKET | 582199701 | 1 | |||
| 16HEXAGON LOCKING NUT | 732252201 | 2 | |||
| 17PROTECTION | 586175801 | 4 | |||
| 18BRACKET | 540650601 | 1 | KIT | ||
| 19SCREW EHHFM | 587259001 | 2 | |||
| 20WEIGHT | 579360002 | 4 | 1pcs | ||
| 21SCREW EHHFM | 585975201 | 16 | |||
| 22BRACKET | 582011901 | 1 | |||
| 23BRACKET | 501704401 | 1 | |||
| 24SCREW EHHFM | 581249403 | 4 | |||
| 25BRACKET | 582021501 | 1 | 60" | ||
| 26BASEPLATE | 590198101 | 1 | Assy, incl pos 6 | ||
| 27SCREW EHHFM | 585235901 | 4 | |||
| 28GUIDE BAR | 582917301 | 1 | RH 60" | ||
| 29GUARD | 542199723 | 2 | 60" | ||
| 30SCREW EHHFM | 585997301 | 8 | |||
| 31BRACKET | 501703701 | 1 | |||
| 32GUIDE BAR | 582917201 | 1 | LH 60" | ||
| 33SCREW EHHM | 725255251 | 2 | 4 Bars M12x100 | ||
| 34POINTER | 581115201 | 1 | |||
| 35SCREW EHHFM | 581243301 | 1 | |||
| 36SCREW EHHFM | 581249402 | 8 | |||
| 37WEIGHT | 579360101 | 4 | 1pcs | ||
| 38BRACKET | 582010301 | 1 | 60" | ||
| 39HEXAGON LOCKING NUT | 732252001 | 4 | |||
| 40SCREW EHHM | 725249371 | 2 | |||
| 41BRACKET | 582010401 | 1 | 60" | ||
| 42INSULATOR | 581167201 | 1 | |||
| 43WASHER | 734117201 | 4 | |||
| 44SCREW EHHFM | 576654803 | 4 | |||
| 45BRACKET | 502860201 | 1 | 60" | ||
| 46BRACKET | 588568501 | 1 | |||
| 47MOUNT | 579232201 | 2 | |||
| 48PLATE | 582204201 | 1 | 60" | ||
| 49BOX | 579360201 | 1 | 60" | ||
| 50SCREW EHHFM | 576654802 | 4 | |||
| 51WASHER | 542160393 | 8 | |||
| 52NUT | 576878928 | 8 | |||
| 53LID ASSY | 582201801 | 1 | 60" | ||
| 54BRACKET | 582381601 | 1 | 60" | ||
| 55SCREW EHHFM | 585980401 | 6 | |||
| 56LOOP | 504580302 | 1 | |||
| 57BRACKET | 579359401 | 2 | |||
| 58SCREW EHHFM | 585973101 | 2 | 25mm | ||
| 59BRACKET | 582030901 | 1 | 60" | ||
| 61BRACKET | 547297701 | 1 | 60" | ||
| 62SCREW EHHM | 725251551 | 2 |
BLADE GUARD 27 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BLADE GUARD | 582177901 | 1 | |||
| 2BLADE GUARD | 582178201 | 1 | |||
| 3SPLASH GUARD | 542163275 | 1 | |||
| 5HINGE | 542049154 | 1 | |||
| 6MANIFOLD | 504002101 | 1 | |||
| 7HYDRAULIC KIT | 541208296 | 1 | |||
| 8TUBE | 501047202 | 2 | |||
| 9O-RING | 542169157 | 2 | |||
| 11SPRING | 542199128 | 2 | |||
| 12WASHER | 539990055 | 2 | |||
| 13SCREW EHHM | 725237071 | 6 | |||
| 14SCREW EHHM | 725236871 | 2 | |||
| 15HEXAGON LOCKING NUT | 732251601 | 10 |
Regular price
$19.79
Regular price
|
||
| 16HEXAGON NUT | 731231601 | 4 |
Regular price
$19.79
Regular price
|
||
| 18SCREW EHHM | 725245371 | 6 |
Regular price
$11.39
Regular price
|
||
| 19HEXAGON LOCKING NUT | 732251801 | 8 |
Regular price
$19.79
Regular price
|
||
| 20WASHER | 734116301 | 12 |
Regular price
$19.79
Regular price
|
||
| 21HOSE | 548457201 | 1 | ASSY | ||
| 22BLADE GUARD | 540650901 | 1 | CE 1000mm | ||
| 23HOOK | 582588801 | 1 | |||
| 24WIRE | 582744401 | 1 | |||
| 25SCREW | 576654813 | 1 | |||
| 26SCREW EHHFM | 585997301 | 3 | |||
| 29LATCH ASSY | 540665401 | 1 | ASSY | ||
| 30RETAINER | 547027401 | 1 | |||
| 31PLATE | 531289201 | 1 | |||
| 32SCREW EHHFM | 506570105 | 3 |
BLADE GUARD 28 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BLADE GUARD | 582185001 | 1 | 60" - rear welded assy | ||
| 2BLADE GUARD | 582188601 | 1 | 60" - front welded assy | ||
| 3SPLASH GUARD | 542163275 | 1 | |||
| 5TUBE | 542191845 | 2 | |||
| 6MANIFOLD | 542049196 | 1 | |||
| 7GASKET | 542049206 | 1 | |||
| 8HYDRAULIC KIT | 541208296 | 1 | |||
| 9LATCH ASSY | 540665401 | 1 | 48";60" Blade Guard | ||
| 10HINGE | 540665301 | 1 | 60" Blade Guard | ||
| 11SPRING | 542199128 | 2 | |||
| 14BUMPER | 542191075 | 2 | |||
| 15NUT | 542032366 | 2 | |||
| 16SCREW | 542020864 | 2 | |||
| 17SUPPORT | 542049212 | 2 | |||
| 18SCREW EHHM | 725245371 | 6 | ISO 4017 | ||
| 19HEXAGON LOCKING NUT | 732251801 | 8 | ISO 7040 | ||
| 20WASHER | 734116301 | 12 | ISO 7089 | ||
| 22SCREW IHCSFM | 725637051 | 4 | |||
| 23HEXAGON NUT | 731231601 | 4 | ISO 4032 | ||
| 24SCREW EHHM | 725245371 | 6 | ISO 4017 | ||
| 25WASHER | 734115201 | 2 | ISO 7089 | ||
| 26SCREW EHHM | 725237851 | 4 | ISO 4013 | ||
| 27HEXAGON LOCKING NUT | 732251601 | 14 | ISO 7040 | ||
| 28HOSE | 548457201 | 1 | Water with PWP | ||
| 31SCREW EHHFM | 585975201 | 4 | EN 1665 | ||
| 32SCREW EHHFM | 506570105 | 3 | DIN 6921 | ||
| 33PLATE | 531289201 | 1 | Captive screw | ||
| 34RETAINER | 547027401 | 1 | Push Nut M8x1.25 |
CLUTCH 19 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1CLUTCH ASSY | 541217201 | 1 | |||
| 2BEARING | 542166351 | 1 | |||
| 3ARMATURE | 542199834 | 1 | |||
| 4SCREW | 599283601 | 4 | |||
| 5SCREW | 542199053 | 8 | |||
| 6ROTOR | 542166685 | 1 |
Regular price
$1,279.00
Regular price
|
||
| 7RING | 542198953 | 2 | |||
| 8SCREW EHHM | 725245776 | 4 |
Regular price
$19.79
Regular price
|
||
| 9SPRING WASHER | 735116401 | 4 |
Regular price
$19.79
Regular price
|
||
| 10COIL | 542199396 | 1 | |||
| 11HUB | 542199387 | 1 | |||
| 12BUSHING | 542199480 | 1 | |||
| 13COUPLING | 586708501 | 1 | |||
| 14FLYWHEEL | 541206943 | 1 | |||
| 15SCREW EHHM | 725249176 | 8 | |||
| 16PLUG | 542183375 | 1 | |||
| 17SPRING WASHER | 735117301 | 8 | |||
| 18SWITCH | 547472001 | 1 | |||
| 19RELAY | 547907301 | 1 | Relay, safe |

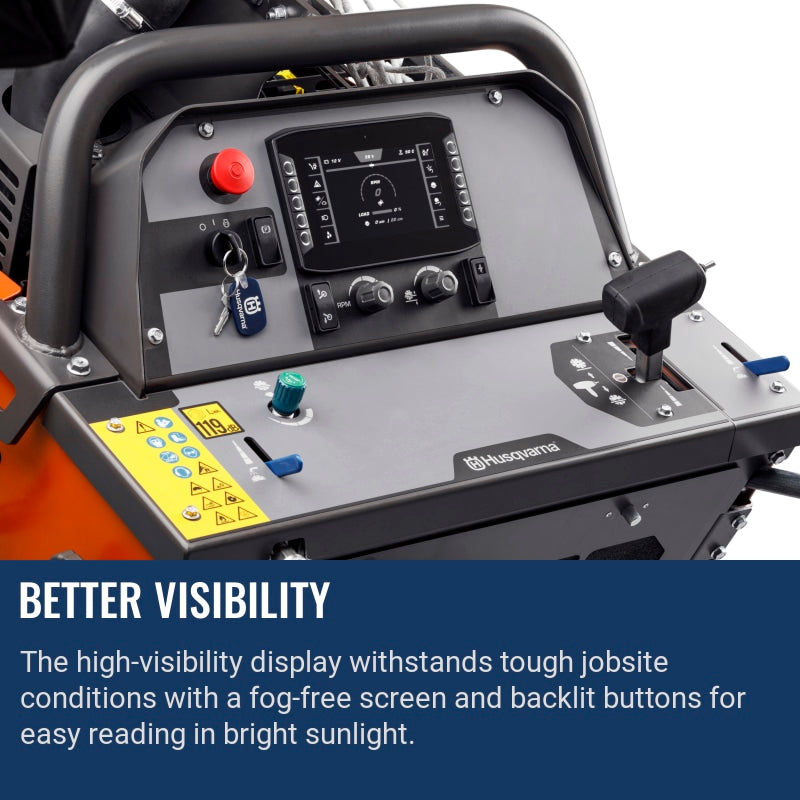

CONTROLS 20 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1DISPLAY | 546652901 | 1 | |||
| 2SWITCH | 547472301 | 1 | |||
| 3SCREW | 542199053 | 10 | |||
| 4PANEL ASSY | 540158301 | 1 | |||
| 5BUTTON | 547761101 | 1 | |||
| 6PANEL ASSY | 540158401 | 1 | CE Only | ||
| 6PANEL ASSY | 540158501 | 1 | US Only | ||
| 7SCREW EHHFM | 535475245 | 2 | |||
| 8PLUG | 547744601 | 2 | |||
| 9KNOB | 548453501 | 2 | |||
| 10ELECTRIC MODULE | 547475401 | 1 | |||
| 11HEXAGON LOCKING NUT | 732251601 | 2 |
Regular price
$19.79
Regular price
|
||
| 12CABLE ASSY | 540166301 | 2 | |||
| 13PANEL ASSY | 540158601 | 1 | |||
| 14BRACKET | 546913001 | 1 | |||
| 15CLAMP | 583959501 | 5 | |||
| 16WIRING ASSY | 546352501 | 1 | |||
| 17SCREW EHHFM | 585975401 | 2 | |||
| 18BRACKET | 547547901 | 1 | |||
| 19SWITCH | 547472201 | 1 |
COOLING SYSTEM 28 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1RADIATOR ASSY | 596332101 | 1 | |||
| 2PLATE | 583912401 | 1 | RH side | ||
| 5SCREW EHHFM | 585975401 | 26 | |||
| 6BRACKET | 582749901 | 2 | |||
| 7HOSE CLAMP | 576315203 | 3 | |||
| 8HOSE | 580910201 | 1 | |||
| 9PLATE | 586657601 | 1 | LH side | ||
| 10FAN COVER | 580875201 | 1 | Upper | ||
| 11BRACKET | 586070501 | 1 | |||
| 12BRACKET | 582750101 | 2 | |||
| 13BRACKET | 586348901 | 1 | |||
| 14BOLT | 542166624 | 10 | |||
| 15FAN COVER | 580875101 | 1 | Lower | ||
| 16BRACKET | 586070601 | 1 | |||
| 17BRACKET | 586070801 | 1 | |||
| 18BRACKET | 586070901 | 1 | |||
| 19HOSE CLAMP | 539300073 | 1 | |||
| 21TUBE | 585037101 | 1 | |||
| 22HOSE | 580910301 | 1 | |||
| 23CLAMP | 542020049 | 5 | |||
| 24SCREW EHHFM | 585975601 | 8 | |||
| 25HOSE | 585066601 | 1 | |||
| 26EXPANSION TANK | 540651201 | 1 | Incl. Decal | ||
| 27TUBE | 585037001 | 1 | |||
| 28BRACKET | 585023401 | 1 | |||
| 29HOSE | 585036301 | 1 | |||
| 30BRACKET | 585023201 | 1 | |||
| 31HOSE CLAMP | 576315205 | 2 |
COUNTER WEIGHT 8 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 2HEXAGON LOCKING NUT | 732252201 | 2 |
Regular price
$19.79
Regular price
|
||
| 3WEIGHT | 579360002 | 1 | |||
| 4WEIGHT | 579360101 | 1 | |||
| 5SCREW EHHFM | 576654802 | 1 | |||
| 6SCREW EHHFM | 585235901 | 4 |
Regular price
$19.79
Regular price
|
||
| 7SCREW EHHFM | 576654808 | 2 | 3-bar | ||
| 7SCREW EHHM | 725255251 | 2 | 4-bar | ||
| 8BOX | 579360201 | 1 |
COVER 22 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1PROTECTION | 547186901 | 1 | |||
| 2PROTECTION | 547187001 | 1 | |||
| 3COVER ASSY | 540208901 | 1 | RH side cover assy W decal | ||
| 4SCREW EHHFM | 585975601 | 8 | |||
| 5LATCH | 541254301 | 6 | |||
| 6PROTECTION | 547187101 | 1 | |||
| 7PROTECTION | 547187201 | 4 | |||
| 8COVER ASSY | 540208101 | 1 | Front assy W decals 48" | ||
| 8COVER ASSY | 540208301 | 1 | Front assy W decals 60" | ||
| 9COVER ASSY | 540209101 | 1 | LH side cover assy W decal | ||
| 12PLATE | 586617201 | 1 | |||
| 14LATCH | 541254201 | 2 | |||
| 15FILTER | 583893201 | 1 | |||
| 16RETAINER | 586615201 | 1 | |||
| 17SCREW EHHFM | 585973301 | 8 | |||
| 18HINGE | 581166701 | 2 | |||
| 19SCREW EHHFM | 585975401 | 6 | |||
| 20SPRING | 542040330 | 2 | |||
| 21HEXAGON NUT FLANGE | 731711651 | 4 | |||
| 22PLATE | 580839801 | 1 | |||
| 23INSULATOR | 581175303 | 2 | L 540 | ||
| 24INSULATOR | 581175302 | 2 | L450 |
COVER, REAR 37 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1GRIP | 542139568 | 2 |
Regular price
$19.79
Regular price
|
||
| 2HANDLEBAR | 539300340 | 2 |
Regular price
$109.00
Regular price
|
||
| 3SCREW IHCSFM | 725645151 | 3 | |||
| 4SCREW EHHFM | 585980301 | 4 | |||
| 5HEXAGON NUT | 731711851 | 2 | |||
| 6SCREW EHHM | 725245771 | 2 | |||
| 7WASHER | 734117801 | 2 |
Regular price
$6.29
Regular price
|
||
| 8COWL PANEL | 540651401 | 1 | |||
| 9TURNING KNOB | 504569301 | 2 | |||
| 10WASHER | 542020745 | 2 | |||
| 11LEVER | 585594601 | 2 | |||
| 12SCREW EHHFM | 585975401 | 10 | |||
| 13BRACKET | 540600301 | 1 | |||
| 14HANDLE | 586927701 | 2 | |||
| 15BRACKET | 584149501 | 1 | |||
| 16SCREW IHCSFM | 725645501 | 2 | |||
| 17WASHER | 539300274 | 2 | |||
| 18COWL PANEL | 540651301 | 1 | |||
| 20WRENCH | 504626403 | 1 | |||
| 21SCREW EHHFM | 585235901 | 5 |
Regular price
$19.79
Regular price
|
||
| 23HEXAGON LOCKING NUT | 732252201 | 2 |
Regular price
$19.79
Regular price
|
||
| 24BRACKET | 540651501 | 1 | |||
| 25TOOL HOLDER | 578107301 | 1 | |||
| 26SEAL | 579833901 | 1 | |||
| 27HEXAGON NUT FLANGE | 731711651 | 4 | |||
| 28HEXAGON NUT | 731231601 | 4 |
Regular price
$19.79
Regular price
|
||
| 30SWITCH | 542178724 | 1 | |||
| 31WASHER | 542045640 | 1 | |||
| 33VALVE | 582691101 | 2 | |||
| 34WATER CONNECTOR | 540651601 | 1 | |||
| 35HOSE | 597455601 | 1 | |||
| 36HOSE | 597455701 | 1 | |||
| 37WATER CONNECTOR | 540651701 | 1 | |||
| 38HOSE CLAMP | 542206193 | 1 | |||
| 39HOSE CLAMP | 576315201 | 3 | |||
| 40NUT | 542167555 | 2 | |||
| 41BRACKET | 581192201 | 1 |
DECALS 22 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1DECAL | 586467501 | 1 | |||
| 2DECAL | 547659301 | 1 | |||
| 3LABEL | 599963601 | 1 | |||
| 4DECAL | 547659001 | 1 | CE Only | ||
| 4DECAL | 547659101 | 1 | US Only | ||
| 5DECAL | 547659601 | 2 | |||
| 6TAPE | 589844201 | 0 | HAZARD MARKING | ||
| 7DECAL | 548482901 | 1 | |||
| 8DECAL | 599235001 | 1 | |||
| 9DECAL | 585407201 | 1 | |||
| 10DECAL | 548484201 | 1 | US Only | ||
| 10DECAL | 548516601 | 1 | CE Only | ||
| 11DECAL | 582193301 | 1 | 48" | ||
| 11DECAL | 582193401 | 1 | 60" | ||
| 12DECAL | 547659201 | 1 | |||
| 13DECAL | 547659701 | 2 | |||
| 14DECAL | 585299701 | 1 | |||
| 15DECAL | 586175101 | 1 | Decal US only | ||
| 16DECAL | 542181059 | 1 | CE Only | ||
| 16DECAL | 585370401 | 1 | US Only | ||
| 17DECAL | 547659401 | 1 | |||
| 18DECAL | 540520401 | 1 | WARNING CRUSHING OF FEET |
ELECTRICAL 27 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1WIRING ASSY | 599813001 | 1 | |||
| 2HARNESS ASSY | 581073203 | 1 | |||
| 3CLAMP | 583959501 | 37 | |||
| 4TIE WRAP | 542166906 | 3 | |||
| 5WIRING ASSY | 540365301 | 1 | |||
| 6RELAY | 547789601 | 1 | |||
| 7WIRING ASSY | 597036901 | 1 | |||
| 8SCREW EHHFM | 585980601 | 1 |
Regular price
$19.79
Regular price
|
||
| 9CABLE | 597562401 | 1 | |||
| 10ELECTRICAL SYSTEM | 581336501 | 1 | |||
| 11HARNESS ASSY | 581073207 | 1 | |||
| 12ELECTRICAL SYSTEM | 581336301 | 1 | |||
| 13HEXAGON NUT | 731711851 | 2 | |||
| 14HEXAGON NUT FLANGE | 731711651 | 4 | |||
| 15SCREW EHHFM | 576654802 | 2 | |||
| 16HARNESS ASSY | 581073213 | 1 | |||
| 17ELECTRICAL SYSTEM | 581336401 | 1 | |||
| 18PLATE | 581159802 | 1 | |||
| 19WING NUT | 577244901 | 2 | |||
| 20BOLT | 584650901 | 2 | |||
| 21WASHER | 734115441 | 2 | |||
| 22HARNESS ASSY | 581073211 | 1 | |||
| 23HARNESS ASSY | 581073204 | 1 | |||
| 24HEXAGON NUT | 731711851 | 1 | |||
| 25SCREW EHHFM | 585975601 | 1 | |||
| 26CABLE ASSY | 540487201 | 1 | |||
| 27BATTERY | 585075501 | 1 | US Only |
ELECTRICAL 8 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1FUSE | 531302419 | 3 | 15A fuse | ||
| 2FUSE | 542166856 | 1 | 7,5A fuse | ||
| 3FUSE | 531302420 | 1 | 20A fuse | ||
| 4FUSE | 531302421 | 5 | 25A fuse | ||
| 5RELAY | 581074501 | 6 | relay 30A | ||
| 6RELAY | 547907301 | 2 | relay 30A Safe | ||
| 7PRINTED CIRCUIT BOARD SYSTEM | 541181001 | 1 | PCB ASSY include PCB 581333601 + FUSE 531302419 | ||
| 8FUSE HOLDER | 501696201 | 1 | fuse holder |
ENGINE 43 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 2BRACKET | 580957001 | 1 | |||
| 3SCREW EHHFM | 585972801 | 1 | |||
| 4AIR CLEANER | 581058901 | 1 | US Only | ||
| 4AIR CLEANER | 597672501 | 1 | CE Only | ||
| 5FILTER | 542191115 | 1 |
Regular price
$84.79
Regular price
|
||
| 6FILTER | 542191116 | 1 | |||
| 8HOOD | 542199566 | 1 | |||
| 9EXHAUST PIPE | 581274901 | 1 | |||
| 10GAUGE | 541200989 | 1 | |||
| 11ADAPTER | 542166880 | 1 | |||
| 12CLAMP | 586368801 | 2 | |||
| 13HOSE CLAMP | 576315208 | 1 | |||
| 14EXHAUST | 596010001 | 1 | Tier 4 | ||
| 14EXHAUST | 596010501 | 1 | Stage V | ||
| 15HOSE | 595531101 | 1 | |||
| 16HOSE CLAMP | 576315207 | 1 | |||
| 17ENGINE ASSY | 547474301 | 1 | Tier 4 | ||
| 17ENGINE | 595942801 | 1 | Stage V | ||
| 18SCREW EHHFM | 585975601 | 8 | |||
| 19CLAMP | 586626601 | 2 | Tier 4 | ||
| 19EXHAUST | 596010501 | 2 | Stage V | ||
| 20BRACKET | 581853701 | 1 | |||
| 21SCREW EHHFM | 585973101 | 4 |
Regular price
$19.79
Regular price
|
||
| 22BRACKET | 580957401 | 1 | |||
| 23PULLEY | 585236701 | 1 | |||
| 24OIL FILTER | 586010801 | 1 | |||
| 25PULLEY | 593324501 | 1 |
Regular price
$889.00
Regular price
|
||
| 26PULLEY | 585237001 | 1 | |||
| 27SPACER | 541054101 | 1 | |||
| 28HOSE ASSY | 584970901 | 1 | |||
| 29ADAPTER | 581727301 | 1 | |||
| 30DRIVE BELT | 586071101 | 1 | |||
| 31SCREW | 586626801 | 4 | |||
| 32DRIVE BELT | 586071102 | 1 | |||
| 33VALVE | 542166907 | 1 | |||
| 34SCREW EHHFM | 576654803 | 4 | |||
| 35SCREW EHHFM | 585975401 | 4 | |||
| 36FAN | 584824601 | 1 | |||
| 37BRACKET | 581079801 | 1 | |||
| 38NUT | 576878928 | 2 | |||
| 39ANTIVIBRATION ELEMENT | 587150101 | 2 | |||
| 40WASHER | 542206356 | 2 | |||
| 41SCREW EHHFM | 581249402 | 2 |
FRONT POINTER 17 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1POINTER | 540652701 | 1 | |||
| 3SCREW EHHM | 725245171 | 4 | |||
| 4ROPE | 590294101 | 0 | Kit - Rope + Clamp (Pos. 2) | ||
| 5HEXAGON NUT | 731231801 | 4 |
Regular price
$19.79
Regular price
|
||
| 6POINTER | 581222101 | 1 | |||
| 7ROD | 548469001 | 1 | |||
| 8SCREW EHHFM | 585975401 | 4 | |||
| 9EYE BOLT | 584911401 | 1 | |||
| 10HEXAGON LOCKING NUT | 732252001 | 2 |
Regular price
$19.79
Regular price
|
||
| 11WASHER | 734117201 | 2 |
Regular price
$19.79
Regular price
|
||
| 12SCREW EHHFM | 581243301 | 2 | |||
| 13SCREW | 725236451 | 1 | M6S 6x10 | ||
| 14HEXAGON NUT | 731711851 | 5 | |||
| 15BRACKET | 581222501 | 2 | |||
| 16POINTER | 548533601 | 1 | |||
| 17POINTER | 581213701 | 1 | |||
| 18WHEEL ASSY | 579856701 | 1 |
FUEL SYSTEM 27 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW EHHFM | 585973101 | 1 | M10x25 8.8 ZPB |
Regular price
$19.79
Regular price
|
|
| 2ADAPTER | 585189001 | 1 | |||
| 3WASHER | 587945901 | 1 | |||
| 4FITTING | 587936501 | 1 | |||
| 5FITTING | 585189401 | 1 | |||
| 6CLAMP | 542020049 | 3 | |||
| 7BRACKET | 531327001 | 1 | |||
| 8SCREW EHHFM | 585173901 | 1 | |||
| 9FUEL FILTER | 534144901 | 1 | |||
| 10SCREW EHHFM | 585975401 | 2 | |||
| 11ADAPTER | 585189201 | 2 | |||
| 12FITTING | 585189501 | 2 | |||
| 13HOSE CLAMP | 539300011 | 3 | |||
| 14FUEL HOSE | 585056001 | 1 | |||
| 15SCREW EHHFM | 585980501 | 4 | |||
| 16FUEL PUMP | 590571301 | 1 | |||
| 17WATER SEPARATOR | 581776901 | 1 |
Regular price
$179.00
Regular price
|
||
| 18BRACKET | 584226401 | 1 | |||
| 19SCREW EHHFM | 506570105 | 3 | DIN 6921 M 8 X 25 8.8 ZPB | ||
| 20FUEL HOSE | 585053001 | 1 | |||
| 21PROTECTION | 596212701 | 1 | |||
| 22PROTECTION | 596212701 | 1 | |||
| 23CLAMP | 542190560 | 3 | |||
| 24HEXAGON NUT | 731711851 | 1 | M8 10 ZPB | ||
| 25HOSE ASSY | 584157001 | 1 | |||
| 26HOSE ASSY | 581226101 | 1 | |||
| 27SCREW EHHFM | 585975201 | 1 | M 10 X 20 8.8 ZPB |
Regular price
$8.69
Regular price
|
FUEL TANK 11 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1FUEL TANK ASSY | 540651801 | 1 | |||
| 2ADAPTER | 581129102 | 2 | |||
| 3PLUG | 585595401 | 1 | |||
| 4SEALING WASHER | 740382901 | 1 | |||
| 5HOSE CLAMP | 576315207 | 2 | |||
| 6TANK CAP | 597722201 | 1 | |||
| 7HOSE | 581053601 | 1 | |||
| 8BRACKET | 583914001 | 1 | |||
| 9PIPE | 587856101 | 1 | |||
| 10BRACKET | 583966801 | 1 | |||
| 11SCREW EHHFM | 585975401 | 4 |
GEAR BOX 56 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW EHHFM | 585973301 | 4 | Screw M6x12 | ||
| 2ROD | 547723001 | 1 | |||
| 3BALL | 542163214 | 1 | |||
| 4NUT | 539990258 | 2 | |||
| 5HANDLE | 547035601 | 1 | |||
| 6ARM | 547722901 | 1 | |||
| 7SCREW | 505772501 | 2 | |||
| 8WASHER | 542020777 | 2 | |||
| 9PLATE | 547715401 | 1 | LH Plate belt guard | ||
| 10FITTING | 504539601 | 1 | |||
| 11LOCKING PIN | 586917202 | 1 | LOCKING PIN 3 SPD 64mm | ||
| 12HEXAGON THIN NUT | 731432001 | 1 |
Regular price
$22.65
Regular price
|
||
| 13STUD | 542206416 | 1 | |||
| 14PLATE | 547715701 | 1 | RH Plate belt guard | ||
| 15KEY | 542164632 | 2 | |||
| 16GEARBOX | 596823901 | 1 | |||
| 17PULLEY | 581099802 | 2 | 48" 109mm | ||
| 17PULLEY | 581099803 | 2 | 60" 130MM | ||
| 18WASHER | 542166480 | 2 | |||
| 19SCREW EHHFM | 585980401 | 8 |
Regular price
$19.79
Regular price
|
||
| 20NUT | 541204833 | 2 | |||
| 21DRIVE BELT | 504119701 | 4 | 3VX580 48" |
Regular price
$91.09
Regular price
|
|
| 21V-BELT | 541200807 | 4 | 3VX6770 60" | ||
| 22TAP | 542160704 | 1 | |||
| 23NUT | 731712451 | 1 | |||
| 24FITTING | 541204870 | 2 | |||
| 25SCREW | 542166368 | 2 | |||
| 26ANTIVIBRATION ELEMENT | 587150101 | 2 | |||
| 27FLANGE | 522965940 | 2 | 48" FLANGE W/PINS 8" OUTER | ||
| 28SCREW | 542167447 | 2 | |||
| 29SCREW | 586255901 | 1 | SCREW HHCS 5/8-11 x 4.25 LH THD GR SAE L=107,95mm |
Regular price
$38.09
Regular price
|
|
| 30WASHER | 542160393 | 2 | |||
| 31WASHER | 522965942 | 2 | |||
| 32BRACKET | 542166442 | 1 | |||
| 33PIN | 539300010 | 10 | |||
| 34WASHER | 542191962 | 4 | |||
| 35BOLT | 539300440 | 2 | |||
| 36WASHER | 542206356 | 2 | |||
| 37SPRING WASHER | 735117301 | 1 | |||
| 38SCREW | 542166356 | 2 | |||
| 39WEDGE | 542199045 | 2 | |||
| 40PULLEY | 582411401 | 2 | 60" A-236 | ||
| 40PULLEY | 582411601 | 2 | 48" A-162.5 | ||
| 41POINTER | 596537701 | 1 | |||
| 42FLANGE | 582487201 | 2 | 48" FLANGE 203MMM(8") INNER | ||
| 43SCREW | 586255701 | 1 | SCREW HHCS 5/8-11 x 4.25 RH THD GR SAE L=107,95mm |
Regular price
$39.59
Regular price
|
|
| 44HEXAGON LOCKING NUT | 732251601 | 4 |
Regular price
$19.79
Regular price
|
||
| 45BELT GUARD | 547711801 | 1 | |||
| 46SCREW EHHFM | 586120201 | 4 | |||
| 47PLATE | 581521801 | 2 | |||
| 48SPLASH GUARD | 581521601 | 2 | |||
| 49BELT GUARD | 547711901 | 1 | |||
| 50WASHER | 734117201 | 4 |
Regular price
$19.79
Regular price
|
||
| 52SCREW EHHM | 725254271 | 12 | 60" | ||
| 54FLANGE | 582487401 | 2 | 60" FLANGE 254MM(10") INNER | ||
| 56FLANGE | 522965941 | 2 | 60" FLANGE W/PINS 10" OUTER |
HYDRAULIC SYSTEM 45 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1CONTROL VALVE | 586410101 | 1 | ASSY | ||
| 2ADAPTER | 583965901 | 2 | |||
| 3HYDRAULIC HOSE | 584267401 | 1 | |||
| 4HYDRAULIC HOSE | 584216701 | 1 | |||
| 5HYDRAULIC HOSE | 584216901 | 1 | |||
| 6HYDRAULIC HOSE | 584267101 | 1 | |||
| 7PLATE | 580960601 | 1 | |||
| 8HYDRAULIC PUMP | 581053201 | 1 |
Regular price
$1,099.00
Regular price
|
||
| 9SCREW EHHFM | 585975401 | 1 | |||
| 10WASHER | 734116301 | 1 |
Regular price
$19.79
Regular price
|
||
| 11PUMP | 505289510 | 1 | |||
| 12O-RING | 542198949 | 1 | |||
| 13SCREW | 542020301 | 2 | |||
| 14PLUG | 581206001 | 1 | |||
| 15ADAPTER | 581205301 | 4 | |||
| 16WASHER | 734115441 | 2 | |||
| 17ADAPTER | 583966202 | 1 | |||
| 18SCREW EHHM | 725249576 | 2 | |||
| 19WASHER | 734117201 | 2 |
Regular price
$19.79
Regular price
|
||
| 20SPRING WASHER | 735117301 | 2 | |||
| 21ADAPTER | 583947201 | 3 | |||
| 22FILTER | 542166449 | 1 |
Regular price
$40.59
Regular price
|
||
| 23HYDRAULIC HOSE | 594974901 | 1 | |||
| 24HYDRAULIC HOSE | 584270701 | 1 | |||
| 25HYDRAULIC HOSE | 590688701 | 1 | |||
| 26HYDRAULIC PUMP | 588690601 | 1 |
Regular price
$1,279.00
Regular price
|
||
| 27SOLENOID | 522849115 | 1 |
Regular price
$179.00
Regular price
|
||
| 28CAP | 522849119 | 1 | |||
| 29COIL | 522849110 | 1 | |||
| 30ADAPTER | 583968201 | 4 | |||
| 31MOTOR | 599589901 | 1 | |||
| 32VALVE | 581267701 | 1 | |||
| 33RESERVOIR | 599571201 | 1 | |||
| 34SEALING RING | 599571701 | 1 | |||
| 36SCREW EHHFM | 585973101 | 3 |
Regular price
$19.79
Regular price
|
||
| 37BRACKET | 580958401 | 1 | |||
| 38SCREW EHHFM | 585975601 | 2 | |||
| 39ADAPTER | 541205102 | 4 | |||
| 40HYDRAULIC HOSE | 584280001 | 1 | |||
| 41HYDRAULIC MOTOR | 542198878 | 2 |
Regular price
$929.00
Regular price
|
||
| 43HYDRAULIC HOSE | 584284701 | 1 | |||
| 44HYDRAULIC HOSE | 584280501 | 1 | |||
| 46ADAPTER | 590628001 | 1 | |||
| 47ADAPTER | 581205501 | 1 | |||
| 48HYDRAULIC HOSE | 590628101 | 1 |
PARKING BRAKE 6 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BRACKET | 540423501 | 1 | |||
| 2SCREW EHHFM | 585980501 | 2 | |||
| 3WIRE | 540428201 | 2 | |||
| 4HEXAGON LOCKING NUT | 732251401 | 2 |
Regular price
$19.79
Regular price
|
||
| 5BRAKE | 540442401 | 2 | |||
| 6BRACKET | 540423401 | 1 |
SHAFT 14 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BLADE SHAFT | 590200101 | 1 | 48" | ||
| 1BLADE SHAFT | 590200201 | 1 | 60" | ||
| 3SCREW EHHFM | 585972801 | 4 | |||
| 4NIPPLE | 504204501 | 2 | |||
| 5COVER | 582377301 | 2 | |||
| 6O-RING | 580338001 | 2 | |||
| 7BEARING | 582581501 | 2 | |||
| 8SPACER | 582610601 | 1 | |||
| 9FILTER | 586019601 | 1 | |||
| 10SENSOR | 580989501 | 1 | |||
| 11CLAMP | 583959501 | 1 | |||
| 12HOUSING | 580295301 | 1 | |||
| 13BLADE SHAFT | 582370001 | 1 | |||
| 14GEAR WHEEL | 597202501 | 1 |
SHAFT AND SUSPENSION 14 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1KIT | 587623501 | 1 | |||
| 3SCREW EHHFM | 576654804 | 4 | |||
| 6BEARING BUSH | 580255301 | 2 | |||
| 8DISC | 578783201 | 2 | |||
| 10NIPPLE | 504204501 | 1 | |||
| 12REAR AXLE | 590198201 | 1 | incl. 2X pos 6 | ||
| 13SPLIT PIN | 721620301 | 3 | |||
| 14HUB | 542198843 | 2 | |||
| 15REAR WHEEL | 542198842 | 2 | |||
| 16WASHER | 581072901 | 1 | |||
| 17NUT | 578850101 | 1 | |||
| 18SCREW EHHFM | 585972801 | 8 | |||
| 19SCREW EHHFM | 576654806 | 8 | |||
| 20CAP | 539102535 | 2 |
SPEED CONTROL 24 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1PLATE | 581118501 | 1 | |||
| 2SWITCH | 542182102 | 1 |
Regular price
$69.59
Regular price
|
||
| 3BOOT | 542182146 | 1 | |||
| 4CLAMP | 583959501 | 2 | |||
| 5SCREW | 724128551 | 2 | |||
| 6HANDLE | 586946201 | 1 | |||
| 7HANDLE ASSY | 540652801 | 1 | |||
| 8WIRING ASSY | 547389701 | 1 | |||
| 9HEXAGON LOCKING NUT | 732252201 | 1 |
Regular price
$19.79
Regular price
|
||
| 10SPRING WASHER | 542183124 | 4 | |||
| 11WASHER | 542020745 | 1 | |||
| 12SENSOR | 547396601 | 1 | sensor | ||
| 13BRACKET | 547327701 | 1 | |||
| 14SCREW EHHI | 586866801 | 1 | |||
| 15ROD | 542166466 | 2 | |||
| 16BEARING BUSH | 581068901 | 1 | |||
| 17WASHER | 579425601 | 1 | |||
| 18CABLE | 579510103 | 1 |
Regular price
$99.99
Regular price
|
||
| 19BUSHING | 542183001 | 2 | bushing | ||
| 20ARM | 579745001 | 1 | |||
| 21NUT | 541205253 | 2 | |||
| 22WASHER | 539990122 | 1 | |||
| 23WASHER | 734115441 | 1 | |||
| 24NUT | 539976978 | 1 |
SUPPORT WHEEL 15 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW | 542021404 | 4 | |||
| 2ACTUATOR | 541267001 | 1 | Incl. Decal | ||
| 3NUT | 539101331 | 4 | |||
| 4PEN | 541205133 | 2 | |||
| 6LIFTING ARM | 574853301 | 1 | |||
| 7GREASE | 542164297 | 1 | |||
| 8LIFTING ARM | 574853305 | 1 | |||
| 10PIVOT | 574859003 | 1 | |||
| 11LIFTING ARM | 574853304 | 1 | |||
| 12WHEEL | 590649801 | 1 | |||
| 13WASHER | 542046402 | 4 | |||
| 14BEARING BUSH | 575631101 | 2 | |||
| 16WASHER | 539990250 | 1 | |||
| 19RELAY | 547916401 | 2 | |||
| 20SWITCH | 547472201 | 1 |
SUSPENSION 23 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW EHHFM | 576654803 | 1 | |||
| 2BLOCK | 579595601 | 1 | |||
| 3SHAFT | 579525801 | 1 | |||
| 4CIRCLIP | 735312200 | 2 | SGA 20x1.2 St PP | ||
| 5SCREW EHHFM | 576654807 | 1 | |||
| 6HYDRAULIC CYLINDER | 501493201 | 1 | |||
| 7SCREW | 542199053 | 2 | |||
| 8SHAFT | 590224201 | 1 | |||
| 9GREASE | 581068801 | 1 | |||
| 10SCREW EHHM | 725254671 | 2 | |||
| 11HEXAGON NUT | 731232201 | 2 | |||
| 12FRONT AXLE | 587715501 | 1 | 48" | ||
| 12BRACKET | 589386301 | 1 | 60" | ||
| 13BALL BEARING | 595945601 | 2 | |||
| 14PLATE | 579330301 | 1 | |||
| 15WASHER | 542046402 | 4 | |||
| 16WHEEL | 590650001 | 2 | |||
| 17CIRCLIP | 735312600 | 2 | SGA 25x1.2 St PP | ||
| 18SENSOR ASSY | 599634101 | 2 | Sensor 596823001 + 2x screw 597757401 | ||
| 19SENSOR | 596823101 | 1 | |||
| 20SCREW EHHFM | 585980601 | 6 | |||
| 21BOX | 579330201 | 1 | |||
| 22SCREW | 576654813 | 4 |
TRACK SYSTEM 10 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1CLAMP | 583959501 | 2 | |||
| 2CABLE | 598698401 | 1 | |||
| 3BRACKET | 546839501 | 1 | |||
| 4BOLT | 531437401 | 2 | |||
| 5ACTUATOR | 534112801 | 1 | |||
| 6PIN | 542177239 | 2 | |||
| 7BRACKET | 546839401 | 1 | |||
| 8SCREW EHHFM | 585975401 | 2 | |||
| 9LID | 531391101 | 1 | |||
| 10SCREW EHHFM | 585975601 | 3 |
Document Downloads
Operator's manual
-
Water Pump Kit for FS, 2026-05PDF EN ES FR
-
Water Pump Kit for FS, 2026-05PDF EN DE FR NL
-
5th Wheel for FS, 2026-06. en. de. fr. nlPDF EN ES FR
-
5th Wheel for FS, 2026-06. en. de. fr. nlPDF EN DE FR NL
-
Dual light for FS, 2026-05, en.de.fr.nlPDF EN ES FR
-
FS 7000D II, FS 7000DL II. 2026-07. en. fr. esPDF EN ES FR
Service guides and posters
Assembly instruction
Service bulletin
Concrete Focus
From pouring to resurfacing, we sell tools built for concrete pros.
Expert Support
Get guidance from experts who understand jobsite challenges.
Fast Delivery
Get your tools fast with our nationwide shipping network and local partnerships.
Talk to an expert now (855) 281-1918
Get fast, expert help choosing the right concrete tools or equipment for your job. Ask about availability, specs, troubleshooting, or get friendly guidance before you place an order.
