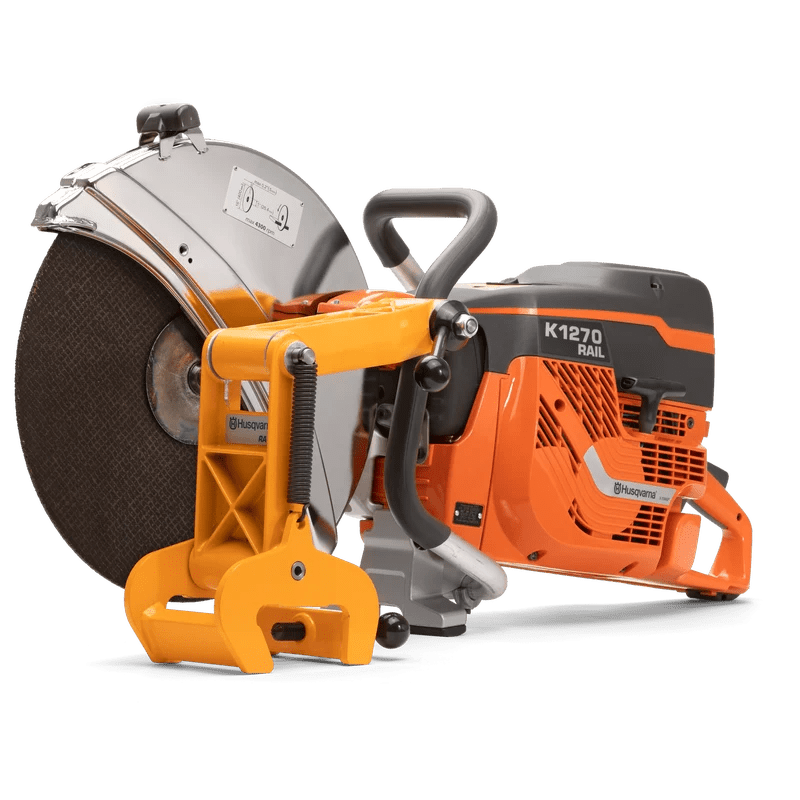

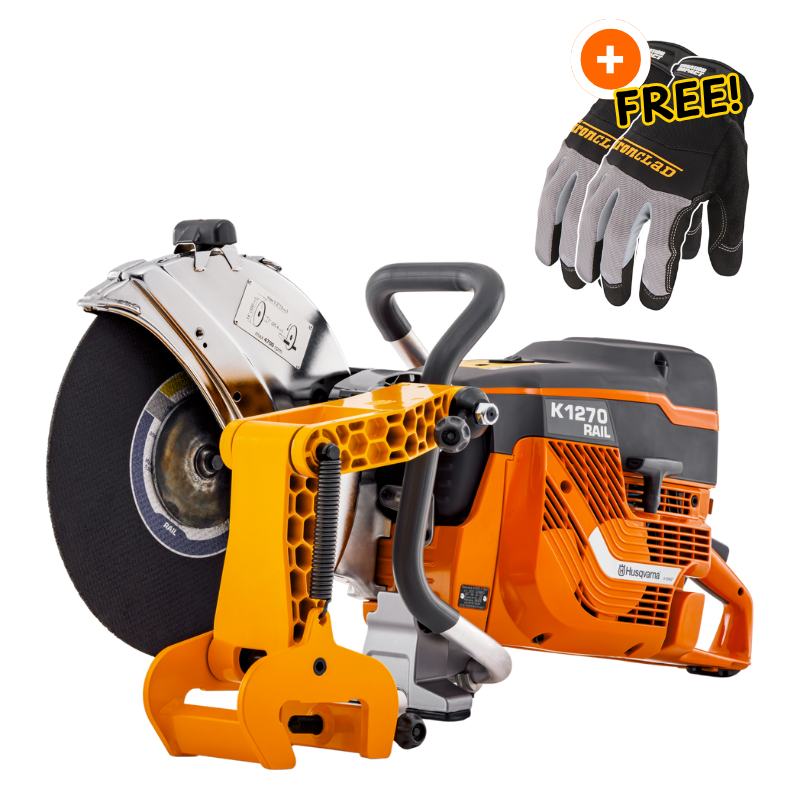

Husqvarna K1270 Rail Power Cutter - Gas
Husqvarna K1270 Rail Power Cutter - Gas
HUSQVARNA CONSTRUCTION SKU: 967982501 Copied!
Regular price
$3,289.00
Regular price
$4,340.00
Sale price
$3,289.00
Quantity
Trusted by contractors nationwide
"I've bought 3 products from CTD and each time the experience has been the same - professional and fast delivery. I trust these guys with all my concrete needs."
90 day returns
Product Details
HUSQVARNA RAIL POWER CUTTER - UNLEASH THE BEAST
Experience the unmatched power of the Husqvarna K 1270 Rail Power Cutter, a tool specifically designed for cutting railways, tram tracks, and metro systems. With its robust 7.8 horsepower engine, this beast cuts through rails with speed and precision. The attachment mounts quickly to the rail, and thanks to the double attachment mountings, you can cut from any direction, offering unparalleled flexibility on the job site.
This top-tier cutter is not just about power; it's about convenience and safety too. Its maximum cutting depth is 5.7 inches, and the blade diameter maxes out at 16 inches. Despite its power, it weighs only 35.3 pounds, making it portable and easy to handle. With a maximum power speed of 8,400 rpm and a peripheral speed of 18,000 fpm, it's a tool that delivers on all fronts.

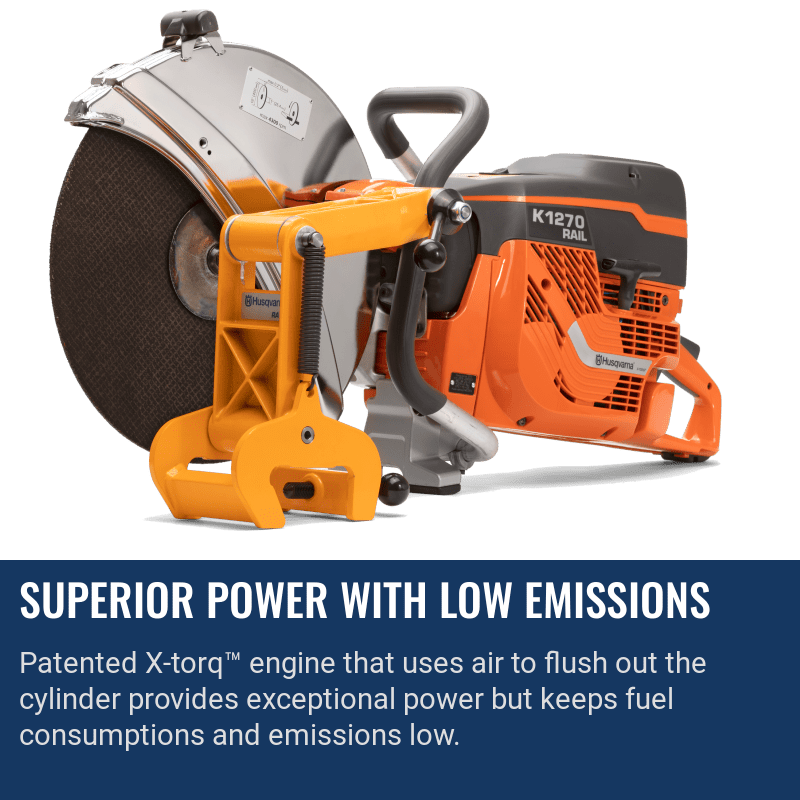

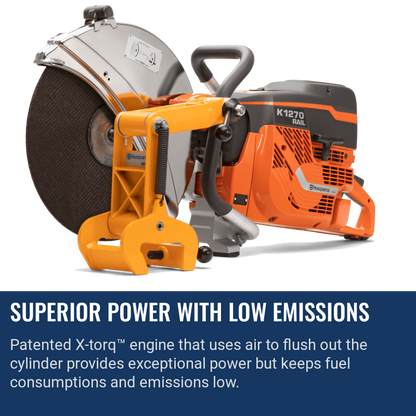

- Powerful 7.8 horsepower engine for fast and efficient cutting
- Maximum cutting depth of 5.7 inches for versatile use
- 16-inch maximum blade diameter for wide cuts
- Lightweight at 35.3 pounds for easy portability
- Maximum power speed of 8,400 rpm and peripheral speed of 18,000 fpm for high performance
Product Specification
Specifications
Output power
7.8 hp
Max engine/motor
9,300 rpm
Maximum power speed
8,400 rpm
Cylinders
1
Number of strokes
2-stroke engine
Exhaust emissions (CO₂ EU V)
726 g/kWh
Power source
Petrol
Cutting depth, max
5.7 in
Blade diameter, max
16 in
Arbor diameter
1"
Blade thickness, max
0.2 in
Peripheral speed, max
18,000 fpm
Coolant
Dry
Rail type
Vignole rails
Clamp switch
No
Head width, max
85 mm
Product size length
30.35 in
Product size width
9.49 in
Product size height
18.74 in
Weight
35.3 lbs
Packaging length (Calc)
38.386 in
Packaging width (Calc)
13.78 in
Packaging height (Calc)
19.685 in
Article gross weight (Calc)
77.603 lbs
Sound power level, guaranteed (LWA)
117 dB(A)
Sound pressure level at operators ear
104 dB(A)
Vibrations left/front handle
4.4 m/s²
Vibrations right/rear handle
3.9 m/s²
Warranty
1 year limited warranty
Related Equipment
Related Equipment
Service & Maintenance Parts

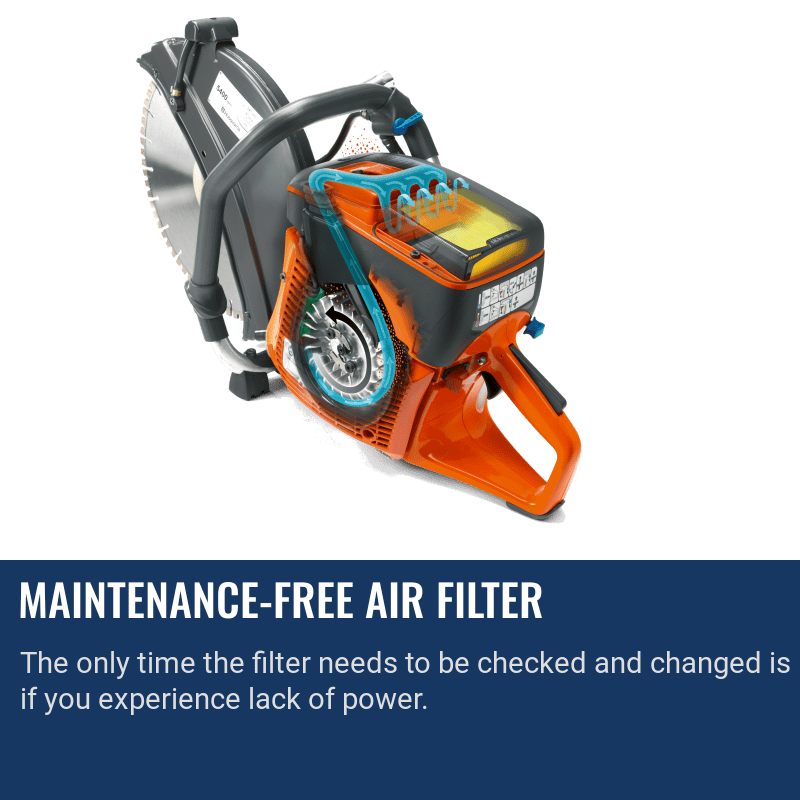

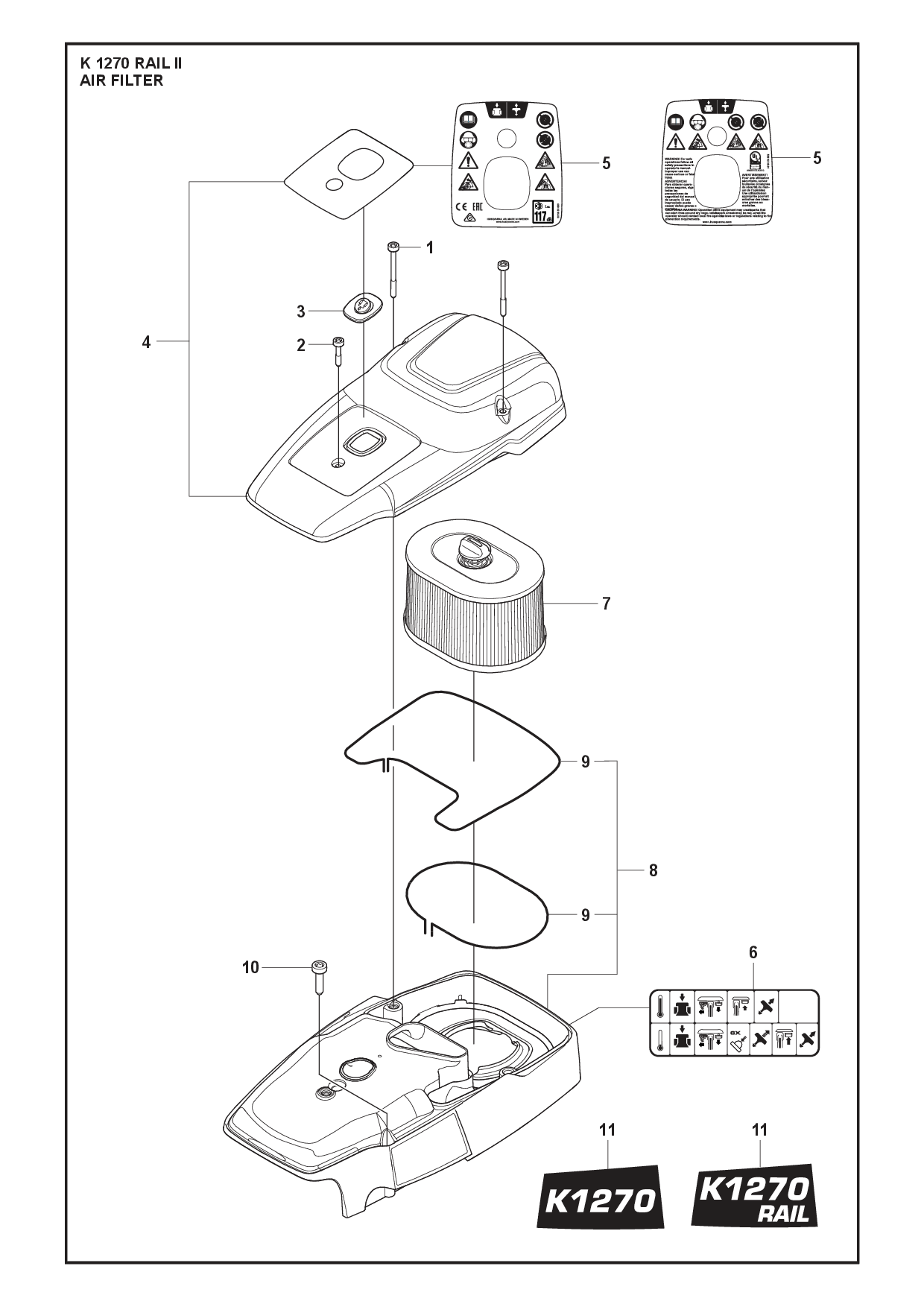

AIR FILTER 14 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW ITXSCM | 503215356 | 2 |
Regular price
$19.79
Regular price
|
||
| 2SCREW ITXSCM | 503215312 | 1 |
Regular price
$79.20
Regular price
|
||
| 3PLUG | 585428301 | 1 |
Regular price
$19.79
Regular price
|
||
| 4FILTER COVER ASSY | 590357803 | 1 |
Regular price
$32.79
Regular price
|
||
| 5DECAL | 589023807 | 1 | CE |
Regular price
$32.30
Regular price
|
|
| 5DECAL | 589023805 | 1 | USA, CANADA, MEXICO |
Regular price
$12.49
Regular price
|
|
| 6LABEL | 544873804 | 1 |
Regular price
$28.65
Regular price
|
||

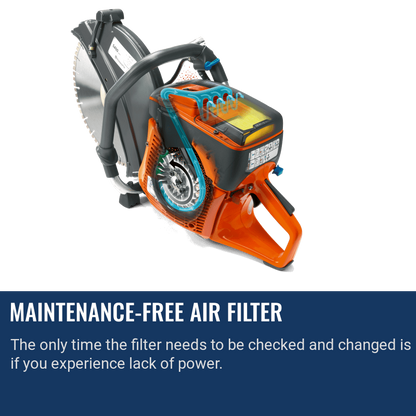

| 7AIR FILTER | 510244103 | 1 | Standard |
Regular price
$65.89
Regular price
|
|
| 7AIR FILTER | 510244105 | 1 | Rail |
Regular price
$65.89
Regular price
|
|
| 8CYLINDER COVER | 576553203 | 1 |
Regular price
$72.09
Regular price
|
||
| 9SEALING | 525617004 | 2 |
Regular price
$16.59
Regular price
|
||
| 10SCREW ITXSCM | 503215330 | 5 |
Regular price
$19.79
Regular price
|
||
| 11LABEL | 525816903 | 1 | K1270 |
Regular price
$27.37
Regular price
|
|
| 11LABEL | 525816904 | 1 | K1270 Rail |
Regular price
$27.37
Regular price
|

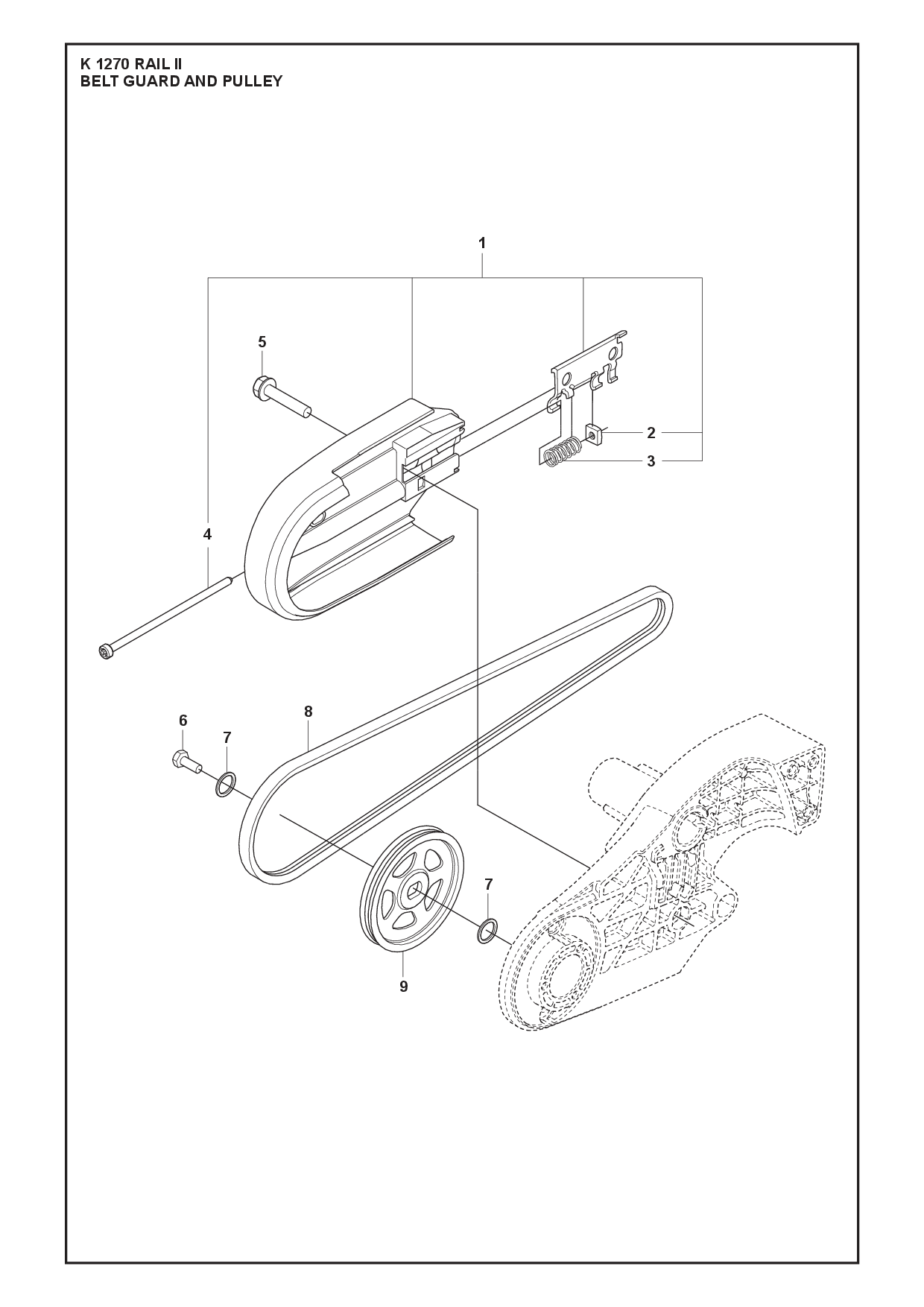

BELT GUARD 13 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BELT GUARD | 506279216 | 1 | Rail 14" for 967 98 XX-XX | ||
| 1BELT GUARD | 506279213 | 1 | Rail 16" for 967 98 XX-XX and 970 60 13-XX | ||
| 1BELT GUARD | 506279215 | 1 | For 970 81 XX-XX | ||
| 2NUT | 506409301 | 1 | |||
| 3COMPRESSION SPRING | 506266801 | 1 | |||
| 4SCREW CITXSCM | 503207205 | 1 | |||
| 5SCREW EHHFM | 506284401 | 2 | |||
| 6SCREW EHHFM | 503200045 | 1 | |||
| 7WASHER | 503230104 | 2 | |||
| 8DRIVE BELT | 544976301 | 1 | Rail 14" for 967 98 XX-XX | ||
| 8DRIVE BELT | 544976308 | 1 | For 970 81 XX-XX | ||
| 8DRIVE BELT | 544976302 | 1 | Rail 16" for 967 98 XX-XX and 970 60 13-XX | ||
| 9PULLEY | 578110501 | 1 |
BELT GUARD 10 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BELT GUARD | 506271704 | 1 | |||
| 2LABEL | 544873601 | 1 | |||
| 3SPACING SLEEVE | 506268401 | 1 | |||
| 4HEXAGON NUT | 503220001 | 1 | |||
| 5CLUTCH ASSY | 503144903 | 1 | |||
| 6CLUTCH SPRING | 503145101 | 3 | |||
| 7DRIVING PULLEY ASSY | 588809201 | 1 | 14" | ||
| 7DRIVING PULLEY ASSY | 588809202 | 1 | 16" | ||
| 8BALL BEARING | 529602601 | 2 | |||
| 9SPACING SLEEVE | 587536401 | 1 |
BLADE GUARD 21 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BLADE GUARD | 506340554 | 1 | 14" Rail |
Regular price
$319.32
Regular price
|
|
| 1BLADE GUARD | 506340556 | 1 | 16" Rail |
Regular price
$259.00
Regular price
|
|
| 2LINING | 506266302 | 1 |
Regular price
$39.59
Regular price
|
||
| 3SCREW ITXSCM | 503215320 | 1 |
Regular price
$79.20
Regular price
|
||
| 4HANDLE | 506344602 | 1 |
Regular price
$8.79
Regular price
|
||
| 5SCREEN | 506266401 | 1 |
Regular price
$19.79
Regular price
|
||
| 6FLANGE | 506266501 | 1 |
Regular price
$34.70
Regular price
|
||
| 7SCREW ITXSCM | 505574116 | 3 |
Regular price
$79.20
Regular price
|
||
| 8SUPPORT FLANGE | 506324801 | 1 |
Regular price
$14.79
Regular price
|
||
| 9FLANGE | 583874402 | 1 | Diam 105mm |
Regular price
$31.66
Regular price
|
|
| 9FLANGE WASHER | 506070906 | 2 | Diam 119mm, Japan 14" |
Regular price
$35.30
Regular price
|
|
| 10BUSHING | 506379601 | 1 | Diam 20mm |
Regular price
$24.69
Regular price
|
|
| 10BUSHING | 506379622 | 1 | Diam 22,2mm |
Regular price
$19.49
Regular price
|
|
| 10KIT | 506379625 | 1 | Diam 25,4mm |
Regular price
$17.89
Regular price
|
|
| 10BUSHING | 581605404 | 1 | Diam 30,5mm |
Regular price
$68.57
Regular price
|
|
| 11SCREW | 590503801 | 1 |
Regular price
$15.59
Regular price
|
||
| 12LABEL | 506284103 | 1 | 14" Rail Diam 25,4mm | ||
| 12LABEL | 506284105 | 1 | 16" Rail Diam 25,4mm |
Regular price
$23.28
Regular price
|
|
| 12LABEL | 506284114 | 1 | 14" Diam 25,4mm |
Regular price
$11.49
Regular price
|
|
| 12LABEL | 506284122 | 1 | 16" Diam 20mm | ||
| 12LABEL | 506284124 | 1 | 16" Diam 25,4mm |
Regular price
$23.69
Regular price
|
CARBURATOR 17 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1FILTER | 510243901 | 1 | |||
| 2BELLOWS | 510243802 | 1 | |||
| 3HOSE CLAMP | 505283311 | 1 | |||
| 4INLET BEND | 588750701 | 1 | |||
| 5SCREW | 589968801 | 2 | |||
| 6SUPPORT | 506250402 | 1 | |||
| 7GASKET | 579851101 | 1 | |||
| 8CARBURETTOR | 597857001 | 1 | |||
| 9GUIDE SLEEVE | 588892001 | 1 | |||
| 10THROTTLE CABLE ASSY | 596927701 | 1 | |||
| 11IMPULSE HOSE | 582125701 | 1 | |||
| 12FLANGE | 587536901 | 1 | |||
| 13INLET PIPE | 587536801 | 1 | |||
| 14HOSE CLAMP | 505283316 | 1 | |||
| 15INSULATION WALL | 588630401 | 1 | |||
| 16REPAIR KIT | 582606501 | 1 | |||
| 17GASKET KIT | 503597403 | 1 |
CRANKCASE 22 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1CRANKCASE | 582415007 | 1 |
Regular price
$429.00
Regular price
|
||
| 2GROMMET | 503132001 | 1 |
Regular price
$26.82
Regular price
|
||
| 3SCREW ITXSCM | 503215325 | 1 |
Regular price
$19.79
Regular price
|
||
| 4SCREW ITXSCM | 503215341 | 9 |
Regular price
$19.79
Regular price
|
||
| 5SCREW ITXSCM | 544218420 | 1 |
Regular price
$137.80
Regular price
|
||
| 6GUIDE BUSHING | 593806001 | 1 | |||
| 7BAR BOLT | 501815701 | 2 |
Regular price
$4.89
Regular price
|
||
| 8BALL BEARING | 503250002 | 2 |
Regular price
$29.69
Regular price
|
||
| 9GASKET | 582350001 | 1 |
Regular price
$19.79
Regular price
|
||
| 10GROMMET | 503145402 | 1 |
Regular price
$19.79
Regular price
|
||
| 11SEALING RING | 503260205 | 2 |
Regular price
$17.79
Regular price
|
||
| 12AIR NOZZLE | 506237001 | 1 |
Regular price
$23.69
Regular price
|
||
| 13SCREW ITXSCM | 501981001 | 1 |
Regular price
$104.57
Regular price
|
||
| 14SCREW ITXSCM | 503215320 | 1 |
Regular price
$79.20
Regular price
|
||
| 15HEXAGON NUT | 503220001 | 1 |
Regular price
$19.79
Regular price
|
||
| 16SCREW | 589968801 | 1 |
Regular price
$78.90
Regular price
|
||
| 17CHOKE CONTROL | 506254302 | 1 |
Regular price
$16.79
Regular price
|
||
| 18CUTTER ARM | 596823402 | 1 |
Regular price
$45.59
Regular price
|
||
| 19GASKET KIT | 582454802 | 1 |
Regular price
$39.59
Regular price
|
||
| 20GASKET | 579851101 | 1 |
Regular price
$19.79
Regular price
|
||
| 21GASKET | 585280901 | 1 |
Regular price
$19.79
Regular price
|
||
| 22GASKET | 546931301 | 1 |
Regular price
$13.49
Regular price
|
CRANKSHAFT 3 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1CRANKSHAFT | 577343803 | 1 |
Regular price
$359.00
Regular price
|
||
| 2BALL BEARING | 503250002 | 2 |
Regular price
$29.69
Regular price
|
||
| 3NEEDLE HOLDER | 503132901 | 1 |
Regular price
$39.59
Regular price
|

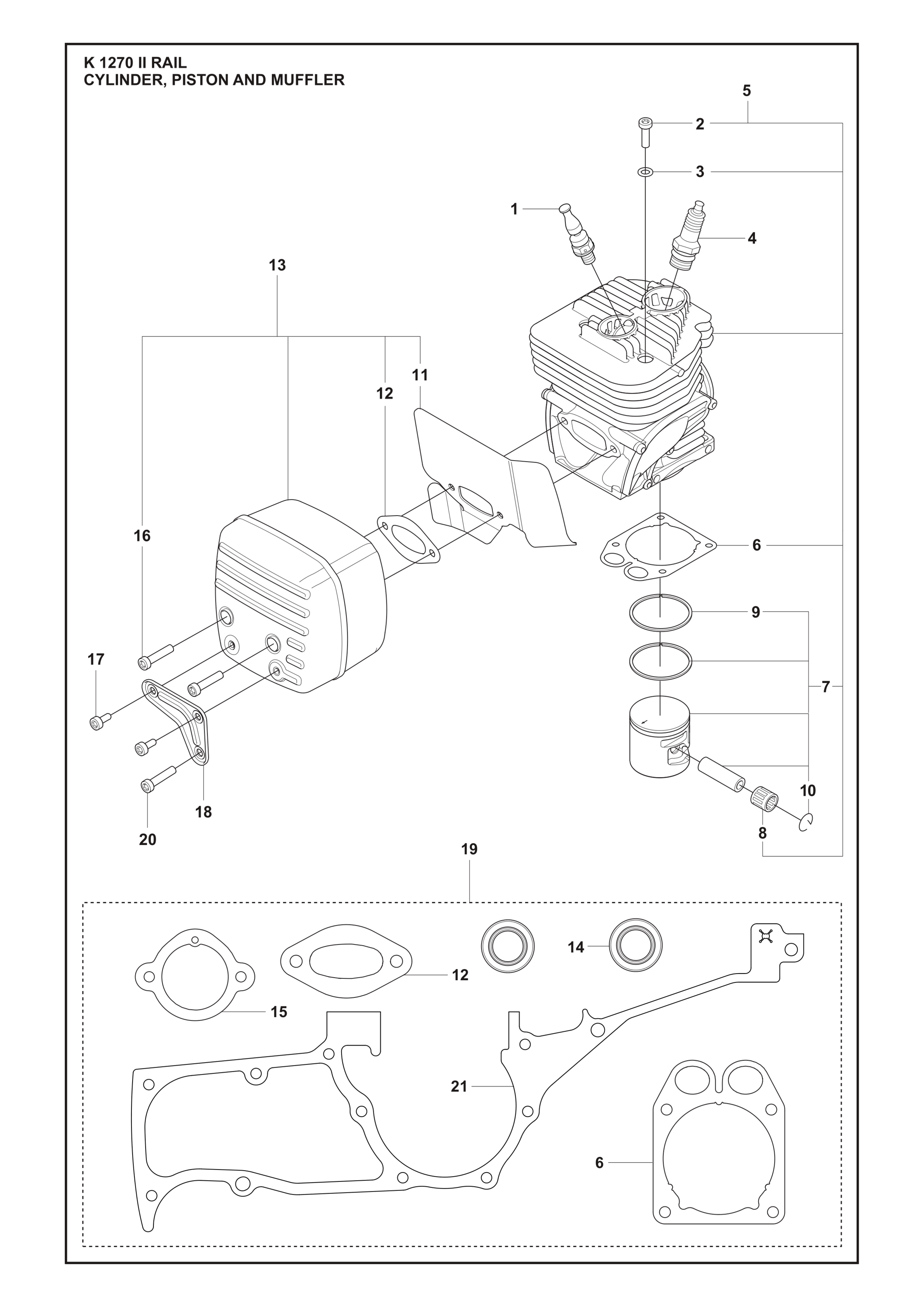

CYLINDER, PISTON AND MUFFLER 21 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1DECOMPRESSION VALVE | 584912204 | 1 |
Regular price
$50.69
Regular price
|
||
| 2SCREW | 516002401 | 4 |
Regular price
$19.79
Regular price
|
||
| 3WASHER | 503230005 | 4 |
Regular price
$19.79
Regular price
|
||
| 4SPARK PLUG | 503235111 | 1 |
Regular price
$27.16
Regular price
|
||
| 5CYLINDER ASSY | 582582304 | 1 |
Regular price
$649.00
Regular price
|
||
| 6GASKET | 546931301 | 1 |
Regular price
$13.49
Regular price
|
||
| 7PISTON ASSY | 587829806 | 1 |
Regular price
$129.00
Regular price
|
||
| 8NEEDLE HOLDER | 503132901 | 1 |
Regular price
$39.59
Regular price
|
||
| 9PISTON RING | 587830001 | 2 |
Regular price
$39.59
Regular price
|
||
| 10CIRCLIP | 737441300 | 2 |
Regular price
$19.79
Regular price
|
||
| 11HEAT DEFLECTOR | 587536301 | 1 |
Regular price
$93.99
Regular price
|
||
| 12GASKET | 585280901 | 1 |
Regular price
$19.79
Regular price
|
||
| 13MUFFLER KIT | 588137803 | 1 |
Regular price
$56.39
Regular price
|
||
| 14SEALING RING | 503260205 | 2 |
Regular price
$17.79
Regular price
|
||
| 15GASKET | 579851101 | 1 |
Regular price
$19.79
Regular price
|
||
| 16SCREW ITXSCM | 544218407 | 2 |
Regular price
$19.79
Regular price
|
||
| 17SCREW ITXSCM | 503215312 | 2 |
Regular price
$79.20
Regular price
|
||
| 18SUPPORT | 502850801 | 1 |
Regular price
$21.69
Regular price
|
||
| 19GASKET KIT | 582454802 | 1 |
Regular price
$39.59
Regular price
|
||
| 20SCREW ITXSCM | 544218420 | 1 |
Regular price
$137.80
Regular price
|
||
| 21GASKET | 582350001 | 1 |
Regular price
$19.79
Regular price
|
DECALS 10 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1LABEL | 544873601 | 1 |
Regular price
$19.79
Regular price
|
||
| 2LABEL | 525816903 | 1 |
Regular price
$27.37
Regular price
|
||
| 3DECAL | 589023804 | 1 | |||
| 3DECAL | 589023801 | 1 | USA, CANADA | ||
| 4DECAL | 581117706 | 1 | 14" 20/25,4mm |
Regular price
$19.79
Regular price
|
|
| 4DECAL | 581117707 | 1 | 16" 20/25,4mm |
Regular price
$19.79
Regular price
|
|
| 5DECAL | 584992603 | 1 | 16" JAPAN |
Regular price
$27.37
Regular price
|
|
| 5DECAL | 584992602 | 1 | 14" JAPAN |
Regular price
$30.53
Regular price
|
|
| 6DECAL | 582141901 | 1 |
Regular price
$32.00
Regular price
|
||
| 7LABEL | 544873803 | 1 |
ENGINE KIT 1 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1CRANKCASE | 582415008 | 1 |
FUEL TANK 33 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1FUEL TANK | 598806404 | 1 |
Regular price
$219.00
Regular price
|
||
| 2COVER | 537205601 | 1 |
Regular price
$12.79
Regular price
|
||
| 3THROTTLE LOCKOUT | 510255201 | 1 |
Regular price
$19.79
Regular price
|
||
| 4THROTTLE CABLE ASSY | 596927701 | 1 |
Regular price
$39.59
Regular price
|
||
| 6FUEL FILTER KIT | 598836601 | 1 |
Regular price
$12.69
Regular price
|
||
| 7FUEL HOSE | 581756203 | 1 |
Regular price
$10.29
Regular price
|
||
| 8ANTIVIBRATION ELEMENT | 585226301 | 1 |
Regular price
$26.29
Regular price
|
||
| 9THROTTLE CONTROL | 502471803 | 1 |
Regular price
$11.89
Regular price
|
||
| 10PIN | 546291601 | 2 |
Regular price
$19.79
Regular price
|
||
| 11LEVER | 537208501 | 1 |
Regular price
$22.87
Regular price
|
||
| 12FUEL HOSE | 576139901 | 1 |
Regular price
$19.79
Regular price
|
||
| 13SPRING | 537209801 | 1 |
Regular price
$24.31
Regular price
|
||
| 14TANK VENT ASSY | 598611001 | 1 |
Regular price
$40.14
Regular price
|
||
| 15TANK VENT ASSY | 501152901 | 1 |
Regular price
$19.79
Regular price
|
||
| 16SCREW CITXPANT | 525887402 | 1 |
Regular price
$19.79
Regular price
|
||
| 17GROUND SUPPORT | 588198201 | 1 |
Regular price
$19.79
Regular price
|
||
| 18FUEL HOSE | 537042419 | 1 |
Regular price
$19.79
Regular price
|
||
| 19PURGE | 540054901 | 1 |
Regular price
$16.09
Regular price
|
||
| 20ANTIVIBRATION ELEMENT | 585226401 | 1 |
Regular price
$23.69
Regular price
|
||
| 21SCREW ITXSCM | 544218420 | 2 |
Regular price
$137.80
Regular price
|
||
| 22BUSHING | 503140801 | 1 |
Regular price
$27.37
Regular price
|
||
| 23ANTIVIBRATION ELEMENT | 537210305 | 1 |
Regular price
$44.89
Regular price
|
||
| 24SCREW ITXSCM | 544061201 | 2 |
Regular price
$79.20
Regular price
|
||
| 25GASKET | 537215001 | 1 | |||
| 26HOLDER | 503578901 | 1 |
Regular price
$19.79
Regular price
|
||
| 27TANK CAP ASSY | 522620001 | 1 |
Regular price
$27.99
Regular price
|
||
| 28ATTACHMENT PLATE | 582395701 | 1 |
Regular price
$40.59
Regular price
|
||
| 29SCREW ITXSCM | 503215320 | 1 |
Regular price
$79.20
Regular price
|
||
| 30ANTIVIBRATION ELEMENT | 503132702 | 1 |
Regular price
$60.11
Regular price
|
||
| 31SCREW ITXSCM | 503215325 | 2 |
Regular price
$19.79
Regular price
|
||
| 32SCREW ITXSCFM | 525755204 | 1 |
Regular price
$19.79
Regular price
|
||
| 33SCREW | 503215375 | 1 |
Regular price
$64.40
Regular price
|
||
| 34SPACING TUBE | 503134901 | 1 |
Regular price
$24.19
Regular price
|
HANDLE 11 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 2SCREW ITXSCT | 503215420 | 2 |
Regular price
$19.79
Regular price
|
||
| 3HANDLE | 599691801 | 1 |
Regular price
$86.89
Regular price
|
||
| 4ANTIVIBRATION ELEMENT | 585905601 | 1 |
Regular price
$44.57
Regular price
|
||
| 5SCREW ITXSCFM | 525755204 | 2 |
Regular price
$19.79
Regular price
|
||
| 6GROUND SUPPORT | 525820402 | 1 |
Regular price
$169.00
Regular price
|
||
| 7WASHER | 734114741 | 2 |
Regular price
$19.79
Regular price
|
||
| 8BASE | 544811601 | 2 |
Regular price
$34.28
Regular price
|
||
| 9SCREW ITXSCT | 504909414 | 3 |
Regular price
$76.40
Regular price
|
||
| 13SCREW | 582820801 | 3 |
Regular price
$49.60
Regular price
|
||
| 14HANDLE BRACKET | 579832701 | 1 |
Regular price
$39.59
Regular price
|
||
| 15SCREW | 503215375 | 1 |
Regular price
$64.40
Regular price
|

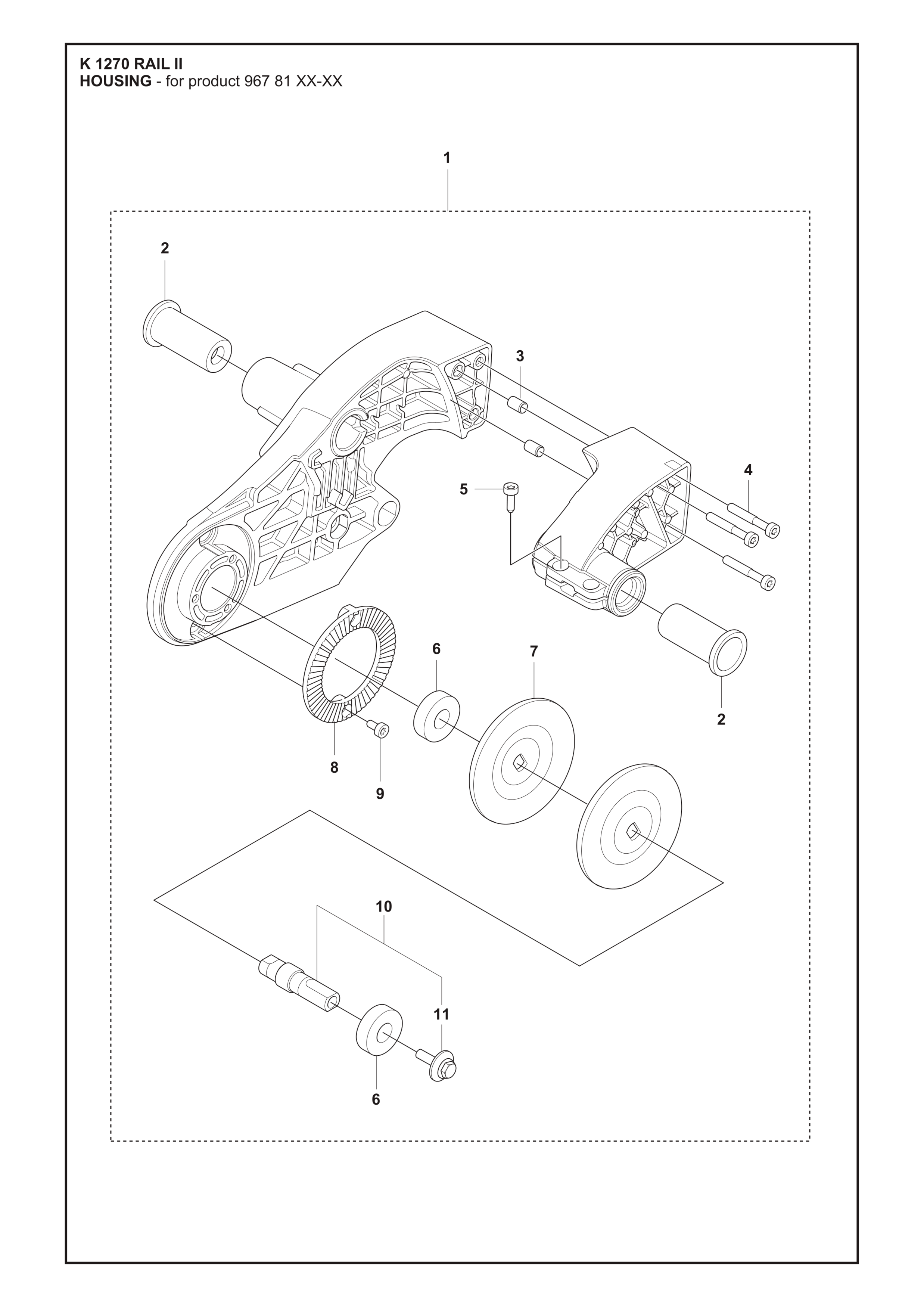

HOUSING 11 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BEARING HOUSING | 541017601 | 1 | |||
| 2SLEEVE | 506227501 | 2 |
Regular price
$106.90
Regular price
|
||
| 3GUIDE BUSHING | 537508801 | 2 | |||
| 4SCREW ITXSCM | 544218440 | 3 |
Regular price
$19.79
Regular price
|
||
| 5SCREW ITXSCM | 503215312 | 2 |
Regular price
$79.20
Regular price
|
||
| 6BALL BEARING | 583953301 | 2 |
Regular price
$45.73
Regular price
|
||
| 7FLANGE WASHER | 506070906 | 2 |
Regular price
$35.30
Regular price
|
||
| 8SCREEN | 506288401 | 1 |
Regular price
$19.79
Regular price
|
||
| 9SCREW ITXSCM | 503215310 | 2 |
Regular price
$19.79
Regular price
|
||
| 10SHAFT | 588992403 | 1 |
Regular price
$43.09
Regular price
|
||
| 11SCREW | 590503801 | 1 |
Regular price
$15.59
Regular price
|

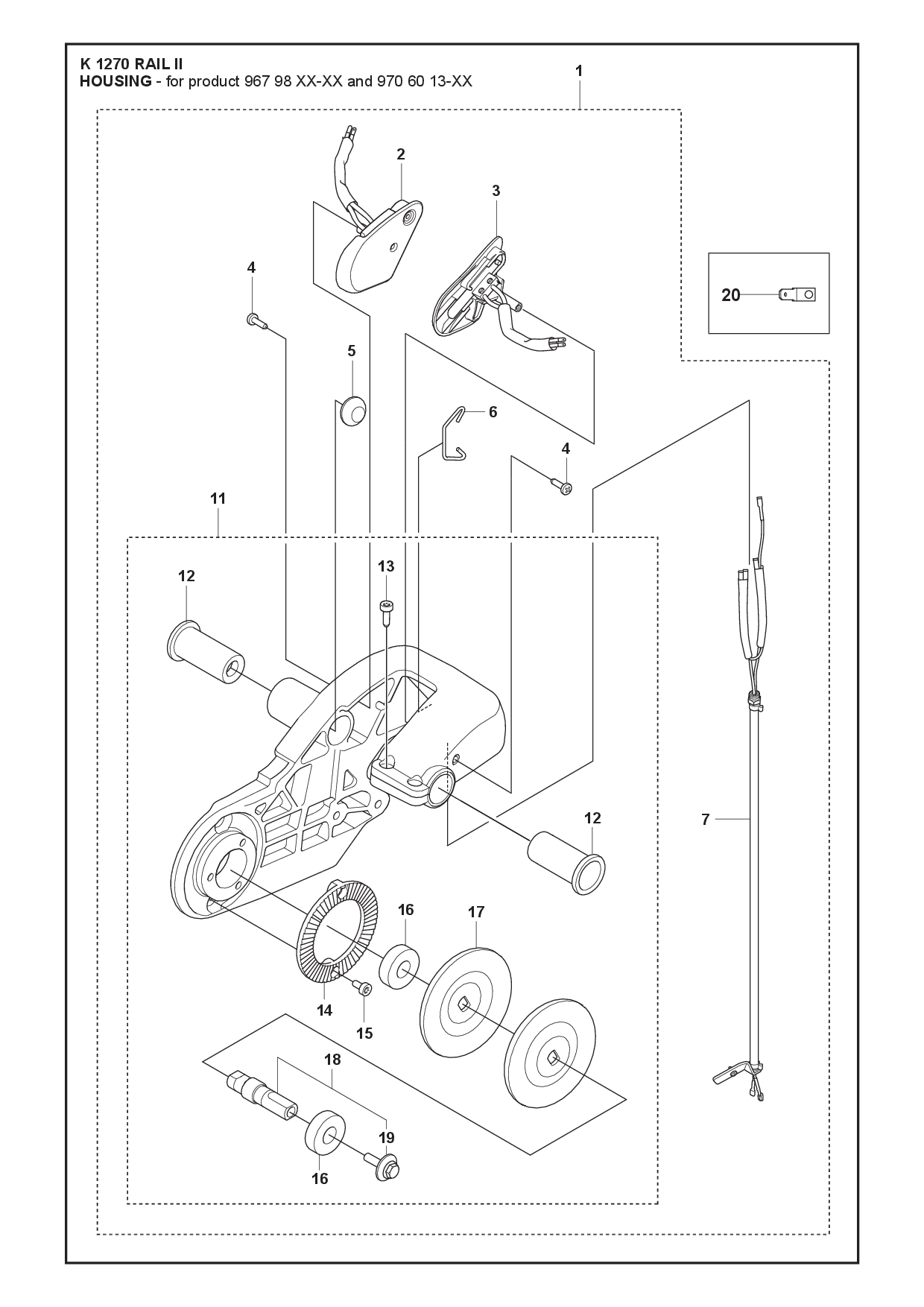

HOUSING 19 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BEARING HOUSING ASSY | 576665718 | 1 | 14" Rail Stop Switch | ||
| 2STOP SWITCH | 506359104 | 1 | |||
| 3STOP SWITCH | 506359103 | 1 | |||
| 4SCREW CRPANT | 729529171 | 2 | |||
| 5SPACING BLOCK | 506359601 | 1 | |||
| 6CLIP | 501354301 | 1 | |||
| 7WIRING ASSY | 546155801 | 1 | |||
| 11BEARING HOUSING ASSY | 576665715 | 1 | 14" Rail | ||
| 11BEARING HOUSING ASSY | 576665716 | 1 | 16" Rail | ||
| 11BEARING HOUSING ASSY | 576665717 | 1 | 16" Rail USA | ||
| 12SLEEVE | 506227501 | 2 | |||
| 13SCREW IHSCFM | 503200216 | 2 | |||
| 14SCREEN | 506288401 | 1 | |||
| 15SCREW ITXSCM | 503215310 | 2 | |||
| 16BALL BEARING | 583953301 | 2 | |||
| 17FLANGE WASHER | 506070906 | 1 | |||
| 18SHAFT | 588992403 | 1 | |||
| 19SCREW | 590503801 | 1 | |||
| 20PLATE | 535039402 | 1 |
IGNITION SYSTEM 14 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW CITXPANT | 525887403 | 1 |
Regular price
$19.79
Regular price
|
||
| 2STOP SWITCH | 506318604 | 1 |
Regular price
$12.09
Regular price
|
||
| 3CABLE | 501839803 | 1 |
Regular price
$30.00
Regular price
|
||
| 4SPARK PLUG | 503235111 | 1 |
Regular price
$27.16
Regular price
|
||
| 5SPARK PLUG CAP | 590504501 | 1 |
Regular price
$37.14
Regular price
|
||
| 6IGNITION MODULE ASSY | 594729603 | 1 |
Regular price
$89.29
Regular price
|
||
| 7SCREW ITXSCM | 505574120 | 2 |
Regular price
$19.79
Regular price
|
||
| 8SPRING WASHER | 735117350 | 1 |
Regular price
$33.99
Regular price
|
||
| 9HEXAGON NUT | 503221011 | 1 |
Regular price
$22.87
Regular price
|
||
| 10FLYWHEEL ASSY | 587248801 | 1 |
Regular price
$209.00
Regular price
|
||
| 11SPRING | 501634801 | 2 |
Regular price
$24.31
Regular price
|
||
| 12WASHER | 503230042 | 2 |
Regular price
$19.79
Regular price
|
||
| 13PAWL | 501673203 | 2 |
Regular price
$13.39
Regular price
|
||
| 14SCREW | 501819901 | 2 |
Regular price
$19.79
Regular price
|

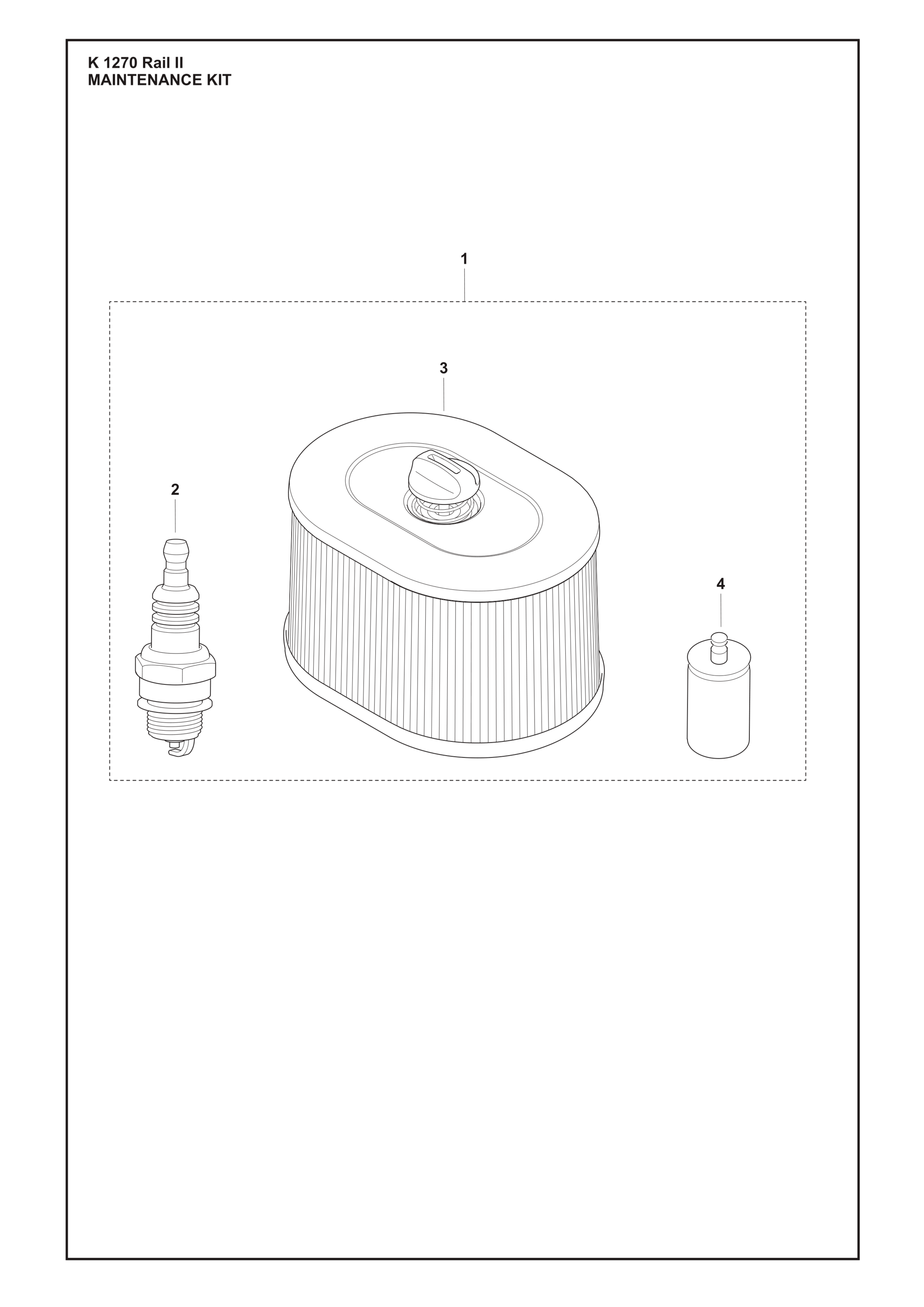

MAINTENANCE KIT 4 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SERVICE KIT | 546903003 | 1 |
Regular price
$47.89
Regular price
|
||
| 2SPARK PLUG | 503235111 | 1 |
Regular price
$27.16
Regular price
|
||
| 3AIR FILTER | 510244105 | 1 |
Regular price
$65.89
Regular price
|
||
| 4FUEL FILTER KIT | 598836601 | 1 |
Regular price
$12.69
Regular price
|
RAIL FIXTURE 20 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1RAIL | 546376302 | 1 | RA 10 | ||
| 1RAIL | 546376502 | 1 | RA 10S | ||
| 2LOCKING HANDLE | 593207401 | 1 | |||
| 3HEXAGON LOCKING NUT | 732252201 | 1 | |||
| 4PARALLEL KEY | 502446601 | 1 | |||
| 5CIRCLIP | 735313310 | 1 | |||
| 6BALL BEARING | 503252101 | 1 | |||
| 7SHAFT | 593176501 | 1 | |||
| 8DUST COVER | 503767501 | 1 | |||
| 9BALL BEARING | 738218904 | 1 | |||
| 10DRAW SPRING | 506227702 | 1 | |||
| 11LOCK NUT | 732211601 | 1 | |||
| 12GASKET | 505270609 | 2 | |||
| 13BAR | 506236303 | 1 | |||
| 14SCREW SLCSFM | 723637001 | 1 | |||
| 15CIRCLIP | 735311000 | 1 | |||
| 16KNOB | 596474301 | 2 | |||
| 17SPRING | 544399701 | 2 | |||
| 18LOCKING HANDLE | 597464001 | 1 | RA 10 | ||
| 18LOCKING HANDLE | 597464002 | 1 | RA 10S |
STARTER 14 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1STARTER | 506275514 | 1 |
Regular price
$83.99
Regular price
|
||
| 2SCREW ITXSCFT | 586443001 | 1 | |||
| 3WASHER | 503234302 | 1 |
Regular price
$19.79
Regular price
|
||
| 4STARTER PULLEY | 501896705 | 1 |
Regular price
$29.69
Regular price
|
||
| 5STARTER ROPE | 506335625 | 1 | |||
| 5STARTER ROPE | 506335650 | 1 | 50meter |
Regular price
$669.00
Regular price
|
|
| 6STARTER HANDLE ASSY | 584257903 | 1 |
Regular price
$5.89
Regular price
|
||
| 7DISC | 503743601 | 1 |
Regular price
$19.79
Regular price
|
||
| 8RECOIL SPRING | 503135001 | 1 |
Regular price
$30.69
Regular price
|
||
| 9STARTER COVER | 506255803 | 1 |
Regular price
$47.79
Regular price
|
||
| 10SCREW ITXSCM | 501981005 | 4 |
Regular price
$19.79
Regular price
|
||
| 11DECAL | 582141901 | 1 |
Regular price
$32.00
Regular price
|
||
| 12AIR CONDUCTOR | 501895902 | 1 |
Regular price
$40.59
Regular price
|
||
| 12AIR CONDUCTOR | 501895903 | 1 | Rail stop switch only |
Regular price
$30.69
Regular price
|
TOOLS 1 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1TOOL | 506382601 | 1 |
Regular price
$19.09
Regular price
|
WATER HOSE KIT 21 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HOSE KIT | 581476222 | 1 | |||
| 2NIPPLE | 581478302 | 1 | |||
| 3STRAINER | 589780701 | 1 | |||
| 4O-RING | 505103501 | 1 | |||
| 5HOSE CLAMP | 589638601 | 2 | |||
| 6HOSE | 578198104 | 1 | |||
| 7VALVE ASSY | 578243308 | 1 | |||
| 8SCREW ITXSCM | 503215341 | 1 | |||
| 9HOSE KIT | 581721510 | 1 | |||
| 10HOSE CLAMP | 589638601 | 3 | |||
| 11HOSE | 581893508 | 1 | |||
| 12SCREW ITXSCM | 504634602 | 2 | |||
| 13HOUSING | 587388902 | 1 | |||
| 14NIPPLE | 576798404 | 1 | |||
| 15HOUSING | 587389002 | 1 | |||
| 16HOSE CLAMP | 583833002 | 1 | |||
| 17COUPLER | 503266003 | 1 | USA/Canada | ||
| 17COUPLER | 503266004 | 1 | RoW | ||
| 18LEVER ASSY | 581357002 | 1 | |||
| 19SQUARE NUT | 503226504 | 1 | |||
| 20PROTECTIVE SPRING | 506352701 | 1 |
Document Downloads
Service bulletin
-
SB. CYLINDER GASKET, K1270II Family, 2024-06PDF EN
-
SB. New arms, RA10, RA10S, 2024-03PDF EN
-
SB. New trigger, K970, K1270, 2024-01PDF EN
-
SB. Type plate product number, K770, K970, K1270, 2023-11PDF EN
-
SB. Recommended Part List, K770, K970, K1270 family, 2022-06PDF EN
-
SB. New handle, WA20, RA10, RA10S, 2021-02PDF EN
Operator's manual
Illustrated part list
Workshop manual
Concrete Focus
From pouring to resurfacing, we sell tools built for concrete pros.
Expert Support
Get guidance from experts who understand jobsite challenges.
Fast Delivery
Get your tools fast with our nationwide shipping network and local partnerships.
Talk to an expert now (855) 281-1918
Get fast, expert help choosing the right concrete tools or equipment for your job. Ask about availability, specs, troubleshooting, or get friendly guidance before you place an order.
