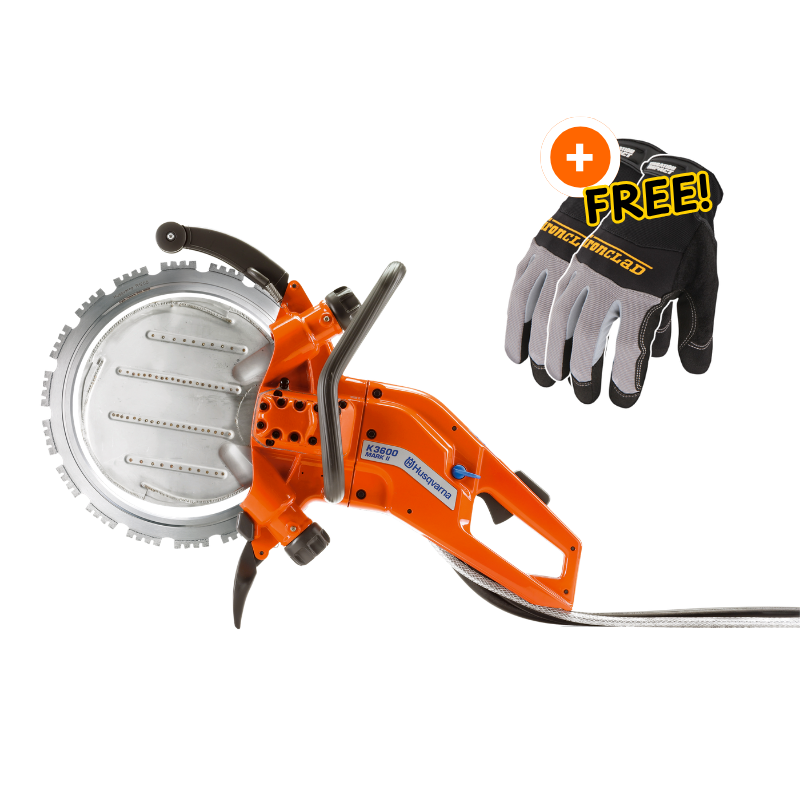

Husqvarna K3600 MK II Ring Saw - Hydraulic

Name: Husqvarna K3600 MK II Ring Saw - Hydraulic
Brand: Husqvarna Construction
SKU: 968424101
Price: 5175.00 USD
Availability: InStock

HUSQVARNA CONSTRUCTION SKU: 968424101 Copied!

$5,175.00

~~$6,038.00~~ $5,175.00

Save $863 Sold out

Trusted by contractors nationwide

"I've bought 3 products from CTD and each time the experience has been the same - professional and fast delivery. I trust these guys with all my concrete needs."

Authorized
Dealer

Top Quality Store
on Google

Talk to an expert (855)-281-1918

Secure checkout

90 day returns

Product Details

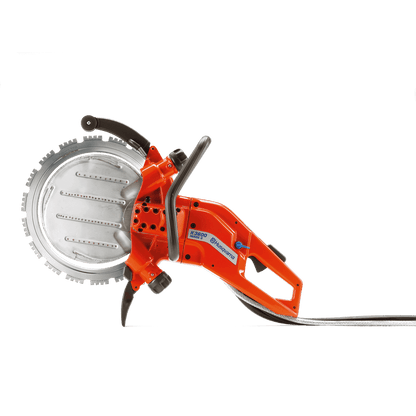

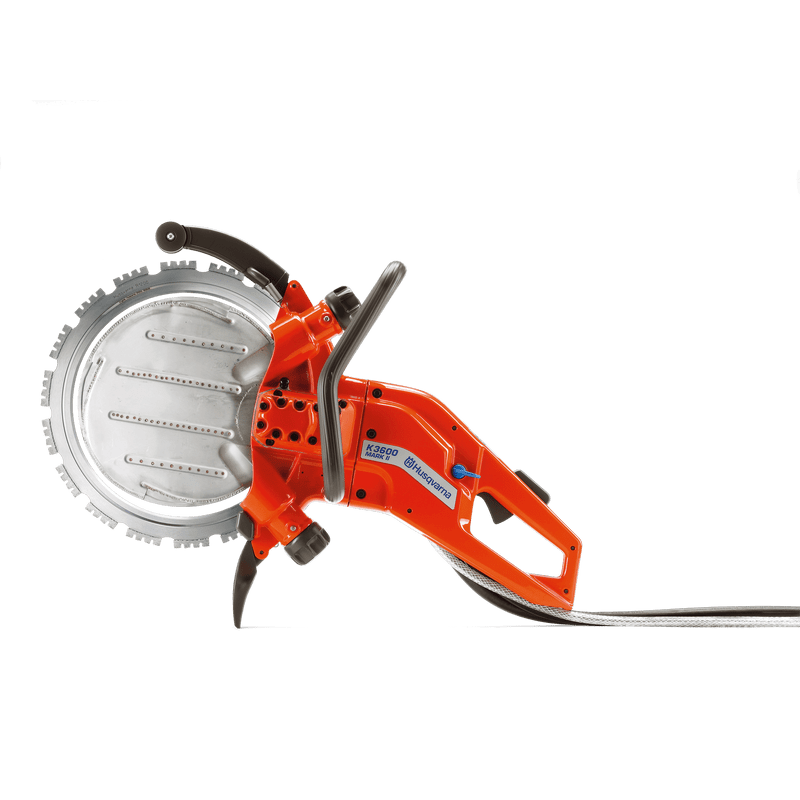

HUSQVARNA RING SAW K 3600 MK II - A POWERFUL TOOL FOR PRECISE CUTS

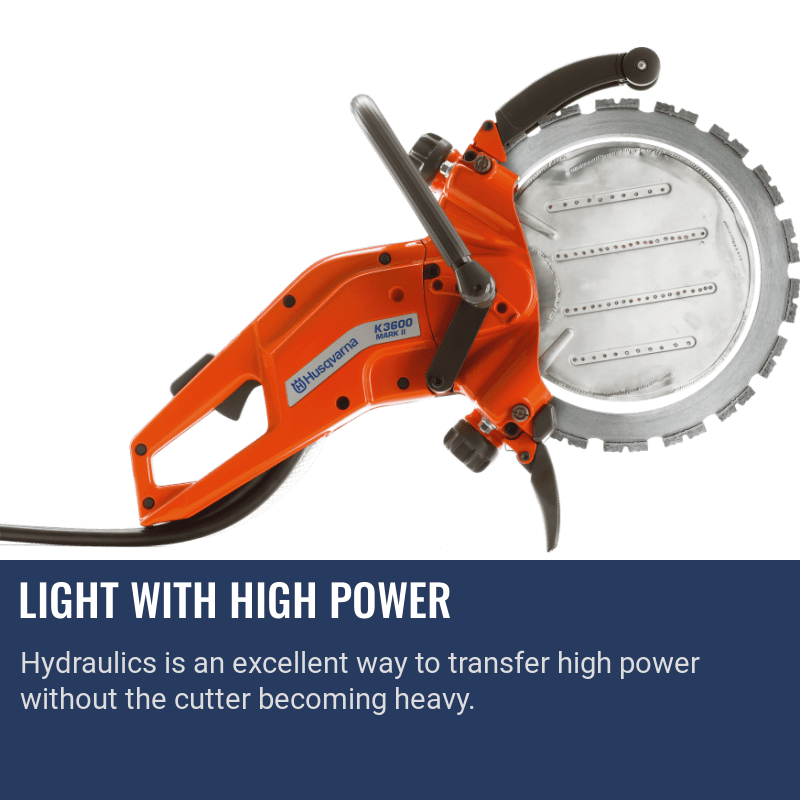

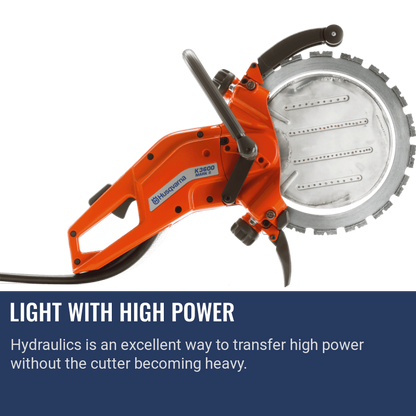

The Husqvarna Ring Saw K 3600 MK II is a hydraulic power cutter with an eccentric rim drive system that delivers a cutting depth of up to 10 inches with a 14-inch blade. It's the perfect tool for a range of applications, from adjusting door and window openings to cutting pipes in installation jobs. Engineered to be efficient and versatile, this ring saw is your go-to tool for precision and power.

What sets the K 3600 MK II apart is its indoor suitability, thanks to its emission-free operation and low noise levels. This makes it a great choice for those demanding projects that require indoor work. With an engine power of 5.8 hp, it offers impressive cutting performance without compromising on safety or comfort.

Hydraulic Power Source: Provides consistent, reliable operation.
Engine Power of 5.8 hp: Delivers robust cutting performance.

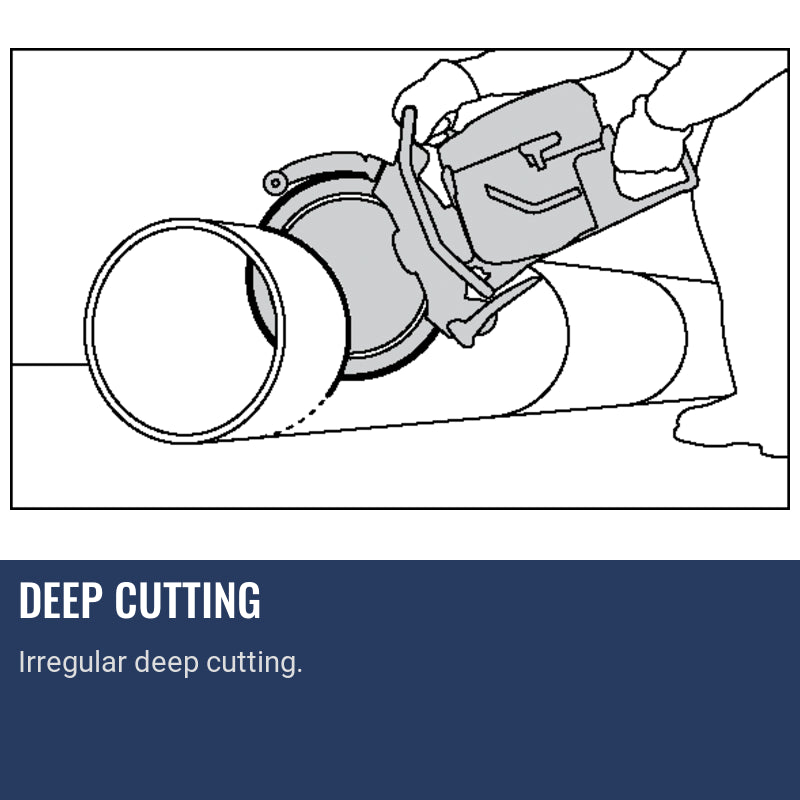

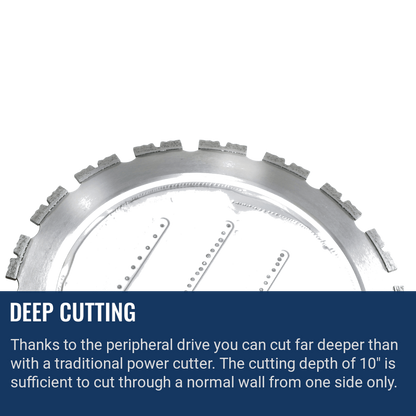

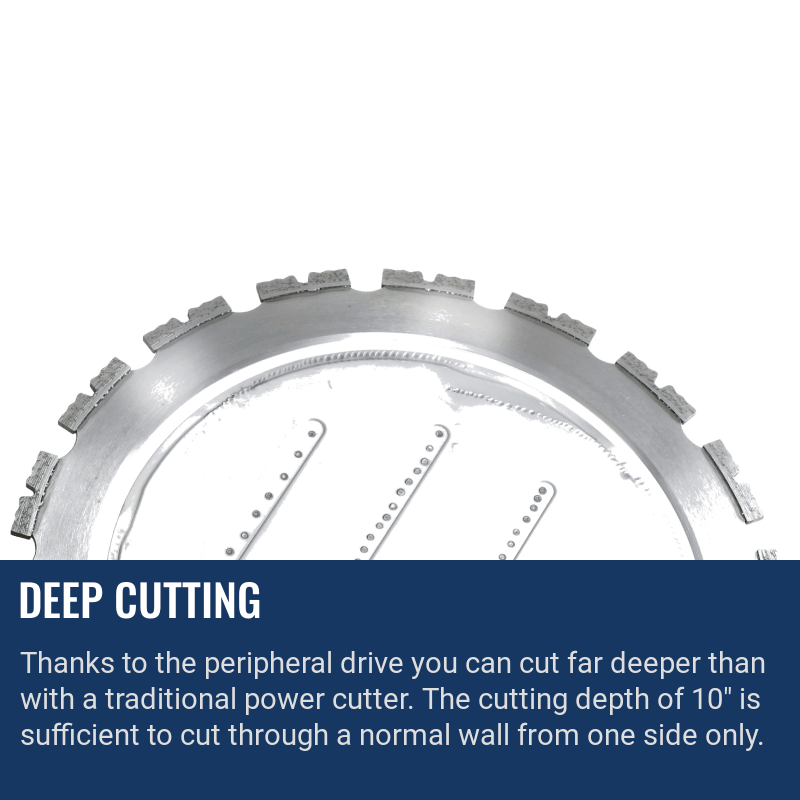

Maximum Cutting Depth of 10.6 inches: Allows for deep, precise cuts.
14-inch Max Blade Diameter: Ensures wide cutting reach.

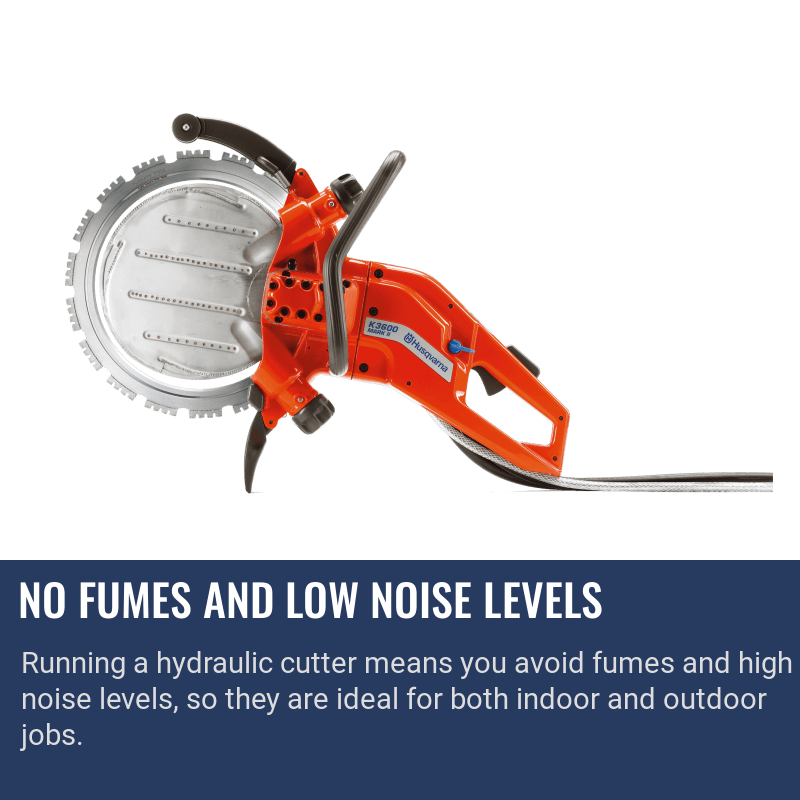

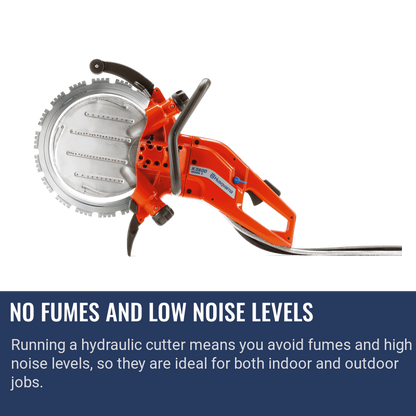

Low Noise Levels: Perfect for indoor use and reduces noise pollution.

View full details

Product Specification

Husqvarna K3600 MK II Ring Saw - Hydraulic

Specifications

Engine Power (As rated by the engine manufacturer)

5.8 hp

Power source

Hydraulic

Cutting depth, max

10.6 in

Blade diameter, max

14 in

Blade thickness, max

0.22 in

Peripheral speed, max

10,800 fpm

Coolant

Wet

Hydraulic oil flow

10 gal/min

Hydraulic pressure, max

2,176 psi

Product size length

28.15 in

Product size width

6.89 in

Product size height

16.4 in

Weight

18.3 lbs

Packaging length (Calc)

33.858 in

Packaging width (Calc)

12.402 in

Packaging height (Calc)

19.488 in

Article gross weight (Calc)

48.502 lbs

Sound power level, guaranteed (LWA)

111 dB(A)

Sound pressure level at operators ear

99 dB(A)

Vibrations left/front handle

4.3 m/s²

Vibrations right/rear handle

6 m/s²

Warranty

2 year limited warranty

Service & Maintenance Parts

CHASSIS / FRAME 31 parts

Part	Article number	Qty	Comment	Price	Details
1BEARING CAGE	506493402	1	Double groove, SE only
1BEARING CAGE	506493405	1		Regular price $525.00 Regular price ~~$525.00~~ Sale price $525.00	View part
2GUIDE ROLLER	506352007	1		Regular price $87.20 Regular price ~~$69.20~~ Sale price $87.20	View part
3NUT	503220401	1		Regular price $24.31 Regular price ~~$4.44~~ Sale price $24.31	View part
4DRIVER	506303401	1		Regular price $24.44 Regular price Sale price $24.44	View part
5DUST COVER	506316901	1		Regular price $30.53 Regular price Sale price $30.53	View part
6SPACING SLEEVE	506379302	1		Regular price $45.30 Regular price Sale price $45.30	View part
7SEALING RING	503262001	1		Regular price $48.67 Regular price ~~$29.60~~ Sale price $48.67	View part
8CIRCLIP	735312810	1		Regular price $22.78 Regular price ~~$2.87~~ Sale price $22.78	View part
9BALL BEARING	529602601	2		Regular price $39.74 Regular price ~~$20.40~~ Sale price $39.74	View part
10SPACING SLEEVE	506303303	1		Regular price $40.80 Regular price Sale price $40.80	View part
11SPACING SLEEVE	506316803	1		Regular price $41.80 Regular price Sale price $41.80	View part
12SHAFT	506493201	1		Regular price $58.30 Regular price Sale price $58.30	View part
13HUB CAP	506381101	1		Regular price $30.30 Regular price Sale price $30.30	View part
14O-RING	740482012	1		Regular price $21.39 Regular price ~~$1.44~~ Sale price $21.39	View part
15BEARING CAGE	506380901	1		Regular price $117.02 Regular price ~~$99.90~~ Sale price $117.02	View part
16COMPRESSION SPRING	506347603	1		Regular price $33.40 Regular price Sale price $33.40	View part
17BUMPER	506303501	1		Regular price $28.82 Regular price Sale price $28.82	View part
18PEN	506389701	1		Regular price $46.50 Regular price Sale price $46.50	View part
19CHASSIS	506368308	1		Regular price $988.00 Regular price Sale price $988.00	View part
20LOCKING BUTTON	506300901	1		Regular price $61.30 Regular price Sale price $61.30	View part
21SPRING PIN	721440600	1		Regular price $77.20 Regular price ~~$67.20~~ Sale price $77.20	View part
22LUBRICATION NIPPLE	738881001	2		Regular price $25.55 Regular price ~~$5.72~~ Sale price $25.55	View part
23SLEEVE	544077602	2		Regular price $147.00 Regular price Sale price $147.00	View part
24GASKET KIT	506343901	2		Regular price $59.90 Regular price Sale price $59.90	View part
25O-RING	740482502	2		Regular price $26.94 Regular price ~~$7.15~~ Sale price $26.94	View part
26WEAR PROTECTION	506351903	1		Regular price $83.30 Regular price Sale price $83.30	View part
27SCREW ITXSCM	505574116	1		Regular price $79.20 Regular price ~~$69.20~~ Sale price $79.20	View part
28KNOB	506382202	1		Regular price $59.99 Regular price ~~$50.20~~ Sale price $59.99	View part
29SEALING RING	506336502	1		Regular price $29.08 Regular price Sale price $29.08	View part
30HUB CAP	506382102	1		Regular price $28.82 Regular price Sale price $28.82	View part

GUARDS 25 parts

Part	Article number	Qty	Comment	Price	Details
1BLADE GUARD	506246906	1	Incl. 2 - 9
2SCREW ITXSCM	544218447	2		Regular price $108.20 Regular price ~~$98.20~~ Sale price $108.20	View part
3O-RING	503263025	2		Regular price $25.72 Regular price ~~$5.89~~ Sale price $25.72	View part
4SCREW	503214601	2		Regular price $49.60 Regular price ~~$39.60~~ Sale price $49.60	View part
5WASHER	734488001	2		Regular price $22.78 Regular price ~~$2.87~~ Sale price $22.78	View part
6WHEEL	506262202	2		Regular price $30.30 Regular price Sale price $30.30	View part
7COVER PLATE	506312801	1		Regular price $27.37 Regular price Sale price $27.37	View part
8SPACING TUBE	506314501	1		Regular price $78.90 Regular price ~~$68.90~~ Sale price $78.90	View part
9SPRING	504116701	1		Regular price $34.28 Regular price ~~$14.70~~ Sale price $34.28	View part
10SCREW IHSCM	725546905	1		Regular price $29.70 Regular price ~~$9.99~~ Sale price $29.70	View part
11WASHER	506105501	4		Regular price $64.40 Regular price ~~$54.40~~ Sale price $64.40	View part
12HOSE	501986501	1
13DISC	506383302	1	Incl. 14 - 16
14NIPPLE	506382901	1
15O-RING	505103501	1		Regular price $25.72 Regular price ~~$5.89~~ Sale price $25.72	View part
16SCREW CRPANT	729528971	1		Regular price $25.55 Regular price ~~$5.72~~ Sale price $25.55	View part
17SCREW ITXSCM	505574116	4		Regular price $79.20 Regular price ~~$69.20~~ Sale price $79.20	View part
18TORSION SPRING	506257501	1		Regular price $27.37 Regular price Sale price $27.37	View part
19SPRAY GUARD	506256802	1		Regular price $46.50 Regular price Sale price $46.50	View part
20HANDLE ASSY	506357204	1	Incl. 21 - 25	Regular price $222.00 Regular price Sale price $222.00	View part
21GRIP	506357302	1		Regular price $39.40 Regular price Sale price $39.40	View part
22SPRING	506249501	1		Regular price $25.89 Regular price Sale price $25.89	View part
23PEN	544137401	1		Regular price $54.55 Regular price ~~$35.60~~ Sale price $54.55	View part
24O-RING	503263022	1		Regular price $24.31 Regular price ~~$4.44~~ Sale price $24.31	View part
25O-RING	740430300	1		Regular price $24.18 Regular price ~~$4.31~~ Sale price $24.18	View part

HANDLE 26 parts

Part	Article number	Qty	Comment	Price	Details
1TAP	506349404	1		Regular price $112.80 Regular price Sale price $112.80	View part
2SCREW	503214601	2		Regular price $49.60 Regular price ~~$39.60~~ Sale price $49.60	View part
3HOSE CLAMP	576129701	2		Regular price $25.72 Regular price ~~$5.89~~ Sale price $25.72	View part
4HOSE KIT	506293104	1		Regular price $71.50 Regular price Sale price $71.50	View part
5O-RING	505103501	1		Regular price $25.72 Regular price ~~$5.89~~ Sale price $25.72	View part
6STRAINER	589780701	1		Regular price $28.41 Regular price Sale price $28.41	View part
7COUPLER	503266003	1	USA	Regular price $28.57 Regular price ~~$8.82~~ Sale price $28.57	View part
7COUPLER	503266004	1	RoW	Regular price $31.66 Regular price ~~$12.00~~ Sale price $31.66	View part
8THROTTLE TRIGGER	506377602	1		Regular price $60.11 Regular price ~~$41.30~~ Sale price $60.11	View part
9PARALLEL PIN	720127152	1		Regular price $22.78 Regular price ~~$2.87~~ Sale price $22.78	View part
10THROTTLE TRIGGER	506203403	1		Regular price $28.57 Regular price ~~$8.82~~ Sale price $28.57	View part
11PLATE	506316301	1		Regular price $30.30 Regular price Sale price $30.30	View part
12THROTTLE LOCKOUT	506272102	1		Regular price $34.70 Regular price Sale price $34.70	View part
13WINDOW	506355403	1		Regular price $43.80 Regular price Sale price $43.80	View part
14HANDLE HALF	506245203	1		Regular price $73.00 Regular price Sale price $73.00	View part
15DECAL	585427903	1
16SCREW ITXSCM	503215316	4		Regular price $79.20 Regular price ~~$69.20~~ Sale price $79.20	View part
17SCREW ITXSCM	503215326	1		Regular price $79.20 Regular price ~~$69.20~~ Sale price $79.20	View part
18HANDLE HALF	506245303	1		Regular price $64.30 Regular price Sale price $64.30	View part
19SCREW ITXSCM	503215341	1		Regular price $22.87 Regular price ~~$2.96~~ Sale price $22.87	View part
20TORSION SPRING	506262601	1		Regular price $27.37 Regular price Sale price $27.37	View part
21PARALLEL PIN	720131606	1		Regular price $27.15 Regular price Sale price $27.15	View part
22SCREW ITXSCM	503215312	3		Regular price $79.20 Regular price ~~$69.20~~ Sale price $79.20	View part
23LABEL	544872902	1		Regular price $35.70 Regular price Sale price $35.70	View part
24LABEL	544873002	1		Regular price $35.70 Regular price Sale price $35.70	View part
25PARALLEL PIN	720131306	1		Regular price $25.55 Regular price ~~$5.72~~ Sale price $25.55	View part

HOSE 5 parts

Part	Article number	Qty	Comment	Price	Details
1QUICK COUPLING	506109621	1	Female	Regular price $163.00 Regular price ~~$148.00~~ Sale price $163.00	View part
2SEALING WASHER	740383401	2		Regular price $91.50 Regular price ~~$81.50~~ Sale price $91.50	View part
3HYDRAULIC HOSE	506109502	2		Regular price $118.60 Regular price ~~$102.00~~ Sale price $118.60	View part
4SEALING WASHER	740382701	2		Regular price $48.70 Regular price ~~$38.70~~ Sale price $48.70	View part
5QUICK COUPLING	506109821	1	Male	Regular price $91.61 Regular price ~~$73.70~~ Sale price $91.61	View part

HYDRAULIC PUMP - MOTOR 38 parts

Part	Article number	Qty	Comment	Price	Details
1GEAR WHEEL ASSY	506320806	1		Regular price $322.91 Regular price ~~$318.00~~ Sale price $322.91	View part
2SCREW ITXSCM	544218437	1		Regular price $167.40 Regular price ~~$157.40~~ Sale price $167.40	View part
3FLANGE WASHER	501604903	1
4DRIVER	506312202	1		Regular price $71.50 Regular price Sale price $71.50	View part
5GEAR WHEEL	506178305	1		Regular price $34.18 Regular price ~~$14.60~~ Sale price $34.18	View part
6FLANGE WASHER	506256502	1		Regular price $114.30 Regular price Sale price $114.30	View part
7HYDRAULIC MOTOR	544886610	1		Regular price $1,281.17 Regular price ~~$1,262.00~~ Sale price $1,281.17	View part
8KIT	506346714	1	9-11, 14, 15	Regular price $270.21 Regular price ~~$257.00~~ Sale price $270.21	View part
9SEALING COLLAR	506273401	1		Regular price $31.66 Regular price ~~$12.00~~ Sale price $31.66	View part
10WOODRUFF KEY	735880600	1		Regular price $22.78 Regular price ~~$2.87~~ Sale price $22.78	View part
11SEALING	506301114	1	13-Dec	Regular price $80.30 Regular price Sale price $80.30	View part
12O-RING	506110301	1		Regular price $64.40 Regular price ~~$54.40~~ Sale price $64.40	View part
13O-RING	503263028	1		Regular price $24.31 Regular price ~~$4.44~~ Sale price $24.31	View part
14BALL BEARING	738220125	1		Regular price $43.73 Regular price ~~$24.50~~ Sale price $43.73	View part
15CIRCLIP	735311400	1		Regular price $22.78 Regular price ~~$2.87~~ Sale price $22.78	View part
16CIRCLIP	735313110	1		Regular price $22.78 Regular price ~~$2.87~~ Sale price $22.78	View part
17PLUNGE	506218201	1		Regular price $43.80 Regular price Sale price $43.80	View part
18SPRING	506218301	1		Regular price $28.82 Regular price Sale price $28.82	View part
19THROTTLE ROD	506359501	1		Regular price $33.40 Regular price Sale price $33.40	View part
20HEXAGON NUT FLANGE	588222101	1		Regular price $22.96 Regular price Sale price $22.96	View part
21LEVER	506203101	1		Regular price $25.89 Regular price Sale price $25.89	View part
22SPRING	506203801	1		Regular price $27.37 Regular price Sale price $27.37	View part
23O-RING	740430200	1		Regular price $24.31 Regular price Sale price $24.31	View part
24SCREW ITXSCM	503215320	9		Regular price $79.20 Regular price ~~$69.20~~ Sale price $79.20	View part
25VALVE SEAT	506218501	1		Regular price $37.80 Regular price Sale price $37.80	View part
26O-RING	740420300	1		Regular price $22.78 Regular price ~~$2.87~~ Sale price $22.78	View part
27O-RING	740431100	1		Regular price $22.78 Regular price ~~$2.87~~ Sale price $22.78	View part
28VALVE CONE	506218001	1		Regular price $40.80 Regular price Sale price $40.80	View part
29SPRING	506218101	1		Regular price $28.82 Regular price Sale price $28.82	View part
30VALVE SLEEVE	506216001	1		Regular price $67.30 Regular price Sale price $67.30	View part
31VALVE SPINDLE	506215901	1		Regular price $54.00 Regular price Sale price $54.00	View part
32E-CLIP	735310820	1		Regular price $21.45 Regular price ~~$1.50~~ Sale price $21.45	View part
33SHAFT	506320001	1		Regular price $43.80 Regular price Sale price $43.80	View part
34PARALLEL PIN	503240701	6		Regular price $28.57 Regular price ~~$8.82~~ Sale price $28.57	View part
35GUIDE BUSHING	593806001	1	36.37
36BEARING	506110501	4		Regular price $51.61 Regular price ~~$32.60~~ Sale price $51.61	View part
37GEAR WHEEL	506229609	1		Regular price $92.00 Regular price Sale price $92.00	View part
38SCREW ITXSCM	503215330	1		Regular price $30.00 Regular price ~~$10.30~~ Sale price $30.00	View part

LEVER 30 parts

Part	Article number	Qty	Price	Details
1LEVER ASSY	506351810	2	Regular price $263.00 Regular price Sale price $263.00	View part
2SCREW	506346401	1	Regular price $33.40 Regular price Sale price $33.40	View part
3BUSHING	506334903	2	Regular price $39.40 Regular price Sale price $39.40	View part
4O-RING	503263008	1	Regular price $24.31 Regular price ~~$4.44~~ Sale price $24.31	View part
5O-RING	503263026	2	Regular price $25.72 Regular price ~~$5.89~~ Sale price $25.72	View part
6SUPPORT ROLLER	506352104	1	Regular price $87.20 Regular price ~~$69.20~~ Sale price $87.20	View part
7NUT	503220401	1	Regular price $24.31 Regular price ~~$4.44~~ Sale price $24.31	View part
8DRIVER	506303401	1	Regular price $24.44 Regular price Sale price $24.44	View part
9SEALING	506399501	1	Regular price $48.10 Regular price Sale price $48.10	View part
10WASHER	506321701	1	Regular price $49.60 Regular price ~~$39.60~~ Sale price $49.60	View part
11SPACING SLEEVE	506379302	1	Regular price $45.30 Regular price Sale price $45.30	View part
12SEALING RING	503262001	1	Regular price $48.67 Regular price ~~$29.60~~ Sale price $48.67	View part
13CIRCLIP	735312810	1	Regular price $22.78 Regular price ~~$2.87~~ Sale price $22.78	View part
14BALL BEARING	529602601	2	Regular price $39.74 Regular price ~~$20.40~~ Sale price $39.74	View part
15SPACING SLEEVE	506316804	1
16SPACING SLEEVE	506303304	1	Regular price $25.37 Regular price Sale price $25.37	View part
17SHAFT	506493202	1	Regular price $51.10 Regular price Sale price $51.10	View part
18SPACER	506376301	1	Regular price $25.89 Regular price Sale price $25.89	View part
19RUBBER BUSHING	506376401	1	Regular price $33.40 Regular price Sale price $33.40	View part
20SCREW ITXSCM	544218455	1	Regular price $108.20 Regular price Sale price $108.20	View part
21HEXAGON NUT	503220001	1	Regular price $22.87 Regular price ~~$2.96~~ Sale price $22.87	View part
22WASHER	506346301	1	Regular price $93.70 Regular price ~~$83.70~~ Sale price $93.70	View part
23COVER	521915002	1	Regular price $714.78 Regular price ~~$704.00~~ Sale price $714.78	View part
24SCREW	503205435	3	Regular price $93.70 Regular price ~~$83.70~~ Sale price $93.70	View part
25WASHER	503230403	3	Regular price $78.90 Regular price ~~$68.90~~ Sale price $78.90	View part
26ADJUSTMENT WHEEL	505574901	2	Regular price $54.55 Regular price ~~$35.60~~ Sale price $54.55	View part
27WEAR PROTECTION	506351903	1	Regular price $83.30 Regular price Sale price $83.30	View part
28SCREW ITXSCM	505574116	1	Regular price $79.20 Regular price ~~$69.20~~ Sale price $79.20	View part
29THREAD INSERT	506330801	2	Regular price $42.30 Regular price Sale price $42.30	View part
30O-RING	740420400	2	Regular price $24.18 Regular price ~~$4.31~~ Sale price $24.18	View part

TOOLS 7 parts

Part	Article number	Qty	Comment	Price	Details
1TOOL	506363804	1	Incl. 2 - 5	Regular price $70.20 Regular price Sale price $70.20	View part
2SPANNER	506355201	1	19mm	Regular price $28.82 Regular price Sale price $28.82	View part
3TOOL	501192201	1		Regular price $32.00 Regular price Sale price $32.00	View part
4TOOL	506382601	1	13-19mm	Regular price $41.63 Regular price ~~$22.30~~ Sale price $41.63	View part
5HEX KEY	506363601	1	6mm	Regular price $25.89 Regular price Sale price $25.89	View part
6GUN	506384902	1		Regular price $122.00 Regular price Sale price $122.00	View part
7GREASE	544080402	1

Document Downloads

Service bulletin

Operator's manual

Illustrated part list

Workshop manual

Warranty

Husqvarna K 3600 MK II Ring Saw Warranty
PDF

From pouring to resurfacing, we sell tools built for concrete pros.

Get guidance from experts who understand jobsite challenges.

Get your tools fast with our nationwide shipping network and local partnerships.

Talk to an expert now (855) 281-1918

Get fast, expert help choosing the right concrete tools or equipment for your job. Ask about availability, specs, troubleshooting, or get friendly guidance before you place an order.

Click to Call

Your cart is empty

Your cart

Estimated total

Husqvarna K3600 MK II Ring Saw - Hydraulic
