Husqvarna K770 Gas Concrete Saw
Husqvarna K770 Gas Concrete Saw
HUSQVARNA CONSTRUCTION SKU: 970850301 Copied!
Regular price
$1,369.00
Regular price
$1,514.00
Sale price
$1,369.00
Quantity
Trusted by contractors nationwide
"I've bought 3 products from CTD and each time the experience has been the same - professional and fast delivery. I trust these guys with all my concrete needs."
90 day returns
Product Details

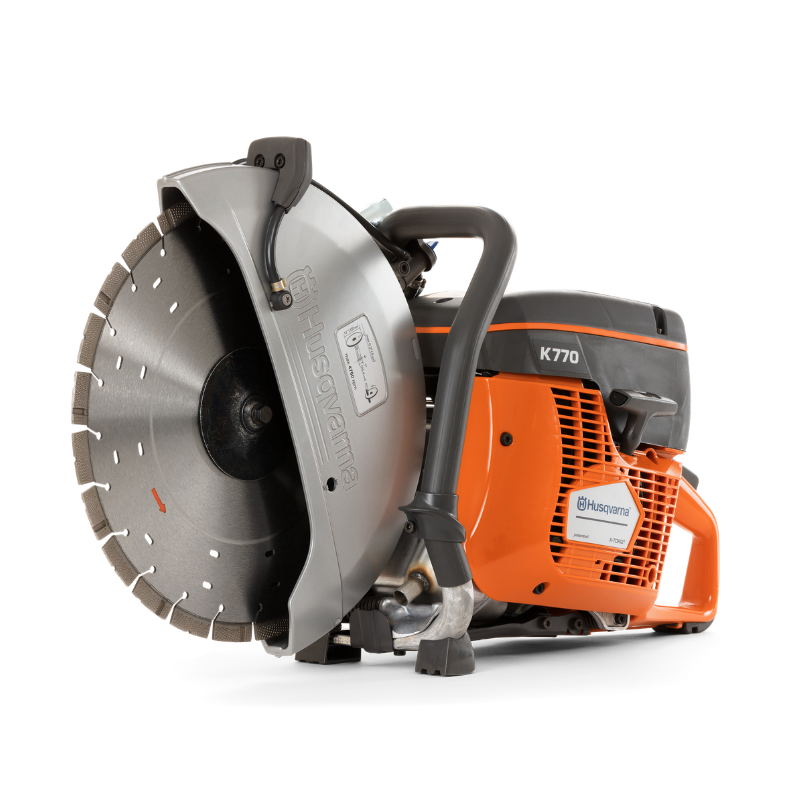

Husqvarna K770 Gas Concrete Saw
The Husqvarna K770 is a versatile gas-powered concrete saw that combines a strong power-to-weight ratio with reliable starting and low vibrations to help reduce strain and maintain productivity.
Key Features
- 5.3 hp Gas Engine — A single-cylinder, 2-stroke engine delivers maximum power at 9,000 rpm.
- SmartTension™ System — Semi-automatic belt tensioning supports optimal power transmission while minimizing wear and maximizing belt life.
- Lightweight Design — A strong power-to-weight ratio supports comfortable handling during demanding cutting work.
- Low Vibrations — Designed to reduce operator strain during use.
- Wet Cutting — Uses water cooling for wet cutting applications.
Applications
- Road work when used with the KV7 trolley.
- Straight or curved cutting and cutting close to sidewalks when used with the KV7 trolley.
The Husqvarna K770 combines dependable power and practical handling features for productive cutting work.
Product Specification
POWER CUTTER K 770 14" | 1" / 20mm
General
Article Number
970850301
Power Specifications
Output power
5.3 hp
Max engine/motor
9,300 rpm
Maximum power speed
9,000 rpm
Cylinders
1
Number of strokes
2-stroke engine
Exhaust emissions (CO₂ EU V)
711 g/kWh
Power Source
Petrol
Working Specifications
Cutting depth, max
5 in
Blade diameter, max
14 in
Arbor diameter
1-7/8B
Blade thickness, max
0.2 in
Peripheral speed, max
18,000 fpm
Coolant
Wet
Product size length
23.82 in
Product size width
8.86 in
Product size height
16.34 in
Packaging length (Calc)
27.559 in
Packaging width (Calc)
9.843 in
Packaging height (Calc)
16.929 in
Sound power level, guaranteed (LWA)
115 dB(A)
Sound pressure level at operators ear
101 dB(A)
Vibrations left/front handle
2 m/s²
Vibrations right/rear handle
2.3 m/s²
Weight Specifications
Weight
22.4 lbs
Weight (complete product w/o side packed articles)
22.2667 lb
Article gross weight (Calc)
27.723 lbs
Related Equipment
Related Equipment
Service & Maintenance Parts
ACCESSORIES 24 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1WHEEL GUARD | 599471402 | 1 | 12" |
Regular price
$154.89
Regular price
|
|
| 1WHEEL GUARD | 597576602 | 1 | 14" |
Regular price
$163.19
Regular price
|
|
| 2WEAR PLATE | 598489002 | 2 |
Regular price
$37.43
Regular price
|
||
| 3SCREW CITXPANT | 525887402 | 2 |
Regular price
$19.79
Regular price
|
||
| 4COVER | 597808901 | 1 |
Regular price
$19.79
Regular price
|
||
| 5SCREW ITXSCFM | 525755112 | 4 | |||
| 6SPRING | 597809301 | 1 |
Regular price
$19.79
Regular price
|
||
| 7SCREW ITXSCM | 544218460 | 4 |
Regular price
$19.79
Regular price
|
||
| 8BUSHING | 599661701 | 4 |
Regular price
$30.87
Regular price
|
||
| 9SPRING | 597809201 | 1 |
Regular price
$19.79
Regular price
|
||
| 10COVER | 597809001 | 1 | |||
| 11SUPPORT ASSY | 599359701 | 1 | 12" |
Regular price
$90.29
Regular price
|
|
| 11SUPPORT ASSY | 598445901 | 1 | 14" |
Regular price
$39.89
Regular price
|
|
| 12HANDLE LOOP | 597809101 | 1 |
Regular price
$37.57
Regular price
|
||
| 13SPRING | 597808602 | 1 |
Regular price
$26.74
Regular price
|
||
| 14SCREW | 597794501 | 2 |
Regular price
$32.09
Regular price
|
||
| 15BLADE GUARD | 599477701 | 1 | 12" |
Regular price
$72.00
Regular price
|
|
| 15BLADE GUARD | 597808802 | 1 | 14" |
Regular price
$41.21
Regular price
|
|
| 16WHEEL | 597809501 | 2 |
Regular price
$19.79
Regular price
|
||
| 17WEAR PLATE | 529705301 | 1 | 12" |
Regular price
$40.86
Regular price
|
|
| 17WEAR PLATE | 529705201 | 1 | 14" |
Regular price
$45.43
Regular price
|
|
| 18SUPPORT ASSY | 599359501 | 1 | 12" |
Regular price
$91.29
Regular price
|
|
| 18SUPPORT ASSY | 598445701 | 1 | 14" |
Regular price
$40.19
Regular price
|
|
| 19SCREW | 526834502 | 2 |
Regular price
$19.79
Regular price
|
AIR FILTER 22 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1GASKET KIT | 581357403 | 1 | |||
| 2GASKET | 588932501 | 1 | |||
| 3GASKET | 506377003 | 1 | |||
| 4INSERT | 544219302 | 1 | |||
| 5SEALING RING | 503260204 | 2 | |||
| 6GASKET | 581285301 | 1 | |||
| 7AIR FILTER ASSY | 574362302 | 1 | |||
| 8AIR FILTER ASSY | 525470602 | 1 | |||
| 9CARBURETTOR BRACKET | 575354001 | 1 | |||
| 10NUT | 581774801 | 4 | |||
| 11SCREW ITXSCM | 503215310 | 2 | |||
| 12FLANGE INLET PIPE | 506370601 | 1 | |||
| 13INLET PIPE | 525733201 | 1 | |||
| 14SCREW ITXSCM | 503215320 | 1 | |||
| 15HEAT SHIELD | 576890101 | 1 | |||
| 16INLET PIPE | 525733101 | 1 | |||
| 17IMPULSE HOSE | 586227701 | 1 | |||
| 18PLATE | 574231802 | 1 | |||
| 19SCREW ITXSCM | 503215356 | 2 | |||
| 20CARBURETTOR | 596875603 | 1 | |||
| 21GASKET | 506376804 | 1 | |||
| 23GASKET | 506377002 | 1 |
BELT GUARD 18 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BELT GUARD | 501057103 | 1 |
Regular price
$58.79
Regular price
|
||
| 2NUT WASHER | 586743701 | 3 |
Regular price
$19.79
Regular price
|
||
| 3SCREW EHHFM | 503200045 | 1 |
Regular price
$115.40
Regular price
|
||
| 4WASHER | 503230116 | 1 |
Regular price
$19.79
Regular price
|
||
| 5PULLEY ASSY | 588470403 | 1 |
Regular price
$68.39
Regular price
|
||
| 6SCREW CITXPANT | 525887402 | 11 |
Regular price
$19.79
Regular price
|
||
| 7PULLEY | 590895801 | 1 |
Regular price
$39.59
Regular price
|
||
| 8CASSETTE | 505445405 | 1 |
Regular price
$53.19
Regular price
|
||
| 9DRAW SPRING | 544441001 | 1 |
Regular price
$8.79
Regular price
|
||
| 10BRAKE SHOE | 544440402 | 4 |
Regular price
$8.79
Regular price
|
||
| 11SCREW | 590503801 | 1 |
Regular price
$15.59
Regular price
|
||
| 12DRIVE BELT | 544908406 | 1 |
Regular price
$29.59
Regular price
|
||
| 13BEARING HOUSING ASSY | 588992003 | 1 |
Regular price
$242.99
Regular price
|
||
| 14SCREW | 584994301 | 1 |
Regular price
$19.79
Regular price
|
||
| 15BAR BOLT | 503875402 | 3 |
Regular price
$26.49
Regular price
|
||
| 16SHAFT | 588992403 | 1 |
Regular price
$43.09
Regular price
|
||
| 17BALL BEARING | 583953301 | 2 |
Regular price
$27.69
Regular price
|
||
| 18SLIP RING HOLDER | 586801002 | 1 |
Regular price
$7.79
Regular price
|
BLADE GUARD 23 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1WHEEL GUARD | 581351908 | 1 | 12" |
Regular price
$482.19
Regular price
|
|
| 2SCREW ITXSCT | 504909414 | 2 |
Regular price
$76.40
Regular price
|
||
| 3HANDLE HALF | 578190901 | 1 |
Regular price
$39.14
Regular price
|
||
| 4HANDLE HALF | 578760901 | 1 |
Regular price
$39.14
Regular price
|
||
| 5SCREW ITXSCT | 504909410 | 1 |
Regular price
$19.79
Regular price
|
||
| 6STOP | 581620301 | 1 |
Regular price
$39.59
Regular price
|
||
| 7HOLDER | 548836701 | 1 |
Regular price
$45.57
Regular price
|
||
| 8SUPPORT FLANGE | 584438301 | 1 |
Regular price
$21.59
Regular price
|
||
| 9FLANGE | 583874402 | 2 | Diam 105mm |
Regular price
$31.66
Regular price
|
|
| 10BUSHING | 578398201 | 1 | Diam 20/25, 4mm |
Regular price
$21.19
Regular price
|
|
| 10BUSHING | 581605404 | 1 | Diam 30, 5 mm |
Regular price
$68.57
Regular price
|
|
| 11SCREW | 590503801 | 1 |
Regular price
$15.59
Regular price
|
||
| 12SCREW ITXSCM | 544218430 | 4 |
Regular price
$167.40
Regular price
|
||
| 13SLEEVE | 584438201 | 4 | 12", Shiny |
Regular price
$19.79
Regular price
|
|
| 14SPRING | 584438101 | 4 |
Regular price
$17.29
Regular price
|
||
| 15SHIM | 584437801 | 2 |
Regular price
$45.59
Regular price
|
||
| 16LINING | 584437901 | 1 |
Regular price
$28.19
Regular price
|
||
| 17LINING | 584438001 | 1 |
Regular price
$12.59
Regular price
|
||
| 18DECAL | 581117704 | 1 | 12" 20mm |
Regular price
$0.00
Regular price
|
|
| 18DECAL | 581117705 | 1 | 12", 1" and 20mm |
Regular price
$19.79
Regular price
|
|
| 19DECAL | 584992601 | 1 | 12" |
Regular price
$19.79
Regular price
|
|
| 20WASHER | 582233101 | 4 |
Regular price
$49.60
Regular price
|
||
| 21WASHER | 582233201 | 4 |
Regular price
$49.60
Regular price
|
BLADE GUARD 20 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1WHEEL GUARD | 581351910 | 1 | 14" | ||
| 5SCREW ITXSCT | 504909410 | 1 | |||
| 6STOP | 581620301 | 1 | |||
| 7HOLDER | 548836701 | 1 | |||
| 8SUPPORT FLANGE | 584438301 | 1 | |||
| 9FLANGE | 583874402 | 2 | Diam 105 mm | ||
| 9FLANGE WASHER | 506070906 | 2 | Diam 119 mm, Japan 14" | ||
| 10BUSHING | 578398201 | 1 | Diam 20/25,4 mm | ||
| 10BUSHING | 581605404 | 1 | Diam 30,5 mm | ||
| 11SCREW | 590503801 | 1 | |||
| 12SCREW ITXSCM | 544218430 | 4 | |||
| 13SLEEVE | 584438201 | 4 | 14" Black | ||
| 14SPRING | 584438101 | 4 | |||
| 15SHIM | 584437801 | 2 | |||
| 16LINING | 584437901 | 1 | |||
| 17LINING | 584438001 | 1 | |||
| 18DECAL | 581117706 | 1 | |||
| 19DECAL | 584992602 | 1 | |||
| 20WASHER | 582233101 | 4 | |||
| 21WASHER | 582233201 | 4 |
CARBURETOR 9 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1CHOKE SHAFT | 593310001 | 1 |
Regular price
$89.99
Regular price
|
||
| 2ROD | 506396501 | 1 |
Regular price
$19.79
Regular price
|
||
| 3VALVE KIT | 593332901 | 1 |
Regular price
$31.89
Regular price
|
||
| 4SPRING | 506397501 | 1 | |||
| 5CARBURETTOR | 596875603 | 1 | Z014/07E |
Regular price
$97.13
Regular price
|
|
| 6GASKET KIT | 506409902 | 1 |
Regular price
$39.59
Regular price
|
||
| 7GASKET KIT | 506410004 | 1 |
Regular price
$26.59
Regular price
|
||
| 8SPRING | 544836501 | 1 |
Regular price
$32.60
Regular price
|
||
| 9THROTTLE SHAFT | 593309902 | 1 |
Regular price
$103.29
Regular price
|
CLUTCH 11 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BELT GUARD | 586099201 | 1 |
Regular price
$58.79
Regular price
|
||
| 2BELT TENSIONER ASSY | 583842201 | 1 |
Regular price
$14.79
Regular price
|
||
| 3SCREW ITXSCM | 501981020 | 2 |
Regular price
$117.49
Regular price
|
||
| 4PIVOT PIN | 583851601 | 1 |
Regular price
$78.90
Regular price
|
||
| 5CLUTCH ASSY | 503744406 | 1 |
Regular price
$103.19
Regular price
|
||
| 6CLUTCH SPRING | 503744301 | 3 |
Regular price
$35.99
Regular price
|
||
| 7DRIVING PULLEY | 590805901 | 1 |
Regular price
$54.39
Regular price
|
||
| 8BALL BEARING | 529602601 | 2 |
Regular price
$20.49
Regular price
|
||
| 9DUST COVER | 506316901 | 1 |
Regular price
$19.79
Regular price
|
||
| 10SCREW ITXSCM | 501981001 | 1 |
Regular price
$104.57
Regular price
|
||
| 11WASHER | 503230070 | 1 |
CRANKCASE 18 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1CRANKCASE KIT | 593282507 | 1 |
Regular price
$199.00
Regular price
|
||
| 2GASKET KIT | 581357403 | 1 |
Regular price
$44.10
Regular price
|
||
| 3SCREW ITXSCM | 503215341 | 6 |
Regular price
$19.79
Regular price
|
||
| 4SEALING RING | 503260204 | 2 |
Regular price
$12.19
Regular price
|
||
| 5GUIDE BUSHING | 593806001 | 2 | |||
| 6BALL BEARING | 738220225 | 2 |
Regular price
$27.69
Regular price
|
||
| 7GASKET | 506377003 | 1 | Six hole |
Regular price
$19.79
Regular price
|
|
| 8SQUARE NUT | 503226504 | 1 |
Regular price
$108.80
Regular price
|
||
| 9SCREW ITXSCM | 503215316 | 2 |
Regular price
$79.20
Regular price
|
||
| 10PLATE | 522474801 | 1 |
Regular price
$19.79
Regular price
|
||
| 11SPRING RETAINER | 598586902 | 1 |
Regular price
$39.59
Regular price
|
||
| 12GASKET | 588932501 | 1 |
Regular price
$19.79
Regular price
|
||
| 13GASKET | 506377002 | 1 | Five hole |
Regular price
$19.79
Regular price
|
|
| 14INSERT | 544219302 | 1 |
Regular price
$19.79
Regular price
|
||
| 16GASKET | 581285301 | 1 |
Regular price
$8.79
Regular price
|
||
| 17GASKET | 506376804 | 1 |
Regular price
$19.79
Regular price
|
||
| 18BUFFER | 503846101 | 1 |
Regular price
$6.69
Regular price
|
||
| 19RUBBER SHOE | 586760901 | 1 |
Regular price
$19.79
Regular price
|
CRANKSHAFT 4 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1CRANKSHAFT KIT | 596423702 | 1 | |||
| 2BALL BEARING | 738220225 | 2 |
Regular price
$27.69
Regular price
|
||
| 3CUP | 537203301 | 2 |
Regular price
$15.19
Regular price
|
||
| 4NEEDLE BEARING | 577572401 | 1 |
Regular price
$12.19
Regular price
|
CYLINDER COVER 15 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW ITXSCM | 503215321 | 7 | |||
| 2DECAL | 525763502 | 1 | |||
| 3FILTER COVER ASSY | 583965209 | 1 | |||
| 4FILTER HOLDER ASSY | 574362103 | 1 | |||
| 5SEALING STRIP | 575355001 | 1 | |||
| 6SCREW ITXSCM | 503215349 | 2 | |||
| 7CYLINDER COVER | 506367003 | 1 | |||
| 8DECAL | 579240301 | 1 | |||
| 9DECAL | 574231605 | 1 | |||
| 10SCREW ITXSCM | 501981020 | 3 | |||
| 11COVER | 574459401 | 1 | |||
| 12BELLOWS | 587933002 | 1 | |||
| 13AIR NOZZLE | 525584301 | 1 | |||
| 14DECAL | 586379309 | 1 | Generic | ||
| 15DECAL | 586379307 | 1 | Japan Only |
CYLINDER, PISTON AND MUFFLER 29 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1ANTIVIBRATION ELEMENT | 579744202 | 1 |
Regular price
$30.29
Regular price
|
||
| 2SCREW ITXSCM | 544061201 | 1 |
Regular price
$79.20
Regular price
|
||
| 3DECOMPRESSION VALVE | 503715301 | 1 |
Regular price
$30.49
Regular price
|
||
| 4PLUG | 503552201 | 1 |
Regular price
$7.89
Regular price
|
||
| 5SCREW ITXSCM | 503215340 | 4 |
Regular price
$137.80
Regular price
|
||
| 6SLEEVE | 576717602 | 4 |
Regular price
$19.79
Regular price
|
||
| 7CYLINDER ASSY | 581476105 | 1 |
Regular price
$188.13
Regular price
|
||
| 8SCREW ITXSCM | 503215316 | 2 |
Regular price
$79.20
Regular price
|
||
| 9BRACKET | 506368801 | 1 |
Regular price
$28.41
Regular price
|
||
| 10PLATE | 574231802 | 1 |
Regular price
$19.09
Regular price
|
||
| 11GASKET | 581285301 | 1 |
Regular price
$8.79
Regular price
|
||
| 12PISTON ASSY | 506372408 | 1 |
Regular price
$107.89
Regular price
|
||
| 13NEEDLE BEARING | 577572401 | 1 |
Regular price
$12.19
Regular price
|
||
| 14PISTON RING | 546313101 | 2 |
Regular price
$43.59
Regular price
|
||
| 15SNAP RING | 737431200 | 2 |
Regular price
$19.79
Regular price
|
||
| 16HEAT DEFLECTOR | 588915101 | 1 |
Regular price
$19.79
Regular price
|
||
| 17GASKET | 588932501 | 1 |
Regular price
$19.79
Regular price
|
||
| 18MUFFLER KIT | 592778301 | 1 |
Regular price
$101.38
Regular price
|
||
| 19SCREW ITXSCM | 503215340 | 2 |
Regular price
$137.80
Regular price
|
||
| 20SCREW ITXSCM | 503215356 | 1 |
Regular price
$19.79
Regular price
|
||
| 21SCREW ITXSCM | 503215325 | 1 |
Regular price
$3.69
Regular price
|
||
| 22WASHER | 503230402 | 1 |
Regular price
$30.53
Regular price
|
||
| 23NUT | 581774801 | 1 |
Regular price
$79.20
Regular price
|
||
| 24GASKET KIT | 581357403 | 1 |
Regular price
$44.10
Regular price
|
||
| 25GASKET | 506377003 | 1 |
Regular price
$19.79
Regular price
|
||
| 26INSERT | 544219302 | 1 |
Regular price
$19.79
Regular price
|
||
| 27SEALING RING | 503260204 | 2 |
Regular price
$12.19
Regular price
|
||
| 28GASKET | 506376804 | 1 |
Regular price
$19.79
Regular price
|
||
| 30GASKET | 506377002 | 1 |
Regular price
$19.79
Regular price
|
ENGINE 1 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1CRANKCASE KIT | 593282512 | 1 |
Regular price
$330.75
Regular price
|
FUEL TANK 35 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1FUEL TANK ASSY | 593281805 | 1 | |||
| 2PIN | 546291602 | 1 |
Regular price
$19.79
Regular price
|
||
| 3THROTTLE CONTROL | 588086201 | 1 |
Regular price
$16.59
Regular price
|
||
| 4THROTTLE ROD | 579379201 | 1 |
Regular price
$34.28
Regular price
|
||
| 5SPRING | 548049601 | 1 | |||
| 6THROTTLE LOCKOUT | 588137701 | 1 |
Regular price
$19.09
Regular price
|
||
| 7FUEL FILTER | 506264101 | 1 |
Regular price
$11.49
Regular price
|
||
| 8HOSE CLAMP | 506271101 | 1 |
Regular price
$5.79
Regular price
|
||
| 9FUEL FILTER KIT | 598836601 | 1 |
Regular price
$12.69
Regular price
|
||
| 10FUEL HOSE | 581756203 | 1 |
Regular price
$10.29
Regular price
|
||
| 12TANK VENT ASSY | 598611001 | 1 |
Regular price
$40.14
Regular price
|
||
| 13TANK VENT ASSY | 501152901 | 1 |
Regular price
$11.09
Regular price
|
||
| 14CHOKE CONTROL | 544229002 | 1 |
Regular price
$19.49
Regular price
|
||
| 15SCREW CITXPANT | 525887402 | 1 |
Regular price
$19.79
Regular price
|
||
| 16STOP SWITCH | 506318604 | 1 |
Regular price
$12.09
Regular price
|
||
| 17GROMMET | 506378001 | 1 |
Regular price
$10.29
Regular price
|
||
| 18HOSE CLIP | 544393201 | 1 |
Regular price
$19.79
Regular price
|
||
| 19FUEL HOSE | 581756117 | 1 |
Regular price
$19.79
Regular price
|
||
| 23LID | 501371301 | 1 |
Regular price
$30.53
Regular price
|
||
| 24NUT | 581774801 | 6 |
Regular price
$79.20
Regular price
|
||
| 25GROUND SUPPORT | 588198201 | 1 |
Regular price
$19.79
Regular price
|
||
| 26TANK CAP ASSY | 522620001 | 1 |
Regular price
$27.99
Regular price
|
||
| 27GASKET | 537215001 | 1 | |||
| 28HOLDER | 503578901 | 1 |
Regular price
$19.79
Regular price
|
||
| 29PURGE | 540054901 | 1 |
Regular price
$16.09
Regular price
|
||
| 30FUEL HOSE | 505195201 | 1 |
Regular price
$34.09
Regular price
|
||
| 31FUEL HOSE | 537042414 | 1 |
Regular price
$19.79
Regular price
|
||
| 32HUB CAP | 506394602 | 1 |
Regular price
$28.41
Regular price
|
||
| 33HEAT SHIELD | 506381501 | 1 |
Regular price
$19.79
Regular price
|
||
| 34SCREW ITXSCM | 544061201 | 1 |
Regular price
$79.20
Regular price
|
||
| 35ANTIVIBRATION ELEMENT | 537210312 | 1 |
Regular price
$17.79
Regular price
|
||
| 36BAND | 544238201 | 1 |
Regular price
$32.60
Regular price
|
||
| 37SCREW ITXSCT | 503215420 | 4 |
Regular price
$19.79
Regular price
|
||
| 38BASEPLATE | 506371902 | 1 |
Regular price
$45.43
Regular price
|
||
| 40LABEL | 506313001 | 1 | Japan Only |
Regular price
$19.89
Regular price
|
HOSE 20 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HOSE KIT | 581476220 | 1 | |||
| 2NIPPLE | 581478302 | 1 | |||
| 3STRAINER | 589780701 | 1 | |||
| 4O-RING | 505103501 | 1 | |||
| 5HOSE CLAMP | 589638601 | 2 | |||
| 6HOSE | 578198101 | 1 | |||
| 7VALVE ASSY | 578243306 | 1 | |||
| 8SCREW ITXSCM | 503215341 | 1 | |||
| 9HOSE KIT | 581721504 | 1 | |||
| 10HOSE CLAMP | 506498704 | 3 | |||
| 11HOSE | 578198305 | 1 | 800 mm | ||
| 12SCREW ITXSCM | 504634602 | 2 | |||
| 13HOUSING | 578190701 | 1 | |||
| 14NIPPLE | 576798403 | 2 | |||
| 15HOUSING | 578190801 | 1 | |||
| 16HOSE CLAMP | 583833001 | 1 | |||
| 17COUPLER | 503266003 | 1 | USA, Canada | ||
| 17COUPLER | 503266004 | 1 | RoW | ||
| 18LEVER ASSY | 581357002 | 1 | |||
| 19SQUARE NUT | 503226504 | 1 |
IGNITION SYSTEM 18 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW CITXPANT | 525887402 | 2 |
Regular price
$19.79
Regular price
|
||
| 2STOP SWITCH | 506318604 | 1 |
Regular price
$12.09
Regular price
|
||
| 3CABLE | 586497201 | 1 |
Regular price
$5.99
Regular price
|
||
| 4SPARK PLUG | 503235111 | 1 | RCJ 6 Y |
Regular price
$27.16
Regular price
|
|
| 5SPARK PLUG CAP | 590504501 | 1 |
Regular price
$11.79
Regular price
|
||
| 6IGNITION MODULE ASSY | 594729601 | 1 | Incl. 5 |
Regular price
$79.19
Regular price
|
|
| 9SCREW ITXSCM | 505574120 | 2 |
Regular price
$19.79
Regular price
|
||
| 10CABLE | 506378501 | 1 |
Regular price
$24.69
Regular price
|
||
| 11WASHER | 503230101 | 1 |
Regular price
$19.79
Regular price
|
||
| 12HEXAGON NUT | 503221011 | 1 |
Regular price
$22.87
Regular price
|
||
| 13FLYWHEEL ASSY | 587702102 | 1 | Incl. 14 - 19 |
Regular price
$79.59
Regular price
|
|
| 14SCREW IHSCM | 725532956 | 1 | |||
| 15WEIGHT | 574250901 | 1 |
Regular price
$19.79
Regular price
|
||
| 16WASHER | 503230042 | 2 |
Regular price
$19.79
Regular price
|
||
| 17SPRING | 576492601 | 2 |
Regular price
$26.34
Regular price
|
||
| 18PAWL | 501673203 | 2 |
Regular price
$13.39
Regular price
|
||
| 19SCREW | 506006901 | 2 | |||
| 21CABLE HOLDER | 577242801 | 1 |
Regular price
$30.53
Regular price
|
MAINTENANCE KIT 5 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SERVICE KIT | 546903001 | 1 |
Regular price
$39.59
Regular price
|
||
| 2FUEL FILTER KIT | 598836601 | 1 |
Regular price
$12.69
Regular price
|
||
| 3SPARK PLUG | 503235111 | 1 |
Regular price
$27.16
Regular price
|
||
| 4AIR FILTER ASSY | 574362302 | 1 |
Regular price
$39.99
Regular price
|
||
| 5AIR FILTER ASSY | 525470602 | 1 |
Regular price
$52.45
Regular price
|
STARTER 16 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1STARTER ASSY | 584886806 | 1 |
Regular price
$104.79
Regular price
|
||
| 2SCREW ITXSCT | 510269222 | 1 |
Regular price
$79.20
Regular price
|
||
| 3O-RING | 740431300 | 1 |
Regular price
$26.94
Regular price
|
||
| 4SEALING | 510000801 | 1 |
Regular price
$7.89
Regular price
|
||
| 5SPACING SLEEVE | 506263101 | 1 |
Regular price
$34.71
Regular price
|
||
| 6COMPRESSION SPRING | 506253001 | 1 |
Regular price
$28.41
Regular price
|
||
| 7STARTER PULLEY | 588155801 | 1 |
Regular price
$25.39
Regular price
|
||
| 8SCREW CITXPANT | 525887402 | 2 |
Regular price
$19.79
Regular price
|
||
| 9RECOIL SPRING | 596293101 | 1 |
Regular price
$17.79
Regular price
|
||
| 10CORD | 506335615 | 1 |
Regular price
$19.49
Regular price
|
||
| 10STARTER ROPE | 506335650 | 1 | 50 m |
Regular price
$498.69
Regular price
|
|
| 11STARTER HANDLE ASSY | 584257903 | 1 |
Regular price
$5.89
Regular price
|
||
| 12STARTER COVER | 525446001 | 1 |
Regular price
$66.39
Regular price
|
||
| 13SCREW ITXSCM | 501981020 | 4 |
Regular price
$117.49
Regular price
|
||
| 14DECAL | 525571102 | 1 |
Regular price
$28.86
Regular price
|
||
| 15COOLING AIR CONDUCTOR | 501859401 | 1 |
Regular price
$19.79
Regular price
|
SUPPORT LEGS 13 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW ITXSCT | 503215420 | 3 | |||
| 2HOSE GUARD | 577981602 | 1 | |||
| 3SCREW ITXSCM | 544061201 | 1 | |||
| 4SPRING RETAINER | 575267703 | 1 | |||
| 5GROUND SUPPORT | 585620501 | 1 | |||
| 6SQUARE NUT | 503226504 | 1 | |||
| 7SCREW ITXSCM | 503215310 | 3 | |||
| 8SCREW ITXSCM | 503215340 | 1 | |||
| 9GROUND SUPPORT | 522832401 | 1 | |||
| 10HANDLE ASSY | 581110603 | 1 | |||
| 11STOP | 506387102 | 1 | |||
| 12SCREW ITXSCM | 503215312 | 1 | 12" | ||
| 13WEIGHT | 593876301 | 1 | 12" |
TOOLS 1 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1TOOL | 506382601 | 1 |
Regular price
$19.09
Regular price
|
WHEELS AND TIRES 10 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1WHEEL KIT | 589334302 | 1 |
Regular price
$109.00
Regular price
|
||
| 2SPACER | 538951501 | 2 | K 1 PACE |
Regular price
$24.99
Regular price
|
|
| 3WHEEL | 588553601 | 2 |
Regular price
$42.99
Regular price
|
||
| 4SCREW ITXSCM | 589326402 | 2 |
Regular price
$44.29
Regular price
|
||
| 5WASHER | 734114741 | 2 |
Regular price
$19.79
Regular price
|
||
| 6SCREW ITXSCM | 503215325 | 2 | K 1 PACE |
Regular price
$3.69
Regular price
|
|
| 7WHEEL | 588818501 | 1 | K 770 |
Regular price
$17.49
Regular price
|
|
| 8SCREW ITXSCM | 503215330 | 1 | K 770 |
Regular price
$11.79
Regular price
|
|
| 9SCREW ITXSCM | 503215365 | 1 | K 770 | ||
| 10SCREW ITXSCT | 525764604 | 2 | K 970, K 1270, K 7000 |
Regular price
$19.79
Regular price
|
Document Downloads
Service bulletin
Concrete Focus
From pouring to resurfacing, we sell tools built for concrete pros.
Expert Support
Get guidance from experts who understand jobsite challenges.
Fast Delivery
Get your tools fast with our nationwide shipping network and local partnerships.
Talk to an expert now (855) 281-1918
Get fast, expert help choosing the right concrete tools or equipment for your job. Ask about availability, specs, troubleshooting, or get friendly guidance before you place an order.
