Husqvarna PG 400 Gas | Single-Disc Floor Grinder
Husqvarna PG 400 Gas | Single-Disc Floor Grinder
HUSQVARNA CONSTRUCTION SKU: 970704601 Copied!
Is this the right tool for the job?
Regular price
$7,629.00
Regular price
$8,768.00
Sale price
$7,629.00
Quantity
Trusted by contractors nationwide
"I've bought 3 products from CTD and each time the experience has been the same - professional and fast delivery. I trust these guys with all my concrete needs."
90 day returns
Product Details

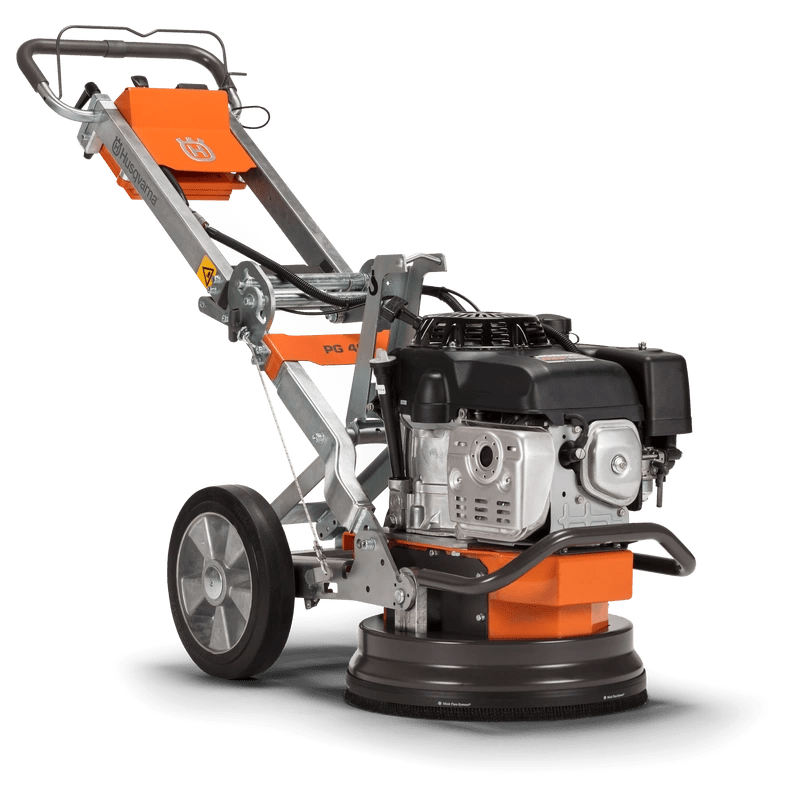

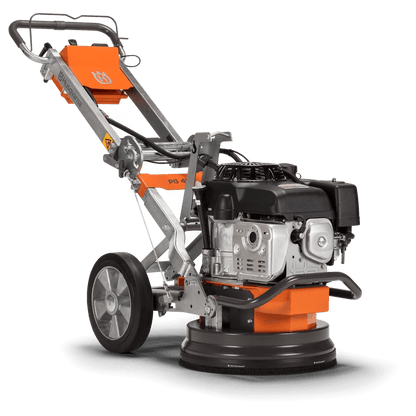

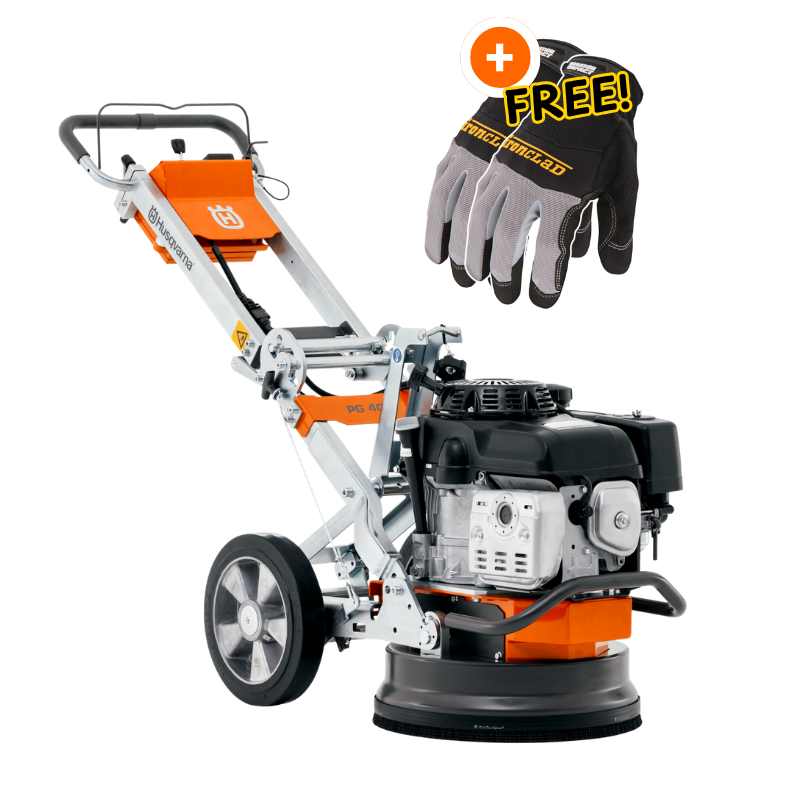

HUSQVARNA SINGLE-DISC FLOOR GRINDER: THE PG 400 GAS MODEL
Introducing the first gas-powered floor grinder in the Husqvarna PG range. The PG 400 Gas is a versatile and highly productive single-disc floor grinder, designed for a variety of outdoor applications. With a grinding width of 16 inches, it efficiently handles lippage in concrete slabs, trip hazards, and removal of paint, epoxy, and spackle on medium to large concrete areas. This compact machine is designed with ergonomics in mind, making it easy and convenient to use and transport.
With the PG 400 Gas, you can forget about power cables and focus on the job at hand. This floor grinder pairs perfectly with the T 4000 Gas dust extractor, providing a seamless solution for outdoor floor prep applications. Built for mobility and designed for productivity, the PG 400 Gas ensures you spend less time setting up and more time getting the job done.
- Engine Power of 10.2 hp
- Grinding width of 16 inches
- Weight of 308 lbs
- Motor/engine model: GXV390
- Power source: Gasoline
Product Specification
Specifications
Motor/engine model
GXV390
Engine Power (As rated by the engine manufacturer)
10.2 hp
Exhaust emissions (CO₂ EU V)
804 g/kWh
Power source
Petrol
Grinding width
16 in
Number of grinding discs
1 pcs
Direction of rotation
Clockwise
Grinding disc diameter
16.46 in
Grinding disc speed min
440 rpm
Grinding disc speed max
1,125 rpm
Product size length
35.4 in
Product size width
18.9 in
Product size height
28 in
Weight
308 lbs
Packaging length (Calc)
38.976 in
Packaging width (Calc)
21.26 in
Packaging height (Calc)
36.22 in
Article gross weight (Calc)
343.921 lbs
Warranty
1 year limited warranty
Related Equipment
Related Equipment
Service & Maintenance Parts
ACCESSORIES 1 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HAMMER | 522039701 | 1 | Hammer |
CHASSIS / FRAME 22 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW IHSCM | 725536851 | 2 | Screw IHSCM | ||
| 2WASHER | 575395101 | 2 | Washer | ||
| 3WHEEL | 590726601 | 2 | Wheel | ||
| 4SCREW EHHM | 725244971 | 2 | Screw EHHM | ||
| 5SPRING WASHER | 735116401 | 2 | Spring Washer |
Regular price
$21.45
Regular price
|
|
| 6WASHER | 504467501 | 2 | Washer | ||
| 7RUBBER SHOE | 585516801 | 2 | Rubber Shoe | ||
| 8SCREW IHSCM | 725529101 | 2 | Screw IHSCM | ||
| 9SHAFT | 592656501 | 1 | Shaft | ||
| 10HANDLE ASSY | 592660201 | 1 | Handle assy | ||
| 11STARTER HANDLE | 575489501 | 1 | Starter Handle |
Regular price
$28.57
Regular price
|
|
| 12SPRING | 590788801 | 2 | Spring | ||
| 13HEXAGON LOCKING NUT | 732252001 | 2 | HEXAGON LOCKING NUT |
Regular price
$22.78
Regular price
|
|
| 14SCREW IHSCM | 725549501 | 2 | SCREW IHSCM | ||
| 15CLEVIS PIN | 721856801 | 2 | Clevis Pin | ||
| 16SPACER | 592656701 | 2 | Spacer | ||
| 17STAND | 590933801 | 1 | Stand | ||
| 18SCREW EHHM | 725249571 | 2 | Screw EHHM | ||
| 19PLATE | 592656801 | 2 | Plate | ||
| 20SCREW IHSCM | 725532501 | 2 | Screw IHSCM | ||
| 21SPRING COTTER | 721680251 | 1 | Spring cotter |
Regular price
$26.94
Regular price
|
|
| 22FRAME | 593331601 | 1 | Frame Assy |
CHASSIS LOWER 23 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SPACER | 585132901 | 2 | Spacer | ||
| 2SPACER | 585133501 | 2 | Spacer | ||
| 3BUSH | 585416001 | 2 | Bush | ||
| 4TUBE | 585133601 | 1 | Tube | ||
| 5FORK | 582563304 | 1 | |||
| 6BRACKET | 585383001 | 1 | Bracket | ||
| 7BUSH | 585129101 | 2 | Bush | ||
| 8TUBE | 585129002 | 1 | Tube | ||
| 9SUPPORT | 593844001 | 1 | |||
| 10WING KNOB | 590472201 | 1 | Wing Knob | ||
| 11WASHER | 734116301 | 28 | Washer | ||
| 12SCREW IHSCM | 725546101 | 2 | Screw IHSCM | ||
| 13WASHER | 734117201 | 2 | Washer | ||
| 14SCREW IHSCM | 725549101 | 2 | Screw IHSCM | ||
| 15HEXAGON LOCKING NUT | 732252001 | 2 | Hexagon locking nut | ||
| 16WASHER | 734117201 | 2 | Washer | ||
| 17SCREW IHSCM | 725549501 | 2 | Screw IHSCM | ||
| 18SCREW IHSCM | 725544901 | 1 | Screw IHSCM | ||
| 19DUMMY PART | 900000002 | 8 | Screw IHSCM | ||
| 20HOOK | 590846501 | 1 | Hook | ||
| 21RETAINER | 599618701 | 1 | Retainer Kit | ||
| 22FORK | 582563303 | 1 | Fork | ||
| 23CAP ASSY | 592652701 | 1 | Cap assy. |
CHASSIS UPPER 20 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1FORK | 585573511 | 1 | Fork | ||
| 2BRACKET | 585382801 | 1 | Bracket | ||
| 3PLATE | 590821001 | 1 | Plate | ||
| 4SCREW | 725637451 | 2 | Screw | ||
| 5SCREW IHSETM | 728828501 | 4 | Screw IHSETM | ||
| 6WASHER | 734116541 | 6 | Washer | ||
| 7SCREW IHSCM | 725546101 | 2 | Screw IHSCM | ||
| 8SLEEVE | 585383302 | 2 | Sleeve | ||
| 9SPRING | 585416101 | 1 | Spring | ||
| 10SPRING | 585417301 | 1 | Spring | ||
| 11HANDLE | 585133701 | 1 | Handle | ||
| 12HEXAGON LOCKING NUT | 732251801 | 15 | Hexagon locking nut | ||
| 13WASHER | 585383101 | 2 | Washer | ||
| 14SPACER | 585132901 | 2 | Spacer | ||
| 15SCREW IHSCM | 725546001 | 12 | Screw IHSCM | ||
| 16PLATE | 585133301 | 2 | Plate | ||
| 17ROD | 585133801 | 1 | Rod | ||
| 18RIVET | 521886601 | 1 | Rivet | ||
| 19SCREW IHSCM | 725536801 | 1 | Screw IHSCM | ||
| 20WASHER | 734115201 | 1 | Washer |
DECALS 1 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1DECAL KIT | 599618401 | 1 | Decal Kit |
GEARBOX 26 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HUB ASSY | 598416901 | 1 | Hub Timing Belt | ||
| 2DRIVE BELT | 598396001 | 1 | Belt Timing | ||
| 3HANDLE | 598410801 | 1 | Handle | ||
| 4SCREW EHHFM | 585973301 | 11 | Screw EHHFM | ||
| 5SHAFT ASSY | 598398801 | 1 | Shaft Assy | ||
| 6PIVOT WHEEL ASSY | 598420601 | 1 | Pivot wheel assy | ||
| 7SCREW IHSCM | 725546001 | 2 | SCREW IHSCM | ||
| 8PULLEY | 598394901 | 2 | NOT A KIT, order together with bearings | ||
| 8BEARING | 596357501 | 2 | 6304-2RSH | ||
| 9SCREW | 598700101 | 2 | Screw | ||
| 10DAMPER | 598396701 | 2 | Damper | ||
| 11TENSIONER | 598398701 | 1 | Tensioner | ||
| 12PLATE | 598396801 | 2 | Side Cover Gearbox | ||
| 13GASKET | 598396901 | 2 | Gasket Side Cover | ||
| 14CHASSIS | 598398901 | 1 | Cage Gearbox | ||
| 15SCREW EHHFM | 585973301 | 11 | Screw EHHFM | ||
| 16PACKING SYSTEM | 597700101 | 10 | Screw | ||
| 17SCREW | 598700101 | 10 | Screw | ||
| 18TENSIONER | 598397001 | 1 | Tensioner | ||
| 19PLATE | 598396101 | 1 | Plate | ||
| 20SCREW EHHFM | 585975401 | 4 | Screw EHHFM | ||
| 21PULLEY ASSY | 598399001 | 1 | Pulley Assembly | ||
| 23DRIVE BELT | 598394601 | 1 | Belt Multi Rib | ||
| 24PLUG | 598829401 | 2 | End Plug | ||
| 25GEARBOX ASSY | 598034201 | 1 | Gear Box Assy | ||
| 26WASHER | 734116301 | 2 |

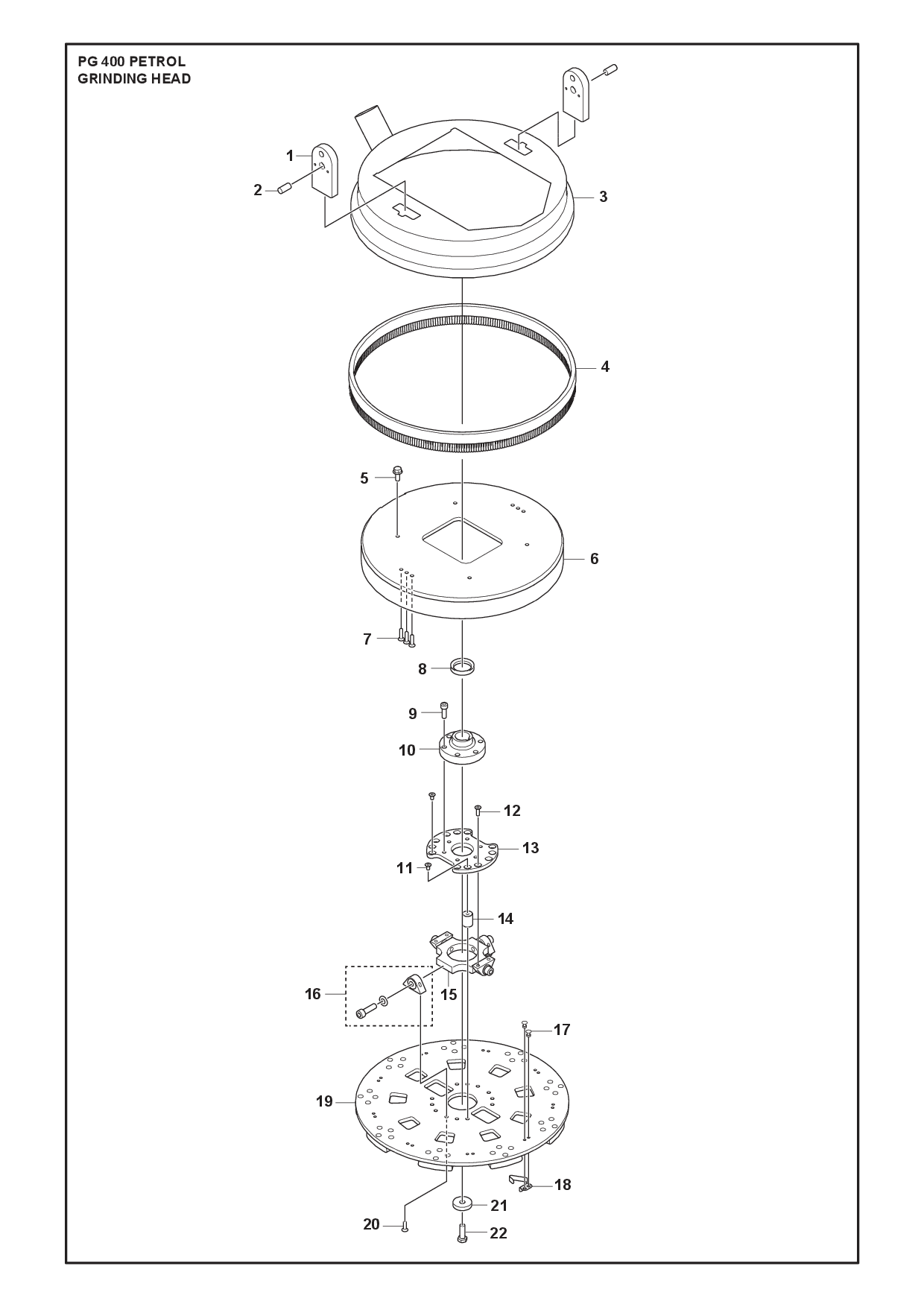

GRINDING HEAD 21 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BRACKET | 585540301 | 2 | BRACKET | ||
| 3DUST COVER | 546400101 | 1 | |||
| 4BRUSH | 582300011 | 1 | Brush | ||
| 5SCREW EHHFM | 585975401 | 4 | SCREW EHHFM | ||
| 6MOUNTING PLATE | 590793101 | 1 | Mounting Plate | ||
| 7SCREW IHCSFM | 725637256 | 6 | SCREW IHCSFM | ||
| 8V-RING | 589925801 | 1 | V-Ring | ||
| 9SCREW IHSCM | 725545305 | 6 | Screw IHSCM | ||
| 10COUPLER | 598416801 | 1 | |||
| 11SCREW IHCSFM | 725644755 | 8 | SCREW IHCSFM | ||
| 12SCREW IHCSFM | 725637051 | 8 | SCREW IHCSFM | ||
| 13PLATE | 594895301 | 1 | |||
| 14ABSORBER | 584816101 | 8 | Damper | ||
| 15PLATE | 594895001 | 1 | Plate | ||
| 16BUSHING | 599619001 | 1 | Ear Cardan Kit | ||
| 17RIVET | 722794609 | 18 | Rivet | ||
| 18SPRING | 546548201 | 1 | |||
| 19TOOL HOLDER | 596657901 | 1 | |||
| 20SCREW IHCSFM | 725644955 | 8 | SCREW IHCSFM | ||
| 21WASHER | 510235101 | 1 | Washer | ||
| 22SCREW EHHM | 725249571 | 1 | SCREW EHHM |
MOTOR 12 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1NUT | 598700901 | 2 | |||
| 2PLATE | 598396401 | 1 | |||
| 3SCREW | 598701101 | 2 | |||
| 4SCREW | 598701001 | 2 | |||
| 5SCREW | 598700101 | 4 | |||
| 6SEAL | 598396601 | 1 | |||
| 7PARALLEL KEY | 590788001 | 1 | |||
| 8SCREW IHSETM | 728844505 | 2 | |||
| 9PULLEY | 598396501 | 1 | |||
| 10ENGINE | 590787301 | 1 | |||
| 11AIR FILTER | 598482201 | 1 | |||
| 12SPARK PLUG | 596783001 | 1 |
PANEL ASSEMBLY 44 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW IHSCM | 725529901 | 1 | Screw IHSCM | ||
| 2WASHER | 734113601 | 4 | Washer | ||
| 3WIRE | 593806101 | 1 | Wire | ||
| 4BRACKET | 593800501 | 1 | Bracket | ||
| 5WASHER | 734113601 | 4 | Washer | ||
| 6HEXAGON LOCKING NUT | 732251201 | 1 | Hexagon locking nut | ||
| 7HANDLE KIT | 599618601 | 1 | Handle Kit | ||
| 8LOCKING HANDLE | 590373701 | 2 | LOCKING HANDLE | ||
| 9SCREW IHSCM | 725545501 | 2 | Screw IHSCM | ||
| 10BRACKET | 585516601 | 2 | BRACKET |
Regular price
$69.98
Regular price
|
|
| 11BRACKET | 589837701 | 2 | Bracket | ||
| 12WASHER | 734116301 | 28 | Washer |
Regular price
$22.68
Regular price
|
|
| 13SCREW IHSCM | 725546001 | 12 | Screw IHSCM | ||
| 14SCREW IHSCM | 725532901 | 4 | Screw IHSCM |
Regular price
$22.78
Regular price
|
|

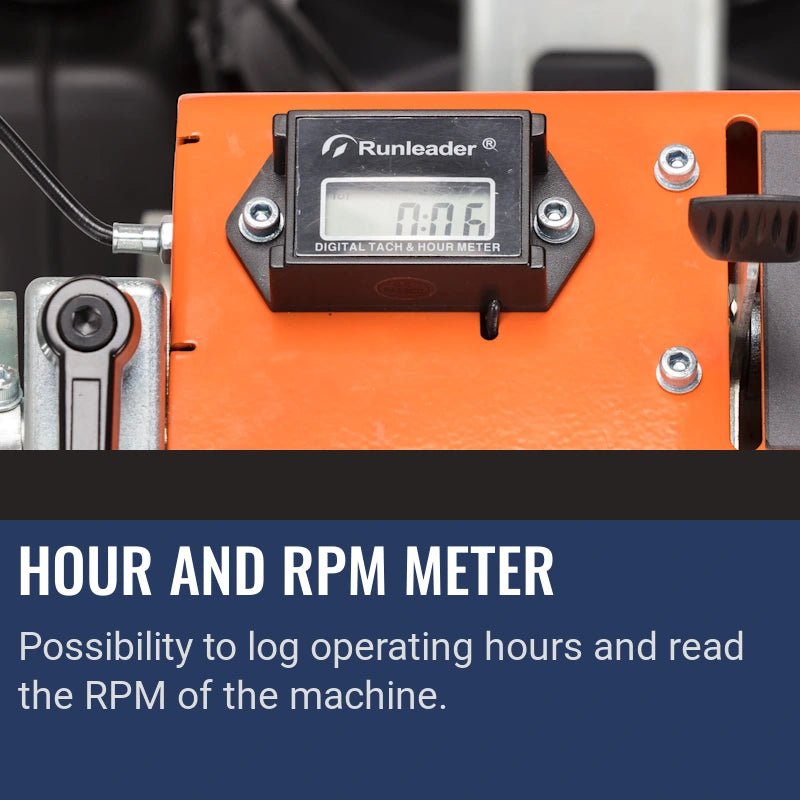

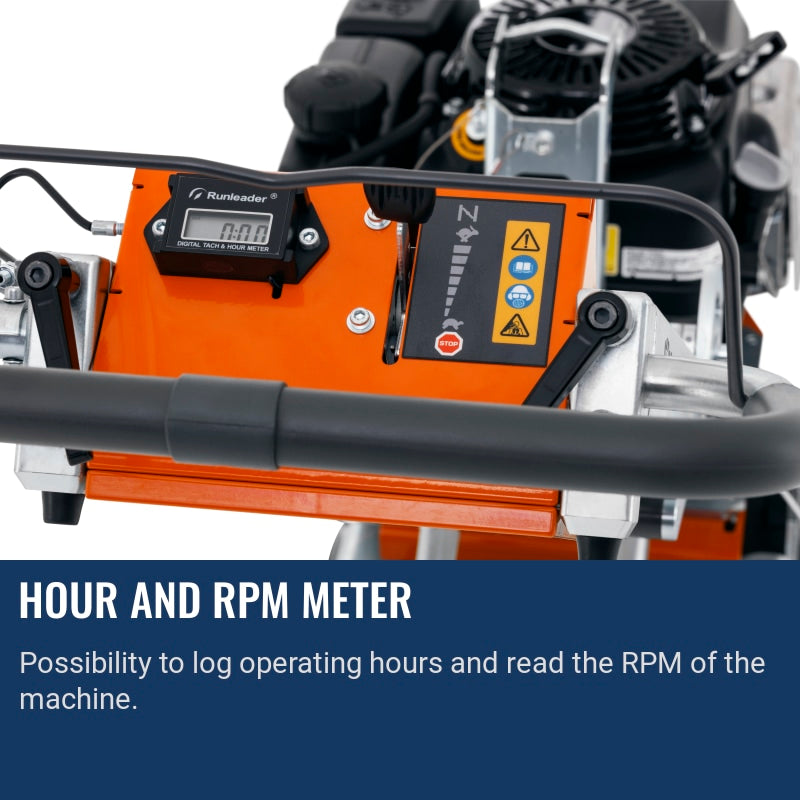

| 15CABLE ASSY | 592725201 | 1 | Hour meter with cable | ||
| 16SCREW IHSCM | 725532901 | 4 | Screw IHSCM |
Regular price
$22.78
Regular price
|
|
| 17WASHER | 734114601 | 4 | Washer |
Regular price
$21.45
Regular price
|
|
| 18WASHER | 587696401 | 1 | Washer | ||
| 19LEVER | 587696201 | 1 | Lever | ||
| 20WASHER | 587696601 | 2 | Washer | ||
| 21SCREW EHHM | 725245371 | 1 | Screw |
Regular price
$11.39
Regular price
|
|
| 22RUBBER SHOE | 585516801 | 2 | Rubber shoe | ||
| 23SCREW IHSCM | 725529501 | 2 | Screw IHSCM | ||
| 24BUSHING | 590203401 | 2 | Bushing | ||
| 25COUNTERWEIGHT | 589837101 | 1 | Counterweight | ||
| 26COUNTERWEIGHT | 589837201 | 1 | Counterweight | ||
| 27WASHER | 734116301 | 28 | Washer |
Regular price
$22.68
Regular price
|
|
| 28SCREW IHSCM | 725546001 | 12 | Screw IHSCM | ||
| 29SCREW IHSCM | 725545301 | 8 | Screw IHSCM | ||
| 30CABLE | 587696901 | 1 | Cable | ||
| 31SCREW IHSCM | 725529301 | 3 | Screw IHSCM |
Regular price
$22.78
Regular price
|
|
| 32SCREW IHSCM | 725529901 | 2 | Screw IHSCM | ||
| 33SCREW IHSCM | 725529301 | 3 | Screw IHSCM |
Regular price
$22.78
Regular price
|
|
| 34SPACER | 592648201 | 1 | Spacer | ||
| 35BRACKET | 593742701 | 1 | Bracket | ||
| 36SPRING | 590788801 | 1 | Spring | ||
| 37MICRO SWITCH | 590181301 | 1 | Micro switch | ||
| 38BRACKET | 593742501 | 1 | Bracket | ||
| 39WASHER | 734113601 | 6 | Washer | ||
| 40HEXAGON LOCKING NUT | 732251201 | 5 | Hexagon locking nut | ||
| 41SCREW EHHM | 725245171 | 4 | Screw EHHM | ||
| 42WASHER | 734116301 | 4 | Washer |
Regular price
$22.68
Regular price
|
|
| 43BAIL | 592651901 | 1 | Spring cotter | ||
| 44CABLE | 587696901 | 1 | Cable |
