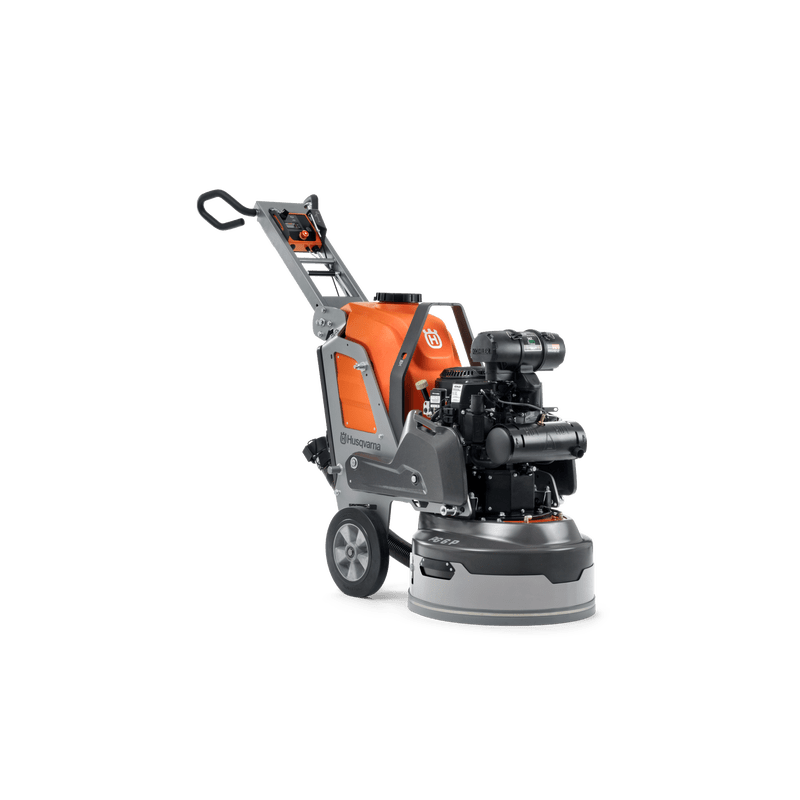

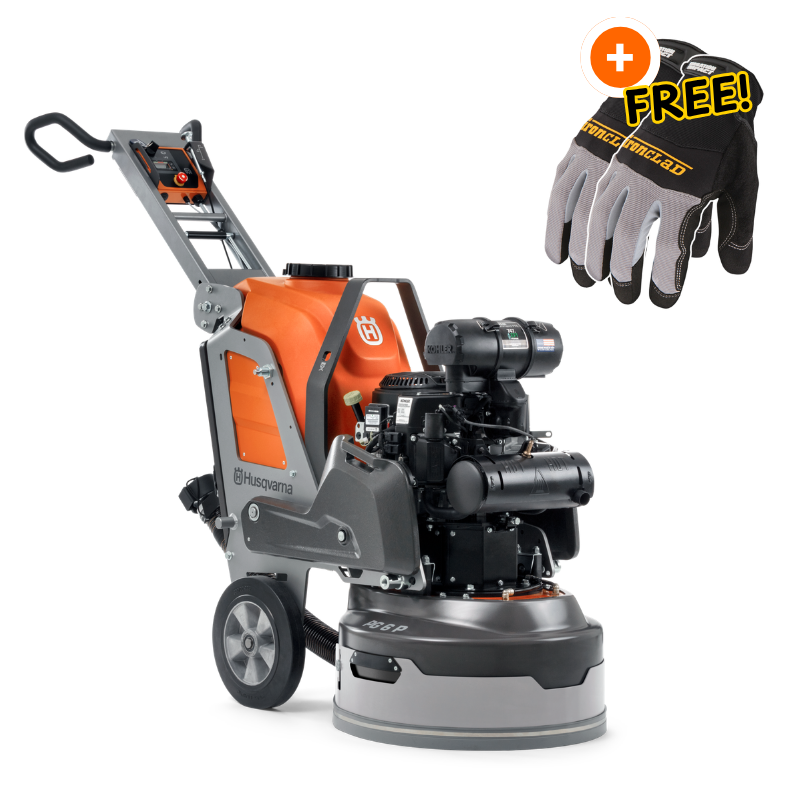

Husqvarna PG 6 P | Planetary Floor Grinder
Husqvarna PG 6 P | Planetary Floor Grinder
HUSQVARNA CONSTRUCTION SKU: 970605401 Copied!
Is this the right tool for the job?
Regular price
$24,429.00
Regular price
$32,451.00
Sale price
$24,429.00
Quantity
Trusted by contractors nationwide
"I've bought 3 products from CTD and each time the experience has been the same - professional and fast delivery. I trust these guys with all my concrete needs."
90 day returns
Product Details
HUSQVARNA PLANETARY FLOOR GRINDER - FOR PROFESSIONAL CONCRETE FINISHING
Experience the power and versatility of our Husqvarna PG 6 P | Planetary Floor Grinder - a propane-powered marvel designed for large outdoor concrete slabs. This high-performance grinder boasts a 22 hp engine and an impressive 25.2-inch grinding width, ensuring maximum efficiency on every job. Its integrated water tank allows for wet grinding, while the propane engine eliminates the need for electrical access, offering you unparalleled flexibility.

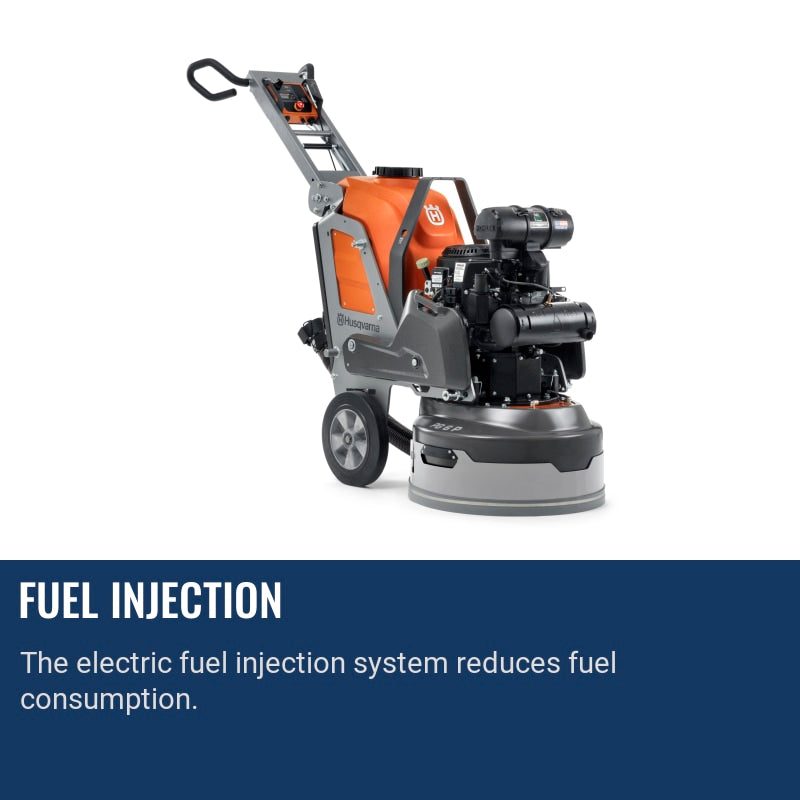

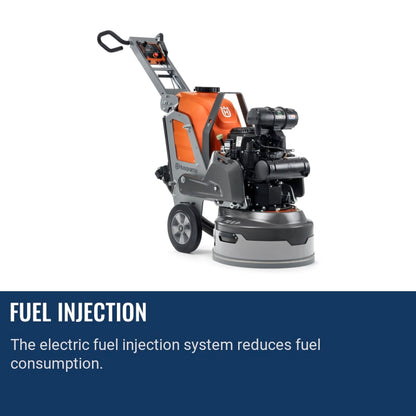

The PG 6 P is engineered with an electric fuel-injection system for reduced fuel consumption and an exhaust catalyst for lower emissions. Key components are sealed against dust and slurry, ensuring maximum reliability and low maintenance. Adjustable weights provide extra grinding pressure and make this machine easy to handle and operate. For dust or slurry management, pair it with a Husqvarna cordless dust extractor or a Husqvarna slurry vacuum.
- 22 hp Engine Power for superior performance
- 25.2-inch Grinding Width for efficient coverage
- Propane Power Source for flexibility and convenience

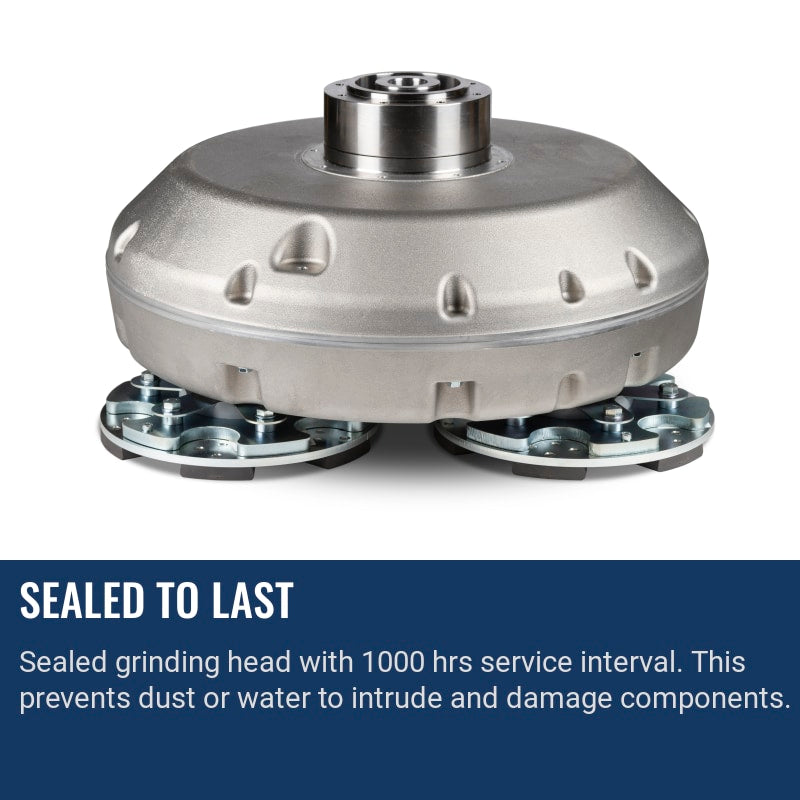

- Sealed components for maximum reliability and maintenance-free operation
- Weight of 1,140 lbs for stability and control
Product Specification
Specifications
Motor/engine model
Command Pro EFI
Engine Power (As rated by the engine manufacturer)
22 hp
Exhaust emissions (CO₂ EU V)
0 g/kWh
Power source
Propane
Grinding width
25.2 in
Number of grinding discs
3 pcs
Direction of rotation
One direction
Grinding disc diameter
10.6 in
Grinding disc speed min
870 rpm
Grinding disc speed max
1,010 rpm
Type of operation
Push
Product size length
83.9 in
Product size width
26.7 in
Product size height
45.8 in
Weight
1,140 lbs
Packaging length (Calc)
55 in
Packaging width (Calc)
35 in
Packaging height (Calc)
57.992 in
Article gross weight (Calc)
1,104 lbs
Warranty
2 year limited warranty
Related Equipment
Related Equipment
Service & Maintenance Parts
ACCESSORIES 2 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HOSE KIT | 599690001 | 1 | |||
| 2STRAP | 593536701 | 1 | Hose guide assy |
Regular price
$48.19
Regular price
|
BATTERY AND MAIN SWITCH 10 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1FUSE | 598685201 | 1 | BOLT-IN 100A 2xM6 | ||
| 2BATTERY | 596608701 | 1 | 12V20Ah | ||
| 3BATTERY | 595660001 | 1 | |||
| 4SCREW EHHFM | 585980601 | 2 | M6x16 8.8 | ||
| 5SCREW IHSCM | 725537265 | 2 | M6x25 10.9 | ||
| 6SWITCH | 594896801 | 1 | Battery master | ||
| 7NUT | 595680301 | 2 | M6 | ||
| 8BOX | 537643501 | 1 | BATTERY BRACKET | ||
| 9INSULATION | 598141401 | 2 | |||
| 10NUT | 576645704 | 2 | M6 |
CENTER HUB ASSY 15 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BALL BEARING | 593492601 | 1 | |||
| 2PULLEY | 595760101 | 1 | Center Ø75 | ||
| 3SCREW ITXSCM | 544218420 | 6 | M6x20 10.9 | ||
| 4PULLEY ASSY | 597795501 | 1 | |||
| 5SCREW | 593504901 | 14 | M8x20 8.8 | ||
| 6PULLEY | 595709501 | 2 | Pulley 6 lock plate | ||
| 7BALL BEARING | 593629901 | 1 | |||
| 8SPACER | 595713101 | 1 | Ring | ||
| 9CIRCLIP | 595679801 | 1 | Internal SGH 140x4 | ||
| 10HUB | 595713001 | 1 | Centerhubouter | ||
| 11RADIAL SEAL | 593487001 | 1 | 120x150x12 | ||
| 12HUB | 593542901 | 1 | Center | ||
| 13BALL BEARING | 593492601 | 1 | |||
| 14CIRCLIP | 593503001 | 1 | Internal SGH 100x3 | ||
| 15CIRCLIP | 593502901 | 1 | External SGA 65x2.5 |
CHASSIS 14 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1FRAME ASSY | 535546701 | 1 | Weld assy | ||
| 2SCREW EHHFM | 585975201 | 8 | M10x20 8.8 | ||
| 3BOLT | 582644801 | 2 | M16x50 8.8 | ||
| 4SCREW EHHFM | 585980601 | 2 | M6x16 8.8 | ||
| 5SCREW | 597720901 | 2 | M8x10 8.8 | ||
| 6WHEEL | 597345801 | 2 | Solid rubber, Ø350 | ||
| 7CIRCLIP | 735312601 | 2 | External SGA25x1,2 | ||
| 8SCREW EHHFM | 585980601 | 1 | M6x16 8.8 | ||
| 9CLIP | 589669104 | 2 | M6 Ø7.9 | ||
| 10HEXAGON NUT | 731232255 | 1 | M12 | ||
| 11SCREW | 598749401 | 1 | M12x160 8.8 ZPB | ||
| 12CAP | 598573701 | 1 | |||
| 13STOPPER | 598808301 | 1 | |||
| 14DAMPER | 586734902 | 1 |
CHASSIS UPPER 9 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HANDLE | 597183901 | 1 | |||
| 2HANDLE ASSY | 596612501 | 1 | Weldassy | ||
| 3CLAMP | 599656401 | 2 | |||
| 4BUSHING | 597797001 | 2 | |||
| 5LOCKING PLATE | 596612401 | 2 | |||
| 6BOLT | 582644801 | 2 | M16x50 8.8 | ||
| 7CONTROL PANEL | 598478101 | 1 | |||
| 8LOCKWASHER | 735215301 | 4 | 6.4x11 | ||
| 9SCREW | 531119426 | 4 | M6x16 10.9 |

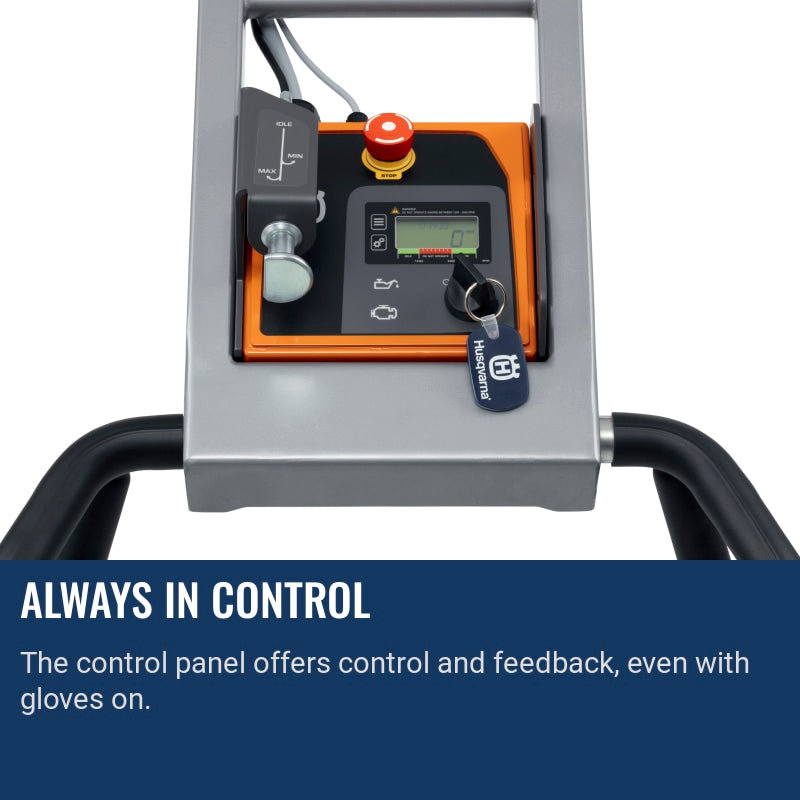

CONTROL PANEL 17 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1COVER | 597693301 | 1 | |||
| 2SWITCH | 538999101 | 1 | EM-stop. OPERATOR 1NO+1NC | ||
| 3STICKER | 598558701 | 1 | Overlay propane | ||
| 4CONTACT | 598556001 | 1 | USB with cap | ||
| 5REGULATOR | 598745801 | 1 | DC/DC Converter | ||
| 6SWITCH KIT | 536493401 | 1 | Spare part kit with kohler key switch | ||
| 7BRACKET | 598467201 | 1 | RPM Display | ||
| 8BRACKET | 598011801 | 1 | |||
| 9GASKET | 598429601 | 1 | HMI Gasket | ||
| 10THROTTLE ASSY | 547099701 | 1 | |||
| 11BRACKET | 598011801 | 1 | HMI Bracket | ||
| 12LOCKWASHER | 735214601 | 4 | 5,3x10x0,6 | ||
| 13SCREW | 595065801 | 10 | M5x12 | ||
| 14CLIP | 589669103 | 5 | M6/Ø14 | ||
| 15CLIP | 589669104 | 5 | M6/Ø7.9 | ||
| 16SCREW | 531119426 | 1 | M6x16 8.8 |
Regular price
$48.50
Regular price
|
|
| 17NUT | 595680301 | 6 | M6 |
DECALS 1 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1DECAL KIT | 546371201 | 1 | Decal kit PG 6 Propane |
ELECTRICAL WIRING 3 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1CONTROL PANEL | 597634601 | 1 | CONTROL PANEL PG 6 P | ||
| 2CABLE | 598561302 | 1 | BATTERY PG6/ 8P | ||
| 3SENSOR ASSY | 599471501 | 1 | CO-CENSOR PG6 /8P |
GAS TANK AND HOLDER ASSY 14 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HOSE | 597690001 | 1 | Propane hose | ||
| 2FITTING | 525550401 | 1 | ELBO 45 | ||
| 3COUPLER | 593033701 | 1 | to Propane Tank | ||
| 4STRAP | 599255101 | 1 | Strap with latch | ||
| 5BRACKET | 537643901 | 1 | Tank bracket V.2 | ||
| 7SCREW IHSCM | 725537265 | 1 | |||
| 8BRACKET | 546822401 | 1 | Sensor bracket | ||
| 9SENSOR ASSY | 599471501 | 1 | CO sensor assy | ||
| 10FILTER | 599930301 | 1 | Sensor filter | ||
| 11SCREW IHSCM | 725544901 | 4 | M8x16 8.8 | ||
| 12BRACKET | 546822901 | 1 | Sensor protection | ||
| 15SCREW EHHFM | 506570105 | 2 | M8x25 8.8 | ||
| 17NUT | 576645704 | 2 | M8 FLANGE | ||
| 18NUT | 576645704 | 1 |

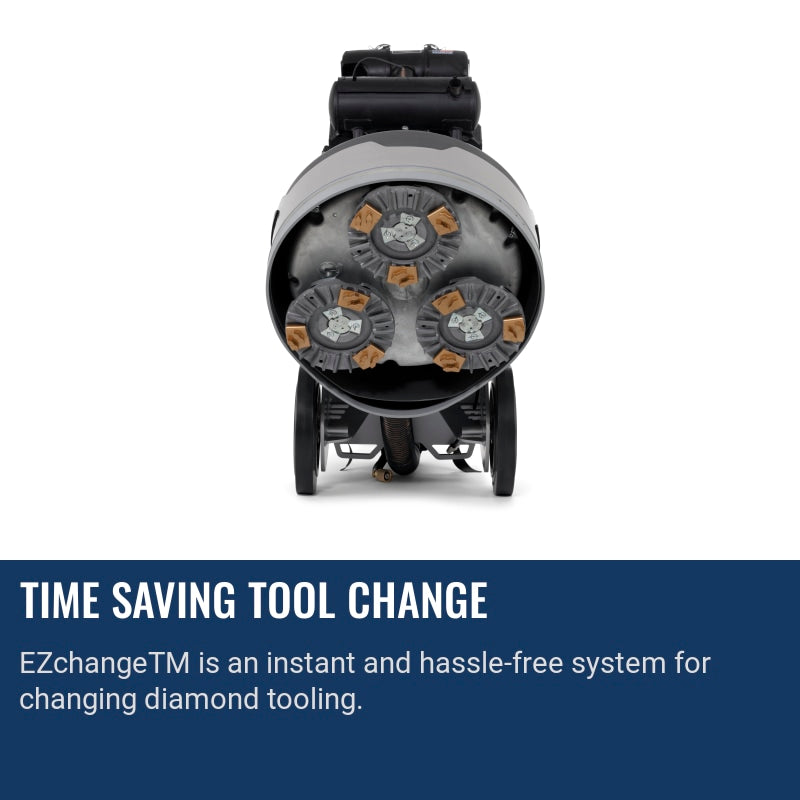

GRINDING HEAD 3 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1GRINDING HEAD | 546328401 | 1 | |||
| 2GRINDING HEAD | 597794301 | 1 | 6 BARE | ||
| 3GRINDING UNIT | 536194301 | 3 |
GRINDING HEAD, INTERNAL 21 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW EHHFM | 585980401 | 1 | M10x30 8.8 | ||
| 2SCREW | 593513701 | 9 | M8x45 8.8 | ||
| 3WASHER | 593964201 | 1 | 10x20x1 | ||
| 4RADIAL SEAL | 593487201 | 3 | SHAFT | ||
| 5HOUSING | 595761101 | 1 | BOTTOM | ||
| 6O-RING | 593487101 | 1 | SEAL6 | ||
| 7TENSIONER | 593538101 | 1 | LOCKING PLATE | ||
| 8SCREW | 595287301 | 1 | M8x16 8.8 | ||
| 9DRIVE BELT | 593490501 | 1 | T6 | ||
| 10DRIVE BELT | 593487401 | 1 | 6 | ||
| 11SHAFT ASSY | 598475501 | 1 | |||
| 12HUB ASSY | 597796701 | 1 | |||
| 13BELT TENSIONER | 593543701 | 1 | |||
| 14SCREW | 595681501 | 2 | M10x60 8.8 | ||
| 15COUNTERWEIGHT | 595714001 | 4 | |||
| 16SCREW | 593510401 | 1 | M6x45 8.8 | ||
| 17TENSIONER | 595713901 | 2 | |||
| 18PIN | 593514101 | 3 | 10x40 H8 | ||
| 19HOUSING | 595761001 | 1 | |||
| 20WASHER | 734116301 | 8 | 8.4x16x1.6 St 200HV ZPB | ||
| 21SCREW | 598749601 | 8 | M8x110 8.8 |
GRINDING HEAD, LOWER 19 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW | 593499901 | 3 | M8x16 8.8 | ||
| 2CLIP | 547160101 | 1 | Cross Clip | ||
| 3CONNECTION SYSTEM | 547115701 | 1 | Include pos 2 | ||
| 4SCREW | 505456101 | 3 | M8x30 8.8 | ||
| 5SCREW EHHM | 504748901 | 1 | M20x40 8.8 | ||
| 6HOLDER | 593536101 | 1 | AIRFLOW Ø270 | ||
| 7PLATE | 536194401 | 1 | |||
| 8LOCKWASHER | 504749603 | 1 | M20 | ||
| 9SPACER | 502534014 | 6 | 20/10x11 | ||
| 10RING | 502534301 | 1 | 108/55x17 | ||
| 11SCREW EHHM | 725244976 | 6 | M8x1610.9 | ||
| 12WASHER | 734116301 | 6 | M8 | ||
| 13SPRING | 502534201 | 1 | Spring steel system | ||
| 14WASHER | 734117201 | 6 | 10,5x20x2 | ||
| 15SCREW EHHM | 725249376 | 6 | M10x2510.9 | ||
| 16RUBBER RING | 502534005 | 1 | |||
| 17HUB | 502534006 | 1 | |||
| 18SEAL | 536983501 | 1 | |||
| 19GRINDING UNIT | 536194301 | 1 | Ø270 |
GRINDING HEAD, LOWER 18 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW | 593499901 | 3 | SCREW | ||
| 2CLIP | 547160101 | 1 | CLIP | ||
| 3CONNECTION SYSTEM | 547115701 | 1 | CROSS | ||
| 4SCREW | 505456101 | 3 | SCREW | ||
| 5HOLDER | 593536101 | 1 | TOOL HOLDER | ||
| 6HOLDER ASSY | 547573201 | 1 | GRINDING HOLDER ASSY. | ||
| 7PLATE | 593539901 | 1 | PLATE | ||
| 8SCREW | 593512601 | 4 | SCREW | ||
| 9WASHER | 593499101 | 4 | WASHER | ||
| 10BRACKET | 593718101 | 4 | EAR WIDE CMPL. | ||
| 11CONNECTION | 593536201 | 1 | CARDAN CONNECTION | ||
| 12SCREW EHHM | 504748901 | 1 | SCREW | ||
| 13LOCKWASHER | 504749603 | 1 | LOCKWASHER | ||
| 14ABSORBER | 595748401 | 4 | ABSORBER | ||
| 15PLATE | 547571301 | 1 | PLATE | ||
| 16SCREW | 593505101 | 8 | SCREW | ||
| 17SCREW | 593508501 | 8 | SCREW | ||
| 18SEAL | 536983501 | 1 | SEAL |
GRINDING HEAD, OUTER 9 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW | 597720901 | 8 | M8x10 8.8 | ||
| 2DUST COVER | 536876401 | 1 | |||
| 3DUST COVER | 534239001 | 1 | |||
| 4KNOB | 536871401 | 2 | |||
| 5HANDLE | 547077401 | 2 | |||
| 6SCREW | 725632101 | 8 | M5x6 8.8 | ||
| 7BAND | 547737802 | 1 | |||
| 8RUBBER SKIRT | 548518802 | 1 | |||
| 9STRIP | 548476503 | 1 |
GRINDING HEAD UPPER 10 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1NUT | 576645706 | 4 | M12 | ||
| 2STOP | 598778001 | 2 | |||
| 3CLAMP | 593542001 | 4 | |||
| 4BOLT | 593514501 | 4 | M12x100 8.8 | ||
| 5SUSPENSION | 593539001 | 4 | |||
| 6AXLE | 593538301 | 4 | |||
| 7SUPPORT | 536311701 | 2 | SUSPENSION NUT | ||
| 8SCREW EHHM | 725246251 | 8 | M8x558.8 | ||
| 9PLUG | 546722601 | 4 | |||
| 10PLATE | 546253501 | 1 |
IDLER PULLEY ASSY 17 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1KEY | 593487601 | 1 | 14x9x36 | ||
| 2SHAFT | 598027401 | 1 | |||
| 3BALL BEARING | 593492701 | 1 | |||
| 4PULLEY | 595757501 | 1 | Ø150 | ||
| 5NUT | 593487901 | 1 | KM10 | ||
| 6SCREW EHHFM | 585173901 | 2 | M8x45 8.8 | ||
| 7WASHER | 595710001 | 1 | Grinding Shaft | ||
| 8BEARING | 593487701 | 1 | |||
| 9WASHER | 595709901 | 1 | |||
| 10SCREW | 593501701 | 1 | M8x258.8 | ||
| 11BALL BEARING | 593492801 | 2 | |||
| 12PULLEY | 595709801 | 1 | Idler Ø80 | ||
| 13SPACER | 595757301 | 1 | Belt tensioner | ||
| 14SCREW | 595680101 | 1 | M12x35 8.8 | ||
| 15AXLE | 595761401 | 1 | Idler | ||
| 16O-RING | 593487801 | 1 | |||
| 17TENSIONER | 595760601 | 1 | Weldment |
MOTOR 15 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1COVER | 599767201 | 1 | |||
| 2OIL PLUG | 599767301 | 1 | |||
| 3OIL PLUG | 599767801 | 1 | |||
| 4AIR FILTER | 599767901 | 1 | Air filter inner | ||
| 5AIR FILTER | 599768001 | 1 | Air filter inner | ||
| 6COVER | 599768101 | 1 | |||
| 7OIL FILTER | 599768201 | 1 | |||
| 8SPARK PLUG | 599768301 | 2 | |||
| 9SENSOR | 599768401 | 1 | |||
| 10MUFFLER | 599768501 | 1 | |||
| 11SEALING | 596818801 | 1 | GEARBOX | ||
| 12PLATE | 597963401 | 1 | |||
| 13LOCK NUT | 522919401 | 4 | M8 | ||
| 14WASHER | 734116301 | 4 | M8 |
Regular price
$19.79
Regular price
|
|
| 15SCREW IHCSFM | 725645901 | 4 | M8x40 8.8 |

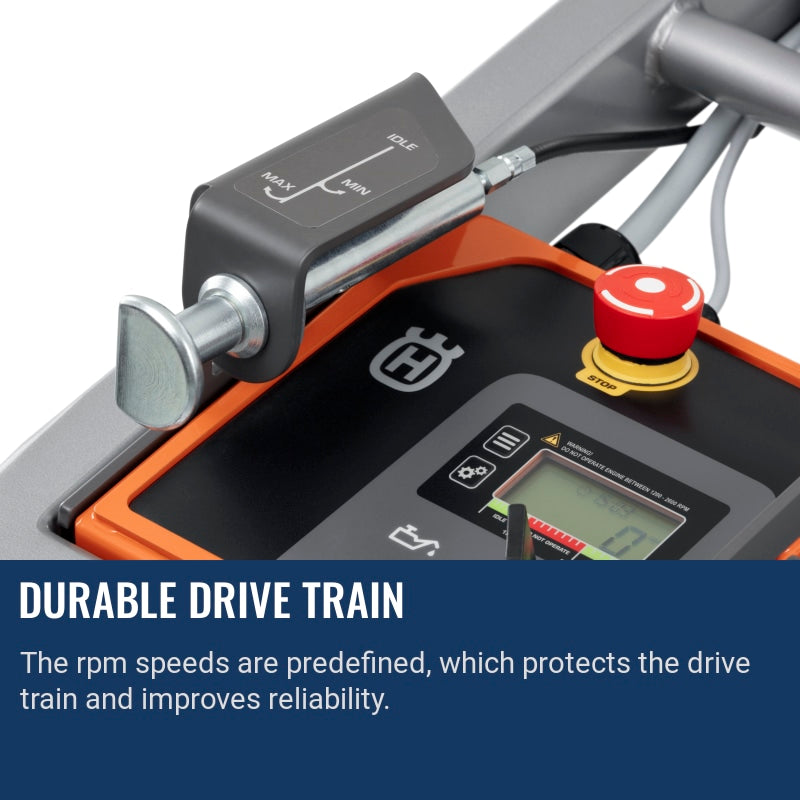

TRANSMISSION 24 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SEALING | 596818801 | 1 | GEARBOX | ||
| 2SCREW EHHFM | 585973101 | 4 | M10x25 8.8 | ||
| 3GUIDE PLATE | 597745501 | 1 | MOTOR PLATE | ||
| 4HEXAGON NUT | 731232001 | 1 | M10 | ||
| 5DRIVE BELT | 597688801 | 1 | |||
| 6SCREW EHHFM | 585235901 | 1 | M12x25 8.8 | ||
| 7PLATE | 597745901 | 1 | |||
| 8PARALLEL KEY | 597932701 | 1 | 10x8x45 | ||
| 9SPROCKET | 597746401 | 1 | Belt wheel | ||
| 10SPACER RING | 597746301 | 1 | |||
| 11SCREW EHHFM | 585235901 | 4 | M12x25 8.8 | ||
| 12BEARING UNIT | 597795301 | 1 | |||
| 13DRIVE SHAFT | 597745601 | 1 | DRIVE SHAFT | ||
| 14PARALLEL KEY | 597932501 | 1 | 10x8x60 | ||
| 15SCREW EHHFM | 535475212 | 15 | M6x12 8.8 | ||
| 16COVER | 597746201 | 1 | |||
| 17SCREW EHHM | 725250271 | 1 | M10x55 8.8 | ||
| 18SCREW EHHFM | 585235901 | 2 | M12x25 8.8 | ||
| 19GEARBOX | 597745401 | 1 | TRANSMISSION HOUSE | ||
| 20COVER | 597746101 | 2 | |||
| 21SPACER | 597745201 | 1 | |||
| 22PLATE | 598390101 | 1 | |||
| 23CENTRIFUGAL CLUTCH | 599501101 | 1 | Centrifugal clutch | ||
| 24CLUTCH SHOE | 599693701 | 1 | SERVICE KIT |

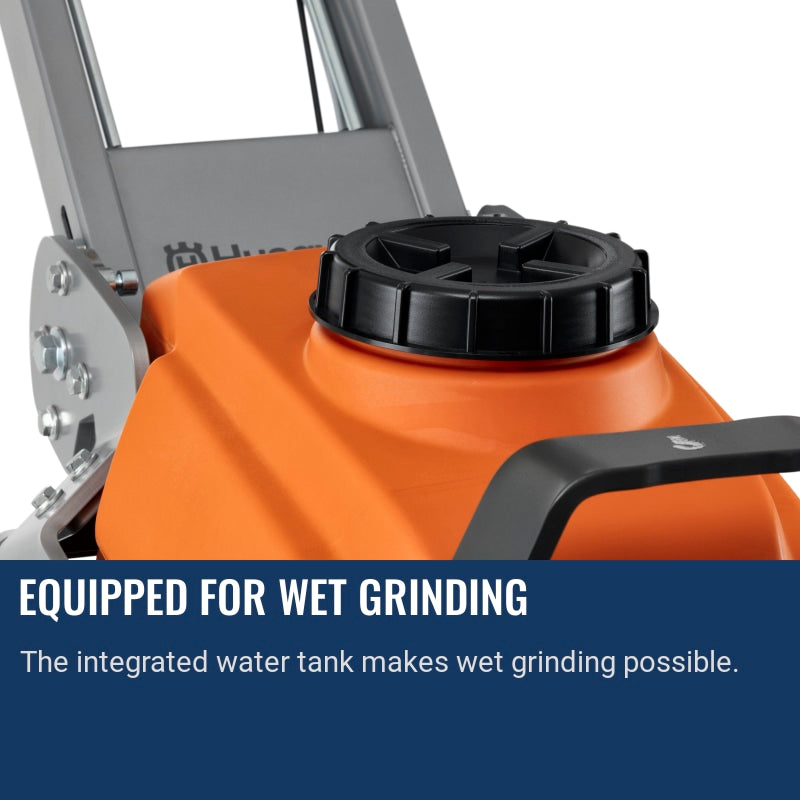

WATER SYSTEM 17 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1TANK CAP | 537644401 | 1 | |||
| 2TANK ASSY | 537644201 | 1 | Include the Cap | ||
| 3SCREW EHHFM | 506570105 | 2 | M8x25 8.8F lange | ||
| 4SCREW | 595287301 | 3 | M8x16 8.8 Flange | ||
| 5COVER | 537643601 | 1 | Water tank bracket | ||
| 6NUT | 576645704 | 3 | M8 | ||
| 7INSULATION | 598141401 | 4 | |||
| 8FITTING | 538980801 | 6 | Ø10.1/4"Elbows wiwel | ||
| 9FITTING | 538981001 | 2 | Ø10Y Connection | ||
| 10CLAMP | 538980701 | 1 | Valve bracket | ||
| 11PLATE | 537644501 | 1 | Valve bracket | ||
| 12ELBOW | 593389601 | 1 | 1/4"Elbow | ||
| 13VALVE | 502617001 | 2 | 1/4" | ||
| 14CONNECTOR | 538981101 | 1 | 1/4"male to male | ||
| 15SCREW EHHFM | 506570105 | 1 | |||
| 16NUT | 533346901 | 1 | |||
| 17HOSE | 547279501 | 1 | HOSE 10/8 MM BLACK 2m |

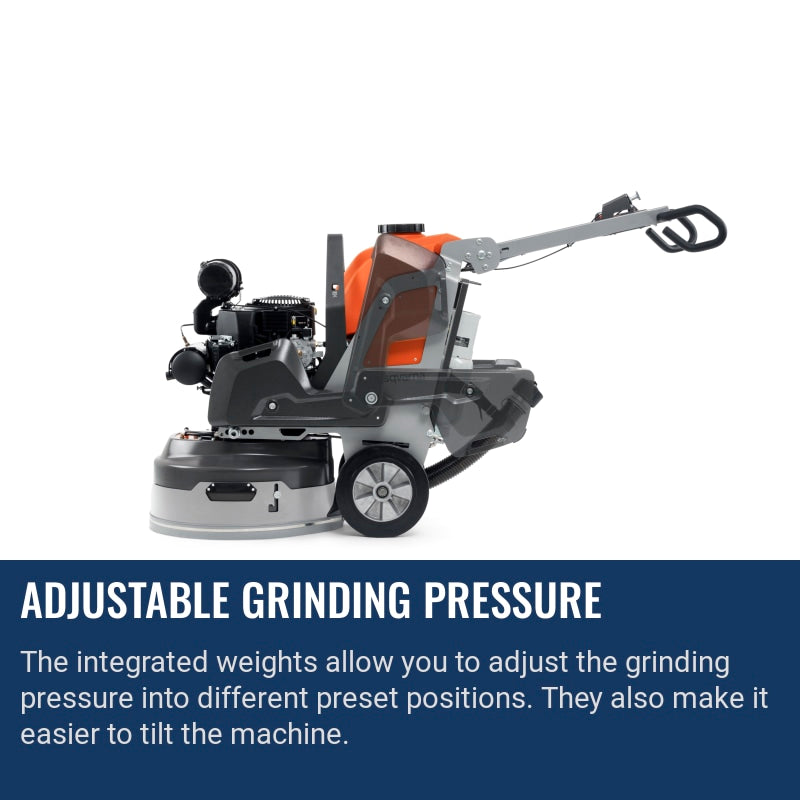

WEIGHT ASSY 16 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SHAFT | 536193202 | 2 | WEIGHT SHAFT PROPANE | ||
| 2SPRING PIN | 548750501 | 4 | WEIGHT LOCK | ||
| 3WASHER | 536313501 | 2 | 31x56x4 | ||
| 4NUT | 584831401 | 1 | |||
| 5SHIM | 598458601 | 6 | |||
| 6WASHER | 597883501 | 4 | 25x44x4 | ||
| 7CIRCLIP | 735312601 | 2 | EXTERNAL SGA 25x1.2 | ||
| 8BEARING | 593486001 | 2 | |||
| 9BUTTON | 536193101 | 1 | |||
| 10GAS SPRING | 593582302 | 2 | |||
| 11WASHER | 576823101 | 4 | 25x10 | ||
| 12SCREW | 531119426 | 4 | M6x16 10.9 | ||
| 13PROTECTION | 536280001 | 2 | WEIGHT SLIDE BLOCK | ||
| 14SCREW IHPANM | 522619901 | 2 | M8x12 10.9 | ||
| 15WASHER | 593633501 | 2 | 8.3x19x2 PA6 | ||
| 16WEIGHT KIT | 535546303 | 1 | WEIGHT KIT PROPANE |
Document Downloads
Service bulletin
Workshop manual
Operator's manual
Compatable Accessories
Concrete Focus
From pouring to resurfacing, we sell tools built for concrete pros.
Expert Support
Get guidance from experts who understand jobsite challenges.
Fast Delivery
Get your tools fast with our nationwide shipping network and local partnerships.
Talk to an expert now (855) 281-1918
Get fast, expert help choosing the right concrete tools or equipment for your job. Ask about availability, specs, troubleshooting, or get friendly guidance before you place an order.
