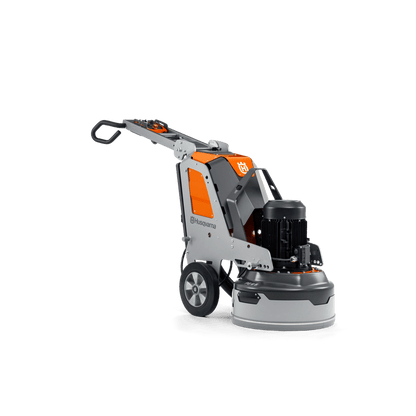

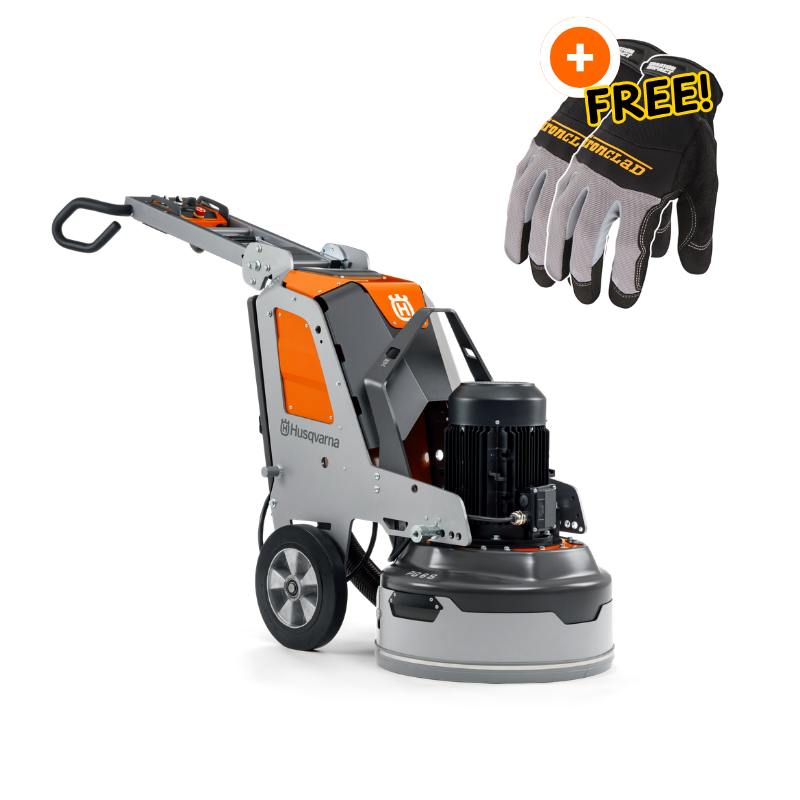

Husqvarna PG 6 S | Planetary Floor Grinder
Husqvarna PG 6 S | Planetary Floor Grinder
HUSQVARNA CONSTRUCTION SKU: 970603501 Copied!
Is this the right tool for the job?
Regular price
$24,480.00
Regular price
$28,953.00
Sale price
$24,480.00
Quantity
Trusted by contractors nationwide
"I've bought 3 products from CTD and each time the experience has been the same - professional and fast delivery. I trust these guys with all my concrete needs."
90 day returns
Product Details

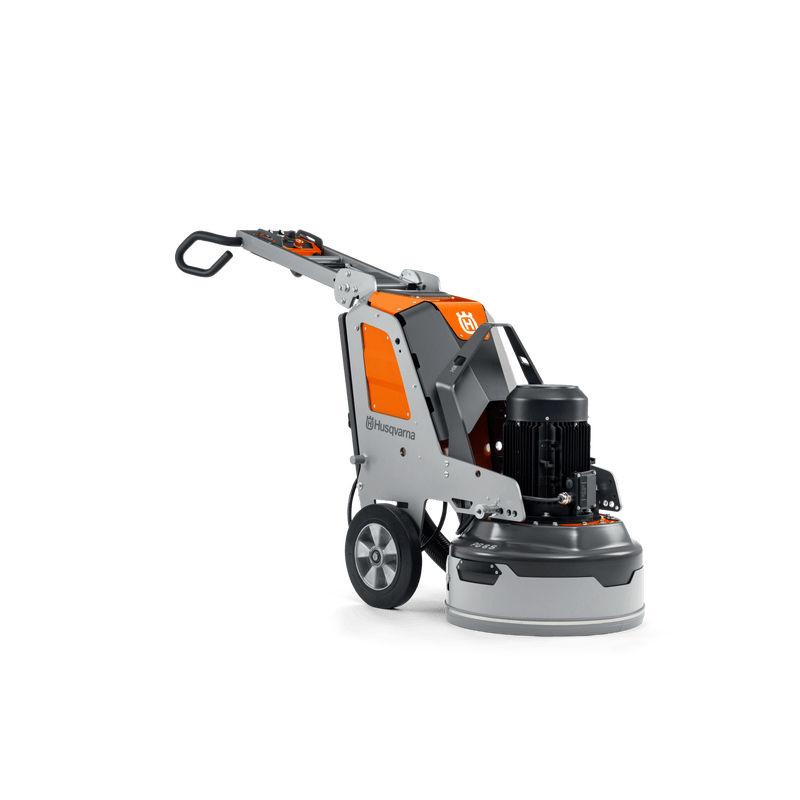

HUSQVARNA PLANETARY FLOOR GRINDER - UNLEASHING THE POWER OF SIMPLICITY
Experience the robustness and simplicity of the Husqvarna PG 6 S Planetary Floor Grinder. Designed for grinding and polishing tasks, this corded, 8 hp powerhouse offers a 23.6 inch grinding width and operates on 16 amperes, making it a versatile tool across various environments. With its non-motorized drive and adjustable weights option, it's both user-friendly and customizable to your specific needs.

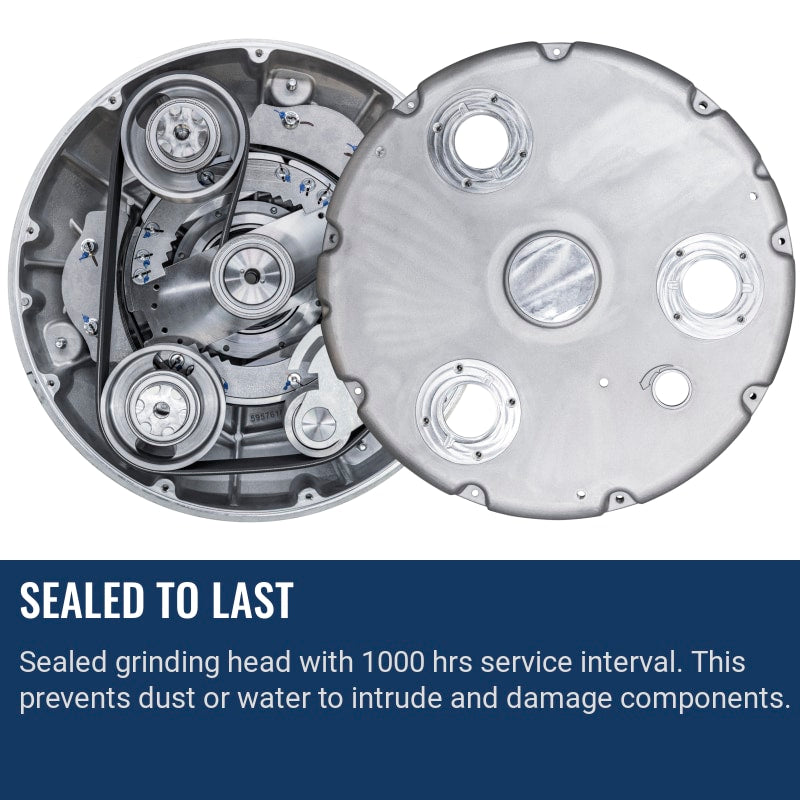

The durability of the PG 6 S is unmatched, thanks to its hermetically sealed grinding head and electrical cabinet. These features, along with its rugged components, ensure high reliability and low maintenance, enhancing your efficiency on the job site. It's an ideal tool for concrete construction workers who value quality, durability, and efficacy in their equipment.
- 8 hp Engine Power
- 23.6 in Grinding Width
- 1 Phase Operation
- 739 lbs Weight
- Both Directions of Rotation
Product Specification
Specifications
Engine Power (As rated by the engine manufacturer)
8 hp
Power source
Corded
Rated input power
8 hp
Phases
1 ph
Voltage
200-240 V
Rated current
50 A
Frequency
50-60 Hz
Pins
2P+E
Grinding width
23.6 in
Number of grinding discs
3
Direction of rotation
Both directions
Grinding disc diameter
9.1 in
Grinding disc speed min
441 rpm
Grinding disc speed max
1,176 rpm
Type of operation
Push
Product size length
48.5 in
Product size width
25.1 in
Product size height
44.6 in
Weight
739 lbs
Packaging length (Calc)
55.118 in
Packaging width (Calc)
35.433 in
Packaging height (Calc)
57.874 in
Article gross weight (Calc)
837.757 lbs
Warranty
2 year limited warranty
Related Equipment
Related Equipment
Service & Maintenance Parts
CHASSIS 15 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1FRAME ASSY | 535546701 | 1 | CHASSIS | ||
| 2SCREW | 593514801 | 8 | SCREW | ||
| 3BOLT | 582644801 | 2 | SCREW | ||
| 4LOCKWASHER | 735216401 | 4 | WASHER | ||
| 5SCREW EHHFM | 506570104 | 2 | SCREW | ||
| 6SCREW EHHFM | 585980601 | 6 | SCREW | ||
| 7WHEEL | 597345801 | 2 | WHEEL | ||
| 8CIRCLIP | 735312601 | 2 | CIRCLIP | ||
| 9SCREW | 597883401 | 1 | SCREW | ||
| 10SCREW EHHFM | 586120201 | 1 | SCREW | ||
| 11BRACKET | 536868201 | 1 | BRACKET | ||
| 12DAMPER | 586734901 | 1 | DAMPER | ||
| 13SCREW IHSCM | 725536401 | 1 | SCREW | ||
| 14NUT | 576645703 | 1 | NUT | ||
| 15STOPPER | 598808301 | 1 | BRACKET |
CHASSIS AND ENCLOSURES 15 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HANDLE | 597183901 | 1 | HANDLEBAR TUBE | ||
| 2HANDLEBAR ASSY | 597803501 | 1 | |||
| 3BEARING | 593486201 | 2 | BUSCHING | ||
| 4ADJUSTMENT DISC | 538929101 | 2 | ADJUSTMENT PLATE | ||
| 5BOLT | 582644801 | 2 | SCREW | ||
| 6HANDLE | 597183901 | 1 | HANDLEBAR | ||
| 7CLAMP | 597543801 | 4 | CLAMP | ||
| 8SCREW IHSCM | 725546101 | 2 | SCREW | ||
| 9CONTROL PANEL | 598534301 | 1 | CONTROL PANEL CMPL. | ||
| 10GASKET | 598429601 | 1 | GASKET | ||
| 11BRACKET | 597646101 | 1 | BRACKET | ||
| 12SCREW | 531119426 | 4 | SCREW | ||
| 13LOCKWASHER | 735215301 | 4 | WASHER | ||
| 14SCREW | 593509101 | 4 | SCREW | ||
| 15LOCKWASHER | 735214601 | 4 | WASHER |
CONTROL PANEL 17 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SWITCH | 598539401 | 1 | SWITCH 3 POS R2C | ||
| 2SWITCH | 598539801 | 1 | SWITCH 2 POS | ||
| 3SWITCH | 587283601 | 1 | POTENTIOMETER CMPL. |
Regular price
$312.01
Regular price
|
|
| 3SWITCH | 598557401 | 1 | EMERGENCY STOP | ||
| 4REGULATOR | 598745801 | 1 | POWER SUPPLY | ||
| 5CONTACT | 598540001 | 2 | CONTACT BLOCK | ||
| 6CONTACT | 598557001 | 1 | CONTACT BLOCK | ||
| 8SWITCH | 598539501 | 2 | HOLDER | ||
| 9CONNECTOR | 598540101 | 1 | CABLE | ||
| 10STICKER | 598558801 | 1 | OVERLAY | ||
| 11COVER | 597655901 | 1 | ENCLOSURE | ||
| 12CONTACT | 598556001 | 1 | USB | ||
| 13CONTROL PANEL | 597634301 | 1 | CABLE CMPL. | ||
| 14CLIP | 589669102 | 4 | CLIP | ||
| 15SCREW | 593509101 | 3 | SCREW | ||
| 16SCREW IHCSFM | 725637051 | 1 | SCREW |
Regular price
$22.78
Regular price
|
|
| 17NUT | 576645703 | 1 | NUT |
DECALS 1 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1DECAL KIT | 546068505 | 1 | DECAL KIT |
ELECTRICAL, INNER 16 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1FREQUENCY INVERTER | 548839501 | 1 | 1x200V - 6kW - PG 6 S with program | ||
| 1FREQUENCY INVERTER | 548844101 | 1 | 3x400/480V - 7,5kW - PG 6 S with program and cable | ||
| 2POWER SUPPLY | 595747401 | 1 | POWER SUPPLY | ||
| 3CIRCUIT BREAKER | 593560101 | 1 | CIRCUIT BREAKER | ||
| 4TERMINAL | 598519701 | 1 | TERMINAL | ||
| 4TERMINAL | 598519801 | 1 | TERMINAL | ||
| 4TERMINAL | 598519901 | 1 | TERMINAL | ||
| 5NUT | 732211651 | 2 | NUT | ||
| 5FAN | 595730101 | 1 | |||
| 6FILTER | 595747501 | 1 | EMI FILTER | ||
| 7DOOR | 536295701 | 1 | DOOR | ||
| 7HINGE KIT | 599669501 | 1 | HINGE KIT | ||
| 7LOCK ASSY | 599669601 | 2 | DOOR | ||
| 8HOUR METER | 598538101 | 1 | HOUR METER | ||
| 9SENSOR | 598526301 | 1 | RELAY | ||
| 10CONTACTOR | 593559301 | 1 | CONTACTOR |
ELECTRICAL, OUTER 21 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW EHHFM | 506570104 | 2 | SCREW | ||
| 2LOCKWASHER | 735216401 | 2 | WASHER | ||
| 3ADJUSTMENT SCREW | 540549601 | 2 | Electrical Cabinet Fastening Screw | ||
| 4SCREW | 595682201 | 10 | SCREW | ||
| 5HEAT SINK | 597255901 | 1 | HEATSINK | ||
| 6GASKET | 593536601 | 1 | GASKET | ||
| 7FAN | 595744301 | 8 | RUBBER MOUNT | ||
| 8FAN | 593549401 | 1 | FAN | ||
| 9LOCK NUT | 593500001 | 2 | NUT | ||
| 10PLATE | 597981401 | 1 | BRACKET | ||
| 11HEAT SINK | 537533301 | 1 | HEATSINK | ||
| 12BRACKET | 598519101 | 1 | HOUSING | ||
| 13RECEPTACLE | 598519201 | 1 | RECEPTACLE | ||
| 14SCREW ITXPANM | 544291303 | 4 | SCREW | ||
| 14HEXAGON NUT | 731231201 | 4 | NUT | ||
| 14LOCKWASHER | 735213601 | 8 | WASHER | ||
| 15CABLE ASSY | 536334701 | 1 | CABLE ASSY. | ||
| 16CABLE | 597632801 | 1 | CABLE ASSY. | ||
| 17PLUG | 502544001 | 1 | PLUG | ||
| 17PLUG | 591289101 | 1 | PLUG | ||
| 17PLUG | 593584701 | 1 | PLUG |
FRAME, LOWER 23 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW | 531119426 | 10 | SCREW | ||
| 2COVER | 598489101 | 1 | COVER | ||
| 3FRAME BRACKET | 596613901 | 1 | BRACKET | ||
| 4DISTANCE | 598480101 | 4 | SPACER | ||
| 5SCREW | 598921201 | 4 | SCREW | ||
| 6FRONT COVER | 597946703 | 1 | COVER | ||
| 7LIFTING ARM | 536260601 | 1 | LIFTING ARM | ||
| 8COVER | 597946801 | 1 | COVER | ||
| 9PLUG | 598945301 | 1 | PLUG | ||
| 10CLIP | 598932401 | 1 | CLIP | ||
| 11SCREW | 598921301 | 4 | SCREW | ||
| 12SCREW | 593514801 | 4 | SCREW | ||
| 13COUNTERWEIGHT | 596614101 | 2 | WEIGHT | ||
| 14COVER | 597249701 | 1 | COVER | ||
| 14COVER | 597249702 | 1 | COVER | ||
| 15RIVET | 593500801 | 8 | RIVET | ||
| 16SCREW EHHFM | 585980601 | 2 | SCREW | ||
| 17SCREW | 598749301 | 4 | SCREW | ||
| 18NUT | 576645706 | 4 | NUT | ||
| 19BAR | 598457901 | 1 | KICKBAR ASSY. | ||
| 20CLIP | 598458201 | 2 | CIRCLIP | ||
| 21BUSHING | 597875801 | 4 | BUSHING | ||
| 22BRACKET | 597727001 | 2 | SCREW |

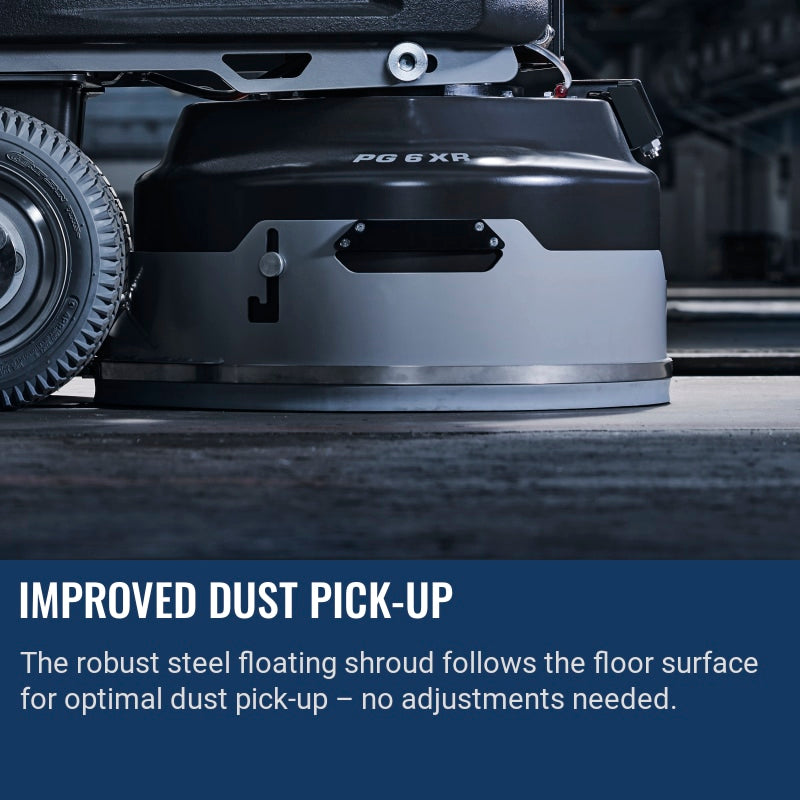

GRINDING COVER 8 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW | 597720901 | 8 | SCREW | ||

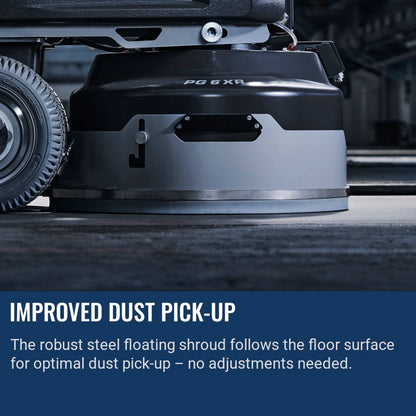

| 2DUST COVER | 536876501 | 1 | FLOATING COVER | ||
| 3DUST COVER | 534239401 | 1 | FLOATING SKIRT | ||
| 4KNOB | 536871401 | 2 | KNOB | ||
| 5HANDLE | 538663001 | 2 | LIFTING HANDLE | ||
| 6SCREW | 725632101 | 8 | SCREW | ||
| 7BAND | 547737803 | 1 | |||
| 8RUBBER SKIRT | 548518803 | 1 |
GRINDING HEAD 3 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1GRINDING HEAD | 546348801 | 1 | GRINDING HEAD ASSY | ||
| 2GRINDING HEAD | 536127701 | 1 | GRINDING HEAD ASSY | ||
| 3GRINDING UNIT | 536212901 | 3 | GRIND HOLDER |
GRINDING HEAD INTERNAL 23 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW | 593964101 | 1 | SCREW | ||
| 2WASHER | 593964201 | 1 | WASHER | ||
| 3HOUSING | 595761101 | 1 | BOTTOM T6 | ||
| 4TENSIONER | 593538101 | 1 | TENSIONER | ||
| 5SCREW | 593964001 | 1 | SCREW | ||
| 6BELT TENSIONER | 593543701 | 1 | BELT TENSIONER CMPL. | ||
| 7DRIVE BELT | 593487401 | 1 | BELT | ||
| 8SCREW | 593510401 | 1 | |||
| 9CABLE KIT | 597713901 | 1 | STOP | ||
| 10PIN | 593514101 | 2 | PIN | ||
| 11SCREW | 598749601 | 8 | SCREW | ||
| 12SCREW | 593504901 | 12 | SCREW | ||
| 13PLATE | 546061201 | 3 | PLATE | ||
| 14RADIAL SEAL | 593487201 | 3 | SEAL | ||
| 15SCREW | 593513701 | 9 | SCREW | ||
| 16O-RING | 593487101 | 1 | O-RING | ||
| 17DRIVE BELT | 593490501 | 1 | BELT | ||
| 18SHAFT ASSY | 536120101 | 3 | SHAFT ASSY. | ||
| 19HUB ASSY | 593543101 | 1 | CENTER HUB ASSY. | ||
| 20SCREW | 595681501 | 4 | SCREW | ||
| 21COUNTERWEIGHT | 595714001 | 8 | COUNTER WEIGHT | ||
| 22HOUSING | 595761001 | 1 | TOP T6 | ||
| 23WASHER | 734116301 | 8 | WASHER |

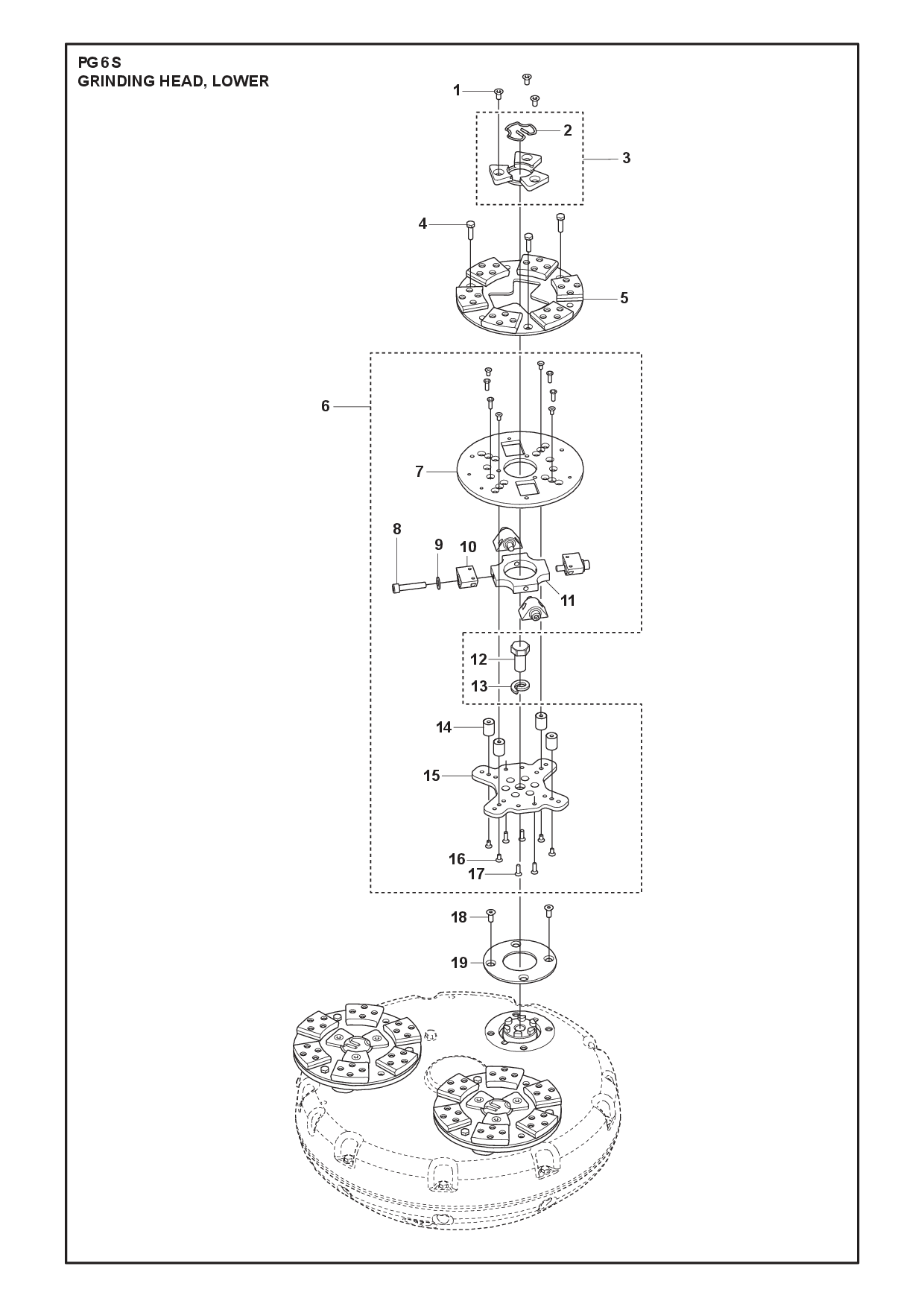

GRINDING HEAD, LOWER 18 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW | 593499901 | 3 | SCREW | ||
| 2CLIP | 547160101 | 1 | CLIP | ||
| 3CONNECTION SYSTEM | 547115701 | 1 | CROSS | ||
| 4SCREW | 505456101 | 3 | SCREW | ||

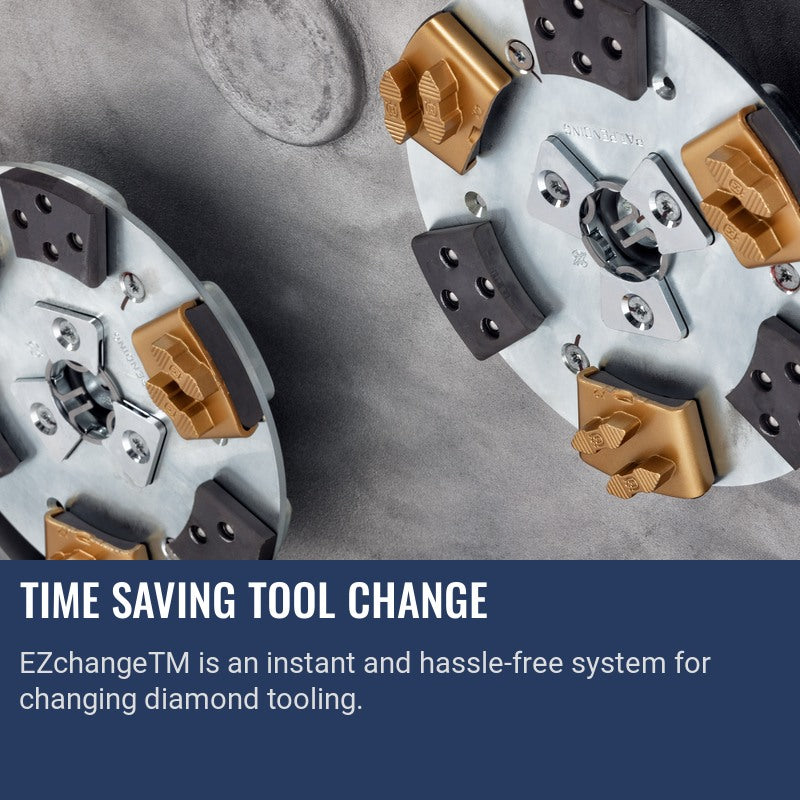

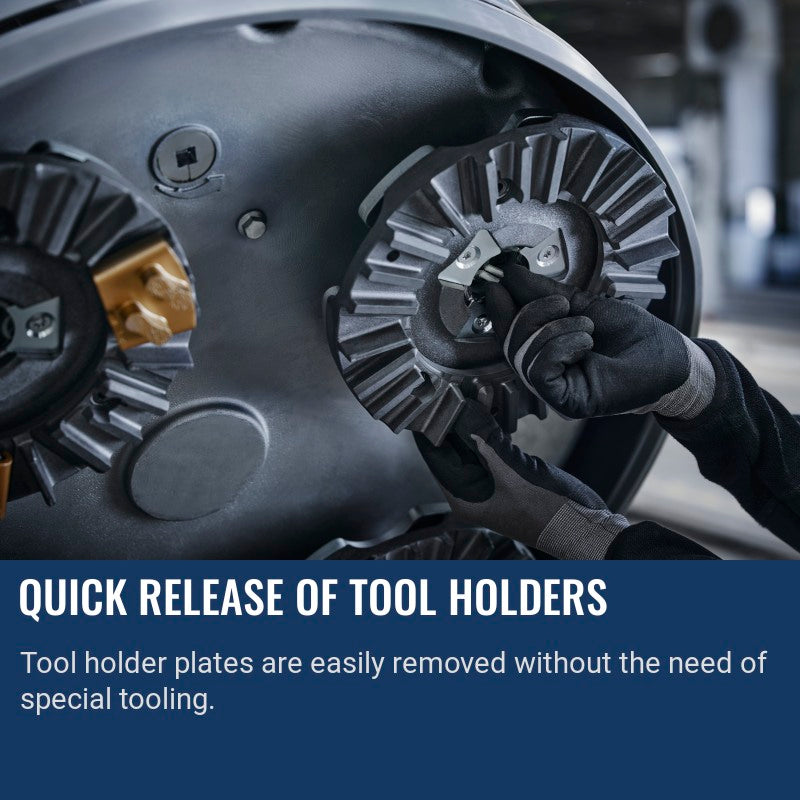

| 5TOOL HOLDER | 548711302 | 1 | Tool holder EZchange™ Wing 230 6 HCB | ||
| 6HOLDER | 547639901 | 1 | |||
| 7PLATE | 593539801 | 1 | PLATE | ||
| 8SCREW | 593512601 | 4 | SCREW | ||
| 9WASHER | 593499101 | 4 | WASHER | ||
| 10BRACKET | 593718101 | 4 | EAR WIDE CMPL. | ||
| 11CONNECTION | 593536201 | 1 | CARDAN CONNECTION | ||
| 12SCREW EHHM | 504748901 | 1 | SCREW | ||
| 13LOCKWASHER | 504749603 | 1 | LOCKWASHER | ||
| 14ABSORBER | 595748401 | 4 | ABSORBER | ||
| 15PLATE | 547571301 | 1 | PLATE | ||
| 16SCREW | 593505101 | 8 | SCREW | ||
| 17SCREW | 593508501 | 8 | SCREW | ||
| 18SEAL | 536983501 | 1 | SEAL |
GRINDING HEAD UPPER 10 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1NUT | 576645706 | 4 | NUT | ||
| 2BOLT | 593514501 | 4 | STUD | ||
| 3STOP | 598778001 | 2 | STOP | ||
| 4CLAMP | 593542001 | 4 | CLAMP | ||
| 5SUSPENSION | 593539001 | 2 | RUBBER BUSCHING | ||
| 6AXLE | 593538301 | 2 | AXLE | ||
| 7SUPPORT | 536311701 | 2 | SUPPORT | ||
| 8SCREW EHHM | 725246251 | 8 | SCREW | ||
| 9SCREW | 597720901 | 2 | SCREW | ||
| 10MOTOR | 536070401 | 1 | PLATE |

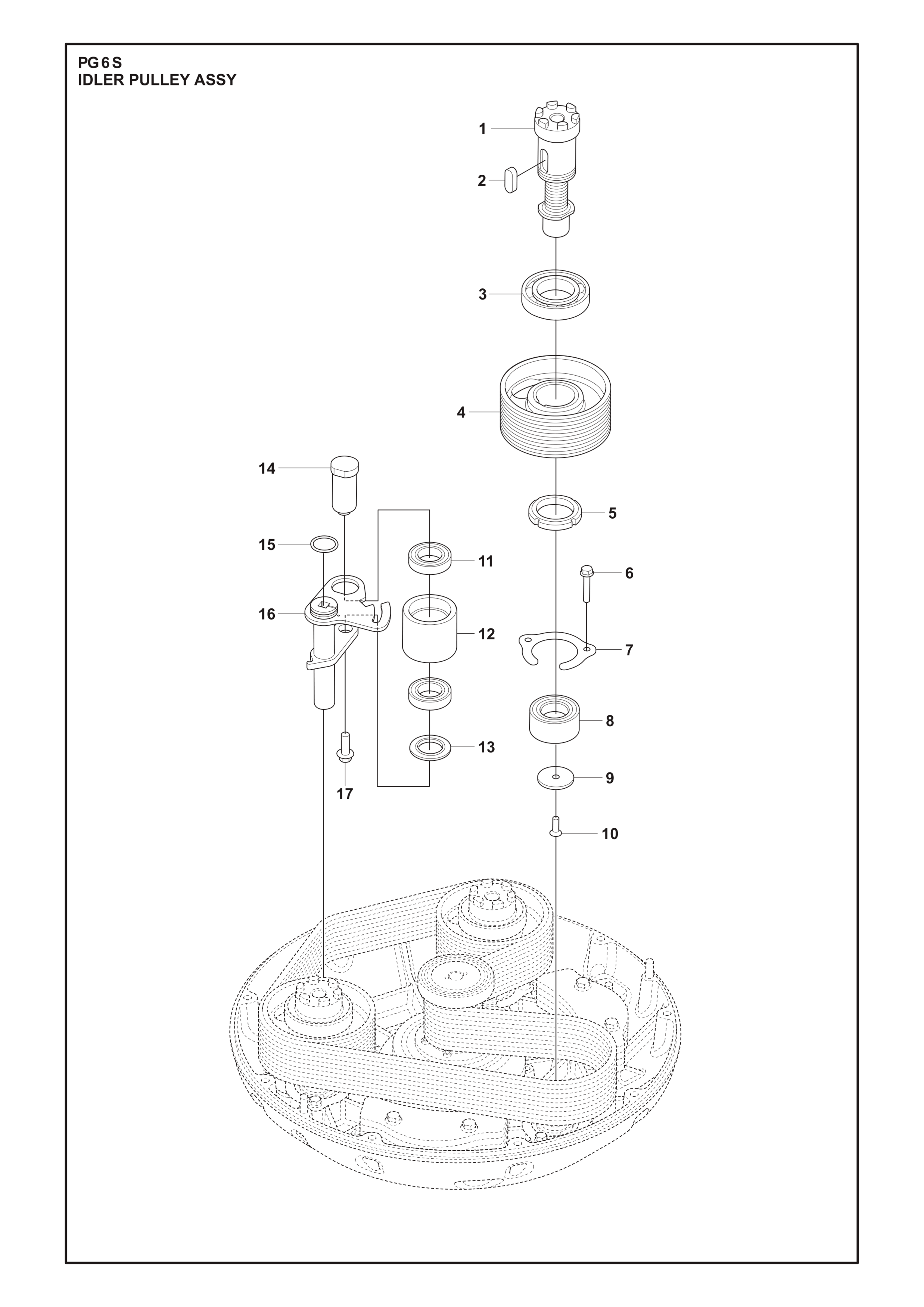

IDLER PULLEY ASSY 17 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SHAFT | 536124001 | 3 | SHAFT | ||
| 2KEY | 593487601 | 3 | KEY | ||
| 3BALL BEARING | 593492701 | 3 | BALL BEARING | ||
| 4PULLEY | 595757501 | 3 | PULLEY | ||
| 5NUT | 593487901 | 3 | NUT | ||
| 6SCREW | 593513701 | 6 | SCREW | ||
| 7WASHER | 595710001 | 3 | WASHER | ||
| 8BEARING | 593487701 | 3 | BEARING | ||
| 9WASHER | 595709901 | 3 | WASHER | ||
| 10SCREW | 593501701 | 3 | SCREW | ||
| 11BALL BEARING | 593492801 | 2 | BALL BEARING | ||
| 12PULLEY | 595709801 | 1 | PULLEY | ||
| 13SPACER | 595757301 | 1 | SPACER | ||
| 14AXLE | 595761401 | 1 | AXLE | ||
| 15O-RING | 593487801 | 1 | O-RING | ||
| 16TENSIONER | 595760601 | 1 | TENSIONER | ||
| 17SCREW | 595680101 | 1 | SCREW |
MISC SPARE PARTS 4 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HOSE NIPPLE | 593457602 | 1 | |||
| 2HOSE | 593478703 | 1 | HOSE | ||
| 3HOSE CLAMP | 593445001 | 1 | HOSE CLAMP | ||
| 4STRAP | 593536701 | 1 | STRAP |
MOTOR 6 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1MOTOR | 547108505 | 1 | FAN COVER | ||
| 2MOTOR | 546902004 | 1 | COOLING FAN | ||
| 3MOTOR | 593560301 | 1 | MOTOR | ||
| 4SCREW | 595680101 | 4 | SCREW |
Regular price
$21.44
Regular price
|
|
| 5MOTOR | 546902103 | 1 | KEY | ||
| 6SEAL | 597255101 | 1 | MOTOR SPACER SEALING |
PULLEY ASSY 15 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BALL BEARING | 593492601 | 1 | BALL BEARING | ||
| 2PULLEY | 595760101 | 1 | PULLEY | ||
| 3PULLEY | 595709601 | 2 | PLATE | ||
| 4SCREW | 593504901 | 14 | SCREW | ||
| 5SCREW | 593514201 | 6 | SCREW | ||
| 6PULLEY | 595757201 | 1 | PULLEY | ||
| 7BALL BEARING | 593629901 | 2 | BALL BEARING | ||
| 8SPACER | 595713101 | 1 | SPACER | ||
| 9CIRCLIP | 595679801 | 1 | CIRCLIP | ||
| 10HUB | 595713001 | 1 | HUB | ||
| 11RADIAL SEAL | 593487001 | 1 | SEAL | ||
| 12HUB | 593542901 | 1 | HUB | ||
| 13BALL BEARING | 593492601 | 1 | BALL BEARING | ||
| 14CIRCLIP | 593503001 | 1 | CIRCLIP | ||
| 15CIRCLIP | 593502901 | 1 | CIRCLIP |

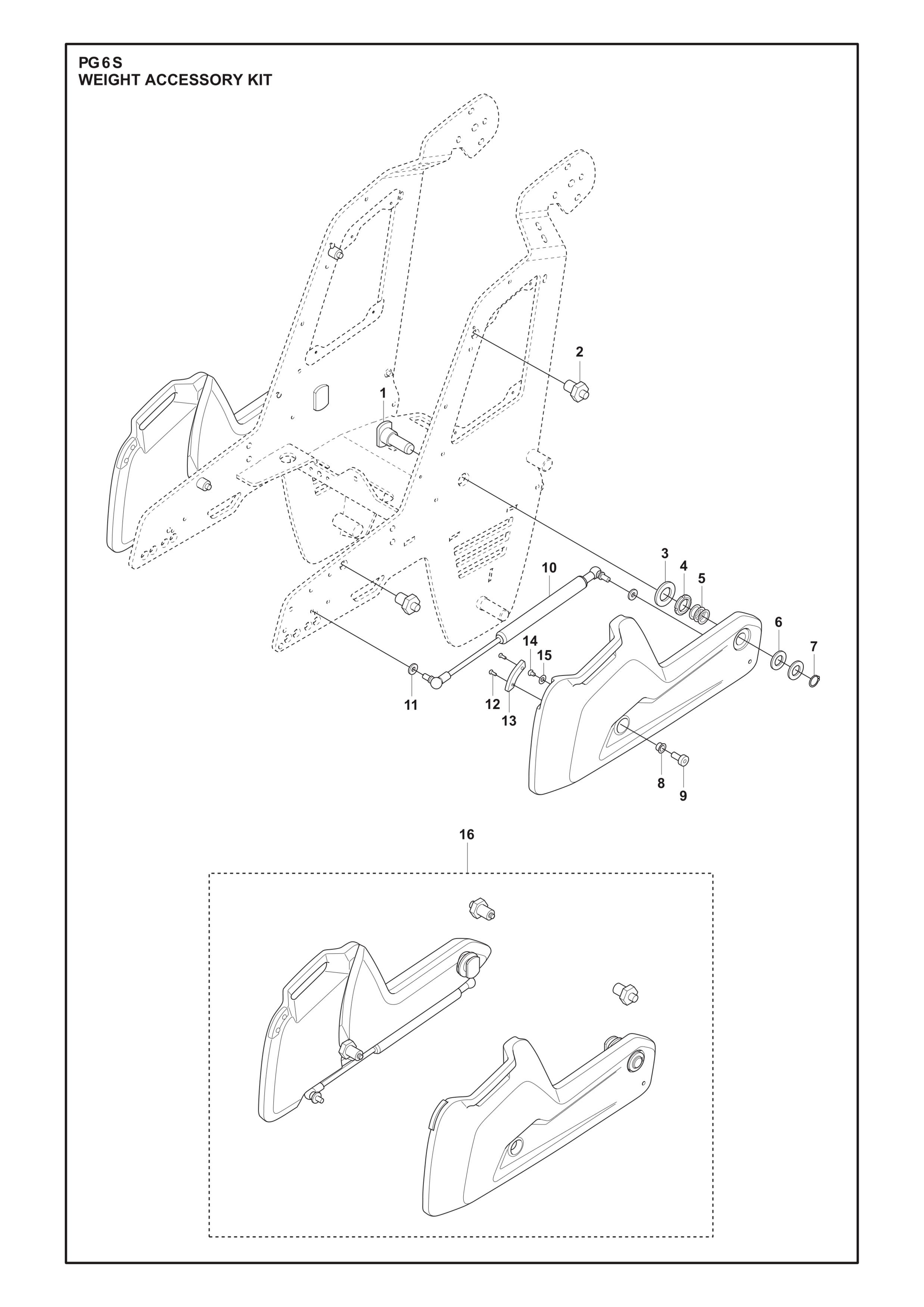

WEIGHT ASSY 16 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SHAFT | 536193201 | 2 | SHAFT | ||
| 2SPRING PIN | 548750501 | 4 | WEIGHT LOCK | ||
| 3WASHER | 536313501 | 2 | WASHER | ||
| 4NUT | 584831401 | 2 | NUT | ||
| 5SHIM | 598458601 | 6 | SHIM | ||
| 6WASHER | 597883501 | 4 | WASHER | ||
| 7CIRCLIP | 735312601 | 2 | CIRCLIP | ||
| 8BEARING | 593486001 | 2 | BUSHING | ||
| 9BUTTON | 536193101 | 2 | BUTTON | ||
| 10GAS SPRING | 593582302 | 2 | GAS SPRING | ||
| 11WASHER | 576823101 | 4 | WASHER | ||
| 12SCREW | 531119426 | 4 | SCREW | ||
| 13PROTECTION | 536280001 | 2 | PROTECTION | ||
| 14SCREW IHPANM | 522619901 | 2 | SCREW | ||
| 15WASHER | 593633501 | 2 | WASHER | ||

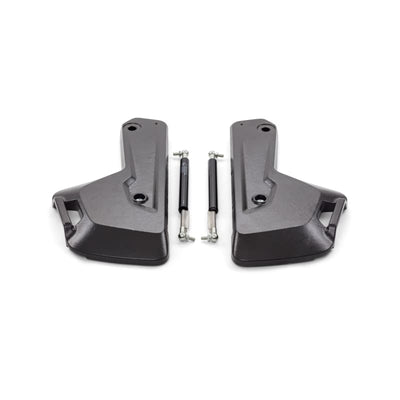

| 16WEIGHT KIT | 535546301 | 1 | WEIGHT KIT |
Document Downloads
Service bulletin
Workshop manual
Operator's manual
Compatable Accessories
Concrete Focus
From pouring to resurfacing, we sell tools built for concrete pros.
Expert Support
Get guidance from experts who understand jobsite challenges.
Fast Delivery
Get your tools fast with our nationwide shipping network and local partnerships.
Talk to an expert now (855) 281-1918
Get fast, expert help choosing the right concrete tools or equipment for your job. Ask about availability, specs, troubleshooting, or get friendly guidance before you place an order.
