Husqvarna PG 8 D
Husqvarna PG 8 D
HUSQVARNA CONSTRUCTION SKU: 970605005 Copied!
Is this the right tool for the job?
Regular price
$36,239.00
Regular price
$42,879.00
Sale price
$36,239.00
Quantity
Trusted by contractors nationwide
"I've bought 3 products from CTD and each time the experience has been the same - professional and fast delivery. I trust these guys with all my concrete needs."
90 day returns
Product Details

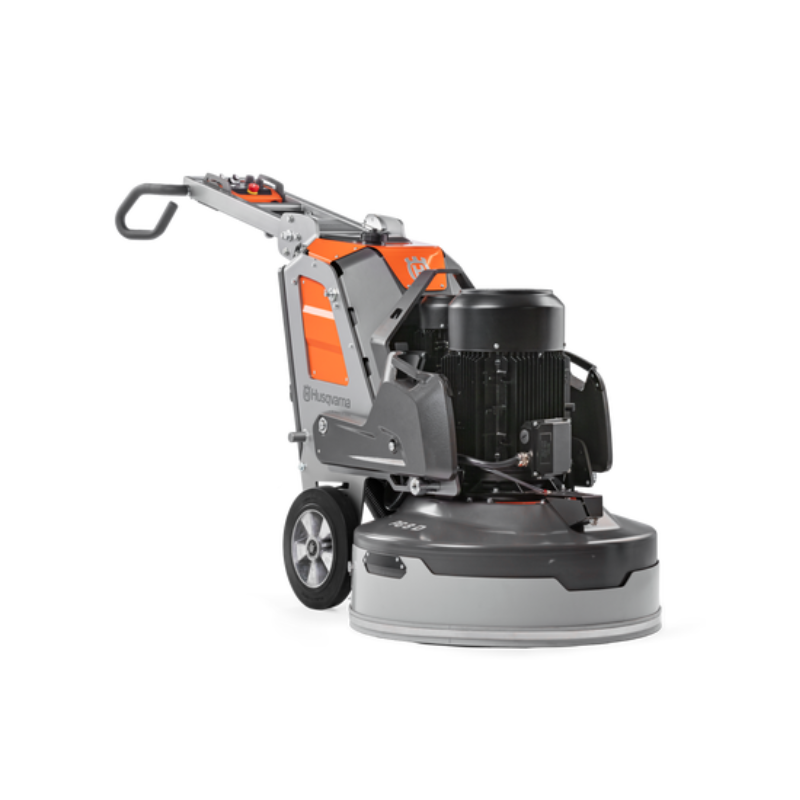

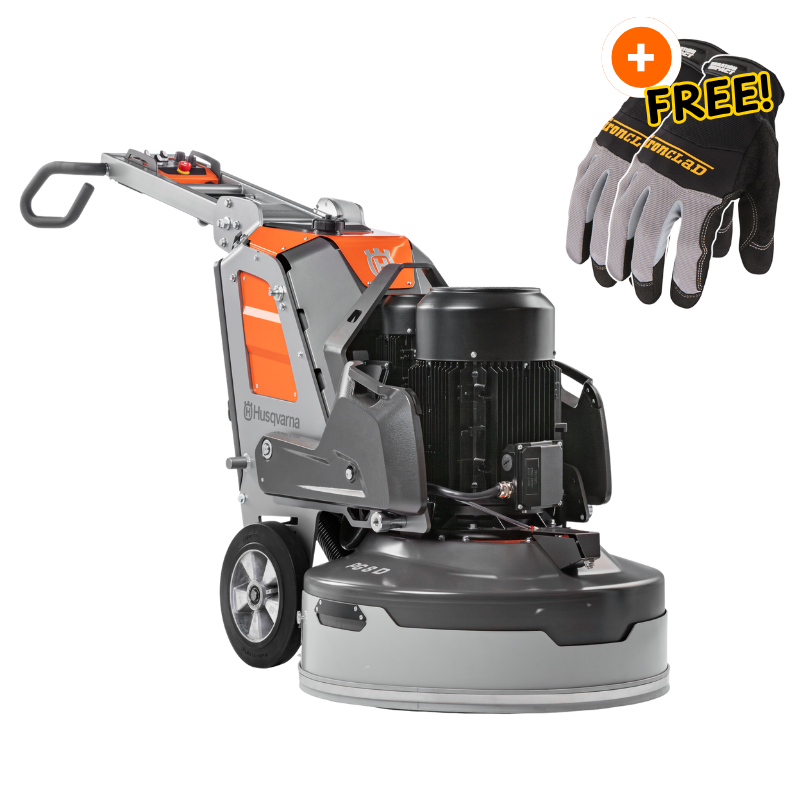

Husqvarna PG 8 D
The PG 8 D is a powerful planetary floor grinder with Dual Drive Technology™. This feature lets you adjust the grinding discs' rotation speed and direction independently of the drum. The machine is an excellent choice for all applications, from preparing to grinding and polishing concrete and stone floors. The mist cooler system cools the diamond tools, significantly increasing the removal rate and reducing the risk of glazing the tools (compared with not using the mist cooler system). If needed, the integrated adjustable weights can be used to increase grinding pressure and productivity.
Key Features

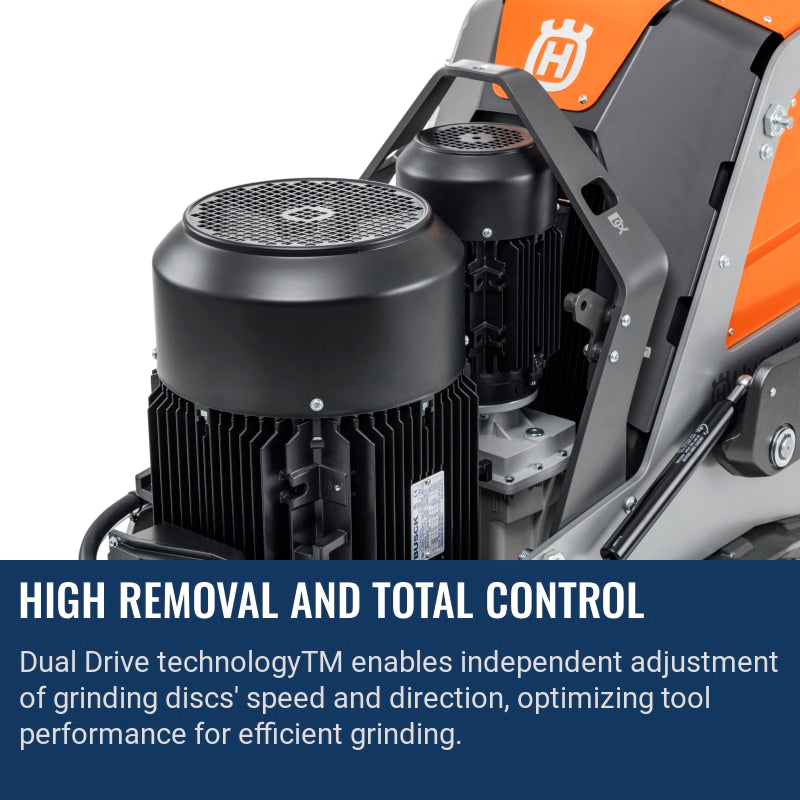

- Dual Drive Technology™: Independently control the rotation speed and direction of the grinding discs and drum for optimal performance.

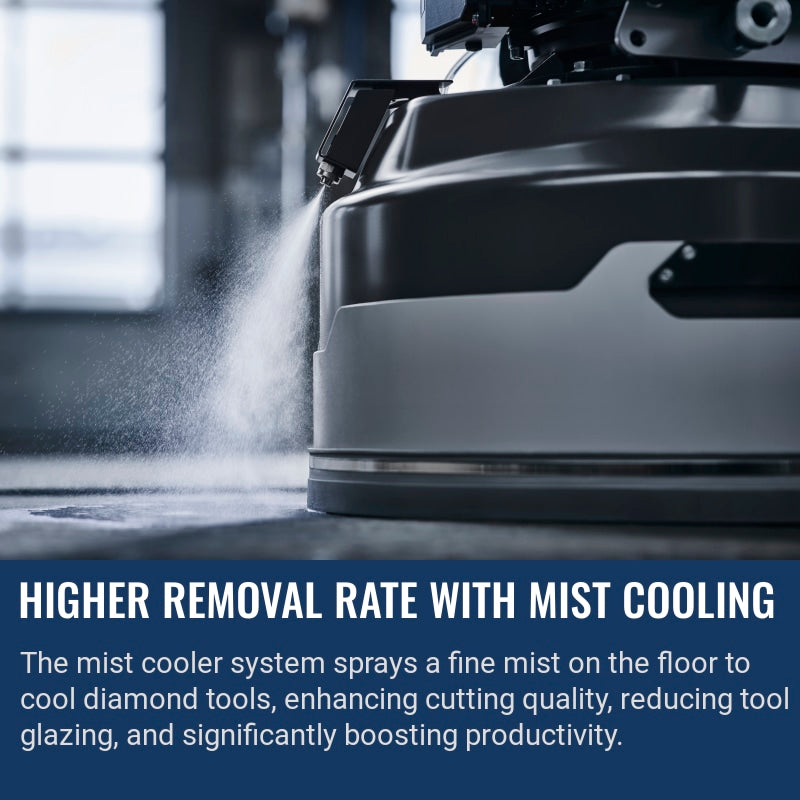

- Mist Cooler System: Cools diamond tools to improve removal rate and prevent glazing.

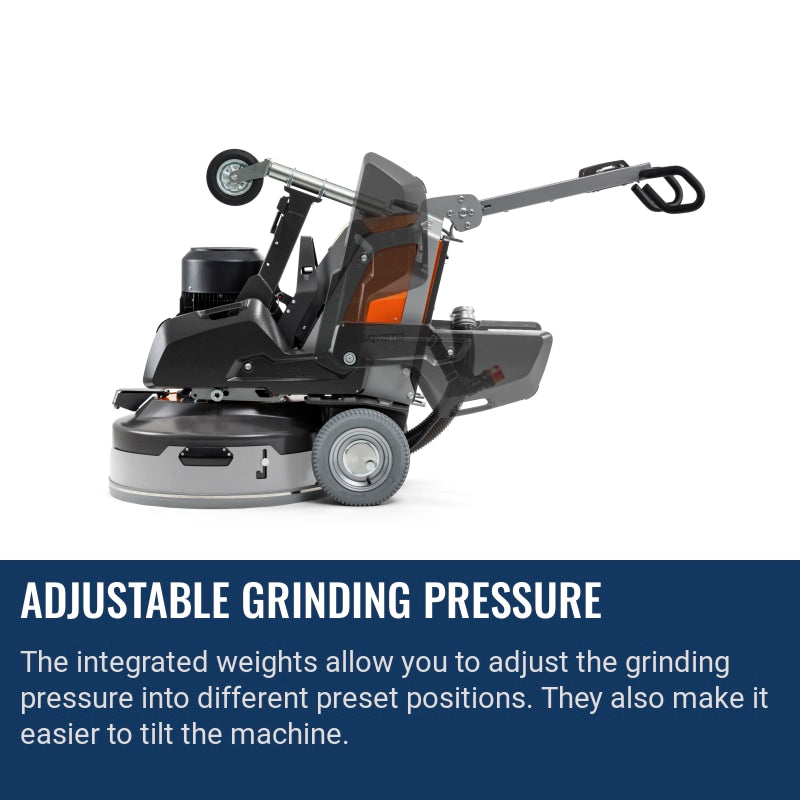

- Adjustable Integrated Weights: Increase grinding pressure for higher productivity.

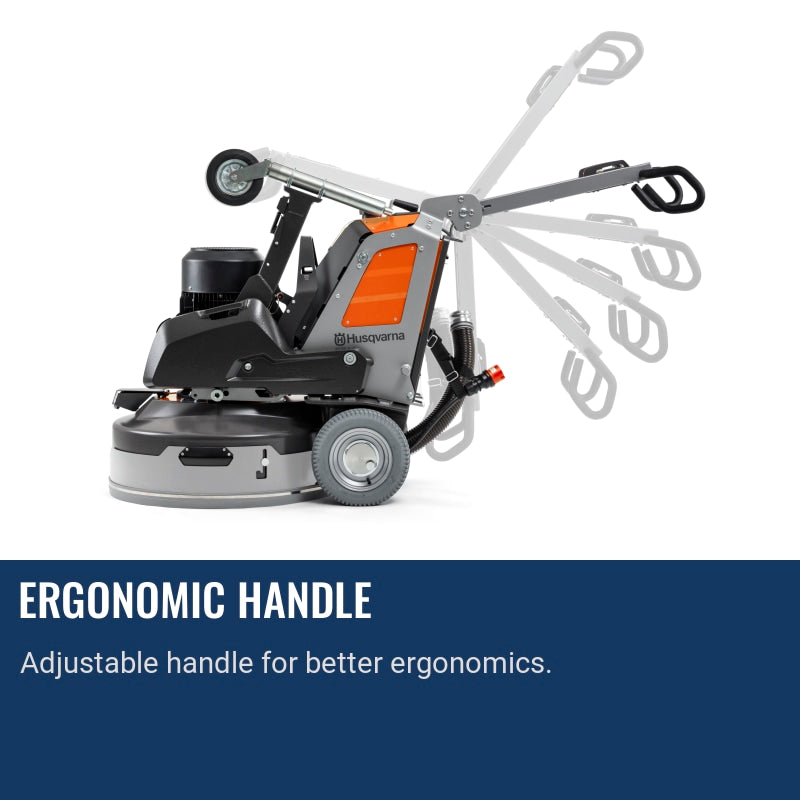

- Ergonomic Design: Adjustable handle and handle bar for operator comfort.

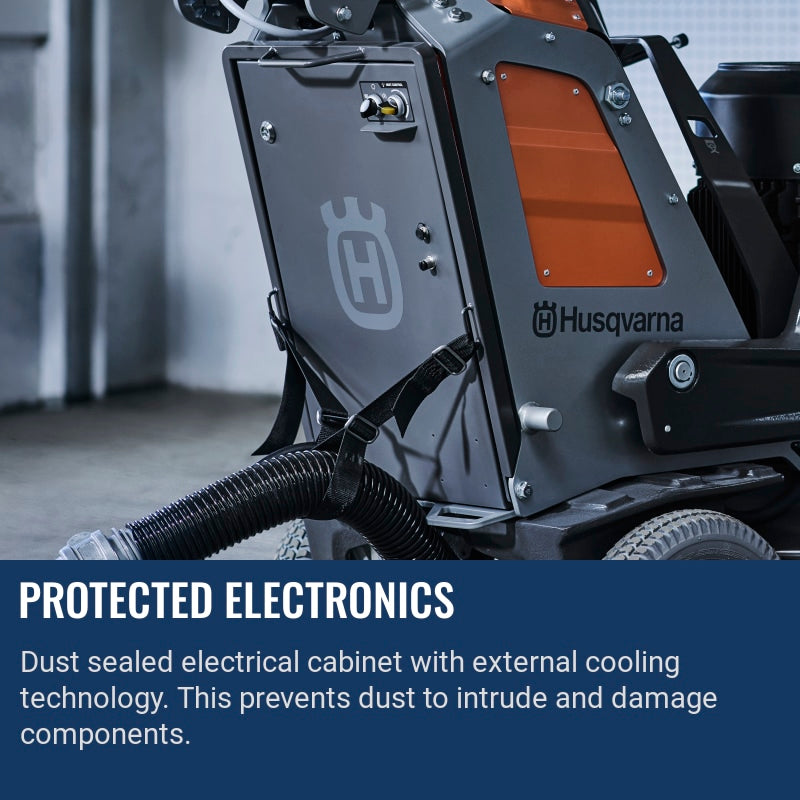

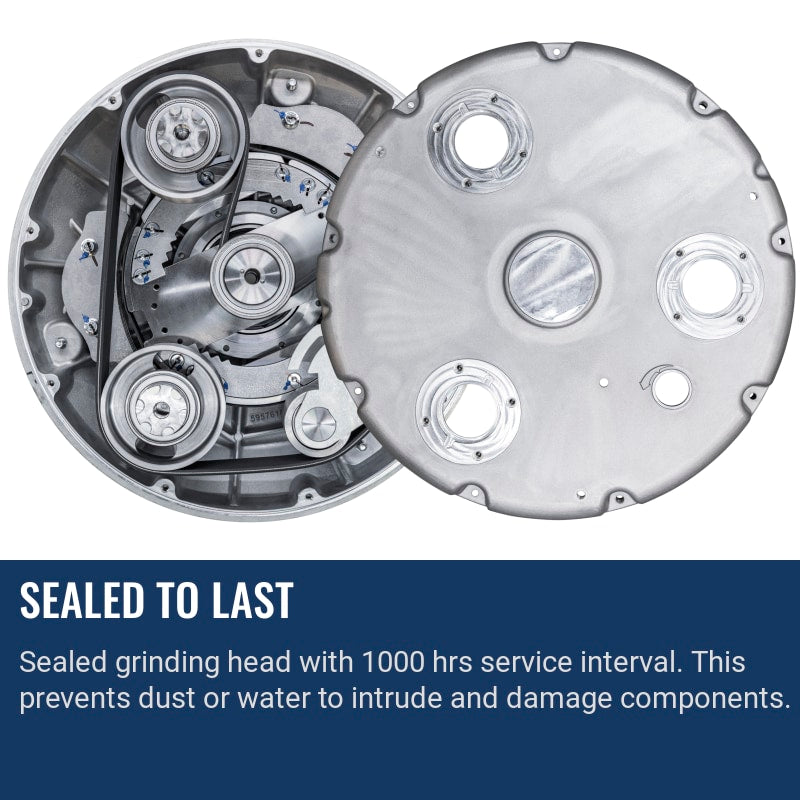

- Sealed Grinding Head & Electrical Cabinet: Ensures high reliability and reduces maintenance needs.

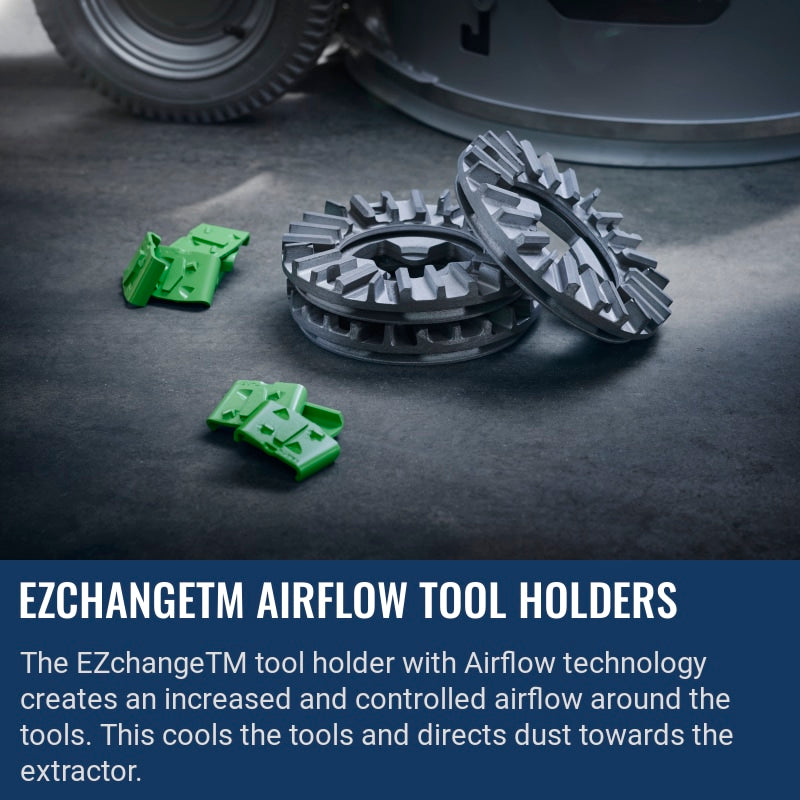

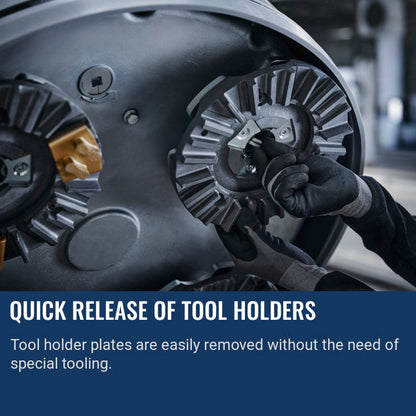

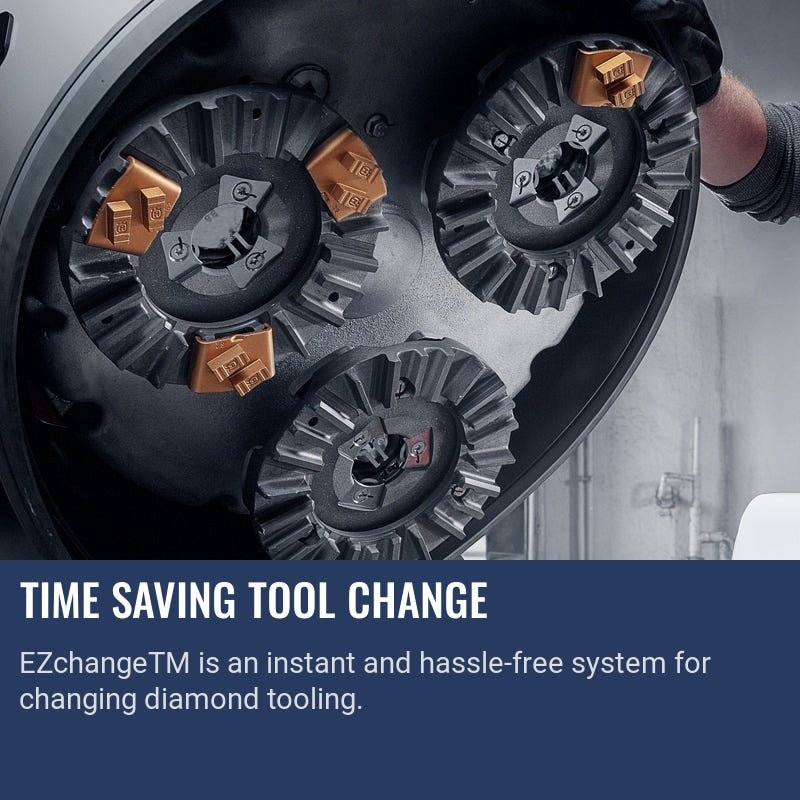

- Tool Holder: EZchange™ Airflow for quick and secure tool changes.

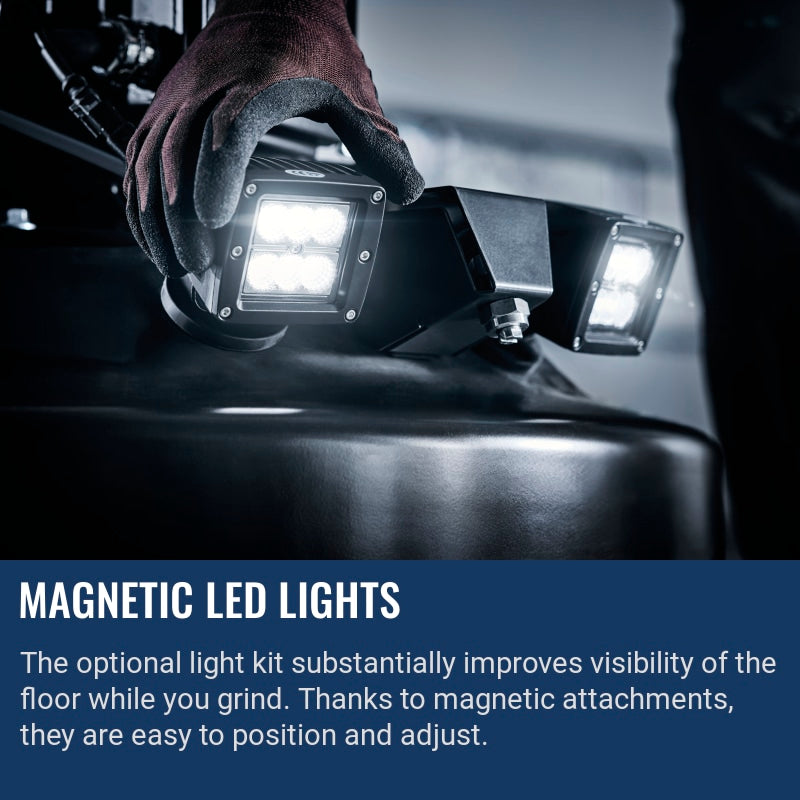

- Optional Equipment: LED lights and water kit available for enhanced versatility.
Engineered for demanding floor preparation and polishing tasks, the Husqvarna PG 8 D delivers exceptional versatility, precision, and operator comfort, making it an outstanding choice for concrete and stone flooring projects of any scale.
Product Specification
Product Info
Manufacturer
Husqvarna
Product Type
Husqvarna PG 8 D
Part #
970605005
Dimensions & Weight
Product size length
54.8 in
Product size width
33 in
Product size height
44.6 in
Weight
1,257 lbs
Packaging length (in.)
55.118 in
Packaging width (in.)
35.433 in
Packaging height (in.)
57.874 in
Article gross weight (lbs.)
1,344.82 lbs
Other Specs
Engine power (rated)
22.1 hp
Power source
Corded
Rated input power
22.1 hp
Phases
3 ph
Voltage
440-480 V
Rated current
30 A
Frequency
50-60 Hz
Pins
3P+E
Grinding width
31.5 in
Number of grinding discs
3
Direction of rotation
Both directions
Grinding disc diameter
10.6 in
Grinding disc speed min
420 rpm
Grinding disc speed max
1,176 rpm
Operation type
Push
Warranty
Husqvarna PG 8 D Warranty
1 year limited warranty
Related Equipment
Related Equipment
Service & Maintenance Parts
CENTER HUB ASSY 12 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BALL BEARING | 593492601 | 1 | BALL BEARING | ||
| 2PULLEY | 595759901 | 1 | PULLEY | ||
| 3SCREW | 593514201 | 6 | SCREW | ||
| 4RETAINER | 597722101 | 1 | RETAINER | ||
| 5BALL BEARING | 593629901 | 1 | BALL BEARING | ||
| 6SPACER | 595713101 | 1 | SPACER | ||
| 7CIRCLIP | 595679801 | 1 | CIRCLIP | ||
| 8HUB | 595713001 | 1 | HUB | ||
| 9HUB | 593542901 | 1 | HUB | ||
| 10BALL BEARING | 593492601 | 1 | BALL BEARING | ||
| 11CIRCLIP | 593503001 | 1 | CIRCLIP | ||
| 12CIRCLIP | 593502901 | 1 | CIRCLIP |
CHASSIS 12 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1FRAME ASSY | 535546701 | 1 | CHASSIS | ||
| 2SCREW | 593514801 | 8 | SCREW | ||
| 3BOLT | 582644801 | 2 | SCREW | ||
| 4LOCKWASHER | 735216401 | 4 | WASHER | ||
| 5SCREW EHHFM | 506570104 | 2 | SCREW | ||
| 6SCREW EHHFM | 585980601 | 6 | SCREW | ||
| 7WHEEL | 597345801 | 2 | WHEEL | ||
| 8CIRCLIP | 735312601 | 2 | CIRCLIP | ||
| 9HEXAGON NUT | 731232201 | 1 | NUT | ||
| 10NUT | 576645706 | 1 | NUT | ||
| 11WHEEL | 593543901 | 1 | DAMPER | ||
| 12SCREW EHHM | 725254491 | 1 | SCREW |
CHASSIS UPPER 23 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW | 531119426 | 10 | SCREW | ||
| 2COVER | 598489101 | 1 | COVER | ||
| 3FRAME BRACKET | 596613901 | 1 | BRACKET | ||
| 4DISTANCE | 598480101 | 4 | SPACER | ||
| 5SCREW | 598921201 | 4 | SCREW | ||
| 6FRONT COVER | 597946701 | 1 | COVER | ||
| 7LIFTING ARM | 536260601 | 1 | LIFTING ARM | ||
| 8COVER | 597946801 | 1 | COVER | ||
| 9PLUG | 598945301 | 1 | PLUG | ||
| 10CLIP | 598932401 | 1 | CLIP | ||
| 11SCREW | 598921301 | 4 | SCREW | ||
| 12SCREW | 593514801 | 4 | SCREW | ||
| 13COUNTERWEIGHT | 596614101 | 2 | WEIGHT | ||
| 14COVER | 597249701 | 1 | COVER | ||
| 14COVER | 597249702 | 1 | COVER | ||
| 15RIVET | 593500801 | 8 | RIVET | ||
| 16SCREW EHHFM | 585980601 | 2 | SCREW | ||
| 17SCREW | 598749301 | 4 | SCREW | ||
| 18NUT | 576645706 | 4 | NUT | ||
| 19BAR | 597182301 | 1 | KICKBAR | ||
| 20CLIP | 598458201 | 2 | CIRCLIP | ||
| 21BUSHING | 597875801 | 4 | BUSHING | ||
| 22BRACKET | 597727001 | 2 | SCREW |
CONTROL PANEL 17 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SWITCH | 598539401 | 1 | SWITCH | ||
| 2SWITCH | 598539801 | 1 | SWITCH | ||
| 3SWITCH | 598557401 | 1 | SWITCH | ||
| 4SWITCH | 587283601 | 2 | POTENTIOMETER CMPL. |
Regular price
$312.01
Regular price
|
|
| 5STICKER | 598558801 | 1 | OVERLAY | ||
| 6CONTACT | 598556001 | 1 | USB | ||
| 7REGULATOR | 598745801 | 1 | POWER SUPPLY | ||
| 8CONNECTOR | 598540101 | 1 | CABLE | ||
| 9SWITCH | 598539501 | 2 | HOLDER | ||
| 10CONTACT | 598557001 | 1 | CONTACT BLOCK | ||
| 11CONTACT | 598540001 | 2 | CONTACT BLOCK | ||
| 12TERMINAL BLOCK | 598557101 | 1 | TERMINAL BLOCK | ||
| 13CLIP | 589669102 | 4 | CLIP | ||
| 14SCREW | 593509101 | 3 | SCREW | ||
| 15CONTROL PANEL | 597634401 | 1 | CABLE CMPL. | ||
| 16SCREW IHCSFM | 725637051 | 1 | SCREW |
Regular price
$22.78
Regular price
|
|
| 18NUT | 576645703 | 1 | NUT |
DECALS 1 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1DECAL KIT | 546068507 | 1 | DECAL KIT |
ELECTRICAL, INNER 18 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 2POWER SUPPLY | 595747401 | 1 | POWER SUPPLY | ||
| 3CIRCUIT BREAKER | 593560101 | 1 | CIRCUIT BREAKER | ||
| 4TERMINAL | 598519701 | 1 | TERMINAL | ||
| 4TERMINAL | 598519801 | 1 | TERMINAL | ||
| 4TERMINAL | 598519901 | 1 | TERMINAL | ||
| 6SENSOR | 598526301 | 1 | |||
| 7CONTACTOR | 593559401 | 1 | |||
| 8TERMINAL BLOCK | 546410901 | 1 | |||
| 9TERMINAL BLOCK | 547554101 | 1 | |||
| 10TERMINAL BLOCK | 547554201 | 1 | |||
| 11TERMINAL BLOCK | 547554201 | 1 | |||
| 12FUSE | 547553101 | 1 | |||
| 13FUSE | 547553201 | 1 | |||
| 14FUSE HOLDER | 547554301 | 1 | |||
| 15FILTER | 593559901 | 1 | |||
| 16FREQUENCY INVERTER | 529730501 | 1 | |||
| 19FREQUENCY INVERTER | 548844701 | 1 | |||
| 20FAN | 597633201 | 1 |
ELECTRICAL, OUTER 44 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1FAN | 593549401 | 1 | FAN | ||
| 1PLATE | 597981401 | 1 | BRACKET | ||
| 2FAN | 595744301 | 8 | RUBBER MOUNT | ||
| 3ADJUSTMENT SCREW | 540549601 | 2 | Electrical Cabinet Fastening Screw | ||
| 4SCREW | 595682201 | 10 | SCREW | ||
| 5LOCK NUT | 593500001 | 2 | NUT | ||
| 7GASKET | 593536601 | 1 | GASKET | ||
| 7HEAT SINK | 597255901 | 1 | HEATSINK | ||
| 8SWITCH | 536494001 | 1 | |||
| 9SWITCH | 536493901 | 1 | |||
| 10HEAT SINK | 537533301 | 1 | HEATSINK | ||
| 14PLUG | 502544001 | 1 | PLUG | ||
| 14SCREW ITXPANM | 544291303 | 4 | SCREW | ||
| 14PLUG | 578777301 | 1 | PLUG | ||
| 14PLUG | 593584801 | 1 | PLUG | ||
| 14PLUG | 597528401 | 1 | PLUG | ||
| 14HEXAGON NUT | 731231201 | 4 | NUT | ||
| 15CABLE | 597632801 | 1 | CABLE ASSY. | ||
| 16CABLE ASSY | 536334701 | 1 | CABLE ASSY. | ||
| 17CABLE | 597633001 | 1 | |||
| 19RECEPTACLE | 598519501 | 1 | |||
| 20RECEPTACLE | 598519301 | 1 | |||
| 21RECEPTACLE | 598519201 | 1 | RECEPTACLE | ||
| 22BRACKET | 598519101 | 1 | HOUSING | ||
| 25LOCKWASHER | 735216401 | 2 | WASHER | ||
| 26SCREW EHHFM | 506570104 | 2 | SCREW | ||
| 27PRINTED CIRCUIT ASSY | 536119101 | 1 | |||
| 28HOUSING | 547554401 | 1 | |||
| 29HOUSING | 547554401 | 1 | |||
| 30TERMINAL BLOCK | 547554901 | 1 | |||
| 31CABLE HOLDER | 547673201 | 1 | |||
| 32TERMINAL | 547673301 | 1 | |||
| 33TERMINAL BLOCK | 547673501 | 1 | |||
| 34TERMINAL | 547673401 | 1 | |||
| 35CONTACT | 598540001 | 1 | |||
| 35CONTACT | 598557001 | 1 | |||
| 36SWITCH | 598539501 | 1 | |||
| 37DOOR | 536295701 | 1 | |||
| 37HOUR METER | 598538101 | 1 | |||
| 37HINGE KIT | 599669501 | 1 | |||
| 37LOCK ASSY | 599669601 | 1 | |||
| 38SWITCH | 536493901 | 1 | |||
| 38SWITCH | 536494001 | 1 | |||
| 39DECAL | 538939301 | 1 |
GEARBOX AND TRANSMISSION 17 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1GEARBOX | 597605901 | 1 | GEARBOX ASSY. | ||
| 2LOCK NUT | 522919401 | 4 | NUT | ||
| 3WEDGE | 593453701 | 1 | WEDGE | ||
| 4SCREW EHHFM | 506570103 | 6 | SCREW | ||
| 5PLATE | 597607701 | 1 | PLATE | ||
| 6SCREW IHCSFM | 725645301 | 6 | SCREW | ||
| 7PLATE | 597544101 | 1 | PLATE | ||
| 8SEAL | 597707001 | 1 | SEAL | ||
| 9CHAIN | 597603701 | 1 | CHAIN | ||
| 10SPACER RING | 597707301 | 1 | SPACER RING | ||
| 11SPROCKET | 597603201 | 1 | SPROCKET | ||
| 12SCREW IHSETM | 505390301 | 1 | SCREW | ||
| 13SPROCKET | 597603301 | 1 | SPROCKET RING | ||
| 14SPACER RING | 597605301 | 1 | SPACER RING | ||
| 15TRANSMISSION COVER | 597605501 | 1 | TRANSMISSION COVER | ||
| 16SCREW | 597720901 | 10 | SCREW | ||
| 17RADIAL SEAL | 597605801 | 1 | RADIAL SEAL |
GRINDING HEAD 3 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1GRINDING HEAD | 546349201 | 1 | GRINDING HEAD ASSY | ||
| 2GRINDING HEAD | 597769901 | 1 | GRINDING HEAD ASSY | ||
| 3GRINDING UNIT | 536194301 | 3 | GRIND HOLDER |
GRINDING HEAD INTERNAL 22 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW EHHFM | 585980401 | 2 | SCREW EHHFM | ||
| 2SCREW | 593513701 | 9 | SCREW | ||
| 3WASHER | 593964201 | 1 | WASHER | ||
| 4SEAL | 536983501 | 1 | SEAL | ||
| 5HOUSING | 595760901 | 1 | HOUSING | ||
| 6O-RING | 593487501 | 1 | O-RING | ||
| 7TENSIONER | 593538101 | 1 | TENSIONER | ||
| 8SCREW | 593964001 | 1 | SCREW | ||
| 9DRIVE BELT | 593490301 | 1 | DRIVE BELT | ||
| 10SHAFT ASSY | 598475301 | 1 | SHAFT ASSY | ||
| 11HUB ASSY | 597770701 | 1 | HUB ASSY | ||
| 12BELT TENSIONER | 593543701 | 1 | BELT TENSIONER | ||
| 13SCREW | 595681501 | 2 | SCREW | ||
| 14COUNTERWEIGHT | 595713801 | 4 | COUNTERWEIGHT | ||
| 15SCREW | 593510401 | 1 | SCREW | ||
| 16TENSIONER | 595713901 | 1 | TENSIONER | ||
| 17PULLEY ASSY | 593718201 | 1 | KIT | ||
| 18PIN | 595683201 | 2 | PIN | ||
| 19HOUSING | 595760801 | 1 | HOUSING | ||
| 20SCREW | 593964101 | 1 | SCREW | ||
| 21SCREW | 598749601 | 8 | SCREW | ||
| 22SCREW | 597552001 | 6 | SCREW |
GRINDING HEAD, LOWER 18 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW | 593499901 | 3 | SCREW | ||
| 2CLIP | 547160101 | 1 | CLIP | ||
| 3CONNECTION SYSTEM | 547115701 | 1 | CROSS | ||
| 4SCREW | 505456101 | 3 | SCREW | ||
| 5HOLDER | 593536101 | 1 | TOOL HOLDER | ||
| 6HOLDER ASSY | 547573201 | 1 | GRINDING HOLDER ASSY. | ||
| 7PLATE | 593539901 | 1 | PLATE | ||
| 8SCREW | 593512601 | 4 | SCREW | ||
| 9WASHER | 593499101 | 4 | WASHER | ||
| 10BRACKET | 593718101 | 4 | EAR WIDE CMPL. | ||
| 11CONNECTION | 593536201 | 1 | CARDAN CONNECTION | ||
| 12SCREW EHHM | 504748901 | 1 | SCREW | ||
| 13LOCKWASHER | 504749603 | 1 | LOCKWASHER | ||
| 14ABSORBER | 595748401 | 4 | ABSORBER | ||
| 15PLATE | 547571301 | 1 | PLATE | ||
| 16SCREW | 593508501 | 8 | SCREW | ||
| 17SCREW | 593505101 | 8 | SCREW | ||
| 18SEAL | 536983501 | 1 | SEAL |
GRINDING HEAD, OUTER 9 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW | 597720901 | 8 | SCREW | ||

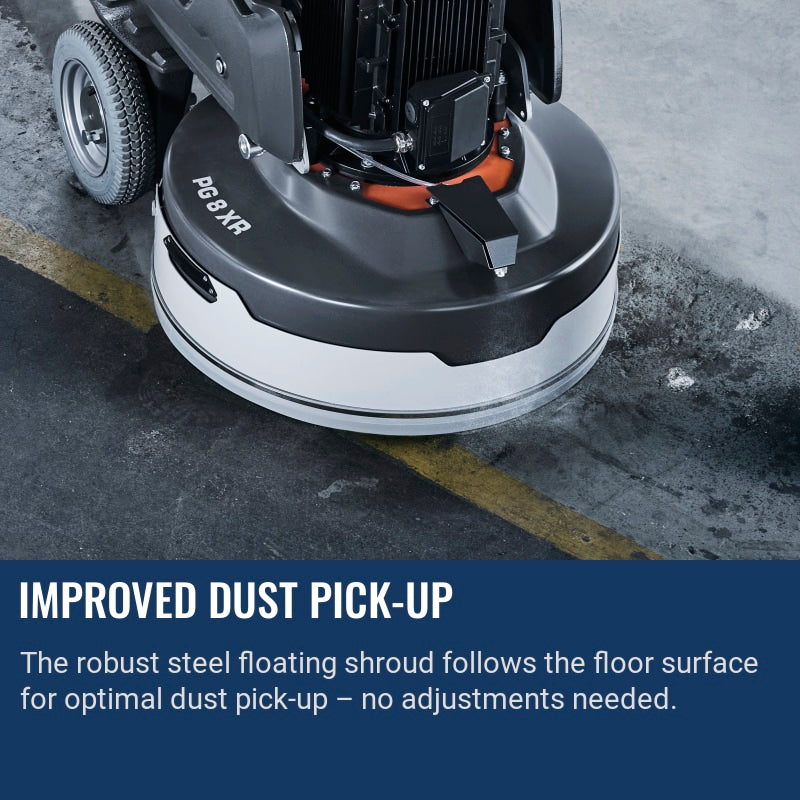

| 2DUST COVER | 536876301 | 1 | FLOATING COVER | ||
| 3DUST COVER | 534239201 | 1 | FLOATING SKIRT | ||
| 4KNOB | 536871401 | 2 | KNOB | ||
| 5HANDLE | 538663001 | 2 | LIFTING HANDLE | ||
| 6SCREW | 725632101 | 8 | SCREW | ||
| 7BAND | 547737801 | 1 | RUBBER SKIRT FASTENING | ||
| 8RUBBER SKIRT | 548518801 | 1 | |||
| 9STRIP | 548476503 | 1 |
GRINDING HEAD UPPER 9 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1NUT | 576645706 | 4 | NUT | ||
| 2STOP | 598778001 | 2 | STOP | ||
| 3CLAMP | 593542001 | 4 | CLAMP | ||
| 4BOLT | 593514501 | 4 | STUD | ||
| 5SUSPENSION | 593539001 | 2 | RUBBER BUSCHING | ||
| 6AXLE | 593538301 | 2 | AXLE | ||
| 7SUPPORT | 536311701 | 2 | SUPPORT | ||
| 8SCREW EHHM | 725246251 | 8 | SCREW | ||
| 9PLUG | 546722601 | 4 | PLUG |
HANDLE 16 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HANDLE | 597183901 | 1 | HANDLE | ||
| 1HANDLEBAR ASSY | 597803501 | 1 | HANDLE ASSY. | ||
| 3CLAMP | 597543801 | 4 | CLAMP | ||
| 4SCREW IHSCM | 725545901 | 2 | SCREW | ||
| 5SCREW IHSCM | 725546101 | 2 | SCREW | ||
| 7BEARING | 593486201 | 2 | BUSHING |
Regular price
$33.02
Regular price
|
|
| 8ADJUSTMENT DISC | 538929101 | 2 | ADJUSTMENT PLATE | ||
| 9PANEL | 598533701 | 1 | CONTROL PANEL CMPL. | ||
| 10CLIP | 589669102 | 3 | CLIP | ||
| 11SCREW | 593509101 | 3 | SCREW | ||
| 11SCREW | 593509101 | 4 | SCREW | ||
| 12GASKET | 598429601 | 1 | GASKET | ||
| 13BRACKET | 597646101 | 1 | BRACKET | ||
| 14LOCKWASHER | 735215301 | 4 | WASHER | ||
| 15SCREW | 531119426 | 4 | SCREW |
Regular price
$48.50
Regular price
|
|
| 16LOCKWASHER | 735214601 | 4 | WASHER |
MISC SPARE PARTS 4 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HOSE NIPPLE | 593457602 | 1 | |||
| 2HOSE | 593478703 | 1 | HOSE | ||
| 3HOSE CLAMP | 593445001 | 1 | HOSE CLAMP | ||
| 4STRAP | 593536701 | 1 | STRAP |
MIST SYSTEM 38 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1TANK CAP ASSY | 506673301 | 1 | TANK CAP | ||
| 2TANK | 535548201 | 1 | TANK | ||
| 3CABLE | 593549601 | 1 | CABLE | ||
| 4SWITCH | 599961970 | 1 | SWITCH | ||
| 5BRACKET | 536317401 | 1 | BRACKET | ||
| 6WASHER | 734116301 | 2 | WASHER | ||
| 7SCREW IHPANM | 504750202 | 2 | SCREW | ||
| 8SCREW EHHFM | 506570104 | 2 | SCREW | ||
| 9SPACER RING | 536875301 | 2 | SPACER RING | ||
| 10HOSE | 593488710 | 2 | HOSE | ||
| 11CONNECTOR | 593488601 | 2 | CONNECTOR | ||
| 12HOSE | 593488708 | 1 | HOSE | ||
| 13CONNECTOR | 593488301 | 4 | CONNECTOR | ||
| 14PREFILTER | 593491301 | 1 | FILTER | ||
| 15HOSE | 593488704 | 1 | HOSE | ||
| 16WATER PUMP | 536098401 | 1 | WATER PUMP | ||
| 17BRACKET | 536311901 | 1 | BRACKET | ||
| 18WASHER | 595672701 | 2 | WASHER | ||
| 19SCREW IHSCM | 725529501 | 2 | SCREW | ||
| 20SCREW EHHFM | 586120201 | 2 | SCREW | ||
| 21HOSE | 593488703 | 1 | HOSE | ||
| 22CONNECTOR | 536313901 | 1 | CONNECTOR | ||
| 23LOCK | 595683801 | 2 | NUT | ||
| 25CONNECTOR | 593489501 | 1 | CONNECTOR | ||
| 26HOSE | 593488713 | 1 | HOSE | ||
| 26HOSE | 593488713 | 1 | HOSE | ||
| 27HOSE | 593488717 | 1 | HOSE | ||
| 28CONNECTOR | 593489701 | 1 | CONNECTOR | ||
| 29GROMMET | 536313701 | 1 | GROMMET | ||
| 30SCREW | 597720901 | 2 | SCREW | ||
| 31BRACKET | 536302101 | 1 | BRACKET | ||
| 32HOSE | 593488712 | 1 | HOSE | ||
| 33CONNECTOR | 536314001 | 1 | CONNECTOR | ||
| 34EXTENSION JOINT | 536829401 | 1 | EXTENSION | ||
| 35FILTER | 593489901 | 1 | FILTER | ||
| 36O-RING | 740430800 | 1 | O-RING | ||
| 37NOZZLE | 593490001 | 1 | NOZZLE | ||
| 38NUT | 593490101 | 1 | NUT |
MOTOR 11 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1MOTOR | 546901906 | 1 | FAN COVER | ||
| 2MOTOR | 546902002 | 1 | COOLING FAN | ||
| 3MOTOR | 593560401 | 1 | MOTOR |
Regular price
$3,787.08
Regular price
|
|
| 4SCREW | 595680101 | 4 | SCREW |
Regular price
$21.44
Regular price
|
|
| 5MOTOR | 546902102 | 1 | KEY | ||
| 6SEAL | 597255101 | 1 | MOTOR SPACER SEALING | ||
| 7MOTOR | 546901907 | 1 | FAN COVER | ||
| 8MOTOR | 546902005 | 1 | COOLING FAN | ||
| 9MOTOR | 597774101 | 1 | MOTOR | ||
| 10MOTOR | 546902104 | 1 | KEY | ||
| 11SCREW EHHFM | 506570105 | 4 | SCREW |
PULLEY ASSY 19 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SHAFT | 598027501 | 1 | SHAFT | ||
| 2KEY | 593487601 | 1 | KEY | ||
| 3BALL BEARING | 593492701 | 1 | BALL BEARING | ||
| 4PULLEY | 595757601 | 1 | PULLEY | ||
| 5NUT | 593487901 | 1 | NUT | ||
| 6SCREW EHHFM | 506570105 | 6 | SCREW EHHFM | ||
| 7WASHER | 595710001 | 3 | WASHER | ||
| 8BEARING | 593487701 | 1 | BEARING | ||
| 9WASHER | 595709901 | 1 | WASHER | ||
| 10SCREW | 593501701 | 1 | SCREW | ||
| 11AXLE | 595760501 | 1 | AXLE | ||
| 12BALL BEARING | 593492801 | 4 | BALL BEARING | ||
| 13PULLEY | 595709801 | 2 | PULLEY | ||
| 14CIRCLIP | 593498101 | 1 | CIRCLIP | ||
| 15SPACER | 595757301 | 1 | SPACER | ||
| 16AXLE | 595761401 | 1 | AXLE | ||
| 17O-RING | 593487801 | 1 | O-RING | ||
| 18TENSIONER | 595760601 | 1 | TENSIONER | ||
| 19SCREW | 595680101 | 1 | SCREW |
WEIGHT ASSY 16 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SHAFT | 536193201 | 2 | SHAFT | ||
| 2SPRING PIN | 548750501 | 4 | WEIGHT LOCK | ||
| 3WASHER | 536313501 | 2 | WASHER | ||
| 4NUT | 584831401 | 2 | NUT | ||
| 5SHIM | 598458601 | 6 | SHIM | ||
| 6WASHER | 597883501 | 4 | WASHER | ||
| 7CIRCLIP | 735312601 | 2 | CIRCLIP | ||
| 8BEARING | 593486001 | 2 | BUSHING | ||
| 9BUTTON | 536193101 | 2 | BUTTON | ||
| 10GAS SPRING | 593582302 | 2 | GAS SPRING | ||
| 11WASHER | 576823101 | 4 | WASHER | ||
| 12SCREW | 531119426 | 4 | SCREW | ||
| 13PROTECTION | 536280001 | 2 | PROTECTION | ||
| 14SCREW IHPANM | 522619901 | 2 | SCREW | ||
| 15WASHER | 593633501 | 2 | WASHER | ||
| 16WEIGHT KIT | 535546301 | 1 | WEIGHT KIT |
Document Downloads
Service bulletin
Workshop manual
Operator's manual
Warranty
Compatable Accessories
Concrete Focus
From pouring to resurfacing, we sell tools built for concrete pros.
Expert Support
Get guidance from experts who understand jobsite challenges.
Fast Delivery
Get your tools fast with our nationwide shipping network and local partnerships.
Talk to an expert now (855) 281-1918
Get fast, expert help choosing the right concrete tools or equipment for your job. Ask about availability, specs, troubleshooting, or get friendly guidance before you place an order.
