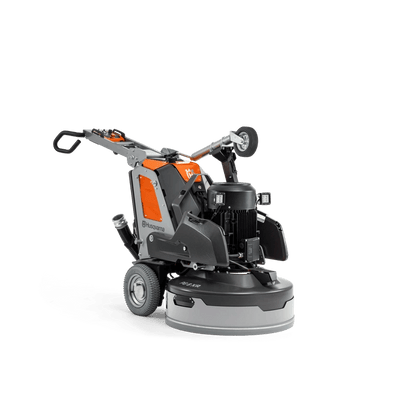

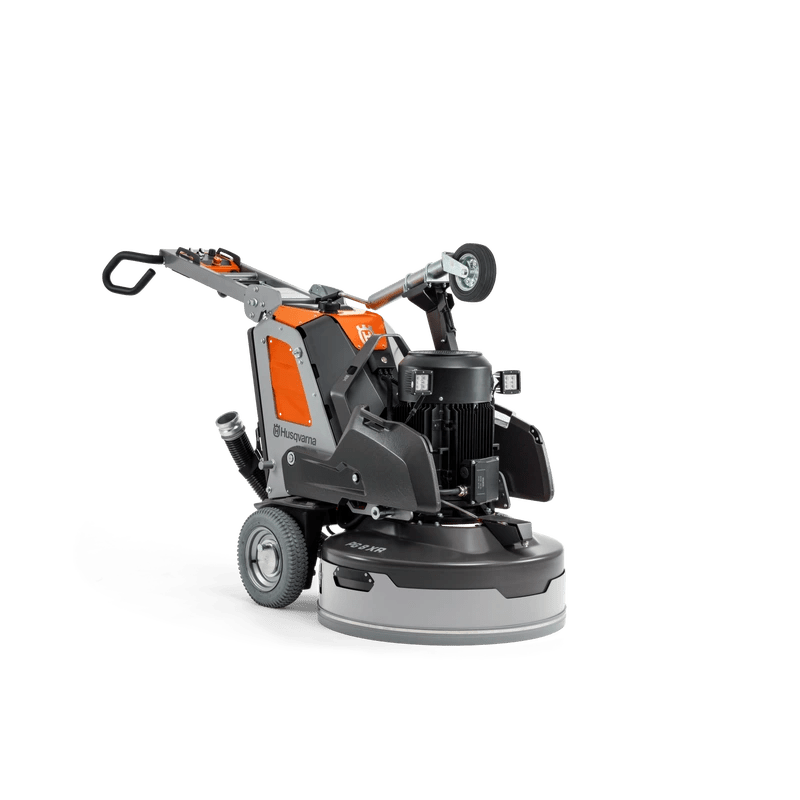

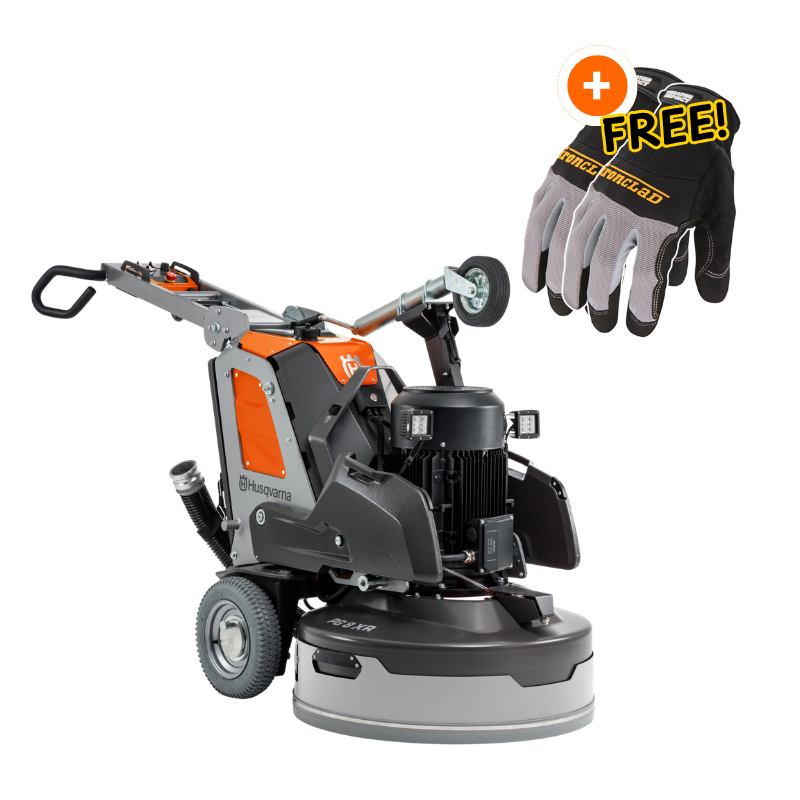

HUSQVARNA PLANETARY FLOOR GRINDER - PG 8 XR
The Husqvarna PG 8 XR is a state-of-the-art, remote-controlled planetary floor grinder boasting a robust 20.1 hp engine and a grinding width of 31.5 inches. Utilizing four-disc technology, this machine is balanced and efficient, making it an ideal choice for all applications including preparing, grinding, and polishing concrete and stone floors. Its mist cooler system enhances the performance of diamond tools and its adjustable weights increase grinding pressure for optimal productivity.

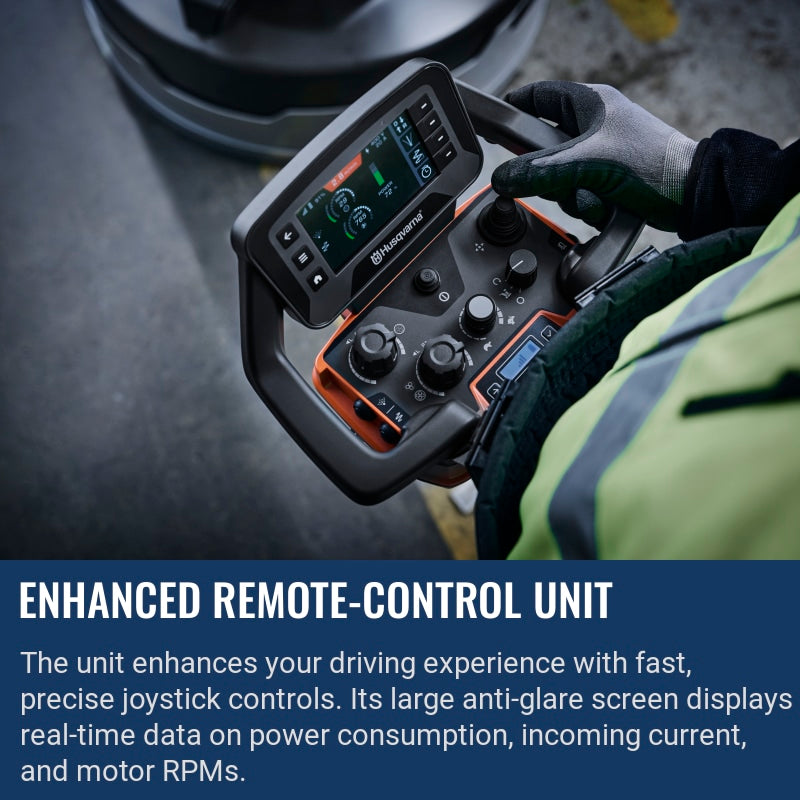

The PG 8 XR also features a user-friendly remote control for precision operation, monitoring real-time power consumption, incoming current, motor rpms and more. For easy handling, it's equipped with an integrated transport wheel. The sealed design of the grinding head and electrical cabinet ensures high reliability and low maintenance.
- Engine Power (As rated by the engine manufacturer): 20.1 hp
- Grinding width: 31.5 in
- Weight: 1,422 lbs
- Remote-controlled operation

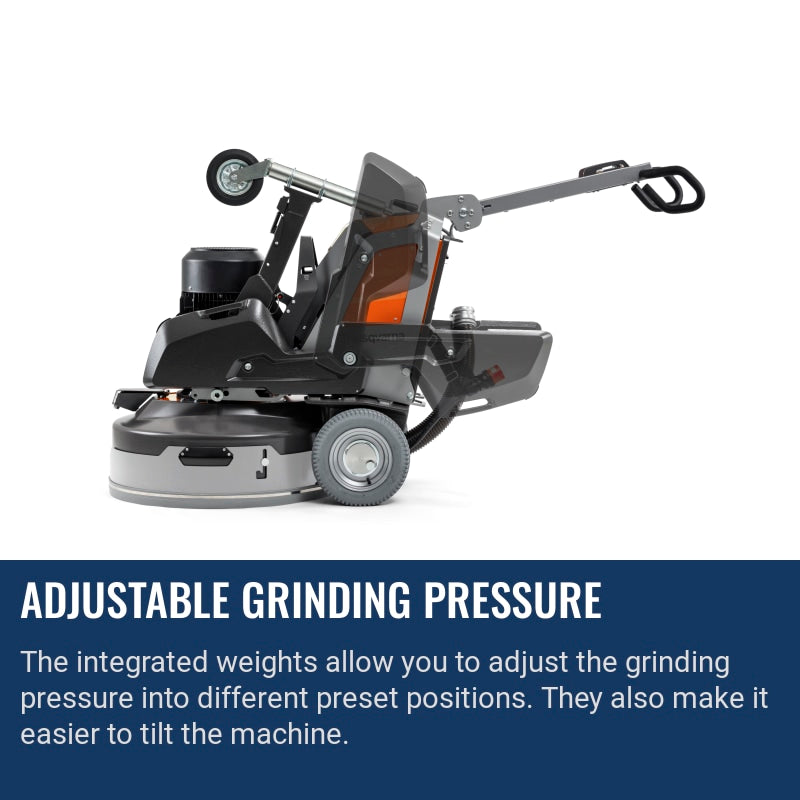

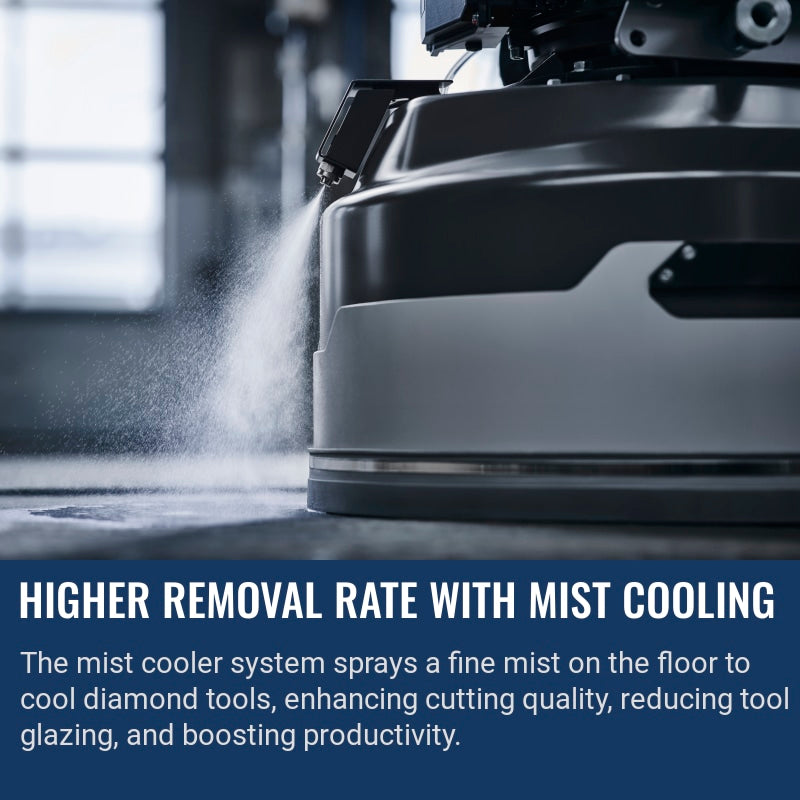

- Integrated mist cooler system and adjustable weights
Product Specification
Specifications
Engine Power (As rated by the engine manufacturer)
20.1 hp
Power source
Corded
Rated input power
20.1 hp
Phases
3 ph
Voltage
440-480 V
Rated current
30 A
Frequency
50-60 Hz
Pins
3P+E
Grinding width
31.5 in

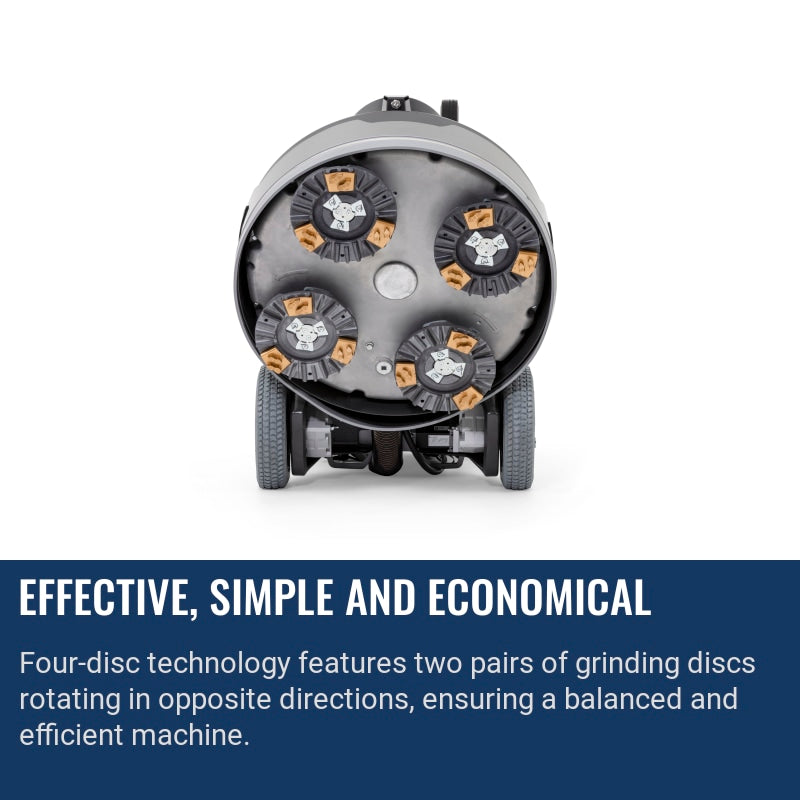

Number of grinding discs
4
Direction of rotation
Both directions
Grinding disc diameter
10.6 in
Grinding disc speed min
420 rpm
Grinding disc speed max
1,176 rpm
Type of operation
Remote-controlled
Product size length
53.3 in
Product size width
33 in
Product size height
44.8 in
Weight
1,422 lbs
Packaging length (Calc)
62.992 in
Packaging width (Calc)
35.433 in
Packaging height (Calc)
57.874 in
Article gross weight (Calc)
1,437.414 lbs
Warranty
2 year limited warranty
Related Equipment
Related Equipment
Service & Maintenance Parts
CENTER HUB ASSY 15 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BALL BEARING | 593492601 | 1 | BALL BEARING | ||
| 2PULLEY | 595759901 | 1 | PULLEY | ||
| 3PULLEY | 595709501 | 2 | PLATE | ||
| 4SCREW | 593504901 | 14 | SCREW | ||
| 5SCREW | 593514201 | 6 | SCREW | ||
| 6PULLEY | 595757101 | 1 | PULLEY | ||
| 7BALL BEARING | 593629901 | 2 | BALL BEARING | ||
| 8SPACER | 595713101 | 1 | SPACER | ||
| 9CIRCLIP | 595679801 | 1 | CIRCLIP | ||
| 10HUB | 595713001 | 1 | HUB | ||
| 11RADIAL SEAL | 593487001 | 1 | RADIAL SEAL | ||
| 12HUB | 593542901 | 1 | HUB | ||
| 13BALL BEARING | 593492601 | 1 | BALL BEARING | ||
| 14CIRCLIP | 593503001 | 1 | CIRCLIP | ||
| 15CIRCLIP | 593502901 | 1 | CIRCLIP |
CHASSIS 18 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1FRAME ASSY | 535546401 | 1 | FRAME | ||
| 2SCREW | 593514801 | 8 | SCREW | ||
| 3BOLT | 582644801 | 2 | SCREW | ||
| 4LOCKWASHER | 735216401 | 2 | WASHER | ||
| 5SCREW EHHFM | 506570104 | 4 | SCREW | ||
| 6SCREW EHHFM | 585980601 | 4 | SCREW | ||
| 7SCREW EHHFM | 585973101 | 4 | SCREW | ||
| 8SCREW | 593502401 | 4 | SCREW | ||
| 9PLATE | 536302201 | 2 | BRACKET | ||
| 10SCREW EHHFM | 586120201 | 2 | SCREW | ||
| 11HEXAGON NUT | 731232201 | 1 | NUT | ||
| 12NUT | 576645706 | 1 | NUT | ||
| 13WHEEL | 593543901 | 1 | WHEEL | ||
| 14SCREW EHHM | 725254471 | 1 | SCREW | ||
| 15AXLE | 593538301 | 2 | AXLE | ||
| 16SUPPORT | 536311701 | 2 | SUPPORT | ||
| 17HUB ASSY | 597801901 | 1 | BRACKET | ||
| 17HUB ASSY | 597802001 | 1 | BRACKET |
CHASSIS UPPER 26 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1GLOVE | 595660401 | 1 | LOCK | ||
| 2HATCH | 547326101 | 1 | HATCH | ||
| 3RIVET | 593500801 | 16 | RIVET | ||
| 4HINGE | 547326801 | 2 | HINGE | ||
| 5RIVET | 599208601 | 2 | RIVET | ||
| 6SPRING | 547327301 | 1 | SPRING | ||
| 7FRAME BRACKET | 596613901 | 1 | BRACKET | ||
| 8SCREW | 593514801 | 4 | SCREW | ||
| 9BRACKET | 547326401 | 1 | BRACKET | ||
| 10SCREW | 531119426 | 8 | SCREW | ||
| 11CLIP | 598932401 | 1 | CLIP | ||
| 12PLUG | 598945301 | 1 | PLUG | ||
| 13COVER | 597946802 | 1 | COVER | ||
| 14COVER | 597249701 | 1 | COVER | ||
| 15LIFTING ARM | 536260601 | 1 | LIFTING ARM | ||
| 16NUT | 576645706 | 4 | NUT | ||
| 17SCREW | 598749301 | 4 | SCREW | ||
| 18FRONT COVER | 597946703 | 1 | FRONT COVER | ||
| 19SCREW EHHFM | 585980601 | 2 | SCREW | ||
| 20BRACKET | 597727001 | 2 | SCREW | ||
| 21BUSHING | 597875801 | 2 | BUSHING | ||
| 22CLIP | 598458201 | 2 | CIRCLIP | ||
| 23COVER | 597249702 | 1 | COVER | ||
| 24BAR | 597182301 | 1 | KICKBAR | ||
| 25BRACKET | 547326301 | 1 | BRACKET | ||
| 25BRACKET | 547399501 | 1 | SUPPORT BRACKET ASSY |
CONTROL PANEL 17 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SWITCH | 598539401 | 1 | SWITCH | ||
| 2SWITCH | 598539801 | 2 | SWITCH | ||
| 3SWITCH | 538999101 | 1 | EM-stop. OPERATOR 1NO+1NC | ||
| 4STICKER | 536370101 | 1 | OVERLAY | ||
| 5SWITCH | 587283601 | 1 | POTENTIOMETER.CMPL |
Regular price
$312.01
Regular price
|
|
| 6CONTACT | 598556001 | 1 | USB | ||
| 7COVER | 597655901 | 1 | ENCLOSURE | ||
| 8REGULATOR | 598745801 | 1 | POWER SUPPLY | ||
| 9CABLE | 598926501 | 1 | CABLE | ||
| 10SWITCH | 598539501 | 3 | HOLDER | ||
| 11CONTACT | 598540001 | 2 | CONTACT BLOCK NO | ||
| 12CONTACT | 598557001 | 1 | CONTACT BLOCK NC | ||
| 13SCREW IHCSFM | 725637051 | 1 | SCREW |
Regular price
$22.78
Regular price
|
|
| 14NUT | 576645703 | 1 | NUT | ||
| 15CABLE | 598557301 | 1 | CABLE CMPL. | ||
| 16CLIP | 589669102 | 4 | CLIP | ||
| 17SCREW | 593509101 | 3 | SCREW |
DECALS 1 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1DECAL KIT | 546068510 | 1 | DECAL KIT |
DRIVE WHEEL ASSY 19 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HUB ASSY | 597801901 | 1 | HUB ASSY. | ||
| 2HUB ASSY | 597802001 | 1 | HUB ASSY. | ||
| 3DRIVE SYSTEM | 537568901 | 2 | DRIVE UNIT | ||
| 4DRIVE MOTOR | 537569001 | 1 | MOTOR | ||
| 5SCREW | 599230501 | 4 | SCREW | ||
| 6SCREW | 593500701 | 4 | SCREW | ||
| 7ADAPTER | 593540301 | 1 | ADAPTER | ||
| 8DRIVE MOTOR | 597612602 | 1 | GEARBOX | ||
| 9SCREW IHSCM | 725546701 | 4 | SCREW | ||
| 10NUT | 576645706 | 1 | NUT | ||
| 11BUSHING | 593493901 | 1 | BUSHING | ||
| 12SPRING | 593490801 | 1 | SPRING | ||
| 13RING | 593514401 | 2 | SHIM RING | ||
| 14WHEEL | 593489301 | 1 | WHEEL | ||
| 15SPACER | 593545701 | 1 | SPACER | ||
| 16SCREW | 595680401 | 4 | SCREW | ||
| 17KEY | 593490701 | 1 | KEY | ||
| 18DRIVE SHAFT ASSY | 536835501 | 1 | DRIVE SHAFT | ||
| 19PISTON | 593545801 | 1 | LEVER INDEXING |
ELECTRICAL, INNER 27 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1FREQUENCY INVERTER | 593559701 | 1 | INVERTER | ||
| 2POWER SUPPLY | 595747401 | 1 | POWER SUPPLY | ||
| 3CIRCUIT BREAKER | 593560101 | 1 | CIRCUIT BREAKER | ||
| 4TERMINAL | 598519701 | 1 | TERMINAL | ||
| 4TERMINAL | 598519801 | 1 | TERMINAL | ||
| 4TERMINAL | 598519901 | 1 | TERMINAL | ||
| 5MOUNT | 595710801 | 1 | BRACKET | ||
| 6BATTERY BOX | 598482901 | 1 | |||
| 7SENSOR | 598526301 | 1 | RELAY | ||
| 8CONTACTOR | 593559301 | 1 | CONTACTOR | ||
| 9TERMINAL BLOCK | 546410901 | 1 | |||
| 10TERMINAL BLOCK | 547554101 | 1 | |||
| 11TERMINAL BLOCK | 547554201 | 1 | |||
| 12TERMINAL BLOCK | 547554201 | 1 | |||
| 13FUSE | 547553101 | 1 | |||
| 14FUSE | 547553201 | 1 | |||
| 15FUSE HOLDER | 547554301 | 1 | |||
| 16FILTER | 595747501 | 1 | EMC FILTER | ||
| 18FREQUENCY INVERTER | 547794301 | 1 | |||
| 19CABLE | 547532401 | 1 | |||
| 20CABLE | 598534501 | 1 | |||
| 21CABLE | 598534401 | 1 | |||
| 22BRACKET | 598530801 | 1 | |||
| 23SPACER | 598482801 | 1 | |||
| 25PRINTED CIRCUIT ASSY | 546391701 | 1 | |||
| 26SCREW | 589924401 | 1 | |||
| 27FAN | 597633201 | 1 |
ELECTRICAL, OUTER 45 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW EHHFM | 506570104 | 2 | SCREW | ||
| 1FAN | 593549401 | 1 | FAN | ||
| 1PLATE | 597981401 | 1 | BRACKET | ||
| 2FAN | 595744301 | 8 | RUBBER MOUNT | ||
| 3ADJUSTMENT SCREW | 540549601 | 2 | Electrical Cabinet Fastening Screw | ||
| 4SCREW | 595682201 | 10 | SCREW | ||
| 5LOCKWASHER | 735216401 | 2 | WASHER | ||
| 6LOCK NUT | 593500001 | 2 | NUT | ||
| 7GASKET | 593536601 | 1 | GASKET | ||
| 7HEAT SINK | 597255901 | 1 | HEATSINK | ||
| 8CONNECTOR | 547552901 | 1 | |||
| 9CONNECTOR | 598836501 | 1 | |||
| 10HEAT SINK | 537533301 | 1 | HEATSINK | ||
| 13PLUG | 502544001 | 1 | PLUG | ||
| 13PLUG | 591289101 | 1 | PLUG | ||
| 13PLUG | 593584701 | 1 | PLUG | ||
| 14CABLE | 597632801 | 1 | CABLE ASSY. | ||
| 15CABLE ASSY | 536334701 | 1 | CABLE ASSY. | ||
| 17SCREW ITXPANM | 544291303 | 4 | SCREW | ||
| 17HEXAGON NUT | 731231201 | 4 | NUT | ||
| 17LOCKWASHER | 735213601 | 8 | WASHER | ||
| 18RECEPTACLE | 598519201 | 1 | RECEPTACLE | ||
| 19BRACKET | 598519101 | 1 | HOUSING | ||
| 24UNIT | 546040801 | 1 | |||
| 25CABLE ASSY | 546177101 | 1 | |||
| 26PRINTED CIRCUIT ASSY | 536119101 | 1 | |||
| 27HOUSING | 547554401 | 1 | |||
| 28HOUSING | 547554401 | 1 | |||
| 29TERMINAL BLOCK | 547554901 | 1 | |||
| 30CABLE HOLDER | 547673201 | 1 | |||
| 31TERMINAL | 547673401 | 1 | |||
| 32TERMINAL BLOCK | 547673501 | 1 | |||
| 33TERMINAL | 547673301 | 1 | |||
| 34CONTACT | 598540001 | 1 | |||
| 35SWITCH | 598539501 | 1 | |||
| 36DOOR | 536295701 | 1 | |||
| 36HOUR METER | 598538101 | 1 | |||
| 36HINGE KIT | 599669501 | 1 | |||
| 36LOCK ASSY | 599669601 | 1 | |||
| 37DECAL | 538939301 | 1 | |||
| 38SWITCH | 536493901 | 1 | |||
| 38SWITCH | 536494001 | 1 | |||
| 39CONTACT | 598526701 | 1 | |||
| 40CONTACT | 598836101 | 1 | |||
| 41CHARGER | 598448301 | 1 |
GRINDING HEAD 3 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1GRINDING HEAD | 546349401 | 1 | GRINDING HEAD ASSY | ||
| 2GRINDING HEAD | 536339201 | 1 | GRINDING HEAD ASSY | ||
| 3GRINDING UNIT | 536194301 | 3 | GRIND HOLDER |
GRINDING HEAD INTERNAL 23 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW EHHFM | 585980401 | 1 | SCREW | ||
| 2RADIAL SEAL | 593487201 | 4 | RADIAL SEAL | ||
| 3WASHER | 593964201 | 1 | WASHER | ||
| 4SCREW | 593513701 | 9 | SCREW | ||
| 5HOUSING | 595761301 | 1 | HOUSING | ||
| 6O-RING | 593487501 | 1 | O-RING | ||
| 7TENSIONER | 593538101 | 1 | TENSIONER | ||
| 8SCREW | 593964001 | 1 | SCREW | ||
| 9DRIVE BELT | 593490401 | 1 | BELT | ||
| 10BELT TENSIONER | 593543701 | 1 | BELT TENSIONER | ||
| 11SCREW | 593964001 | 1 | SCREW | ||
| 12TENSIONER | 595713901 | 1 | TENSIONER | ||
| 13PULLEY ASSY | 593718201 | 3 | PULLEY ASSY. | ||
| 14SHAFT ASSY | 598478301 | 4 | GRINDING SHAFT CMPL. | ||
| 15SCREW EHHFM | 506570105 | 8 | SCREW | ||
| 16WASHER | 595710001 | 4 | WASHER | ||
| 17DRIVE BELT | 593490201 | 1 | SECONDARY BELT | ||
| 18HUB ASSY | 593543201 | 1 | CENTER HUB | ||
| 19PIN | 595683201 | 2 | PIN | ||
| 20HOUSING | 595761201 | 1 | HOUSING | ||
| 21SCREW EHHFM | 585980401 | 1 | SCREW | ||
| 22WASHER | 734116301 | 8 | WASHER | ||
| 23SCREW EHHM | 725246251 | 16 | SCREW |
GRINDING HEAD LOWER 17 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW | 593499901 | 3 | SCREW | ||
| 2CLIP | 547160101 | 1 | |||
| 3CONNECTION SYSTEM | 547115701 | 1 | CLIP | ||
| 5HOLDER | 593536101 | 1 | TOOL HOLDER | ||
| 6HOLDER ASSY | 547573201 | 1 | GRINDING HOLDER ASSY. | ||
| 7PLATE | 593539901 | 1 | PLATE | ||
| 8SCREW | 593512601 | 4 | SCREW | ||
| 9WASHER | 593499101 | 4 | WASHER | ||
| 10BRACKET | 593718101 | 4 | EAR WIDE CMPL. | ||
| 11CONNECTION | 593536201 | 1 | CARDAN CONNECTION | ||
| 12SCREW EHHM | 504748901 | 1 | SCREW | ||
| 13LOCKWASHER | 504749603 | 1 | LOCKWASHER | ||
| 14ABSORBER | 595748401 | 4 | ABSORBER | ||
| 15PLATE | 547571301 | 1 | PLATE | ||
| 16SCREW | 593505101 | 8 | SCREW | ||
| 17SCREW | 593508501 | 8 | SCREW | ||
| 18SEAL | 536983501 | 1 | SEAL |
GRINDING HEAD, OUTER 9 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW | 597720901 | 8 | SCREW | ||
| 2DUST COVER | 536876301 | 1 | FLOATING COVER | ||
| 3DUST COVER | 534239201 | 1 | FLOATING SKIRT | ||
| 4KNOB | 536871401 | 2 | KNOB | ||
| 5HANDLE | 538663001 | 2 | LIFTING HANDLE | ||
| 6SCREW | 725632101 | 8 | SCREW | ||
| 7BAND | 547737801 | 1 | RUBBER SKIRT FASTENING | ||
| 8RUBBER SKIRT | 548518801 | 1 | |||
| 9STRIP | 548476503 | 1 |
GRINDING HEAD UPPER 7 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1NUT | 576645706 | 4 | NUT | ||
| 2BOLT | 593514501 | 4 | STUD | ||
| 3STOP | 598778001 | 2 | STOP | ||
| 4CLAMP | 593542001 | 4 | CLAMP | ||
| 5SUSPENSION | 593539001 | 2 | RUBBER BUSCHING | ||
| 6SCREW EHHM | 725246251 | 8 | SCREW | ||
| 7PLATE | 536232301 | 1 | PLATE |
HANDLE 16 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HANDLEBAR ASSY | 597803501 | 1 | HANDLE ASSY. | ||
| 2HANDLE | 597183901 | 1 | HANDLE | ||
| 3CLAMP | 597543801 | 4 | CLAMP | ||
| 4SCREW IHSCM | 725545901 | 2 | SCREW | ||
| 5SCREW IHSCM | 725546101 | 2 | SCREW | ||
| 6SCREW | 531119426 | 4 | SCREW |
Regular price
$48.50
Regular price
|
|
| 7BEARING | 593486201 | 2 | BUSCHING |
Regular price
$33.02
Regular price
|
|
| 8ADJUSTMENT DISC | 538929101 | 2 | ADJUSTMENT PLATE | ||
| 9CONTROL PANEL | 536335001 | 1 | CONTROL PANEL CMPL. | ||
| 10CLIP | 589669102 | 3 | CLIP | ||
| 11SCREW | 593509101 | 4 | SCREW | ||
| 12GASKET | 598429601 | 1 | GASKET | ||
| 13BRACKET | 597646101 | 1 | BRACKET | ||
| 14LOCKWASHER | 735215301 | 4 | WASHER | ||
| 15SCREW | 593509101 | 3 | SCREW | ||
| 16LOCKWASHER | 735214601 | 4 | WASHER |
IDLER PULLEY ASSY 17 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SHAFT | 598027401 | 1 | SHAFT | ||
| 2KEY | 593487601 | 1 | KEY | ||
| 3BALL BEARING | 593492701 | 1 | BALL BEARING | ||
| 4PULLEY | 595757601 | 1 | 595 75 76-01 | ||
| 5NUT | 593487901 | 1 | NUT | ||
| 6BEARING | 593487701 | 1 | BEARING | ||
| 7WASHER | 595709901 | 1 | WASHER | ||
| 8SCREW | 593501701 | 1 | SCREW | ||
| 9AXLE | 595761401 | 1 | SHAFT | ||
| 10O-RING | 593487801 | 1 | O-Ring | ||
| 11TENSIONER | 595760601 | 1 | TENSIONER | ||
| 12SCREW | 595680101 | 1 | SCREW | ||
| 13SPACER | 595757301 | 1 | SPACER | ||
| 14BALL BEARING | 593492801 | 4 | BALL BEARING | ||
| 15AXLE | 595760501 | 1 | AXLE | ||
| 16PULLEY | 595709801 | 1 | PULLEY | ||
| 17CIRCLIP | 593498101 | 1 | CIRCLIP |
MISC SPARE PARTS 4 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HOSE NIPPLE | 593457602 | 1 | |||
| 2HOSE | 593478703 | 1 | HOSE | ||
| 3HOSE CLAMP | 593445001 | 1 | HOSE CLAMP | ||
| 4STRAP | 593536701 | 1 | STRAP |
MIST SYSTEM 38 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1TANK CAP ASSY | 506673301 | 1 | TANK CAP | ||
| 2TANK | 535548201 | 1 | TANK | ||
| 3CABLE | 593549601 | 1 | CABLE | ||
| 4SWITCH | 599961970 | 1 | SWITCH | ||
| 5BRACKET | 536317401 | 1 | BRACKET | ||
| 6WASHER | 734116301 | 2 | WASHER | ||
| 7SCREW IHPANM | 504750202 | 2 | SCREW | ||
| 8SCREW EHHFM | 506570104 | 2 | SCREW | ||
| 9SPACER RING | 536875301 | 2 | SPACER RING | ||
| 10HOSE | 593488710 | 2 | HOSE | ||
| 11CONNECTOR | 593488601 | 2 | CONNECTOR | ||
| 12HOSE | 593488708 | 1 | HOSE | ||
| 13CONNECTOR | 593488301 | 4 | CONNECTOR | ||
| 14PREFILTER | 593491301 | 1 | FILTER | ||
| 15HOSE | 593488704 | 1 | HOSE | ||
| 16WATER PUMP | 536098401 | 1 | WATER PUMP | ||
| 17BRACKET | 536302101 | 1 | BRACKET | ||
| 18WASHER | 595672701 | 2 | WASHER | ||
| 19SCREW IHSCM | 725529501 | 2 | SCREW | ||
| 20SCREW EHHFM | 586120201 | 2 | SCREW | ||
| 21HOSE | 593488703 | 1 | HOSE | ||
| 22CONNECTOR | 536313901 | 1 | CONNECTOR | ||
| 23LOCK | 595683801 | 2 | NUT | ||
| 24HOSE | 593488713 | 1 | HOSE | ||
| 25CONNECTOR | 593489501 | 1 | CONNECTOR | ||
| 26HOSE | 593488713 | 1 | HOSE | ||
| 27HOSE | 593488717 | 1 | HOSE | ||
| 28CONNECTOR | 593489701 | 1 | CONNECTOR | ||
| 29GROMMET | 536313701 | 1 | GROMMET | ||
| 30SCREW | 597720901 | 2 | SCREW | ||
| 31BRACKET | 536311901 | 1 | BRACKET | ||
| 32HOSE | 593488712 | 1 | HOSE | ||
| 33CONNECTOR | 536314001 | 1 | CONNECTOR | ||
| 34EXTENSION JOINT | 536829401 | 1 | EXTENSION | ||
| 35FILTER | 593489901 | 1 | FILTER | ||
| 36O-RING | 740430800 | 1 | O-RING | ||
| 37NOZZLE | 593490001 | 1 | NOZZLE | ||
| 38NUT | 593490101 | 1 | NUT |
MOTOR 6 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1MOTOR | 546901906 | 1 | FAN COVER | ||
| 2MOTOR | 546902002 | 1 | COOLING FAN | ||
| 3MOTOR | 593560401 | 1 | MOTOR |
Regular price
$3,787.08
Regular price
|
|
| 4SCREW | 598749801 | 4 | SCREW | ||
| 5MOTOR | 546902102 | 1 | KEY | ||
| 6SEAL | 597255101 | 1 |
REMOTE CONTROL 27 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW | 535601001 | 4 | SCREW | ||
| 2LID | 547293701 | 1 | PLUG | ||
| 3EQUIPMENT FRAME | 547212101 | 1 | HANDLE | ||
| 4CABLE | 535601301 | 1 | CABLE | ||
| 5DISPLAY | 535336001 | 1 | DISPLAY | ||
| 6CONTROL UNIT ASSY | 547213801 | 1 | TOP LID | ||
| 7SWITCH | 547213701 | 3 | SWITCH | ||
| 8PRINTED CIRCUIT ASSY | 547875501 | 1 | PCB | ||
| 9SCREW | 535601401 | 4 | SCREW | ||
| 10PRINTED CIRCUIT ASSY | 535394301 | 1 | PCB | ||
| 11SCREW | 535601501 | 4 | SCREW | ||
| 12GASKET | 547211301 | 1 | GASKET | ||
| 13CONTROL UNIT ASSY | 547212201 | 1 | BOTTOM COVER | ||
| 14SCREW | 547301601 | 4 | SCREW | ||
| 15SCREW | 547301501 | 4 | SCREW | ||
| 16SWITCH | 547200801 | 1 | SWITCH | ||
| 17KNOB | 547213301 | 2 | KNOB | ||
| 18POTENTIOMETER | 547213201 | 2 | POTENTIOMETER | ||
| 19CAP | 535336301 | 1 | COVER | ||
| 20BUTTON | 535336201 | 1 | |||
| 21KNOB | 547213501 | 1 | KNOB | ||
| 22KNOB | 535393401 | 1 | KNOB | ||
| 23JOYSTICK | 547213601 | 1 | JOYSTICK | ||
| 24LID | 535393501 | 1 | KNOB LID | ||
| 25POTENTIOMETER | 547213401 | 1 | BUTTON | ||
| 26SWITCH | 535336401 | 1 | SWITCH | ||
| 27REMOTE CONTROL | 546040601 | 1 | COMPLETE ( FOR JAPAN MARKET UPDATE OF SW IS REQUIRED BEFORE USE. CONTACT SALES COMPANY) |

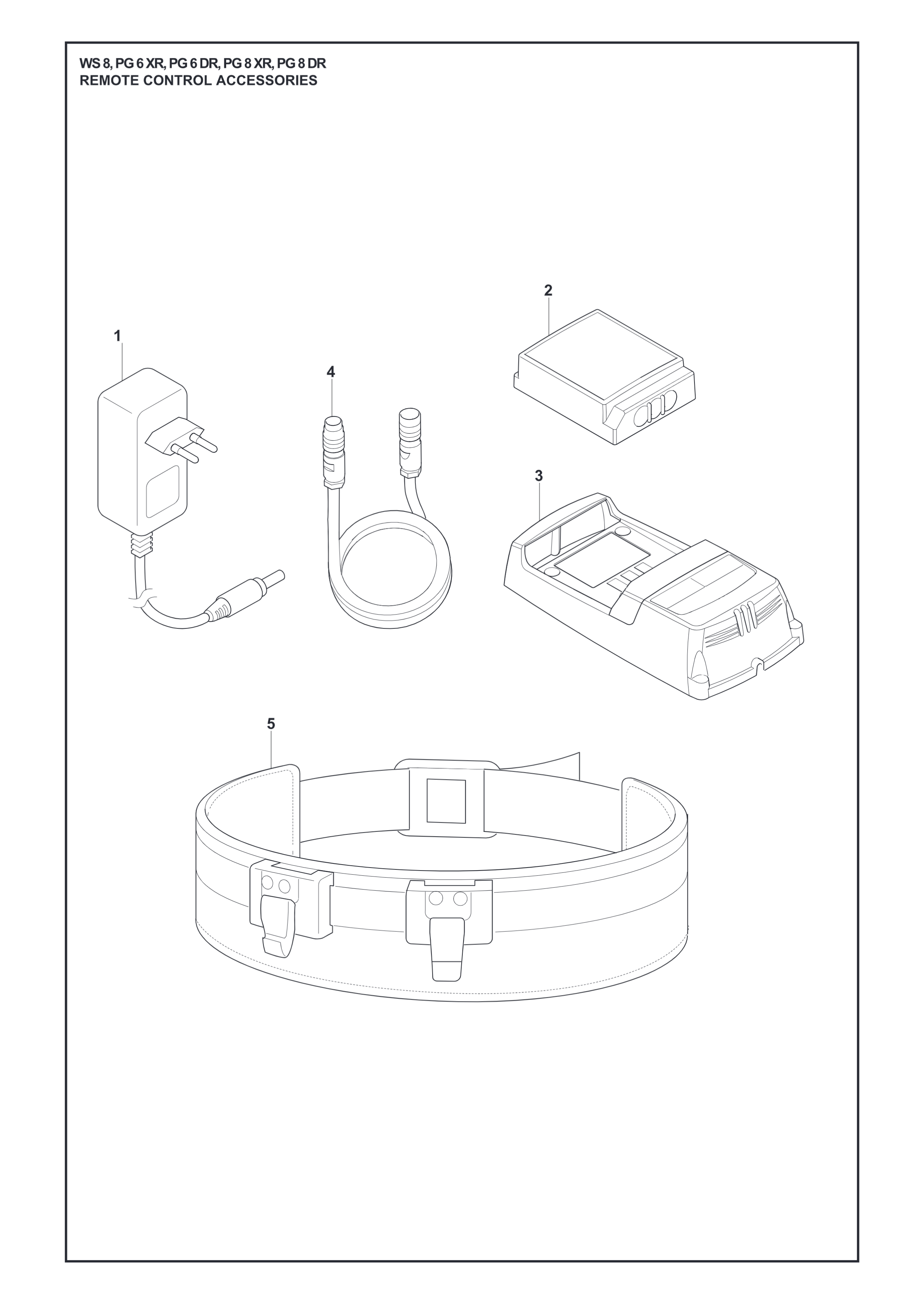

REMOTE CONTROL ACCESSORIES 5 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1TRANSFORMER | 546366701 | 1 | |||
| 2BATTERY | 540277201 | 1 | |||
| 3BATTERY CHARGER | 599807401 | 1 | |||
| 4CABLE ASSY | 599807601 | 1 | |||
| 5WAIST-BELT | 546366801 | 1 |
REMOTE CONTROL ACCESSORIES 4 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1CASE | 546032201 | 1 | Box for G6 Micro Remote Controls | ||
| 2BATTERY | 599807301 | 1 | G6 Li-Ion | ||
| 3BATTERY CHARGER | 599807401 | 1 | G6 Li-Ion | ||
| 3CABLE ASSY | 599807601 | 1 | CAN communication remote to machine |
SUPPORT WHEEL 18 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BRACKET | 536838701 | 1 | BRACKET | ||
| 2HEXAGON LOCKING NUT | 732251801 | 8 | NUT | ||
| 3SCREW | 537579601 | 3 | SCREW | ||
| 4INSERT | 537585301 | 3 | DISTANCE | ||
| 5WASHER | 734116301 | 4 | WASHER | ||
| 6SUPPORT WHEEL | 536173901 | 1 | SUPPORT ARM | ||
| 7WIRE | 537585101 | 1 | WIRE | ||
| 8SCREW | 593509101 | 1 | SCREW | ||
| 9BUSHING | 536838601 | 2 | BUSHING | ||
| 10PIN | 537585201 | 1 | PIN | ||
| 11BRACKET | 537584801 | 1 | BRACKET | ||
| 12SCREW | 537579701 | 1 | SCREW | ||
| 13GAS SPRING | 537584401 | 1 | GAS SPRING | ||
| 14DAMPER | 586734902 | 1 | DAMPER | ||
| 15SUPPORT PLATE | 538967001 | 1 | SUPPORT PLATE | ||
| 16SCREW | 579565901 | 1 | SCREW | ||
| 18SUPPORT WHEEL | 538741201 | 1 | SUPPORT WHEEL | ||
| 19CLAMP | 536174101 | 2 | CLAMP |
WEIGHT ASSY 16 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SHAFT | 536193201 | 2 | SHAFT | ||
| 2SPRING PIN | 548750501 | 4 | WEIGHT LOCK | ||
| 3WASHER | 536313501 | 2 | WASHER | ||
| 4NUT | 584831401 | 2 | NUT | ||
| 5SHIM | 598458601 | 6 | SHIM | ||
| 6WASHER | 597883501 | 4 | WASHER | ||
| 7CIRCLIP | 735312601 | 2 | CIRCLIP | ||
| 8BEARING | 593486001 | 2 | BUSHING | ||
| 9BUTTON | 536193101 | 2 | BUTTON | ||
| 10GAS SPRING | 593582302 | 2 | GAS SPRING | ||
| 11WASHER | 576823101 | 4 | WASHER | ||
| 12SCREW | 531119426 | 4 | SCREW | ||
| 13PROTECTION | 536280001 | 2 | PROTECTION | ||
| 14SCREW IHPANM | 522619901 | 2 | SCREW | ||
| 15WASHER | 593633501 | 2 | WASHER | ||
| 16WEIGHT KIT | 535546301 | 1 | WEIGHT KIT |
Document Downloads
Service bulletin
-
SB. Axial gamma seal installation tool, PG, 2025-07PDF EN
-
SB. PG AND DURATIQ INVERTER MODEL CHANGE, 2025-02PDF EN
-
SB. Disc rotation, PG 6 XR, PG 8 XR, 2024-11PDF EN
-
SB. SW UPDATE PG RC, 2024-11PDF EN
-
SB. GCU firmware update, PG, 2024-10PDF EN
-
SB. Secondary belt replacement, Floor Grinders, 2024-09PDF EN
Service guides and posters
Workshop manual
Operator's manual
Compatable Accessories
Concrete Focus
From pouring to resurfacing, we sell tools built for concrete pros.
Expert Support
Get guidance from experts who understand jobsite challenges.
Fast Delivery
Get your tools fast with our nationwide shipping network and local partnerships.
Talk to an expert now (855) 281-1918
Get fast, expert help choosing the right concrete tools or equipment for your job. Ask about availability, specs, troubleshooting, or get friendly guidance before you place an order.
