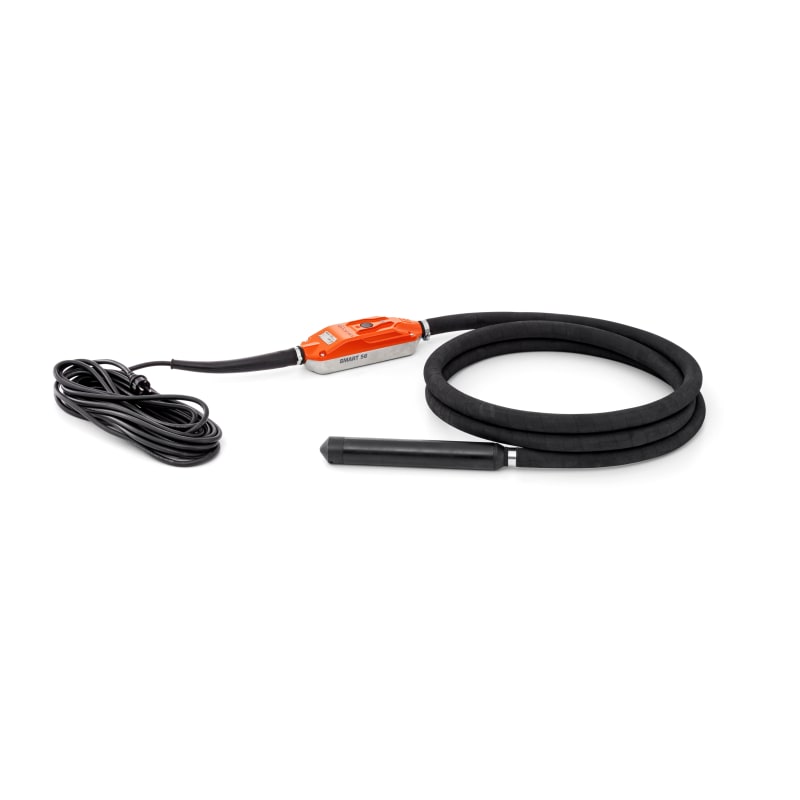

Husqvarna SMART Concrete Vibrator
Husqvarna SMART Concrete Vibrator
HUSQVARNA CONSTRUCTION SKU: 970843603 Copied!
Regular price
$1,892.00
Regular price
$1,892.00
Sale price
$1,892.00
Quantity
Trusted by contractors nationwide
"I've bought 3 products from CTD and each time the experience has been the same - professional and fast delivery. I trust these guys with all my concrete needs."
90 day returns
Product Details
Husqvarna Smart
Husqvarna Smart is a high-frequency concrete vibrator with an integrated frequency converter, delivering powerful, consistent consolidation for professional results with fewer dips.
Key Features

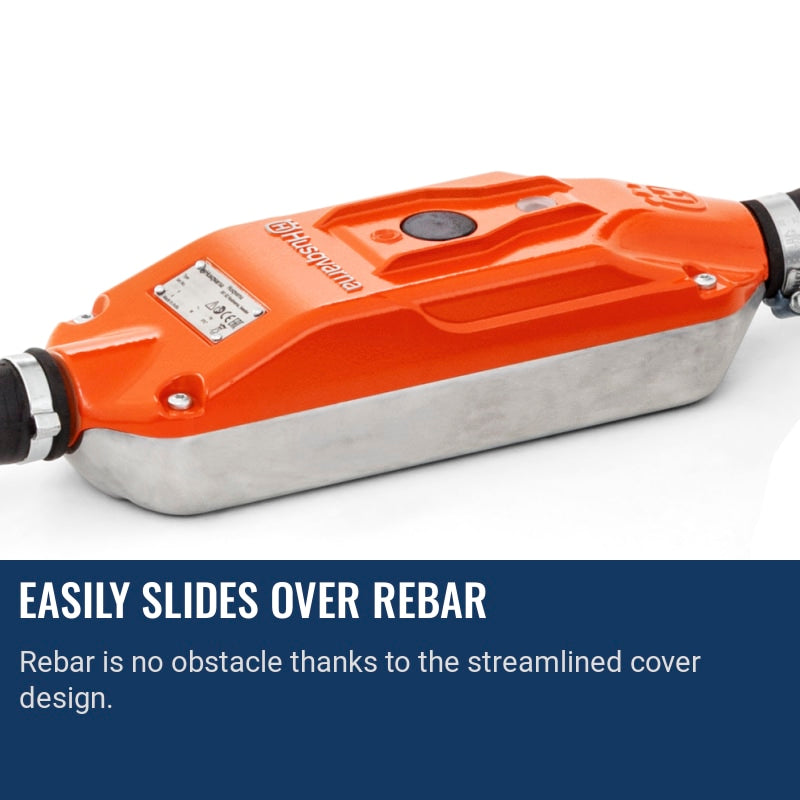

- Integrated frequency converter — streamlines setup and ensures stable speed for uniform vibration.

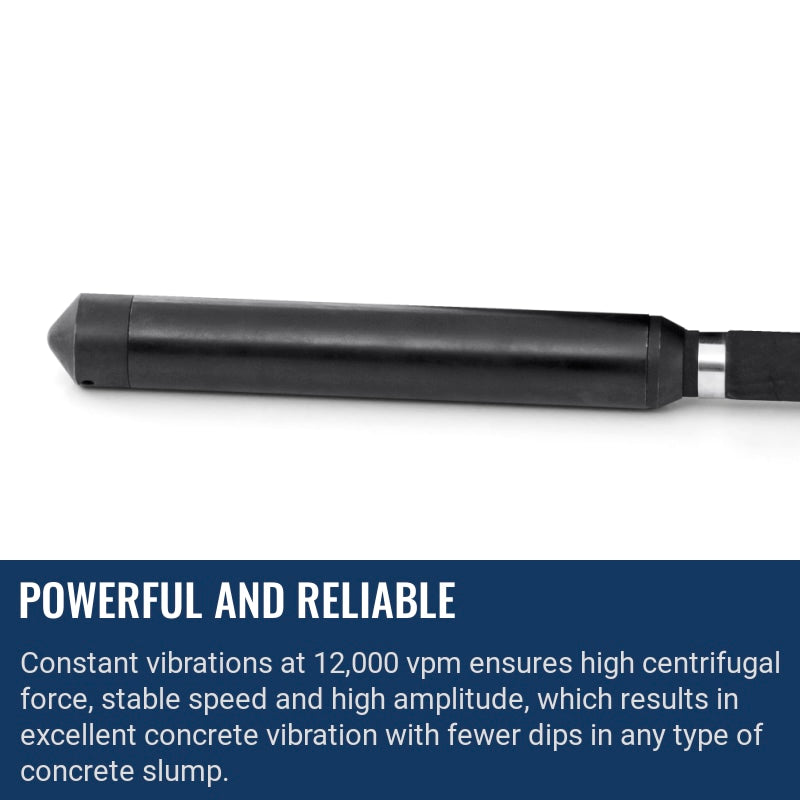

- High centrifugal force — drives deep, effective consolidation for dense, durable concrete.
- High amplitude performance — improves vibration efficiency to reduce the number of passes needed.
- Ergonomic design — minimizes hand–arm vibration to enhance operator comfort during long pours.

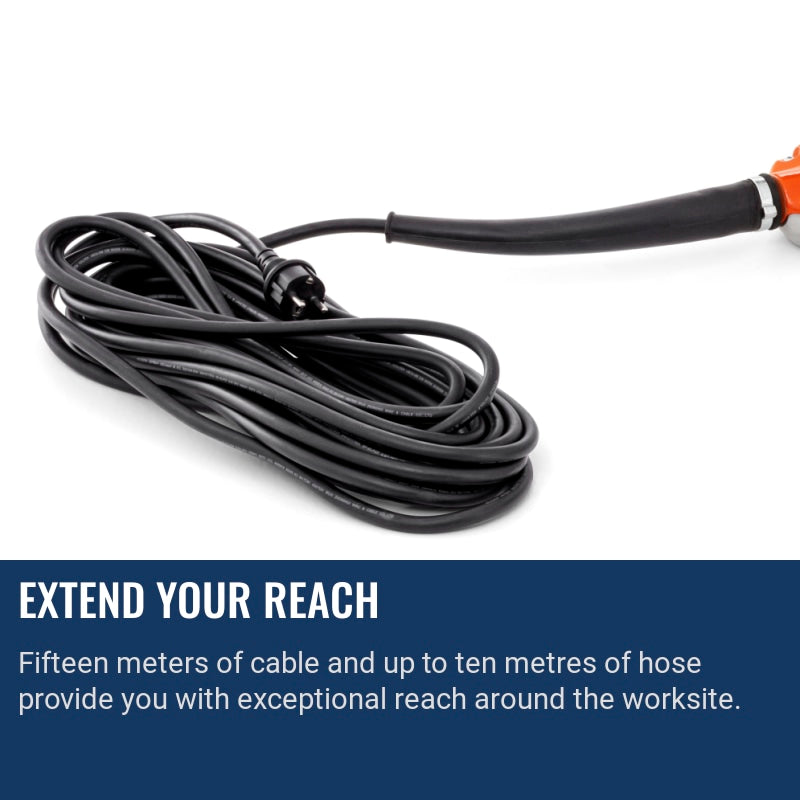

- Extended reach — long cable and hose provide flexibility and coverage across large placements.
Built for demanding jobsites, Husqvarna Smart delivers reliable power, consistent performance, and easy handling.
Product Specification
POKER SMART 40 | 115 V | 1 ph | 50/60 Hz | 5 m | NA
General
Article number
970843603
Power Specifications
Frequency
50/60 Hz
Working Specifications
Vibrations per Minute
12,500
Hose length
16 ft
Tube diameter
1.575 in
Cable length
49 ft
Packaging length (Calc)
29.528 in
Packaging width (Calc)
22.441 in
Packaging height (Calc)
5.512 in
Sound pressure level at operators ear
75 dB(A)
Vibration Value
3.81 m/s²
Weight Specifications
Weight
30.8 lbs
Article gross weight (Calc)
34.172 lbs
Service & Maintenance Parts
COMPLETE PRODUCT 55 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HEAD | 594626801 | 1 | Vibrating head SMART 40 230V | ||
| 1HEAD | 594626901 | 1 | Vibrating head SMART 48 230V | ||
| 1HEAD | 594627001 | 1 | Vibrating head SMART 48 115V | ||
| 1HEAD | 594627101 | 1 | Vibrating head SMART 56 230V | ||
| 1HEAD | 594627201 | 1 | Vibrating head SMART 56 115V | ||
| 1HEAD | 594627301 | 1 | Vibrating head SMART 65 230V | ||
| 1HEAD | 595525301 | 1 | Vibrating head SMART 40 115V | ||
| 2CLIP | 594794701 | 1 | Ground wire cable lug | ||
| 3CLAMP | 594281701 | 2 | |||
| 4HOSE | 594388405 | 1 | 5 m | ||
| 4HOSE | 594388406 | 1 | 10 m | ||
| 4HOSE | 594388408 | 1 | 8 m | ||
| 5INSULATION | 594257501 | 3 | |||
| 6SLEEVE | 595118501 | 3 | |||
| 7HOSE | 594254904 | 1 | 0.55 m | ||
| 8CLAMP | 594286401 | 5 | |||
| 9WIRE | 529485902 | 1 | Red wire, 9 m, EU and UK | ||
| 9WIRE | 529485903 | 1 | Red wire, 11 m, EU and UK | ||
| 9WIRE | 598479201 | 1 | Red wire, 6 m USA (cETLus) | ||
| 9WIRE | 598479203 | 1 | Red wire, 11 m USA (cETLus) | ||
| 10WIRE | 594285903 | 1 | Blue wire, 6 m, EU and UK | ||
| 10WIRE | 594285904 | 1 | Blue wire, 9 m, EU and UK | ||
| 10WIRE | 594285905 | 1 | Blue wire, 11 m, EU and UK | ||
| 10WIRE | 595196702 | 1 | Blue wire, 6 m USA (cETLus) | ||
| 10WIRE | 595196704 | 1 | Blue wire, 11 m USA (cETLus) | ||
| 11CABLE | 594287702 | 1 | White wire, 6 m, EU and UK | ||
| 11CABLE | 594287704 | 1 | White wire, 9 m, EU and UK | ||
| 11CABLE | 594287705 | 1 | White wire, 11 m, EU and UK | ||
| 11WIRE | 595196602 | 1 | White wire, 6 m USA (cETLus) | ||
| 11WIRE | 595196604 | 1 | White wire, 11 m USA (cETLus) | ||
| 12CABLE | 594527804 | 1 | Ground wire, 6.8 m | ||
| 12CABLE | 594527805 | 1 | Ground wire, 9.8 m | ||
| 12CABLE | 594527806 | 1 | Ground wire, 11.8 m | ||
| 13UNIT | 594619801 | 1 | |||
| 14BOX | 594408801 | 1 | |||
| 15HOSE | 594257102 | 1 | |||
| 16COVER | 540258501 | 1 | |||
| 17SCREW | 547163701 | 4 | BOSSARD: 3271308 BN 13916 M5X30 T25 450HV | ||
| 18HANDLE | 594620201 | 1 | |||
| 19RIVET | 595141401 | 4 | |||
| 21SCREW | 594620301 | 4 | M4x8 DIN 7500 | ||
| 22O-RING | 594621401 | 1 | 233x3 NBR 70 shore | ||
| 23DIAPHRAGM | 594619901 | 1 | |||
| 24PLATE | 594620001 | 1 | |||
| 25SWITCH | 594620101 | 1 | |||
| 26WIRE | 594630701 | 1 | Internal ground wire, 300 mm | ||
| 27SCREW | 594286101 | 1 | M4x8 BRASS DIN84A | ||
| 28UNIT | 594853601 | 3 | |||
| 29CLIP | 595196501 | 1 | |||
| 33SHEET | 594256801 | 1 | |||
| 34CLAMP | 594255201 | 1 | |||
| 35CABLE | 595045201 | 1 | Cable with plug EU 230 V | ||
| 36CABLE | 594623301 | 1 | Cable with plug UK 115 V | ||
| 37PLUG | 595196801 | 1 | Cable with plug US 115 V cETLus | ||
| 38PISTON | 594619301 | 1 |
DECALS 8 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1DECAL | 535655901 | 1 | |||
| 2DECAL | 594627501 | 1 | |||
| 3LABEL | 595504901 | 1 | |||
| 4DECAL | 594622601 | 1 | |||
| 5DECAL | 540294201 | 2 | For SMART 40 | ||
| 6DECAL | 540294203 | 2 | For SMART 48 | ||
| 7DECAL | 540294205 | 2 | For SMART 56 | ||
| 8DECAL | 540294207 | 2 | For SMART 65 |
ELECTRONIC CONVERTER 17 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SERVICE KIT | 540907501 | 1 | Electronic converter, complete, standard version | ||
| 2COVER | 540258501 | 1 | |||
| 3UNIT | 594619801 | 1 | |||
| 4O-RING | 594621401 | 1 | 233x3 NBR 70 shore | ||
| 5DIAPHRAGM | 594619901 | 1 | |||
| 6PLATE | 594620001 | 1 | |||
| 7SWITCH | 594620101 | 1 | |||
| 8HANDLE | 594620201 | 1 | |||
| 9SCREW | 594620301 | 4 | M4x8 DIN 7500 | ||
| 10SCREW | 547163701 | 4 | BOSSARD: 3271308 BN 13916 M5X30 T25 450HV | ||
| 11UNIT | 594853601 | 3 | |||
| 12PISTON | 594619301 | 1 | |||
| 13BOX | 594408801 | 1 | |||
| 14HOSE | 594257101 | 1 | |||
| 15WIRE | 594630701 | 1 | Internal ground wire, 300 mm | ||
| 16SCREW | 594286101 | 1 | M4x8 BRASS DIN84A | ||
| 17CLIP | 595196501 | 1 |
VIBRATOR SMART 40 22 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1CAP | 594290101 | 1 | |||
| 2CAP | 595156701 | 1 | Rubber end cap, optional | ||
| 3BEARING | 594290301 | 1 | FAG 4201 B TVH-C3 | ||
| 4SCREW | 594286501 | 2 | M5x18 ISO 4017 8.8 A2K | ||
| 5WASHER | 594399301 | 2 | ZM5 NFE25-511 FZB | ||
| 6ECCENTRIC | 594290201 | 2 | |||
| 7ROTOR | 594262301 | 1 | |||
| 8BUSHING | 594272301 | 1 | IR 7x10x12 | ||
| 9TUBE | 594621501 | 1 | Stator, complete SMART 40 230 V | ||
| 10TUBE | 594860201 | 1 | Stator, complete SMART 40 115 V | ||
| 11BEARING | 594272201 | 1 | HK 1012 B | ||
| 12HOLDER | 594277501 | 1 | |||
| 14HOSE | 595149001 | 1 | |||
| 15O-RING | 594268001 | 1 | 33.05x1.78 NBR 70 shore | ||
| 16NIPPLE | 595156001 | 1 | |||
| 17SCREW | 594272701 | 1 | M4x5 BRASS DIN84A | ||
| 18GASKET | 594289001 | 1 | |||
| 19PROTECTION | 594290401 | 1 | |||
| 20RING | 594287501 | 1 | |||
| 21SCREW | 594287301 | 1 | |||
| 22HEAD | 594626801 | 1 | Vibrating head, complete, SMART 40 230V | ||
| 23HEAD | 595525301 | 1 | Vibrating head, complete, SMART 40 115V |
VIBRATOR SMART 48 23 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1CAP | 594289401 | 1 | |||
| 2CAP | 595156801 | 1 | Rubber end cap, optional | ||
| 3BEARING | 594289601 | 1 | NUP 2203 E TVP2 C3 | ||
| 4RETAINER RING | 594286301 | 1 | 17x1.5 DIN471 | ||
| 5SCREW | 595466301 | 2 | M6x25 ISO4017 8.8 A2K | ||
| 6WASHER | 594399401 | 2 | ZM6 NFE25-511 FZB | ||
| 7ECCENTRIC | 595523601 | 2 | |||
| 8ROTOR | 594289501 | 1 | |||
| 9BUSHING | 594272301 | 1 | IR 7x10x12 | ||
| 10TUBE | 594621701 | 1 | Stator, complete SMART 48 230 V | ||
| 11TUBE | 595196401 | 1 | Stator, complete SMART 48 115 V | ||
| 12BEARING | 594272201 | 1 | HK 1012 B | ||
| 13BEARING | 594265001 | 1 | |||
| 14HOSE | 594277801 | 1 | |||
| 15O-RING | 594266901 | 1 | 35x2 NBR 70 shore | ||
| 16NIPPLE | 594264901 | 1 | |||
| 17SCREW | 594272701 | 1 | M4x5 BRASS DIN84A | ||
| 18GASKET | 594289001 | 1 | |||
| 19PROTECTION | 594290401 | 1 | |||
| 20RING | 594287501 | 1 | |||
| 21SCREW | 594287301 | 1 | |||
| 22HEAD | 594626901 | 1 | Vibrating head, complete, SMART 48 230V | ||
| 23HEAD | 594627001 | 1 | Vibrating head, complete, SMART 48 115V |
VIBRATOR SMART 56 23 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1CAP | 594289101 | 1 | |||
| 2CAP | 595029601 | 1 | Rubber end cap, optional | ||
| 3BEARING | 594289301 | 1 | NUP 204 E TVP2 C3 | ||
| 4RETAINER RING | 594278001 | 1 | 20x1.75 DIN471 | ||
| 5SCREW | 595053801 | 2 | M6x30 ISO4017 8.8 A2K | ||
| 6WASHER | 594399401 | 2 | ZM6 NFE25-511 FZB | ||
| 7ECCENTRIC | 595523701 | 2 | |||
| 8ROTOR | 594289201 | 1 | |||
| 9BUSHING | 594273701 | 1 | IR 10x13x12,5 C3 | ||
| 10TUBE | 594621801 | 1 | Stator, complete SMART 56 230 V | ||
| 11TUBE | 594621901 | 1 | Stator, complete SMART 56 115 V | ||
| 12BEARING | 594273601 | 1 | HK 1312 B | ||
| 14BEARING | 594622001 | 1 | |||
| 15HOSE | 594277801 | 1 | |||
| 16O-RING | 594266901 | 1 | 35x2 NBR 70 shore | ||
| 18NIPPLE | 594860301 | 1 | |||
| 19SCREW | 594272701 | 1 | M4x5 BRASS DIN84A | ||
| 20GASKET | 594289001 | 1 | |||
| 21PROTECTION | 594290401 | 1 | |||
| 22RING | 594287501 | 1 | |||
| 23SCREW | 594287301 | 1 | |||
| 24HEAD | 594627101 | 1 | Vibrating head, complete, SMART 56 230V | ||
| 25HEAD | 594627201 | 1 | Vibrating head, complete, SMART 56 115V |
VIBRATOR SMART 65 20 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1CAP | 594289701 | 1 | |||
| 2CAP | 595450901 | 1 | Rubber end cap, optional | ||
| 3BEARING | 594290001 | 1 | NUP 2304 E TVP2 C3 | ||
| 4RETAINER RING | 594278001 | 1 | 20x1.75 DIN471 | ||
| 5SCREW | 595344301 | 2 | M8x30 ISO4017 8.8 FZB | ||
| 6WASHER | 594399501 | 2 | ZM8 NFE25-511 FZB | ||
| 7ECCENTRIC | 595157801 | 2 | |||
| 8ROTOR | 594289901 | 1 | |||
| 9BUSHING | 594273701 | 1 | IR 10x13x12,5 C3 | ||
| 10TUBE | 594622101 | 1 | Stator, complete SMART 65 230 V | ||
| 11BEARING | 594273601 | 1 | HK 1312 B | ||
| 12BEARING | 594277701 | 1 | |||
| 13HOSE | 594791001 | 1 | |||
| 14O-RING | 594268301 | 1 | 48.9x2.62 NBR 70 shore | ||
| 15NIPPLE | 594290501 | 1 | |||
| 16SCREW | 594272701 | 1 | M4x5 BRASS DIN84A | ||
| 17GASKET | 594289001 | 1 | |||
| 18PROTECTION | 594290401 | 1 | |||
| 19RING | 594287501 | 1 | |||
| 20SCREW | 594287301 | 1 |
Document Downloads
Operator's manual
