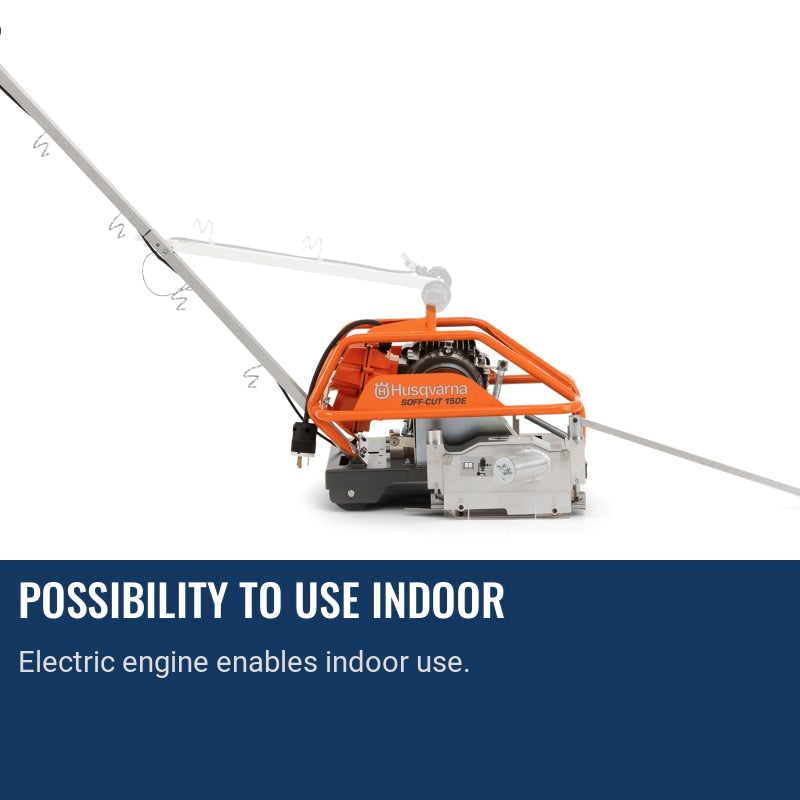

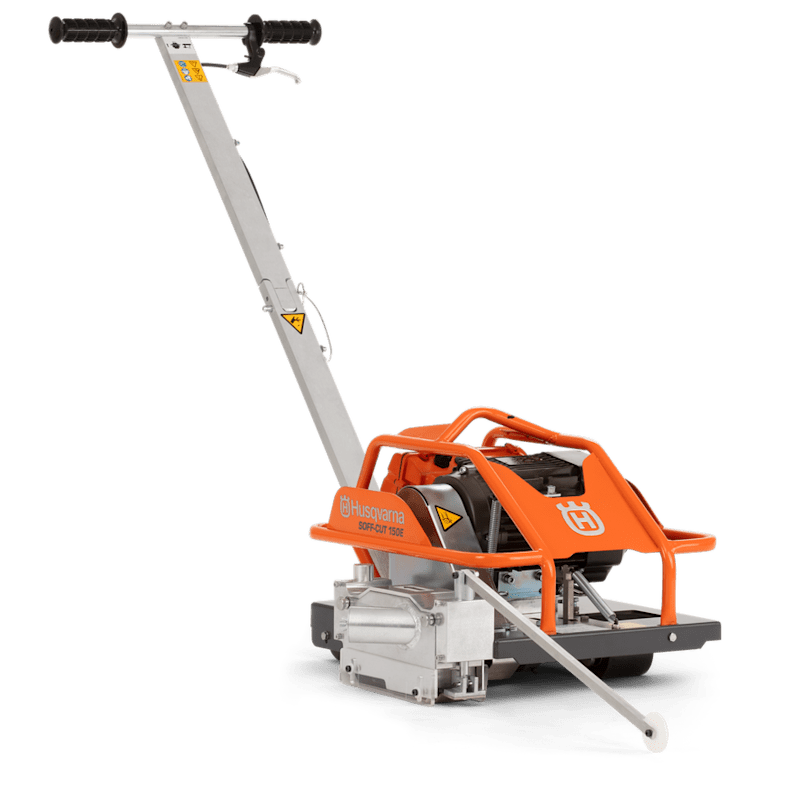

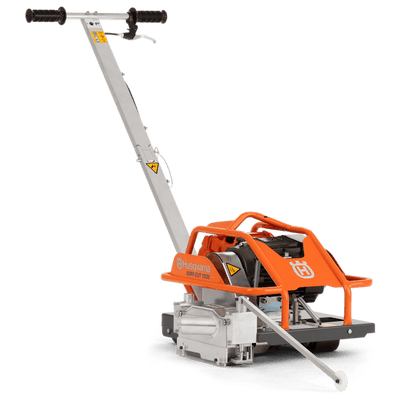

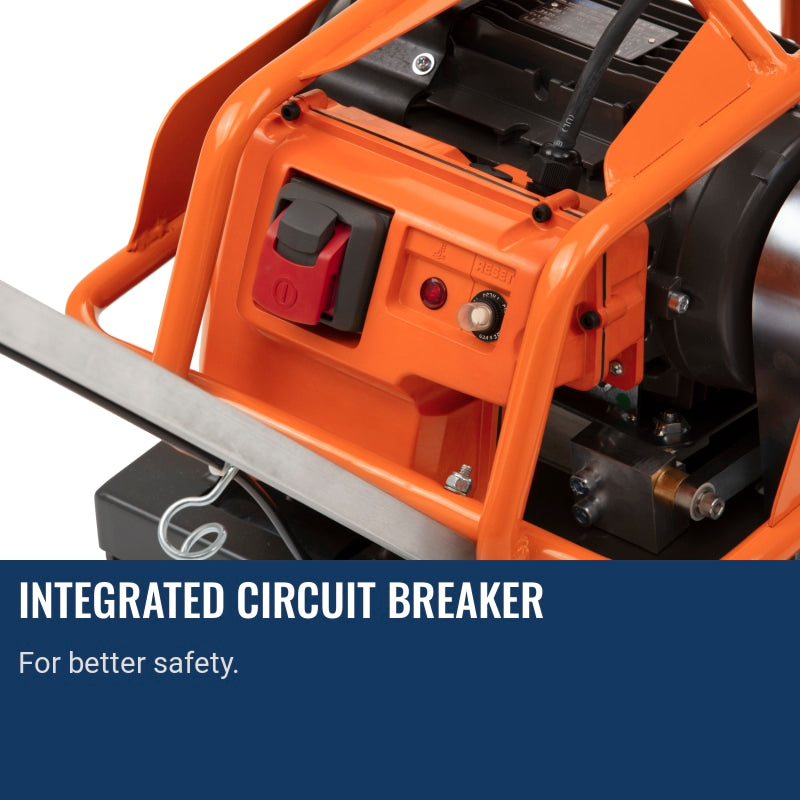

Product Specification
Specifications
Service & Maintenance Parts
BELT 16 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BOLT | 505591901 | 1 | |||
| 3SCREW | 582370801 | 1 | |||
| 4BALL BEARING | 505736001 | 2 | |||
| 5SPACER | 582370701 | 1 | |||
| 6SPRING | 505737901 | 1 | |||
| 7WASHER | 505725201 | 3 | |||
| 8BOLT | 505726501 | 2 | |||
| 9TENSIONER | 582669501 | 1 | |||
| 10NUT | 505631901 | 1 | |||
| 12SCREW IHSCM | 725544901 | 2 | |||
| 13HEXAGON NUT | 731231801 | 2 | |||
| 15WASHER | 505632801 | 1 | |||
| 16BELT TENSIONER | 597801601 | 1 | |||
| 19WASHER | 505634501 | 1 | |||
| 20SPACER | 505589001 | 1 | |||
| 21WASHER | 734116301 | 2 |

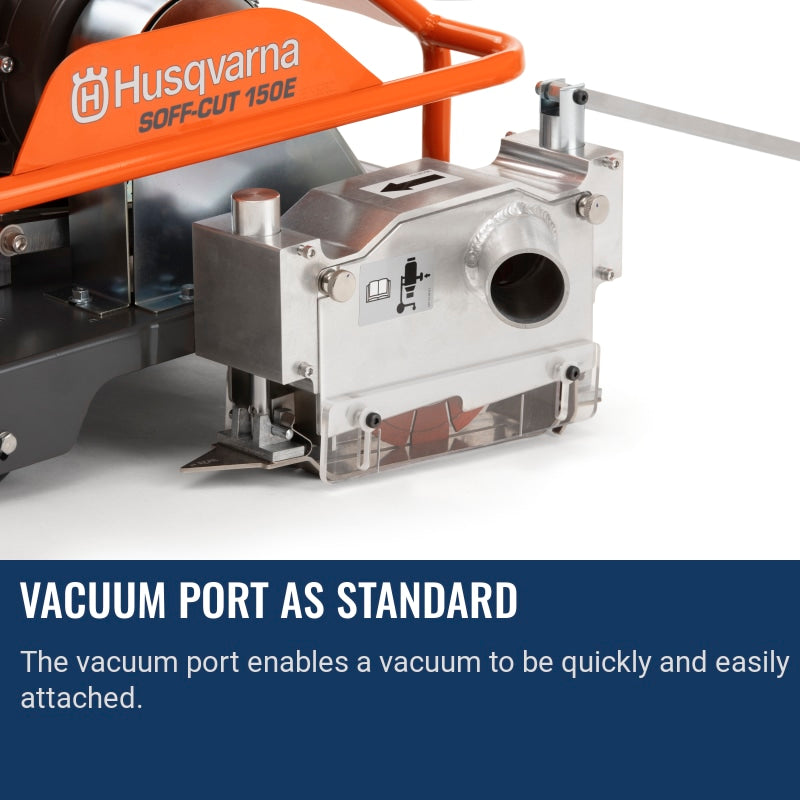

BLADE BLOCK 38 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1PLATE | 505587701 | 1 | |||
| 2CAP | 505588601 | 1 | |||
| 3SPRING | 505593001 | 1 | |||
| 4REAR AXLE | 505588501 | 1 | |||
| 5PIN | 587918201 | 1 | |||
| 6BLADE BLOCK | 510272111 | 1 | |||
| 6COVER | 589949001 | 1 | |||
| 7SCREW | 505729901 | 3 | |||
| 8PLATE | 595275001 | 1 | |||
| 9FRONT AXLE ASSY | 505588201 | 1 | |||
| 10PIN | 505774001 | 1 | |||
| 11FRONT AXLE ASSY | 505876101 | 1 | |||
| 12BOLT | 505686401 | 3 | |||
| 13WASHER | 505634401 | 8 | |||
| 14BOLT | 505729701 | 3 | |||
| 15INNER PLATE | 505587901 | 1 | |||
| 16REAR COVER | 505587601 | 1 | |||
| 17NUT | 505630401 | 2 | |||
| 18HOUSING | 505587801 | 1 | |||
| 19SPRING | 505593101 | 1 | |||
| 20SPACER | 505588801 | 2 | |||
| 21BUSHING | 505593401 | 2 | |||
| 22DUST SEAL | 505593501 | 2 | |||
| 23WASHER | 505633101 | 4 | |||
| 24BOLT | 505591401 | 5 | |||
| 25INSERT | 505748301 | 2 | |||
| 26E-CLIP | 505536501 | 2 | |||
| 27WASHER | 505536401 | 2 | |||
| 28KNOB | 505536301 | 1 | |||
| 29REAR AXLE | 505876201 | 1 | |||
| 30COVER | 589419901 | 1 | |||
| 31PLUG | 593682001 | 1 | |||
| 32GASKET | 589772501 | 1 | |||
| 33BRACKET | 505588001 | 1 | |||
| 34PLATE | 597865001 | 1 | |||
| 35SCREW | 510325501 | 2 | |||
| 36PIN | 505592701 | 1 | |||
| 37POINTER | 582673501 | 1 |
BLADE RELEASE ARM 8 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1NUT | 505631901 | 3 | |||
| 2WASHER | 505632801 | 3 | |||
| 3LEVER | 505587001 | 1 | |||
| 4ANCHOR | 505774501 | 3 | |||
| 5WASHER | 505634501 | 2 | |||
| 6BOLT | 505726701 | 1 | |||
| 8SPRING | 505737901 | 1 | |||
| 9WASHER | 505725201 | 1 |
BLADE SHAFT 12 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BOLT | 505727601 | 4 | |||
| 2FLAT WASH 3/8 STL CAD | 505724601 | 4 | |||
| 3WASHER | 505731001 | 4 | |||
| 4NUT | 505732101 | 4 | |||
| 5V-BELT | 597114301 | 1 | |||
| 6SHEAVE | 579794501 | 1 | |||
| 7SCREW IHSETM | 728844705 | 2 | |||
| 8BEARING UNIT | 505592001 | 2 | |||
| 9BLADE SHAFT | 505588401 | 1 | |||
| 10KEY | 597985601 | 1 | |||
| 11WASHER | 505491502 | 1 | |||
| 12BOLT | 505573401 | 1 |
CARRIAGE 15 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BOLT | 505627501 | 3 | |||
| 2WASHER | 505632801 | 2 | |||
| 3SNAP RING | 505733501 | 4 | |||
| 4BLADE BUSHING | 505586901 | 2 | |||
| 5WHEEL | 505592901 | 3 | |||
| 6REAR AXLE | 505586701 | 1 | |||
| 7BOLT | 505729701 | 4 | |||
| 8BUTTON | 505625301 | 1 | |||
| 9FRONT AXLE SYSTEM | 505588101 | 1 | |||
| 10FRAME | 505586801 | 1 | |||
| 12WASHER | 505635301 | 4 | |||
| 17SCREW CCRPANT | 729534001 | 1 |
Regular price
$22.78
Regular price
|
||
| 19SPACER | 505588901 | 2 | |||
| 22BOLT | 505591401 | 1 | |||
| 23WASHER | 505633101 | 1 |
DECALS 7 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1DECAL | 596990601 | 1 | |||
| 3DECAL | 582185401 | 1 | |||
| 4DECAL | 595084101 | 2 | |||
| 5DECAL | 590821601 | 1 | |||
| 6DECAL | 576973401 | 1 | |||
| 8DECAL | 597026901 | 2 | |||
| 9DECAL | 597026901 | 1 |
GUIDE ARM ASSEMBLY 10 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1NUT | 505630401 | 4 | |||
| 2DISC | 505614201 | 1 | |||
| 3WASHER | 505634401 | 2 | |||
| 4BOLT | 505686401 | 2 | |||
| 6BOLT | 505725901 | 1 | |||
| 7CAP | 582653801 | 1 | |||
| 8GASKET | 589772501 | 1 | |||
| 9POINTER | 582673501 | 1 |
Regular price
$169.00
Regular price
|
||
| 10WASHER | 505632001 | 2 | |||
| 11GUIDE BAR | 582664601 | 1 |

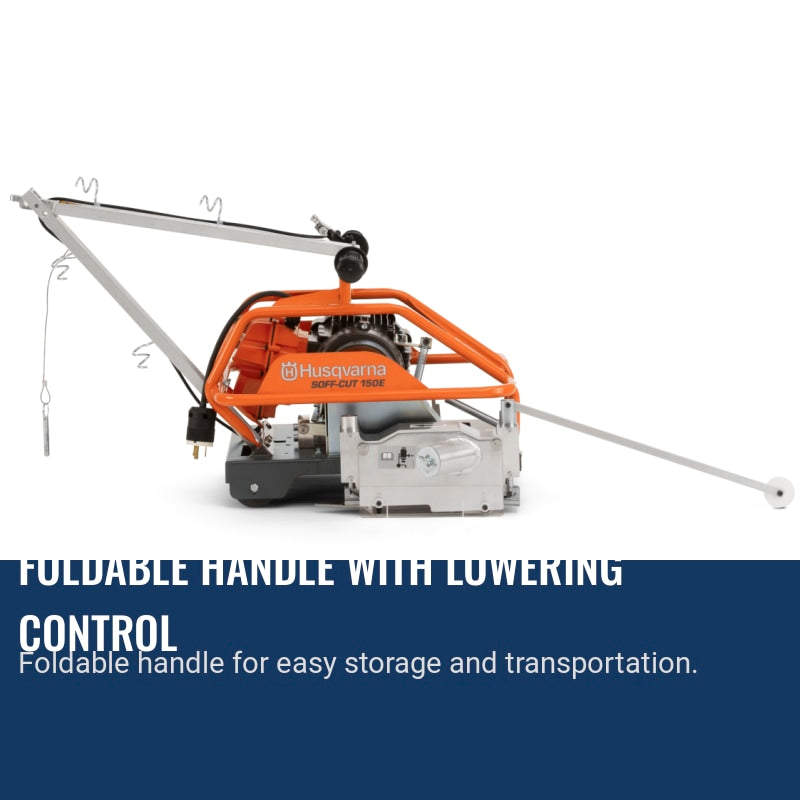

HANDLE 10 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1HANDLE | 597543001 | 2 | |||
| 3HANDLE | 592737701 | 1 | |||
| 4BOLT | 505728801 | 2 | |||
| 5WASHER | 505632001 | 2 | |||
| 6WASHER | 505633101 | 1 | |||
| 7SCREW | 598449301 | 4 | |||
| 8WASHER | 505635301 | 4 | |||
| 10KIT | 574719801 | 1 | |||
| 12HANDLE | 597250101 | 1 | |||
| 13WASHER | 505635301 | 1 |
MAINFRAME 23 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BOLT | 505728901 | 1 | |||
| 2BASEPLATE | 597180001 | 1 | |||
| 3WASHER | 505632001 | 3 | |||
| 4BOLT | 505627501 | 4 | |||
| 5NYLOC NUT 1/4-20 CAD PL. | 505630501 | 9 | |||
| 6GUARD | 597179101 | 1 | |||
| 7BELT TENSIONER | 597801601 | 1 | |||
| 8SCREW IHSCM | 725545901 | 2 | |||
| 9BRACKET | 597112701 | 1 | |||
| 10BRACKET | 597112601 | 1 | |||
| 11BELT GUARD | 597114601 | 1 | |||
| 12SCREW | 582639201 | 5 | |||
| 13BRACKET | 597112401 | 1 | |||
| 14BOLT | 522442601 | 1 | |||
| 15WASHER | 541204780 | 4 | |||
| 16NUT | 539990717 | 4 | |||
| 19NUT | 505631901 | 1 | |||
| 21ANCHOR | 505774501 | 1 | |||
| 29SCREW | 539990209 | 2 | |||
| 30COVER | 505589501 | 1 | |||
| 33WASHER | 734116301 | 4 |
Regular price
$22.68
Regular price
|
||
| 34SCREW EHHM | 725245171 | 4 | |||
| 38BOLT | 505728801 | 2 |

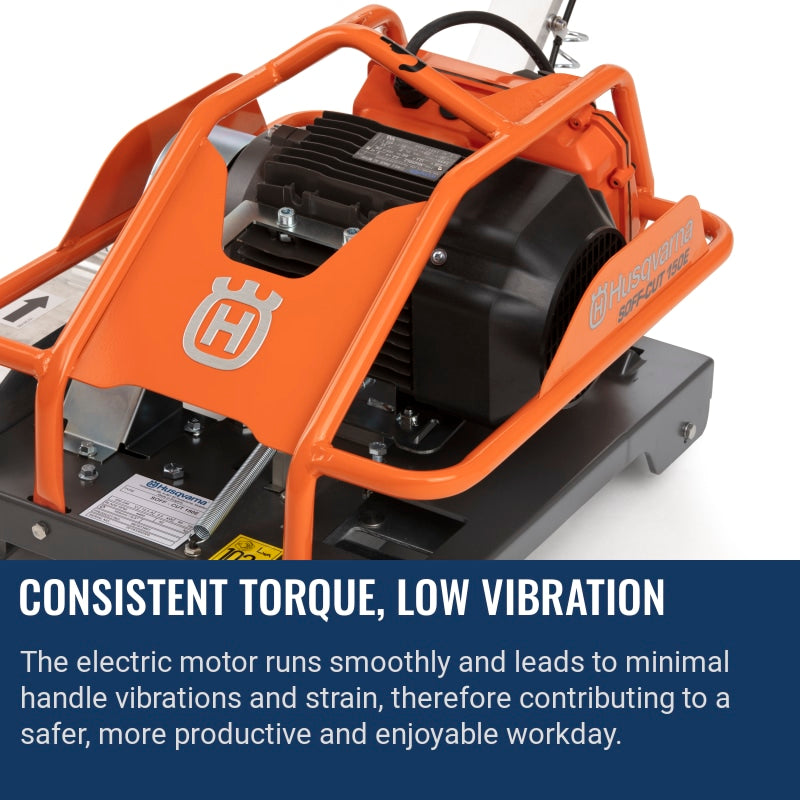

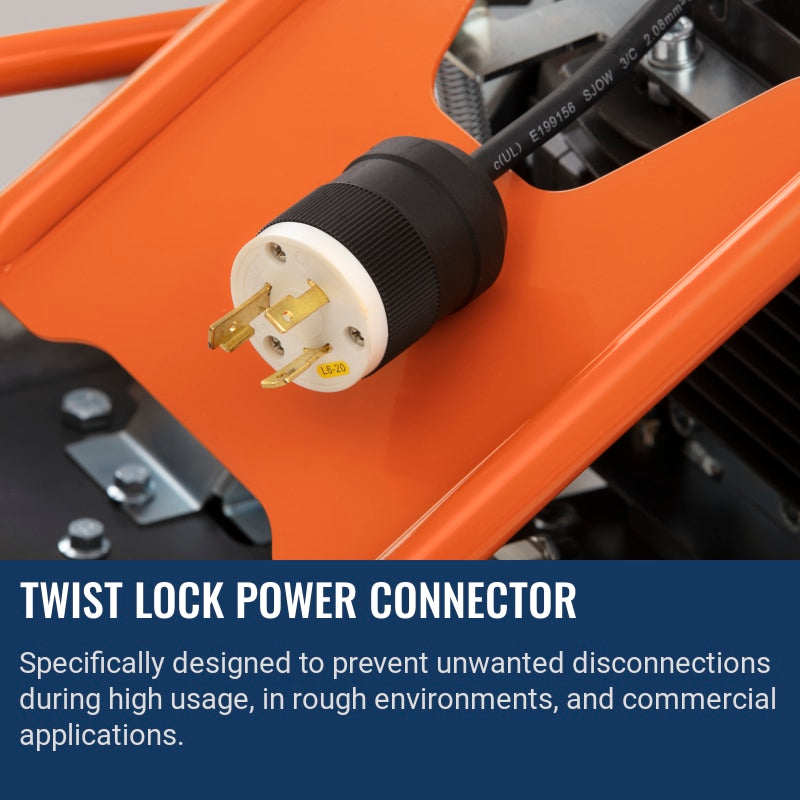

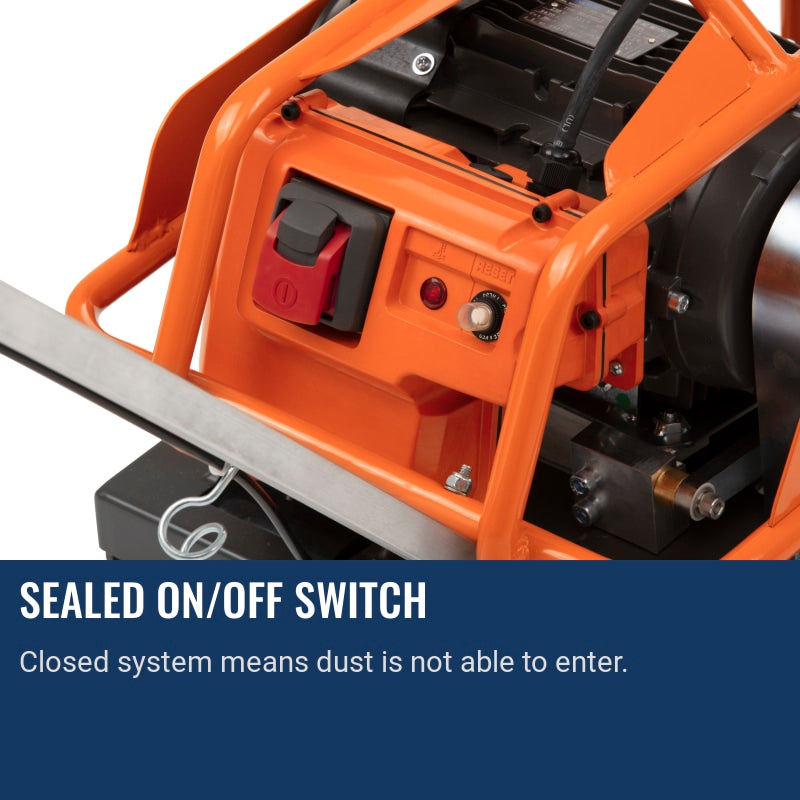

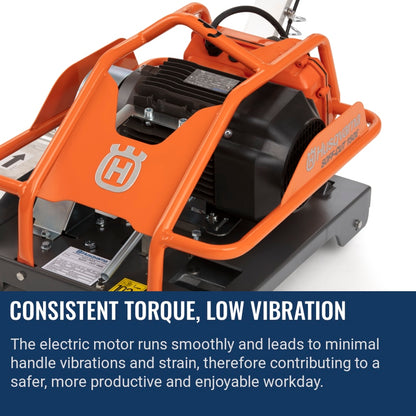

MOTOR 4 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1MOTOR | 597439401 | 1 | |||
| 2SCREW IHSCM | 725545101 | 4 | |||
| 3SCREW IHSETM | 728844705 | 2 | |||
| 4PULLEY | 597113701 | 1 |
Document Downloads
Operator's manual
Service bulletin
