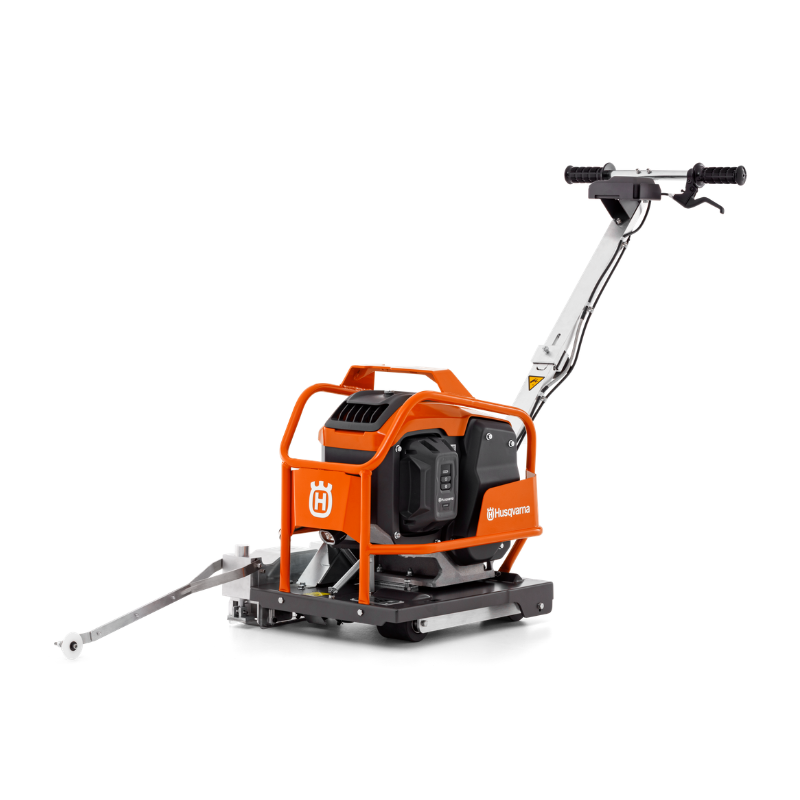

Husqvarna Soff-Cut 150 PACE
Husqvarna Soff-Cut 150 PACE
HUSQVARNA CONSTRUCTION SKU: 970760601 Copied!
Is this the right tool for the job?
Regular price
$3,939.00
Regular price
$4,143.00
Sale price
$3,939.00
Quantity
Trusted by contractors nationwide
"I've bought 3 products from CTD and each time the experience has been the same - professional and fast delivery. I trust these guys with all my concrete needs."
90 day returns
Product Details
This battery-powered early-entry saw helps flatwork crews cut control joints in green concrete soon after finishing. It suits owner-operators and small crews handling rooms, bays, sidewalks, driveways and patios, reducing random cracking risk without petrol fumes indoors.
- Cut ultra-early contraction joints before shrinkage stresses mark the slab.

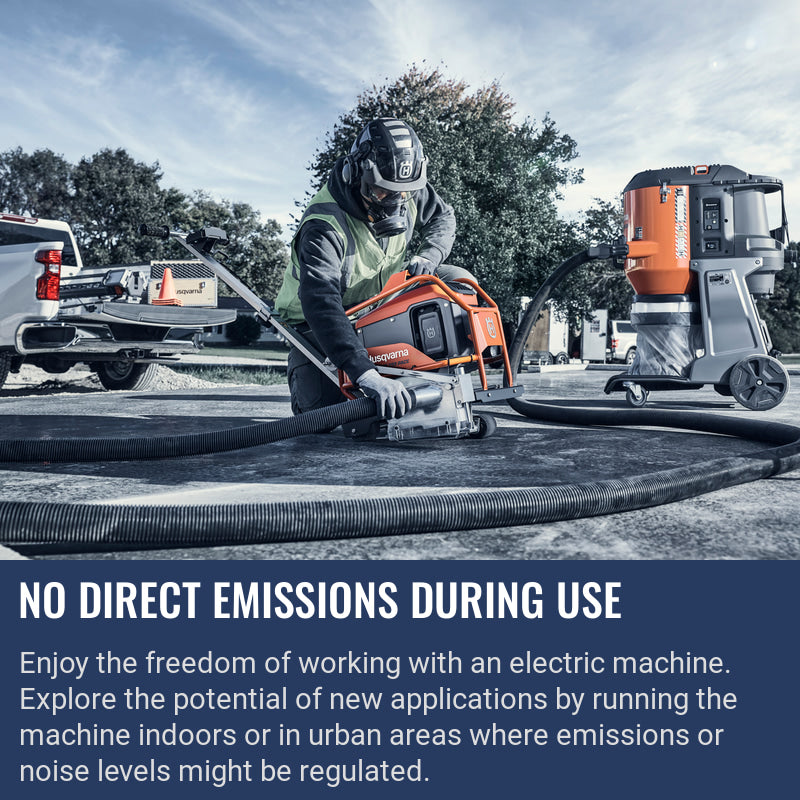

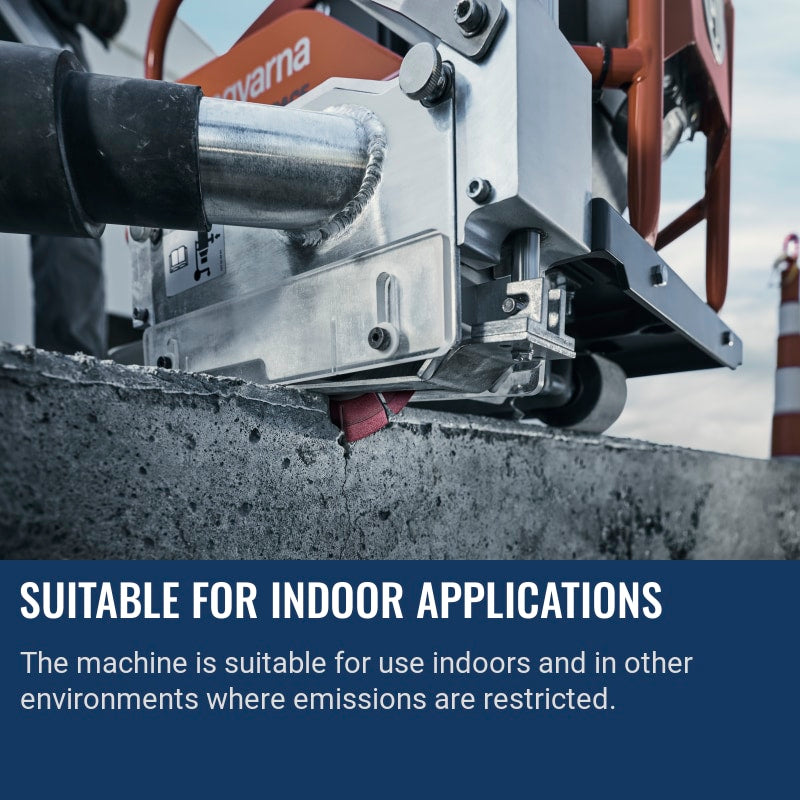

- Work indoors or outdoors with battery power and no exhaust fumes.
- Keep medium pours moving with a compact saw suited to 2–6 person crews.
- Match regular green-cut work where light-duty depth and width requirements suit the specification.

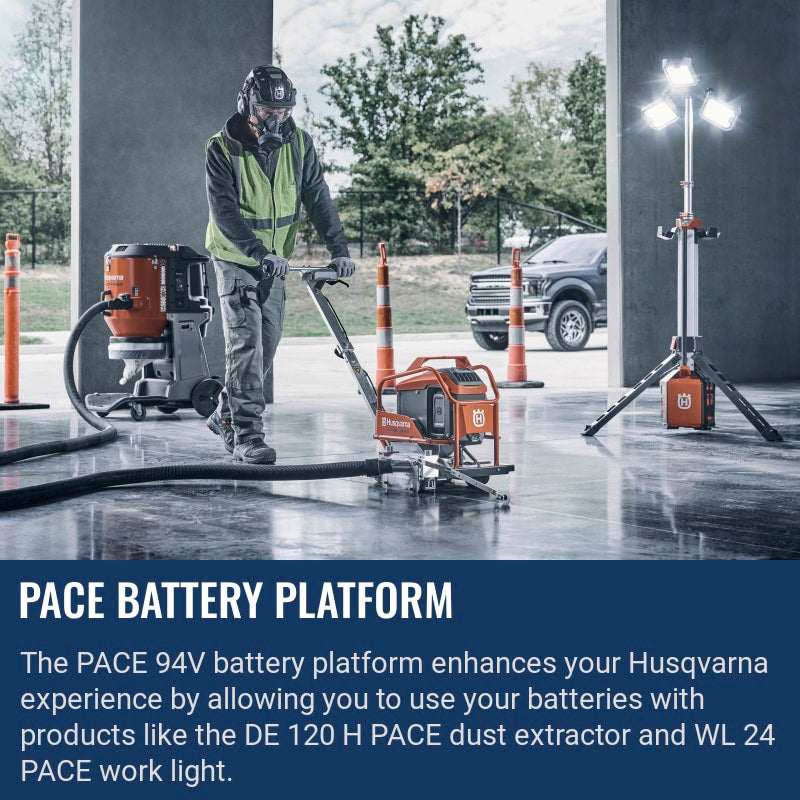

Use it with Husqvarna PACE batteries and early-entry blades; it does not suit cured concrete, asphalt or deep 1/4-slab-depth cuts.
Product Specification
General
Article number
970760601
Power Specifications
Power Source
Battery
Battery eco system
PACE
Working Specifications
Cutting depth, max
1.5 in
Blade diameter, max
6.5 in
Blade depth control
Manual
Type of operation
Push
Product size length
46.4 in
Product size width
22.4 in
Product size height
36.7 in
Weight Specifications
Weight
90.2 oz
Article gross weight (Calc)
101.964 lbs
Other Specifications
Packaging length (Calc)
35.236 in
Packaging width (Calc)
20.472 in
Packaging height (Calc)
24.803 in
Warranty
Husqvarna Soff Cut 150 PACE Warranty
1 year limited warranty
Related Equipment
Related Equipment
Service & Maintenance Parts
ACCESSORIES 20 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BATTERY CHARGER | 970495001 | 1 | BATTERY CHARGER EU | ||
| 1BATTERY CHARGER | 970495002 | 1 | BATTERY CHARGER UK | ||
| 1BATTERY CHARGER | 970495003 | 1 | BATTERY CHARGER US |
Regular price
$489.00
Regular price
|
|
| 1BATTERY CHARGER | 970495004 | 1 | BATTERY CHARGER JP | ||
| 1BATTERY CHARGER | 970495005 | 1 | BATTERY CHARGER AU/NZ/AR | ||
| 1BATTERY CHARGER | 970495006 | 1 | BATTERY CHARGER CH | ||
| 1BATTERY CHARGER | 970495101 | 1 | BATTERY CHARGER EU | ||
| 1BATTERY CHARGER | 970495102 | 1 | BATTERY CHARGER UK | ||
| 1BATTERY CHARGER | 970495103 | 1 | BATTERY CHARGER US |
Regular price
$589.00
Regular price
|
|
| 1BATTERY CHARGER | 970495104 | 1 | BATTERY CHARGER JP | ||
| 1BATTERY CHARGER | 970495105 | 1 | BATTERY CHARGER AU/NZ/AR | ||
| 1BATTERY CHARGER | 970495106 | 1 | BATTERY CHARGER CH | ||
| 2BATTERY | 970494001 | 1 | BATTERY 100-B380X RoW | ||
| 2BATTERY | 970494101 | 1 | BATTERY 100-B380X EU, AU, NZ, JP | ||
| 2BATTERY | 970494102 | 1 | BATTERY 100-B380X US, CA |
Regular price
$429.00
Regular price
|
|
| 2BATTERY | 970494201 | 1 | BATTERY 100-B750X EU, AU, NZ, JP | ||
| 2BATTERY | 970494202 | 1 | BATTERY 100-B750X US/CA |
Regular price
$649.00
Regular price
|
|
| 2BATTERY | 970494301 | 1 | BATTERY 100-B750X RoW | ||
| 3TOOL | 541085401 | 1 | |||
| 4TOOL | 541085301 | 1 |
BATTERY HOUSING 17 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1LOCK NUT | 522669302 | 8 | LOCKNUT M6 | ||
| 2WASHER | 734115441 | 4 | WASHER | ||
| 3SCREW ITXSCT | 599608301 | 2 | SCREW | ||
| 4HOLDER | 529963601 | 2 | HOLDER | ||
| 5HOUSING | 547535801 | 1 | HOUSING | ||
| 6SPRING | 536979701 | 2 | SPRING | ||
| 7PUSH BUTTON | 577996601 | 2 | PUSH BUTTON | ||
| 8PLATE | 599528201 | 1 | PLATE | ||
| 9PLATE | 547532601 | 1 | PLATE | ||
| 10SCREW ITXSCT | 599608301 | 5 | SCREW | ||
| 11HOUSING | 540608001 | 1 | HOUSING | ||
| 12LEVER | 540608101 | 1 | LEVER | ||
| 13SPRING | 531118901 | 1 | SPRING | ||
| 14LEVER | 531022301 | 1 | LEVER | ||
| 15COVER | 531021901 | 1 | COVER | ||
| 16DAMPER | 547405801 | 4 | DAMPER | ||
| 17WASHER | 538897001 | 4 | WASHER |
BLADE BLOCK ASSEMBLY 36 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SPRING | 505593001 | 1 | SPRING | ||
| 2CAP | 505588601 | 2 | CAP | ||
| 3SPRING | 505593101 | 1 | SPRING | ||
| 4REAR COVER | 505587601 | 1 | REAR COVER | ||
| 5BOLT | 505729701 | 4 | BOLT | ||
| 6WASHER | 505633001 | 2 | WASHER | ||
| 7WASHER | 505633101 | 2 | HEX BOLT 5/16-18-1 CAD GR 5 | ||
| 8INNER PLATE | 505587901 | 1 | INNER PLATE | ||
| 9WASHER | 505634401 | 4 | WASHER | ||
| 10BOLT | 505686401 | 2 | BOLT | ||
| 11NUT | 505630401 | 2 | NUT | ||
| 12HOUSING | 505587801 | 1 | HOUSING | ||
| 13INSERT | 505748301 | 2 | INSERT |
Regular price
$39.59
Regular price
|
|
| 14WASHER | 505633101 | 4 | WASHER | ||
| 15BOLT | 505591401 | 3 | BOLT | ||
| 16PIN | 505592701 | 1 | PIN | ||
| 17COVER | 540958901 | 1 | COVER VAC PORT | ||
| 18REAR AXLE | 505588501 | 1 | REAR AXLE | ||
| 19SPACER | 505588801 | 2 | SPACER |
Regular price
$58.99
Regular price
|
|
| 19PIN | 587918201 | 1 | PIN | ||
| 20PLATE | 505587701 | 1 | PLATE | ||
| 21SCREW | 510325501 | 2 | SCREW | ||
| 22SCREW | 505729901 | 3 | SCREW | ||
| 23PLATE | 597865001 | 1 | PLATE | ||
| 24BUSHING | 505593401 | 2 | BUSHING | ||
| 25DUST SEAL | 505593501 | 2 | DUST SEAL | ||
| 26FRONT AXLE ASSY | 505588201 | 1 | FRONT AXLE ASSY |
Regular price
$169.00
Regular price
|
|
| 27PIN | 505774001 | 1 | PIN | ||
| 28RETAINER | 540908501 | 2 | RETAINER | ||
| 29COVER | 589419901 | 1 | COVER | ||
| 30PLUG | 593682001 | 1 | PLUG | ||
| 31WASHER | 505536401 | 2 | WASHER | ||
| 32KNOB | 540908601 | 2 | KNOB | ||
| 33FRONT AXLE ASSY | 505876101 | 1 | FRONT AXLE ASSY |
Regular price
$276.48
Regular price
|
|
| 34REAR AXLE | 505876201 | 1 | REAR AXLE ASSY | ||
| 35BLADE BLOCK | 510272111 | 1 | BLADE BLOCK SC150 |
Regular price
$1,179.00
Regular price
|
BLADE SHAFT 27 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1SCREW IHSETM | 728844705 | 2 | SCREW | ||
| 2PULLEY KIT | 582669301 | 1 | SHEAVE | ||
| 3SPACER | 547069701 | 1 | SPACER | ||
| 4ARM | 505587301 | 1 | ARM | ||
| 5DRIVE BELT | 588769201 | 1 | DRIVE BELT | ||
| 6WASHER | 505634501 | 1 | WASHER | ||
| 7WASHER | 505725201 | 1 | WASHER | ||
| 8BOLT | 505591901 | 1 | BOLT | ||
| 9SCREW | 582370801 | 1 | SCREW | ||
| 10BALL BEARING | 505736001 | 2 | BALL BEARING | ||
| 11SPACER | 582370701 | 1 | SPACER | ||
| 12SPRING | 505737901 | 1 | SPRING PUMP IDLER PULLEY | ||
| 13BOLT | 505726501 | 1 | BOLT | ||
| 14BOLT | 505727601 | 4 | BOLT | ||
| 15BEARING UNIT | 505592001 | 2 | BEARING | ||
| 16FLAT WASH 3/8 STL CAD | 505724601 | 4 | WASHER | ||
| 17WASHER | 505731001 | 4 | WASHER | ||
| 18NUT | 505732101 | 4 | NUT | ||
| 19SCREW IHSETM | 728844705 | 2 | SCREW | ||
| 20SHEAVE | 579794501 | 1 | SHEAVE | ||
| 21KEY | 597985601 | 1 | KEY | ||
| 22BLADE SHAFT | 505588401 | 1 | BLADE SHAFT | ||
| 23BLADE SHAFT | 574217001 | 1 | BLADE SHAFT | ||
| 24BOLT | 505573401 | 1 | BOLT | ||
| 25TENSIONER | 582669401 | 1 | TENSIONER KIT | ||
| 26ARM | 505856501 | 1 | ARM BUSHING KIT | ||
| 27TENSIONER | 582669501 | 1 | TENSIONER IDLER KIT |
CARRIAGE 15 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BOLT | 505627501 | 3 | BOLT | ||
| 2WASHER | 505632801 | 3 | WASHER | ||
| 3SNAP RING | 505733501 | 4 | SNAP RING | ||
| 4BALL BEARING | 505736101 | 6 | BALL BEARING | ||
| 6BOLT | 505729701 | 2 | BOLT | ||
| 7WASHER | 505633101 | 2 | WASHER | ||
| 8CABLE HOLDER | 505648901 | 2 | CABLE HOLDER | ||
| 9WHEEL | 505592901 | 3 | WHEEL | ||
| 10BLADE BUSHING | 505586901 | 2 | BLADE BUSHING | ||
| 12REAR AXLE | 505586701 | 1 | REAR AXLE | ||
| 13ARM | 510272711 | 1 | ARM BLADE RELEASE | ||
| 14FRONT AXLE SYSTEM | 505588101 | 1 | FRONT AXLE SYSTEM | ||
| 15BUTTON | 505625301 | 1 | BUTTON | ||
| 16FRAME | 505586801 | 1 | FRAME | ||
| 17SPACER | 505588901 | 2 | SPACER |
CHASSIS 15 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1KNOB | 547455601 | 1 | KNOB | ||
| 2COVER | 547478101 | 1 | COVER | ||
| 3SCREW | 547399301 | 20 | SCREW | ||
| 4COVER | 547478001 | 1 | COVER | ||
| 5PLATE | 547523101 | 1 | PLATE | ||
| 6PLATE | 547523201 | 1 | PLATE | ||
| 7DRIVE SYSTEM | 547514701 | 1 | DRIVER SYSTEM | ||
| 8PLATE | 547523301 | 1 | PLATE | ||
| 9PLATE | 547523001 | 1 | PLATE | ||
| 10SEALING | 547459301 | 1 | SEALING | ||
| 11BELT COVER | 547472401 | 1 | BELT COVER | ||
| 13NUT FLANGE | 576645701 | 2 | LOCK NUT | ||
| 14WASHER | 734116541 | 2 | WASHER | ||
| 15PLATE | 582359001 | 2 | PLATE | ||
| 16SCREW EHHM | 725246081 | 4 | SCREW |
DECALS 1 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1DECAL | 505448001 | 1 | DECAL KIT |
HANDLE SYSTEM 40 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1BOX | 548302101 | 1 | HMI CONTROL PANEL | ||
| 2BOLT | 505627801 | 2 | BOLT | ||
| 3WASHER | 505632001 | 2 | WASHER | ||
| 4BRACKET | 548864301 | 1 | HMI BRACKET | ||
| 5SCREW | 725236801 | 2 | SCREW | ||
| 6HANDLE | 597543001 | 2 | HANDLE BAR GRIP | ||
| 7BOLT | 505728801 | 2 | BOLT | ||
| 8WASHER | 505632001 | 2 | WASHER | ||
| 9HANDLE | 592737701 | 1 | HANDLE | ||
| 10LEVER | 599375501 | 1 | LEVER | ||
| 11CABLE | 505482701 | 1 | CABLE BLADE RELEASE | ||
| 12BOLT | 505729701 | 4 | SCREW | ||
| 13WASHER | 505635301 | 4 | WASHER FLAT | ||
| 14WASHER | 505633101 | 4 | WASHER | ||
| 15CABLE CLAMP | 587057401 | 8 | CABLE CLAMP | ||
| 16WIRE | 535602301 | 1 | DISPLAY CABLE HARNESS | ||
| 17ARM | 599223501 | 1 | ARM ASSEMBLY | ||
| 18BOLT | 505728801 | 1 | BOLT | ||
| 19WASHER | 505632001 | 1 | WASHER | ||
| 20NYLOC NUT 1/4-20 CAD PL. | 505630501 | 1 | NYLOCK NUT | ||
| 21SCREW | 582639201 | 2 | SCREW | ||
| 22SCREW | 540176501 | 1 | SCREW | ||
| 23SCREW EHHM | 725246351 | 1 | SCREW | ||
| 24TURNING KNOB | 504569301 | 1 | TURNING KNOB | ||
| 25CLAMP | 599223901 | 1 | CLAMP LOWER HALF | ||
| 26CLAMP | 599223801 | 1 | CLAMP UPPER HALF | ||
| 27HEXAGON LOCKING NUT | 732251801 | 1 | HEXAGON LOCKING NUT | ||
| 28FUSE HOLDER | 535288002 | 1 | FUSE HOLDER | ||
| 29FUSE | 540132801 | 1 | FUSE 5X20 0.5A FAST ACTING | ||
| 30TIE WRAP | 548785401 | 1 | ZIPTIE | ||
| 31TIE WRAP | 548785401 | 1 | ZIPTIE | ||
| 32SWITCH | 548817501 | 1 | SWITCH ON/OFF | ||
| 33LOCK NUT | 522669302 | 1 | LOCK NUT | ||
| 34WASHER | 505632001 | 1 | WASHER | ||
| 35SCREW EHHM | 725233371 | 1 | SCREW | ||
| 36HEXAGON LOCKING NUT | 732251401 | 1 | HEXAGON LOCKING NUT | ||
| 37LAMP | 548834301 | 1 | LIGHT | ||
| 38BRACKET | 548091401 | 1 | LIGHT BRACKET | ||
| 39LIGHT | 547538901 | 1 | LIGHT KIT | ||
| 40CABLE HOLDER | 505648901 | 2 | CABLE HOLDER |
LEVER 10 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1ARM | 510272711 | 1 | ARM BLADE RELEASE | ||
| 2NUT | 505631901 | 3 | NUT | ||
| 3WASHER | 505632801 | 3 | WASHER | ||
| 4ANCHOR | 505774501 | 3 | ANCHOR | ||
| 5SPRING | 505737901 | 1 | SPRING | ||
| 6BOLT | 505726701 | 1 | BOLT | ||
| 7WASHER | 505725201 | 1 | WASHER | ||
| 8WASHER | 505634501 | 2 | WASHER | ||
| 9ANCHOR | 505774501 | 1 | ANCOR | ||
| 10LEVER | 505587001 | 1 | LEVER |
MAINFRAME 13 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1GUARD | 547543901 | 1 | FRAME ASSY | ||
| 2BOLT | 505627501 | 4 | BOLT | ||
| 3BELT GUARD | 548816801 | 1 | BELT COVER | ||
| 5BOLT | 505726501 | 1 | BOLT | ||
| 6WASHER | 505725201 | 1 | WASHER | ||
| 7NYLOC NUT 1/4-20 CAD PL. | 505630501 | 1 | NYLOCK NUT | ||
| 8SCREW | 582639201 | 1 | SCREW | ||
| 9BOLT | 505726501 | 1 | BOLT | ||
| 10WASHER | 505633001 | 1 | WASHER | ||
| 11NYLOC NUT 1/4-20 CAD PL. | 505630501 | 1 | NYLOCK NUT | ||
| 12BASEPLATE | 547262401 | 1 | BASE PLATE | ||
| 13PROTECTIVE PLATE | 599197601 | 1 | PROTECTIVE PLATE | ||
| 14COVER | 505589501 | 1 | COVER |
MOTOR 14 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1COVER | 597793601 | 1 | COVER |
Regular price
$19.79
Regular price
|
|
| 2CONTROL UNIT | 537576601 | 1 | CONTROL UNIT |
Regular price
$989.00
Regular price
|
|
| 3SCREW ITXSCFM | 525755111 | 5 | SCREW | ||
| 5BRACKET | 547457501 | 1 | PLATE | ||
| 6BRACKET | 547457401 | 1 | GCU SUPPORT PLATE | ||
| 7LOCK NUT | 522669302 | 2 | LOCKNUT M6 | ||
| 8WIRE | 535603401 | 1 | CABLE KIT | ||
| 9SUPPORT | 547457301 | 2 | SUPPORT | ||
| 10BRACKET | 547457601 | 1 | PLATE | ||
| 11BRACKET | 540608401 | 1 | BRACKET KIT | ||
| 12SCREW ITXSCM | 503215330 | 6 | SCREW |
Regular price
$19.79
Regular price
|
|
| 13MOTOR ASSY | 595871403 | 1 | MOTOR ASSY | ||
| 14AIR DUCT | 547400101 | 1 | AIR DUCT | ||
| 15AIR DUCT | 547400001 | 1 | AIR DUCT |
POINTER 12 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1POINTER | 546467801 | 1 | POINTER | ||
| 2BOLT | 505627801 | 2 | BOLT | ||
| 3WASHER | 505632001 | 4 | WASHER | ||
| 4POINTER | 547076801 | 1 | POINTER | ||
| 5PLATE | 546467201 | 1 | PLATE | ||
| 6PLATE | 546467301 | 1 | PLATE | ||
| 7NYLOC NUT 1/4-20 CAD PL. | 505630501 | 2 | NYLOC NUT 1/4-20 CAD PL. | ||
| 8BUSHING | 546467701 | 1 | BUSHING | ||
| 9WASHER | 594526601 | 2 | WASHER | ||
| 10WHEEL | 546467401 | 1 | WHEEL | ||
| 11BOLT | 505728901 | 1 | BOLT | ||
| 12WHEEL KIT | 547572801 | 1 | WHEEL KIT |
TRANSMISSION 25 parts
| Part | Article number | Qty | Comment | Price | Details |
|---|---|---|---|---|---|
| 1DRIVE BELT | 540266101 | 3 | DRIVE BELT | ||
| 2PULLEY | 547542601 | 3 | PULLEY | ||
| 3SPACING SLEEVE | 504038302 | 4 | SPACING SLEEVE | ||
| 4SCREW ITXSCM | 544218420 | 6 | SCREW | ||
| 5BELT TENSIONER | 547516501 | 3 | BELT TENSIONER | ||
| 6SCREW | 547578301 | 2 | SCREW | ||
| 7CIRCLIP | 735313310 | 2 | CIRCLIP | ||
| 8BEARING | 547547701 | 2 | BEARING | ||
| 9BELT TENSIONER WHEEL | 547542801 | 1 | BELT TENSIONER WHEEL | ||
| 10SPACER | 547542901 | 3 | SPACER | ||
| 11MOUNTING PLATE | 547468401 | 2 | MOUNTING PLATE | ||
| 12HEXAGON LOCKING NUT | 732252001 | 1 | HEXAGON LOCKING NUT | ||
| 13SCREW | 547399301 | 2 | SCREW | ||
| 14PLATE | 548260001 | 1 | WASHER | ||
| 15PULLEY | 547542501 | 1 | PULLEY | ||
| 16SEALING | 547513801 | 1 | SEALING | ||
| 17SEALING PLATE | 547505001 | 1 | SEALING PLATE | ||
| 18RETAINER RING | 735312640 | 1 | CIRCLIP | ||
| 19BALL BEARING | 547509201 | 1 | BEARING | ||
| 20PARALLEL KEY | 548110901 | 1 | KEY | ||
| 21SHAFT | 547422801 | 1 | AXLE | ||
| 22BALL BEARING | 547897701 | 1 | BEARING | ||
| 23SPACER | 547897401 | 1 | AXLE SUPPORT SPACER | ||
| 24SHAFT | 540608301 | 1 | SHAFT KIT | ||
| 25O-RING | 599810701 | 1 | O-RING |
Document Downloads
Operator's manual
Related Tools
-
Soff Cut Blades - Husqvarna Elite Soff-Cut Xl 1000SKU: 542777005 -
Soff Cut Blades - Husqvarna Elite Soff-Cut Xl 2000SKU: 542777006 -
Soff Cut Blades - Husqvarna Elite Soff-Cut Xl 3000SKU: 542756118 -
Soff Cut Blades - Husqvarna Elite Soff-Cut Xl 4000SKU: 542777008 -
Soff Cut Blades - Husqvarna Elite Soff-Cut Xl 5000SKU: 542777009 -
Soff Cut Blade - Husqvarna Excel 6000SKU: 542756150 -
Early Concrete - Husqvarna Vari-Cut 1000 PurpleSKU: 587665201 -
Husqvarna Vari Cut - Husqvarna Vari-Cut 3000 RedSKU: 587668201 -
Husqvarna Soff Cut 4000 - Husqvarna Vari-Cut™️ 4000 OrangeSKU: 587669001 -
Soft Cut Concrete - Husqvarna Flx 1000 Series PurpleSKU: 575383221 -
Soft Cut Concrete Saw Blades - Husqvarna Flx 3000 Series RedSKU: 575383224 -
Early Entry Concrete Saw Blades - Husqvarna Flx 4000 Series OrangeSKU: 575383227
Concrete Focus
From pouring to resurfacing, we sell tools built for concrete pros.
Expert Support
Get guidance from experts who understand jobsite challenges.
Fast Delivery
Get your tools fast with our nationwide shipping network and local partnerships.
Talk to an expert now (855) 281-1918
Get fast, expert help choosing the right concrete tools or equipment for your job. Ask about availability, specs, troubleshooting, or get friendly guidance before you place an order.
