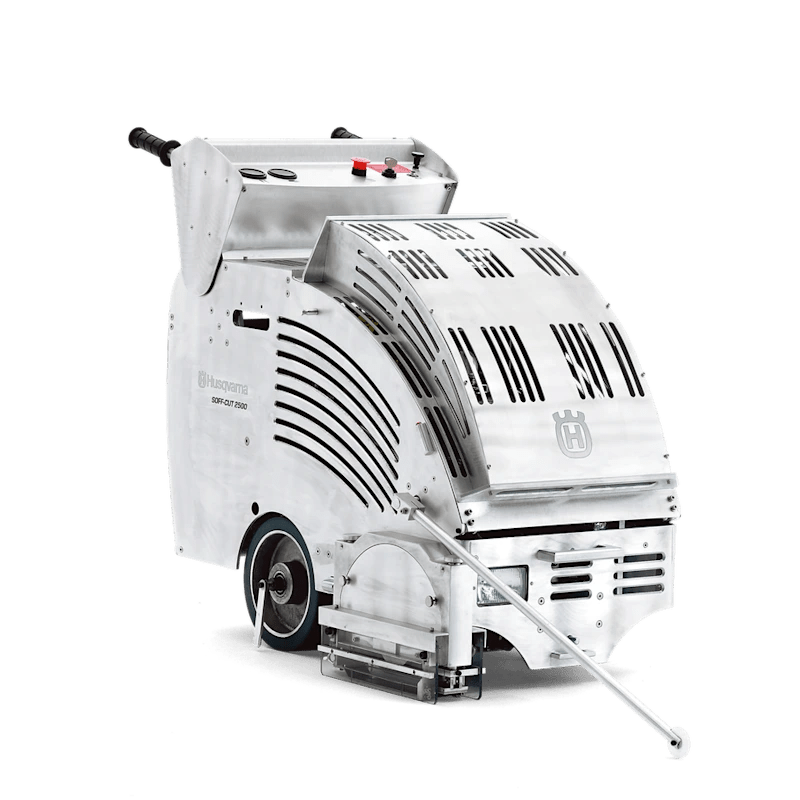

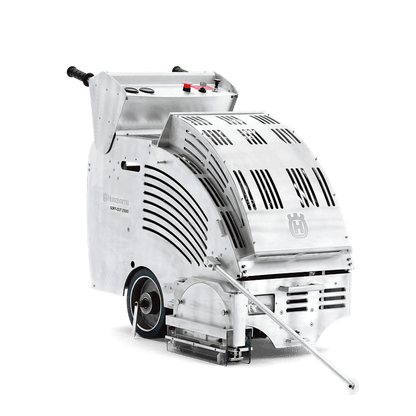

Husqvarna Soff-Cut 2500 | Early-Entry Saw

Husqvarna Soff-Cut 2500 | Early-Entry Saw

HUSQVARNA CONSTRUCTION SKU: 966845403 Copied!

Is this the right tool for the job?

Best For:

  • 1-person operator jointing green slabs right after finishing
  • Daily production joints on warehouses, parking lots, tilt-ups
  • Large slab pours needing clean early-entry control joints

Not Ideal For:

  • Indoor work without ventilation; gas engine exhaust/CO risk
  • Cured slab cutting or deep demo; this is for green concrete
  • Deep structural cuts or long runs; use a high-hp slab saw

Why Pros choose this tool:

  • Soff-Cut skid plate & upcut blade → clean, ravel-free green cuts → same-day joints, fewer cracks and callbacks
  • Stable front guide and rigid chassis → straighter pulls with held depth → faster LF, easier sealing, less rework

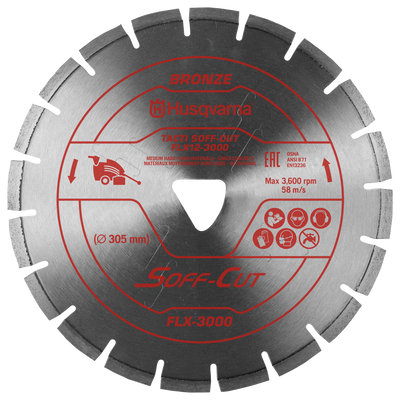

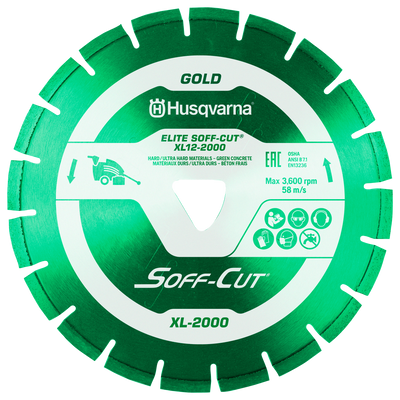

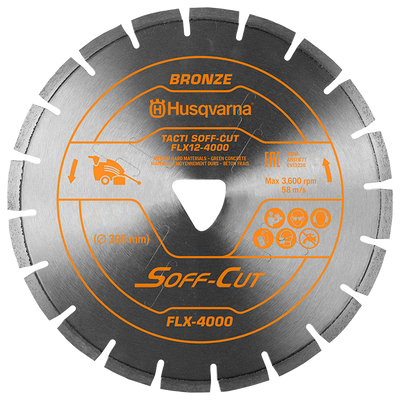

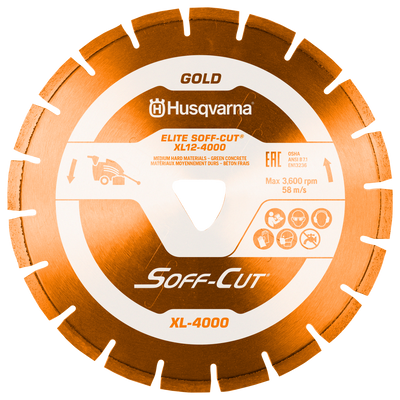

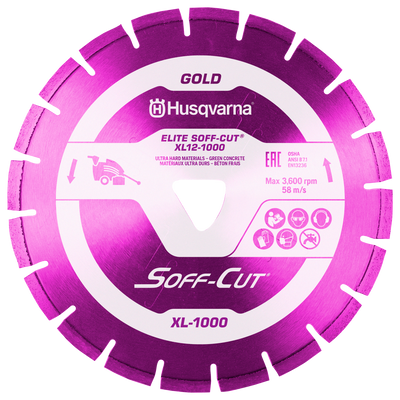

  • Color-coded Soff-Cut blades & skids → match slab hardness and timing → cleaner cuts, longer blade life, fewer swaps
$27,749.00
$32,648.00 $27,749.00
Save $4,899 Sold out
PAY NO SALES TAX* Save up to $2,747.15 more. *Except for Tennessee, Illinois
DELIVERY IN 3-5 BUSINESS DAYS FREE SHIPPING (lower 48 states)
Pay with Credit Key

Financing from $2,774.90/mo • Up to 12 mo. terms

Pay by Bank & Net 30 Terms also available

Trusted by contractors nationwide

"I've bought 3 products from CTD and each time the experience has been the same - professional and fast delivery. I trust these guys with all my concrete needs."

Husqvarna Construction Authorized
Dealer
Get Accredited Top Quality Store
on Google
Get Accredited
90 day returns
Product Details

HUSQVARNA EARLY-ENTRY SAW - SOFF-CUT 2500

Engineered for efficiency and versatility, the Husqvarna Soff-Cut 2500 is a self-propelled, dry cutting gas saw that's perfect for medium to heavy-duty commercial, industrial, and paving tasks. With its low noise enclosed design, this saw is significantly quieter than its counterparts, making it suitable for extended use in populated areas or during late-night operations. The 2500 model is designed to adapt to multiple job demands with three different blade widths, allowing for varying joint widths and crack control simultaneously.

Powered by a robust 13 hp engine, the Soff-Cut 2500 ensures high production capabilities. The saw features an electric remote key start for effortless operation and a cyclone air cleaner that significantly improves engine longevity. Its halogen lighting system illuminates your workspace for safer and more accurate cutting even in low-lit conditions.

  • Maximum cutting depth of 1.5 inches
  • Maximum blade diameter of 10 inches
  • 13 hp engine power for high production
  • Halogen lighting system for enhanced visibility
  • Cyclone air cleaner for extended engine life
View full details
Product Specification
Husqvarna Soff-Cut 2500 Early-Entry Saw
Specifications
Engine Power (As rated by the engine manufacturer)
11 hp
Cylinders
1
Number of strokes
4-stroke engine
Starter
Electric
Exhaust emissions (CO₂ EU V)
743 g/kWh
Power source
Petrol
Cutting depth, max
1.5 in
Blade diameter, max
10 in
Blade depth control
Electric
Type of operation
Self-propelled
Product size length
76 in
Product size height
36 in
Weight
336 lbs
Packaging length (Calc)
67.008 in
Packaging width (Calc)
35 in
Packaging height (Calc)
43.031 in
Article gross weight (Calc)
433.008 lbs
Warranty
1 year limited warranty
Related Equipment
Service & Maintenance Parts
BLADE BLOCK ASSEMBLY 54 parts
BLADE BLOCK ASSEMBLY diagram
Part Article number Qty Comment Price Details
1BOLT 505729601 6
2WASHER 505633101 16
3WASHER 505635301 8
4ANGLE BRACKET 505710601 1
5KNOB 505709201 2
6ROD 505709501 2
7SPRING 505737201 2
8SCREW 505630001 2
9INSERT 505748301 2
$47.30
$28.10 $47.30
View part
10BLADE BLOCK 505709001 1
11COVER 505494004 1
$1,120.25
$1,015.00 $1,120.25
View part
13WASHER 539990122 3
14WASHER 505731001 3
15SCREW 539976941 3
16COVER 505610701 1
17WASHER 505634501 4
18WASHER 505634201 2
19BOLT 505726101 2
20BOLT 505627301 2
21WASHER 505731801 2
22INSERT 505718201 1
23BOLT 505627701 4
24BRACKET 505711701 2
25SCREW 505730001 4
26BLOCK 505710201 2
27SHAFT 505879101 1
28SNAP RING 505733601 2
29RING 541401472 2
30BUSHING 505667601 2
31SEAL 505738001 2
32ROD 505709401 1
33PIN 505774001 1
34SHAFT 505879001 1
$160.00
$145.00 $160.00
View part
35ROD 505709301 1
36PIN 587918201 1
37PLATE 505879501 1
38BOLT 505729601 6
39WASHER 505635301 8
40PLATE 505709801 1
41SCREW 505629101 4
42BLOCK 505710301 1
43STEEL 505710401 2
44SCREW 505629501 4
45ADAPTER 505879401 1
46PLATE 505709701 1
47REAR AXLE 505760201 1
48WASHER 505632801 1
49BOLT 505728701 2
50SPACER 505760701 1
51ARM 505601401 1
52BOLT 505772801 2
53CHANNEL 505610601 1
54CHANNEL 505610801 1
55BLADE BLOCK 548406401 1 assembly with VAC PORT FOR SOFF-CUT 2500
BLADE IDLER PULLEY 16 parts
BLADE IDLER PULLEY diagram
Part Article number Qty Comment Price Details
1BLOCK 505714801 1
2SPACER 505714602 1
3ARM 505706901 1
4SHAFT 505706801 1
5BALL BEARING 505736301 3
6SNAP RING 542206205 2
7SCREW 539976941 1
8BOLT 505726201 1
9BALL BEARING 505736001 1
10BOLT 505726401 1
11WASHER 505731001 1
12BUSHING 505717901 1
13WASHER 505725201 2
14SPRING 505737301 1
15BEARING KIT 505483401 1
16PULLEY ASSY 510271705 1
BLADE SHAFT 13 parts
BLADE SHAFT diagram
Part Article number Qty Comment Price Details
1BEARING 505736501 2
2SHAFT 505573203 1
3WASHER 505491504 1
4BOLT 505483701 1
5PULLEY 582046801 1
6KEY 541203404 1
7SCREW 542020550 4
8DRIVE BELT 505740401 1
9NUT 541204836 4
10WASHER 539990254 4
11WASHER 542020745 8
12BOLT 505727001 4
13BLADE SHAFT 505880701 1
CONTROL PANEL 53 parts
CONTROL PANEL diagram
Part Article number Qty Comment Price Details
1PLATE 505712101 2
2SHAFT 505712001 1
3SHIM 505736901 2
4BALL BEARING 505736301 2
5PLATE 505711801 2
6CROSSBAR 505708401 1
7HANDLEBAR 505708801 1
8HANDLEBAR 505708901 1
9SPACER BAR HANDLE 505607101 2
10PLATE 505711901 2
11BRACKET 505706601 2
12REGULATOR 505691901 1
13CONTROL PANEL SYSTEM 505608901 1
14PAN 505606401 1
15PANEL 505707101 1
16INSULATOR 505720201 1
17ACTUATOR 505844901 1
18SWITCH KIT 590532501 5
$105.68
$88.20 $105.68
View part
19TOGGLE SWITCH 589669001 1
20HANDLE GRIP 505601101 2
21BLOCK 505752701 1
22HOUR METER 505750202 1
23KIT 516027701 1
24CIRCUIT BREAKER 505605101 1
25LIGHT. LED (RED) 505752801 1 LED (RED)
26DECAL 540118001 1
26HARNESS 540417301 1
26KEY SWITCH 540422001 1
26HARNESS ASSY 540422201 1 Includes Harness, Key Switch Kit and Decal
27CABLE 505695001 1
29BAG 505721501 1
30STOP SWITCH 505704401 1
31WASHER 505633101 19
32BOLT 505627701 16
33WASHER 505632801 8
34WASHER 505632001 2
35BOLT 505627901 2
36SCREW 505729801 4
37SCREW 505729901 3
38BOLT 505729701 3 SHCS 10-32 X 5/8 S.S.
39WASHER 505724801 2
40BOLT 505728401 4 HHB, 5/16-18 X 1 1/4 GR8 CAD.
41BOLT 505628001 4
42BOLT 505729201 2
43NUT 505630401 2
44BOLT 505726001 2
45BOLT 505628001 2 SHCS .25-20 X 1.25 S.S.
46BOLT 505627801 2 SHCS .25-20 X .75 S.S.
47LOCKWASHER 505731701 2
48WASHER 505633101 2 SPLIT WASHER #10 S.S.
49BOLT 505729601 3 SHCS 10-32 X 1/2 S.S.
50SCREW 505628601 10
51GROUND CABLE 575446602 6
DECALS 8 parts
DECALS diagram
Part Article number Qty Comment Price Details
1DECAL SYSTEM 593823301 1
2DECAL 505448601 2
3DECAL 546053901 1 250mm
4DECAL 582308101 1
5DECAL 536581301 1
6DECAL 546053801 1 76mm
7LABEL 599963601 1
10DECAL 597026901 1
ENGINE 21 parts
ENGINE diagram
Part Article number Qty Comment Price Details
1ENGINE 577961202 1
2BRACKET 505741301 1
3SERVICE PARTS SYSTEM 589421201 1 KIT, Pulley + 2 set screws
4KEY 539910210 1
5SCREW 542020568 2
6NIPPLE 505611401 1
7ELBOW 505743001 1
8EXHAUST NIPPLE FOR X2500 505611301 1
9CLAMP 505743201 1
10MUFFLER 505867801 1
11BOLT 505727801 2
12NUT 505732801 2
13BOLT 505627401 1
14NUT 505631901 1
15SCREW EHHM 725236671 1
16WASHER 505731801 3
17KIT 505857505 1
18KIT 575446603 1
19KIT 575446604 1
20CABLE 505844301 1
21ENGINE ASSY 510271605 1 Assembled
FRONT WHEEL CARRIAGE 12 parts
FRONT WHEEL CARRIAGE diagram
Part Article number Qty Comment Price Details
1CARRIAGE 505607201 1
2BUSHING 505655101 2
3AXLE 505713901 1
4WHEEL 505866201 2 Wheel + 2 bearings
5ACTUATOR 505706201 1
6WASHER 505632801 4
7BOLT 505627401 2
8SNAP RING 505733501 2
9BOLT 505727301 2
10NUT 505631901 2
11BALL BEARING 505736101 4
12WHEEL ASSY 510271405 1
GUIDE ARM ASSEMBLY 27 parts
GUIDE ARM ASSEMBLY diagram
Part Article number Qty Comment Price Details
1PLATE 505713701 1
2SHAFT 505713601 1
3BLOCK 505707001 1
4GUIDE 505713501 1
5BALL BEARING 505736101 3
6SHAFT 505718401 2
7BLADE BUSHING 505716201 1
8BLOCK 505717101 1
9BLOCK 505717201 1
10BLADE BUSHING 505717501 1
11SPRING 505737501 1
12BUSHING 505717401 1
13BLOCK 505717301 1
14PLATE 505719101 1
15BUSHING 505719301 1
16PLATE 505713801 1
17DISC 505614201 1
18NUT 505630401 1
19BOLT 505725801 1
20WASHER 505632801 2
21WASHER 505632001 2
22BOLT 505728801 2
23BOLT 505627801 2
24BOLT 505728901 1
25BOLT 505627501 1
26SCREW 505628601 4
27WHEEL 505877701 1
HOOD 20 parts
HOOD diagram
Part Article number Qty Comment Price Details
1REAR PLATE HOOD 505712501 1
2SIDE HOOD PANEL 505608501 2
3PLATE 505712401 1
4HOOD 505608401 1
5HOOD 505608301 1
6SPACER 505643401 1
7BLOCK 505719501 1
8WASHER 505632701 24
9WASHER 505822601 10
10BOLT 505628101 20
11BOLT 505729101 4
12WASHER 505632701 12
13WASHER 505634401 6
14NUT 505630401 2
15BOLT 505727301 2
16BOLT 505627801 10 SHCS .25-20 X .75 S.S.
17BOLT 505811701 2
18BLOCK 505713101 1
19BLOCK 505713001 1
20WIRE 505865201 1
MAINFRAME 49 parts
MAINFRAME diagram
Part Article number Qty Comment Price Details
1FRAME 505609401 1
2AXLE 505605401 1
3ARM 505705301 1
4ARM 505607401 1
5GUIDE 505718501 1
6PLATE 505714001 1
7BATTERY 505749901 1
8WIRE ASSY 575477801 1
9COVER 505747001 2
10ARM 505718001 2
11BLOCK 505718101 2
12REAR AXLE 505865001 2
13BRACKET 505706601 1
14PLATE 505605201 1
15SHAFT 505714101 1
16SHAFT 505714201 1
17WASHER 542020745 1
18SPRING 505737401 1
19HEADLAMP 505485001 1
20HANDLE 505716901 1
21SCREW 505628601 10
22BOLT 505727301 2
23BOLT 505627401 3
24WASHER 505632801 9
25SCREW 539990209 18
26BOLT 505728501 2
27WASHER 505633001 23
28CLAMP 575421301 1
29SCREW 539976941 2
30WASHER 505731001 2
31SNAP RING 542206205 3
32BOLT 505727301 4 HHB, 1/4-20 X 1 S.S.
34NUT 505630401 2
35BOLT 505725901 1
36NUT 505732401 3
37BHS 5/16-18-1 1/2 S.S. 505722801 1
38WASHER 539990188 2
39NUT 505631901 1
40WASHER 505731801 1
41WASHER 505725201 2
42WASHER 505634501 2
43SPRING 505636001 1
44BOLT 505726601 1
45BOLT 505726001 1
48PLATE KIT 505857801 1
49WHEEL 505865301 1
50WHEEL 505865401 1
51ACTUATOR 505844701 1
52ARM 505857901 1
MOTOR MOUNT BUSHING 10 parts
MOTOR MOUNT BUSHING diagram
Part Article number Qty Comment Price Details
1PLATE 505609202 1
2NUT 541205726 4
3WASHER 510302101 4
4BOLT 510317601 4
5WASHER 505609901 3
6SPACER 505609801 4
7RING 505610201 4
8BLADE BUSHING 505610301 4
9WASHER 505610101 1
10PLATE KIT 505857801 1
OIL DRAIN 7 parts
OIL DRAIN diagram
Part Article number Qty Comment Price Details
1CAP 505776601 1
2FITTING 505738601 2
3HOSE 505738501 1
4VALVE 505738901 1
5ADAPTER 505738701 1
6ADAPTER 505738801 1
7KIT 505857505 1
PANEL ASSEMBLY 35 parts
PANEL ASSEMBLY diagram
Part Article number Qty Comment Price Details
1PLATE 505606501 1
2PLATE 505606601 1
3CROSSBAR 505606901 1
4PAN 505606801 1
5BAR 505607001 1
6CROSSBAR 505708601 1
7CROSS BAR (REAR ACCESS PANEL) 505708501 1
8INSERT 505748301 3
$47.30
$28.10 $47.30
View part
9PANEL. COVER (HANDLE ACT. CROS 505707301 1
10ACTUATOR 505706501 1
11ROD 505718601 1
13LIGHT 505752501 1
16WASHER 505632801 6
17NUT 539976978 9 LOCKNUT, FIBER .25-20 Z/P
18KNOB 505767201 1
19WASHER 542020745 2
20NUT 505833601 2 NUT, HEX 1/2-13 S.S.
21BOLT 505728901 2
22BOLT 505627901 2
23WASHER 505632001 1
24BLOCK 505716701 1
25BLOCK 505716801 1
26SCREW 505628601 14
27WASHER 539990254 2
30WASHER 539990055 1
31SPRING 505737101 9
32BOLT 505627701 2 SHCS 10-32 X .375 S.S.
33WASHER 505633101 2
34BOLT 505628001 2
35SOCKET 505773401 4
36BOLT 505628201 2
37WASHER 505632701 2
38BOLT 505627501 2
39KNOB 505886601 1
40HEADLAMP 505486901 1
PUMP 61 parts
PUMP diagram
Part Article number Qty Comment Price Details
1PLATE 505705901 1
2PLATE 505706101 1
3SUPPORT 505706001 1
4PUMP SUPPORT PLATE LEFT 505607601 1
5SHAFT 505605501 1
6BALL BEARING 505736101 2
7BEARING 505689401 2
8SNAP RING 505690201 4
9DRIVE SHAFT 505605301 1
10SNAP RING 542206205 2
11SPACER 505605701 1
12BLADE BUSHING 505716101 1 SPACER, .750"ID X .780"L ALUM
13WASHER 505764801 2
14SPROCKET 587659902 1 SPROCKET 12T #35 HEAT TREATED
15KEY 539300749 1
16PUMP 505756801 1 PLATE, PUMP TOP BRACE
17ARM 505714901 1
18PULLEY 587935401 1 PULLEY 1G3V5.00 - .669
19DRIVE BELT 505484004 1
20GUIDE 505811901 2
21BEARING 505602201 2
22BOLT 505725801 1
23BLOCK 505718701 1
24BRACKET 580882801 1
25ACTUATOR 505844601 1
26ROD END 505743401 1
27ROD END 505743401 1
28NUT 505732901 2
29SPRING 505602901 2
30NUT 539976979 1
31WASHER 505634201 1
32NUT 539990130 4
33WASHER 539990122 4
34WASHER 505724001 4
35WASHER 505632801 6
36BOLT 505727301 4 HHB, 1/4-20 X 1 S.S.
37NLA HCS 3/8-16 X 3-1/2 GR 5 ZN 539300870 4 HHCS, .375-16 x 3.5 GR 5 Z/P
38WASHER 505731801 2
39BRACKET 505607501 1
40SWITCH 505754101 1
41SCREW 505628601 2 FHS 1/4-20 X 3/4 S.S.
42SCREW 505772701 4
43BOLT 505627801 17
44GEAR WHEEL 505777101 1
45GEAR 505602401 1
46HYDRAULIC PUMP 531075701 1
47SPROCKET 505739401 1
48KEY 541203404 1 KEY 1/4 X 1/4 X 1
49BLOCK 505882901 1
50CHAIN 505867201 1
51SCREW 542020568 2 KEY SHSS, .25-20 x .375 HK.
52WASHER 505731001 8
53WASHER 539990188 3
54NUT 539990130 1
55WASHER 505633001 1
56SCREW 539990209 1
57SPEED CONTROL SYSTEM 505845101 1
$790.02
$778.00 $790.02
View part
58ELECTRIC MODULE 536461501 1 from SN 001393041002
59BOLT 505627901 2
60WASHER 505632801 2
61WIRE 536048801 1 from SN 001393041002
PUMP CROSS BAR ASSEMBLY 19 parts
PUMP CROSS BAR ASSEMBLY diagram
Part Article number Qty Comment Price Details
1CROSSBAR 505605801 1
2BRACKET 505611001 2
3ARM 505611101 1
4ARM 505715801 1
5NUT 505631701 4
6NUT 505630401 3
7WASHER 505634401 11
8BOLT 505726001 1
9BUSHING 505717901 1
10BOLT 505725901 2
11CLAMP 575421301 2
12BOLT 505686401 1
13WASHER 505633001 4
14BOLT 505728501 4
15SCREW 505730101 2
16THROTTLE 505844801 1
17ACTUATOR 505845001 1
18ACTUATOR 579215101 1
19ACTUATOR 505749601 1
PUMP IDLER PULLEY 16 parts
PUMP IDLER PULLEY diagram
Part Article number Qty Comment Price Details
1BLOCK 505714401 1
2SPACER 505714602 1
3BALL BEARING 505736001 1
4BOLT 505726201 1
5ARM 505706901 1
6SHAFT 505706801 1
7SNAP RING 542206205 2
8BALL BEARING 505736301 3
9SCREW 539976941 1
10WASHER 505731001 1
11BUSHING 505717901 1
12BOLT 505726401 1
13WASHER 505725201 2
14SPRING 505737901 1
15BEARING KIT 505483401 1
16PULLEY KIT 505857401 1
REAR ACCESS ASSEMBLY 11 parts
REAR ACCESS ASSEMBLY diagram
Part Article number Qty Comment Price Details
1PANEL 505609601 1
2KNOB 505536301 2
$33.02
$13.40 $33.02
View part
3WASHER 505536401 2
4E-CLIP 505536501 2
5CROSSBAR 505717001 1
6BRACE 505719401 1
7SCREW 505729901 4
8WASHER 505634401 2
9SCREW 505628601 2
10KNOB 505482901 1
11PANEL 505878501 1 Rear access panel KIT
SPEED CONTROL 17 parts
SPEED CONTROL diagram
Part Article number Qty Comment Price Details
1SPEED CONTROL SYSTEM 505749801 1
2PLUG 505751601 1
3WASHER 505632001 2
4CLEVIS 505743501 1
5YOKE 505743301 1
6PIN 505739701 1
7WASHER 505632801 1
8NUT 505732901 1
9STUD 505770801 1
10SPRING 505775101 1
11WASHER 539990055 2
12ADJUSTER 505755201 1
13WASHER 505632401 4
14BOLT 505627601 4
15TIE WRAP 510331701 1
16TIE WRAP 510331602 1
17SPEED CONTROL SYSTEM 505845101 1
$790.02
$778.00 $790.02
View part
Document Downloads
Compatable Accessories
Compatability

Concrete Focus

From pouring to resurfacing, we sell tools built for concrete pros.

Expert Support

Get guidance from experts who understand jobsite challenges.

Fast Delivery

Get your tools fast with our nationwide shipping network and local partnerships.

Talk to an expert now (855) 281-1918

Get fast, expert help choosing the right concrete tools or equipment for your job. Ask about availability, specs, troubleshooting, or get friendly guidance before you place an order.

Click to Call
