Product Specification
Product Info
Manufacturer
MudMixer® Company
Product Type
Mud Mixer
Model/Series
MMXR-3221
Part #
MMXR-3221
Quantity
1
Details
Overall Length
66.5 in.
Overall Width
27.5 in.
Overall Height
35 in.
Chute Height
16 in.
Hopper Capacity
120 lbs.
Build & Materials
Body Construction
14 Gauge High-Strength Steel
Frame Construction
1 in. Steel Pipe
Tires
Marathon Flat-Free
Electrical
Electrical Requirements
120-volt
Cord Length
3 ft.
Running Amps
1.6 A
Motor
Motor Power
250 W
Motor Protection Rating
IP55
Safety Features
Removable Auger Guard on Chute
Yes
Grounded Power Cable
Yes
Water-tight Electrical Boxes and Connections
Yes
Weight / Dimensions
Weight
145 lbs.
Warranty
Warranty
1 year limited warranty
Concrete Focus
From pouring to resurfacing, we sell tools built for concrete pros.
Expert Support
Get guidance from experts who understand jobsite challenges.
Fast Delivery
Get your tools fast with our nationwide shipping network and local partnerships.
Frequently Asked Questions
General Information
What is included in the MudMixer Holiday Pro Bundle?

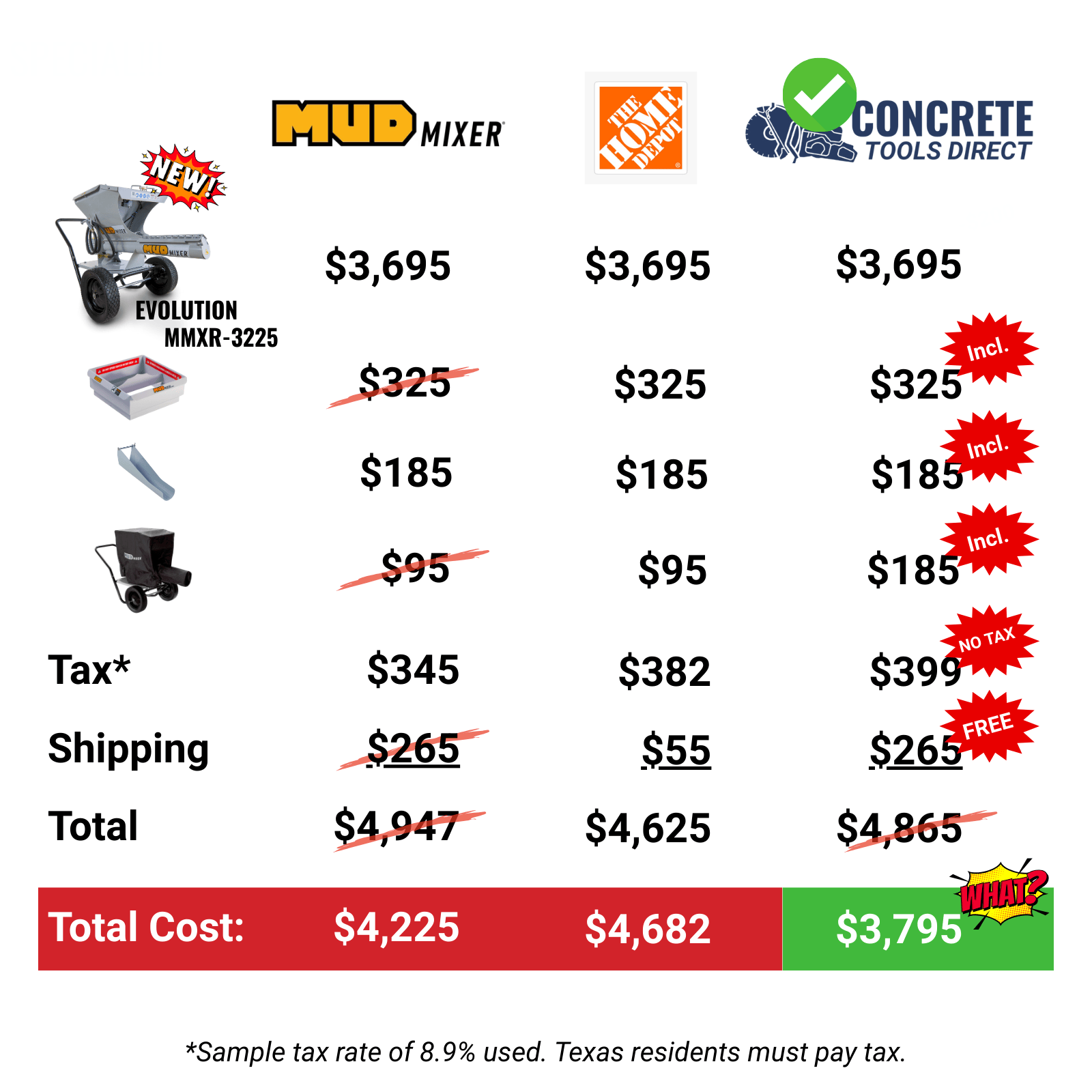

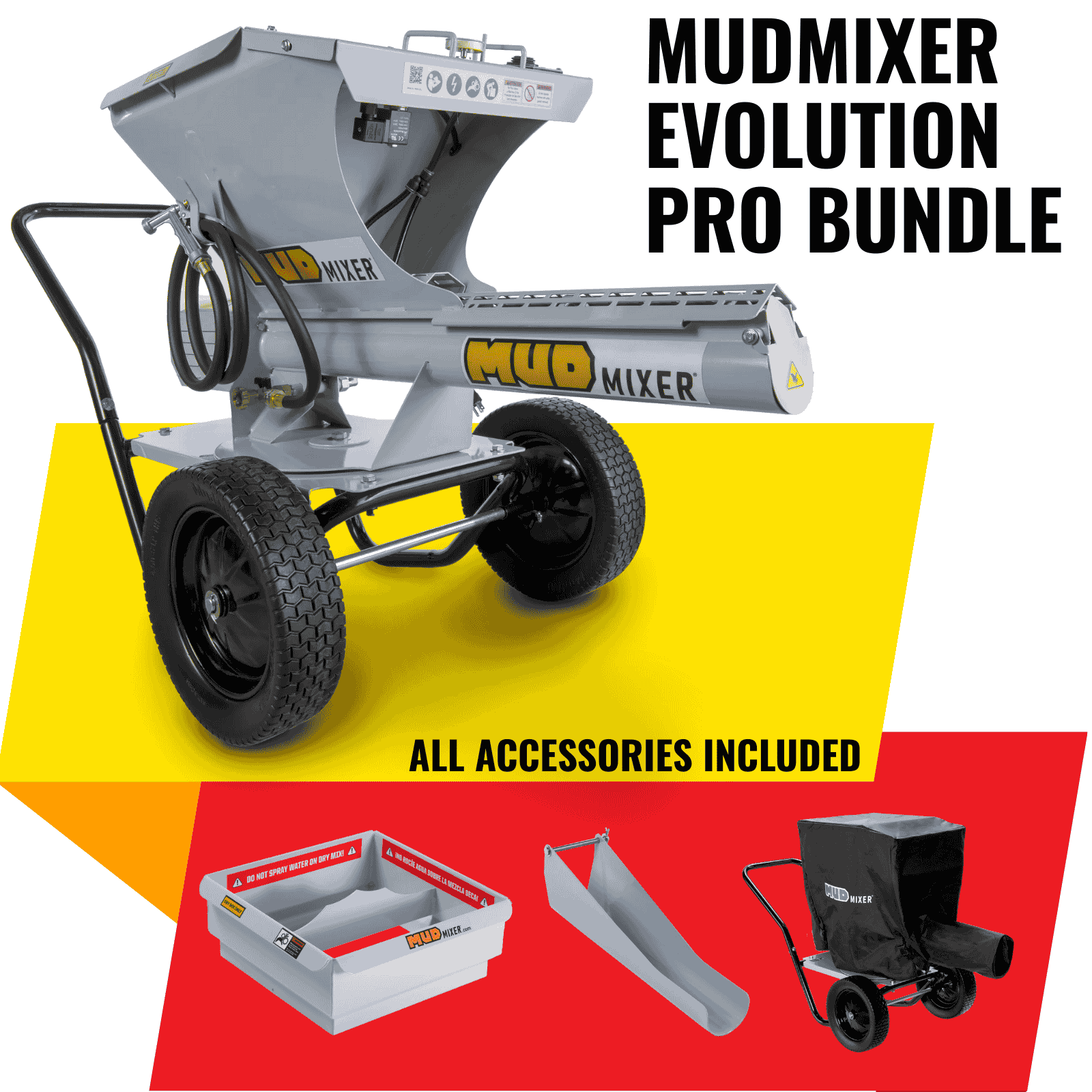

This Holiday Pro Bundle includes the MudMixer Evolution MMXR-3225 continuous mixer, the Hopper Extension to increase dry mix capacity, the Chute Extension for extended reach and cleaner pours, PLUS 1,200 lbs of FREE Quikrete. The Quikrete bonus is provided as a Home Depot digital gift card that covers 15 bags (1,200 lbs total), tax excluded.
How do I receive my 1,200 lbs of FREE Quikrete?
After your order is processed, CTD sends you a Home Depot digital gift card covering 15 bags of Quikrete (1,200 lbs total). You may redeem it online or in-store at any Home Depot to pick up your concrete mix.

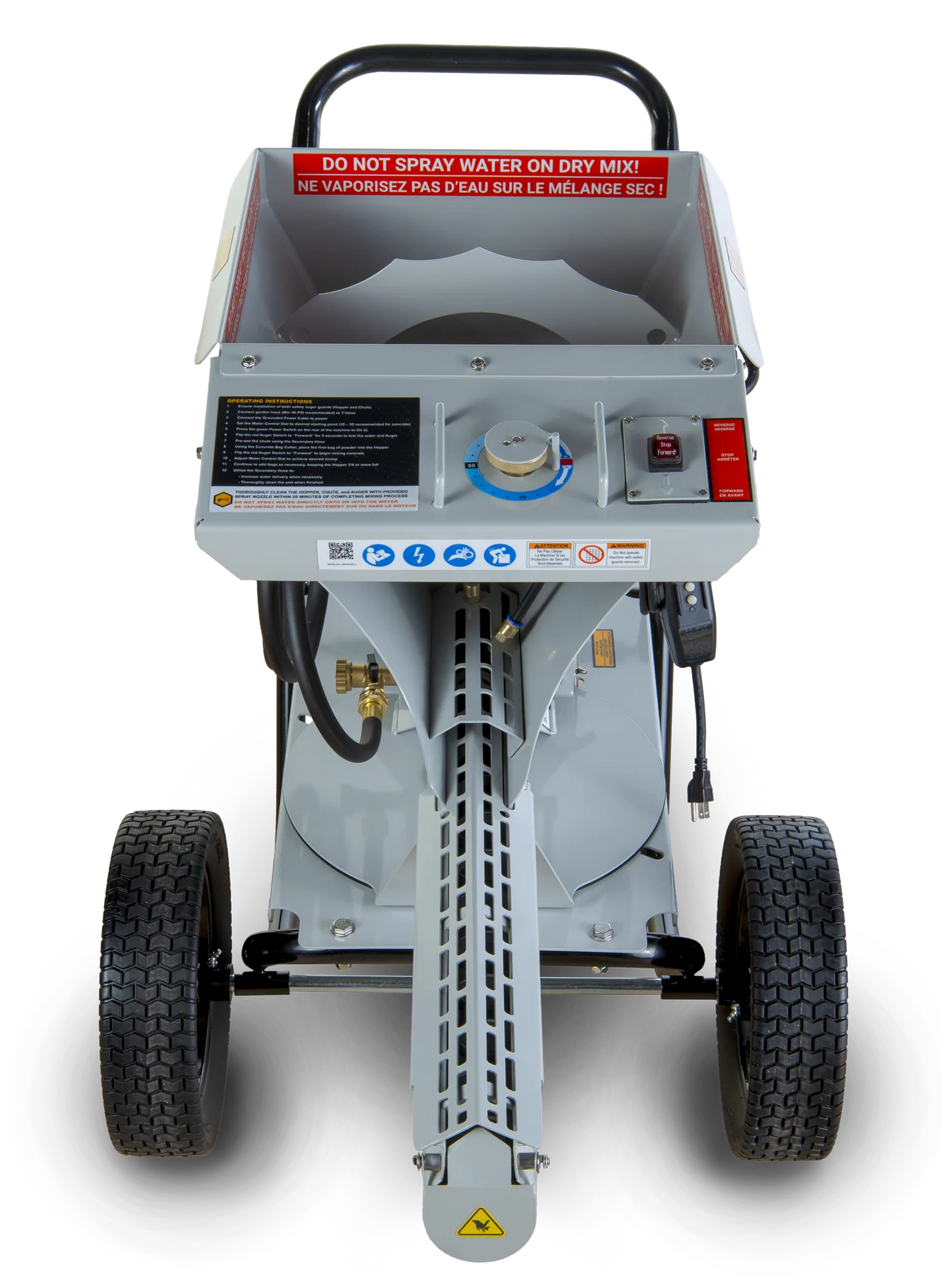

What materials can the MudMixer Evolution mix?
The MudMixer Evolution mixes concrete, mortar, grout, stucco, pool-crete, and other compatible bagged materials up to 80 lbs. Its continuous-feed design ensures consistent, uninterrupted mixing.
Is the MudMixer Evolution electric powered?
Yes. It operates on standard 120V power and uses a precision water-dial system with dual spray nozzles for accurate mix consistency.
Operation & Setup
How much assembly is required?
Assembly is minimal. Attach the wheels, handle, and mixing chute, connect a standard garden hose, and install the Hopper and Chute Extensions using the included hardware. Most users are mixing within 15–20 minutes of unboxing.
How fast can the MudMixer Evolution produce mix?
The Evolution can process 45+ 80 lb bags per hour depending on water ratio and material type. Continuous-feed mixing means no stopping between batches.
Can I adjust the water flow?
Yes. The adjustable water dial and dual spray nozzles let you fine-tune water flow for ideal mix consistency across all material types.

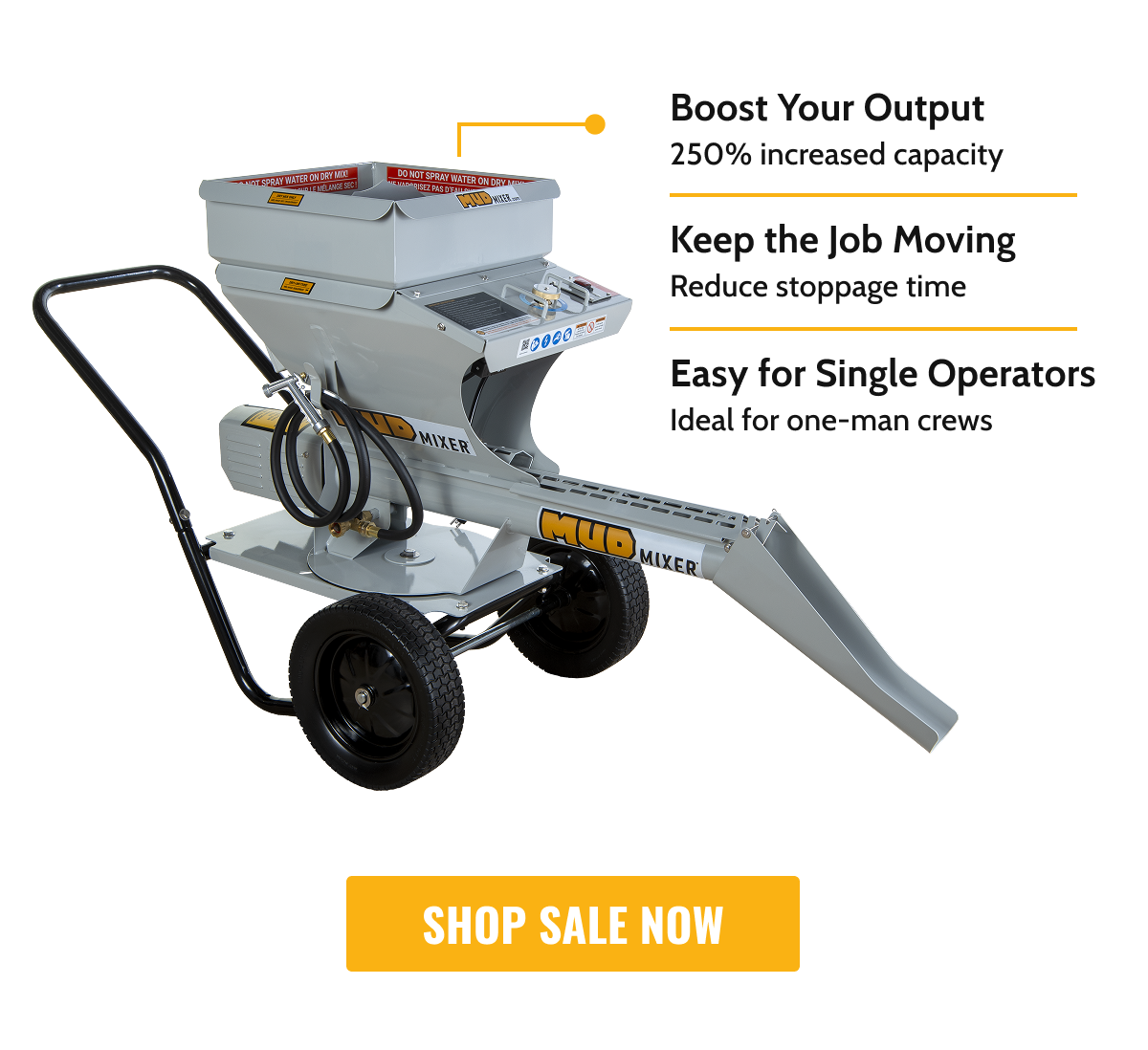

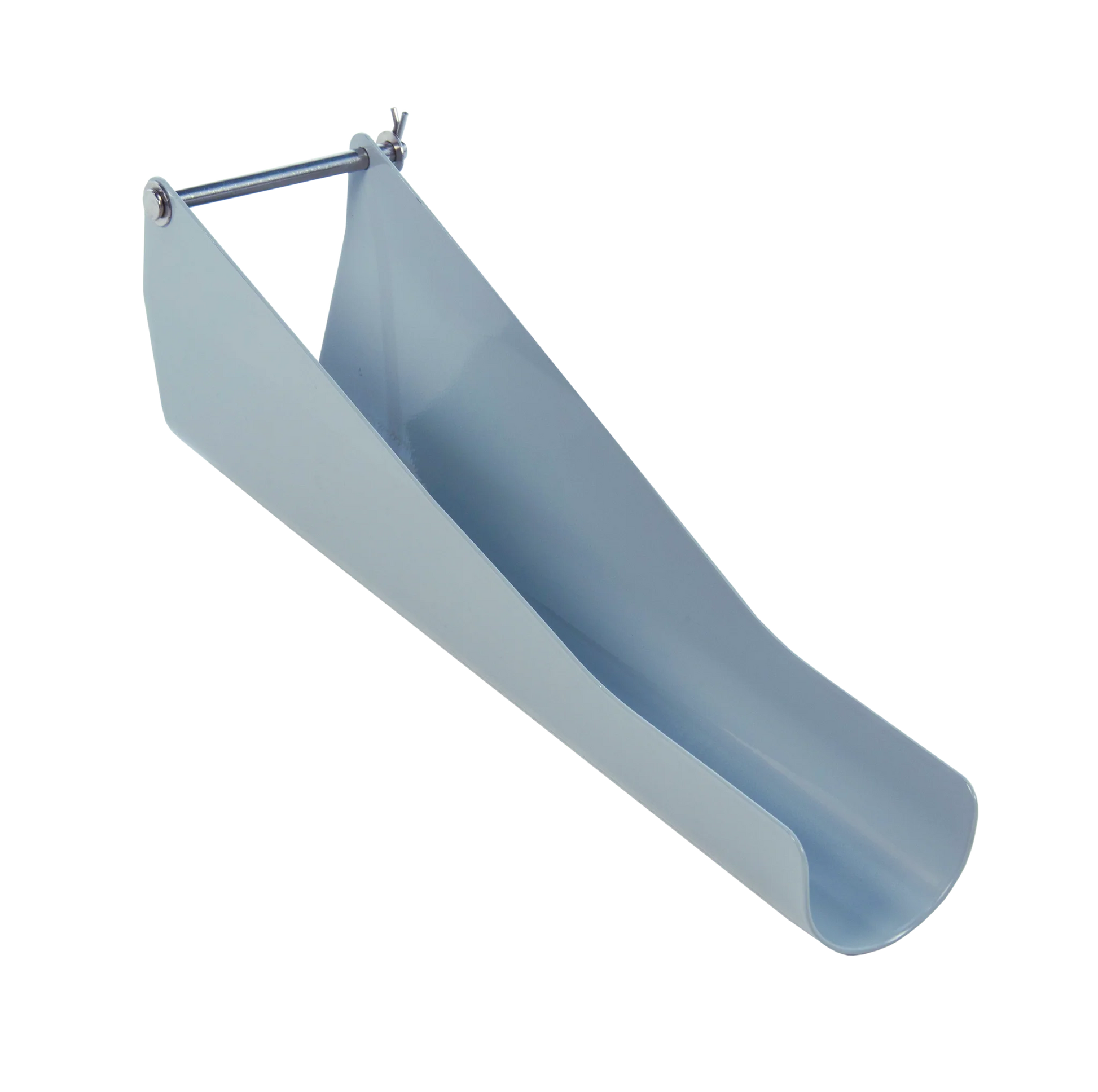

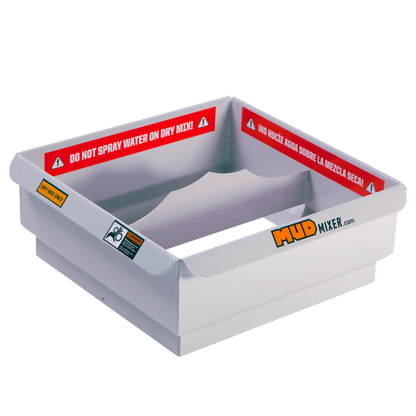

How do the Hopper and Chute Extensions help on the job?

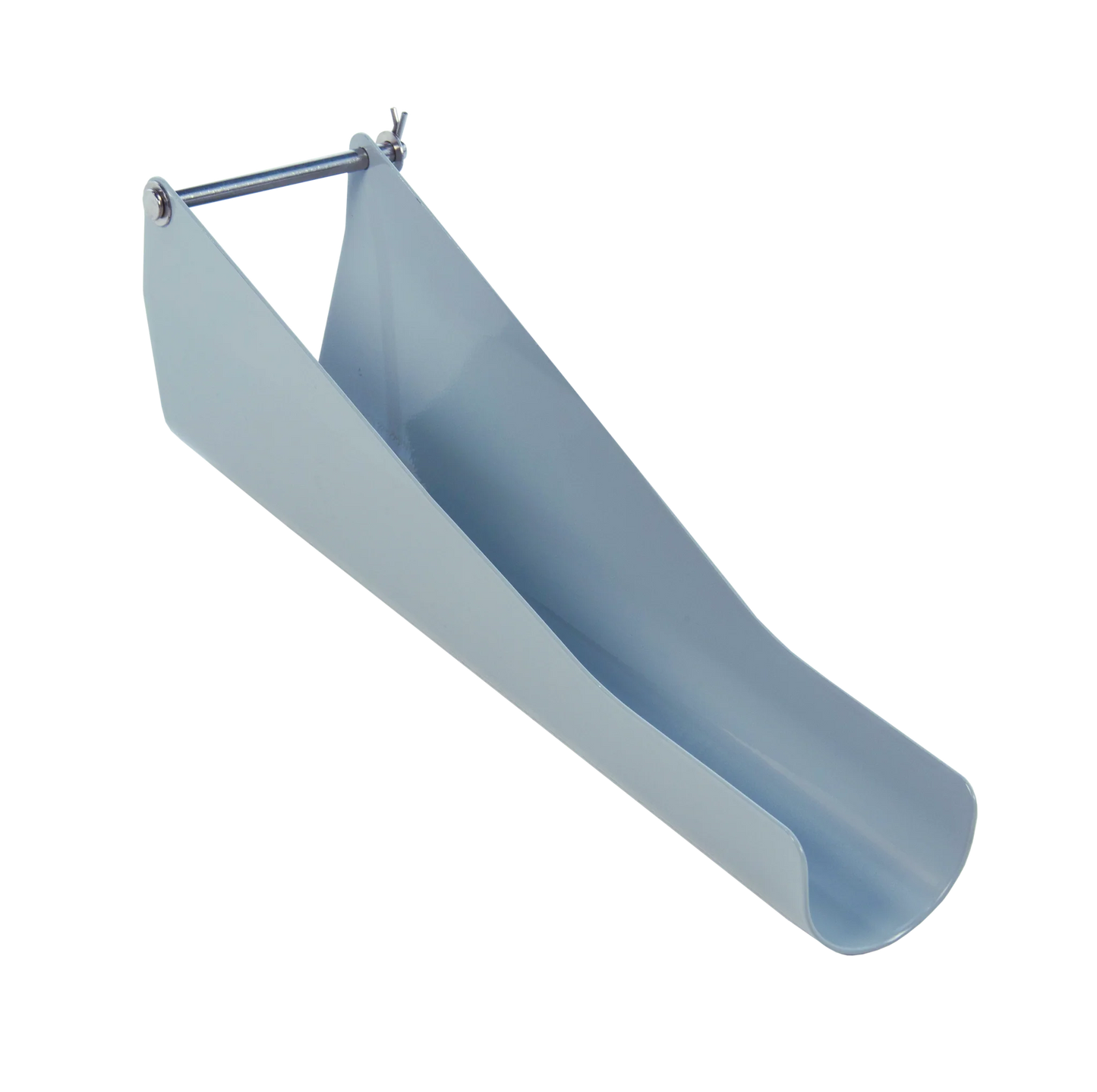

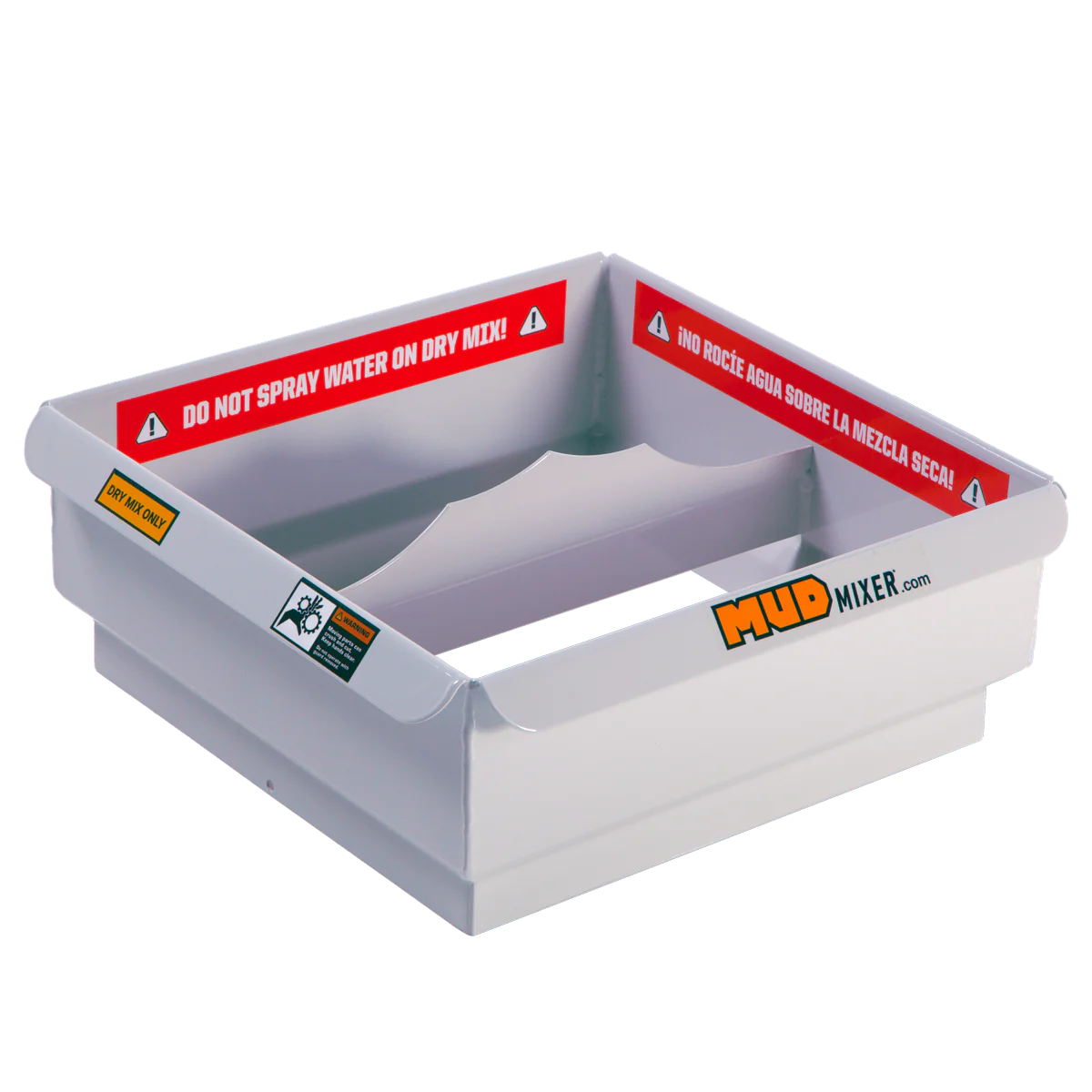

The Hopper Extension increases your loading capacity up to 300 lbs of dry mix, reducing downtime. The Chute Extension adds extended reach for cleaner pours into forms, slabs, or wheelbarrows.
Cleaning & Maintenance
How do I clean the MudMixer Evolution after use?
Run clean water through the system for 2–3 minutes immediately after mixing. Power off the unit, remove the auger, and rinse thoroughly. Do not allow material to harden inside the hopper or chute.
Does the mixer need regular lubrication?
Lubricate wheel axles and pivot points as recommended in the maintenance guide. Avoid using grease inside the hopper or chute where it could contaminate the mix.
What should I do if the auger becomes jammed?
Turn off and unplug the mixer before attempting to clear the jam. Remove the auger and clean the obstruction manually. Never reach inside the hopper or chute while the unit is powered.
Specifications & Parts
What are the dimensions and weight?

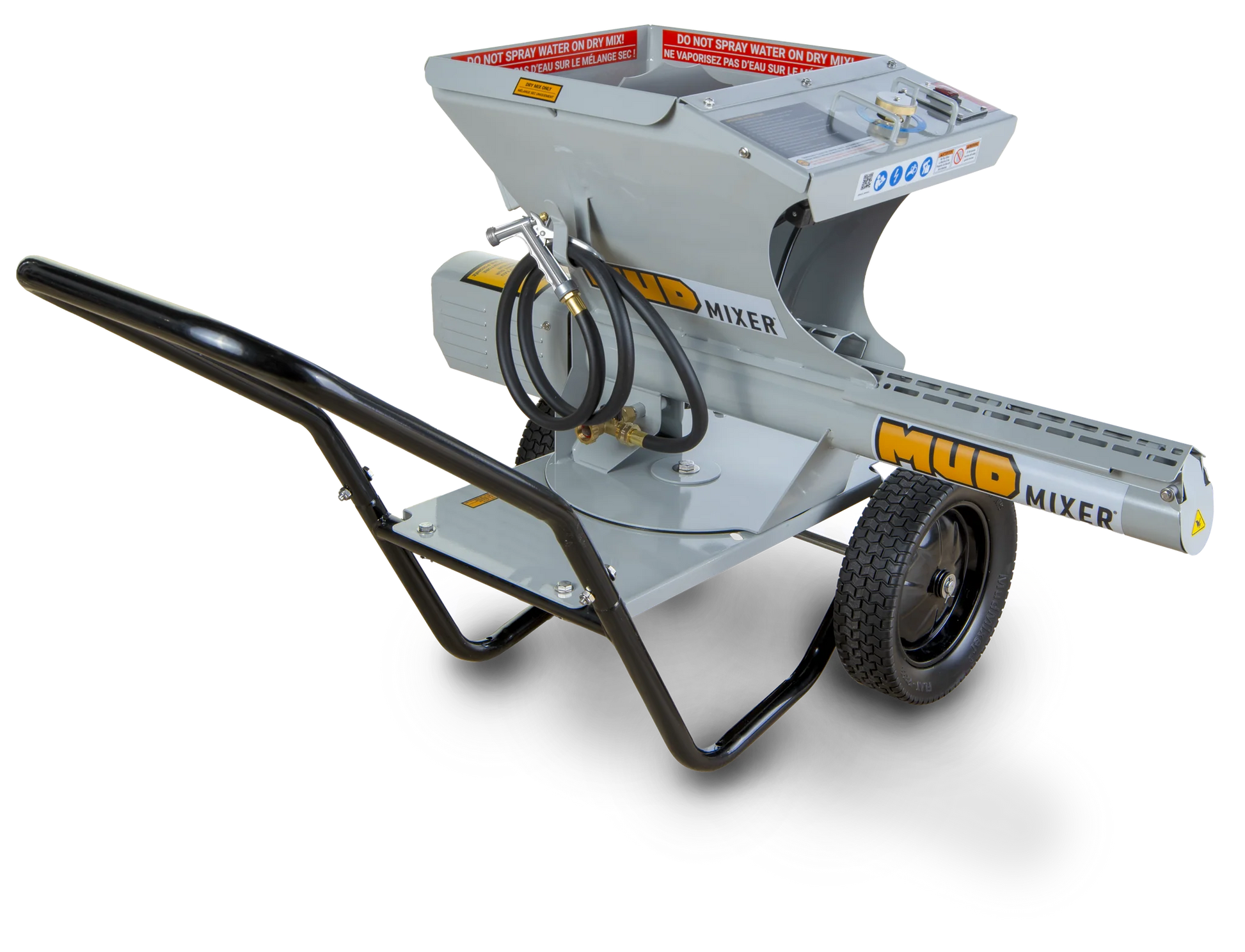

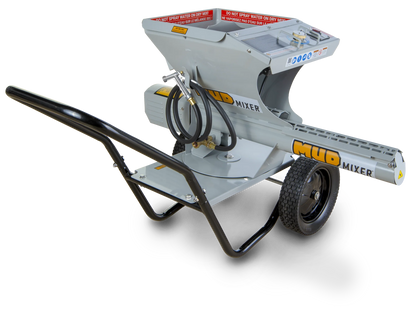

The MudMixer Evolution measures approximately 66.5 in. long, 27.5 in. wide, and 35 in. tall. It weighs around 145 lbs, making it both rugged and easy to maneuver on the jobsite.
Is the MudMixer easy to move?
Yes. It uses flat-free tires, a reinforced steel frame, and a pivot-latch system that locks securely at multiple working angles.
Where can I find manuals and documentation?
All manuals, service guides, schematics, and documentation can be found under the 'Documents' section near the top of the product page. These files are available for direct download.
Warranty & Support
What is the warranty period?
The MudMixer Evolution includes a 2-year manufacturer warranty covering defects in materials and workmanship under normal use.
How do I contact customer support?
For assistance, email Concrete Tools Direct at support@concretetoolsdirect.com or call us at 855-281-1918. Please have your order number and serial number ready for faster support.
Do you offer downloadable manuals?
Yes. All digital manuals, parts lists, service guides, and additional documents are available in the 'Documents' section located near the top of the product page.
