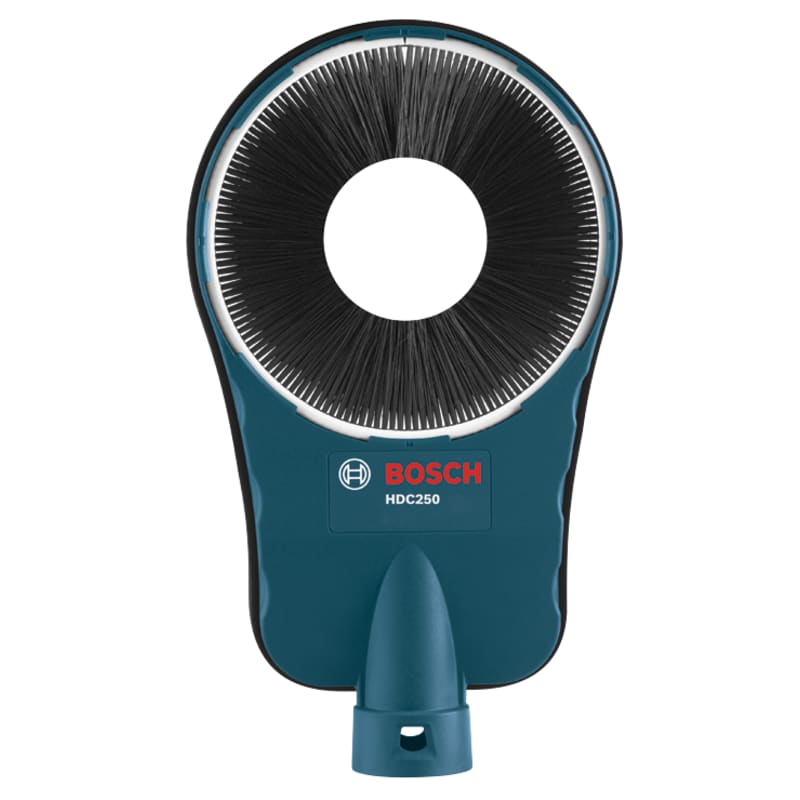

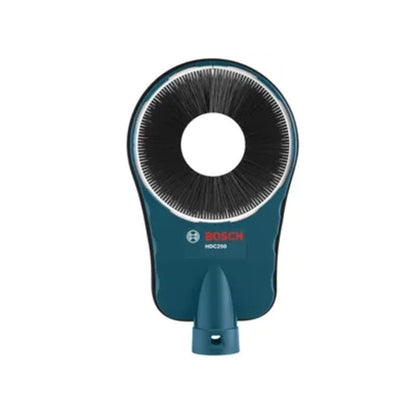

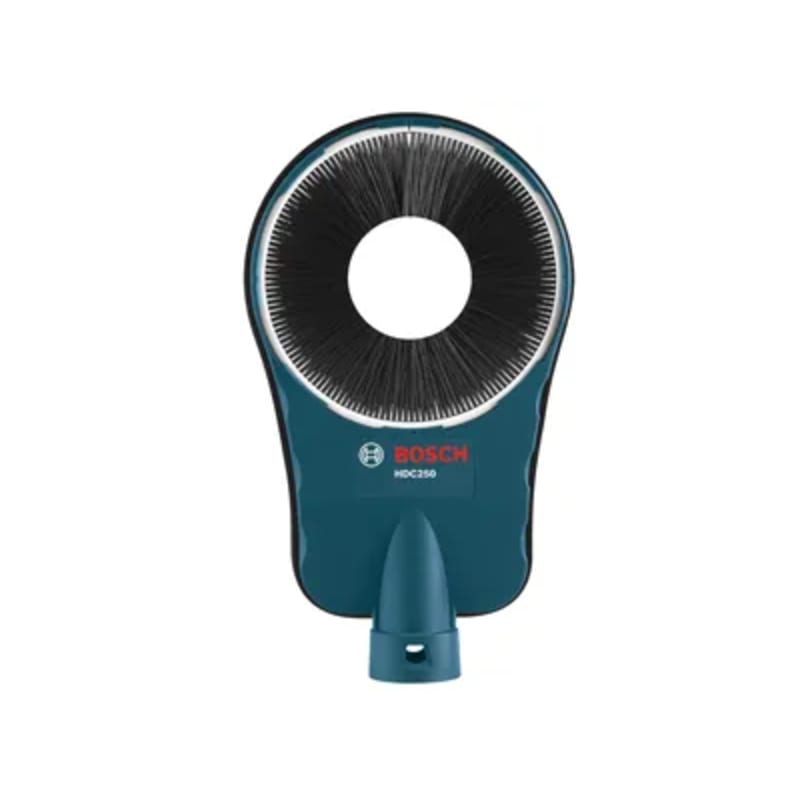

SDS-max® Core Bit Dust Collection Attachment

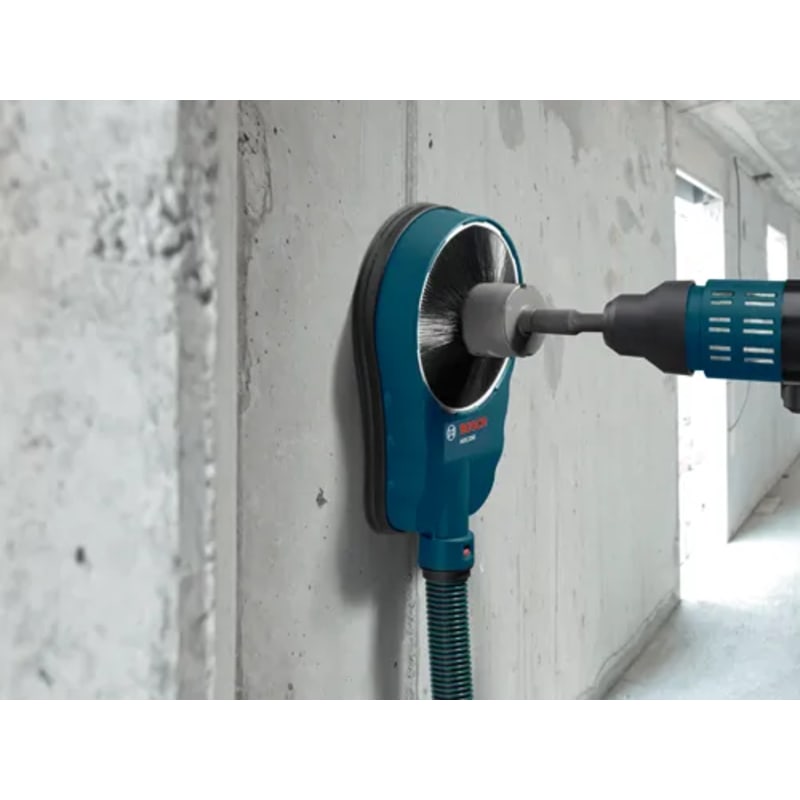

The HDC250 is a flexible dust collection attachment that captures dust at the source and maintains wall suction during concrete core drilling, with an optimized 1-1/2 In. to 5 In. range (up to 6 In. with the brush ring removed) and universal vacuum connectivity.

Key Features

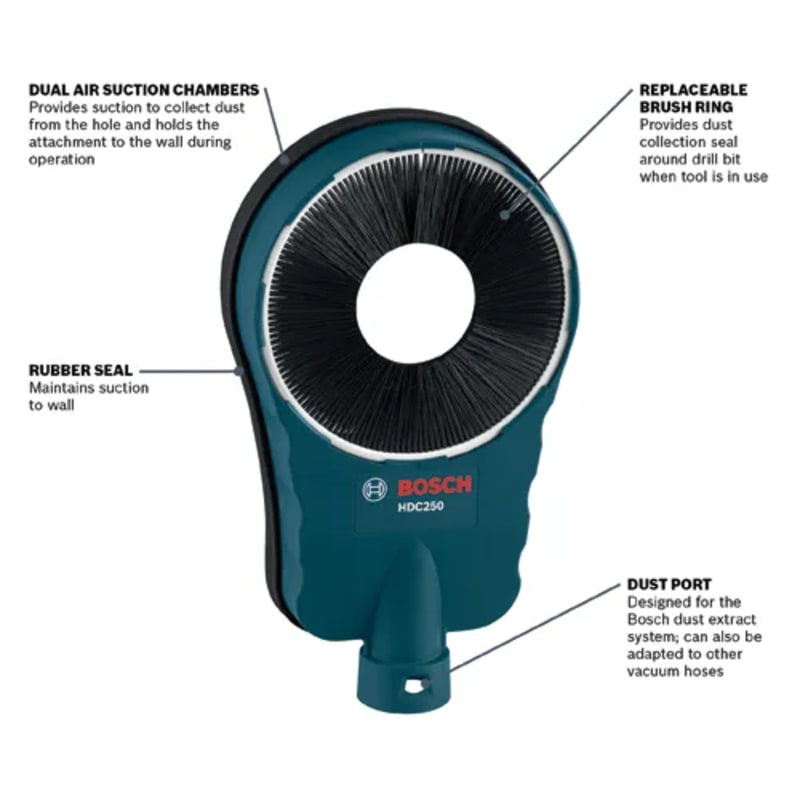

• Dual-chamber dust control — Two air chambers: one allows the bit to pass through and the other maintains suction against the wall during drilling.
• Wide diameter range — Optimized for 1-1/2 In. to 5 In. core bits; accommodates up to 6 In. when the brush ring is removed.
• Universal tool fit — Works with compatible rotary hammers, hammer drills, and drills that can drill 2-1/4 In. to 5 In. diameter holes (max 6 In. with brush ring removed).
• Vacuum-ready connectivity — Dust port fits Bosch 1-3/8 In. nozzle; use adapters for 1-1/4 In. or 2 In. nozzles (VAC002/VAC024 and VAC020), and connect to VH1635A (via included anti-static adapter), VAC008, VH1035, VH1635 (via VX120), VAC005, VAC006, and most other 1.38 in hoses.
• Lightweight plastic construction — 12 in overall length and 1.1 lb.

Package Includes

• Dust collection attachment with universal vacuum adapter

Choose the HDC250 to enhance dust capture and keep concrete core drilling cleaner and more efficient.
