Product Specifications
General
Model #
                    TVSA-H
                  Power Specifications

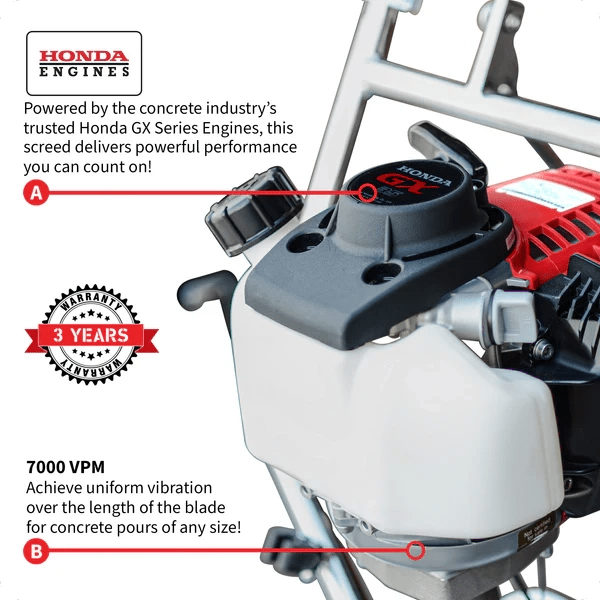

Engine Type
                    Honda
                  Power Source
                    Gas
                  Engine/Power Output
                    35cc
                  Compression Ratio
                    8.0:1
                  Displacement
                    35.8 cc
                  Bore x Stroke
                    39mm x 30mm
                  Net Power Output
                    1.3 HP (1.0 kW)
                  Net Torque
                    1.2 lb-ft (1.6 Nm)
                  Drive System
                    Flexible Shaft
                  Vibration Specifications
VPM
                    7,000

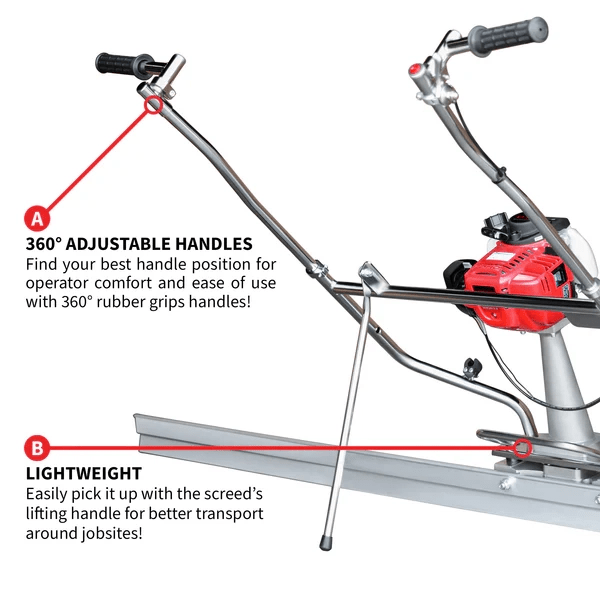

                  Handle Specifications
Handle Type
                    360°
                  Blade Specifications
Blade Sizes
                    4' - 16'

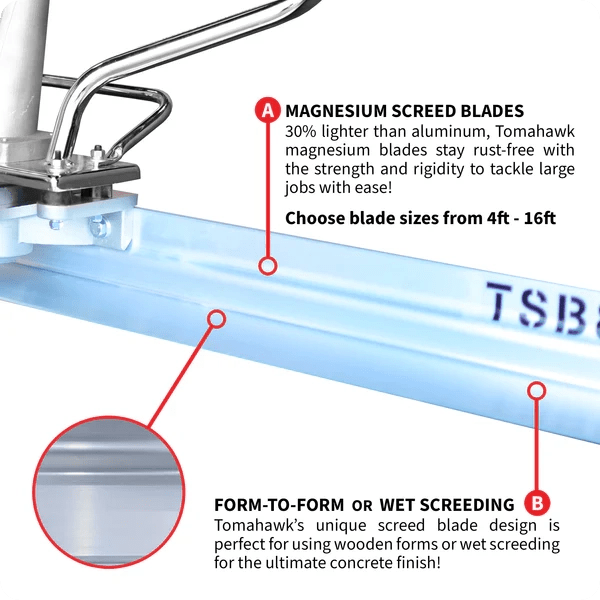

                  Blade Material
                    Magnesium
                  Weight Specifications
Weight (No Blade) lbs
                    40
                  Fuel Specifications
Fuel Tank Capacity
                    0.63 L
                  Oil Specifications
Oil Capacity
                    3.4 oz (100cc)
                  Dimensions Specifications
Dimensions (L x W x H)
                    36" x 25" x 40"
                  Drive System
Drive System
                    Flexible Shaft
                  Starting System
Starting System
                    Recoil
